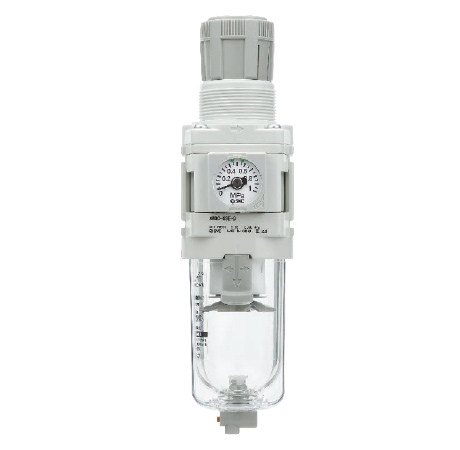

SMC AW60-D Modular Filter Regulator

SMC AW60-D Modular Filter Regulator

SMC modular filter regulator with built-in 5μm filter element (clean/low-particle spec).

Key features

  • Body size 60, port size: 3/4, 1
  • Setting pressure 0.05–0.85 MPa, max working pressure 1.0 MPa
  • Drain capacity: (refer to spec sheet)
  • Mass: 1.76 kg
  • Threads: Rc / NPT / G
  • Drain options: manual or N.C. auto drain (N.O. drain available on request)

Specifications

Body size 60
Reverse flow No
Setting pressure 0.05–0.85 MPa
Max working pressure 1.0 MPa
Filter rating 5 μm
Drain capacity (refer to spec sheet)
Mass 1.76 kg
Spec Clean/Low-particle (-D)
AW60-06-D Rc 3/4, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-06E-D Rc 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-06C-D Rc 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-06CE-D Rc 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-06B-D Rc 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-06BE-D Rc 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-06BC-D Rc 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-06BCE-D Rc 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-10-D Rc 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-10E-D Rc 1, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-10C-D Rc 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-10CE-D Rc 1, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-10B-D Rc 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-10BE-D Rc 1, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-10BC-D Rc 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-10BCE-D Rc 1, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N06-D NPT 3/4, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N06E-D NPT 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N06C-D NPT 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N06CE-D NPT 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N06B-D NPT 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N06BE-D NPT 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N06BC-D NPT 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N06BCE-D NPT 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N10-D NPT 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N10E-D NPT 1, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N10C-D NPT 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N10CE-D NPT 1, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N10B-D NPT 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N10BE-D NPT 1, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N10BC-D NPT 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N10BCE-D NPT 1, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F06-D G 3/4, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F06E-D G 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F06C-D G 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F06CE-D G 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F06B-D G 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F06BE-D G 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F06BC-D G 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F06BCE-D G 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F10-D G 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F10E-D G 1, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F10C-D G 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F10CE-D G 1, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F10B-D G 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F10BE-D G 1, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F10BC-D G 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F10BCE-D G 1, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
Filter RegulatorsSMC
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AW60-D Modular Filter Regulator

Brand SMC·Filter Regulators

Available part numbers (48)

AW60-06-D, AW60-06E-D, AW60-06C-D, AW60-06CE-D, AW60-06B-D, AW60-06BE-D, AW60-06BC-D, AW60-06BCE-D, AW60-10-D, AW60-10E-D + 38 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AW60-06-DRc 3/4, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-06E-DRc 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-06C-DRc 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-06CE-DRc 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-06B-DRc 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-06BE-DRc 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-06BC-DRc 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-06BCE-DRc 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-10-DRc 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-10E-DRc 1, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-10C-DRc 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-10CE-DRc 1, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-10B-DRc 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-10BE-DRc 1, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-10BC-DRc 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-10BCE-DRc 1, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N06-DNPT 3/4, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N06E-DNPT 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N06C-DNPT 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N06CE-DNPT 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N06B-DNPT 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N06BE-DNPT 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N06BC-DNPT 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N06BCE-DNPT 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N10-DNPT 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N10E-DNPT 1, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N10C-DNPT 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N10CE-DNPT 1, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N10B-DNPT 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N10BE-DNPT 1, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N10BC-DNPT 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-N10BCE-DNPT 1, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F06-DG 3/4, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F06E-DG 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F06C-DG 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F06CE-DG 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F06B-DG 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F06BE-DG 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F06BC-DG 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F06BCE-DG 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F10-DG 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F10E-DG 1, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F10C-DG 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F10CE-DG 1, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F10B-DG 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F10BE-DG 1, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F10BC-DG 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60-F10BCE-DG 1, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
