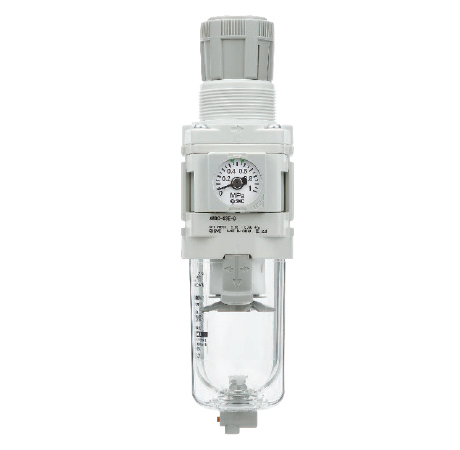

SMC AW60K-D Modular Filter Regulator (Reverse Flow)

SMC AW60K-D Modular Filter Regulator (Reverse Flow)

SMC modular filter regulator with built-in 5μm filter element (clean/low-particle spec).

Key features

  • Body size 60, port size: 3/4, 1
  • Setting pressure 0.05–0.85 MPa, max working pressure 1.0 MPa
  • Drain capacity: (refer to spec sheet)
  • Mass: 1.76 kg
  • Threads: Rc / NPT / G
  • Drain options: manual or N.C. auto drain (N.O. drain available on request)

Specifications

Body size 60
Reverse flow Yes
Setting pressure 0.05–0.85 MPa
Max working pressure 1.0 MPa
Filter rating 5 μm
Drain capacity (refer to spec sheet)
Mass 1.76 kg
Spec Clean/Low-particle (-D)
AW60K-06-D Reverse flow, Rc 3/4, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-06E-D Reverse flow, Rc 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-06C-D Reverse flow, Rc 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-06CE-D Reverse flow, Rc 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-06B-D Reverse flow, Rc 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-06BE-D Reverse flow, Rc 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-06BC-D Reverse flow, Rc 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-06BCE-D Reverse flow, Rc 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-10-D Reverse flow, Rc 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-10E-D Reverse flow, Rc 1, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-10C-D Reverse flow, Rc 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-10CE-D Reverse flow, Rc 1, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-10B-D Reverse flow, Rc 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-10BE-D Reverse flow, Rc 1, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-10BC-D Reverse flow, Rc 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-10BCE-D Reverse flow, Rc 1, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N06-D Reverse flow, NPT 3/4, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N06E-D Reverse flow, NPT 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N06C-D Reverse flow, NPT 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N06CE-D Reverse flow, NPT 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N06B-D Reverse flow, NPT 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N06BE-D Reverse flow, NPT 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N06BC-D Reverse flow, NPT 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N06BCE-D Reverse flow, NPT 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N10-D Reverse flow, NPT 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N10E-D Reverse flow, NPT 1, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N10C-D Reverse flow, NPT 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N10CE-D Reverse flow, NPT 1, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N10B-D Reverse flow, NPT 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N10BE-D Reverse flow, NPT 1, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N10BC-D Reverse flow, NPT 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N10BCE-D Reverse flow, NPT 1, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F06-D Reverse flow, G 3/4, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F06E-D Reverse flow, G 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F06C-D Reverse flow, G 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F06CE-D Reverse flow, G 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F06B-D Reverse flow, G 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F06BE-D Reverse flow, G 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F06BC-D Reverse flow, G 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F06BCE-D Reverse flow, G 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F10-D Reverse flow, G 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F10E-D Reverse flow, G 1, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F10C-D Reverse flow, G 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F10CE-D Reverse flow, G 1, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F10B-D Reverse flow, G 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F10BE-D Reverse flow, G 1, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F10BC-D Reverse flow, G 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F10BCE-D Reverse flow, G 1, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
Filter RegulatorsSMC
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AW60K-D Modular Filter Regulator (Reverse Flow)

Brand SMC·Filter Regulators

Available part numbers (48)

AW60K-06-D, AW60K-06E-D, AW60K-06C-D, AW60K-06CE-D, AW60K-06B-D, AW60K-06BE-D, AW60K-06BC-D, AW60K-06BCE-D, AW60K-10-D, AW60K-10E-D + 38 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AW60K-06-DReverse flow, Rc 3/4, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-06E-DReverse flow, Rc 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-06C-DReverse flow, Rc 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-06CE-DReverse flow, Rc 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-06B-DReverse flow, Rc 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-06BE-DReverse flow, Rc 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-06BC-DReverse flow, Rc 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-06BCE-DReverse flow, Rc 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-10-DReverse flow, Rc 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-10E-DReverse flow, Rc 1, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-10C-DReverse flow, Rc 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-10CE-DReverse flow, Rc 1, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-10B-DReverse flow, Rc 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-10BE-DReverse flow, Rc 1, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-10BC-DReverse flow, Rc 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-10BCE-DReverse flow, Rc 1, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: Rc | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N06-DReverse flow, NPT 3/4, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N06E-DReverse flow, NPT 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N06C-DReverse flow, NPT 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N06CE-DReverse flow, NPT 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N06B-DReverse flow, NPT 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N06BE-DReverse flow, NPT 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N06BC-DReverse flow, NPT 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N06BCE-DReverse flow, NPT 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N10-DReverse flow, NPT 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N10E-DReverse flow, NPT 1, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N10C-DReverse flow, NPT 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N10CE-DReverse flow, NPT 1, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N10B-DReverse flow, NPT 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N10BE-DReverse flow, NPT 1, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N10BC-DReverse flow, NPT 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-N10BCE-DReverse flow, NPT 1, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: NPT | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F06-DReverse flow, G 3/4, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F06E-DReverse flow, G 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F06C-DReverse flow, G 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F06CE-DReverse flow, G 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F06B-DReverse flow, G 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F06BE-DReverse flow, G 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F06BC-DReverse flow, G 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F06BCE-DReverse flow, G 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 3/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F10-DReverse flow, G 1, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F10E-DReverse flow, G 1, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F10C-DReverse flow, G 1, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F10CE-DReverse flow, G 1, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F10B-DReverse flow, G 1, Bracket, Manual drain, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F10BE-DReverse flow, G 1, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F10BC-DReverse flow, G 1, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
AW60K-F10BCE-DReverse flow, G 1, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 60 | Thread: G | Port size: 1 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: (refer to spec sheet) | Mass: 1.76 kg | Spec: Clean/Low-particle (-D)
