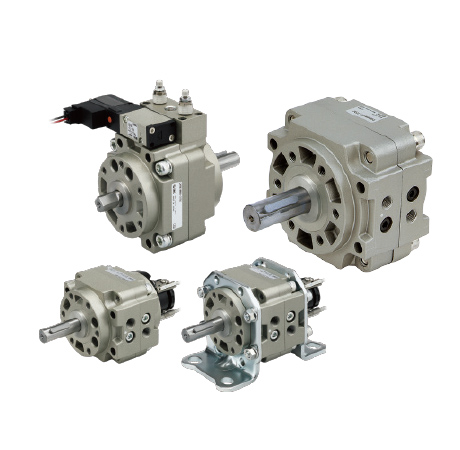

SMC CDRB1BW63 Vane Rotary Actuator (with magnet, large size)

SMC CDRB1BW63 Vane Rotary Actuator (with magnet, large size)

SMC vane-type rotary actuator, large size 63 (CRB1 series).

Key features

  • Mount type: Basic mount
  • Shaft type: Double shaft (long shaft Key + chamfer)
  • Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated)
  • Operating temperature: 5 to 60°C
  • Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa
  • Allowable shaft load: radial 390 N, thrust 340 N

Specifications

Body size 63
Type With magnet (for auto switch mounting)
Mount Basic mount
Shaft type Double shaft (long shaft Key + chamfer)
Lead wire length 0.5 m (standard)
Number of switches 2 (standard)
Operating fluid air (non-lubricated)
Operating temperature 5 to 60°C
Max working pressure 1.0 MPa
Proof pressure 1.5 MPa
Min working pressure 0.15 MPa
Allowable radial load 390 N
