• SMC CRB1LW100 Vane Rotary Actuator (large size)
1 1

SMC CRB1LW100 Vane Rotary Actuator (large size)

SMC CRB1LW100 Vane Rotary Actuator (large size)

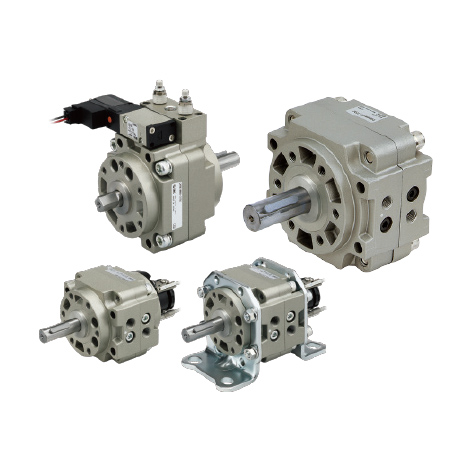

SMC vane-type rotary actuator, large size 100 (CRB1 series).

Key features

  • Mount type: Foot mount
  • Shaft type: Double shaft (long shaft Key + chamfer)
  • Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated)
  • Operating temperature: 5 to 60°C
  • Max working pressure: 1.0 MPa, proof pressure: 1.5 MPa, min working pressure: 0.15 MPa
  • Allowable shaft load: radial 588 N, thrust 539 N

Specifications

Body size 100
Type Standard (without auto switch)
Mount Foot mount
Shaft type Double shaft (long shaft Key + chamfer)
Operating fluid air (non-lubricated)
Operating temperature 5 to 60°C
Max working pressure 1.0 MPa
Proof pressure 1.5 MPa
Min working pressure 0.15 MPa
Allowable radial load 588 N
Allowable thrust load 539 N
Port size Rc 1/4
CRB1LW100-90S 90° rotation, Single vane, Body side port | Body size: 100 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body side port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5712 g
CRB1LW100-90SE 90° rotation, Single vane, Body axial port | Body size: 100 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 90° | Port position: Body axial port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5712 g
CRB1LW100-180S 180° rotation, Single vane, Body side port | Body size: 100 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body side port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5602 g
CRB1LW100-180SE 180° rotation, Single vane, Body axial port | Body size: 100 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 180° | Port position: Body axial port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5602 g
CRB1LW100-270S 270° rotation, Single vane, Body side port | Body size: 100 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body side port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5482 g
CRB1LW100-270SE 270° rotation, Single vane, Body axial port | Body size: 100 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Single vane | Rotation angle: 270° | Port position: Body axial port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5482 g
CRB1LW100-90D 90° rotation, Double vane, Body side port | Body size: 100 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body side port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5872 g
CRB1LW100-90DE 90° rotation, Double vane, Body axial port | Body size: 100 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 90° | Port position: Body axial port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5872 g
CRB1LW100-100D 100° rotation, Double vane, Body side port | Body size: 100 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body side port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5822 g
CRB1LW100-100DE 100° rotation, Double vane, Body axial port | Body size: 100 | Type: Standard (without auto switch) | Mount: Foot mount | Shaft type: Double shaft (long shaft Key + chamfer) | Vane type: Double vane | Rotation angle: 100° | Port position: Body axial port | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.15 MPa | Allowable radial load: 588 N | Allowable thrust load: 539 N | Port size: Rc 1/4 | Port thread: Rc | Mass: 5822 g
