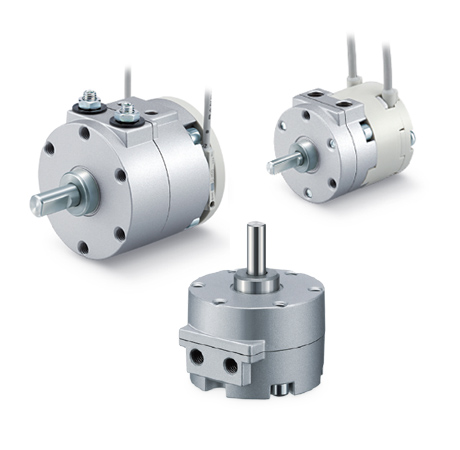

SMC CRBS15 Vane Rotary Actuator

SMC CRBS15 Vane Rotary Actuator

SMC vane-type rotary actuator, body size 15.

Key features

  • Shaft type: Single shaft (one-side, with flat)
  • Available rotation angles: single vane 90°/180°/270°, double vane (NEW) 90°/100°. Operating fluid: air (non-lubricated)
  • Operating temperature: 5 to 60°C
  • Max working pressure: 0.7 MPa, proof pressure: 1.05 MPa
  • Min working pressure: 0.2 MPa
  • Allowable shaft load: radial 15 N, thrust 10 N

Specifications

Body size 15
Type Standard (without auto switch)
Shaft type Single shaft (one-side, with flat)
Operating fluid air (non-lubricated)
Operating temperature 5 to 60°C
Max working pressure 0.7 MPa
Proof pressure 1.05 MPa
Min working pressure 0.2 MPa
Allowable radial load 15 N
Allowable thrust load 10 N
CRBS15-90 90° rotation, Single vane | Body size: 15 | Type: Standard (without auto switch) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 46 g
CRBS15-180 180° rotation, Single vane | Body size: 15 | Type: Standard (without auto switch) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 45 g
CRBS15-270 270° rotation, Single vane | Body size: 15 | Type: Standard (without auto switch) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 270° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M3×0.5 | Mass: 45 g
CRBS15-90D 90° rotation, Double vane (NEW) | Body size: 15 | Type: Standard (without auto switch) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 55 g
CRBS15-100D 100° rotation, Double vane (NEW) | Body size: 15 | Type: Standard (without auto switch) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 55 g
Rotary ActuatorsSMC
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CRBS15 Vane Rotary Actuator

Brand SMC·Rotary Actuators

Available part numbers (5)

CRBS15-90, CRBS15-180, CRBS15-270, CRBS15-90D, CRBS15-100D

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CRBS15-9090° rotation, Single vane | Body size: 15 | Type: Standard (without auto switch) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 90° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 46 g
CRBS15-180180° rotation, Single vane | Body size: 15 | Type: Standard (without auto switch) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 180° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 45 g
CRBS15-270270° rotation, Single vane | Body size: 15 | Type: Standard (without auto switch) | Shaft type: Single shaft (one-side, with flat) | Vane type: Single vane | Rotation angle: 270° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M3×0.5 | Mass: 45 g
CRBS15-90D90° rotation, Double vane (NEW) | Body size: 15 | Type: Standard (without auto switch) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 90° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 55 g
CRBS15-100D100° rotation, Double vane (NEW) | Body size: 15 | Type: Standard (without auto switch) | Shaft type: Single shaft (one-side, with flat) | Vane type: Double vane (NEW) | Rotation angle: 100° | Operating fluid: air (non-lubricated) | Operating temperature: 5 to 60°C | Max working pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Min working pressure: 0.2 MPa | Allowable radial load: 15 N | Allowable thrust load: 10 N | Port size: M5×0.8 | Mass: 55 g
