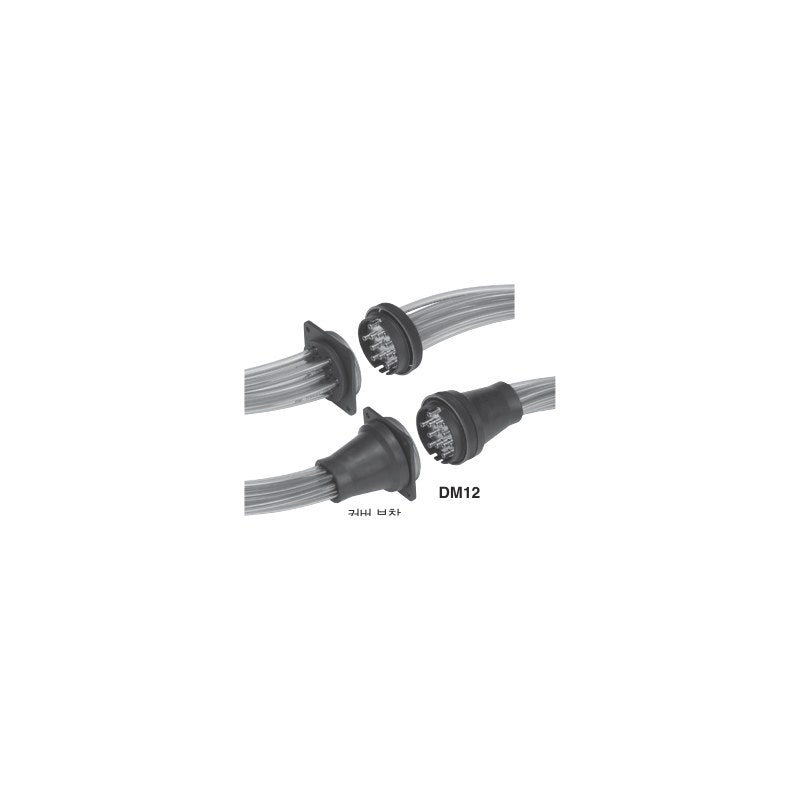

SMC DM Multi-connector (6 / 12 Tubes, Barb Type)

SMC DM Multi-connector (6 / 12 Tubes, Barb Type)

SMC DM series multi-connector that connects and disconnects 6 or 12 tubes in one touch at panels and machine interfaces.

Key features

  • Unique positioning mechanism: one-touch connection even out of sight, no piping mistakes on reconnection
  • Tubes held by barb and clamped with a single clamp bolt; expander on the stopper eases tube insertion
  • Replaces multiple bulkhead unions, reducing installation man-hours
  • Covers (C1 one side, C2 both sides) ordered as suffix; spare covers DM-C-6/12 and clamp rings DM6/12-P01
  • Ports are numbered identically on socket and plug sides

Specifications

Fluid Air
Max. operating pressure 1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Case and clamp ring material ADC12, black baked coating
Socket / plug material C3604
U-ring material NBR
Applicable tubes T0425/T0604 nylon, T0403/T0645 soft, TS/TU series
Source SMC Korea catalog DM Series (SMCKR_DM.pdf), p. 204-207
DM6-04N Tubes: 6 tubes | Shape: Plug and socket set | Tube OD: ø4 | Tube material: Nylon
DM6-04NU Tubes: 6 tubes | Shape: Plug and socket set | Tube OD: ø4 | Tube material: Soft nylon / polyurethane
DM6-06N Tubes: 6 tubes | Shape: Plug and socket set | Tube OD: ø6 | Tube material: Nylon
DM6-06NU Tubes: 6 tubes | Shape: Plug and socket set | Tube OD: ø6 | Tube material: Soft nylon / polyurethane
DM12-04N Tubes: 12 tubes | Shape: Plug and socket set | Tube OD: ø4 | Tube material: Nylon
DM12-04NU Tubes: 12 tubes | Shape: Plug and socket set | Tube OD: ø4 | Tube material: Soft nylon / polyurethane
DM12-06N Tubes: 12 tubes | Shape: Plug and socket set | Tube OD: ø6 | Tube material: Nylon
DM12-06NU Tubes: 12 tubes | Shape: Plug and socket set | Tube OD: ø6 | Tube material: Soft nylon / polyurethane
DM6P-04N Tubes: 6 tubes | Shape: Plug side only | Tube OD: ø4 | Tube material: Nylon
DM6P-04NU Tubes: 6 tubes | Shape: Plug side only | Tube OD: ø4 | Tube material: Soft nylon / polyurethane
DM6P-06N Tubes: 6 tubes | Shape: Plug side only | Tube OD: ø6 | Tube material: Nylon
DM6P-06NU Tubes: 6 tubes | Shape: Plug side only | Tube OD: ø6 | Tube material: Soft nylon / polyurethane
DM12P-04N Tubes: 12 tubes | Shape: Plug side only | Tube OD: ø4 | Tube material: Nylon
DM12P-04NU Tubes: 12 tubes | Shape: Plug side only | Tube OD: ø4 | Tube material: Soft nylon / polyurethane
DM12P-06N Tubes: 12 tubes | Shape: Plug side only | Tube OD: ø6 | Tube material: Nylon
DM12P-06NU Tubes: 12 tubes | Shape: Plug side only | Tube OD: ø6 | Tube material: Soft nylon / polyurethane
DM6S-04N Tubes: 6 tubes | Shape: Socket side only | Tube OD: ø4 | Tube material: Nylon
DM6S-04NU Tubes: 6 tubes | Shape: Socket side only | Tube OD: ø4 | Tube material: Soft nylon / polyurethane
DM6S-06N Tubes: 6 tubes | Shape: Socket side only | Tube OD: ø6 | Tube material: Nylon
DM6S-06NU Tubes: 6 tubes | Shape: Socket side only | Tube OD: ø6 | Tube material: Soft nylon / polyurethane
DM12S-04N Tubes: 12 tubes | Shape: Socket side only | Tube OD: ø4 | Tube material: Nylon
DM12S-04NU Tubes: 12 tubes | Shape: Socket side only | Tube OD: ø4 | Tube material: Soft nylon / polyurethane
DM12S-06N Tubes: 12 tubes | Shape: Socket side only | Tube OD: ø6 | Tube material: Nylon
DM12S-06NU Tubes: 12 tubes | Shape: Socket side only | Tube OD: ø6 | Tube material: Soft nylon / polyurethane
