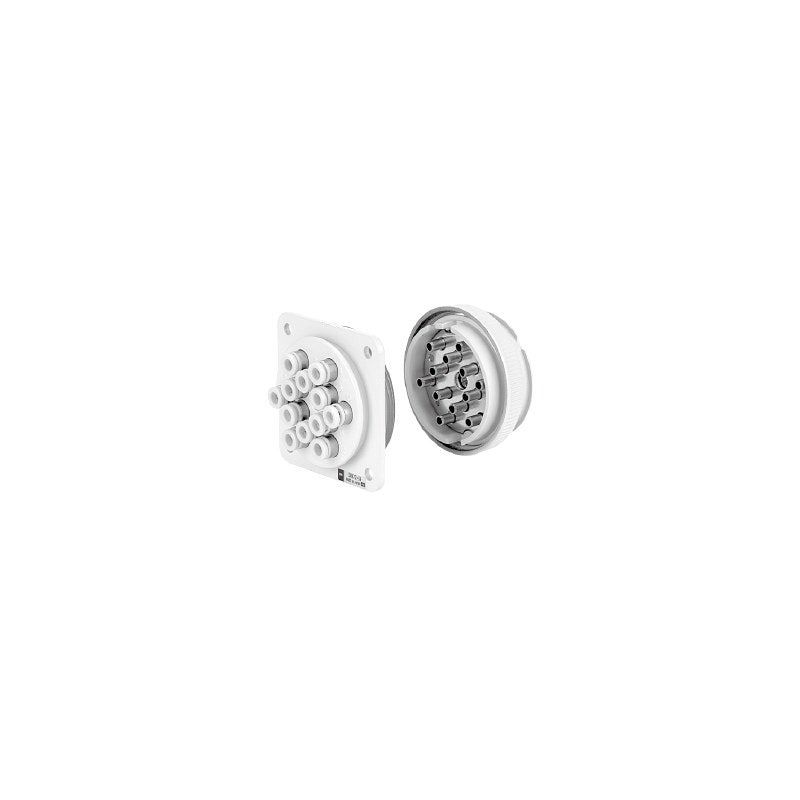

SMC DMK Multi-connector with One-touch Fittings (6 / 12 Tubes)

SMC DMK Multi-connector with One-touch Fittings (6 / 12 Tubes)

SMC DMK series multi-connector with built-in one-touch mini fittings for connecting 6 or 12 ø3.2 or ø4 tubes in one operation.

Key features

  • One-touch fitting on each port for nylon, soft nylon and polyurethane tube
  • Positioning lugs allow correct connection even out of sight; no mis-piping after reconnection
  • Plug and socket joined by a clamp ring; U-ring seal
  • Covers (C1 one side, C2 both sides) ordered as suffix; spare covers DMK-C-6/12 and clamp rings DMK6/12-P01

Specifications

Fluid Air
Operating pressure range 0 to 1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tube material Nylon, soft nylon, polyurethane
Case material ADC12, chromate and baked coating
Socket / plug material C3604 electroless nickel plated, POM, SUS304
Seal material NBR
Source SMC Korea catalog DMK Series (SMCKR_DMK.pdf), p. 248-250
DMK6P-23 Tubes: 6 tubes | Shape: Plug side only | Tube OD: ø3.2
DMK6P-04 Tubes: 6 tubes | Shape: Plug side only | Tube OD: ø4
DMK12P-23 Tubes: 12 tubes | Shape: Plug side only | Tube OD: ø3.2
DMK12P-04 Tubes: 12 tubes | Shape: Plug side only | Tube OD: ø4
DMK6-23 Tubes: 6 tubes | Shape: Plug and socket set | Tube OD: ø3.2
DMK6-04 Tubes: 6 tubes | Shape: Plug and socket set | Tube OD: ø4
DMK12-23 Tubes: 12 tubes | Shape: Plug and socket set | Tube OD: ø3.2
DMK12-04 Tubes: 12 tubes | Shape: Plug and socket set | Tube OD: ø4
DMK6S-23 Tubes: 6 tubes | Shape: Socket side only | Tube OD: ø3.2
DMK6S-04 Tubes: 6 tubes | Shape: Socket side only | Tube OD: ø4
DMK12S-23 Tubes: 12 tubes | Shape: Socket side only | Tube OD: ø3.2
DMK12S-04 Tubes: 12 tubes | Shape: Socket side only | Tube OD: ø4
FittingsSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC DMK Multi-connector with One-touch Fittings (6 / 12 Tubes)

Brand SMC·Fittings

Available part numbers (12)

DMK6P-23, DMK6P-04, DMK12P-23, DMK12P-04, DMK6-23, DMK6-04, DMK12-23, DMK12-04, DMK6S-23, DMK6S-04 + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DMK6P-23Tubes: 6 tubes | Shape: Plug side only | Tube OD: ø3.2
DMK6P-04Tubes: 6 tubes | Shape: Plug side only | Tube OD: ø4
DMK12P-23Tubes: 12 tubes | Shape: Plug side only | Tube OD: ø3.2
DMK12P-04Tubes: 12 tubes | Shape: Plug side only | Tube OD: ø4
DMK6-23Tubes: 6 tubes | Shape: Plug and socket set | Tube OD: ø3.2
DMK6-04Tubes: 6 tubes | Shape: Plug and socket set | Tube OD: ø4
DMK12-23Tubes: 12 tubes | Shape: Plug and socket set | Tube OD: ø3.2
DMK12-04Tubes: 12 tubes | Shape: Plug and socket set | Tube OD: ø4
DMK6S-23Tubes: 6 tubes | Shape: Socket side only | Tube OD: ø3.2
DMK6S-04Tubes: 6 tubes | Shape: Socket side only | Tube OD: ø4
DMK12S-23Tubes: 12 tubes | Shape: Socket side only | Tube OD: ø3.2
DMK12S-04Tubes: 12 tubes | Shape: Socket side only | Tube OD: ø4
