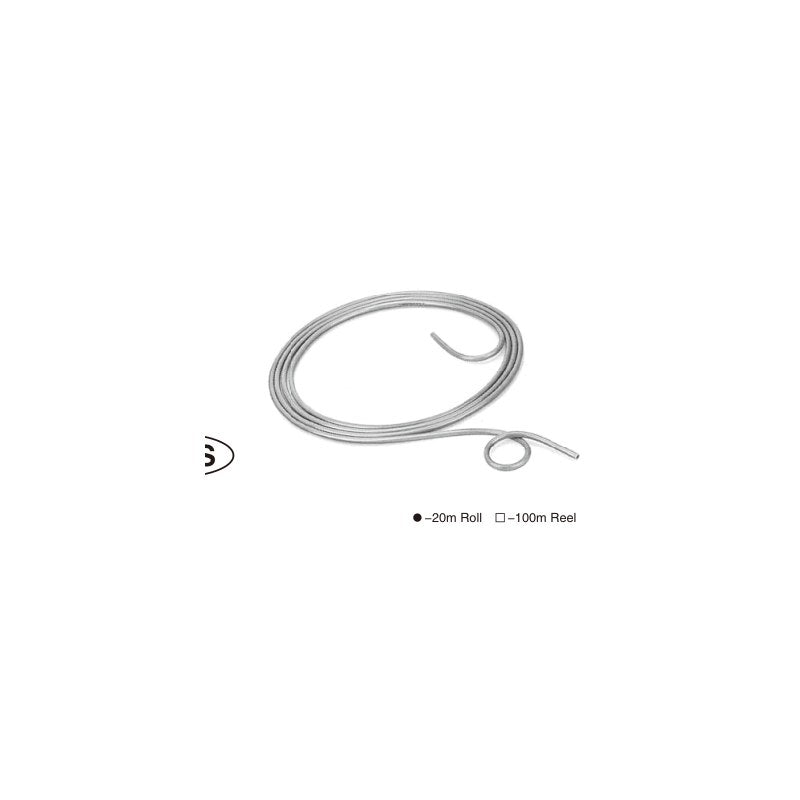

SMC HF2B-TU Food-Grade Polyurethane Tubing (4 to 12 mm, 20 m)

SMC HF2B-TU Food-Grade Polyurethane Tubing (4 to 12 mm, 20 m)

SMC HF2B-TU series polyurethane tubing for food manufacturing equipment, compliant with Japanese Food Sanitation Act, FDA 21 CFR 177.2600 and (EU) No 10/2011 elution tests, in ten colors and 20 m rolls.

Key features

  • Materials meet Japan Food Sanitation Act (MHLW Notice No. 370), FDA §177.2600 and (EU) No 10/2011 elution tests
  • HF2B series for food industry: no lubricants or rust inhibitors on exterior and wetted parts, or food-grade ones only
  • Five sizes from 4 to 12 mm OD in ten colors (opaque, translucent and natural clear)
  • For air and water; usable with one-touch, insert and miniature fittings
  • Inner sleeves TJ / TJG series recommended where unexpected tensile force may act on the tube
  • Supplied as 20 m roll; the tube body carries no printed model marking

Specifications

Fluid Air, water
Material Polyurethane
Max. operating pressure 0.8 MPa at 20°C, 0.65 MPa at 40°C, 0.5 MPa at 60°C (air)
Operating temperature Air -20 to 60°C, water 0 to 40°C (no freezing)
Applicable fittings One-touch, insert and miniature fittings
Roll length 20 m
Compliance Food Sanitation Act (JP), FDA §177.2600, (EU) No 10/2011
RoHS Compliant
Source SMC Korea catalog CAT.KS50-49A (SMCKR_HF2B-TU.pdf), p. 1-2 (PDF p. 1, 3)
HF2B-TU0425B-20 Tube OD x ID: 4 x 2.5 mm | Min. bending radius: 10 mm | Color: Black (opaque)
HF2B-TU0425W-20 Tube OD x ID: 4 x 2.5 mm | Min. bending radius: 10 mm | Color: White (opaque)
HF2B-TU0425R-20 Tube OD x ID: 4 x 2.5 mm | Min. bending radius: 10 mm | Color: Red (translucent)
HF2B-TU0425BU-20 Tube OD x ID: 4 x 2.5 mm | Min. bending radius: 10 mm | Color: Blue (translucent)
HF2B-TU0425Y-20 Tube OD x ID: 4 x 2.5 mm | Min. bending radius: 10 mm | Color: Yellow (opaque)
HF2B-TU0425G-20 Tube OD x ID: 4 x 2.5 mm | Min. bending radius: 10 mm | Color: Green (opaque)
HF2B-TU0425C-20 Tube OD x ID: 4 x 2.5 mm | Min. bending radius: 10 mm | Color: Clear (natural)
HF2B-TU0425YR-20 Tube OD x ID: 4 x 2.5 mm | Min. bending radius: 10 mm | Color: Orange (opaque)
HF2B-TU0425G2-20 Tube OD x ID: 4 x 2.5 mm | Min. bending radius: 10 mm | Color: Clear green (translucent)
HF2B-TU0425Y2-20 Tube OD x ID: 4 x 2.5 mm | Min. bending radius: 10 mm | Color: Clear yellow (translucent)
HF2B-TU0604B-20 Tube OD x ID: 6 x 4 mm | Min. bending radius: 15 mm | Color: Black (opaque)
HF2B-TU0604W-20 Tube OD x ID: 6 x 4 mm | Min. bending radius: 15 mm | Color: White (opaque)
HF2B-TU0604R-20 Tube OD x ID: 6 x 4 mm | Min. bending radius: 15 mm | Color: Red (translucent)
HF2B-TU0604BU-20 Tube OD x ID: 6 x 4 mm | Min. bending radius: 15 mm | Color: Blue (translucent)
HF2B-TU0604Y-20 Tube OD x ID: 6 x 4 mm | Min. bending radius: 15 mm | Color: Yellow (opaque)
HF2B-TU0604G-20 Tube OD x ID: 6 x 4 mm | Min. bending radius: 15 mm | Color: Green (opaque)
HF2B-TU0604C-20 Tube OD x ID: 6 x 4 mm | Min. bending radius: 15 mm | Color: Clear (natural)
HF2B-TU0604YR-20 Tube OD x ID: 6 x 4 mm | Min. bending radius: 15 mm | Color: Orange (opaque)
HF2B-TU0604G2-20 Tube OD x ID: 6 x 4 mm | Min. bending radius: 15 mm | Color: Clear green (translucent)
HF2B-TU0604Y2-20 Tube OD x ID: 6 x 4 mm | Min. bending radius: 15 mm | Color: Clear yellow (translucent)
HF2B-TU0805B-20 Tube OD x ID: 8 x 5 mm | Min. bending radius: 20 mm | Color: Black (opaque)
HF2B-TU0805W-20 Tube OD x ID: 8 x 5 mm | Min. bending radius: 20 mm | Color: White (opaque)
HF2B-TU0805R-20 Tube OD x ID: 8 x 5 mm | Min. bending radius: 20 mm | Color: Red (translucent)
HF2B-TU0805BU-20 Tube OD x ID: 8 x 5 mm | Min. bending radius: 20 mm | Color: Blue (translucent)
HF2B-TU0805Y-20 Tube OD x ID: 8 x 5 mm | Min. bending radius: 20 mm | Color: Yellow (opaque)
HF2B-TU0805G-20 Tube OD x ID: 8 x 5 mm | Min. bending radius: 20 mm | Color: Green (opaque)
HF2B-TU0805C-20 Tube OD x ID: 8 x 5 mm | Min. bending radius: 20 mm | Color: Clear (natural)
HF2B-TU0805YR-20 Tube OD x ID: 8 x 5 mm | Min. bending radius: 20 mm | Color: Orange (opaque)
HF2B-TU0805G2-20 Tube OD x ID: 8 x 5 mm | Min. bending radius: 20 mm | Color: Clear green (translucent)
HF2B-TU0805Y2-20 Tube OD x ID: 8 x 5 mm | Min. bending radius: 20 mm | Color: Clear yellow (translucent)
HF2B-TU1065B-20 Tube OD x ID: 10 x 6.5 mm | Min. bending radius: 27 mm | Color: Black (opaque)
HF2B-TU1065W-20 Tube OD x ID: 10 x 6.5 mm | Min. bending radius: 27 mm | Color: White (opaque)
HF2B-TU1065R-20 Tube OD x ID: 10 x 6.5 mm | Min. bending radius: 27 mm | Color: Red (translucent)
HF2B-TU1065BU-20 Tube OD x ID: 10 x 6.5 mm | Min. bending radius: 27 mm | Color: Blue (translucent)
HF2B-TU1065Y-20 Tube OD x ID: 10 x 6.5 mm | Min. bending radius: 27 mm | Color: Yellow (opaque)
HF2B-TU1065G-20 Tube OD x ID: 10 x 6.5 mm | Min. bending radius: 27 mm | Color: Green (opaque)
HF2B-TU1065C-20 Tube OD x ID: 10 x 6.5 mm | Min. bending radius: 27 mm | Color: Clear (natural)
HF2B-TU1065YR-20 Tube OD x ID: 10 x 6.5 mm | Min. bending radius: 27 mm | Color: Orange (opaque)
HF2B-TU1065G2-20 Tube OD x ID: 10 x 6.5 mm | Min. bending radius: 27 mm | Color: Clear green (translucent)
HF2B-TU1065Y2-20 Tube OD x ID: 10 x 6.5 mm | Min. bending radius: 27 mm | Color: Clear yellow (translucent)
HF2B-TU1208B-20 Tube OD x ID: 12 x 8 mm | Min. bending radius: 35 mm | Color: Black (opaque)
HF2B-TU1208W-20 Tube OD x ID: 12 x 8 mm | Min. bending radius: 35 mm | Color: White (opaque)
HF2B-TU1208R-20 Tube OD x ID: 12 x 8 mm | Min. bending radius: 35 mm | Color: Red (translucent)
HF2B-TU1208BU-20 Tube OD x ID: 12 x 8 mm | Min. bending radius: 35 mm | Color: Blue (translucent)
HF2B-TU1208Y-20 Tube OD x ID: 12 x 8 mm | Min. bending radius: 35 mm | Color: Yellow (opaque)
HF2B-TU1208G-20 Tube OD x ID: 12 x 8 mm | Min. bending radius: 35 mm | Color: Green (opaque)
HF2B-TU1208C-20 Tube OD x ID: 12 x 8 mm | Min. bending radius: 35 mm | Color: Clear (natural)
HF2B-TU1208YR-20 Tube OD x ID: 12 x 8 mm | Min. bending radius: 35 mm | Color: Orange (opaque)
HF2B-TU1208G2-20 Tube OD x ID: 12 x 8 mm | Min. bending radius: 35 mm | Color: Clear green (translucent)
HF2B-TU1208Y2-20 Tube OD x ID: 12 x 8 mm | Min. bending radius: 35 mm | Color: Clear yellow (translucent)
TubingSMC
50 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HF2B-TU Food-Grade Polyurethane Tubing (4 to 12 mm, 20 m)

Brand SMC·Tubing

Available part numbers (50)

HF2B-TU0425B-20, HF2B-TU0425W-20, HF2B-TU0425R-20, HF2B-TU0425BU-20, HF2B-TU0425Y-20, HF2B-TU0425G-20, HF2B-TU0425C-20, HF2B-TU0425YR-20, HF2B-TU0425G2-20, HF2B-TU0425Y2-20 + 40 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
