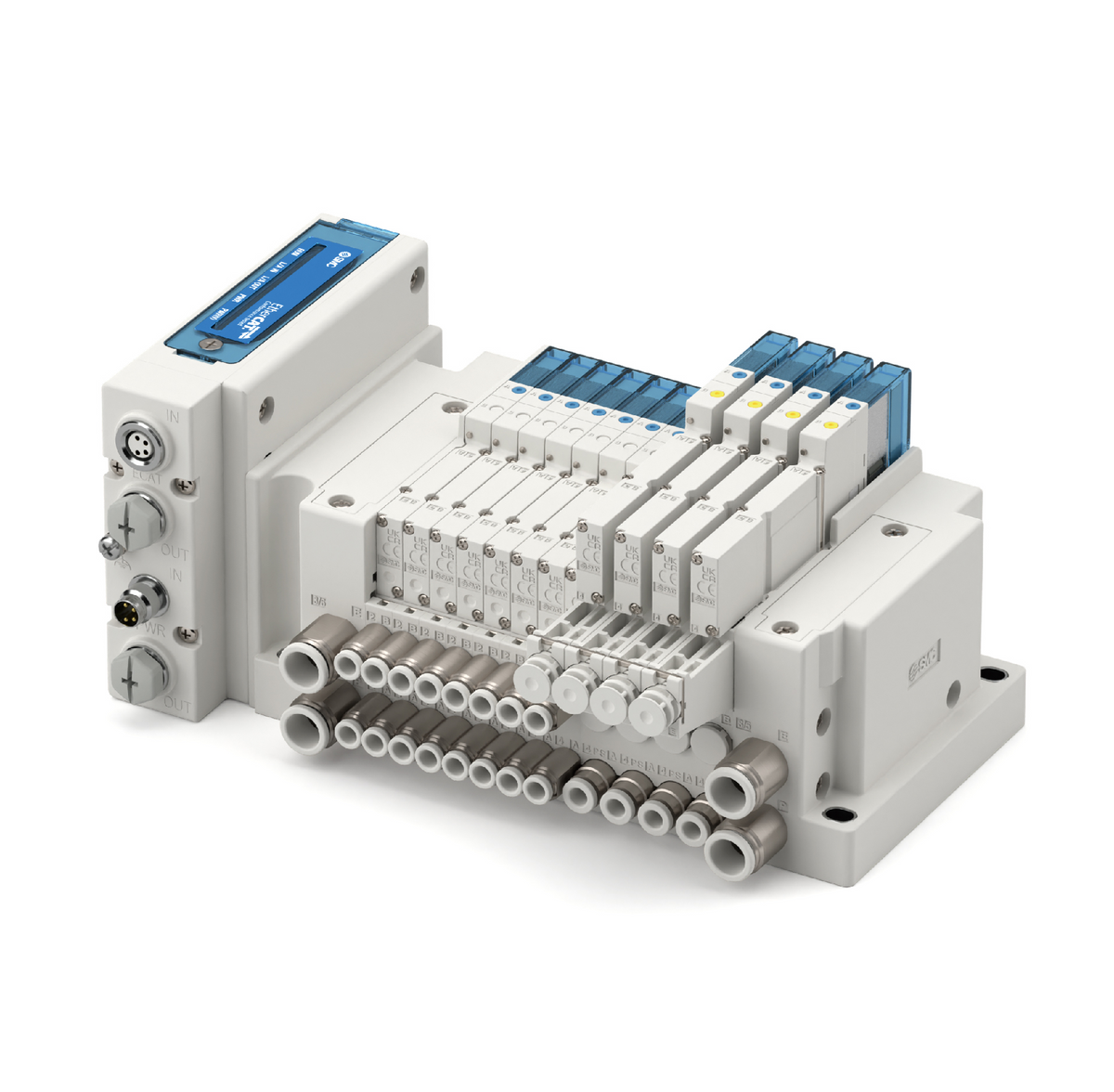

SMC JJ5SY1-E10 JSY1000-E Ejector System Integrated Valve Manifold

SMC JJ5SY1-E10 JSY1000-E Ejector System Integrated Valve Manifold

SMC ejector system integrated valve manifold, JSY1000-E series.

Key features

  • Manifold type: Plug-in connector base, side ported
  • Stations: 2-24 (configurable)
  • Wiring: EtherCAT (EX260) - Serial transmission
  • This 'All in One' compact manifold integrates vacuum generation, solenoid valve, vacuum break air control, suction confirmation pressure sensor, and SI unit into a single base, dramatically reducing wiring and piping
  • SUP/EXH ports: common SUP/EXH (3/5-port consolidation)
  • Internal wiring: -Common

Specifications

Series JSY1000-E
Manifold type Plug-in connector base, side ported
Wiring EtherCAT (EX260) - Serial transmission
Stations 2-24 (configurable)
SUP/EXH port method common SUP/EXH (3/5-port consolidation)
Internal wiring -Common
Built-in pressure sensors 1-5 units (configurable)
Port 1(P), 3/5(E) ø8 one-touch fitting
Port 4(A), 2(B) ø2/ø4/ø6 one-touch fitting
Mass per station ~21.3 g (6.5mm pitch) / ~26.9 g (9mm pitch)
Mass for wiring ~448 g (S-type EX260)
Flow characteristic (C8 port) C=0.63 dm³/(s·bar), b=0.46 (P->A/B)
JJ5SY1-E10 EtherCAT (EX260), Plug-in connector base, configurable 2-24 stations | Series: JSY1000-E | Manifold type: Plug-in connector base, side ported | Wiring: EtherCAT (EX260) - Serial transmission | Stations: 2-24 (configurable) | SUP/EXH port method: common SUP/EXH (3/5-port consolidation) | Internal wiring: -Common | Built-in pressure sensors: 1-5 units (configurable) | Port 1(P), 3/5(E): ø8 one-touch fitting | Port 4(A), 2(B): ø2/ø4/ø6 one-touch fitting | Mass per station: ~21.3 g (6.5mm pitch) / ~26.9 g (9mm pitch) | Mass for wiring: ~448 g (S-type EX260) | Flow characteristic (C8 port): C=0.63 dm³/(s·bar), b=0.46 (P->A/B) | Compatible valves: JSY1100/1200/1300/1400/1500/1A00 series | Communication: EtherCAT protocol | Function integration: vacuum + solenoid + sensor + SI unit (All in One)
