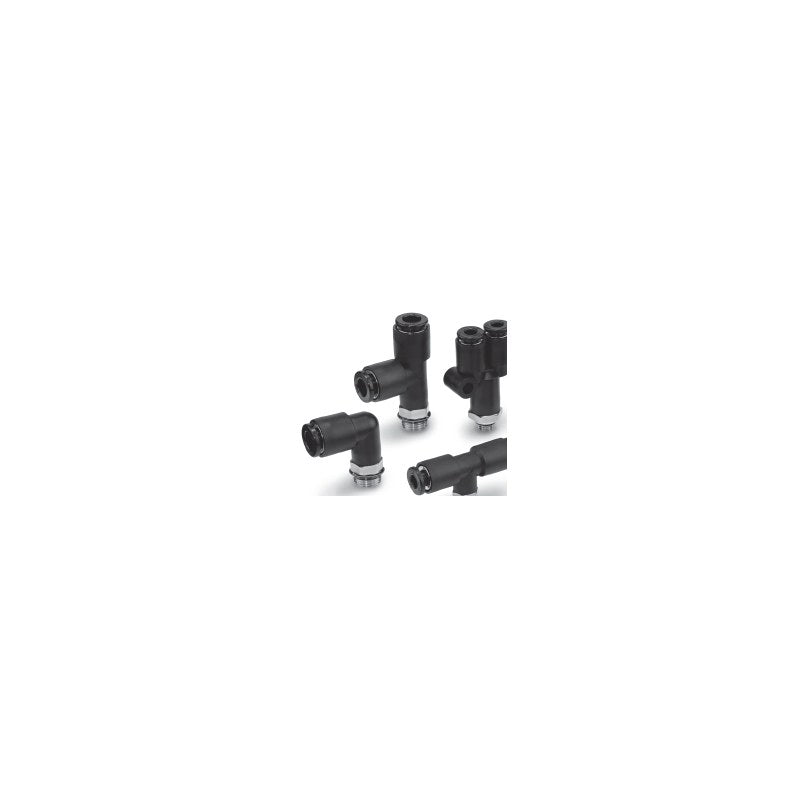

SMC KA Anti-Static One-Touch Fitting (Black, Tube OD 3.2-12)

SMC KA Anti-Static One-Touch Fitting (Black, Tube OD 3.2-12)

SMC KA series anti-static one-touch fittings use conductive resin (surface resistance 10^4 to 10^7 ohm) to prevent static build-up, for tube OD 3.2 to 12 mm.

Key features

  • Conductive, flame-resistant (UL-94 V-0 equivalent) PBT body and conductive NBR packing
  • Surface resistance 10^4 to 10^7 ohm; fitting must be grounded through the thread
  • Uni thread fits Rc, G, NPT and NPTF female ports with gasket seal; M5 and M6 threads with gasket
  • Usable from vacuum (-100 kPa) to 1 MPa; brass parts electroless nickel plated
  • Male connector, elbow, tee, branch, union and reducer types for anti-static soft nylon / polyurethane tubing
  • Replacement gaskets: M-5G2 (M5), M-6G (M6), KQG-U01 to U04 (Uni thread)

Specifications

Fluid Air
Operating pressure range -100 kPa to 1 MPa
Proof pressure 3 MPa
Ambient and fluid temperature 0 to 40 deg C
Surface resistance 10^4 to 10^7 ohm
Applicable tubing Anti-static soft nylon, anti-static polyurethane
Thread seal Gasket
Body color Black
Source SMC Korea catalog KA Series (SMCKR_KA.pdf), p. 391-395
KAH04-M5 Type: Male connector (KAH) | Tube OD: 4 mm | Connection: M5x0.8 male
KAH04-U01 Type: Male connector (KAH) | Tube OD: 4 mm | Connection: Uni 1/8 male
KAH06-M5 Type: Male connector (KAH) | Tube OD: 6 mm | Connection: M5x0.8 male
KAH06-U01 Type: Male connector (KAH) | Tube OD: 6 mm | Connection: Uni 1/8 male
KAH08-U01 Type: Male connector (KAH) | Tube OD: 8 mm | Connection: Uni 1/8 male
KAH08-U02 Type: Male connector (KAH) | Tube OD: 8 mm | Connection: Uni 1/4 male
KAH10-U02 Type: Male connector (KAH) | Tube OD: 10 mm | Connection: Uni 1/4 male
KAH10-U03 Type: Male connector (KAH) | Tube OD: 10 mm | Connection: Uni 3/8 male
KAH12-U02 Type: Male connector (KAH) | Tube OD: 12 mm | Connection: Uni 1/4 male
KAH12-U03 Type: Male connector (KAH) | Tube OD: 12 mm | Connection: Uni 3/8 male
KAH04-U02 Type: Male connector (KAH) | Tube OD: 4 mm | Connection: Uni 1/4 male
KAH10-U01 Type: Male connector (KAH) | Tube OD: 10 mm | Connection: Uni 1/8 male
KAH06-U02 Type: Male connector (KAH) | Tube OD: 6 mm | Connection: Uni 1/4 male
KAH08-U03 Type: Male connector (KAH) | Tube OD: 8 mm | Connection: Uni 3/8 male
KAH06-U03 Type: Male connector (KAH) | Tube OD: 6 mm | Connection: Uni 3/8 male
KAH10-U04 Type: Male connector (KAH) | Tube OD: 10 mm | Connection: Uni 1/2 male
KAH12-U04 Type: Male connector (KAH) | Tube OD: 12 mm | Connection: Uni 1/2 male
KAH23-M6 Type: Male connector (KAH) | Tube OD: 3.2 mm | Connection: M6x1 male
KAH23-U01 Type: Male connector (KAH) | Tube OD: 3.2 mm | Connection: Uni 1/8 male
KAH04-M6 Type: Male connector (KAH) | Tube OD: 4 mm | Connection: M6x1 male
KAH06-M6 Type: Male connector (KAH) | Tube OD: 6 mm | Connection: M6x1 male
KAH23-M5 Type: Male connector (KAH) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KAL04-M5 Type: Male elbow (KAL) | Tube OD: 4 mm | Connection: M5x0.8 male
KAL04-U01 Type: Male elbow (KAL) | Tube OD: 4 mm | Connection: Uni 1/8 male
KAL06-M5 Type: Male elbow (KAL) | Tube OD: 6 mm | Connection: M5x0.8 male
KAL06-U01 Type: Male elbow (KAL) | Tube OD: 6 mm | Connection: Uni 1/8 male
KAL08-U01 Type: Male elbow (KAL) | Tube OD: 8 mm | Connection: Uni 1/8 male
KAL08-U02 Type: Male elbow (KAL) | Tube OD: 8 mm | Connection: Uni 1/4 male
KAL10-U02 Type: Male elbow (KAL) | Tube OD: 10 mm | Connection: Uni 1/4 male
KAL10-U03 Type: Male elbow (KAL) | Tube OD: 10 mm | Connection: Uni 3/8 male
KAL12-U02 Type: Male elbow (KAL) | Tube OD: 12 mm | Connection: Uni 1/4 male
KAL12-U03 Type: Male elbow (KAL) | Tube OD: 12 mm | Connection: Uni 3/8 male
KAL04-U02 Type: Male elbow (KAL) | Tube OD: 4 mm | Connection: Uni 1/4 male
KAL10-U01 Type: Male elbow (KAL) | Tube OD: 10 mm | Connection: Uni 1/8 male
KAL06-U02 Type: Male elbow (KAL) | Tube OD: 6 mm | Connection: Uni 1/4 male
KAL08-U03 Type: Male elbow (KAL) | Tube OD: 8 mm | Connection: Uni 3/8 male
KAL06-U03 Type: Male elbow (KAL) | Tube OD: 6 mm | Connection: Uni 3/8 male
KAL10-U04 Type: Male elbow (KAL) | Tube OD: 10 mm | Connection: Uni 1/2 male
KAL12-U04 Type: Male elbow (KAL) | Tube OD: 12 mm | Connection: Uni 1/2 male
KAL23-M6 Type: Male elbow (KAL) | Tube OD: 3.2 mm | Connection: M6x1 male
KAL23-U01 Type: Male elbow (KAL) | Tube OD: 3.2 mm | Connection: Uni 1/8 male
KAL04-M6 Type: Male elbow (KAL) | Tube OD: 4 mm | Connection: M6x1 male
KAL06-M6 Type: Male elbow (KAL) | Tube OD: 6 mm | Connection: M6x1 male
KAL23-M5 Type: Male elbow (KAL) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KAT04-M5 Type: Branch tee (KAT) | Tube OD: 4 mm | Connection: M5x0.8 male
KAT04-U01 Type: Branch tee (KAT) | Tube OD: 4 mm | Connection: Uni 1/8 male
KAT06-M5 Type: Branch tee (KAT) | Tube OD: 6 mm | Connection: M5x0.8 male
KAT06-U01 Type: Branch tee (KAT) | Tube OD: 6 mm | Connection: Uni 1/8 male
KAT08-U01 Type: Branch tee (KAT) | Tube OD: 8 mm | Connection: Uni 1/8 male
KAT08-U02 Type: Branch tee (KAT) | Tube OD: 8 mm | Connection: Uni 1/4 male
KAT10-U02 Type: Branch tee (KAT) | Tube OD: 10 mm | Connection: Uni 1/4 male
KAT10-U03 Type: Branch tee (KAT) | Tube OD: 10 mm | Connection: Uni 3/8 male
KAT12-U02 Type: Branch tee (KAT) | Tube OD: 12 mm | Connection: Uni 1/4 male
KAT12-U03 Type: Branch tee (KAT) | Tube OD: 12 mm | Connection: Uni 3/8 male
KAT04-U02 Type: Branch tee (KAT) | Tube OD: 4 mm | Connection: Uni 1/4 male
KAT10-U01 Type: Branch tee (KAT) | Tube OD: 10 mm | Connection: Uni 1/8 male
KAT06-U02 Type: Branch tee (KAT) | Tube OD: 6 mm | Connection: Uni 1/4 male
KAT08-U03 Type: Branch tee (KAT) | Tube OD: 8 mm | Connection: Uni 3/8 male
KAT06-U03 Type: Branch tee (KAT) | Tube OD: 6 mm | Connection: Uni 3/8 male
KAT10-U04 Type: Branch tee (KAT) | Tube OD: 10 mm | Connection: Uni 1/2 male
KAT12-U04 Type: Branch tee (KAT) | Tube OD: 12 mm | Connection: Uni 1/2 male
KAT23-M6 Type: Branch tee (KAT) | Tube OD: 3.2 mm | Connection: M6x1 male
KAT23-U01 Type: Branch tee (KAT) | Tube OD: 3.2 mm | Connection: Uni 1/8 male
KAT04-M6 Type: Branch tee (KAT) | Tube OD: 4 mm | Connection: M6x1 male
KAT06-M6 Type: Branch tee (KAT) | Tube OD: 6 mm | Connection: M6x1 male
KAT23-M5 Type: Branch tee (KAT) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KAY04-M5 Type: Run tee (KAY) | Tube OD: 4 mm | Connection: M5x0.8 male
KAY04-U01 Type: Run tee (KAY) | Tube OD: 4 mm | Connection: Uni 1/8 male
KAY06-M5 Type: Run tee (KAY) | Tube OD: 6 mm | Connection: M5x0.8 male
KAY06-U01 Type: Run tee (KAY) | Tube OD: 6 mm | Connection: Uni 1/8 male
KAY08-U01 Type: Run tee (KAY) | Tube OD: 8 mm | Connection: Uni 1/8 male
KAY08-U02 Type: Run tee (KAY) | Tube OD: 8 mm | Connection: Uni 1/4 male
KAY10-U02 Type: Run tee (KAY) | Tube OD: 10 mm | Connection: Uni 1/4 male
KAY10-U03 Type: Run tee (KAY) | Tube OD: 10 mm | Connection: Uni 3/8 male
KAY12-U02 Type: Run tee (KAY) | Tube OD: 12 mm | Connection: Uni 1/4 male
KAY12-U03 Type: Run tee (KAY) | Tube OD: 12 mm | Connection: Uni 3/8 male
KAY04-U02 Type: Run tee (KAY) | Tube OD: 4 mm | Connection: Uni 1/4 male
KAY10-U01 Type: Run tee (KAY) | Tube OD: 10 mm | Connection: Uni 1/8 male
KAY06-U02 Type: Run tee (KAY) | Tube OD: 6 mm | Connection: Uni 1/4 male
KAY08-U03 Type: Run tee (KAY) | Tube OD: 8 mm | Connection: Uni 3/8 male
KAY06-U03 Type: Run tee (KAY) | Tube OD: 6 mm | Connection: Uni 3/8 male
KAY10-U04 Type: Run tee (KAY) | Tube OD: 10 mm | Connection: Uni 1/2 male
KAY12-U04 Type: Run tee (KAY) | Tube OD: 12 mm | Connection: Uni 1/2 male
KAY23-M6 Type: Run tee (KAY) | Tube OD: 3.2 mm | Connection: M6x1 male
KAY23-U01 Type: Run tee (KAY) | Tube OD: 3.2 mm | Connection: Uni 1/8 male
KAY04-M6 Type: Run tee (KAY) | Tube OD: 4 mm | Connection: M6x1 male
KAY06-M6 Type: Run tee (KAY) | Tube OD: 6 mm | Connection: M6x1 male
KAY23-M5 Type: Run tee (KAY) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KAU04-M5 Type: Branch Y (KAU) | Tube OD: 4 mm | Connection: M5x0.8 male
KAU04-U01 Type: Branch Y (KAU) | Tube OD: 4 mm | Connection: Uni 1/8 male
KAU06-M5 Type: Branch Y (KAU) | Tube OD: 6 mm | Connection: M5x0.8 male
KAU06-U01 Type: Branch Y (KAU) | Tube OD: 6 mm | Connection: Uni 1/8 male
KAU08-U01 Type: Branch Y (KAU) | Tube OD: 8 mm | Connection: Uni 1/8 male
KAU08-U02 Type: Branch Y (KAU) | Tube OD: 8 mm | Connection: Uni 1/4 male
KAU10-U02 Type: Branch Y (KAU) | Tube OD: 10 mm | Connection: Uni 1/4 male
KAU10-U03 Type: Branch Y (KAU) | Tube OD: 10 mm | Connection: Uni 3/8 male
KAU12-U02 Type: Branch Y (KAU) | Tube OD: 12 mm | Connection: Uni 1/4 male
KAU12-U03 Type: Branch Y (KAU) | Tube OD: 12 mm | Connection: Uni 3/8 male
KAU04-U02 Type: Branch Y (KAU) | Tube OD: 4 mm | Connection: Uni 1/4 male
KAU06-U02 Type: Branch Y (KAU) | Tube OD: 6 mm | Connection: Uni 1/4 male
KAU08-U03 Type: Branch Y (KAU) | Tube OD: 8 mm | Connection: Uni 3/8 male
KAU06-U03 Type: Branch Y (KAU) | Tube OD: 6 mm | Connection: Uni 3/8 male
KAU10-U04 Type: Branch Y (KAU) | Tube OD: 10 mm | Connection: Uni 1/2 male
KAU12-U04 Type: Branch Y (KAU) | Tube OD: 12 mm | Connection: Uni 1/2 male
KAU23-M6 Type: Branch Y (KAU) | Tube OD: 3.2 mm | Connection: M6x1 male
KAU23-U01 Type: Branch Y (KAU) | Tube OD: 3.2 mm | Connection: Uni 1/8 male
KAU04-M6 Type: Branch Y (KAU) | Tube OD: 4 mm | Connection: M6x1 male
KAU06-M6 Type: Branch Y (KAU) | Tube OD: 6 mm | Connection: M6x1 male
KAU23-M5 Type: Branch Y (KAU) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KAH08-00 Type: Union straight (KAH) | Tube OD: 8 mm | Connection: Tube to tube
KAH12-00 Type: Union straight (KAH) | Tube OD: 12 mm | Connection: Tube to tube
KAH04-00 Type: Union straight (KAH) | Tube OD: 4 mm | Connection: Tube to tube
KAH06-00 Type: Union straight (KAH) | Tube OD: 6 mm | Connection: Tube to tube
KAH10-00 Type: Union straight (KAH) | Tube OD: 10 mm | Connection: Tube to tube
KAH23-00 Type: Union straight (KAH) | Tube OD: 3.2 mm | Connection: Tube to tube
KAH08-10 Type: Union straight (KAH) | Tube OD: 8 mm | Connection: Second tube OD 10 mm
KAH04-06 Type: Union straight (KAH) | Tube OD: 4 mm | Connection: Second tube OD 6 mm
KAH06-08 Type: Union straight (KAH) | Tube OD: 6 mm | Connection: Second tube OD 8 mm
KAH10-12 Type: Union straight (KAH) | Tube OD: 10 mm | Connection: Second tube OD 12 mm
KAH23-04 Type: Union straight (KAH) | Tube OD: 3.2 mm | Connection: Second tube OD 4 mm
KAL08-00 Type: Union elbow (KAL) | Tube OD: 8 mm | Connection: Tube to tube
KAL12-00 Type: Union elbow (KAL) | Tube OD: 12 mm | Connection: Tube to tube
KAL04-00 Type: Union elbow (KAL) | Tube OD: 4 mm | Connection: Tube to tube
KAL06-00 Type: Union elbow (KAL) | Tube OD: 6 mm | Connection: Tube to tube
KAL10-00 Type: Union elbow (KAL) | Tube OD: 10 mm | Connection: Tube to tube
KAL23-00 Type: Union elbow (KAL) | Tube OD: 3.2 mm | Connection: Tube to tube
KAT08-00 Type: Union tee (KAT) | Tube OD: 8 mm | Connection: Tube to tube
KAT12-00 Type: Union tee (KAT) | Tube OD: 12 mm | Connection: Tube to tube
KAT04-00 Type: Union tee (KAT) | Tube OD: 4 mm | Connection: Tube to tube
KAT06-00 Type: Union tee (KAT) | Tube OD: 6 mm | Connection: Tube to tube
KAT10-00 Type: Union tee (KAT) | Tube OD: 10 mm | Connection: Tube to tube
KAT23-00 Type: Union tee (KAT) | Tube OD: 3.2 mm | Connection: Tube to tube
KAU08-00 Type: Union Y (KAU) | Tube OD: 8 mm | Connection: Tube to tube
KAU12-00 Type: Union Y (KAU) | Tube OD: 12 mm | Connection: Tube to tube
KAU04-00 Type: Union Y (KAU) | Tube OD: 4 mm | Connection: Tube to tube
KAU06-00 Type: Union Y (KAU) | Tube OD: 6 mm | Connection: Tube to tube
KAU10-00 Type: Union Y (KAU) | Tube OD: 10 mm | Connection: Tube to tube
KAU23-00 Type: Union Y (KAU) | Tube OD: 3.2 mm | Connection: Tube to tube
KAR04-10 Type: Plug-in reducer (KAR) | Tube OD: 4 mm | Connection: Fitting size 10 mm (plug-in)
KAR06-10 Type: Plug-in reducer (KAR) | Tube OD: 6 mm | Connection: Fitting size 10 mm (plug-in)
KAR04-06 Type: Plug-in reducer (KAR) | Tube OD: 4 mm | Connection: Fitting size 6 mm (plug-in)
KAR04-08 Type: Plug-in reducer (KAR) | Tube OD: 4 mm | Connection: Fitting size 8 mm (plug-in)
KAR06-08 Type: Plug-in reducer (KAR) | Tube OD: 6 mm | Connection: Fitting size 8 mm (plug-in)
KAR23-04 Type: Plug-in reducer (KAR) | Tube OD: 3.2 mm | Connection: Fitting size 4 mm (plug-in)
KAR06-12 Type: Plug-in reducer (KAR) | Tube OD: 6 mm | Connection: Fitting size 12 mm (plug-in)
KAR08-10 Type: Plug-in reducer (KAR) | Tube OD: 8 mm | Connection: Fitting size 10 mm (plug-in)
KAR08-12 Type: Plug-in reducer (KAR) | Tube OD: 8 mm | Connection: Fitting size 12 mm (plug-in)
KAR10-12 Type: Plug-in reducer (KAR) | Tube OD: 10 mm | Connection: Fitting size 12 mm (plug-in)
FittingsSMC
148 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC KA Anti-Static One-Touch Fitting (Black, Tube OD 3.2-12)

Brand SMC·Fittings

Available part numbers (148)

KAH04-M5, KAH04-U01, KAH06-M5, KAH06-U01, KAH08-U01, KAH08-U02, KAH10-U02, KAH10-U03, KAH12-U02, KAH12-U03 + 138 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KAH04-M5Type: Male connector (KAH) | Tube OD: 4 mm | Connection: M5x0.8 male
KAH04-U01Type: Male connector (KAH) | Tube OD: 4 mm | Connection: Uni 1/8 male
KAH06-M5Type: Male connector (KAH) | Tube OD: 6 mm | Connection: M5x0.8 male
KAH06-U01Type: Male connector (KAH) | Tube OD: 6 mm | Connection: Uni 1/8 male
KAH08-U01Type: Male connector (KAH) | Tube OD: 8 mm | Connection: Uni 1/8 male
KAH08-U02Type: Male connector (KAH) | Tube OD: 8 mm | Connection: Uni 1/4 male
KAH10-U02Type: Male connector (KAH) | Tube OD: 10 mm | Connection: Uni 1/4 male
KAH10-U03Type: Male connector (KAH) | Tube OD: 10 mm | Connection: Uni 3/8 male
KAH12-U02Type: Male connector (KAH) | Tube OD: 12 mm | Connection: Uni 1/4 male
KAH12-U03Type: Male connector (KAH) | Tube OD: 12 mm | Connection: Uni 3/8 male
KAH04-U02Type: Male connector (KAH) | Tube OD: 4 mm | Connection: Uni 1/4 male
KAH10-U01Type: Male connector (KAH) | Tube OD: 10 mm | Connection: Uni 1/8 male
KAH06-U02Type: Male connector (KAH) | Tube OD: 6 mm | Connection: Uni 1/4 male
KAH08-U03Type: Male connector (KAH) | Tube OD: 8 mm | Connection: Uni 3/8 male
KAH06-U03Type: Male connector (KAH) | Tube OD: 6 mm | Connection: Uni 3/8 male
KAH10-U04Type: Male connector (KAH) | Tube OD: 10 mm | Connection: Uni 1/2 male
KAH12-U04Type: Male connector (KAH) | Tube OD: 12 mm | Connection: Uni 1/2 male
KAH23-M6Type: Male connector (KAH) | Tube OD: 3.2 mm | Connection: M6x1 male
KAH23-U01Type: Male connector (KAH) | Tube OD: 3.2 mm | Connection: Uni 1/8 male
KAH04-M6Type: Male connector (KAH) | Tube OD: 4 mm | Connection: M6x1 male
KAH06-M6Type: Male connector (KAH) | Tube OD: 6 mm | Connection: M6x1 male
KAH23-M5Type: Male connector (KAH) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KAL04-M5Type: Male elbow (KAL) | Tube OD: 4 mm | Connection: M5x0.8 male
KAL04-U01Type: Male elbow (KAL) | Tube OD: 4 mm | Connection: Uni 1/8 male
KAL06-M5Type: Male elbow (KAL) | Tube OD: 6 mm | Connection: M5x0.8 male
KAL06-U01Type: Male elbow (KAL) | Tube OD: 6 mm | Connection: Uni 1/8 male
KAL08-U01Type: Male elbow (KAL) | Tube OD: 8 mm | Connection: Uni 1/8 male
KAL08-U02Type: Male elbow (KAL) | Tube OD: 8 mm | Connection: Uni 1/4 male
KAL10-U02Type: Male elbow (KAL) | Tube OD: 10 mm | Connection: Uni 1/4 male
KAL10-U03Type: Male elbow (KAL) | Tube OD: 10 mm | Connection: Uni 3/8 male
KAL12-U02Type: Male elbow (KAL) | Tube OD: 12 mm | Connection: Uni 1/4 male
KAL12-U03Type: Male elbow (KAL) | Tube OD: 12 mm | Connection: Uni 3/8 male
KAL04-U02Type: Male elbow (KAL) | Tube OD: 4 mm | Connection: Uni 1/4 male
KAL10-U01Type: Male elbow (KAL) | Tube OD: 10 mm | Connection: Uni 1/8 male
KAL06-U02Type: Male elbow (KAL) | Tube OD: 6 mm | Connection: Uni 1/4 male
KAL08-U03Type: Male elbow (KAL) | Tube OD: 8 mm | Connection: Uni 3/8 male
KAL06-U03Type: Male elbow (KAL) | Tube OD: 6 mm | Connection: Uni 3/8 male
KAL10-U04Type: Male elbow (KAL) | Tube OD: 10 mm | Connection: Uni 1/2 male
KAL12-U04Type: Male elbow (KAL) | Tube OD: 12 mm | Connection: Uni 1/2 male
KAL23-M6Type: Male elbow (KAL) | Tube OD: 3.2 mm | Connection: M6x1 male
KAL23-U01Type: Male elbow (KAL) | Tube OD: 3.2 mm | Connection: Uni 1/8 male
KAL04-M6Type: Male elbow (KAL) | Tube OD: 4 mm | Connection: M6x1 male
KAL06-M6Type: Male elbow (KAL) | Tube OD: 6 mm | Connection: M6x1 male
KAL23-M5Type: Male elbow (KAL) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KAT04-M5Type: Branch tee (KAT) | Tube OD: 4 mm | Connection: M5x0.8 male
KAT04-U01Type: Branch tee (KAT) | Tube OD: 4 mm | Connection: Uni 1/8 male
KAT06-M5Type: Branch tee (KAT) | Tube OD: 6 mm | Connection: M5x0.8 male
KAT06-U01Type: Branch tee (KAT) | Tube OD: 6 mm | Connection: Uni 1/8 male
KAT08-U01Type: Branch tee (KAT) | Tube OD: 8 mm | Connection: Uni 1/8 male
KAT08-U02Type: Branch tee (KAT) | Tube OD: 8 mm | Connection: Uni 1/4 male
KAT10-U02Type: Branch tee (KAT) | Tube OD: 10 mm | Connection: Uni 1/4 male
KAT10-U03Type: Branch tee (KAT) | Tube OD: 10 mm | Connection: Uni 3/8 male
KAT12-U02Type: Branch tee (KAT) | Tube OD: 12 mm | Connection: Uni 1/4 male
KAT12-U03Type: Branch tee (KAT) | Tube OD: 12 mm | Connection: Uni 3/8 male
KAT04-U02Type: Branch tee (KAT) | Tube OD: 4 mm | Connection: Uni 1/4 male
KAT10-U01Type: Branch tee (KAT) | Tube OD: 10 mm | Connection: Uni 1/8 male
KAT06-U02Type: Branch tee (KAT) | Tube OD: 6 mm | Connection: Uni 1/4 male
KAT08-U03Type: Branch tee (KAT) | Tube OD: 8 mm | Connection: Uni 3/8 male
KAT06-U03Type: Branch tee (KAT) | Tube OD: 6 mm | Connection: Uni 3/8 male
KAT10-U04Type: Branch tee (KAT) | Tube OD: 10 mm | Connection: Uni 1/2 male
KAT12-U04Type: Branch tee (KAT) | Tube OD: 12 mm | Connection: Uni 1/2 male
KAT23-M6Type: Branch tee (KAT) | Tube OD: 3.2 mm | Connection: M6x1 male
KAT23-U01Type: Branch tee (KAT) | Tube OD: 3.2 mm | Connection: Uni 1/8 male
KAT04-M6Type: Branch tee (KAT) | Tube OD: 4 mm | Connection: M6x1 male
KAT06-M6Type: Branch tee (KAT) | Tube OD: 6 mm | Connection: M6x1 male
KAT23-M5Type: Branch tee (KAT) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KAY04-M5Type: Run tee (KAY) | Tube OD: 4 mm | Connection: M5x0.8 male
KAY04-U01Type: Run tee (KAY) | Tube OD: 4 mm | Connection: Uni 1/8 male
KAY06-M5Type: Run tee (KAY) | Tube OD: 6 mm | Connection: M5x0.8 male
KAY06-U01Type: Run tee (KAY) | Tube OD: 6 mm | Connection: Uni 1/8 male
KAY08-U01Type: Run tee (KAY) | Tube OD: 8 mm | Connection: Uni 1/8 male
KAY08-U02Type: Run tee (KAY) | Tube OD: 8 mm | Connection: Uni 1/4 male
KAY10-U02Type: Run tee (KAY) | Tube OD: 10 mm | Connection: Uni 1/4 male
KAY10-U03Type: Run tee (KAY) | Tube OD: 10 mm | Connection: Uni 3/8 male
KAY12-U02Type: Run tee (KAY) | Tube OD: 12 mm | Connection: Uni 1/4 male
KAY12-U03Type: Run tee (KAY) | Tube OD: 12 mm | Connection: Uni 3/8 male
KAY04-U02Type: Run tee (KAY) | Tube OD: 4 mm | Connection: Uni 1/4 male
KAY10-U01Type: Run tee (KAY) | Tube OD: 10 mm | Connection: Uni 1/8 male
KAY06-U02Type: Run tee (KAY) | Tube OD: 6 mm | Connection: Uni 1/4 male
KAY08-U03Type: Run tee (KAY) | Tube OD: 8 mm | Connection: Uni 3/8 male
KAY06-U03Type: Run tee (KAY) | Tube OD: 6 mm | Connection: Uni 3/8 male
KAY10-U04Type: Run tee (KAY) | Tube OD: 10 mm | Connection: Uni 1/2 male
KAY12-U04Type: Run tee (KAY) | Tube OD: 12 mm | Connection: Uni 1/2 male
KAY23-M6Type: Run tee (KAY) | Tube OD: 3.2 mm | Connection: M6x1 male
KAY23-U01Type: Run tee (KAY) | Tube OD: 3.2 mm | Connection: Uni 1/8 male
KAY04-M6Type: Run tee (KAY) | Tube OD: 4 mm | Connection: M6x1 male
KAY06-M6Type: Run tee (KAY) | Tube OD: 6 mm | Connection: M6x1 male
KAY23-M5Type: Run tee (KAY) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KAU04-M5Type: Branch Y (KAU) | Tube OD: 4 mm | Connection: M5x0.8 male
KAU04-U01Type: Branch Y (KAU) | Tube OD: 4 mm | Connection: Uni 1/8 male
KAU06-M5Type: Branch Y (KAU) | Tube OD: 6 mm | Connection: M5x0.8 male
KAU06-U01Type: Branch Y (KAU) | Tube OD: 6 mm | Connection: Uni 1/8 male
KAU08-U01Type: Branch Y (KAU) | Tube OD: 8 mm | Connection: Uni 1/8 male
KAU08-U02Type: Branch Y (KAU) | Tube OD: 8 mm | Connection: Uni 1/4 male
KAU10-U02Type: Branch Y (KAU) | Tube OD: 10 mm | Connection: Uni 1/4 male
KAU10-U03Type: Branch Y (KAU) | Tube OD: 10 mm | Connection: Uni 3/8 male
KAU12-U02Type: Branch Y (KAU) | Tube OD: 12 mm | Connection: Uni 1/4 male
KAU12-U03Type: Branch Y (KAU) | Tube OD: 12 mm | Connection: Uni 3/8 male
KAU04-U02Type: Branch Y (KAU) | Tube OD: 4 mm | Connection: Uni 1/4 male
KAU06-U02Type: Branch Y (KAU) | Tube OD: 6 mm | Connection: Uni 1/4 male
KAU08-U03Type: Branch Y (KAU) | Tube OD: 8 mm | Connection: Uni 3/8 male
KAU06-U03Type: Branch Y (KAU) | Tube OD: 6 mm | Connection: Uni 3/8 male
KAU10-U04Type: Branch Y (KAU) | Tube OD: 10 mm | Connection: Uni 1/2 male
KAU12-U04Type: Branch Y (KAU) | Tube OD: 12 mm | Connection: Uni 1/2 male
KAU23-M6Type: Branch Y (KAU) | Tube OD: 3.2 mm | Connection: M6x1 male
KAU23-U01Type: Branch Y (KAU) | Tube OD: 3.2 mm | Connection: Uni 1/8 male
KAU04-M6Type: Branch Y (KAU) | Tube OD: 4 mm | Connection: M6x1 male
KAU06-M6Type: Branch Y (KAU) | Tube OD: 6 mm | Connection: M6x1 male
KAU23-M5Type: Branch Y (KAU) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KAH08-00Type: Union straight (KAH) | Tube OD: 8 mm | Connection: Tube to tube
KAH12-00Type: Union straight (KAH) | Tube OD: 12 mm | Connection: Tube to tube
KAH04-00Type: Union straight (KAH) | Tube OD: 4 mm | Connection: Tube to tube
KAH06-00Type: Union straight (KAH) | Tube OD: 6 mm | Connection: Tube to tube
KAH10-00Type: Union straight (KAH) | Tube OD: 10 mm | Connection: Tube to tube
KAH23-00Type: Union straight (KAH) | Tube OD: 3.2 mm | Connection: Tube to tube
KAH08-10Type: Union straight (KAH) | Tube OD: 8 mm | Connection: Second tube OD 10 mm
KAH04-06Type: Union straight (KAH) | Tube OD: 4 mm | Connection: Second tube OD 6 mm
KAH06-08Type: Union straight (KAH) | Tube OD: 6 mm | Connection: Second tube OD 8 mm
KAH10-12Type: Union straight (KAH) | Tube OD: 10 mm | Connection: Second tube OD 12 mm
KAH23-04Type: Union straight (KAH) | Tube OD: 3.2 mm | Connection: Second tube OD 4 mm
KAL08-00Type: Union elbow (KAL) | Tube OD: 8 mm | Connection: Tube to tube
KAL12-00Type: Union elbow (KAL) | Tube OD: 12 mm | Connection: Tube to tube
KAL04-00Type: Union elbow (KAL) | Tube OD: 4 mm | Connection: Tube to tube
KAL06-00Type: Union elbow (KAL) | Tube OD: 6 mm | Connection: Tube to tube
KAL10-00Type: Union elbow (KAL) | Tube OD: 10 mm | Connection: Tube to tube
KAL23-00Type: Union elbow (KAL) | Tube OD: 3.2 mm | Connection: Tube to tube
KAT08-00Type: Union tee (KAT) | Tube OD: 8 mm | Connection: Tube to tube
KAT12-00Type: Union tee (KAT) | Tube OD: 12 mm | Connection: Tube to tube
KAT04-00Type: Union tee (KAT) | Tube OD: 4 mm | Connection: Tube to tube
KAT06-00Type: Union tee (KAT) | Tube OD: 6 mm | Connection: Tube to tube
KAT10-00Type: Union tee (KAT) | Tube OD: 10 mm | Connection: Tube to tube
KAT23-00Type: Union tee (KAT) | Tube OD: 3.2 mm | Connection: Tube to tube
KAU08-00Type: Union Y (KAU) | Tube OD: 8 mm | Connection: Tube to tube
KAU12-00Type: Union Y (KAU) | Tube OD: 12 mm | Connection: Tube to tube
KAU04-00Type: Union Y (KAU) | Tube OD: 4 mm | Connection: Tube to tube
KAU06-00Type: Union Y (KAU) | Tube OD: 6 mm | Connection: Tube to tube
KAU10-00Type: Union Y (KAU) | Tube OD: 10 mm | Connection: Tube to tube
KAU23-00Type: Union Y (KAU) | Tube OD: 3.2 mm | Connection: Tube to tube
KAR04-10Type: Plug-in reducer (KAR) | Tube OD: 4 mm | Connection: Fitting size 10 mm (plug-in)
KAR06-10Type: Plug-in reducer (KAR) | Tube OD: 6 mm | Connection: Fitting size 10 mm (plug-in)
KAR04-06Type: Plug-in reducer (KAR) | Tube OD: 4 mm | Connection: Fitting size 6 mm (plug-in)
KAR04-08Type: Plug-in reducer (KAR) | Tube OD: 4 mm | Connection: Fitting size 8 mm (plug-in)
KAR06-08Type: Plug-in reducer (KAR) | Tube OD: 6 mm | Connection: Fitting size 8 mm (plug-in)
KAR23-04Type: Plug-in reducer (KAR) | Tube OD: 3.2 mm | Connection: Fitting size 4 mm (plug-in)
KAR06-12Type: Plug-in reducer (KAR) | Tube OD: 6 mm | Connection: Fitting size 12 mm (plug-in)
KAR08-10Type: Plug-in reducer (KAR) | Tube OD: 8 mm | Connection: Fitting size 10 mm (plug-in)
KAR08-12Type: Plug-in reducer (KAR) | Tube OD: 8 mm | Connection: Fitting size 12 mm (plug-in)
KAR10-12Type: Plug-in reducer (KAR) | Tube OD: 10 mm | Connection: Fitting size 12 mm (plug-in)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
