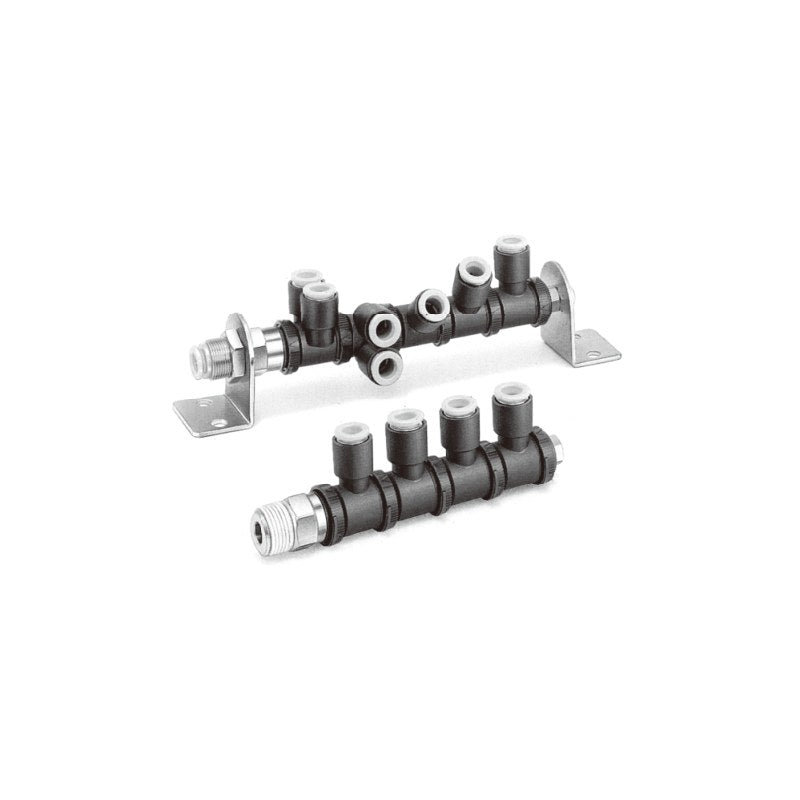

SMC KB Piping Module (One-Touch Modular Air Distribution)

SMC KB Piping Module (One-Touch Modular Air Distribution)

SMC KB series piping modules snap together without tools to build compact branch and distribution manifolds for air lines, with 360 deg rotatable outlets.

Key features

  • Modules lock together with a one-touch lock ring; turn the ring 90 deg to release, no tools required
  • Universal structure lets each outlet direction be rotated 360 deg after piping
  • Four body sizes (1 to 4); any modules of the same body size can be connected
  • Outlet modules for tube OD 4 to 16 mm and M5, M6, Rc1/8 to Rc3/8 female ports
  • Supply modules with R1/8 to R1/2 male threads (sealant), Rc female sockets and bulkhead connectors
  • Nipples, reducing modules, plugs, caps and mounting brackets (use a bracket for 5 or more modules)

Specifications

Fluid Air
Operating pressure range -100 kPa to 1 MPa
Proof pressure 3 MPa
Ambient and fluid temperature -5 to 60 deg C (no freezing)
Applicable tubing Nylon, soft nylon, polyurethane, FEP, PFA
Thread R: JIS B 0203 taper; M: JIS B 0205
Brass parts Electroless nickel plated
Main materials Body C3604 / PBT / POM; seals NBR; chuck SUS304
Note Not for leak testers or vacuum holding (leakage not zero)
Source SMC Korea catalog KB Series (SMCKR_KB.pdf), p. 371-379
KBV1-04 Component: Elbow module (KBV) | Body size: 1 | Port type: One-touch tube | Port size: Tube OD 4 mm
KBV1-06 Component: Elbow module (KBV) | Body size: 1 | Port type: One-touch tube | Port size: Tube OD 6 mm
KBV2-06 Component: Elbow module (KBV) | Body size: 2 | Port type: One-touch tube | Port size: Tube OD 6 mm
KBV2-08 Component: Elbow module (KBV) | Body size: 2 | Port type: One-touch tube | Port size: Tube OD 8 mm
KBV3-08 Component: Elbow module (KBV) | Body size: 3 | Port type: One-touch tube | Port size: Tube OD 8 mm
KBV3-10 Component: Elbow module (KBV) | Body size: 3 | Port type: One-touch tube | Port size: Tube OD 10 mm
KBV3-12 Component: Elbow module (KBV) | Body size: 3 | Port type: One-touch tube | Port size: Tube OD 12 mm
KBV4-12 Component: Elbow module (KBV) | Body size: 4 | Port type: One-touch tube | Port size: Tube OD 12 mm
KBV4-16 Component: Elbow module (KBV) | Body size: 4 | Port type: One-touch tube | Port size: Tube OD 16 mm
KBV1-M5 Component: Elbow socket module (KBV) | Body size: 1 | Port type: M female thread | Port size: M5x0.8
KBV1-M6 Component: Elbow socket module (KBV) | Body size: 1 | Port type: M female thread | Port size: M6x1
KBV2-M5 Component: Elbow socket module (KBV) | Body size: 2 | Port type: M female thread | Port size: M5x0.8
KBV2-M6 Component: Elbow socket module (KBV) | Body size: 2 | Port type: M female thread | Port size: M6x1
KBV2-R1 Component: Elbow socket module (KBV) | Body size: 2 | Port type: Rc female thread | Port size: 1/8
KBV3-R1 Component: Elbow socket module (KBV) | Body size: 3 | Port type: Rc female thread | Port size: 1/8
KBV3-R2 Component: Elbow socket module (KBV) | Body size: 3 | Port type: Rc female thread | Port size: 1/4
KBV4-R2 Component: Elbow socket module (KBV) | Body size: 4 | Port type: Rc female thread | Port size: 1/4
KBV4-R3 Component: Elbow socket module (KBV) | Body size: 4 | Port type: Rc female thread | Port size: 3/8
KBZ1-04 Component: Branch elbow module (KBZ) | Body size: 1 | Port type: One-touch tube x2 | Port size: Tube OD 4 mm
KBZ1-06 Component: Branch elbow module (KBZ) | Body size: 1 | Port type: One-touch tube x2 | Port size: Tube OD 6 mm
KBZ2-08 Component: Branch elbow module (KBZ) | Body size: 2 | Port type: One-touch tube x2 | Port size: Tube OD 8 mm
KBZ3-10 Component: Branch elbow module (KBZ) | Body size: 3 | Port type: One-touch tube x2 | Port size: Tube OD 10 mm
KBZ3-12 Component: Branch elbow module (KBZ) | Body size: 3 | Port type: One-touch tube x2 | Port size: Tube OD 12 mm
KBZ4-12 Component: Branch elbow module (KBZ) | Body size: 4 | Port type: One-touch tube x2 | Port size: Tube OD 12 mm
KBE1-04 Component: Bulkhead female connector (KBE) | Body size: 1 | Port type: One-touch tube | Port size: Tube OD 4 mm
KBE1-06 Component: Bulkhead female connector (KBE) | Body size: 1 | Port type: One-touch tube | Port size: Tube OD 6 mm
KBE2-06 Component: Bulkhead female connector (KBE) | Body size: 2 | Port type: One-touch tube | Port size: Tube OD 6 mm
KBE2-08 Component: Bulkhead female connector (KBE) | Body size: 2 | Port type: One-touch tube | Port size: Tube OD 8 mm
KBE2-10 Component: Bulkhead female connector (KBE) | Body size: 2 | Port type: One-touch tube | Port size: Tube OD 10 mm
KBE3-08 Component: Bulkhead female connector (KBE) | Body size: 3 | Port type: One-touch tube | Port size: Tube OD 8 mm
KBE3-10 Component: Bulkhead female connector (KBE) | Body size: 3 | Port type: One-touch tube | Port size: Tube OD 10 mm
KBE3-12 Component: Bulkhead female connector (KBE) | Body size: 3 | Port type: One-touch tube | Port size: Tube OD 12 mm
KBE4-12 Component: Bulkhead female connector (KBE) | Body size: 4 | Port type: One-touch tube | Port size: Tube OD 12 mm
KBH1-R1S Component: Female connector union (KBH) | Body size: 1 | Port type: R male thread, sealant | Port size: 1/8
KBL1-R1S Component: Female connector elbow union (KBL) | Body size: 1 | Port type: R male thread, sealant | Port size: 1/8
KBH2-R1S Component: Female connector union (KBH) | Body size: 2 | Port type: R male thread, sealant | Port size: 1/8
KBL2-R1S Component: Female connector elbow union (KBL) | Body size: 2 | Port type: R male thread, sealant | Port size: 1/8
KBH2-R2S Component: Female connector union (KBH) | Body size: 2 | Port type: R male thread, sealant | Port size: 1/4
KBL2-R2S Component: Female connector elbow union (KBL) | Body size: 2 | Port type: R male thread, sealant | Port size: 1/4
KBH2-R3S Component: Female connector union (KBH) | Body size: 2 | Port type: R male thread, sealant | Port size: 3/8
KBL2-R3S Component: Female connector elbow union (KBL) | Body size: 2 | Port type: R male thread, sealant | Port size: 3/8
KBH3-R2S Component: Female connector union (KBH) | Body size: 3 | Port type: R male thread, sealant | Port size: 1/4
KBL3-R2S Component: Female connector elbow union (KBL) | Body size: 3 | Port type: R male thread, sealant | Port size: 1/4
KBH3-R3S Component: Female connector union (KBH) | Body size: 3 | Port type: R male thread, sealant | Port size: 3/8
KBL3-R3S Component: Female connector elbow union (KBL) | Body size: 3 | Port type: R male thread, sealant | Port size: 3/8
KBH3-R4S Component: Female connector union (KBH) | Body size: 3 | Port type: R male thread, sealant | Port size: 1/2
KBL3-R4S Component: Female connector elbow union (KBL) | Body size: 3 | Port type: R male thread, sealant | Port size: 1/2
KBH4-R3S Component: Female connector union (KBH) | Body size: 4 | Port type: R male thread, sealant | Port size: 3/8
KBL4-R3S Component: Female connector elbow union (KBL) | Body size: 4 | Port type: R male thread, sealant | Port size: 3/8
KBH4-R4S Component: Female connector union (KBH) | Body size: 4 | Port type: R male thread, sealant | Port size: 1/2
KBL4-R4S Component: Female connector elbow union (KBL) | Body size: 4 | Port type: R male thread, sealant | Port size: 1/2
KBB1-M5 Component: Male connector socket (KBB) | Body size: 1 | Port type: M female thread | Port size: M5x0.8
KBB2-M6 Component: Male connector socket (KBB) | Body size: 2 | Port type: M female thread | Port size: M6x1
KBB3-R1 Component: Male connector socket (KBB) | Body size: 3 | Port type: Rc female thread | Port size: 1/8
KBB4-R2 Component: Male connector socket (KBB) | Body size: 4 | Port type: Rc female thread | Port size: 1/4
KBS1-R1 Component: Female connector socket (KBS) | Body size: 1 | Port type: Rc female thread | Port size: 1/8
KBS2-R2 Component: Female connector socket (KBS) | Body size: 2 | Port type: Rc female thread | Port size: 1/4
KBS3-R3 Component: Female connector socket (KBS) | Body size: 3 | Port type: Rc female thread | Port size: 3/8
KBS4-R4 Component: Female connector socket (KBS) | Body size: 4 | Port type: Rc female thread | Port size: 1/2
KBN1 Component: Nipple (KBN) | Body size: 1 | Port type: Module joint | Port size: Same body size
KBN2 Component: Nipple (KBN) | Body size: 2 | Port type: Module joint | Port size: Same body size
KBN3 Component: Nipple (KBN) | Body size: 3 | Port type: Module joint | Port size: Same body size
KBN4 Component: Nipple (KBN) | Body size: 4 | Port type: Module joint | Port size: Same body size
KBD2-1 Component: Elbow reducing module (KBD) | Body size: 2 | Port type: Branch module joint | Port size: Body size 1
KBR2-1 Component: Reducing module (KBR) | Body size: 2 | Port type: Module joint | Port size: Body size 1
KBD3-2 Component: Elbow reducing module (KBD) | Body size: 3 | Port type: Branch module joint | Port size: Body size 2
KBR3-2 Component: Reducing module (KBR) | Body size: 3 | Port type: Module joint | Port size: Body size 2
KBD4-3 Component: Elbow reducing module (KBD) | Body size: 4 | Port type: Branch module joint | Port size: Body size 3
KBR4-3 Component: Reducing module (KBR) | Body size: 4 | Port type: Module joint | Port size: Body size 3
KBP1 Component: Plug (KBP) | Body size: 1 | Port type: Closed end | Port size: Same body size
KBC1 Component: Cap (KBC) | Body size: 1 | Port type: Closed end | Port size: Same body size
KBP2 Component: Plug (KBP) | Body size: 2 | Port type: Closed end | Port size: Same body size
KBC2 Component: Cap (KBC) | Body size: 2 | Port type: Closed end | Port size: Same body size
KBP3 Component: Plug (KBP) | Body size: 3 | Port type: Closed end | Port size: Same body size
KBC3 Component: Cap (KBC) | Body size: 3 | Port type: Closed end | Port size: Same body size
KBP4 Component: Plug (KBP) | Body size: 4 | Port type: Closed end | Port size: Same body size
KBC4 Component: Cap (KBC) | Body size: 4 | Port type: Closed end | Port size: Same body size
KBX6 Component: Bracket (KBX) | Body size: Any | Port type: Bracket mounting | Port size: M6 screw (KBP / KBC)
KBX12 Component: Bracket (KBX) | Body size: Any | Port type: Bracket mounting | Port size: M12x1 (KBE1-04)
KBX14 Component: Bracket (KBX) | Body size: Any | Port type: Bracket mounting | Port size: M14x1 (KBE1-06, KBE2-06)
KBX16 Component: Bracket (KBX) | Body size: Any | Port type: Bracket mounting | Port size: M16x1 (KBE2-08, KBE3-08)
KBX20 Component: Bracket (KBX) | Body size: Any | Port type: Bracket mounting | Port size: M20x1 (KBE2-10, KBE3-10)
KBX22 Component: Bracket (KBX) | Body size: Any | Port type: Bracket mounting | Port size: M22x1 (KBE3-12, KBE4-12)
