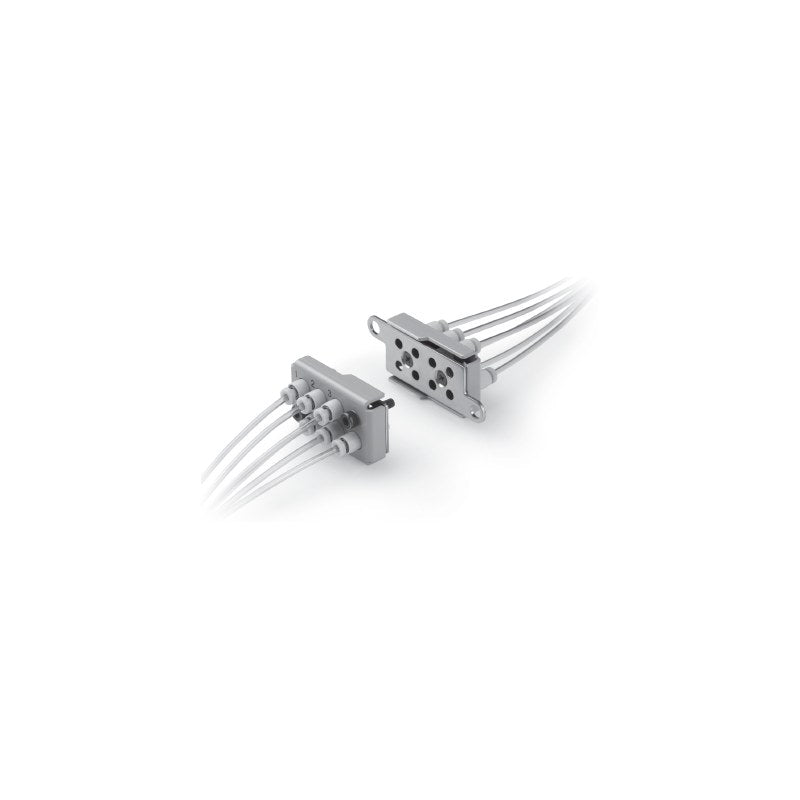

SMC KDM Rectangular Multi-Connector (10 / 20 Tubes)

SMC KDM Rectangular Multi-Connector (10 / 20 Tubes)

SMC KDM series rectangular multi-connector couples and separates 10 or 20 air lines at once through a panel, with one-touch fittings on both plug and socket sides.

Key features

  • Connects or disconnects 10 or 20 tubes in one action using a clamp bolt
  • Much smaller panel space than multiple bulkhead unions; one panel opening, front-side mounting with bracket
  • One-touch fittings for tube OD 3.2, 4, 6 and 8 mm; sizes can be mixed by swapping single connectors
  • Keyed plug and socket cases prevent mis-connection
  • Usable from vacuum (-100 kPa) to 1 MPa; copper-free (electroless nickel plated) construction
  • Grease-free (-X17, -X39), white vaseline (-X12) and 4-5 mm panel (-X1526) versions made to order

Specifications

Fluid Air
Operating pressure range -100 kPa to 1 MPa
Proof pressure 1.5 MPa
Ambient and fluid temperature -5 to 60 deg C (no freezing)
Applicable tubing FEP, PFA, nylon, soft nylon, polyurethane
Panel thickness Up to 4 mm
Release bushing color Blue
Mass (assembly) KDM10 300 g (08: 520 g); KDM20 520 g (08: 950 g)
Materials Cases POM; plate/bracket SPCC; connectors PBT / C3604; packing NBR
Source SMC Korea catalog KDM Series (SMCKR_KDM.pdf), p. 361-364
KDM10-23 Part: Plug + socket assembly | Number of tubes: 10 | Tube OD: 3.2 mm
KDM10-04 Part: Plug + socket assembly | Number of tubes: 10 | Tube OD: 4 mm
KDM10-06 Part: Plug + socket assembly | Number of tubes: 10 | Tube OD: 6 mm
KDM10-08 Part: Plug + socket assembly | Number of tubes: 10 | Tube OD: 8 mm
KDM20-23 Part: Plug + socket assembly | Number of tubes: 20 | Tube OD: 3.2 mm
KDM20-04 Part: Plug + socket assembly | Number of tubes: 20 | Tube OD: 4 mm
KDM20-06 Part: Plug + socket assembly | Number of tubes: 20 | Tube OD: 6 mm
KDM20-08 Part: Plug + socket assembly | Number of tubes: 20 | Tube OD: 8 mm
KDM10P-23 Part: Plug side | Number of tubes: 10 | Tube OD: 3.2 mm
KDM10P-04 Part: Plug side | Number of tubes: 10 | Tube OD: 4 mm
KDM10P-06 Part: Plug side | Number of tubes: 10 | Tube OD: 6 mm
KDM10P-08 Part: Plug side | Number of tubes: 10 | Tube OD: 8 mm
KDM10S-23 Part: Socket side | Number of tubes: 10 | Tube OD: 3.2 mm
KDM10S-04 Part: Socket side | Number of tubes: 10 | Tube OD: 4 mm
KDM10S-06 Part: Socket side | Number of tubes: 10 | Tube OD: 6 mm
KDM10S-08 Part: Socket side | Number of tubes: 10 | Tube OD: 8 mm
KDM20P-23 Part: Plug side | Number of tubes: 20 | Tube OD: 3.2 mm
KDM20P-04 Part: Plug side | Number of tubes: 20 | Tube OD: 4 mm
KDM20P-06 Part: Plug side | Number of tubes: 20 | Tube OD: 6 mm
KDM20P-08 Part: Plug side | Number of tubes: 20 | Tube OD: 8 mm
KDM20S-23 Part: Socket side | Number of tubes: 20 | Tube OD: 3.2 mm
KDM20S-04 Part: Socket side | Number of tubes: 20 | Tube OD: 4 mm
KDM20S-06 Part: Socket side | Number of tubes: 20 | Tube OD: 6 mm
KDM20S-08 Part: Socket side | Number of tubes: 20 | Tube OD: 8 mm
KDMP-23 Part: Plug connector (single) | Number of tubes: 1 (replacement) | Tube OD: 3.2 mm
KDMP-04 Part: Plug connector (single) | Number of tubes: 1 (replacement) | Tube OD: 4 mm
KDMP-06 Part: Plug connector (single) | Number of tubes: 1 (replacement) | Tube OD: 6 mm
KDMP-08 Part: Plug connector (single) | Number of tubes: 1 (replacement) | Tube OD: 8 mm
KDMS-23 Part: Socket connector (single, with packing) | Number of tubes: 1 (replacement) | Tube OD: 3.2 mm
KDMS-04 Part: Socket connector (single, with packing) | Number of tubes: 1 (replacement) | Tube OD: 4 mm
KDMS-06 Part: Socket connector (single, with packing) | Number of tubes: 1 (replacement) | Tube OD: 6 mm
KDMS-08 Part: Socket connector (single, with packing) | Number of tubes: 1 (replacement) | Tube OD: 8 mm
