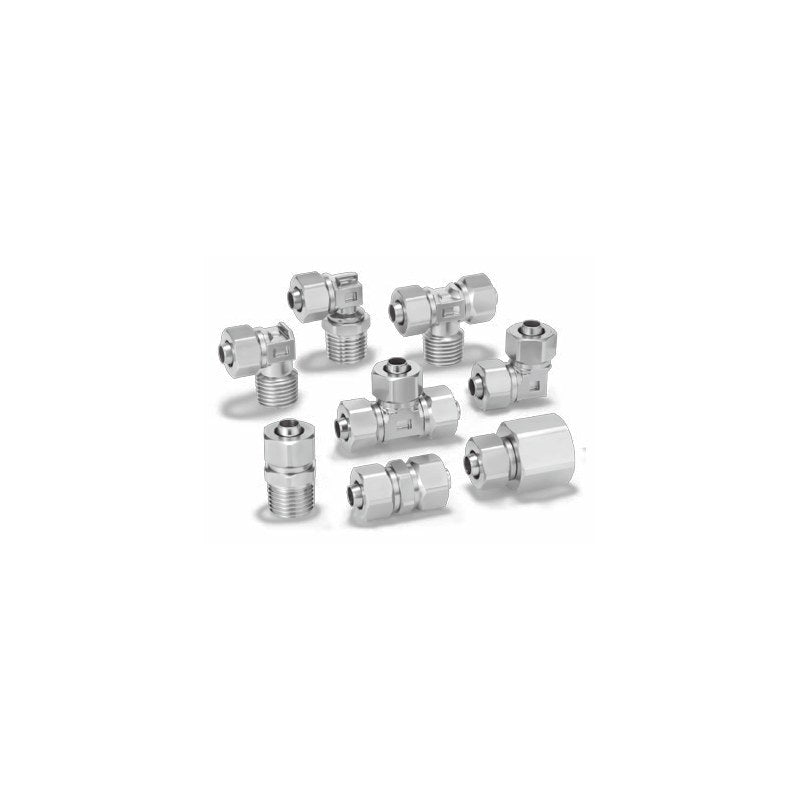

SMC KFG2-F FDA Compliant SUS316 Insert Fitting (R/Rc)

SMC KFG2-F FDA Compliant SUS316 Insert Fitting (R/Rc)

SMC KFG2-F series SUS316 insert (union nut) fitting with FDA-compliant FKM O-ring and NSF H1 grease, for metric tube 4 x 2.5 to 16 x 13 mm and R or Rc threads.

Key features

  • Union nut, body and stud SUS316; O-ring FDA-compliant FKM; NSF H1 grease on the union nut
  • Wide temperature range -65 to 260 deg C (swivel elbow -5 to 150 deg C) for air, water and steam
  • Accepts fluoropolymer, nylon, polyurethane and polyolefin tubes, including SMC FDA-compliant tubes
  • No sealant on threads; bulkhead nut KFG2xx-P01 (SUS316) available as spare part
  • Inch NPT and G-thread versions listed in the same catalog

Specifications

Fluid Air, water, steam
Operating pressure range -100 kPa to 1 MPa
Proof pressure 3.0 MPa
Ambient and fluid temperature -65 to 260 deg C (swivel elbow -5 to 150 deg C)
Material SUS316, FDA-compliant FKM O-ring
Lubricant NSF H1 grease
Thread seal No sealant
Applicable tube FEP, PFA, modified PTFE, nylon, polyurethane, polyolefin
Source SMC Korea catalog KFG2H-E/KFG2H-C/KQG2-F/KQB2-F/KFG2-F (SMCKR_KFG2H-E_KFG2H-C_KQ2-F_KFG2-F.pdf), p. 59-65
KFG2L0425-01-F Type: Male elbow | Tube size: 4 x 2.5 mm | Connection: R1/8 male
KFG2L0425-02-F Type: Male elbow | Tube size: 4 x 2.5 mm | Connection: R1/4 male
KFG2L0403-01-F Type: Male elbow | Tube size: 4 x 3 mm | Connection: R1/8 male
KFG2L0403-02-F Type: Male elbow | Tube size: 4 x 3 mm | Connection: R1/4 male
KFG2L0604-01-F Type: Male elbow | Tube size: 6 x 4 mm | Connection: R1/8 male
KFG2L0604-02-F Type: Male elbow | Tube size: 6 x 4 mm | Connection: R1/4 male
KFG2L0806-01-F Type: Male elbow | Tube size: 8 x 6 mm | Connection: R1/8 male
KFG2L0806-02-F Type: Male elbow | Tube size: 8 x 6 mm | Connection: R1/4 male
KFG2L0806-03-F Type: Male elbow | Tube size: 8 x 6 mm | Connection: R3/8 male
KFG2L1075-02-F Type: Male elbow | Tube size: 10 x 7.5 mm | Connection: R1/4 male
KFG2L1075-03-F Type: Male elbow | Tube size: 10 x 7.5 mm | Connection: R3/8 male
KFG2L1075-04-F Type: Male elbow | Tube size: 10 x 7.5 mm | Connection: R1/2 male
KFG2L1008-02-F Type: Male elbow | Tube size: 10 x 8 mm | Connection: R1/4 male
KFG2L1008-03-F Type: Male elbow | Tube size: 10 x 8 mm | Connection: R3/8 male
KFG2L1008-04-F Type: Male elbow | Tube size: 10 x 8 mm | Connection: R1/2 male
KFG2L1209-02-F Type: Male elbow | Tube size: 12 x 9 mm | Connection: R1/4 male
KFG2L1209-03-F Type: Male elbow | Tube size: 12 x 9 mm | Connection: R3/8 male
KFG2L1209-04-F Type: Male elbow | Tube size: 12 x 9 mm | Connection: R1/2 male
KFG2L1210-02-F Type: Male elbow | Tube size: 12 x 10 mm | Connection: R1/4 male
KFG2L1210-03-F Type: Male elbow | Tube size: 12 x 10 mm | Connection: R3/8 male
KFG2L1210-04-F Type: Male elbow | Tube size: 12 x 10 mm | Connection: R1/2 male
KFG2L1613-03-F Type: Male elbow | Tube size: 16 x 13 mm | Connection: R3/8 male
KFG2L1613-04-F Type: Male elbow | Tube size: 16 x 13 mm | Connection: R1/2 male
KFG2H0425-01-F Type: Male connector | Tube size: 4 x 2.5 mm | Connection: R1/8 male
KFG2H0425-02-F Type: Male connector | Tube size: 4 x 2.5 mm | Connection: R1/4 male
KFG2H0403-01-F Type: Male connector | Tube size: 4 x 3 mm | Connection: R1/8 male
KFG2H0403-02-F Type: Male connector | Tube size: 4 x 3 mm | Connection: R1/4 male
KFG2H0604-01-F Type: Male connector | Tube size: 6 x 4 mm | Connection: R1/8 male
KFG2H0604-02-F Type: Male connector | Tube size: 6 x 4 mm | Connection: R1/4 male
KFG2H0806-01-F Type: Male connector | Tube size: 8 x 6 mm | Connection: R1/8 male
KFG2H0806-02-F Type: Male connector | Tube size: 8 x 6 mm | Connection: R1/4 male
KFG2H0806-03-F Type: Male connector | Tube size: 8 x 6 mm | Connection: R3/8 male
KFG2H1075-02-F Type: Male connector | Tube size: 10 x 7.5 mm | Connection: R1/4 male
KFG2H1075-03-F Type: Male connector | Tube size: 10 x 7.5 mm | Connection: R3/8 male
KFG2H1075-04-F Type: Male connector | Tube size: 10 x 7.5 mm | Connection: R1/2 male
KFG2H1008-02-F Type: Male connector | Tube size: 10 x 8 mm | Connection: R1/4 male
KFG2H1008-03-F Type: Male connector | Tube size: 10 x 8 mm | Connection: R3/8 male
KFG2H1008-04-F Type: Male connector | Tube size: 10 x 8 mm | Connection: R1/2 male
KFG2H1209-02-F Type: Male connector | Tube size: 12 x 9 mm | Connection: R1/4 male
KFG2H1209-03-F Type: Male connector | Tube size: 12 x 9 mm | Connection: R3/8 male
KFG2H1209-04-F Type: Male connector | Tube size: 12 x 9 mm | Connection: R1/2 male
KFG2H1210-02-F Type: Male connector | Tube size: 12 x 10 mm | Connection: R1/4 male
KFG2H1210-03-F Type: Male connector | Tube size: 12 x 10 mm | Connection: R3/8 male
KFG2H1210-04-F Type: Male connector | Tube size: 12 x 10 mm | Connection: R1/2 male
KFG2H1613-03-F Type: Male connector | Tube size: 16 x 13 mm | Connection: R3/8 male
KFG2H1613-04-F Type: Male connector | Tube size: 16 x 13 mm | Connection: R1/2 male
KFG2T0425-00-F Type: Union tee | Tube size: 4 x 2.5 mm | Connection: Tube to tube
KFG2T0403-00-F Type: Union tee | Tube size: 4 x 3 mm | Connection: Tube to tube
KFG2T0604-00-F Type: Union tee | Tube size: 6 x 4 mm | Connection: Tube to tube
KFG2T0806-00-F Type: Union tee | Tube size: 8 x 6 mm | Connection: Tube to tube
KFG2T1075-00-F Type: Union tee | Tube size: 10 x 7.5 mm | Connection: Tube to tube
KFG2T1008-00-F Type: Union tee | Tube size: 10 x 8 mm | Connection: Tube to tube
KFG2T1209-00-F Type: Union tee | Tube size: 12 x 9 mm | Connection: Tube to tube
KFG2T1210-00-F Type: Union tee | Tube size: 12 x 10 mm | Connection: Tube to tube
KFG2T1613-00-F Type: Union tee | Tube size: 16 x 13 mm | Connection: Tube to tube
KFG2H0425-00-F Type: Straight union | Tube size: 4 x 2.5 mm | Connection: Tube to tube
KFG2H0403-00-F Type: Straight union | Tube size: 4 x 3 mm | Connection: Tube to tube
KFG2H0604-00-F Type: Straight union | Tube size: 6 x 4 mm | Connection: Tube to tube
KFG2H0806-00-F Type: Straight union | Tube size: 8 x 6 mm | Connection: Tube to tube
KFG2H1075-00-F Type: Straight union | Tube size: 10 x 7.5 mm | Connection: Tube to tube
KFG2H1008-00-F Type: Straight union | Tube size: 10 x 8 mm | Connection: Tube to tube
KFG2H1209-00-F Type: Straight union | Tube size: 12 x 9 mm | Connection: Tube to tube
KFG2H1210-00-F Type: Straight union | Tube size: 12 x 10 mm | Connection: Tube to tube
KFG2H1613-00-F Type: Straight union | Tube size: 16 x 13 mm | Connection: Tube to tube
KFG2T0425-01-F Type: Male branch tee | Tube size: 4 x 2.5 mm | Connection: R1/8 male
KFG2T0425-02-F Type: Male branch tee | Tube size: 4 x 2.5 mm | Connection: R1/4 male
KFG2T0403-01-F Type: Male branch tee | Tube size: 4 x 3 mm | Connection: R1/8 male
KFG2T0403-02-F Type: Male branch tee | Tube size: 4 x 3 mm | Connection: R1/4 male
KFG2T0604-01-F Type: Male branch tee | Tube size: 6 x 4 mm | Connection: R1/8 male
KFG2T0604-02-F Type: Male branch tee | Tube size: 6 x 4 mm | Connection: R1/4 male
KFG2T0806-01-F Type: Male branch tee | Tube size: 8 x 6 mm | Connection: R1/8 male
KFG2T0806-02-F Type: Male branch tee | Tube size: 8 x 6 mm | Connection: R1/4 male
KFG2T0806-03-F Type: Male branch tee | Tube size: 8 x 6 mm | Connection: R3/8 male
KFG2T1075-02-F Type: Male branch tee | Tube size: 10 x 7.5 mm | Connection: R1/4 male
KFG2T1075-03-F Type: Male branch tee | Tube size: 10 x 7.5 mm | Connection: R3/8 male
KFG2T1075-04-F Type: Male branch tee | Tube size: 10 x 7.5 mm | Connection: R1/2 male
KFG2T1008-02-F Type: Male branch tee | Tube size: 10 x 8 mm | Connection: R1/4 male
KFG2T1008-03-F Type: Male branch tee | Tube size: 10 x 8 mm | Connection: R3/8 male
KFG2T1008-04-F Type: Male branch tee | Tube size: 10 x 8 mm | Connection: R1/2 male
KFG2T1209-02-F Type: Male branch tee | Tube size: 12 x 9 mm | Connection: R1/4 male
KFG2T1209-03-F Type: Male branch tee | Tube size: 12 x 9 mm | Connection: R3/8 male
KFG2T1209-04-F Type: Male branch tee | Tube size: 12 x 9 mm | Connection: R1/2 male
KFG2T1210-02-F Type: Male branch tee | Tube size: 12 x 10 mm | Connection: R1/4 male
KFG2T1210-03-F Type: Male branch tee | Tube size: 12 x 10 mm | Connection: R3/8 male
KFG2T1210-04-F Type: Male branch tee | Tube size: 12 x 10 mm | Connection: R1/2 male
KFG2T1613-03-F Type: Male branch tee | Tube size: 16 x 13 mm | Connection: R3/8 male
KFG2T1613-04-F Type: Male branch tee | Tube size: 16 x 13 mm | Connection: R1/2 male
KFG2V0425-01-F Type: Swivel male elbow | Tube size: 4 x 2.5 mm | Connection: R1/8 male
KFG2V0425-02-F Type: Swivel male elbow | Tube size: 4 x 2.5 mm | Connection: R1/4 male
KFG2V0403-01-F Type: Swivel male elbow | Tube size: 4 x 3 mm | Connection: R1/8 male
KFG2V0403-02-F Type: Swivel male elbow | Tube size: 4 x 3 mm | Connection: R1/4 male
KFG2V0604-01-F Type: Swivel male elbow | Tube size: 6 x 4 mm | Connection: R1/8 male
KFG2V0604-02-F Type: Swivel male elbow | Tube size: 6 x 4 mm | Connection: R1/4 male
KFG2V0806-01-F Type: Swivel male elbow | Tube size: 8 x 6 mm | Connection: R1/8 male
KFG2V0806-02-F Type: Swivel male elbow | Tube size: 8 x 6 mm | Connection: R1/4 male
KFG2V0806-03-F Type: Swivel male elbow | Tube size: 8 x 6 mm | Connection: R3/8 male
KFG2V1075-02-F Type: Swivel male elbow | Tube size: 10 x 7.5 mm | Connection: R1/4 male
KFG2V1075-03-F Type: Swivel male elbow | Tube size: 10 x 7.5 mm | Connection: R3/8 male
KFG2V1075-04-F Type: Swivel male elbow | Tube size: 10 x 7.5 mm | Connection: R1/2 male
KFG2V1008-02-F Type: Swivel male elbow | Tube size: 10 x 8 mm | Connection: R1/4 male
KFG2V1008-03-F Type: Swivel male elbow | Tube size: 10 x 8 mm | Connection: R3/8 male
KFG2V1008-04-F Type: Swivel male elbow | Tube size: 10 x 8 mm | Connection: R1/2 male
KFG2V1209-02-F Type: Swivel male elbow | Tube size: 12 x 9 mm | Connection: R1/4 male
KFG2V1209-03-F Type: Swivel male elbow | Tube size: 12 x 9 mm | Connection: R3/8 male
KFG2V1209-04-F Type: Swivel male elbow | Tube size: 12 x 9 mm | Connection: R1/2 male
KFG2V1210-02-F Type: Swivel male elbow | Tube size: 12 x 10 mm | Connection: R1/4 male
KFG2V1210-03-F Type: Swivel male elbow | Tube size: 12 x 10 mm | Connection: R3/8 male
KFG2V1210-04-F Type: Swivel male elbow | Tube size: 12 x 10 mm | Connection: R1/2 male
KFG2V1613-03-F Type: Swivel male elbow | Tube size: 16 x 13 mm | Connection: R3/8 male
KFG2V1613-04-F Type: Swivel male elbow | Tube size: 16 x 13 mm | Connection: R1/2 male
KFG2L0425-00-F Type: Union elbow | Tube size: 4 x 2.5 mm | Connection: Tube to tube
KFG2L0403-00-F Type: Union elbow | Tube size: 4 x 3 mm | Connection: Tube to tube
KFG2L0604-00-F Type: Union elbow | Tube size: 6 x 4 mm | Connection: Tube to tube
KFG2L0806-00-F Type: Union elbow | Tube size: 8 x 6 mm | Connection: Tube to tube
KFG2L1075-00-F Type: Union elbow | Tube size: 10 x 7.5 mm | Connection: Tube to tube
KFG2L1008-00-F Type: Union elbow | Tube size: 10 x 8 mm | Connection: Tube to tube
KFG2L1209-00-F Type: Union elbow | Tube size: 12 x 9 mm | Connection: Tube to tube
KFG2L1210-00-F Type: Union elbow | Tube size: 12 x 10 mm | Connection: Tube to tube
KFG2L1613-00-F Type: Union elbow | Tube size: 16 x 13 mm | Connection: Tube to tube
KFG2E0425-00-F Type: Bulkhead union | Tube size: 4 x 2.5 mm | Connection: Tube to tube
KFG2E0403-00-F Type: Bulkhead union | Tube size: 4 x 3 mm | Connection: Tube to tube
KFG2E0604-00-F Type: Bulkhead union | Tube size: 6 x 4 mm | Connection: Tube to tube
KFG2E0806-00-F Type: Bulkhead union | Tube size: 8 x 6 mm | Connection: Tube to tube
KFG2E1075-00-F Type: Bulkhead union | Tube size: 10 x 7.5 mm | Connection: Tube to tube
KFG2E1008-00-F Type: Bulkhead union | Tube size: 10 x 8 mm | Connection: Tube to tube
KFG2E1209-00-F Type: Bulkhead union | Tube size: 12 x 9 mm | Connection: Tube to tube
KFG2E1210-00-F Type: Bulkhead union | Tube size: 12 x 10 mm | Connection: Tube to tube
KFG2E1613-00-F Type: Bulkhead union | Tube size: 16 x 13 mm | Connection: Tube to tube
KFG2N-04-F Type: Union nut | Tube size: 4 mm O.D. | Connection: Nut only
KFG2N-06-F Type: Union nut | Tube size: 6 mm O.D. | Connection: Nut only
KFG2N-08-F Type: Union nut | Tube size: 8 mm O.D. | Connection: Nut only
KFG2N-10-F Type: Union nut | Tube size: 10 mm O.D. | Connection: Nut only
KFG2N-12-F Type: Union nut | Tube size: 12 mm O.D. | Connection: Nut only
KFG2N-16-F Type: Union nut | Tube size: 16 mm O.D. | Connection: Nut only
KFG2F0425-02-F Type: Female connector | Tube size: 4 x 2.5 mm | Connection: Rc1/4 female
KFG2F0403-02-F Type: Female connector | Tube size: 4 x 3 mm | Connection: Rc1/4 female
KFG2F0604-02-F Type: Female connector | Tube size: 6 x 4 mm | Connection: Rc1/4 female
KFG2F0806-03-F Type: Female connector | Tube size: 8 x 6 mm | Connection: Rc3/8 female
KFG2F1075-03-F Type: Female connector | Tube size: 10 x 7.5 mm | Connection: Rc3/8 female
KFG2F1008-03-F Type: Female connector | Tube size: 10 x 8 mm | Connection: Rc3/8 female
KFG2F1209-03-F Type: Female connector | Tube size: 12 x 9 mm | Connection: Rc3/8 female
KFG2F1210-03-F Type: Female connector | Tube size: 12 x 10 mm | Connection: Rc3/8 female
KFG2F1613-04-F Type: Female connector | Tube size: 16 x 13 mm | Connection: Rc1/2 female
FittingsSMC
143 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC KFG2-F FDA Compliant SUS316 Insert Fitting (R/Rc)

Brand SMC·Fittings

Available part numbers (143)

KFG2L0425-01-F, KFG2L0425-02-F, KFG2L0403-01-F, KFG2L0403-02-F, KFG2L0604-01-F, KFG2L0604-02-F, KFG2L0806-01-F, KFG2L0806-02-F, KFG2L0806-03-F, KFG2L1075-02-F + 133 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KFG2L0425-01-FType: Male elbow | Tube size: 4 x 2.5 mm | Connection: R1/8 male
KFG2L0425-02-FType: Male elbow | Tube size: 4 x 2.5 mm | Connection: R1/4 male
KFG2L0403-01-FType: Male elbow | Tube size: 4 x 3 mm | Connection: R1/8 male
KFG2L0403-02-FType: Male elbow | Tube size: 4 x 3 mm | Connection: R1/4 male
KFG2L0604-01-FType: Male elbow | Tube size: 6 x 4 mm | Connection: R1/8 male
KFG2L0604-02-FType: Male elbow | Tube size: 6 x 4 mm | Connection: R1/4 male
KFG2L0806-01-FType: Male elbow | Tube size: 8 x 6 mm | Connection: R1/8 male
KFG2L0806-02-FType: Male elbow | Tube size: 8 x 6 mm | Connection: R1/4 male
KFG2L0806-03-FType: Male elbow | Tube size: 8 x 6 mm | Connection: R3/8 male
KFG2L1075-02-FType: Male elbow | Tube size: 10 x 7.5 mm | Connection: R1/4 male
KFG2L1075-03-FType: Male elbow | Tube size: 10 x 7.5 mm | Connection: R3/8 male
KFG2L1075-04-FType: Male elbow | Tube size: 10 x 7.5 mm | Connection: R1/2 male
KFG2L1008-02-FType: Male elbow | Tube size: 10 x 8 mm | Connection: R1/4 male
KFG2L1008-03-FType: Male elbow | Tube size: 10 x 8 mm | Connection: R3/8 male
KFG2L1008-04-FType: Male elbow | Tube size: 10 x 8 mm | Connection: R1/2 male
KFG2L1209-02-FType: Male elbow | Tube size: 12 x 9 mm | Connection: R1/4 male
KFG2L1209-03-FType: Male elbow | Tube size: 12 x 9 mm | Connection: R3/8 male
KFG2L1209-04-FType: Male elbow | Tube size: 12 x 9 mm | Connection: R1/2 male
KFG2L1210-02-FType: Male elbow | Tube size: 12 x 10 mm | Connection: R1/4 male
KFG2L1210-03-FType: Male elbow | Tube size: 12 x 10 mm | Connection: R3/8 male
KFG2L1210-04-FType: Male elbow | Tube size: 12 x 10 mm | Connection: R1/2 male
KFG2L1613-03-FType: Male elbow | Tube size: 16 x 13 mm | Connection: R3/8 male
KFG2L1613-04-FType: Male elbow | Tube size: 16 x 13 mm | Connection: R1/2 male
KFG2H0425-01-FType: Male connector | Tube size: 4 x 2.5 mm | Connection: R1/8 male
KFG2H0425-02-FType: Male connector | Tube size: 4 x 2.5 mm | Connection: R1/4 male
KFG2H0403-01-FType: Male connector | Tube size: 4 x 3 mm | Connection: R1/8 male
KFG2H0403-02-FType: Male connector | Tube size: 4 x 3 mm | Connection: R1/4 male
KFG2H0604-01-FType: Male connector | Tube size: 6 x 4 mm | Connection: R1/8 male
KFG2H0604-02-FType: Male connector | Tube size: 6 x 4 mm | Connection: R1/4 male
KFG2H0806-01-FType: Male connector | Tube size: 8 x 6 mm | Connection: R1/8 male
KFG2H0806-02-FType: Male connector | Tube size: 8 x 6 mm | Connection: R1/4 male
KFG2H0806-03-FType: Male connector | Tube size: 8 x 6 mm | Connection: R3/8 male
KFG2H1075-02-FType: Male connector | Tube size: 10 x 7.5 mm | Connection: R1/4 male
KFG2H1075-03-FType: Male connector | Tube size: 10 x 7.5 mm | Connection: R3/8 male
KFG2H1075-04-FType: Male connector | Tube size: 10 x 7.5 mm | Connection: R1/2 male
KFG2H1008-02-FType: Male connector | Tube size: 10 x 8 mm | Connection: R1/4 male
KFG2H1008-03-FType: Male connector | Tube size: 10 x 8 mm | Connection: R3/8 male
KFG2H1008-04-FType: Male connector | Tube size: 10 x 8 mm | Connection: R1/2 male
KFG2H1209-02-FType: Male connector | Tube size: 12 x 9 mm | Connection: R1/4 male
KFG2H1209-03-FType: Male connector | Tube size: 12 x 9 mm | Connection: R3/8 male
KFG2H1209-04-FType: Male connector | Tube size: 12 x 9 mm | Connection: R1/2 male
KFG2H1210-02-FType: Male connector | Tube size: 12 x 10 mm | Connection: R1/4 male
KFG2H1210-03-FType: Male connector | Tube size: 12 x 10 mm | Connection: R3/8 male
KFG2H1210-04-FType: Male connector | Tube size: 12 x 10 mm | Connection: R1/2 male
KFG2H1613-03-FType: Male connector | Tube size: 16 x 13 mm | Connection: R3/8 male
KFG2H1613-04-FType: Male connector | Tube size: 16 x 13 mm | Connection: R1/2 male
KFG2T0425-00-FType: Union tee | Tube size: 4 x 2.5 mm | Connection: Tube to tube
KFG2T0403-00-FType: Union tee | Tube size: 4 x 3 mm | Connection: Tube to tube
KFG2T0604-00-FType: Union tee | Tube size: 6 x 4 mm | Connection: Tube to tube
KFG2T0806-00-FType: Union tee | Tube size: 8 x 6 mm | Connection: Tube to tube
KFG2T1075-00-FType: Union tee | Tube size: 10 x 7.5 mm | Connection: Tube to tube
KFG2T1008-00-FType: Union tee | Tube size: 10 x 8 mm | Connection: Tube to tube
KFG2T1209-00-FType: Union tee | Tube size: 12 x 9 mm | Connection: Tube to tube
KFG2T1210-00-FType: Union tee | Tube size: 12 x 10 mm | Connection: Tube to tube
KFG2T1613-00-FType: Union tee | Tube size: 16 x 13 mm | Connection: Tube to tube
KFG2H0425-00-FType: Straight union | Tube size: 4 x 2.5 mm | Connection: Tube to tube
KFG2H0403-00-FType: Straight union | Tube size: 4 x 3 mm | Connection: Tube to tube
KFG2H0604-00-FType: Straight union | Tube size: 6 x 4 mm | Connection: Tube to tube
KFG2H0806-00-FType: Straight union | Tube size: 8 x 6 mm | Connection: Tube to tube
KFG2H1075-00-FType: Straight union | Tube size: 10 x 7.5 mm | Connection: Tube to tube
KFG2H1008-00-FType: Straight union | Tube size: 10 x 8 mm | Connection: Tube to tube
KFG2H1209-00-FType: Straight union | Tube size: 12 x 9 mm | Connection: Tube to tube
KFG2H1210-00-FType: Straight union | Tube size: 12 x 10 mm | Connection: Tube to tube
KFG2H1613-00-FType: Straight union | Tube size: 16 x 13 mm | Connection: Tube to tube
KFG2T0425-01-FType: Male branch tee | Tube size: 4 x 2.5 mm | Connection: R1/8 male
KFG2T0425-02-FType: Male branch tee | Tube size: 4 x 2.5 mm | Connection: R1/4 male
KFG2T0403-01-FType: Male branch tee | Tube size: 4 x 3 mm | Connection: R1/8 male
KFG2T0403-02-FType: Male branch tee | Tube size: 4 x 3 mm | Connection: R1/4 male
KFG2T0604-01-FType: Male branch tee | Tube size: 6 x 4 mm | Connection: R1/8 male
KFG2T0604-02-FType: Male branch tee | Tube size: 6 x 4 mm | Connection: R1/4 male
KFG2T0806-01-FType: Male branch tee | Tube size: 8 x 6 mm | Connection: R1/8 male
KFG2T0806-02-FType: Male branch tee | Tube size: 8 x 6 mm | Connection: R1/4 male
KFG2T0806-03-FType: Male branch tee | Tube size: 8 x 6 mm | Connection: R3/8 male
KFG2T1075-02-FType: Male branch tee | Tube size: 10 x 7.5 mm | Connection: R1/4 male
KFG2T1075-03-FType: Male branch tee | Tube size: 10 x 7.5 mm | Connection: R3/8 male
KFG2T1075-04-FType: Male branch tee | Tube size: 10 x 7.5 mm | Connection: R1/2 male
KFG2T1008-02-FType: Male branch tee | Tube size: 10 x 8 mm | Connection: R1/4 male
KFG2T1008-03-FType: Male branch tee | Tube size: 10 x 8 mm | Connection: R3/8 male
KFG2T1008-04-FType: Male branch tee | Tube size: 10 x 8 mm | Connection: R1/2 male
KFG2T1209-02-FType: Male branch tee | Tube size: 12 x 9 mm | Connection: R1/4 male
KFG2T1209-03-FType: Male branch tee | Tube size: 12 x 9 mm | Connection: R3/8 male
KFG2T1209-04-FType: Male branch tee | Tube size: 12 x 9 mm | Connection: R1/2 male
KFG2T1210-02-FType: Male branch tee | Tube size: 12 x 10 mm | Connection: R1/4 male
KFG2T1210-03-FType: Male branch tee | Tube size: 12 x 10 mm | Connection: R3/8 male
KFG2T1210-04-FType: Male branch tee | Tube size: 12 x 10 mm | Connection: R1/2 male
KFG2T1613-03-FType: Male branch tee | Tube size: 16 x 13 mm | Connection: R3/8 male
KFG2T1613-04-FType: Male branch tee | Tube size: 16 x 13 mm | Connection: R1/2 male
KFG2V0425-01-FType: Swivel male elbow | Tube size: 4 x 2.5 mm | Connection: R1/8 male
KFG2V0425-02-FType: Swivel male elbow | Tube size: 4 x 2.5 mm | Connection: R1/4 male
KFG2V0403-01-FType: Swivel male elbow | Tube size: 4 x 3 mm | Connection: R1/8 male
KFG2V0403-02-FType: Swivel male elbow | Tube size: 4 x 3 mm | Connection: R1/4 male
KFG2V0604-01-FType: Swivel male elbow | Tube size: 6 x 4 mm | Connection: R1/8 male
KFG2V0604-02-FType: Swivel male elbow | Tube size: 6 x 4 mm | Connection: R1/4 male
KFG2V0806-01-FType: Swivel male elbow | Tube size: 8 x 6 mm | Connection: R1/8 male
KFG2V0806-02-FType: Swivel male elbow | Tube size: 8 x 6 mm | Connection: R1/4 male
KFG2V0806-03-FType: Swivel male elbow | Tube size: 8 x 6 mm | Connection: R3/8 male
KFG2V1075-02-FType: Swivel male elbow | Tube size: 10 x 7.5 mm | Connection: R1/4 male
KFG2V1075-03-FType: Swivel male elbow | Tube size: 10 x 7.5 mm | Connection: R3/8 male
KFG2V1075-04-FType: Swivel male elbow | Tube size: 10 x 7.5 mm | Connection: R1/2 male
KFG2V1008-02-FType: Swivel male elbow | Tube size: 10 x 8 mm | Connection: R1/4 male
KFG2V1008-03-FType: Swivel male elbow | Tube size: 10 x 8 mm | Connection: R3/8 male
KFG2V1008-04-FType: Swivel male elbow | Tube size: 10 x 8 mm | Connection: R1/2 male
KFG2V1209-02-FType: Swivel male elbow | Tube size: 12 x 9 mm | Connection: R1/4 male
KFG2V1209-03-FType: Swivel male elbow | Tube size: 12 x 9 mm | Connection: R3/8 male
KFG2V1209-04-FType: Swivel male elbow | Tube size: 12 x 9 mm | Connection: R1/2 male
KFG2V1210-02-FType: Swivel male elbow | Tube size: 12 x 10 mm | Connection: R1/4 male
KFG2V1210-03-FType: Swivel male elbow | Tube size: 12 x 10 mm | Connection: R3/8 male
KFG2V1210-04-FType: Swivel male elbow | Tube size: 12 x 10 mm | Connection: R1/2 male
KFG2V1613-03-FType: Swivel male elbow | Tube size: 16 x 13 mm | Connection: R3/8 male
KFG2V1613-04-FType: Swivel male elbow | Tube size: 16 x 13 mm | Connection: R1/2 male
KFG2L0425-00-FType: Union elbow | Tube size: 4 x 2.5 mm | Connection: Tube to tube
KFG2L0403-00-FType: Union elbow | Tube size: 4 x 3 mm | Connection: Tube to tube
KFG2L0604-00-FType: Union elbow | Tube size: 6 x 4 mm | Connection: Tube to tube
KFG2L0806-00-FType: Union elbow | Tube size: 8 x 6 mm | Connection: Tube to tube
KFG2L1075-00-FType: Union elbow | Tube size: 10 x 7.5 mm | Connection: Tube to tube
KFG2L1008-00-FType: Union elbow | Tube size: 10 x 8 mm | Connection: Tube to tube
KFG2L1209-00-FType: Union elbow | Tube size: 12 x 9 mm | Connection: Tube to tube
KFG2L1210-00-FType: Union elbow | Tube size: 12 x 10 mm | Connection: Tube to tube
KFG2L1613-00-FType: Union elbow | Tube size: 16 x 13 mm | Connection: Tube to tube
KFG2E0425-00-FType: Bulkhead union | Tube size: 4 x 2.5 mm | Connection: Tube to tube
KFG2E0403-00-FType: Bulkhead union | Tube size: 4 x 3 mm | Connection: Tube to tube
KFG2E0604-00-FType: Bulkhead union | Tube size: 6 x 4 mm | Connection: Tube to tube
KFG2E0806-00-FType: Bulkhead union | Tube size: 8 x 6 mm | Connection: Tube to tube
KFG2E1075-00-FType: Bulkhead union | Tube size: 10 x 7.5 mm | Connection: Tube to tube
KFG2E1008-00-FType: Bulkhead union | Tube size: 10 x 8 mm | Connection: Tube to tube
KFG2E1209-00-FType: Bulkhead union | Tube size: 12 x 9 mm | Connection: Tube to tube
KFG2E1210-00-FType: Bulkhead union | Tube size: 12 x 10 mm | Connection: Tube to tube
KFG2E1613-00-FType: Bulkhead union | Tube size: 16 x 13 mm | Connection: Tube to tube
KFG2N-04-FType: Union nut | Tube size: 4 mm O.D. | Connection: Nut only
KFG2N-06-FType: Union nut | Tube size: 6 mm O.D. | Connection: Nut only
KFG2N-08-FType: Union nut | Tube size: 8 mm O.D. | Connection: Nut only
KFG2N-10-FType: Union nut | Tube size: 10 mm O.D. | Connection: Nut only
KFG2N-12-FType: Union nut | Tube size: 12 mm O.D. | Connection: Nut only
KFG2N-16-FType: Union nut | Tube size: 16 mm O.D. | Connection: Nut only
KFG2F0425-02-FType: Female connector | Tube size: 4 x 2.5 mm | Connection: Rc1/4 female
KFG2F0403-02-FType: Female connector | Tube size: 4 x 3 mm | Connection: Rc1/4 female
KFG2F0604-02-FType: Female connector | Tube size: 6 x 4 mm | Connection: Rc1/4 female
KFG2F0806-03-FType: Female connector | Tube size: 8 x 6 mm | Connection: Rc3/8 female
KFG2F1075-03-FType: Female connector | Tube size: 10 x 7.5 mm | Connection: Rc3/8 female
KFG2F1008-03-FType: Female connector | Tube size: 10 x 8 mm | Connection: Rc3/8 female
KFG2F1209-03-FType: Female connector | Tube size: 12 x 9 mm | Connection: Rc3/8 female
KFG2F1210-03-FType: Female connector | Tube size: 12 x 10 mm | Connection: Rc3/8 female
KFG2F1613-04-FType: Female connector | Tube size: 16 x 13 mm | Connection: Rc1/2 female

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
