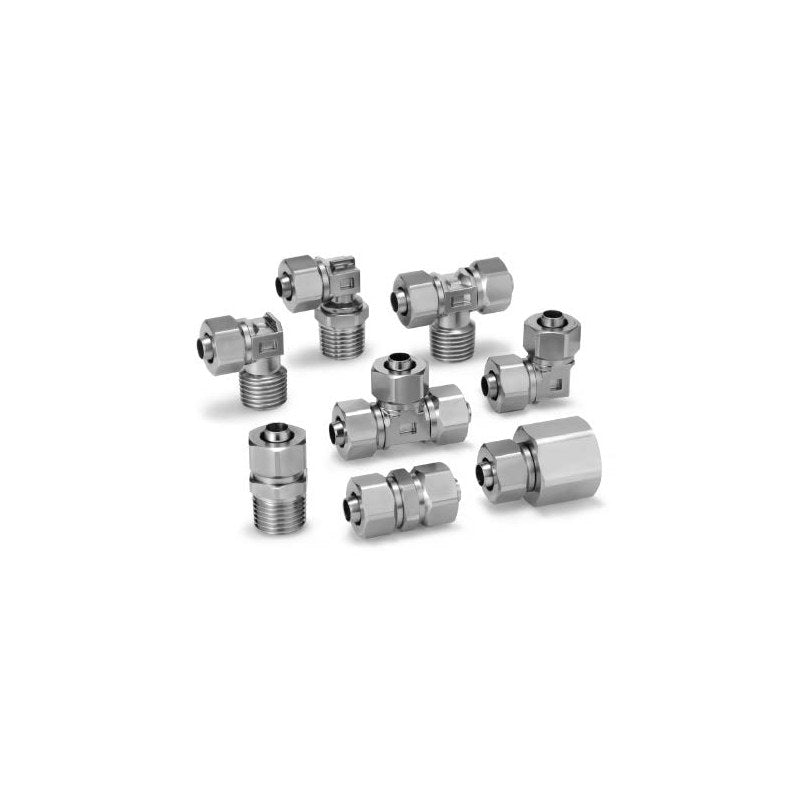

SMC KFG2 SUS316 Stainless Insert Fitting (Metric, -65 to 260 C)

SMC KFG2 SUS316 Stainless Insert Fitting (Metric, -65 to 260 C)

SMC KFG2 series SUS316 insert fittings with a union-nut tube clamp for fluoropolymer and other tubing from -65 to 260 deg C, tube OD 4 to 16 mm, R / Rc threads.

Key features

  • All wetted metal parts SUS316; no rubber material except the swivel elbow O-ring (FKM)
  • About 44% smaller and 37% lighter than the previous KFG (KFG2L0806-02 example)
  • Fluid temperature -65 to 260 deg C (swivel elbow -5 to 150 deg C); usable with steam
  • Seal materials conform to Korean food sanitation standards for containers and packaging
  • For FEP, PFA, modified PTFE, nylon, polyurethane, polyolefin and anti-static tubing (see catalog table)
  • Grease-free; R threads without sealant as standard (sealant version available)

Specifications

Fluid Air, N2, water, steam, turbine oil
Operating pressure range -100 kPa to 1 MPa
Proof pressure 3.0 MPa
Ambient and fluid temperature -65 to 260 deg C (swivel elbow -5 to 150 deg C)
Material SUS316 (fluorine-coated nut/stud); O-ring special FKM
Lubricant Grease-free
Tube sizes (OD x ID) 4x2.5, 4x3, 6x4, 8x6, 10x7.5, 10x8, 12x9, 12x10, 16x13 mm
Source SMC Korea catalog KFG2 Series (SMCKR_KFG2.pdf), p. 449-456
KFG2H0425-01 Type: Male connector (KFG2H) | Tube OD x ID: 4 x 2.5 mm | Connection: R1/8 male
KFG2H0425-02 Type: Male connector (KFG2H) | Tube OD x ID: 4 x 2.5 mm | Connection: R1/4 male
KFG2H0403-01 Type: Male connector (KFG2H) | Tube OD x ID: 4 x 3 mm | Connection: R1/8 male
KFG2H0403-02 Type: Male connector (KFG2H) | Tube OD x ID: 4 x 3 mm | Connection: R1/4 male
KFG2H0604-01 Type: Male connector (KFG2H) | Tube OD x ID: 6 x 4 mm | Connection: R1/8 male
KFG2H0604-02 Type: Male connector (KFG2H) | Tube OD x ID: 6 x 4 mm | Connection: R1/4 male
KFG2H0806-01 Type: Male connector (KFG2H) | Tube OD x ID: 8 x 6 mm | Connection: R1/8 male
KFG2H0806-02 Type: Male connector (KFG2H) | Tube OD x ID: 8 x 6 mm | Connection: R1/4 male
KFG2H0806-03 Type: Male connector (KFG2H) | Tube OD x ID: 8 x 6 mm | Connection: R3/8 male
KFG2H1075-02 Type: Male connector (KFG2H) | Tube OD x ID: 10 x 7.5 mm | Connection: R1/4 male
KFG2H1075-03 Type: Male connector (KFG2H) | Tube OD x ID: 10 x 7.5 mm | Connection: R3/8 male
KFG2H1075-04 Type: Male connector (KFG2H) | Tube OD x ID: 10 x 7.5 mm | Connection: R1/2 male
KFG2H1008-02 Type: Male connector (KFG2H) | Tube OD x ID: 10 x 8 mm | Connection: R1/4 male
KFG2H1008-03 Type: Male connector (KFG2H) | Tube OD x ID: 10 x 8 mm | Connection: R3/8 male
KFG2H1008-04 Type: Male connector (KFG2H) | Tube OD x ID: 10 x 8 mm | Connection: R1/2 male
KFG2H1209-02 Type: Male connector (KFG2H) | Tube OD x ID: 12 x 9 mm | Connection: R1/4 male
KFG2H1209-03 Type: Male connector (KFG2H) | Tube OD x ID: 12 x 9 mm | Connection: R3/8 male
KFG2H1209-04 Type: Male connector (KFG2H) | Tube OD x ID: 12 x 9 mm | Connection: R1/2 male
KFG2H1210-02 Type: Male connector (KFG2H) | Tube OD x ID: 12 x 10 mm | Connection: R1/4 male
KFG2H1210-03 Type: Male connector (KFG2H) | Tube OD x ID: 12 x 10 mm | Connection: R3/8 male
KFG2H1210-04 Type: Male connector (KFG2H) | Tube OD x ID: 12 x 10 mm | Connection: R1/2 male
KFG2H1613-03 Type: Male connector (KFG2H) | Tube OD x ID: 16 x 13 mm | Connection: R3/8 male
KFG2H1613-04 Type: Male connector (KFG2H) | Tube OD x ID: 16 x 13 mm | Connection: R1/2 male
KFG2L0425-01 Type: Male elbow (KFG2L) | Tube OD x ID: 4 x 2.5 mm | Connection: R1/8 male
KFG2L0425-02 Type: Male elbow (KFG2L) | Tube OD x ID: 4 x 2.5 mm | Connection: R1/4 male
KFG2L0403-01 Type: Male elbow (KFG2L) | Tube OD x ID: 4 x 3 mm | Connection: R1/8 male
KFG2L0403-02 Type: Male elbow (KFG2L) | Tube OD x ID: 4 x 3 mm | Connection: R1/4 male
KFG2L0604-01 Type: Male elbow (KFG2L) | Tube OD x ID: 6 x 4 mm | Connection: R1/8 male
KFG2L0604-02 Type: Male elbow (KFG2L) | Tube OD x ID: 6 x 4 mm | Connection: R1/4 male
KFG2L0806-01 Type: Male elbow (KFG2L) | Tube OD x ID: 8 x 6 mm | Connection: R1/8 male
KFG2L0806-02 Type: Male elbow (KFG2L) | Tube OD x ID: 8 x 6 mm | Connection: R1/4 male
KFG2L0806-03 Type: Male elbow (KFG2L) | Tube OD x ID: 8 x 6 mm | Connection: R3/8 male
KFG2L1075-02 Type: Male elbow (KFG2L) | Tube OD x ID: 10 x 7.5 mm | Connection: R1/4 male
KFG2L1075-03 Type: Male elbow (KFG2L) | Tube OD x ID: 10 x 7.5 mm | Connection: R3/8 male
KFG2L1075-04 Type: Male elbow (KFG2L) | Tube OD x ID: 10 x 7.5 mm | Connection: R1/2 male
KFG2L1008-02 Type: Male elbow (KFG2L) | Tube OD x ID: 10 x 8 mm | Connection: R1/4 male
KFG2L1008-03 Type: Male elbow (KFG2L) | Tube OD x ID: 10 x 8 mm | Connection: R3/8 male
KFG2L1008-04 Type: Male elbow (KFG2L) | Tube OD x ID: 10 x 8 mm | Connection: R1/2 male
KFG2L1209-02 Type: Male elbow (KFG2L) | Tube OD x ID: 12 x 9 mm | Connection: R1/4 male
KFG2L1209-03 Type: Male elbow (KFG2L) | Tube OD x ID: 12 x 9 mm | Connection: R3/8 male
KFG2L1209-04 Type: Male elbow (KFG2L) | Tube OD x ID: 12 x 9 mm | Connection: R1/2 male
KFG2L1210-02 Type: Male elbow (KFG2L) | Tube OD x ID: 12 x 10 mm | Connection: R1/4 male
KFG2L1210-03 Type: Male elbow (KFG2L) | Tube OD x ID: 12 x 10 mm | Connection: R3/8 male
KFG2L1210-04 Type: Male elbow (KFG2L) | Tube OD x ID: 12 x 10 mm | Connection: R1/2 male
KFG2L1613-03 Type: Male elbow (KFG2L) | Tube OD x ID: 16 x 13 mm | Connection: R3/8 male
KFG2L1613-04 Type: Male elbow (KFG2L) | Tube OD x ID: 16 x 13 mm | Connection: R1/2 male
KFG2T0425-01 Type: Branch tee (KFG2T) | Tube OD x ID: 4 x 2.5 mm | Connection: R1/8 male
KFG2T0425-02 Type: Branch tee (KFG2T) | Tube OD x ID: 4 x 2.5 mm | Connection: R1/4 male
KFG2T0403-01 Type: Branch tee (KFG2T) | Tube OD x ID: 4 x 3 mm | Connection: R1/8 male
KFG2T0403-02 Type: Branch tee (KFG2T) | Tube OD x ID: 4 x 3 mm | Connection: R1/4 male
KFG2T0604-01 Type: Branch tee (KFG2T) | Tube OD x ID: 6 x 4 mm | Connection: R1/8 male
KFG2T0604-02 Type: Branch tee (KFG2T) | Tube OD x ID: 6 x 4 mm | Connection: R1/4 male
KFG2T0806-01 Type: Branch tee (KFG2T) | Tube OD x ID: 8 x 6 mm | Connection: R1/8 male
KFG2T0806-02 Type: Branch tee (KFG2T) | Tube OD x ID: 8 x 6 mm | Connection: R1/4 male
KFG2T0806-03 Type: Branch tee (KFG2T) | Tube OD x ID: 8 x 6 mm | Connection: R3/8 male
KFG2T1075-02 Type: Branch tee (KFG2T) | Tube OD x ID: 10 x 7.5 mm | Connection: R1/4 male
KFG2T1075-03 Type: Branch tee (KFG2T) | Tube OD x ID: 10 x 7.5 mm | Connection: R3/8 male
KFG2T1075-04 Type: Branch tee (KFG2T) | Tube OD x ID: 10 x 7.5 mm | Connection: R1/2 male
KFG2T1008-02 Type: Branch tee (KFG2T) | Tube OD x ID: 10 x 8 mm | Connection: R1/4 male
KFG2T1008-03 Type: Branch tee (KFG2T) | Tube OD x ID: 10 x 8 mm | Connection: R3/8 male
KFG2T1008-04 Type: Branch tee (KFG2T) | Tube OD x ID: 10 x 8 mm | Connection: R1/2 male
KFG2T1209-02 Type: Branch tee (KFG2T) | Tube OD x ID: 12 x 9 mm | Connection: R1/4 male
KFG2T1209-03 Type: Branch tee (KFG2T) | Tube OD x ID: 12 x 9 mm | Connection: R3/8 male
KFG2T1209-04 Type: Branch tee (KFG2T) | Tube OD x ID: 12 x 9 mm | Connection: R1/2 male
KFG2T1210-02 Type: Branch tee (KFG2T) | Tube OD x ID: 12 x 10 mm | Connection: R1/4 male
KFG2T1210-03 Type: Branch tee (KFG2T) | Tube OD x ID: 12 x 10 mm | Connection: R3/8 male
KFG2T1210-04 Type: Branch tee (KFG2T) | Tube OD x ID: 12 x 10 mm | Connection: R1/2 male
KFG2T1613-03 Type: Branch tee (KFG2T) | Tube OD x ID: 16 x 13 mm | Connection: R3/8 male
KFG2T1613-04 Type: Branch tee (KFG2T) | Tube OD x ID: 16 x 13 mm | Connection: R1/2 male
KFG2H0425-00 Type: Union straight (KFG2H) | Tube OD x ID: 4 x 2.5 mm | Connection: Tube to tube
KFG2H0403-00 Type: Union straight (KFG2H) | Tube OD x ID: 4 x 3 mm | Connection: Tube to tube
KFG2H0604-00 Type: Union straight (KFG2H) | Tube OD x ID: 6 x 4 mm | Connection: Tube to tube
KFG2H0806-00 Type: Union straight (KFG2H) | Tube OD x ID: 8 x 6 mm | Connection: Tube to tube
KFG2H1075-00 Type: Union straight (KFG2H) | Tube OD x ID: 10 x 7.5 mm | Connection: Tube to tube
KFG2H1008-00 Type: Union straight (KFG2H) | Tube OD x ID: 10 x 8 mm | Connection: Tube to tube
KFG2H1209-00 Type: Union straight (KFG2H) | Tube OD x ID: 12 x 9 mm | Connection: Tube to tube
KFG2H1210-00 Type: Union straight (KFG2H) | Tube OD x ID: 12 x 10 mm | Connection: Tube to tube
KFG2H1613-00 Type: Union straight (KFG2H) | Tube OD x ID: 16 x 13 mm | Connection: Tube to tube
KFG2T0425-00 Type: Union tee (KFG2T) | Tube OD x ID: 4 x 2.5 mm | Connection: Tube to tube
KFG2T0403-00 Type: Union tee (KFG2T) | Tube OD x ID: 4 x 3 mm | Connection: Tube to tube
KFG2T0604-00 Type: Union tee (KFG2T) | Tube OD x ID: 6 x 4 mm | Connection: Tube to tube
KFG2T0806-00 Type: Union tee (KFG2T) | Tube OD x ID: 8 x 6 mm | Connection: Tube to tube
KFG2T1075-00 Type: Union tee (KFG2T) | Tube OD x ID: 10 x 7.5 mm | Connection: Tube to tube
KFG2T1008-00 Type: Union tee (KFG2T) | Tube OD x ID: 10 x 8 mm | Connection: Tube to tube
KFG2T1209-00 Type: Union tee (KFG2T) | Tube OD x ID: 12 x 9 mm | Connection: Tube to tube
KFG2T1210-00 Type: Union tee (KFG2T) | Tube OD x ID: 12 x 10 mm | Connection: Tube to tube
KFG2T1613-00 Type: Union tee (KFG2T) | Tube OD x ID: 16 x 13 mm | Connection: Tube to tube
KFG2E0425-00 Type: Bulkhead union (KFG2E) | Tube OD x ID: 4 x 2.5 mm | Connection: Tube to tube
KFG2E0403-00 Type: Bulkhead union (KFG2E) | Tube OD x ID: 4 x 3 mm | Connection: Tube to tube
KFG2E0604-00 Type: Bulkhead union (KFG2E) | Tube OD x ID: 6 x 4 mm | Connection: Tube to tube
KFG2E0806-00 Type: Bulkhead union (KFG2E) | Tube OD x ID: 8 x 6 mm | Connection: Tube to tube
KFG2E1075-00 Type: Bulkhead union (KFG2E) | Tube OD x ID: 10 x 7.5 mm | Connection: Tube to tube
KFG2E1008-00 Type: Bulkhead union (KFG2E) | Tube OD x ID: 10 x 8 mm | Connection: Tube to tube
KFG2E1209-00 Type: Bulkhead union (KFG2E) | Tube OD x ID: 12 x 9 mm | Connection: Tube to tube
KFG2E1210-00 Type: Bulkhead union (KFG2E) | Tube OD x ID: 12 x 10 mm | Connection: Tube to tube
KFG2E1613-00 Type: Bulkhead union (KFG2E) | Tube OD x ID: 16 x 13 mm | Connection: Tube to tube
KFG2L0425-00 Type: Union elbow (KFG2L) | Tube OD x ID: 4 x 2.5 mm | Connection: Tube to tube
KFG2L0403-00 Type: Union elbow (KFG2L) | Tube OD x ID: 4 x 3 mm | Connection: Tube to tube
KFG2L0604-00 Type: Union elbow (KFG2L) | Tube OD x ID: 6 x 4 mm | Connection: Tube to tube
KFG2L0806-00 Type: Union elbow (KFG2L) | Tube OD x ID: 8 x 6 mm | Connection: Tube to tube
KFG2L1075-00 Type: Union elbow (KFG2L) | Tube OD x ID: 10 x 7.5 mm | Connection: Tube to tube
KFG2L1008-00 Type: Union elbow (KFG2L) | Tube OD x ID: 10 x 8 mm | Connection: Tube to tube
KFG2L1209-00 Type: Union elbow (KFG2L) | Tube OD x ID: 12 x 9 mm | Connection: Tube to tube
KFG2L1210-00 Type: Union elbow (KFG2L) | Tube OD x ID: 12 x 10 mm | Connection: Tube to tube
KFG2L1613-00 Type: Union elbow (KFG2L) | Tube OD x ID: 16 x 13 mm | Connection: Tube to tube
KFG2V0425-01 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 4 x 2.5 mm | Connection: R1/8 male
KFG2V0425-02 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 4 x 2.5 mm | Connection: R1/4 male
KFG2V0403-01 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 4 x 3 mm | Connection: R1/8 male
KFG2V0403-02 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 4 x 3 mm | Connection: R1/4 male
KFG2V0604-01 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 6 x 4 mm | Connection: R1/8 male
KFG2V0604-02 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 6 x 4 mm | Connection: R1/4 male
KFG2V0806-01 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 8 x 6 mm | Connection: R1/8 male
KFG2V0806-02 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 8 x 6 mm | Connection: R1/4 male
KFG2V0806-03 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 8 x 6 mm | Connection: R3/8 male
KFG2V1075-02 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 10 x 7.5 mm | Connection: R1/4 male
KFG2V1075-03 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 10 x 7.5 mm | Connection: R3/8 male
KFG2V1075-04 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 10 x 7.5 mm | Connection: R1/2 male
KFG2V1008-02 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 10 x 8 mm | Connection: R1/4 male
KFG2V1008-03 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 10 x 8 mm | Connection: R3/8 male
KFG2V1008-04 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 10 x 8 mm | Connection: R1/2 male
KFG2V1209-02 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 12 x 9 mm | Connection: R1/4 male
KFG2V1209-03 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 12 x 9 mm | Connection: R3/8 male
KFG2V1209-04 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 12 x 9 mm | Connection: R1/2 male
KFG2V1210-02 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 12 x 10 mm | Connection: R1/4 male
KFG2V1210-03 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 12 x 10 mm | Connection: R3/8 male
KFG2V1210-04 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 12 x 10 mm | Connection: R1/2 male
KFG2V1613-03 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 16 x 13 mm | Connection: R3/8 male
KFG2V1613-04 Type: Swivel male elbow (KFG2V) | Tube OD x ID: 16 x 13 mm | Connection: R1/2 male
KFG2F0425-02 Type: Female connector (KFG2F) | Tube OD x ID: 4 x 2.5 mm | Connection: Rc1/4 female
KFG2F0403-02 Type: Female connector (KFG2F) | Tube OD x ID: 4 x 3 mm | Connection: Rc1/4 female
KFG2F0604-02 Type: Female connector (KFG2F) | Tube OD x ID: 6 x 4 mm | Connection: Rc1/4 female
KFG2F0806-03 Type: Female connector (KFG2F) | Tube OD x ID: 8 x 6 mm | Connection: Rc3/8 female
KFG2F1075-03 Type: Female connector (KFG2F) | Tube OD x ID: 10 x 7.5 mm | Connection: Rc3/8 female
KFG2F1008-03 Type: Female connector (KFG2F) | Tube OD x ID: 10 x 8 mm | Connection: Rc3/8 female
KFG2F1209-03 Type: Female connector (KFG2F) | Tube OD x ID: 12 x 9 mm | Connection: Rc3/8 female
KFG2F1210-03 Type: Female connector (KFG2F) | Tube OD x ID: 12 x 10 mm | Connection: Rc3/8 female
KFG2F1613-04 Type: Female connector (KFG2F) | Tube OD x ID: 16 x 13 mm | Connection: Rc1/2 female
KFG2N-04 Type: Union nut (KFG2N) | Tube OD x ID: OD 4 mm | Connection: Accessory
KFG2N-06 Type: Union nut (KFG2N) | Tube OD x ID: OD 6 mm | Connection: Accessory
KFG2N-08 Type: Union nut (KFG2N) | Tube OD x ID: OD 8 mm | Connection: Accessory
KFG2N-10 Type: Union nut (KFG2N) | Tube OD x ID: OD 10 mm | Connection: Accessory
KFG2N-12 Type: Union nut (KFG2N) | Tube OD x ID: OD 12 mm | Connection: Accessory
KFG2N-16 Type: Union nut (KFG2N) | Tube OD x ID: OD 16 mm | Connection: Accessory
FittingsSMC
143 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC KFG2 SUS316 Stainless Insert Fitting (Metric, -65 to 260 C)

Brand SMC·Fittings

Available part numbers (143)

KFG2H0425-01, KFG2H0425-02, KFG2H0403-01, KFG2H0403-02, KFG2H0604-01, KFG2H0604-02, KFG2H0806-01, KFG2H0806-02, KFG2H0806-03, KFG2H1075-02 + 133 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KFG2H0425-01Type: Male connector (KFG2H) | Tube OD x ID: 4 x 2.5 mm | Connection: R1/8 male
KFG2H0425-02Type: Male connector (KFG2H) | Tube OD x ID: 4 x 2.5 mm | Connection: R1/4 male
KFG2H0403-01Type: Male connector (KFG2H) | Tube OD x ID: 4 x 3 mm | Connection: R1/8 male
KFG2H0403-02Type: Male connector (KFG2H) | Tube OD x ID: 4 x 3 mm | Connection: R1/4 male
KFG2H0604-01Type: Male connector (KFG2H) | Tube OD x ID: 6 x 4 mm | Connection: R1/8 male
KFG2H0604-02Type: Male connector (KFG2H) | Tube OD x ID: 6 x 4 mm | Connection: R1/4 male
KFG2H0806-01Type: Male connector (KFG2H) | Tube OD x ID: 8 x 6 mm | Connection: R1/8 male
KFG2H0806-02Type: Male connector (KFG2H) | Tube OD x ID: 8 x 6 mm | Connection: R1/4 male
KFG2H0806-03Type: Male connector (KFG2H) | Tube OD x ID: 8 x 6 mm | Connection: R3/8 male
KFG2H1075-02Type: Male connector (KFG2H) | Tube OD x ID: 10 x 7.5 mm | Connection: R1/4 male
KFG2H1075-03Type: Male connector (KFG2H) | Tube OD x ID: 10 x 7.5 mm | Connection: R3/8 male
KFG2H1075-04Type: Male connector (KFG2H) | Tube OD x ID: 10 x 7.5 mm | Connection: R1/2 male
KFG2H1008-02Type: Male connector (KFG2H) | Tube OD x ID: 10 x 8 mm | Connection: R1/4 male
KFG2H1008-03Type: Male connector (KFG2H) | Tube OD x ID: 10 x 8 mm | Connection: R3/8 male
KFG2H1008-04Type: Male connector (KFG2H) | Tube OD x ID: 10 x 8 mm | Connection: R1/2 male
KFG2H1209-02Type: Male connector (KFG2H) | Tube OD x ID: 12 x 9 mm | Connection: R1/4 male
KFG2H1209-03Type: Male connector (KFG2H) | Tube OD x ID: 12 x 9 mm | Connection: R3/8 male
KFG2H1209-04Type: Male connector (KFG2H) | Tube OD x ID: 12 x 9 mm | Connection: R1/2 male
KFG2H1210-02Type: Male connector (KFG2H) | Tube OD x ID: 12 x 10 mm | Connection: R1/4 male
KFG2H1210-03Type: Male connector (KFG2H) | Tube OD x ID: 12 x 10 mm | Connection: R3/8 male
KFG2H1210-04Type: Male connector (KFG2H) | Tube OD x ID: 12 x 10 mm | Connection: R1/2 male
KFG2H1613-03Type: Male connector (KFG2H) | Tube OD x ID: 16 x 13 mm | Connection: R3/8 male
KFG2H1613-04Type: Male connector (KFG2H) | Tube OD x ID: 16 x 13 mm | Connection: R1/2 male
KFG2L0425-01Type: Male elbow (KFG2L) | Tube OD x ID: 4 x 2.5 mm | Connection: R1/8 male
KFG2L0425-02Type: Male elbow (KFG2L) | Tube OD x ID: 4 x 2.5 mm | Connection: R1/4 male
KFG2L0403-01Type: Male elbow (KFG2L) | Tube OD x ID: 4 x 3 mm | Connection: R1/8 male
KFG2L0403-02Type: Male elbow (KFG2L) | Tube OD x ID: 4 x 3 mm | Connection: R1/4 male
KFG2L0604-01Type: Male elbow (KFG2L) | Tube OD x ID: 6 x 4 mm | Connection: R1/8 male
KFG2L0604-02Type: Male elbow (KFG2L) | Tube OD x ID: 6 x 4 mm | Connection: R1/4 male
KFG2L0806-01Type: Male elbow (KFG2L) | Tube OD x ID: 8 x 6 mm | Connection: R1/8 male
KFG2L0806-02Type: Male elbow (KFG2L) | Tube OD x ID: 8 x 6 mm | Connection: R1/4 male
KFG2L0806-03Type: Male elbow (KFG2L) | Tube OD x ID: 8 x 6 mm | Connection: R3/8 male
KFG2L1075-02Type: Male elbow (KFG2L) | Tube OD x ID: 10 x 7.5 mm | Connection: R1/4 male
KFG2L1075-03Type: Male elbow (KFG2L) | Tube OD x ID: 10 x 7.5 mm | Connection: R3/8 male
KFG2L1075-04Type: Male elbow (KFG2L) | Tube OD x ID: 10 x 7.5 mm | Connection: R1/2 male
KFG2L1008-02Type: Male elbow (KFG2L) | Tube OD x ID: 10 x 8 mm | Connection: R1/4 male
KFG2L1008-03Type: Male elbow (KFG2L) | Tube OD x ID: 10 x 8 mm | Connection: R3/8 male
KFG2L1008-04Type: Male elbow (KFG2L) | Tube OD x ID: 10 x 8 mm | Connection: R1/2 male
KFG2L1209-02Type: Male elbow (KFG2L) | Tube OD x ID: 12 x 9 mm | Connection: R1/4 male
KFG2L1209-03Type: Male elbow (KFG2L) | Tube OD x ID: 12 x 9 mm | Connection: R3/8 male
KFG2L1209-04Type: Male elbow (KFG2L) | Tube OD x ID: 12 x 9 mm | Connection: R1/2 male
KFG2L1210-02Type: Male elbow (KFG2L) | Tube OD x ID: 12 x 10 mm | Connection: R1/4 male
KFG2L1210-03Type: Male elbow (KFG2L) | Tube OD x ID: 12 x 10 mm | Connection: R3/8 male
KFG2L1210-04Type: Male elbow (KFG2L) | Tube OD x ID: 12 x 10 mm | Connection: R1/2 male
KFG2L1613-03Type: Male elbow (KFG2L) | Tube OD x ID: 16 x 13 mm | Connection: R3/8 male
KFG2L1613-04Type: Male elbow (KFG2L) | Tube OD x ID: 16 x 13 mm | Connection: R1/2 male
KFG2T0425-01Type: Branch tee (KFG2T) | Tube OD x ID: 4 x 2.5 mm | Connection: R1/8 male
KFG2T0425-02Type: Branch tee (KFG2T) | Tube OD x ID: 4 x 2.5 mm | Connection: R1/4 male
KFG2T0403-01Type: Branch tee (KFG2T) | Tube OD x ID: 4 x 3 mm | Connection: R1/8 male
KFG2T0403-02Type: Branch tee (KFG2T) | Tube OD x ID: 4 x 3 mm | Connection: R1/4 male
KFG2T0604-01Type: Branch tee (KFG2T) | Tube OD x ID: 6 x 4 mm | Connection: R1/8 male
KFG2T0604-02Type: Branch tee (KFG2T) | Tube OD x ID: 6 x 4 mm | Connection: R1/4 male
KFG2T0806-01Type: Branch tee (KFG2T) | Tube OD x ID: 8 x 6 mm | Connection: R1/8 male
KFG2T0806-02Type: Branch tee (KFG2T) | Tube OD x ID: 8 x 6 mm | Connection: R1/4 male
KFG2T0806-03Type: Branch tee (KFG2T) | Tube OD x ID: 8 x 6 mm | Connection: R3/8 male
KFG2T1075-02Type: Branch tee (KFG2T) | Tube OD x ID: 10 x 7.5 mm | Connection: R1/4 male
KFG2T1075-03Type: Branch tee (KFG2T) | Tube OD x ID: 10 x 7.5 mm | Connection: R3/8 male
KFG2T1075-04Type: Branch tee (KFG2T) | Tube OD x ID: 10 x 7.5 mm | Connection: R1/2 male
KFG2T1008-02Type: Branch tee (KFG2T) | Tube OD x ID: 10 x 8 mm | Connection: R1/4 male
KFG2T1008-03Type: Branch tee (KFG2T) | Tube OD x ID: 10 x 8 mm | Connection: R3/8 male
KFG2T1008-04Type: Branch tee (KFG2T) | Tube OD x ID: 10 x 8 mm | Connection: R1/2 male
KFG2T1209-02Type: Branch tee (KFG2T) | Tube OD x ID: 12 x 9 mm | Connection: R1/4 male
KFG2T1209-03Type: Branch tee (KFG2T) | Tube OD x ID: 12 x 9 mm | Connection: R3/8 male
KFG2T1209-04Type: Branch tee (KFG2T) | Tube OD x ID: 12 x 9 mm | Connection: R1/2 male
KFG2T1210-02Type: Branch tee (KFG2T) | Tube OD x ID: 12 x 10 mm | Connection: R1/4 male
KFG2T1210-03Type: Branch tee (KFG2T) | Tube OD x ID: 12 x 10 mm | Connection: R3/8 male
KFG2T1210-04Type: Branch tee (KFG2T) | Tube OD x ID: 12 x 10 mm | Connection: R1/2 male
KFG2T1613-03Type: Branch tee (KFG2T) | Tube OD x ID: 16 x 13 mm | Connection: R3/8 male
KFG2T1613-04Type: Branch tee (KFG2T) | Tube OD x ID: 16 x 13 mm | Connection: R1/2 male
KFG2H0425-00Type: Union straight (KFG2H) | Tube OD x ID: 4 x 2.5 mm | Connection: Tube to tube
KFG2H0403-00Type: Union straight (KFG2H) | Tube OD x ID: 4 x 3 mm | Connection: Tube to tube
KFG2H0604-00Type: Union straight (KFG2H) | Tube OD x ID: 6 x 4 mm | Connection: Tube to tube
KFG2H0806-00Type: Union straight (KFG2H) | Tube OD x ID: 8 x 6 mm | Connection: Tube to tube
KFG2H1075-00Type: Union straight (KFG2H) | Tube OD x ID: 10 x 7.5 mm | Connection: Tube to tube
KFG2H1008-00Type: Union straight (KFG2H) | Tube OD x ID: 10 x 8 mm | Connection: Tube to tube
KFG2H1209-00Type: Union straight (KFG2H) | Tube OD x ID: 12 x 9 mm | Connection: Tube to tube
KFG2H1210-00Type: Union straight (KFG2H) | Tube OD x ID: 12 x 10 mm | Connection: Tube to tube
KFG2H1613-00Type: Union straight (KFG2H) | Tube OD x ID: 16 x 13 mm | Connection: Tube to tube
KFG2T0425-00Type: Union tee (KFG2T) | Tube OD x ID: 4 x 2.5 mm | Connection: Tube to tube
KFG2T0403-00Type: Union tee (KFG2T) | Tube OD x ID: 4 x 3 mm | Connection: Tube to tube
KFG2T0604-00Type: Union tee (KFG2T) | Tube OD x ID: 6 x 4 mm | Connection: Tube to tube
KFG2T0806-00Type: Union tee (KFG2T) | Tube OD x ID: 8 x 6 mm | Connection: Tube to tube
KFG2T1075-00Type: Union tee (KFG2T) | Tube OD x ID: 10 x 7.5 mm | Connection: Tube to tube
KFG2T1008-00Type: Union tee (KFG2T) | Tube OD x ID: 10 x 8 mm | Connection: Tube to tube
KFG2T1209-00Type: Union tee (KFG2T) | Tube OD x ID: 12 x 9 mm | Connection: Tube to tube
KFG2T1210-00Type: Union tee (KFG2T) | Tube OD x ID: 12 x 10 mm | Connection: Tube to tube
KFG2T1613-00Type: Union tee (KFG2T) | Tube OD x ID: 16 x 13 mm | Connection: Tube to tube
KFG2E0425-00Type: Bulkhead union (KFG2E) | Tube OD x ID: 4 x 2.5 mm | Connection: Tube to tube
KFG2E0403-00Type: Bulkhead union (KFG2E) | Tube OD x ID: 4 x 3 mm | Connection: Tube to tube
KFG2E0604-00Type: Bulkhead union (KFG2E) | Tube OD x ID: 6 x 4 mm | Connection: Tube to tube
KFG2E0806-00Type: Bulkhead union (KFG2E) | Tube OD x ID: 8 x 6 mm | Connection: Tube to tube
KFG2E1075-00Type: Bulkhead union (KFG2E) | Tube OD x ID: 10 x 7.5 mm | Connection: Tube to tube
KFG2E1008-00Type: Bulkhead union (KFG2E) | Tube OD x ID: 10 x 8 mm | Connection: Tube to tube
KFG2E1209-00Type: Bulkhead union (KFG2E) | Tube OD x ID: 12 x 9 mm | Connection: Tube to tube
KFG2E1210-00Type: Bulkhead union (KFG2E) | Tube OD x ID: 12 x 10 mm | Connection: Tube to tube
KFG2E1613-00Type: Bulkhead union (KFG2E) | Tube OD x ID: 16 x 13 mm | Connection: Tube to tube
KFG2L0425-00Type: Union elbow (KFG2L) | Tube OD x ID: 4 x 2.5 mm | Connection: Tube to tube
KFG2L0403-00Type: Union elbow (KFG2L) | Tube OD x ID: 4 x 3 mm | Connection: Tube to tube
KFG2L0604-00Type: Union elbow (KFG2L) | Tube OD x ID: 6 x 4 mm | Connection: Tube to tube
KFG2L0806-00Type: Union elbow (KFG2L) | Tube OD x ID: 8 x 6 mm | Connection: Tube to tube
KFG2L1075-00Type: Union elbow (KFG2L) | Tube OD x ID: 10 x 7.5 mm | Connection: Tube to tube
KFG2L1008-00Type: Union elbow (KFG2L) | Tube OD x ID: 10 x 8 mm | Connection: Tube to tube
KFG2L1209-00Type: Union elbow (KFG2L) | Tube OD x ID: 12 x 9 mm | Connection: Tube to tube
KFG2L1210-00Type: Union elbow (KFG2L) | Tube OD x ID: 12 x 10 mm | Connection: Tube to tube
KFG2L1613-00Type: Union elbow (KFG2L) | Tube OD x ID: 16 x 13 mm | Connection: Tube to tube
KFG2V0425-01Type: Swivel male elbow (KFG2V) | Tube OD x ID: 4 x 2.5 mm | Connection: R1/8 male
KFG2V0425-02Type: Swivel male elbow (KFG2V) | Tube OD x ID: 4 x 2.5 mm | Connection: R1/4 male
KFG2V0403-01Type: Swivel male elbow (KFG2V) | Tube OD x ID: 4 x 3 mm | Connection: R1/8 male
KFG2V0403-02Type: Swivel male elbow (KFG2V) | Tube OD x ID: 4 x 3 mm | Connection: R1/4 male
KFG2V0604-01Type: Swivel male elbow (KFG2V) | Tube OD x ID: 6 x 4 mm | Connection: R1/8 male
KFG2V0604-02Type: Swivel male elbow (KFG2V) | Tube OD x ID: 6 x 4 mm | Connection: R1/4 male
KFG2V0806-01Type: Swivel male elbow (KFG2V) | Tube OD x ID: 8 x 6 mm | Connection: R1/8 male
KFG2V0806-02Type: Swivel male elbow (KFG2V) | Tube OD x ID: 8 x 6 mm | Connection: R1/4 male
KFG2V0806-03Type: Swivel male elbow (KFG2V) | Tube OD x ID: 8 x 6 mm | Connection: R3/8 male
KFG2V1075-02Type: Swivel male elbow (KFG2V) | Tube OD x ID: 10 x 7.5 mm | Connection: R1/4 male
KFG2V1075-03Type: Swivel male elbow (KFG2V) | Tube OD x ID: 10 x 7.5 mm | Connection: R3/8 male
KFG2V1075-04Type: Swivel male elbow (KFG2V) | Tube OD x ID: 10 x 7.5 mm | Connection: R1/2 male
KFG2V1008-02Type: Swivel male elbow (KFG2V) | Tube OD x ID: 10 x 8 mm | Connection: R1/4 male
KFG2V1008-03Type: Swivel male elbow (KFG2V) | Tube OD x ID: 10 x 8 mm | Connection: R3/8 male
KFG2V1008-04Type: Swivel male elbow (KFG2V) | Tube OD x ID: 10 x 8 mm | Connection: R1/2 male
KFG2V1209-02Type: Swivel male elbow (KFG2V) | Tube OD x ID: 12 x 9 mm | Connection: R1/4 male
KFG2V1209-03Type: Swivel male elbow (KFG2V) | Tube OD x ID: 12 x 9 mm | Connection: R3/8 male
KFG2V1209-04Type: Swivel male elbow (KFG2V) | Tube OD x ID: 12 x 9 mm | Connection: R1/2 male
KFG2V1210-02Type: Swivel male elbow (KFG2V) | Tube OD x ID: 12 x 10 mm | Connection: R1/4 male
KFG2V1210-03Type: Swivel male elbow (KFG2V) | Tube OD x ID: 12 x 10 mm | Connection: R3/8 male
KFG2V1210-04Type: Swivel male elbow (KFG2V) | Tube OD x ID: 12 x 10 mm | Connection: R1/2 male
KFG2V1613-03Type: Swivel male elbow (KFG2V) | Tube OD x ID: 16 x 13 mm | Connection: R3/8 male
KFG2V1613-04Type: Swivel male elbow (KFG2V) | Tube OD x ID: 16 x 13 mm | Connection: R1/2 male
KFG2F0425-02Type: Female connector (KFG2F) | Tube OD x ID: 4 x 2.5 mm | Connection: Rc1/4 female
KFG2F0403-02Type: Female connector (KFG2F) | Tube OD x ID: 4 x 3 mm | Connection: Rc1/4 female
KFG2F0604-02Type: Female connector (KFG2F) | Tube OD x ID: 6 x 4 mm | Connection: Rc1/4 female
KFG2F0806-03Type: Female connector (KFG2F) | Tube OD x ID: 8 x 6 mm | Connection: Rc3/8 female
KFG2F1075-03Type: Female connector (KFG2F) | Tube OD x ID: 10 x 7.5 mm | Connection: Rc3/8 female
KFG2F1008-03Type: Female connector (KFG2F) | Tube OD x ID: 10 x 8 mm | Connection: Rc3/8 female
KFG2F1209-03Type: Female connector (KFG2F) | Tube OD x ID: 12 x 9 mm | Connection: Rc3/8 female
KFG2F1210-03Type: Female connector (KFG2F) | Tube OD x ID: 12 x 10 mm | Connection: Rc3/8 female
KFG2F1613-04Type: Female connector (KFG2F) | Tube OD x ID: 16 x 13 mm | Connection: Rc1/2 female
KFG2N-04Type: Union nut (KFG2N) | Tube OD x ID: OD 4 mm | Connection: Accessory
KFG2N-06Type: Union nut (KFG2N) | Tube OD x ID: OD 6 mm | Connection: Accessory
KFG2N-08Type: Union nut (KFG2N) | Tube OD x ID: OD 8 mm | Connection: Accessory
KFG2N-10Type: Union nut (KFG2N) | Tube OD x ID: OD 10 mm | Connection: Accessory
KFG2N-12Type: Union nut (KFG2N) | Tube OD x ID: OD 12 mm | Connection: Accessory
KFG2N-16Type: Union nut (KFG2N) | Tube OD x ID: OD 16 mm | Connection: Accessory

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
