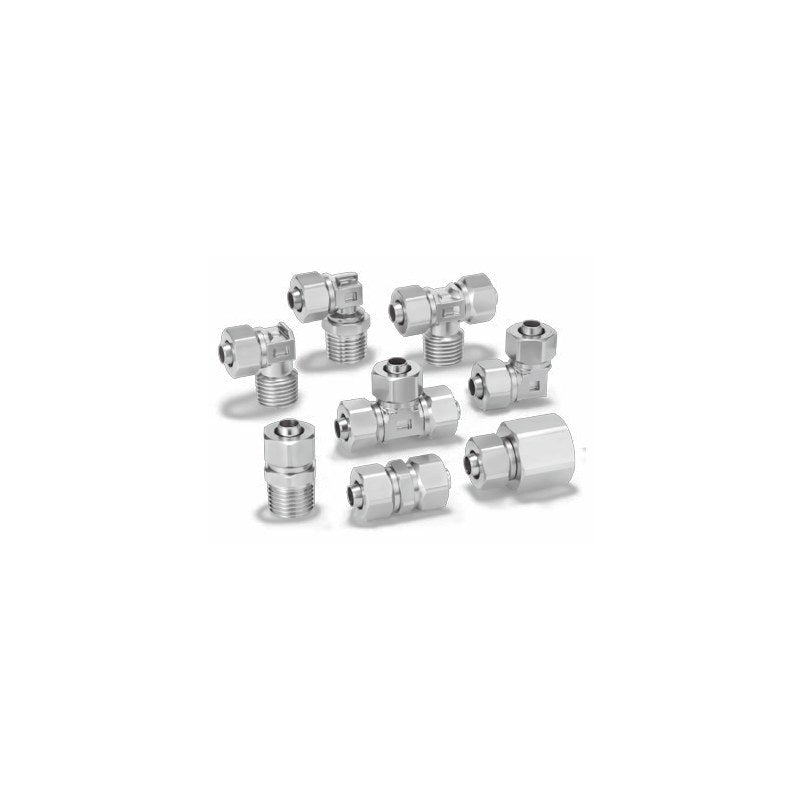

SMC KFG2H-E EHEDG Certified SUS316 Insert Fitting (M5/G)

SMC KFG2H-E EHEDG Certified SUS316 Insert Fitting (M5/G)

SMC KFG2H-E series EHEDG-certified hygienic SUS316 insert half union with FDA-compliant FKM gasket on the G thread side, for metric tube 4 x 2.5 to 12 x 9 mm.

Key features

  • EHEDG certified hygienic design; IP69K
  • Metal parts SUS316; gaskets FDA 21 CFR 177.2600 compliant FKM in blue for easy identification
  • G thread to ISO 16030 (M5 for 4 mm) with gasket seal, no liquid-trap geometry
  • Air, water and steam service from -5 to 150 deg C
  • Accepts FEP, PFA, modified PTFE, nylon, polyurethane and polyolefin tubes

Specifications

Body type Half union (male connector)
Fluid Air, water, steam
Operating pressure range -100 kPa to 1 MPa
Ambient and fluid temperature -5 to 150 deg C (no freezing)
Material SUS316 body and union nut, FDA-compliant FKM gaskets
Lubricant NSF H1 grease (union nut)
Spare gaskets KFG2-M5-E, KFG2-G01-E to KFG2-G04-E
Source SMC Korea catalog KFG2H-E/KFG2H-C/KQG2-F/KQB2-F/KFG2-F (SMCKR_KFG2H-E_KFG2H-C_KQ2-F_KFG2-F.pdf), p. 1-11
KFG2H0425-M5-E Tube size: 4 x 2.5 mm | Connection: M5x0.8 male | Effective area: 1.6 mm2
KFG2H0604-G01-E Tube size: 6 x 4 mm | Connection: G1/8 male | Effective area: 6 mm2
KFG2H0806-G02-E Tube size: 8 x 6 mm | Connection: G1/4 male | Effective area: 17 mm2
KFG2H1075-G03-E Tube size: 10 x 7.5 mm | Connection: G3/8 male | Effective area: 30 mm2
KFG2H1209-G04-E Tube size: 12 x 9 mm | Connection: G1/2 male | Effective area: 45 mm2
FittingsSMC
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC KFG2H-E EHEDG Certified SUS316 Insert Fitting (M5/G)

Brand SMC·Fittings

Available part numbers (5)

KFG2H0425-M5-E, KFG2H0604-G01-E, KFG2H0806-G02-E, KFG2H1075-G03-E, KFG2H1209-G04-E

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KFG2H0425-M5-ETube size: 4 x 2.5 mm | Connection: M5x0.8 male | Effective area: 1.6 mm2
KFG2H0604-G01-ETube size: 6 x 4 mm | Connection: G1/8 male | Effective area: 6 mm2
KFG2H0806-G02-ETube size: 8 x 6 mm | Connection: G1/4 male | Effective area: 17 mm2
KFG2H1075-G03-ETube size: 10 x 7.5 mm | Connection: G3/8 male | Effective area: 30 mm2
KFG2H1209-G04-ETube size: 12 x 9 mm | Connection: G1/2 male | Effective area: 45 mm2
