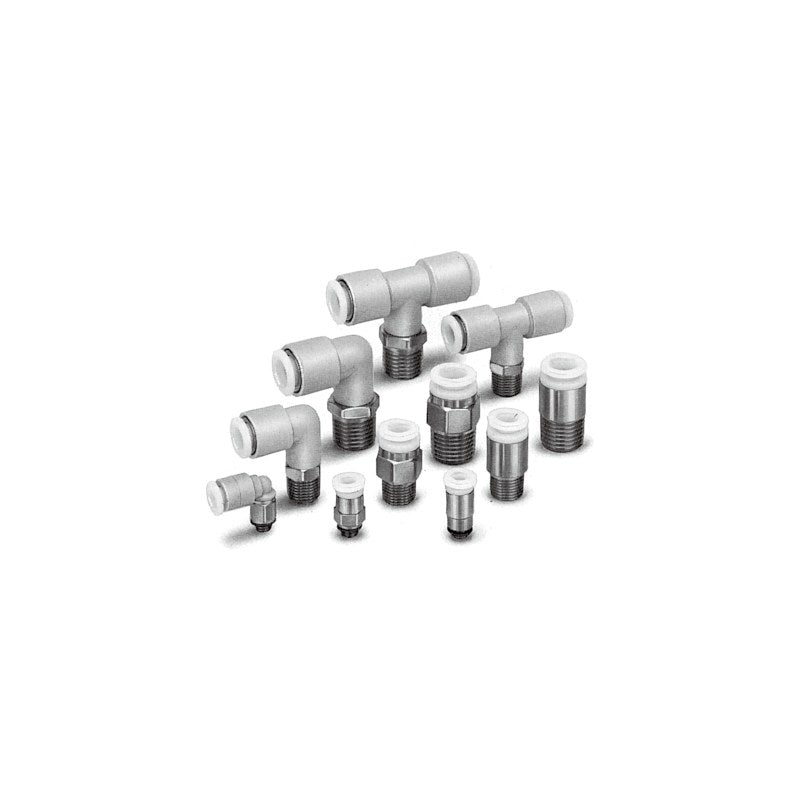

SMC KG Stainless Steel One-Touch Fitting (SUS303)

SMC KG Stainless Steel One-Touch Fitting (SUS303)

SMC KG series stainless steel one-touch fittings with SUS303 metal parts for corrosive, food, CRT and clean-room environments, tube OD 4 to 16 mm, M5 / R / Rc threads.

Key features

  • Metal parts SUS303 / SUS304; white PBT release bushing and body resin
  • Suits lines that dislike copper ions, food equipment and clean rooms (no plating flaking)
  • Strong holding force for nylon and urethane tubing; usable from low vacuum to 1 MPa
  • Body and thread rotate for positioning after installation
  • Full range: male connector, elbow, tee, Y, delta, branch, bulkhead, female, reducer and tube cap
  • Grease-free (-X17, -X39, -X94), white vaseline (-X12) and FKM rubber (-X34) versions made to order

Specifications

Fluid Air, water
Operating pressure range -100 kPa to 1 MPa
Proof pressure 3 MPa
Ambient and fluid temperature -5 to 60 deg C; water 0 to 40 deg C (no freezing)
Applicable tubing FEP, PFA, nylon, soft nylon, polyurethane
Thread R: JIS B 0203; M: JIS B 0205
Thread seal Sealant (sealant-free on request)
Main materials Body SUS303 / PBT; chuck SUS304; seals NBR
Source SMC Korea catalog KG Series (SMCKR_KG.pdf), p. 307-318
KGH04-M5 Type: Male connector (KGH) | Tube OD: 4 mm | Connection: M5x0.8 male
KGH04-01 Type: Male connector (KGH) | Tube OD: 4 mm | Connection: R1/8 male
KGH06-M5 Type: Male connector (KGH) | Tube OD: 6 mm | Connection: M5x0.8 male
KGH06-01 Type: Male connector (KGH) | Tube OD: 6 mm | Connection: R1/8 male
KGH06-02 Type: Male connector (KGH) | Tube OD: 6 mm | Connection: R1/4 male
KGH08-01 Type: Male connector (KGH) | Tube OD: 8 mm | Connection: R1/8 male
KGH08-02 Type: Male connector (KGH) | Tube OD: 8 mm | Connection: R1/4 male
KGH08-03 Type: Male connector (KGH) | Tube OD: 8 mm | Connection: R3/8 male
KGH10-01 Type: Male connector (KGH) | Tube OD: 10 mm | Connection: R1/8 male
KGH10-02 Type: Male connector (KGH) | Tube OD: 10 mm | Connection: R1/4 male
KGH12-02 Type: Male connector (KGH) | Tube OD: 12 mm | Connection: R1/4 male
KGH12-03 Type: Male connector (KGH) | Tube OD: 12 mm | Connection: R3/8 male
KGH04-02 Type: Male connector (KGH) | Tube OD: 4 mm | Connection: R1/4 male
KGH06-03 Type: Male connector (KGH) | Tube OD: 6 mm | Connection: R3/8 male
KGH10-03 Type: Male connector (KGH) | Tube OD: 10 mm | Connection: R3/8 male
KGH10-04 Type: Male connector (KGH) | Tube OD: 10 mm | Connection: R1/2 male
KGH12-04 Type: Male connector (KGH) | Tube OD: 12 mm | Connection: R1/2 male
KGH16-03 Type: Male connector (KGH) | Tube OD: 16 mm | Connection: R3/8 male
KGH16-04 Type: Male connector (KGH) | Tube OD: 16 mm | Connection: R1/2 male
KGS04-M5 Type: Hex socket head male connector (KGS) | Tube OD: 4 mm | Connection: M5x0.8 male
KGS04-01 Type: Hex socket head male connector (KGS) | Tube OD: 4 mm | Connection: R1/8 male
KGS06-M5 Type: Hex socket head male connector (KGS) | Tube OD: 6 mm | Connection: M5x0.8 male
KGS06-01 Type: Hex socket head male connector (KGS) | Tube OD: 6 mm | Connection: R1/8 male
KGS06-02 Type: Hex socket head male connector (KGS) | Tube OD: 6 mm | Connection: R1/4 male
KGS08-01 Type: Hex socket head male connector (KGS) | Tube OD: 8 mm | Connection: R1/8 male
KGS08-02 Type: Hex socket head male connector (KGS) | Tube OD: 8 mm | Connection: R1/4 male
KGS08-03 Type: Hex socket head male connector (KGS) | Tube OD: 8 mm | Connection: R3/8 male
KGS10-01 Type: Hex socket head male connector (KGS) | Tube OD: 10 mm | Connection: R1/8 male
KGS10-02 Type: Hex socket head male connector (KGS) | Tube OD: 10 mm | Connection: R1/4 male
KGS12-02 Type: Hex socket head male connector (KGS) | Tube OD: 12 mm | Connection: R1/4 male
KGS12-03 Type: Hex socket head male connector (KGS) | Tube OD: 12 mm | Connection: R3/8 male
KGS10-03 Type: Hex socket head male connector (KGS) | Tube OD: 10 mm | Connection: R3/8 male
KGS10-04 Type: Hex socket head male connector (KGS) | Tube OD: 10 mm | Connection: R1/2 male
KGS12-04 Type: Hex socket head male connector (KGS) | Tube OD: 12 mm | Connection: R1/2 male
KGF04-01 Type: Female connector (KGF) | Tube OD: 4 mm | Connection: Rc1/8 female
KGF04-02 Type: Female connector (KGF) | Tube OD: 4 mm | Connection: Rc1/4 female
KGF06-01 Type: Female connector (KGF) | Tube OD: 6 mm | Connection: Rc1/8 female
KGF06-02 Type: Female connector (KGF) | Tube OD: 6 mm | Connection: Rc1/4 female
KGF06-03 Type: Female connector (KGF) | Tube OD: 6 mm | Connection: Rc3/8 female
KGF08-01 Type: Female connector (KGF) | Tube OD: 8 mm | Connection: Rc1/8 female
KGF08-02 Type: Female connector (KGF) | Tube OD: 8 mm | Connection: Rc1/4 female
KGF08-03 Type: Female connector (KGF) | Tube OD: 8 mm | Connection: Rc3/8 female
KGF10-02 Type: Female connector (KGF) | Tube OD: 10 mm | Connection: Rc1/4 female
KGF10-03 Type: Female connector (KGF) | Tube OD: 10 mm | Connection: Rc3/8 female
KGF12-02 Type: Female connector (KGF) | Tube OD: 12 mm | Connection: Rc1/4 female
KGF12-03 Type: Female connector (KGF) | Tube OD: 12 mm | Connection: Rc3/8 female
KGF12-04 Type: Female connector (KGF) | Tube OD: 12 mm | Connection: Rc1/2 female
KGH04-00 Type: Union straight (KGH) | Tube OD: 4 mm | Connection: Tube to tube
KGH06-00 Type: Union straight (KGH) | Tube OD: 6 mm | Connection: Tube to tube
KGH08-00 Type: Union straight (KGH) | Tube OD: 8 mm | Connection: Tube to tube
KGH10-00 Type: Union straight (KGH) | Tube OD: 10 mm | Connection: Tube to tube
KGH12-00 Type: Union straight (KGH) | Tube OD: 12 mm | Connection: Tube to tube
KGH04-06 Type: Union straight (KGH) | Tube OD: 4 mm | Connection: Second tube OD 6 mm
KGH06-08 Type: Union straight (KGH) | Tube OD: 6 mm | Connection: Second tube OD 8 mm
KGH08-10 Type: Union straight (KGH) | Tube OD: 8 mm | Connection: Second tube OD 10 mm
KGH10-12 Type: Union straight (KGH) | Tube OD: 10 mm | Connection: Second tube OD 12 mm
KGL04-M5 Type: Male elbow (KGL) | Tube OD: 4 mm | Connection: M5x0.8 male
KGL04-01 Type: Male elbow (KGL) | Tube OD: 4 mm | Connection: R1/8 male
KGL04-02 Type: Male elbow (KGL) | Tube OD: 4 mm | Connection: R1/4 male
KGL06-M5 Type: Male elbow (KGL) | Tube OD: 6 mm | Connection: M5x0.8 male
KGL06-01 Type: Male elbow (KGL) | Tube OD: 6 mm | Connection: R1/8 male
KGL06-02 Type: Male elbow (KGL) | Tube OD: 6 mm | Connection: R1/4 male
KGL06-03 Type: Male elbow (KGL) | Tube OD: 6 mm | Connection: R3/8 male
KGL08-01 Type: Male elbow (KGL) | Tube OD: 8 mm | Connection: R1/8 male
KGL08-02 Type: Male elbow (KGL) | Tube OD: 8 mm | Connection: R1/4 male
KGL08-03 Type: Male elbow (KGL) | Tube OD: 8 mm | Connection: R3/8 male
KGL10-01 Type: Male elbow (KGL) | Tube OD: 10 mm | Connection: R1/8 male
KGL10-02 Type: Male elbow (KGL) | Tube OD: 10 mm | Connection: R1/4 male
KGL10-03 Type: Male elbow (KGL) | Tube OD: 10 mm | Connection: R3/8 male
KGL10-04 Type: Male elbow (KGL) | Tube OD: 10 mm | Connection: R1/2 male
KGL12-02 Type: Male elbow (KGL) | Tube OD: 12 mm | Connection: R1/4 male
KGL12-03 Type: Male elbow (KGL) | Tube OD: 12 mm | Connection: R3/8 male
KGL12-04 Type: Male elbow (KGL) | Tube OD: 12 mm | Connection: R1/2 male
KGL16-03 Type: Male elbow (KGL) | Tube OD: 16 mm | Connection: R3/8 male
KGL16-04 Type: Male elbow (KGL) | Tube OD: 16 mm | Connection: R1/2 male
KGLU04-M5 Type: Branch male elbow (KGLU) | Tube OD: 4 mm | Connection: M5x0.8 male
KGLU04-01 Type: Branch male elbow (KGLU) | Tube OD: 4 mm | Connection: R1/8 male
KGLU04-02 Type: Branch male elbow (KGLU) | Tube OD: 4 mm | Connection: R1/4 male
KGLU06-M5 Type: Branch male elbow (KGLU) | Tube OD: 6 mm | Connection: M5x0.8 male
KGLU06-01 Type: Branch male elbow (KGLU) | Tube OD: 6 mm | Connection: R1/8 male
KGLU06-02 Type: Branch male elbow (KGLU) | Tube OD: 6 mm | Connection: R1/4 male
KGLU06-03 Type: Branch male elbow (KGLU) | Tube OD: 6 mm | Connection: R3/8 male
KGLU08-01 Type: Branch male elbow (KGLU) | Tube OD: 8 mm | Connection: R1/8 male
KGLU08-02 Type: Branch male elbow (KGLU) | Tube OD: 8 mm | Connection: R1/4 male
KGLU08-03 Type: Branch male elbow (KGLU) | Tube OD: 8 mm | Connection: R3/8 male
KGLU10-02 Type: Branch male elbow (KGLU) | Tube OD: 10 mm | Connection: R1/4 male
KGLU10-03 Type: Branch male elbow (KGLU) | Tube OD: 10 mm | Connection: R3/8 male
KGLU10-04 Type: Branch male elbow (KGLU) | Tube OD: 10 mm | Connection: R1/2 male
KGLU12-02 Type: Branch male elbow (KGLU) | Tube OD: 12 mm | Connection: R1/4 male
KGLU12-03 Type: Branch male elbow (KGLU) | Tube OD: 12 mm | Connection: R3/8 male
KGLU12-04 Type: Branch male elbow (KGLU) | Tube OD: 12 mm | Connection: R1/2 male
KGV04-M5 Type: Universal male elbow (KGV) | Tube OD: 4 mm | Connection: M5x0.8 male
KGV04-01 Type: Universal male elbow (KGV) | Tube OD: 4 mm | Connection: R1/8 male
KGV06-M5 Type: Universal male elbow (KGV) | Tube OD: 6 mm | Connection: M5x0.8 male
KGV06-01 Type: Universal male elbow (KGV) | Tube OD: 6 mm | Connection: R1/8 male
KGV06-02 Type: Universal male elbow (KGV) | Tube OD: 6 mm | Connection: R1/4 male
KGV08-01 Type: Universal male elbow (KGV) | Tube OD: 8 mm | Connection: R1/8 male
KGV08-02 Type: Universal male elbow (KGV) | Tube OD: 8 mm | Connection: R1/4 male
KGV08-03 Type: Universal male elbow (KGV) | Tube OD: 8 mm | Connection: R3/8 male
KGV10-02 Type: Universal male elbow (KGV) | Tube OD: 10 mm | Connection: R1/4 male
KGV10-03 Type: Universal male elbow (KGV) | Tube OD: 10 mm | Connection: R3/8 male
KGV12-03 Type: Universal male elbow (KGV) | Tube OD: 12 mm | Connection: R3/8 male
KGV12-04 Type: Universal male elbow (KGV) | Tube OD: 12 mm | Connection: R1/2 male
KGL04-00 Type: Union elbow (KGL) | Tube OD: 4 mm | Connection: Tube to tube
KGL06-00 Type: Union elbow (KGL) | Tube OD: 6 mm | Connection: Tube to tube
KGL08-00 Type: Union elbow (KGL) | Tube OD: 8 mm | Connection: Tube to tube
KGL10-00 Type: Union elbow (KGL) | Tube OD: 10 mm | Connection: Tube to tube
KGL12-00 Type: Union elbow (KGL) | Tube OD: 12 mm | Connection: Tube to tube
KGL16-00 Type: Union elbow (KGL) | Tube OD: 16 mm | Connection: Tube to tube
KGLU04-00 Type: Branch union elbow (KGLU) | Tube OD: 4 mm | Connection: Tube to tube
KGLU06-00 Type: Branch union elbow (KGLU) | Tube OD: 6 mm | Connection: Tube to tube
KGLU08-00 Type: Branch union elbow (KGLU) | Tube OD: 8 mm | Connection: Tube to tube
KGLU10-00 Type: Branch union elbow (KGLU) | Tube OD: 10 mm | Connection: Tube to tube
KGLU12-00 Type: Branch union elbow (KGLU) | Tube OD: 12 mm | Connection: Tube to tube
KGL10-99 Type: Plug-in elbow (KGL) | Tube OD: 10 mm | Connection: Fitting size 10 mm (plug-in)
KGL06-99 Type: Plug-in elbow (KGL) | Tube OD: 6 mm | Connection: Fitting size 6 mm (plug-in)
KGL08-99 Type: Plug-in elbow (KGL) | Tube OD: 8 mm | Connection: Fitting size 8 mm (plug-in)
KGL12-99 Type: Plug-in elbow (KGL) | Tube OD: 12 mm | Connection: Fitting size 12 mm (plug-in)
KGL04-99 Type: Plug-in elbow (KGL) | Tube OD: 4 mm | Connection: Fitting size 4 mm (plug-in)
KGW04-M5 Type: Extended male elbow (KGW) | Tube OD: 4 mm | Connection: M5x0.8 male
KGW04-01 Type: Extended male elbow (KGW) | Tube OD: 4 mm | Connection: R1/8 male
KGW06-M5 Type: Extended male elbow (KGW) | Tube OD: 6 mm | Connection: M5x0.8 male
KGW06-01 Type: Extended male elbow (KGW) | Tube OD: 6 mm | Connection: R1/8 male
KGW08-01 Type: Extended male elbow (KGW) | Tube OD: 8 mm | Connection: R1/8 male
KGW08-02 Type: Extended male elbow (KGW) | Tube OD: 8 mm | Connection: R1/4 male
KGW10-02 Type: Extended male elbow (KGW) | Tube OD: 10 mm | Connection: R1/4 male
KGW10-03 Type: Extended male elbow (KGW) | Tube OD: 10 mm | Connection: R3/8 male
KGW12-02 Type: Extended male elbow (KGW) | Tube OD: 12 mm | Connection: R1/4 male
KGW12-03 Type: Extended male elbow (KGW) | Tube OD: 12 mm | Connection: R3/8 male
KGW04-02 Type: Extended male elbow (KGW) | Tube OD: 4 mm | Connection: R1/4 male
KGW06-02 Type: Extended male elbow (KGW) | Tube OD: 6 mm | Connection: R1/4 male
KGW08-03 Type: Extended male elbow (KGW) | Tube OD: 8 mm | Connection: R3/8 male
KGW06-03 Type: Extended male elbow (KGW) | Tube OD: 6 mm | Connection: R3/8 male
KGW10-04 Type: Extended male elbow (KGW) | Tube OD: 10 mm | Connection: R1/2 male
KGW12-04 Type: Extended male elbow (KGW) | Tube OD: 12 mm | Connection: R1/2 male
KGT04-M5 Type: Branch tee (KGT) | Tube OD: 4 mm | Connection: M5x0.8 male
KGT04-01 Type: Branch tee (KGT) | Tube OD: 4 mm | Connection: R1/8 male
KGT06-M5 Type: Branch tee (KGT) | Tube OD: 6 mm | Connection: M5x0.8 male
KGT06-01 Type: Branch tee (KGT) | Tube OD: 6 mm | Connection: R1/8 male
KGT08-01 Type: Branch tee (KGT) | Tube OD: 8 mm | Connection: R1/8 male
KGT08-02 Type: Branch tee (KGT) | Tube OD: 8 mm | Connection: R1/4 male
KGT10-02 Type: Branch tee (KGT) | Tube OD: 10 mm | Connection: R1/4 male
KGT10-03 Type: Branch tee (KGT) | Tube OD: 10 mm | Connection: R3/8 male
KGT12-02 Type: Branch tee (KGT) | Tube OD: 12 mm | Connection: R1/4 male
KGT12-03 Type: Branch tee (KGT) | Tube OD: 12 mm | Connection: R3/8 male
KGT04-02 Type: Branch tee (KGT) | Tube OD: 4 mm | Connection: R1/4 male
KGT10-01 Type: Branch tee (KGT) | Tube OD: 10 mm | Connection: R1/8 male
KGT06-02 Type: Branch tee (KGT) | Tube OD: 6 mm | Connection: R1/4 male
KGT08-03 Type: Branch tee (KGT) | Tube OD: 8 mm | Connection: R3/8 male
KGT06-03 Type: Branch tee (KGT) | Tube OD: 6 mm | Connection: R3/8 male
KGT10-04 Type: Branch tee (KGT) | Tube OD: 10 mm | Connection: R1/2 male
KGT12-04 Type: Branch tee (KGT) | Tube OD: 12 mm | Connection: R1/2 male
KGT16-03 Type: Branch tee (KGT) | Tube OD: 16 mm | Connection: R3/8 male
KGT16-04 Type: Branch tee (KGT) | Tube OD: 16 mm | Connection: R1/2 male
KGT04-00 Type: Union tee (KGT) | Tube OD: 4 mm | Connection: Tube to tube
KGT06-00 Type: Union tee (KGT) | Tube OD: 6 mm | Connection: Tube to tube
KGT10-00 Type: Union tee (KGT) | Tube OD: 10 mm | Connection: Tube to tube
KGT12-00 Type: Union tee (KGT) | Tube OD: 12 mm | Connection: Tube to tube
KGT08-00 Type: Union tee (KGT) | Tube OD: 8 mm | Connection: Tube to tube
KGT16-00 Type: Union tee (KGT) | Tube OD: 16 mm | Connection: Tube to tube
KGT08-10 Type: Union tee (KGT) | Tube OD: 8 mm | Connection: Second tube OD 10 mm
KGT04-06 Type: Union tee (KGT) | Tube OD: 4 mm | Connection: Second tube OD 6 mm
KGT06-08 Type: Union tee (KGT) | Tube OD: 6 mm | Connection: Second tube OD 8 mm
KGT10-12 Type: Union tee (KGT) | Tube OD: 10 mm | Connection: Second tube OD 12 mm
KGY04-M5 Type: Run tee (KGY) | Tube OD: 4 mm | Connection: M5x0.8 male
KGY04-01 Type: Run tee (KGY) | Tube OD: 4 mm | Connection: R1/8 male
KGY06-M5 Type: Run tee (KGY) | Tube OD: 6 mm | Connection: M5x0.8 male
KGY06-01 Type: Run tee (KGY) | Tube OD: 6 mm | Connection: R1/8 male
KGY08-01 Type: Run tee (KGY) | Tube OD: 8 mm | Connection: R1/8 male
KGY08-02 Type: Run tee (KGY) | Tube OD: 8 mm | Connection: R1/4 male
KGY10-02 Type: Run tee (KGY) | Tube OD: 10 mm | Connection: R1/4 male
KGY10-03 Type: Run tee (KGY) | Tube OD: 10 mm | Connection: R3/8 male
KGY12-02 Type: Run tee (KGY) | Tube OD: 12 mm | Connection: R1/4 male
KGY12-03 Type: Run tee (KGY) | Tube OD: 12 mm | Connection: R3/8 male
KGY04-02 Type: Run tee (KGY) | Tube OD: 4 mm | Connection: R1/4 male
KGY10-01 Type: Run tee (KGY) | Tube OD: 10 mm | Connection: R1/8 male
KGY06-02 Type: Run tee (KGY) | Tube OD: 6 mm | Connection: R1/4 male
KGY08-03 Type: Run tee (KGY) | Tube OD: 8 mm | Connection: R3/8 male
KGY06-03 Type: Run tee (KGY) | Tube OD: 6 mm | Connection: R3/8 male
KGY10-04 Type: Run tee (KGY) | Tube OD: 10 mm | Connection: R1/2 male
KGY12-04 Type: Run tee (KGY) | Tube OD: 12 mm | Connection: R1/2 male
KGY16-03 Type: Run tee (KGY) | Tube OD: 16 mm | Connection: R3/8 male
KGY16-04 Type: Run tee (KGY) | Tube OD: 16 mm | Connection: R1/2 male
KGD04-M5 Type: Delta male union (KGD) | Tube OD: 4 mm | Connection: M5x0.8 male
KGD04-01 Type: Delta male union (KGD) | Tube OD: 4 mm | Connection: R1/8 male
KGD06-M5 Type: Delta male union (KGD) | Tube OD: 6 mm | Connection: M5x0.8 male
KGD06-01 Type: Delta male union (KGD) | Tube OD: 6 mm | Connection: R1/8 male
KGD08-01 Type: Delta male union (KGD) | Tube OD: 8 mm | Connection: R1/8 male
KGD08-02 Type: Delta male union (KGD) | Tube OD: 8 mm | Connection: R1/4 male
KGD10-02 Type: Delta male union (KGD) | Tube OD: 10 mm | Connection: R1/4 male
KGD10-03 Type: Delta male union (KGD) | Tube OD: 10 mm | Connection: R3/8 male
KGD12-02 Type: Delta male union (KGD) | Tube OD: 12 mm | Connection: R1/4 male
KGD12-03 Type: Delta male union (KGD) | Tube OD: 12 mm | Connection: R3/8 male
KGD04-02 Type: Delta male union (KGD) | Tube OD: 4 mm | Connection: R1/4 male
KGD06-02 Type: Delta male union (KGD) | Tube OD: 6 mm | Connection: R1/4 male
KGD08-03 Type: Delta male union (KGD) | Tube OD: 8 mm | Connection: R3/8 male
KGD06-03 Type: Delta male union (KGD) | Tube OD: 6 mm | Connection: R3/8 male
KGD10-04 Type: Delta male union (KGD) | Tube OD: 10 mm | Connection: R1/2 male
KGD12-04 Type: Delta male union (KGD) | Tube OD: 12 mm | Connection: R1/2 male
KGD06-00 Type: Delta union (KGD) | Tube OD: 6 mm | Connection: Tube to tube
KGD04-00 Type: Delta union (KGD) | Tube OD: 4 mm | Connection: Tube to tube
KGD08-00 Type: Delta union (KGD) | Tube OD: 8 mm | Connection: Tube to tube
KGD10-00 Type: Delta union (KGD) | Tube OD: 10 mm | Connection: Tube to tube
KGD12-00 Type: Delta union (KGD) | Tube OD: 12 mm | Connection: Tube to tube
KGU04-01 Type: Branch Y (KGU) | Tube OD: 4 mm | Connection: R1/8 male
KGU04-M5 Type: Branch Y (KGU) | Tube OD: 4 mm | Connection: M5x0.8 male
KGU06-M5 Type: Branch Y (KGU) | Tube OD: 6 mm | Connection: M5x0.8 male
KGU06-01 Type: Branch Y (KGU) | Tube OD: 6 mm | Connection: R1/8 male
KGU06-02 Type: Branch Y (KGU) | Tube OD: 6 mm | Connection: R1/4 male
KGU06-03 Type: Branch Y (KGU) | Tube OD: 6 mm | Connection: R3/8 male
KGU08-01 Type: Branch Y (KGU) | Tube OD: 8 mm | Connection: R1/8 male
KGU08-02 Type: Branch Y (KGU) | Tube OD: 8 mm | Connection: R1/4 male
KGU08-03 Type: Branch Y (KGU) | Tube OD: 8 mm | Connection: R3/8 male
KGU10-02 Type: Branch Y (KGU) | Tube OD: 10 mm | Connection: R1/4 male
KGU10-03 Type: Branch Y (KGU) | Tube OD: 10 mm | Connection: R3/8 male
KGU10-04 Type: Branch Y (KGU) | Tube OD: 10 mm | Connection: R1/2 male
KGU12-02 Type: Branch Y (KGU) | Tube OD: 12 mm | Connection: R1/4 male
KGU12-03 Type: Branch Y (KGU) | Tube OD: 12 mm | Connection: R3/8 male
KGU12-04 Type: Branch Y (KGU) | Tube OD: 12 mm | Connection: R1/2 male
KGU04-02 Type: Branch Y (KGU) | Tube OD: 4 mm | Connection: R1/4 male
KGUD04-01 Type: Double branch (KGUD) | Tube OD: 4 mm | Connection: R1/8 male
KGUD06-01 Type: Double branch (KGUD) | Tube OD: 6 mm | Connection: R1/8 male
KGUD06-02 Type: Double branch (KGUD) | Tube OD: 6 mm | Connection: R1/4 male
KGUD04-02 Type: Double branch (KGUD) | Tube OD: 4 mm | Connection: R1/4 male
KGU06-00 Type: Union Y (KGU) | Tube OD: 6 mm | Connection: Tube to tube
KGU04-00 Type: Union Y (KGU) | Tube OD: 4 mm | Connection: Tube to tube
KGU08-00 Type: Union Y (KGU) | Tube OD: 8 mm | Connection: Tube to tube
KGU10-00 Type: Union Y (KGU) | Tube OD: 10 mm | Connection: Tube to tube
KGU12-00 Type: Union Y (KGU) | Tube OD: 12 mm | Connection: Tube to tube
KGU06-08 Type: Union Y (KGU) | Tube OD: 6 mm | Connection: Second tube OD 8 mm
KGU04-06 Type: Union Y (KGU) | Tube OD: 4 mm | Connection: Second tube OD 6 mm
KGU08-10 Type: Union Y (KGU) | Tube OD: 8 mm | Connection: Second tube OD 10 mm
KGU10-12 Type: Union Y (KGU) | Tube OD: 10 mm | Connection: Second tube OD 12 mm
KGUD06-08 Type: Double union Y (KGUD) | Tube OD: 6 mm | Connection: Second tube OD 8 mm
KGUD04-06 Type: Double union Y (KGUD) | Tube OD: 4 mm | Connection: Second tube OD 6 mm
KGR04-08 Type: Plug-in reducer (KGR) | Tube OD: 4 mm | Connection: Fitting size 8 mm (plug-in)
KGR04-06 Type: Plug-in reducer (KGR) | Tube OD: 4 mm | Connection: Fitting size 6 mm (plug-in)
KGR06-04 Type: Plug-in reducer (KGR) | Tube OD: 6 mm | Connection: Fitting size 4 mm (plug-in)
KGR06-08 Type: Plug-in reducer (KGR) | Tube OD: 6 mm | Connection: Fitting size 8 mm (plug-in)
KGR06-10 Type: Plug-in reducer (KGR) | Tube OD: 6 mm | Connection: Fitting size 10 mm (plug-in)
KGR06-12 Type: Plug-in reducer (KGR) | Tube OD: 6 mm | Connection: Fitting size 12 mm (plug-in)
KGR08-10 Type: Plug-in reducer (KGR) | Tube OD: 8 mm | Connection: Fitting size 10 mm (plug-in)
KGR08-12 Type: Plug-in reducer (KGR) | Tube OD: 8 mm | Connection: Fitting size 12 mm (plug-in)
KGR10-12 Type: Plug-in reducer (KGR) | Tube OD: 10 mm | Connection: Fitting size 12 mm (plug-in)
KGR10-16 Type: Plug-in reducer (KGR) | Tube OD: 10 mm | Connection: Fitting size 16 mm (plug-in)
KGR12-16 Type: Plug-in reducer (KGR) | Tube OD: 12 mm | Connection: Fitting size 16 mm (plug-in)
KGR04-10 Type: Plug-in reducer (KGR) | Tube OD: 4 mm | Connection: Fitting size 10 mm (plug-in)
KGE06-00 Type: Bulkhead union (KGE) | Tube OD: 6 mm | Connection: Tube to tube
KGE04-00 Type: Bulkhead union (KGE) | Tube OD: 4 mm | Connection: Tube to tube
KGE08-00 Type: Bulkhead union (KGE) | Tube OD: 8 mm | Connection: Tube to tube
KGE10-00 Type: Bulkhead union (KGE) | Tube OD: 10 mm | Connection: Tube to tube
KGE12-00 Type: Bulkhead union (KGE) | Tube OD: 12 mm | Connection: Tube to tube
KGE16-00 Type: Bulkhead union (KGE) | Tube OD: 16 mm | Connection: Tube to tube
KGE04-01 Type: Bulkhead female connector (KGE) | Tube OD: 4 mm | Connection: Rc1/8 female
KGE06-01 Type: Bulkhead female connector (KGE) | Tube OD: 6 mm | Connection: Rc1/8 female
KGE06-02 Type: Bulkhead female connector (KGE) | Tube OD: 6 mm | Connection: Rc1/4 female
KGE06-03 Type: Bulkhead female connector (KGE) | Tube OD: 6 mm | Connection: Rc3/8 female
KGE08-01 Type: Bulkhead female connector (KGE) | Tube OD: 8 mm | Connection: Rc1/8 female
KGE08-02 Type: Bulkhead female connector (KGE) | Tube OD: 8 mm | Connection: Rc1/4 female
KGE08-03 Type: Bulkhead female connector (KGE) | Tube OD: 8 mm | Connection: Rc3/8 female
KGE10-02 Type: Bulkhead female connector (KGE) | Tube OD: 10 mm | Connection: Rc1/4 female
KGE10-03 Type: Bulkhead female connector (KGE) | Tube OD: 10 mm | Connection: Rc3/8 female
KGE12-03 Type: Bulkhead female connector (KGE) | Tube OD: 12 mm | Connection: Rc3/8 female
KGE12-04 Type: Bulkhead female connector (KGE) | Tube OD: 12 mm | Connection: Rc1/2 female
KGE04-02 Type: Bulkhead female connector (KGE) | Tube OD: 4 mm | Connection: Rc1/4 female
KGE16-03 Type: Bulkhead female connector (KGE) | Tube OD: 16 mm | Connection: Rc3/8 female
KGE16-04 Type: Bulkhead female connector (KGE) | Tube OD: 16 mm | Connection: Rc1/2 female
KGC06-00 Type: Tube cap (KGC) | Tube OD: 6 mm | Connection: Tube to tube
KGC04-00 Type: Tube cap (KGC) | Tube OD: 4 mm | Connection: Tube to tube
KGC08-00 Type: Tube cap (KGC) | Tube OD: 8 mm | Connection: Tube to tube
KGC10-00 Type: Tube cap (KGC) | Tube OD: 10 mm | Connection: Tube to tube
KGC12-00 Type: Tube cap (KGC) | Tube OD: 12 mm | Connection: Tube to tube
KGC16-00 Type: Tube cap (KGC) | Tube OD: 16 mm | Connection: Tube to tube
FittingsSMC
273 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC KG Stainless Steel One-Touch Fitting (SUS303)

Brand SMC·Fittings

Available part numbers (273)

KGH04-M5, KGH04-01, KGH06-M5, KGH06-01, KGH06-02, KGH08-01, KGH08-02, KGH08-03, KGH10-01, KGH10-02 + 263 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KGH04-M5Type: Male connector (KGH) | Tube OD: 4 mm | Connection: M5x0.8 male
KGH04-01Type: Male connector (KGH) | Tube OD: 4 mm | Connection: R1/8 male
KGH06-M5Type: Male connector (KGH) | Tube OD: 6 mm | Connection: M5x0.8 male
KGH06-01Type: Male connector (KGH) | Tube OD: 6 mm | Connection: R1/8 male
KGH06-02Type: Male connector (KGH) | Tube OD: 6 mm | Connection: R1/4 male
KGH08-01Type: Male connector (KGH) | Tube OD: 8 mm | Connection: R1/8 male
KGH08-02Type: Male connector (KGH) | Tube OD: 8 mm | Connection: R1/4 male
KGH08-03Type: Male connector (KGH) | Tube OD: 8 mm | Connection: R3/8 male
KGH10-01Type: Male connector (KGH) | Tube OD: 10 mm | Connection: R1/8 male
KGH10-02Type: Male connector (KGH) | Tube OD: 10 mm | Connection: R1/4 male
KGH12-02Type: Male connector (KGH) | Tube OD: 12 mm | Connection: R1/4 male
KGH12-03Type: Male connector (KGH) | Tube OD: 12 mm | Connection: R3/8 male
KGH04-02Type: Male connector (KGH) | Tube OD: 4 mm | Connection: R1/4 male
KGH06-03Type: Male connector (KGH) | Tube OD: 6 mm | Connection: R3/8 male
KGH10-03Type: Male connector (KGH) | Tube OD: 10 mm | Connection: R3/8 male
KGH10-04Type: Male connector (KGH) | Tube OD: 10 mm | Connection: R1/2 male
KGH12-04Type: Male connector (KGH) | Tube OD: 12 mm | Connection: R1/2 male
KGH16-03Type: Male connector (KGH) | Tube OD: 16 mm | Connection: R3/8 male
KGH16-04Type: Male connector (KGH) | Tube OD: 16 mm | Connection: R1/2 male
KGS04-M5Type: Hex socket head male connector (KGS) | Tube OD: 4 mm | Connection: M5x0.8 male
KGS04-01Type: Hex socket head male connector (KGS) | Tube OD: 4 mm | Connection: R1/8 male
KGS06-M5Type: Hex socket head male connector (KGS) | Tube OD: 6 mm | Connection: M5x0.8 male
KGS06-01Type: Hex socket head male connector (KGS) | Tube OD: 6 mm | Connection: R1/8 male
KGS06-02Type: Hex socket head male connector (KGS) | Tube OD: 6 mm | Connection: R1/4 male
KGS08-01Type: Hex socket head male connector (KGS) | Tube OD: 8 mm | Connection: R1/8 male
KGS08-02Type: Hex socket head male connector (KGS) | Tube OD: 8 mm | Connection: R1/4 male
KGS08-03Type: Hex socket head male connector (KGS) | Tube OD: 8 mm | Connection: R3/8 male
KGS10-01Type: Hex socket head male connector (KGS) | Tube OD: 10 mm | Connection: R1/8 male
KGS10-02Type: Hex socket head male connector (KGS) | Tube OD: 10 mm | Connection: R1/4 male
KGS12-02Type: Hex socket head male connector (KGS) | Tube OD: 12 mm | Connection: R1/4 male
KGS12-03Type: Hex socket head male connector (KGS) | Tube OD: 12 mm | Connection: R3/8 male
KGS10-03Type: Hex socket head male connector (KGS) | Tube OD: 10 mm | Connection: R3/8 male
KGS10-04Type: Hex socket head male connector (KGS) | Tube OD: 10 mm | Connection: R1/2 male
KGS12-04Type: Hex socket head male connector (KGS) | Tube OD: 12 mm | Connection: R1/2 male
KGF04-01Type: Female connector (KGF) | Tube OD: 4 mm | Connection: Rc1/8 female
KGF04-02Type: Female connector (KGF) | Tube OD: 4 mm | Connection: Rc1/4 female
KGF06-01Type: Female connector (KGF) | Tube OD: 6 mm | Connection: Rc1/8 female
KGF06-02Type: Female connector (KGF) | Tube OD: 6 mm | Connection: Rc1/4 female
KGF06-03Type: Female connector (KGF) | Tube OD: 6 mm | Connection: Rc3/8 female
KGF08-01Type: Female connector (KGF) | Tube OD: 8 mm | Connection: Rc1/8 female
KGF08-02Type: Female connector (KGF) | Tube OD: 8 mm | Connection: Rc1/4 female
KGF08-03Type: Female connector (KGF) | Tube OD: 8 mm | Connection: Rc3/8 female
KGF10-02Type: Female connector (KGF) | Tube OD: 10 mm | Connection: Rc1/4 female
KGF10-03Type: Female connector (KGF) | Tube OD: 10 mm | Connection: Rc3/8 female
KGF12-02Type: Female connector (KGF) | Tube OD: 12 mm | Connection: Rc1/4 female
KGF12-03Type: Female connector (KGF) | Tube OD: 12 mm | Connection: Rc3/8 female
KGF12-04Type: Female connector (KGF) | Tube OD: 12 mm | Connection: Rc1/2 female
KGH04-00Type: Union straight (KGH) | Tube OD: 4 mm | Connection: Tube to tube
KGH06-00Type: Union straight (KGH) | Tube OD: 6 mm | Connection: Tube to tube
KGH08-00Type: Union straight (KGH) | Tube OD: 8 mm | Connection: Tube to tube
KGH10-00Type: Union straight (KGH) | Tube OD: 10 mm | Connection: Tube to tube
KGH12-00Type: Union straight (KGH) | Tube OD: 12 mm | Connection: Tube to tube
KGH04-06Type: Union straight (KGH) | Tube OD: 4 mm | Connection: Second tube OD 6 mm
KGH06-08Type: Union straight (KGH) | Tube OD: 6 mm | Connection: Second tube OD 8 mm
KGH08-10Type: Union straight (KGH) | Tube OD: 8 mm | Connection: Second tube OD 10 mm
KGH10-12Type: Union straight (KGH) | Tube OD: 10 mm | Connection: Second tube OD 12 mm
KGL04-M5Type: Male elbow (KGL) | Tube OD: 4 mm | Connection: M5x0.8 male
KGL04-01Type: Male elbow (KGL) | Tube OD: 4 mm | Connection: R1/8 male
KGL04-02Type: Male elbow (KGL) | Tube OD: 4 mm | Connection: R1/4 male
KGL06-M5Type: Male elbow (KGL) | Tube OD: 6 mm | Connection: M5x0.8 male
KGL06-01Type: Male elbow (KGL) | Tube OD: 6 mm | Connection: R1/8 male
KGL06-02Type: Male elbow (KGL) | Tube OD: 6 mm | Connection: R1/4 male
KGL06-03Type: Male elbow (KGL) | Tube OD: 6 mm | Connection: R3/8 male
KGL08-01Type: Male elbow (KGL) | Tube OD: 8 mm | Connection: R1/8 male
KGL08-02Type: Male elbow (KGL) | Tube OD: 8 mm | Connection: R1/4 male
KGL08-03Type: Male elbow (KGL) | Tube OD: 8 mm | Connection: R3/8 male
KGL10-01Type: Male elbow (KGL) | Tube OD: 10 mm | Connection: R1/8 male
KGL10-02Type: Male elbow (KGL) | Tube OD: 10 mm | Connection: R1/4 male
KGL10-03Type: Male elbow (KGL) | Tube OD: 10 mm | Connection: R3/8 male
KGL10-04Type: Male elbow (KGL) | Tube OD: 10 mm | Connection: R1/2 male
KGL12-02Type: Male elbow (KGL) | Tube OD: 12 mm | Connection: R1/4 male
KGL12-03Type: Male elbow (KGL) | Tube OD: 12 mm | Connection: R3/8 male
KGL12-04Type: Male elbow (KGL) | Tube OD: 12 mm | Connection: R1/2 male
KGL16-03Type: Male elbow (KGL) | Tube OD: 16 mm | Connection: R3/8 male
KGL16-04Type: Male elbow (KGL) | Tube OD: 16 mm | Connection: R1/2 male
KGLU04-M5Type: Branch male elbow (KGLU) | Tube OD: 4 mm | Connection: M5x0.8 male
KGLU04-01Type: Branch male elbow (KGLU) | Tube OD: 4 mm | Connection: R1/8 male
KGLU04-02Type: Branch male elbow (KGLU) | Tube OD: 4 mm | Connection: R1/4 male
KGLU06-M5Type: Branch male elbow (KGLU) | Tube OD: 6 mm | Connection: M5x0.8 male
KGLU06-01Type: Branch male elbow (KGLU) | Tube OD: 6 mm | Connection: R1/8 male
KGLU06-02Type: Branch male elbow (KGLU) | Tube OD: 6 mm | Connection: R1/4 male
KGLU06-03Type: Branch male elbow (KGLU) | Tube OD: 6 mm | Connection: R3/8 male
KGLU08-01Type: Branch male elbow (KGLU) | Tube OD: 8 mm | Connection: R1/8 male
KGLU08-02Type: Branch male elbow (KGLU) | Tube OD: 8 mm | Connection: R1/4 male
KGLU08-03Type: Branch male elbow (KGLU) | Tube OD: 8 mm | Connection: R3/8 male
KGLU10-02Type: Branch male elbow (KGLU) | Tube OD: 10 mm | Connection: R1/4 male
KGLU10-03Type: Branch male elbow (KGLU) | Tube OD: 10 mm | Connection: R3/8 male
KGLU10-04Type: Branch male elbow (KGLU) | Tube OD: 10 mm | Connection: R1/2 male
KGLU12-02Type: Branch male elbow (KGLU) | Tube OD: 12 mm | Connection: R1/4 male
KGLU12-03Type: Branch male elbow (KGLU) | Tube OD: 12 mm | Connection: R3/8 male
KGLU12-04Type: Branch male elbow (KGLU) | Tube OD: 12 mm | Connection: R1/2 male
KGV04-M5Type: Universal male elbow (KGV) | Tube OD: 4 mm | Connection: M5x0.8 male
KGV04-01Type: Universal male elbow (KGV) | Tube OD: 4 mm | Connection: R1/8 male
KGV06-M5Type: Universal male elbow (KGV) | Tube OD: 6 mm | Connection: M5x0.8 male
KGV06-01Type: Universal male elbow (KGV) | Tube OD: 6 mm | Connection: R1/8 male
KGV06-02Type: Universal male elbow (KGV) | Tube OD: 6 mm | Connection: R1/4 male
KGV08-01Type: Universal male elbow (KGV) | Tube OD: 8 mm | Connection: R1/8 male
KGV08-02Type: Universal male elbow (KGV) | Tube OD: 8 mm | Connection: R1/4 male
KGV08-03Type: Universal male elbow (KGV) | Tube OD: 8 mm | Connection: R3/8 male
KGV10-02Type: Universal male elbow (KGV) | Tube OD: 10 mm | Connection: R1/4 male
KGV10-03Type: Universal male elbow (KGV) | Tube OD: 10 mm | Connection: R3/8 male
KGV12-03Type: Universal male elbow (KGV) | Tube OD: 12 mm | Connection: R3/8 male
KGV12-04Type: Universal male elbow (KGV) | Tube OD: 12 mm | Connection: R1/2 male
KGL04-00Type: Union elbow (KGL) | Tube OD: 4 mm | Connection: Tube to tube
KGL06-00Type: Union elbow (KGL) | Tube OD: 6 mm | Connection: Tube to tube
KGL08-00Type: Union elbow (KGL) | Tube OD: 8 mm | Connection: Tube to tube
KGL10-00Type: Union elbow (KGL) | Tube OD: 10 mm | Connection: Tube to tube
KGL12-00Type: Union elbow (KGL) | Tube OD: 12 mm | Connection: Tube to tube
KGL16-00Type: Union elbow (KGL) | Tube OD: 16 mm | Connection: Tube to tube
KGLU04-00Type: Branch union elbow (KGLU) | Tube OD: 4 mm | Connection: Tube to tube
KGLU06-00Type: Branch union elbow (KGLU) | Tube OD: 6 mm | Connection: Tube to tube
KGLU08-00Type: Branch union elbow (KGLU) | Tube OD: 8 mm | Connection: Tube to tube
KGLU10-00Type: Branch union elbow (KGLU) | Tube OD: 10 mm | Connection: Tube to tube
KGLU12-00Type: Branch union elbow (KGLU) | Tube OD: 12 mm | Connection: Tube to tube
KGL10-99Type: Plug-in elbow (KGL) | Tube OD: 10 mm | Connection: Fitting size 10 mm (plug-in)
KGL06-99Type: Plug-in elbow (KGL) | Tube OD: 6 mm | Connection: Fitting size 6 mm (plug-in)
KGL08-99Type: Plug-in elbow (KGL) | Tube OD: 8 mm | Connection: Fitting size 8 mm (plug-in)
KGL12-99Type: Plug-in elbow (KGL) | Tube OD: 12 mm | Connection: Fitting size 12 mm (plug-in)
KGL04-99Type: Plug-in elbow (KGL) | Tube OD: 4 mm | Connection: Fitting size 4 mm (plug-in)
KGW04-M5Type: Extended male elbow (KGW) | Tube OD: 4 mm | Connection: M5x0.8 male
KGW04-01Type: Extended male elbow (KGW) | Tube OD: 4 mm | Connection: R1/8 male
KGW06-M5Type: Extended male elbow (KGW) | Tube OD: 6 mm | Connection: M5x0.8 male
KGW06-01Type: Extended male elbow (KGW) | Tube OD: 6 mm | Connection: R1/8 male
KGW08-01Type: Extended male elbow (KGW) | Tube OD: 8 mm | Connection: R1/8 male
KGW08-02Type: Extended male elbow (KGW) | Tube OD: 8 mm | Connection: R1/4 male
KGW10-02Type: Extended male elbow (KGW) | Tube OD: 10 mm | Connection: R1/4 male
KGW10-03Type: Extended male elbow (KGW) | Tube OD: 10 mm | Connection: R3/8 male
KGW12-02Type: Extended male elbow (KGW) | Tube OD: 12 mm | Connection: R1/4 male
KGW12-03Type: Extended male elbow (KGW) | Tube OD: 12 mm | Connection: R3/8 male
KGW04-02Type: Extended male elbow (KGW) | Tube OD: 4 mm | Connection: R1/4 male
KGW06-02Type: Extended male elbow (KGW) | Tube OD: 6 mm | Connection: R1/4 male
KGW08-03Type: Extended male elbow (KGW) | Tube OD: 8 mm | Connection: R3/8 male
KGW06-03Type: Extended male elbow (KGW) | Tube OD: 6 mm | Connection: R3/8 male
KGW10-04Type: Extended male elbow (KGW) | Tube OD: 10 mm | Connection: R1/2 male
KGW12-04Type: Extended male elbow (KGW) | Tube OD: 12 mm | Connection: R1/2 male
KGT04-M5Type: Branch tee (KGT) | Tube OD: 4 mm | Connection: M5x0.8 male
KGT04-01Type: Branch tee (KGT) | Tube OD: 4 mm | Connection: R1/8 male
KGT06-M5Type: Branch tee (KGT) | Tube OD: 6 mm | Connection: M5x0.8 male
KGT06-01Type: Branch tee (KGT) | Tube OD: 6 mm | Connection: R1/8 male
KGT08-01Type: Branch tee (KGT) | Tube OD: 8 mm | Connection: R1/8 male
KGT08-02Type: Branch tee (KGT) | Tube OD: 8 mm | Connection: R1/4 male
KGT10-02Type: Branch tee (KGT) | Tube OD: 10 mm | Connection: R1/4 male
KGT10-03Type: Branch tee (KGT) | Tube OD: 10 mm | Connection: R3/8 male
KGT12-02Type: Branch tee (KGT) | Tube OD: 12 mm | Connection: R1/4 male
KGT12-03Type: Branch tee (KGT) | Tube OD: 12 mm | Connection: R3/8 male
KGT04-02Type: Branch tee (KGT) | Tube OD: 4 mm | Connection: R1/4 male
KGT10-01Type: Branch tee (KGT) | Tube OD: 10 mm | Connection: R1/8 male
KGT06-02Type: Branch tee (KGT) | Tube OD: 6 mm | Connection: R1/4 male
KGT08-03Type: Branch tee (KGT) | Tube OD: 8 mm | Connection: R3/8 male
KGT06-03Type: Branch tee (KGT) | Tube OD: 6 mm | Connection: R3/8 male
KGT10-04Type: Branch tee (KGT) | Tube OD: 10 mm | Connection: R1/2 male
KGT12-04Type: Branch tee (KGT) | Tube OD: 12 mm | Connection: R1/2 male
KGT16-03Type: Branch tee (KGT) | Tube OD: 16 mm | Connection: R3/8 male
KGT16-04Type: Branch tee (KGT) | Tube OD: 16 mm | Connection: R1/2 male
KGT04-00Type: Union tee (KGT) | Tube OD: 4 mm | Connection: Tube to tube
KGT06-00Type: Union tee (KGT) | Tube OD: 6 mm | Connection: Tube to tube
KGT10-00Type: Union tee (KGT) | Tube OD: 10 mm | Connection: Tube to tube
KGT12-00Type: Union tee (KGT) | Tube OD: 12 mm | Connection: Tube to tube
KGT08-00Type: Union tee (KGT) | Tube OD: 8 mm | Connection: Tube to tube
KGT16-00Type: Union tee (KGT) | Tube OD: 16 mm | Connection: Tube to tube
KGT08-10Type: Union tee (KGT) | Tube OD: 8 mm | Connection: Second tube OD 10 mm
KGT04-06Type: Union tee (KGT) | Tube OD: 4 mm | Connection: Second tube OD 6 mm
KGT06-08Type: Union tee (KGT) | Tube OD: 6 mm | Connection: Second tube OD 8 mm
KGT10-12Type: Union tee (KGT) | Tube OD: 10 mm | Connection: Second tube OD 12 mm
KGY04-M5Type: Run tee (KGY) | Tube OD: 4 mm | Connection: M5x0.8 male
KGY04-01Type: Run tee (KGY) | Tube OD: 4 mm | Connection: R1/8 male
KGY06-M5Type: Run tee (KGY) | Tube OD: 6 mm | Connection: M5x0.8 male
KGY06-01Type: Run tee (KGY) | Tube OD: 6 mm | Connection: R1/8 male
KGY08-01Type: Run tee (KGY) | Tube OD: 8 mm | Connection: R1/8 male
KGY08-02Type: Run tee (KGY) | Tube OD: 8 mm | Connection: R1/4 male
KGY10-02Type: Run tee (KGY) | Tube OD: 10 mm | Connection: R1/4 male
KGY10-03Type: Run tee (KGY) | Tube OD: 10 mm | Connection: R3/8 male
KGY12-02Type: Run tee (KGY) | Tube OD: 12 mm | Connection: R1/4 male
KGY12-03Type: Run tee (KGY) | Tube OD: 12 mm | Connection: R3/8 male
KGY04-02Type: Run tee (KGY) | Tube OD: 4 mm | Connection: R1/4 male
KGY10-01Type: Run tee (KGY) | Tube OD: 10 mm | Connection: R1/8 male
KGY06-02Type: Run tee (KGY) | Tube OD: 6 mm | Connection: R1/4 male
KGY08-03Type: Run tee (KGY) | Tube OD: 8 mm | Connection: R3/8 male
KGY06-03Type: Run tee (KGY) | Tube OD: 6 mm | Connection: R3/8 male
KGY10-04Type: Run tee (KGY) | Tube OD: 10 mm | Connection: R1/2 male
KGY12-04Type: Run tee (KGY) | Tube OD: 12 mm | Connection: R1/2 male
KGY16-03Type: Run tee (KGY) | Tube OD: 16 mm | Connection: R3/8 male
KGY16-04Type: Run tee (KGY) | Tube OD: 16 mm | Connection: R1/2 male
KGD04-M5Type: Delta male union (KGD) | Tube OD: 4 mm | Connection: M5x0.8 male
KGD04-01Type: Delta male union (KGD) | Tube OD: 4 mm | Connection: R1/8 male
KGD06-M5Type: Delta male union (KGD) | Tube OD: 6 mm | Connection: M5x0.8 male
KGD06-01Type: Delta male union (KGD) | Tube OD: 6 mm | Connection: R1/8 male
KGD08-01Type: Delta male union (KGD) | Tube OD: 8 mm | Connection: R1/8 male
KGD08-02Type: Delta male union (KGD) | Tube OD: 8 mm | Connection: R1/4 male
KGD10-02Type: Delta male union (KGD) | Tube OD: 10 mm | Connection: R1/4 male
KGD10-03Type: Delta male union (KGD) | Tube OD: 10 mm | Connection: R3/8 male
KGD12-02Type: Delta male union (KGD) | Tube OD: 12 mm | Connection: R1/4 male
KGD12-03Type: Delta male union (KGD) | Tube OD: 12 mm | Connection: R3/8 male
KGD04-02Type: Delta male union (KGD) | Tube OD: 4 mm | Connection: R1/4 male
KGD06-02Type: Delta male union (KGD) | Tube OD: 6 mm | Connection: R1/4 male
KGD08-03Type: Delta male union (KGD) | Tube OD: 8 mm | Connection: R3/8 male
KGD06-03Type: Delta male union (KGD) | Tube OD: 6 mm | Connection: R3/8 male
KGD10-04Type: Delta male union (KGD) | Tube OD: 10 mm | Connection: R1/2 male
KGD12-04Type: Delta male union (KGD) | Tube OD: 12 mm | Connection: R1/2 male
KGD06-00Type: Delta union (KGD) | Tube OD: 6 mm | Connection: Tube to tube
KGD04-00Type: Delta union (KGD) | Tube OD: 4 mm | Connection: Tube to tube
KGD08-00Type: Delta union (KGD) | Tube OD: 8 mm | Connection: Tube to tube
KGD10-00Type: Delta union (KGD) | Tube OD: 10 mm | Connection: Tube to tube
KGD12-00Type: Delta union (KGD) | Tube OD: 12 mm | Connection: Tube to tube
KGU04-01Type: Branch Y (KGU) | Tube OD: 4 mm | Connection: R1/8 male
KGU04-M5Type: Branch Y (KGU) | Tube OD: 4 mm | Connection: M5x0.8 male
KGU06-M5Type: Branch Y (KGU) | Tube OD: 6 mm | Connection: M5x0.8 male
KGU06-01Type: Branch Y (KGU) | Tube OD: 6 mm | Connection: R1/8 male
KGU06-02Type: Branch Y (KGU) | Tube OD: 6 mm | Connection: R1/4 male
KGU06-03Type: Branch Y (KGU) | Tube OD: 6 mm | Connection: R3/8 male
KGU08-01Type: Branch Y (KGU) | Tube OD: 8 mm | Connection: R1/8 male
KGU08-02Type: Branch Y (KGU) | Tube OD: 8 mm | Connection: R1/4 male
KGU08-03Type: Branch Y (KGU) | Tube OD: 8 mm | Connection: R3/8 male
KGU10-02Type: Branch Y (KGU) | Tube OD: 10 mm | Connection: R1/4 male
KGU10-03Type: Branch Y (KGU) | Tube OD: 10 mm | Connection: R3/8 male
KGU10-04Type: Branch Y (KGU) | Tube OD: 10 mm | Connection: R1/2 male
KGU12-02Type: Branch Y (KGU) | Tube OD: 12 mm | Connection: R1/4 male
KGU12-03Type: Branch Y (KGU) | Tube OD: 12 mm | Connection: R3/8 male
KGU12-04Type: Branch Y (KGU) | Tube OD: 12 mm | Connection: R1/2 male
KGU04-02Type: Branch Y (KGU) | Tube OD: 4 mm | Connection: R1/4 male
KGUD04-01Type: Double branch (KGUD) | Tube OD: 4 mm | Connection: R1/8 male
KGUD06-01Type: Double branch (KGUD) | Tube OD: 6 mm | Connection: R1/8 male
KGUD06-02Type: Double branch (KGUD) | Tube OD: 6 mm | Connection: R1/4 male
KGUD04-02Type: Double branch (KGUD) | Tube OD: 4 mm | Connection: R1/4 male
KGU06-00Type: Union Y (KGU) | Tube OD: 6 mm | Connection: Tube to tube
KGU04-00Type: Union Y (KGU) | Tube OD: 4 mm | Connection: Tube to tube
KGU08-00Type: Union Y (KGU) | Tube OD: 8 mm | Connection: Tube to tube
KGU10-00Type: Union Y (KGU) | Tube OD: 10 mm | Connection: Tube to tube
KGU12-00Type: Union Y (KGU) | Tube OD: 12 mm | Connection: Tube to tube
KGU06-08Type: Union Y (KGU) | Tube OD: 6 mm | Connection: Second tube OD 8 mm
KGU04-06Type: Union Y (KGU) | Tube OD: 4 mm | Connection: Second tube OD 6 mm
KGU08-10Type: Union Y (KGU) | Tube OD: 8 mm | Connection: Second tube OD 10 mm
KGU10-12Type: Union Y (KGU) | Tube OD: 10 mm | Connection: Second tube OD 12 mm
KGUD06-08Type: Double union Y (KGUD) | Tube OD: 6 mm | Connection: Second tube OD 8 mm
KGUD04-06Type: Double union Y (KGUD) | Tube OD: 4 mm | Connection: Second tube OD 6 mm
KGR04-08Type: Plug-in reducer (KGR) | Tube OD: 4 mm | Connection: Fitting size 8 mm (plug-in)
KGR04-06Type: Plug-in reducer (KGR) | Tube OD: 4 mm | Connection: Fitting size 6 mm (plug-in)
KGR06-04Type: Plug-in reducer (KGR) | Tube OD: 6 mm | Connection: Fitting size 4 mm (plug-in)
KGR06-08Type: Plug-in reducer (KGR) | Tube OD: 6 mm | Connection: Fitting size 8 mm (plug-in)
KGR06-10Type: Plug-in reducer (KGR) | Tube OD: 6 mm | Connection: Fitting size 10 mm (plug-in)
KGR06-12Type: Plug-in reducer (KGR) | Tube OD: 6 mm | Connection: Fitting size 12 mm (plug-in)
KGR08-10Type: Plug-in reducer (KGR) | Tube OD: 8 mm | Connection: Fitting size 10 mm (plug-in)
KGR08-12Type: Plug-in reducer (KGR) | Tube OD: 8 mm | Connection: Fitting size 12 mm (plug-in)
KGR10-12Type: Plug-in reducer (KGR) | Tube OD: 10 mm | Connection: Fitting size 12 mm (plug-in)
KGR10-16Type: Plug-in reducer (KGR) | Tube OD: 10 mm | Connection: Fitting size 16 mm (plug-in)
KGR12-16Type: Plug-in reducer (KGR) | Tube OD: 12 mm | Connection: Fitting size 16 mm (plug-in)
KGR04-10Type: Plug-in reducer (KGR) | Tube OD: 4 mm | Connection: Fitting size 10 mm (plug-in)
KGE06-00Type: Bulkhead union (KGE) | Tube OD: 6 mm | Connection: Tube to tube
KGE04-00Type: Bulkhead union (KGE) | Tube OD: 4 mm | Connection: Tube to tube
KGE08-00Type: Bulkhead union (KGE) | Tube OD: 8 mm | Connection: Tube to tube
KGE10-00Type: Bulkhead union (KGE) | Tube OD: 10 mm | Connection: Tube to tube
KGE12-00Type: Bulkhead union (KGE) | Tube OD: 12 mm | Connection: Tube to tube
KGE16-00Type: Bulkhead union (KGE) | Tube OD: 16 mm | Connection: Tube to tube
KGE04-01Type: Bulkhead female connector (KGE) | Tube OD: 4 mm | Connection: Rc1/8 female
KGE06-01Type: Bulkhead female connector (KGE) | Tube OD: 6 mm | Connection: Rc1/8 female
KGE06-02Type: Bulkhead female connector (KGE) | Tube OD: 6 mm | Connection: Rc1/4 female
KGE06-03Type: Bulkhead female connector (KGE) | Tube OD: 6 mm | Connection: Rc3/8 female
KGE08-01Type: Bulkhead female connector (KGE) | Tube OD: 8 mm | Connection: Rc1/8 female
KGE08-02Type: Bulkhead female connector (KGE) | Tube OD: 8 mm | Connection: Rc1/4 female
KGE08-03Type: Bulkhead female connector (KGE) | Tube OD: 8 mm | Connection: Rc3/8 female
KGE10-02Type: Bulkhead female connector (KGE) | Tube OD: 10 mm | Connection: Rc1/4 female
KGE10-03Type: Bulkhead female connector (KGE) | Tube OD: 10 mm | Connection: Rc3/8 female
KGE12-03Type: Bulkhead female connector (KGE) | Tube OD: 12 mm | Connection: Rc3/8 female
KGE12-04Type: Bulkhead female connector (KGE) | Tube OD: 12 mm | Connection: Rc1/2 female
KGE04-02Type: Bulkhead female connector (KGE) | Tube OD: 4 mm | Connection: Rc1/4 female
KGE16-03Type: Bulkhead female connector (KGE) | Tube OD: 16 mm | Connection: Rc3/8 female
KGE16-04Type: Bulkhead female connector (KGE) | Tube OD: 16 mm | Connection: Rc1/2 female
KGC06-00Type: Tube cap (KGC) | Tube OD: 6 mm | Connection: Tube to tube
KGC04-00Type: Tube cap (KGC) | Tube OD: 4 mm | Connection: Tube to tube
KGC08-00Type: Tube cap (KGC) | Tube OD: 8 mm | Connection: Tube to tube
KGC10-00Type: Tube cap (KGC) | Tube OD: 10 mm | Connection: Tube to tube
KGC12-00Type: Tube cap (KGC) | Tube OD: 12 mm | Connection: Tube to tube
KGC16-00Type: Tube cap (KGC) | Tube OD: 16 mm | Connection: Tube to tube

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
