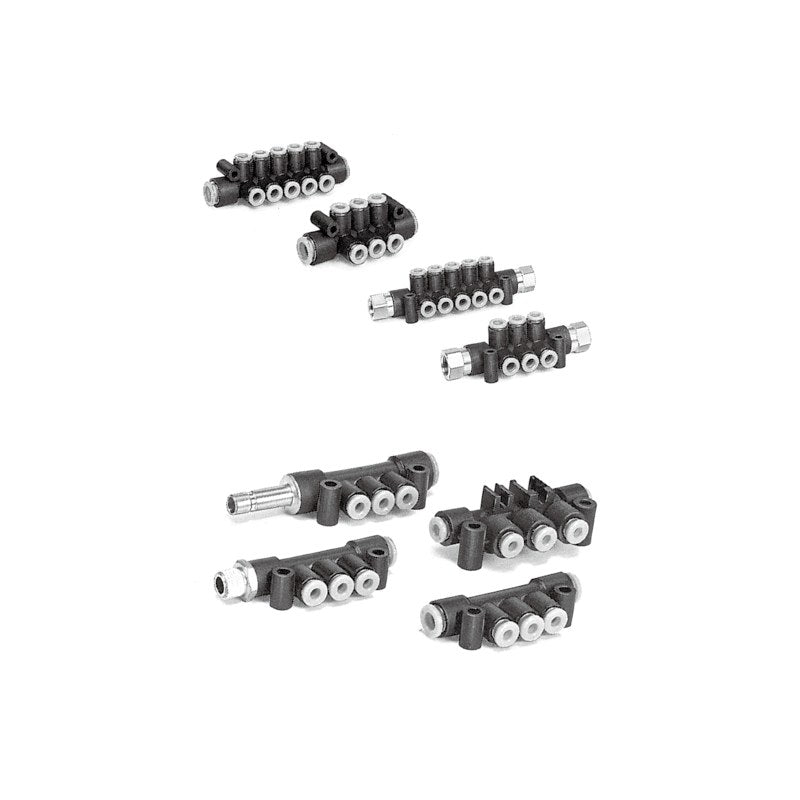

SMC KM One-touch Fitting Manifold (Metric)

SMC KM One-touch Fitting Manifold (Metric)

SMC KM series one-touch fitting manifold that branches one supply port into 3, 6 or 10 one-touch ports for compact, centralized piping.

Key features

  • 40 metric models in six types KM11 to KM16
  • Port B connection: one-touch fitting, Rc female thread, one-touch with R male thread, or plug-in rod
  • KM11/KM12 with 6 or 10 port A outlets; KM13 to KM16 with 3 outlets
  • PBT body with SUS304 chuck and guide; KM12 supplied with one hex socket plug with seal
  • Made-to-order: fluorine-coated NBR seals (-X17) and electroless nickel plated (-X2)

Specifications

Fluid Air, water
Operating pressure range -100 kPa to 1 MPa
Proof pressure 3 MPa
Ambient and fluid temperature -5 to 60°C, water 0 to 40°C (no freezing)
Applicable tube material FEP, PFA, nylon, soft nylon, polyurethane
Thread Rc/R (JIS B0203)
Body material PBT
Seal material NBR
Source SMC Korea catalog KM Series (SMCKR_KM.pdf), p. 167-174
KM11-04-08-6 Model: KM11 | Type: One-touch A / one-touch B | Port A tube: ø4 | Port B: ø8 | Port A count: 6
KM11-04-08-10 Model: KM11 | Type: One-touch A / one-touch B | Port A tube: ø4 | Port B: ø8 | Port A count: 10
KM11-06-10-6 Model: KM11 | Type: One-touch A / one-touch B | Port A tube: ø6 | Port B: ø10 | Port A count: 6
KM11-06-10-10 Model: KM11 | Type: One-touch A / one-touch B | Port A tube: ø6 | Port B: ø10 | Port A count: 10
KM11-08-12-6 Model: KM11 | Type: One-touch A / one-touch B | Port A tube: ø8 | Port B: ø12 | Port A count: 6
KM11-08-12-10 Model: KM11 | Type: One-touch A / one-touch B | Port A tube: ø8 | Port B: ø12 | Port A count: 10
KM12-04-02-6 Model: KM12 | Type: One-touch A / Rc female B | Port A tube: ø4 | Port B: Rc1/4 | Port A count: 6
KM12-04-02-10 Model: KM12 | Type: One-touch A / Rc female B | Port A tube: ø4 | Port B: Rc1/4 | Port A count: 10
KM12-06-02-6 Model: KM12 | Type: One-touch A / Rc female B | Port A tube: ø6 | Port B: Rc1/4 | Port A count: 6
KM12-06-02-10 Model: KM12 | Type: One-touch A / Rc female B | Port A tube: ø6 | Port B: Rc1/4 | Port A count: 10
KM12-08-03-6 Model: KM12 | Type: One-touch A / Rc female B | Port A tube: ø8 | Port B: Rc3/8 | Port A count: 6
KM12-08-03-10 Model: KM12 | Type: One-touch A / Rc female B | Port A tube: ø8 | Port B: Rc3/8 | Port A count: 10
KM13-04-06-3 Model: KM13 | Type: One-touch A / one-touch B | Port A tube: ø4 | Port B: ø6 | Port A count: 3
KM13-04-08-3 Model: KM13 | Type: One-touch A / one-touch B | Port A tube: ø4 | Port B: ø8 | Port A count: 3
KM13-06-08-3 Model: KM13 | Type: One-touch A / one-touch B | Port A tube: ø6 | Port B: ø8 | Port A count: 3
KM13-06-10-3 Model: KM13 | Type: One-touch A / one-touch B | Port A tube: ø6 | Port B: ø10 | Port A count: 3
KM13-08-10-3 Model: KM13 | Type: One-touch A / one-touch B | Port A tube: ø8 | Port B: ø10 | Port A count: 3
KM14-04-06-01S-3 Model: KM14 | Type: One-touch A / one-touch + R male B | Port A tube: ø4 | Port B: ø6 + R1/8 | Port A count: 3
KM14-04-06-02S-3 Model: KM14 | Type: One-touch A / one-touch + R male B | Port A tube: ø4 | Port B: ø6 + R1/4 | Port A count: 3
KM14-04-06-03S-3 Model: KM14 | Type: One-touch A / one-touch + R male B | Port A tube: ø4 | Port B: ø6 + R3/8 | Port A count: 3
KM14-04-08-01S-3 Model: KM14 | Type: One-touch A / one-touch + R male B | Port A tube: ø4 | Port B: ø8 + R1/8 | Port A count: 3
KM14-04-08-02S-3 Model: KM14 | Type: One-touch A / one-touch + R male B | Port A tube: ø4 | Port B: ø8 + R1/4 | Port A count: 3
KM14-04-08-03S-3 Model: KM14 | Type: One-touch A / one-touch + R male B | Port A tube: ø4 | Port B: ø8 + R3/8 | Port A count: 3
KM14-06-08-01S-3 Model: KM14 | Type: One-touch A / one-touch + R male B | Port A tube: ø6 | Port B: ø8 + R1/8 | Port A count: 3
KM14-06-08-02S-3 Model: KM14 | Type: One-touch A / one-touch + R male B | Port A tube: ø6 | Port B: ø8 + R1/4 | Port A count: 3
KM14-06-08-03S-3 Model: KM14 | Type: One-touch A / one-touch + R male B | Port A tube: ø6 | Port B: ø8 + R3/8 | Port A count: 3
KM14-06-10-02S-3 Model: KM14 | Type: One-touch A / one-touch + R male B | Port A tube: ø6 | Port B: ø10 + R1/4 | Port A count: 3
KM14-06-10-03S-3 Model: KM14 | Type: One-touch A / one-touch + R male B | Port A tube: ø6 | Port B: ø10 + R3/8 | Port A count: 3
KM14-06-10-04S-3 Model: KM14 | Type: One-touch A / one-touch + R male B | Port A tube: ø6 | Port B: ø10 + R1/2 | Port A count: 3
KM14-08-10-02S-3 Model: KM14 | Type: One-touch A / one-touch + R male B | Port A tube: ø8 | Port B: ø10 + R1/4 | Port A count: 3
KM14-08-10-03S-3 Model: KM14 | Type: One-touch A / one-touch + R male B | Port A tube: ø8 | Port B: ø10 + R3/8 | Port A count: 3
KM14-08-10-04S-3 Model: KM14 | Type: One-touch A / one-touch + R male B | Port A tube: ø8 | Port B: ø10 + R1/2 | Port A count: 3
KM15-04-06-3 Model: KM15 | Type: One-touch A / one-touch + plug-in rod B | Port A tube: ø4 | Port B: ø6 (rod) | Port A count: 3
KM15-04-08-3 Model: KM15 | Type: One-touch A / one-touch + plug-in rod B | Port A tube: ø4 | Port B: ø8 (rod) | Port A count: 3
KM15-06-08-3 Model: KM15 | Type: One-touch A / one-touch + plug-in rod B | Port A tube: ø6 | Port B: ø8 (rod) | Port A count: 3
KM15-06-10-3 Model: KM15 | Type: One-touch A / one-touch + plug-in rod B | Port A tube: ø6 | Port B: ø10 (rod) | Port A count: 3
KM15-08-10-3 Model: KM15 | Type: One-touch A / one-touch + plug-in rod B | Port A tube: ø8 | Port B: ø10 (rod) | Port A count: 3
KM16-04-04-3 Model: KM16 | Type: One-touch A / one-touch B | Port A tube: ø4 | Port B: ø4 | Port A count: 3
KM16-04-06-3 Model: KM16 | Type: One-touch A / one-touch B | Port A tube: ø4 | Port B: ø6 | Port A count: 3
KM16-06-06-3 Model: KM16 | Type: One-touch A / one-touch B | Port A tube: ø6 | Port B: ø6 | Port A count: 3
