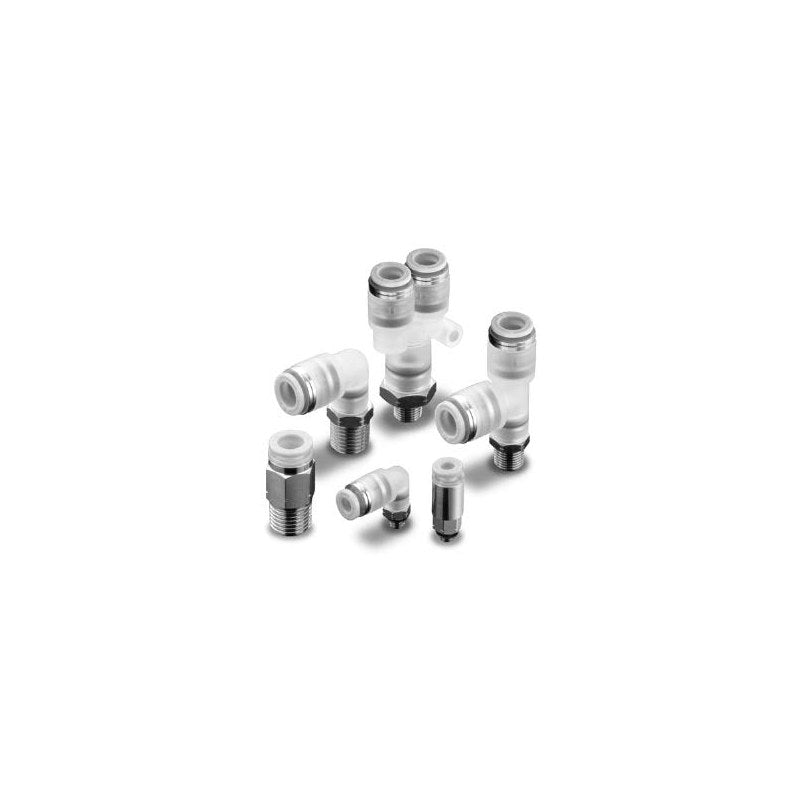

SMC KP Clean One-Touch Fitting (Resin Body, R Thread)

SMC KP Clean One-Touch Fitting (Resin Body, R Thread)

SMC KP series clean one-touch fitting with PP resin body for clean-room air blow piping, for metric tube 4 to 12 mm and R threads.

Key features

  • PP resin body and release bushing, SUS304 chuck and guide, EPDM (fluorine coated) packing and O-ring
  • Designed for blow piping in clean environments; low particle generation
  • Union, elbow, tee, run tee, branch Y, reducer and plug types
  • Seal tape attached version available as made-to-order option -X53
  • For drive (actuator) air lines use the KPQ/KPG series

Specifications

Fluid Air
Body material PP
Chuck / guide SUS304
Seals EPDM (fluorine coated)
Thread R (taper pipe thread)
Applicable tube TPH / TPS polyolefin and other SMC tubes
Source SMC Korea fittings catalog KP/KPQ/KPG section (SMCKR_KP.pdf), p. 1-7
KPU04-01 Type: Male branch Y | Tube O.D.: 4 mm | Connection: R1/8 male
KPU04-02 Type: Male branch Y | Tube O.D.: 4 mm | Connection: R1/4 male
KPU06-01 Type: Male branch Y | Tube O.D.: 6 mm | Connection: R1/8 male
KPU06-02 Type: Male branch Y | Tube O.D.: 6 mm | Connection: R1/4 male
KPU08-01 Type: Male branch Y | Tube O.D.: 8 mm | Connection: R1/8 male
KPU08-02 Type: Male branch Y | Tube O.D.: 8 mm | Connection: R1/4 male
KPU10-02 Type: Male branch Y | Tube O.D.: 10 mm | Connection: R1/4 male
KPU10-03 Type: Male branch Y | Tube O.D.: 10 mm | Connection: R3/8 male
KPU12-03 Type: Male branch Y | Tube O.D.: 12 mm | Connection: R3/8 male
KPU12-04 Type: Male branch Y | Tube O.D.: 12 mm | Connection: R1/2 male
KPH04-01 Type: Male connector | Tube O.D.: 4 mm | Connection: R1/8 male
KPH04-02 Type: Male connector | Tube O.D.: 4 mm | Connection: R1/4 male
KPH06-01 Type: Male connector | Tube O.D.: 6 mm | Connection: R1/8 male
KPH06-02 Type: Male connector | Tube O.D.: 6 mm | Connection: R1/4 male
KPH08-01 Type: Male connector | Tube O.D.: 8 mm | Connection: R1/8 male
KPH08-02 Type: Male connector | Tube O.D.: 8 mm | Connection: R1/4 male
KPH10-02 Type: Male connector | Tube O.D.: 10 mm | Connection: R1/4 male
KPH10-03 Type: Male connector | Tube O.D.: 10 mm | Connection: R3/8 male
KPH12-03 Type: Male connector | Tube O.D.: 12 mm | Connection: R3/8 male
KPH12-04 Type: Male connector | Tube O.D.: 12 mm | Connection: R1/2 male
KPL04-01 Type: Male elbow | Tube O.D.: 4 mm | Connection: R1/8 male
KPL04-02 Type: Male elbow | Tube O.D.: 4 mm | Connection: R1/4 male
KPL06-01 Type: Male elbow | Tube O.D.: 6 mm | Connection: R1/8 male
KPL06-02 Type: Male elbow | Tube O.D.: 6 mm | Connection: R1/4 male
KPL08-01 Type: Male elbow | Tube O.D.: 8 mm | Connection: R1/8 male
KPL08-02 Type: Male elbow | Tube O.D.: 8 mm | Connection: R1/4 male
KPL10-02 Type: Male elbow | Tube O.D.: 10 mm | Connection: R1/4 male
KPL10-03 Type: Male elbow | Tube O.D.: 10 mm | Connection: R3/8 male
KPL12-03 Type: Male elbow | Tube O.D.: 12 mm | Connection: R3/8 male
KPL12-04 Type: Male elbow | Tube O.D.: 12 mm | Connection: R1/2 male
KPT04-01 Type: Male branch tee | Tube O.D.: 4 mm | Connection: R1/8 male
KPT04-02 Type: Male branch tee | Tube O.D.: 4 mm | Connection: R1/4 male
KPT06-01 Type: Male branch tee | Tube O.D.: 6 mm | Connection: R1/8 male
KPT06-02 Type: Male branch tee | Tube O.D.: 6 mm | Connection: R1/4 male
KPT08-01 Type: Male branch tee | Tube O.D.: 8 mm | Connection: R1/8 male
KPT08-02 Type: Male branch tee | Tube O.D.: 8 mm | Connection: R1/4 male
KPT10-02 Type: Male branch tee | Tube O.D.: 10 mm | Connection: R1/4 male
KPT10-03 Type: Male branch tee | Tube O.D.: 10 mm | Connection: R3/8 male
KPT12-03 Type: Male branch tee | Tube O.D.: 12 mm | Connection: R3/8 male
KPT12-04 Type: Male branch tee | Tube O.D.: 12 mm | Connection: R1/2 male
KPY04-01 Type: Male run tee | Tube O.D.: 4 mm | Connection: R1/8 male
KPY04-02 Type: Male run tee | Tube O.D.: 4 mm | Connection: R1/4 male
KPY06-01 Type: Male run tee | Tube O.D.: 6 mm | Connection: R1/8 male
KPY06-02 Type: Male run tee | Tube O.D.: 6 mm | Connection: R1/4 male
KPY08-01 Type: Male run tee | Tube O.D.: 8 mm | Connection: R1/8 male
KPY08-02 Type: Male run tee | Tube O.D.: 8 mm | Connection: R1/4 male
KPY10-02 Type: Male run tee | Tube O.D.: 10 mm | Connection: R1/4 male
KPY10-03 Type: Male run tee | Tube O.D.: 10 mm | Connection: R3/8 male
KPY12-03 Type: Male run tee | Tube O.D.: 12 mm | Connection: R3/8 male
KPY12-04 Type: Male run tee | Tube O.D.: 12 mm | Connection: R1/2 male
KPH04-00 Type: Union straight | Tube O.D.: 4 mm | Connection: Tube to tube
KPH06-00 Type: Union straight | Tube O.D.: 6 mm | Connection: Tube to tube
KPH08-00 Type: Union straight | Tube O.D.: 8 mm | Connection: Tube to tube
KPH10-00 Type: Union straight | Tube O.D.: 10 mm | Connection: Tube to tube
KPH12-00 Type: Union straight | Tube O.D.: 12 mm | Connection: Tube to tube
KPL04-00 Type: Union elbow | Tube O.D.: 4 mm | Connection: Tube to tube
KPL06-00 Type: Union elbow | Tube O.D.: 6 mm | Connection: Tube to tube
KPL08-00 Type: Union elbow | Tube O.D.: 8 mm | Connection: Tube to tube
KPL10-00 Type: Union elbow | Tube O.D.: 10 mm | Connection: Tube to tube
KPL12-00 Type: Union elbow | Tube O.D.: 12 mm | Connection: Tube to tube
KPT04-00 Type: Union tee | Tube O.D.: 4 mm | Connection: Tube to tube
KPT06-00 Type: Union tee | Tube O.D.: 6 mm | Connection: Tube to tube
KPT08-00 Type: Union tee | Tube O.D.: 8 mm | Connection: Tube to tube
KPT10-00 Type: Union tee | Tube O.D.: 10 mm | Connection: Tube to tube
KPT12-00 Type: Union tee | Tube O.D.: 12 mm | Connection: Tube to tube
KPR04-06 Type: Reducer | Tube O.D.: 4 mm | Connection: Plug-in stem for 6 mm fitting
KPR04-08 Type: Reducer | Tube O.D.: 4 mm | Connection: Plug-in stem for 8 mm fitting
KPR06-08 Type: Reducer | Tube O.D.: 6 mm | Connection: Plug-in stem for 8 mm fitting
KPR06-10 Type: Reducer | Tube O.D.: 6 mm | Connection: Plug-in stem for 10 mm fitting
KPR08-10 Type: Reducer | Tube O.D.: 8 mm | Connection: Plug-in stem for 10 mm fitting
KPR08-12 Type: Reducer | Tube O.D.: 8 mm | Connection: Plug-in stem for 12 mm fitting
KPR10-12 Type: Reducer | Tube O.D.: 10 mm | Connection: Plug-in stem for 12 mm fitting
KPU04-00 Type: Union Y | Tube O.D.: 4 mm | Connection: Tube to tube
KPU06-00 Type: Union Y | Tube O.D.: 6 mm | Connection: Tube to tube
KPU08-00 Type: Union Y | Tube O.D.: 8 mm | Connection: Tube to tube
KPU10-00 Type: Union Y | Tube O.D.: 10 mm | Connection: Tube to tube
KPU12-00 Type: Union Y | Tube O.D.: 12 mm | Connection: Tube to tube
KPP-04 Type: Plug | Tube O.D.: 4 mm | Connection: Plug for 4 mm fitting
KPP-06 Type: Plug | Tube O.D.: 6 mm | Connection: Plug for 6 mm fitting
KPP-08 Type: Plug | Tube O.D.: 8 mm | Connection: Plug for 8 mm fitting
KPP-10 Type: Plug | Tube O.D.: 10 mm | Connection: Plug for 10 mm fitting
KPP-12 Type: Plug | Tube O.D.: 12 mm | Connection: Plug for 12 mm fitting
