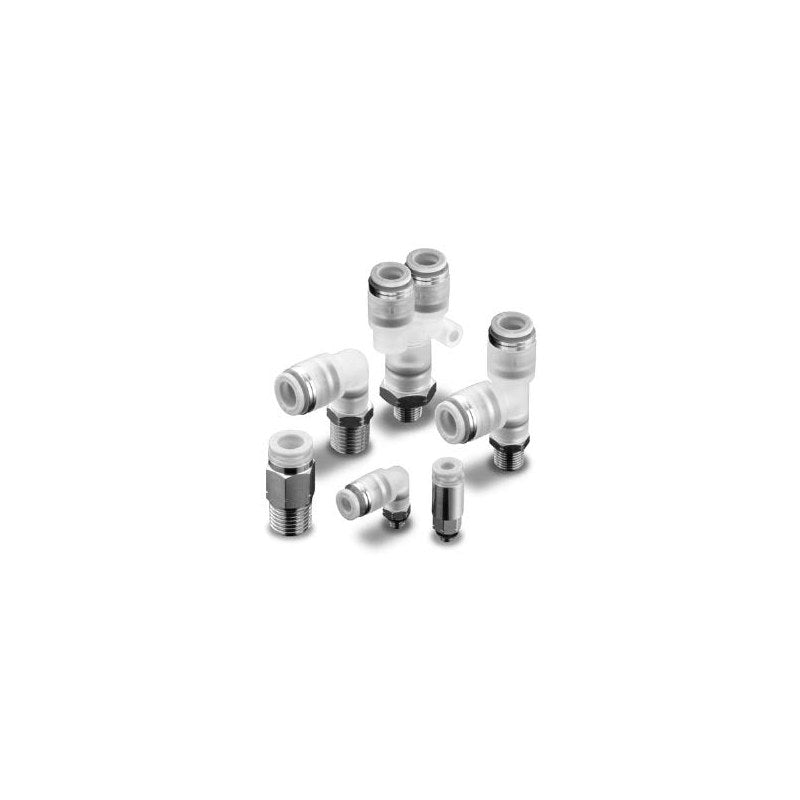

SMC KPQ/KPG Clean One-Touch Fitting (Metal Thread, M5/R)

SMC KPQ/KPG Clean One-Touch Fitting (Metal Thread, M5/R)

SMC KPQ (electroless nickel plated brass) and KPG (SUS304 stainless) clean one-touch fittings with PP resin body for drive air lines in clean environments, metric tube 4 to 12 mm, M5 or R threads.

Key features

  • KPQ: threaded body C3604 electroless nickel plated; KPG: SUS304 threaded body
  • PP resin body, SUS304 chuck, NBR packing and O-ring
  • Suitable for actuator drive air lines in clean rooms
  • Made-to-order: -X53 seal tape, -X193 fluorine grease/EPDM, -X1806 double clean packing
  • Tube-to-tube types share the plug KPP-xx with the KP series

Specifications

Fluid Air
Resin body PP
Chuck SUS304
Seals NBR
Thread M5x0.8 or R (taper pipe thread)
Source SMC Korea fittings catalog KP/KPQ/KPG section (SMCKR_KP.pdf), p. 9-12
KPQL04-M5 Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPQL04-01 Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 4 mm | Connection: R1/8 male
KPQL04-02 Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 4 mm | Connection: R1/4 male
KPQL06-M5 Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPQL06-01 Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 6 mm | Connection: R1/8 male
KPQL06-02 Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 6 mm | Connection: R1/4 male
KPQL08-01 Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 8 mm | Connection: R1/8 male
KPQL08-02 Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 8 mm | Connection: R1/4 male
KPQL10-02 Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 10 mm | Connection: R1/4 male
KPQL10-03 Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 10 mm | Connection: R3/8 male
KPQL12-03 Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 12 mm | Connection: R3/8 male
KPQL12-04 Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 12 mm | Connection: R1/2 male
KPQH04-M5 Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPQH04-01 Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 4 mm | Connection: R1/8 male
KPQH04-02 Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 4 mm | Connection: R1/4 male
KPQH06-M5 Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPQH06-01 Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 6 mm | Connection: R1/8 male
KPQH06-02 Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 6 mm | Connection: R1/4 male
KPQH08-01 Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 8 mm | Connection: R1/8 male
KPQH08-02 Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 8 mm | Connection: R1/4 male
KPQH10-02 Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 10 mm | Connection: R1/4 male
KPQH10-03 Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 10 mm | Connection: R3/8 male
KPQH12-03 Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 12 mm | Connection: R3/8 male
KPQH12-04 Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 12 mm | Connection: R1/2 male
KPQT04-M5 Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPQT04-01 Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 4 mm | Connection: R1/8 male
KPQT04-02 Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 4 mm | Connection: R1/4 male
KPQT06-M5 Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPQT06-01 Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 6 mm | Connection: R1/8 male
KPQT06-02 Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 6 mm | Connection: R1/4 male
KPQT08-01 Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 8 mm | Connection: R1/8 male
KPQT08-02 Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 8 mm | Connection: R1/4 male
KPQT10-02 Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 10 mm | Connection: R1/4 male
KPQT10-03 Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 10 mm | Connection: R3/8 male
KPQT12-03 Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 12 mm | Connection: R3/8 male
KPQT12-04 Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 12 mm | Connection: R1/2 male
KPQY04-M5 Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPQY04-01 Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 4 mm | Connection: R1/8 male
KPQY04-02 Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 4 mm | Connection: R1/4 male
KPQY06-M5 Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPQY06-01 Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 6 mm | Connection: R1/8 male
KPQY06-02 Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 6 mm | Connection: R1/4 male
KPQY08-01 Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 8 mm | Connection: R1/8 male
KPQY08-02 Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 8 mm | Connection: R1/4 male
KPQY10-02 Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 10 mm | Connection: R1/4 male
KPQY10-03 Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 10 mm | Connection: R3/8 male
KPQY12-03 Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 12 mm | Connection: R3/8 male
KPQY12-04 Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 12 mm | Connection: R1/2 male
KPQU04-M5 Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPQU04-01 Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 4 mm | Connection: R1/8 male
KPQU04-02 Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 4 mm | Connection: R1/4 male
KPQU06-M5 Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPQU06-01 Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 6 mm | Connection: R1/8 male
KPQU06-02 Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 6 mm | Connection: R1/4 male
KPQU08-01 Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 8 mm | Connection: R1/8 male
KPQU08-02 Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 8 mm | Connection: R1/4 male
KPQU10-02 Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 10 mm | Connection: R1/4 male
KPQU10-03 Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 10 mm | Connection: R3/8 male
KPQU12-03 Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 12 mm | Connection: R3/8 male
KPQU12-04 Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 12 mm | Connection: R1/2 male
KPQH04-00 Body: Brass, electroless nickel | Type: Union straight | Tube O.D.: 4 mm | Connection: Tube to tube
KPQH06-00 Body: Brass, electroless nickel | Type: Union straight | Tube O.D.: 6 mm | Connection: Tube to tube
KPQH08-00 Body: Brass, electroless nickel | Type: Union straight | Tube O.D.: 8 mm | Connection: Tube to tube
KPQH10-00 Body: Brass, electroless nickel | Type: Union straight | Tube O.D.: 10 mm | Connection: Tube to tube
KPQH12-00 Body: Brass, electroless nickel | Type: Union straight | Tube O.D.: 12 mm | Connection: Tube to tube
KPQL04-00 Body: Brass, electroless nickel | Type: Union elbow | Tube O.D.: 4 mm | Connection: Tube to tube
KPQL06-00 Body: Brass, electroless nickel | Type: Union elbow | Tube O.D.: 6 mm | Connection: Tube to tube
KPQL08-00 Body: Brass, electroless nickel | Type: Union elbow | Tube O.D.: 8 mm | Connection: Tube to tube
KPQL10-00 Body: Brass, electroless nickel | Type: Union elbow | Tube O.D.: 10 mm | Connection: Tube to tube
KPQL12-00 Body: Brass, electroless nickel | Type: Union elbow | Tube O.D.: 12 mm | Connection: Tube to tube
KPQT04-00 Body: Brass, electroless nickel | Type: Union tee | Tube O.D.: 4 mm | Connection: Tube to tube
KPQT06-00 Body: Brass, electroless nickel | Type: Union tee | Tube O.D.: 6 mm | Connection: Tube to tube
KPQT08-00 Body: Brass, electroless nickel | Type: Union tee | Tube O.D.: 8 mm | Connection: Tube to tube
KPQT10-00 Body: Brass, electroless nickel | Type: Union tee | Tube O.D.: 10 mm | Connection: Tube to tube
KPQT12-00 Body: Brass, electroless nickel | Type: Union tee | Tube O.D.: 12 mm | Connection: Tube to tube
KPQR04-06 Body: Brass, electroless nickel | Type: Reducer | Tube O.D.: 4 mm | Connection: Plug-in stem for 6 mm fitting
KPQR04-08 Body: Brass, electroless nickel | Type: Reducer | Tube O.D.: 4 mm | Connection: Plug-in stem for 8 mm fitting
KPQR06-08 Body: Brass, electroless nickel | Type: Reducer | Tube O.D.: 6 mm | Connection: Plug-in stem for 8 mm fitting
KPQR06-10 Body: Brass, electroless nickel | Type: Reducer | Tube O.D.: 6 mm | Connection: Plug-in stem for 10 mm fitting
KPQR08-10 Body: Brass, electroless nickel | Type: Reducer | Tube O.D.: 8 mm | Connection: Plug-in stem for 10 mm fitting
KPQR08-12 Body: Brass, electroless nickel | Type: Reducer | Tube O.D.: 8 mm | Connection: Plug-in stem for 12 mm fitting
KPQR10-12 Body: Brass, electroless nickel | Type: Reducer | Tube O.D.: 10 mm | Connection: Plug-in stem for 12 mm fitting
KPQU04-00 Body: Brass, electroless nickel | Type: Union Y | Tube O.D.: 4 mm | Connection: Tube to tube
KPQU06-00 Body: Brass, electroless nickel | Type: Union Y | Tube O.D.: 6 mm | Connection: Tube to tube
KPQU08-00 Body: Brass, electroless nickel | Type: Union Y | Tube O.D.: 8 mm | Connection: Tube to tube
KPQU10-00 Body: Brass, electroless nickel | Type: Union Y | Tube O.D.: 10 mm | Connection: Tube to tube
KPQU12-00 Body: Brass, electroless nickel | Type: Union Y | Tube O.D.: 12 mm | Connection: Tube to tube
KPGL04-M5 Body: SUS304 | Type: Male elbow | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPGL04-01 Body: SUS304 | Type: Male elbow | Tube O.D.: 4 mm | Connection: R1/8 male
KPGL04-02 Body: SUS304 | Type: Male elbow | Tube O.D.: 4 mm | Connection: R1/4 male
KPGL06-M5 Body: SUS304 | Type: Male elbow | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPGL06-01 Body: SUS304 | Type: Male elbow | Tube O.D.: 6 mm | Connection: R1/8 male
KPGL06-02 Body: SUS304 | Type: Male elbow | Tube O.D.: 6 mm | Connection: R1/4 male
KPGL08-01 Body: SUS304 | Type: Male elbow | Tube O.D.: 8 mm | Connection: R1/8 male
KPGL08-02 Body: SUS304 | Type: Male elbow | Tube O.D.: 8 mm | Connection: R1/4 male
KPGL10-02 Body: SUS304 | Type: Male elbow | Tube O.D.: 10 mm | Connection: R1/4 male
KPGL10-03 Body: SUS304 | Type: Male elbow | Tube O.D.: 10 mm | Connection: R3/8 male
KPGL12-03 Body: SUS304 | Type: Male elbow | Tube O.D.: 12 mm | Connection: R3/8 male
KPGL12-04 Body: SUS304 | Type: Male elbow | Tube O.D.: 12 mm | Connection: R1/2 male
KPGH04-M5 Body: SUS304 | Type: Male connector | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPGH04-01 Body: SUS304 | Type: Male connector | Tube O.D.: 4 mm | Connection: R1/8 male
KPGH04-02 Body: SUS304 | Type: Male connector | Tube O.D.: 4 mm | Connection: R1/4 male
KPGH06-M5 Body: SUS304 | Type: Male connector | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPGH06-01 Body: SUS304 | Type: Male connector | Tube O.D.: 6 mm | Connection: R1/8 male
KPGH06-02 Body: SUS304 | Type: Male connector | Tube O.D.: 6 mm | Connection: R1/4 male
KPGH08-01 Body: SUS304 | Type: Male connector | Tube O.D.: 8 mm | Connection: R1/8 male
KPGH08-02 Body: SUS304 | Type: Male connector | Tube O.D.: 8 mm | Connection: R1/4 male
KPGH10-02 Body: SUS304 | Type: Male connector | Tube O.D.: 10 mm | Connection: R1/4 male
KPGH10-03 Body: SUS304 | Type: Male connector | Tube O.D.: 10 mm | Connection: R3/8 male
KPGH12-03 Body: SUS304 | Type: Male connector | Tube O.D.: 12 mm | Connection: R3/8 male
KPGH12-04 Body: SUS304 | Type: Male connector | Tube O.D.: 12 mm | Connection: R1/2 male
KPGT04-M5 Body: SUS304 | Type: Male branch tee | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPGT04-01 Body: SUS304 | Type: Male branch tee | Tube O.D.: 4 mm | Connection: R1/8 male
KPGT04-02 Body: SUS304 | Type: Male branch tee | Tube O.D.: 4 mm | Connection: R1/4 male
KPGT06-M5 Body: SUS304 | Type: Male branch tee | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPGT06-01 Body: SUS304 | Type: Male branch tee | Tube O.D.: 6 mm | Connection: R1/8 male
KPGT06-02 Body: SUS304 | Type: Male branch tee | Tube O.D.: 6 mm | Connection: R1/4 male
KPGT08-01 Body: SUS304 | Type: Male branch tee | Tube O.D.: 8 mm | Connection: R1/8 male
KPGT08-02 Body: SUS304 | Type: Male branch tee | Tube O.D.: 8 mm | Connection: R1/4 male
KPGT10-02 Body: SUS304 | Type: Male branch tee | Tube O.D.: 10 mm | Connection: R1/4 male
KPGT10-03 Body: SUS304 | Type: Male branch tee | Tube O.D.: 10 mm | Connection: R3/8 male
KPGT12-03 Body: SUS304 | Type: Male branch tee | Tube O.D.: 12 mm | Connection: R3/8 male
KPGT12-04 Body: SUS304 | Type: Male branch tee | Tube O.D.: 12 mm | Connection: R1/2 male
KPGY04-M5 Body: SUS304 | Type: Male run tee | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPGY04-01 Body: SUS304 | Type: Male run tee | Tube O.D.: 4 mm | Connection: R1/8 male
KPGY04-02 Body: SUS304 | Type: Male run tee | Tube O.D.: 4 mm | Connection: R1/4 male
KPGY06-M5 Body: SUS304 | Type: Male run tee | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPGY06-01 Body: SUS304 | Type: Male run tee | Tube O.D.: 6 mm | Connection: R1/8 male
KPGY06-02 Body: SUS304 | Type: Male run tee | Tube O.D.: 6 mm | Connection: R1/4 male
KPGY08-01 Body: SUS304 | Type: Male run tee | Tube O.D.: 8 mm | Connection: R1/8 male
KPGY08-02 Body: SUS304 | Type: Male run tee | Tube O.D.: 8 mm | Connection: R1/4 male
KPGY10-02 Body: SUS304 | Type: Male run tee | Tube O.D.: 10 mm | Connection: R1/4 male
KPGY10-03 Body: SUS304 | Type: Male run tee | Tube O.D.: 10 mm | Connection: R3/8 male
KPGY12-03 Body: SUS304 | Type: Male run tee | Tube O.D.: 12 mm | Connection: R3/8 male
KPGY12-04 Body: SUS304 | Type: Male run tee | Tube O.D.: 12 mm | Connection: R1/2 male
KPGU04-M5 Body: SUS304 | Type: Male branch Y | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPGU04-01 Body: SUS304 | Type: Male branch Y | Tube O.D.: 4 mm | Connection: R1/8 male
KPGU04-02 Body: SUS304 | Type: Male branch Y | Tube O.D.: 4 mm | Connection: R1/4 male
KPGU06-M5 Body: SUS304 | Type: Male branch Y | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPGU06-01 Body: SUS304 | Type: Male branch Y | Tube O.D.: 6 mm | Connection: R1/8 male
KPGU06-02 Body: SUS304 | Type: Male branch Y | Tube O.D.: 6 mm | Connection: R1/4 male
KPGU08-01 Body: SUS304 | Type: Male branch Y | Tube O.D.: 8 mm | Connection: R1/8 male
KPGU08-02 Body: SUS304 | Type: Male branch Y | Tube O.D.: 8 mm | Connection: R1/4 male
KPGU10-02 Body: SUS304 | Type: Male branch Y | Tube O.D.: 10 mm | Connection: R1/4 male
KPGU10-03 Body: SUS304 | Type: Male branch Y | Tube O.D.: 10 mm | Connection: R3/8 male
KPGU12-03 Body: SUS304 | Type: Male branch Y | Tube O.D.: 12 mm | Connection: R3/8 male
KPGU12-04 Body: SUS304 | Type: Male branch Y | Tube O.D.: 12 mm | Connection: R1/2 male
KPGH04-00 Body: SUS304 | Type: Union straight | Tube O.D.: 4 mm | Connection: Tube to tube
KPGH06-00 Body: SUS304 | Type: Union straight | Tube O.D.: 6 mm | Connection: Tube to tube
KPGH08-00 Body: SUS304 | Type: Union straight | Tube O.D.: 8 mm | Connection: Tube to tube
KPGH10-00 Body: SUS304 | Type: Union straight | Tube O.D.: 10 mm | Connection: Tube to tube
KPGH12-00 Body: SUS304 | Type: Union straight | Tube O.D.: 12 mm | Connection: Tube to tube
KPGL04-00 Body: SUS304 | Type: Union elbow | Tube O.D.: 4 mm | Connection: Tube to tube
KPGL06-00 Body: SUS304 | Type: Union elbow | Tube O.D.: 6 mm | Connection: Tube to tube
KPGL08-00 Body: SUS304 | Type: Union elbow | Tube O.D.: 8 mm | Connection: Tube to tube
KPGL10-00 Body: SUS304 | Type: Union elbow | Tube O.D.: 10 mm | Connection: Tube to tube
KPGL12-00 Body: SUS304 | Type: Union elbow | Tube O.D.: 12 mm | Connection: Tube to tube
KPGT04-00 Body: SUS304 | Type: Union tee | Tube O.D.: 4 mm | Connection: Tube to tube
KPGT06-00 Body: SUS304 | Type: Union tee | Tube O.D.: 6 mm | Connection: Tube to tube
KPGT08-00 Body: SUS304 | Type: Union tee | Tube O.D.: 8 mm | Connection: Tube to tube
KPGT10-00 Body: SUS304 | Type: Union tee | Tube O.D.: 10 mm | Connection: Tube to tube
KPGT12-00 Body: SUS304 | Type: Union tee | Tube O.D.: 12 mm | Connection: Tube to tube
KPGR04-06 Body: SUS304 | Type: Reducer | Tube O.D.: 4 mm | Connection: Plug-in stem for 6 mm fitting
KPGR04-08 Body: SUS304 | Type: Reducer | Tube O.D.: 4 mm | Connection: Plug-in stem for 8 mm fitting
KPGR06-08 Body: SUS304 | Type: Reducer | Tube O.D.: 6 mm | Connection: Plug-in stem for 8 mm fitting
KPGR06-10 Body: SUS304 | Type: Reducer | Tube O.D.: 6 mm | Connection: Plug-in stem for 10 mm fitting
KPGR08-10 Body: SUS304 | Type: Reducer | Tube O.D.: 8 mm | Connection: Plug-in stem for 10 mm fitting
KPGR08-12 Body: SUS304 | Type: Reducer | Tube O.D.: 8 mm | Connection: Plug-in stem for 12 mm fitting
KPGR10-12 Body: SUS304 | Type: Reducer | Tube O.D.: 10 mm | Connection: Plug-in stem for 12 mm fitting
KPGU04-00 Body: SUS304 | Type: Union Y | Tube O.D.: 4 mm | Connection: Tube to tube
KPGU06-00 Body: SUS304 | Type: Union Y | Tube O.D.: 6 mm | Connection: Tube to tube
KPGU08-00 Body: SUS304 | Type: Union Y | Tube O.D.: 8 mm | Connection: Tube to tube
KPGU10-00 Body: SUS304 | Type: Union Y | Tube O.D.: 10 mm | Connection: Tube to tube
KPGU12-00 Body: SUS304 | Type: Union Y | Tube O.D.: 12 mm | Connection: Tube to tube
FittingsSMC
174 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC KPQ/KPG Clean One-Touch Fitting (Metal Thread, M5/R)

Brand SMC·Fittings

Available part numbers (174)

KPQL04-M5, KPQL04-01, KPQL04-02, KPQL06-M5, KPQL06-01, KPQL06-02, KPQL08-01, KPQL08-02, KPQL10-02, KPQL10-03 + 164 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KPQL04-M5Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPQL04-01Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 4 mm | Connection: R1/8 male
KPQL04-02Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 4 mm | Connection: R1/4 male
KPQL06-M5Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPQL06-01Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 6 mm | Connection: R1/8 male
KPQL06-02Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 6 mm | Connection: R1/4 male
KPQL08-01Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 8 mm | Connection: R1/8 male
KPQL08-02Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 8 mm | Connection: R1/4 male
KPQL10-02Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 10 mm | Connection: R1/4 male
KPQL10-03Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 10 mm | Connection: R3/8 male
KPQL12-03Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 12 mm | Connection: R3/8 male
KPQL12-04Body: Brass, electroless nickel | Type: Male elbow | Tube O.D.: 12 mm | Connection: R1/2 male
KPQH04-M5Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPQH04-01Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 4 mm | Connection: R1/8 male
KPQH04-02Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 4 mm | Connection: R1/4 male
KPQH06-M5Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPQH06-01Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 6 mm | Connection: R1/8 male
KPQH06-02Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 6 mm | Connection: R1/4 male
KPQH08-01Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 8 mm | Connection: R1/8 male
KPQH08-02Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 8 mm | Connection: R1/4 male
KPQH10-02Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 10 mm | Connection: R1/4 male
KPQH10-03Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 10 mm | Connection: R3/8 male
KPQH12-03Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 12 mm | Connection: R3/8 male
KPQH12-04Body: Brass, electroless nickel | Type: Male connector | Tube O.D.: 12 mm | Connection: R1/2 male
KPQT04-M5Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPQT04-01Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 4 mm | Connection: R1/8 male
KPQT04-02Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 4 mm | Connection: R1/4 male
KPQT06-M5Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPQT06-01Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 6 mm | Connection: R1/8 male
KPQT06-02Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 6 mm | Connection: R1/4 male
KPQT08-01Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 8 mm | Connection: R1/8 male
KPQT08-02Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 8 mm | Connection: R1/4 male
KPQT10-02Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 10 mm | Connection: R1/4 male
KPQT10-03Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 10 mm | Connection: R3/8 male
KPQT12-03Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 12 mm | Connection: R3/8 male
KPQT12-04Body: Brass, electroless nickel | Type: Male branch tee | Tube O.D.: 12 mm | Connection: R1/2 male
KPQY04-M5Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPQY04-01Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 4 mm | Connection: R1/8 male
KPQY04-02Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 4 mm | Connection: R1/4 male
KPQY06-M5Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPQY06-01Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 6 mm | Connection: R1/8 male
KPQY06-02Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 6 mm | Connection: R1/4 male
KPQY08-01Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 8 mm | Connection: R1/8 male
KPQY08-02Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 8 mm | Connection: R1/4 male
KPQY10-02Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 10 mm | Connection: R1/4 male
KPQY10-03Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 10 mm | Connection: R3/8 male
KPQY12-03Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 12 mm | Connection: R3/8 male
KPQY12-04Body: Brass, electroless nickel | Type: Male run tee | Tube O.D.: 12 mm | Connection: R1/2 male
KPQU04-M5Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPQU04-01Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 4 mm | Connection: R1/8 male
KPQU04-02Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 4 mm | Connection: R1/4 male
KPQU06-M5Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPQU06-01Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 6 mm | Connection: R1/8 male
KPQU06-02Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 6 mm | Connection: R1/4 male
KPQU08-01Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 8 mm | Connection: R1/8 male
KPQU08-02Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 8 mm | Connection: R1/4 male
KPQU10-02Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 10 mm | Connection: R1/4 male
KPQU10-03Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 10 mm | Connection: R3/8 male
KPQU12-03Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 12 mm | Connection: R3/8 male
KPQU12-04Body: Brass, electroless nickel | Type: Male branch Y | Tube O.D.: 12 mm | Connection: R1/2 male
KPQH04-00Body: Brass, electroless nickel | Type: Union straight | Tube O.D.: 4 mm | Connection: Tube to tube
KPQH06-00Body: Brass, electroless nickel | Type: Union straight | Tube O.D.: 6 mm | Connection: Tube to tube
KPQH08-00Body: Brass, electroless nickel | Type: Union straight | Tube O.D.: 8 mm | Connection: Tube to tube
KPQH10-00Body: Brass, electroless nickel | Type: Union straight | Tube O.D.: 10 mm | Connection: Tube to tube
KPQH12-00Body: Brass, electroless nickel | Type: Union straight | Tube O.D.: 12 mm | Connection: Tube to tube
KPQL04-00Body: Brass, electroless nickel | Type: Union elbow | Tube O.D.: 4 mm | Connection: Tube to tube
KPQL06-00Body: Brass, electroless nickel | Type: Union elbow | Tube O.D.: 6 mm | Connection: Tube to tube
KPQL08-00Body: Brass, electroless nickel | Type: Union elbow | Tube O.D.: 8 mm | Connection: Tube to tube
KPQL10-00Body: Brass, electroless nickel | Type: Union elbow | Tube O.D.: 10 mm | Connection: Tube to tube
KPQL12-00Body: Brass, electroless nickel | Type: Union elbow | Tube O.D.: 12 mm | Connection: Tube to tube
KPQT04-00Body: Brass, electroless nickel | Type: Union tee | Tube O.D.: 4 mm | Connection: Tube to tube
KPQT06-00Body: Brass, electroless nickel | Type: Union tee | Tube O.D.: 6 mm | Connection: Tube to tube
KPQT08-00Body: Brass, electroless nickel | Type: Union tee | Tube O.D.: 8 mm | Connection: Tube to tube
KPQT10-00Body: Brass, electroless nickel | Type: Union tee | Tube O.D.: 10 mm | Connection: Tube to tube
KPQT12-00Body: Brass, electroless nickel | Type: Union tee | Tube O.D.: 12 mm | Connection: Tube to tube
KPQR04-06Body: Brass, electroless nickel | Type: Reducer | Tube O.D.: 4 mm | Connection: Plug-in stem for 6 mm fitting
KPQR04-08Body: Brass, electroless nickel | Type: Reducer | Tube O.D.: 4 mm | Connection: Plug-in stem for 8 mm fitting
KPQR06-08Body: Brass, electroless nickel | Type: Reducer | Tube O.D.: 6 mm | Connection: Plug-in stem for 8 mm fitting
KPQR06-10Body: Brass, electroless nickel | Type: Reducer | Tube O.D.: 6 mm | Connection: Plug-in stem for 10 mm fitting
KPQR08-10Body: Brass, electroless nickel | Type: Reducer | Tube O.D.: 8 mm | Connection: Plug-in stem for 10 mm fitting
KPQR08-12Body: Brass, electroless nickel | Type: Reducer | Tube O.D.: 8 mm | Connection: Plug-in stem for 12 mm fitting
KPQR10-12Body: Brass, electroless nickel | Type: Reducer | Tube O.D.: 10 mm | Connection: Plug-in stem for 12 mm fitting
KPQU04-00Body: Brass, electroless nickel | Type: Union Y | Tube O.D.: 4 mm | Connection: Tube to tube
KPQU06-00Body: Brass, electroless nickel | Type: Union Y | Tube O.D.: 6 mm | Connection: Tube to tube
KPQU08-00Body: Brass, electroless nickel | Type: Union Y | Tube O.D.: 8 mm | Connection: Tube to tube
KPQU10-00Body: Brass, electroless nickel | Type: Union Y | Tube O.D.: 10 mm | Connection: Tube to tube
KPQU12-00Body: Brass, electroless nickel | Type: Union Y | Tube O.D.: 12 mm | Connection: Tube to tube
KPGL04-M5Body: SUS304 | Type: Male elbow | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPGL04-01Body: SUS304 | Type: Male elbow | Tube O.D.: 4 mm | Connection: R1/8 male
KPGL04-02Body: SUS304 | Type: Male elbow | Tube O.D.: 4 mm | Connection: R1/4 male
KPGL06-M5Body: SUS304 | Type: Male elbow | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPGL06-01Body: SUS304 | Type: Male elbow | Tube O.D.: 6 mm | Connection: R1/8 male
KPGL06-02Body: SUS304 | Type: Male elbow | Tube O.D.: 6 mm | Connection: R1/4 male
KPGL08-01Body: SUS304 | Type: Male elbow | Tube O.D.: 8 mm | Connection: R1/8 male
KPGL08-02Body: SUS304 | Type: Male elbow | Tube O.D.: 8 mm | Connection: R1/4 male
KPGL10-02Body: SUS304 | Type: Male elbow | Tube O.D.: 10 mm | Connection: R1/4 male
KPGL10-03Body: SUS304 | Type: Male elbow | Tube O.D.: 10 mm | Connection: R3/8 male
KPGL12-03Body: SUS304 | Type: Male elbow | Tube O.D.: 12 mm | Connection: R3/8 male
KPGL12-04Body: SUS304 | Type: Male elbow | Tube O.D.: 12 mm | Connection: R1/2 male
KPGH04-M5Body: SUS304 | Type: Male connector | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPGH04-01Body: SUS304 | Type: Male connector | Tube O.D.: 4 mm | Connection: R1/8 male
KPGH04-02Body: SUS304 | Type: Male connector | Tube O.D.: 4 mm | Connection: R1/4 male
KPGH06-M5Body: SUS304 | Type: Male connector | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPGH06-01Body: SUS304 | Type: Male connector | Tube O.D.: 6 mm | Connection: R1/8 male
KPGH06-02Body: SUS304 | Type: Male connector | Tube O.D.: 6 mm | Connection: R1/4 male
KPGH08-01Body: SUS304 | Type: Male connector | Tube O.D.: 8 mm | Connection: R1/8 male
KPGH08-02Body: SUS304 | Type: Male connector | Tube O.D.: 8 mm | Connection: R1/4 male
KPGH10-02Body: SUS304 | Type: Male connector | Tube O.D.: 10 mm | Connection: R1/4 male
KPGH10-03Body: SUS304 | Type: Male connector | Tube O.D.: 10 mm | Connection: R3/8 male
KPGH12-03Body: SUS304 | Type: Male connector | Tube O.D.: 12 mm | Connection: R3/8 male
KPGH12-04Body: SUS304 | Type: Male connector | Tube O.D.: 12 mm | Connection: R1/2 male
KPGT04-M5Body: SUS304 | Type: Male branch tee | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPGT04-01Body: SUS304 | Type: Male branch tee | Tube O.D.: 4 mm | Connection: R1/8 male
KPGT04-02Body: SUS304 | Type: Male branch tee | Tube O.D.: 4 mm | Connection: R1/4 male
KPGT06-M5Body: SUS304 | Type: Male branch tee | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPGT06-01Body: SUS304 | Type: Male branch tee | Tube O.D.: 6 mm | Connection: R1/8 male
KPGT06-02Body: SUS304 | Type: Male branch tee | Tube O.D.: 6 mm | Connection: R1/4 male
KPGT08-01Body: SUS304 | Type: Male branch tee | Tube O.D.: 8 mm | Connection: R1/8 male
KPGT08-02Body: SUS304 | Type: Male branch tee | Tube O.D.: 8 mm | Connection: R1/4 male
KPGT10-02Body: SUS304 | Type: Male branch tee | Tube O.D.: 10 mm | Connection: R1/4 male
KPGT10-03Body: SUS304 | Type: Male branch tee | Tube O.D.: 10 mm | Connection: R3/8 male
KPGT12-03Body: SUS304 | Type: Male branch tee | Tube O.D.: 12 mm | Connection: R3/8 male
KPGT12-04Body: SUS304 | Type: Male branch tee | Tube O.D.: 12 mm | Connection: R1/2 male
KPGY04-M5Body: SUS304 | Type: Male run tee | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPGY04-01Body: SUS304 | Type: Male run tee | Tube O.D.: 4 mm | Connection: R1/8 male
KPGY04-02Body: SUS304 | Type: Male run tee | Tube O.D.: 4 mm | Connection: R1/4 male
KPGY06-M5Body: SUS304 | Type: Male run tee | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPGY06-01Body: SUS304 | Type: Male run tee | Tube O.D.: 6 mm | Connection: R1/8 male
KPGY06-02Body: SUS304 | Type: Male run tee | Tube O.D.: 6 mm | Connection: R1/4 male
KPGY08-01Body: SUS304 | Type: Male run tee | Tube O.D.: 8 mm | Connection: R1/8 male
KPGY08-02Body: SUS304 | Type: Male run tee | Tube O.D.: 8 mm | Connection: R1/4 male
KPGY10-02Body: SUS304 | Type: Male run tee | Tube O.D.: 10 mm | Connection: R1/4 male
KPGY10-03Body: SUS304 | Type: Male run tee | Tube O.D.: 10 mm | Connection: R3/8 male
KPGY12-03Body: SUS304 | Type: Male run tee | Tube O.D.: 12 mm | Connection: R3/8 male
KPGY12-04Body: SUS304 | Type: Male run tee | Tube O.D.: 12 mm | Connection: R1/2 male
KPGU04-M5Body: SUS304 | Type: Male branch Y | Tube O.D.: 4 mm | Connection: M5x0.8 male
KPGU04-01Body: SUS304 | Type: Male branch Y | Tube O.D.: 4 mm | Connection: R1/8 male
KPGU04-02Body: SUS304 | Type: Male branch Y | Tube O.D.: 4 mm | Connection: R1/4 male
KPGU06-M5Body: SUS304 | Type: Male branch Y | Tube O.D.: 6 mm | Connection: M5x0.8 male
KPGU06-01Body: SUS304 | Type: Male branch Y | Tube O.D.: 6 mm | Connection: R1/8 male
KPGU06-02Body: SUS304 | Type: Male branch Y | Tube O.D.: 6 mm | Connection: R1/4 male
KPGU08-01Body: SUS304 | Type: Male branch Y | Tube O.D.: 8 mm | Connection: R1/8 male
KPGU08-02Body: SUS304 | Type: Male branch Y | Tube O.D.: 8 mm | Connection: R1/4 male
KPGU10-02Body: SUS304 | Type: Male branch Y | Tube O.D.: 10 mm | Connection: R1/4 male
KPGU10-03Body: SUS304 | Type: Male branch Y | Tube O.D.: 10 mm | Connection: R3/8 male
KPGU12-03Body: SUS304 | Type: Male branch Y | Tube O.D.: 12 mm | Connection: R3/8 male
KPGU12-04Body: SUS304 | Type: Male branch Y | Tube O.D.: 12 mm | Connection: R1/2 male
KPGH04-00Body: SUS304 | Type: Union straight | Tube O.D.: 4 mm | Connection: Tube to tube
KPGH06-00Body: SUS304 | Type: Union straight | Tube O.D.: 6 mm | Connection: Tube to tube
KPGH08-00Body: SUS304 | Type: Union straight | Tube O.D.: 8 mm | Connection: Tube to tube
KPGH10-00Body: SUS304 | Type: Union straight | Tube O.D.: 10 mm | Connection: Tube to tube
KPGH12-00Body: SUS304 | Type: Union straight | Tube O.D.: 12 mm | Connection: Tube to tube
KPGL04-00Body: SUS304 | Type: Union elbow | Tube O.D.: 4 mm | Connection: Tube to tube
KPGL06-00Body: SUS304 | Type: Union elbow | Tube O.D.: 6 mm | Connection: Tube to tube
KPGL08-00Body: SUS304 | Type: Union elbow | Tube O.D.: 8 mm | Connection: Tube to tube
KPGL10-00Body: SUS304 | Type: Union elbow | Tube O.D.: 10 mm | Connection: Tube to tube
KPGL12-00Body: SUS304 | Type: Union elbow | Tube O.D.: 12 mm | Connection: Tube to tube
KPGT04-00Body: SUS304 | Type: Union tee | Tube O.D.: 4 mm | Connection: Tube to tube
KPGT06-00Body: SUS304 | Type: Union tee | Tube O.D.: 6 mm | Connection: Tube to tube
KPGT08-00Body: SUS304 | Type: Union tee | Tube O.D.: 8 mm | Connection: Tube to tube
KPGT10-00Body: SUS304 | Type: Union tee | Tube O.D.: 10 mm | Connection: Tube to tube
KPGT12-00Body: SUS304 | Type: Union tee | Tube O.D.: 12 mm | Connection: Tube to tube
KPGR04-06Body: SUS304 | Type: Reducer | Tube O.D.: 4 mm | Connection: Plug-in stem for 6 mm fitting
KPGR04-08Body: SUS304 | Type: Reducer | Tube O.D.: 4 mm | Connection: Plug-in stem for 8 mm fitting
KPGR06-08Body: SUS304 | Type: Reducer | Tube O.D.: 6 mm | Connection: Plug-in stem for 8 mm fitting
KPGR06-10Body: SUS304 | Type: Reducer | Tube O.D.: 6 mm | Connection: Plug-in stem for 10 mm fitting
KPGR08-10Body: SUS304 | Type: Reducer | Tube O.D.: 8 mm | Connection: Plug-in stem for 10 mm fitting
KPGR08-12Body: SUS304 | Type: Reducer | Tube O.D.: 8 mm | Connection: Plug-in stem for 12 mm fitting
KPGR10-12Body: SUS304 | Type: Reducer | Tube O.D.: 10 mm | Connection: Plug-in stem for 12 mm fitting
KPGU04-00Body: SUS304 | Type: Union Y | Tube O.D.: 4 mm | Connection: Tube to tube
KPGU06-00Body: SUS304 | Type: Union Y | Tube O.D.: 6 mm | Connection: Tube to tube
KPGU08-00Body: SUS304 | Type: Union Y | Tube O.D.: 8 mm | Connection: Tube to tube
KPGU10-00Body: SUS304 | Type: Union Y | Tube O.D.: 10 mm | Connection: Tube to tube
KPGU12-00Body: SUS304 | Type: Union Y | Tube O.D.: 12 mm | Connection: Tube to tube

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
