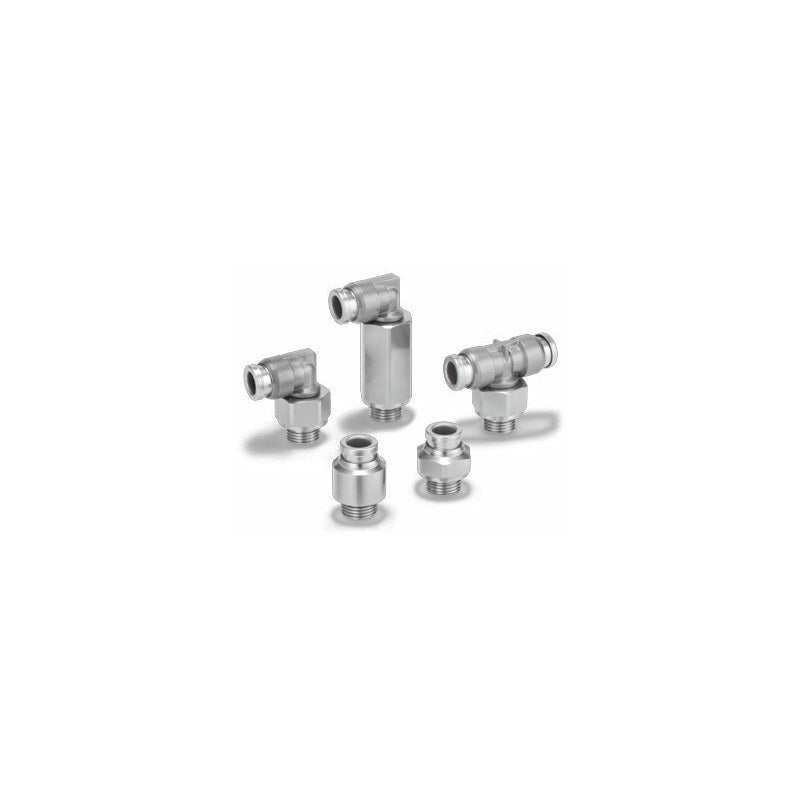

SMC KQG2-F FDA Compliant SUS316 One-Touch Fitting (M/R/Rc)

SMC KQG2-F FDA Compliant SUS316 One-Touch Fitting (M/R/Rc)

SMC KQG2-F series all-SUS316 one-touch fitting with FDA-compliant FKM seals and NSF H1 grease, for metric tube 3.2 to 16 mm and M5, R or Rc threads.

Key features

  • Metal parts SUS316; packing and O-ring FDA 21 CFR 177.2600 compliant FKM (blue); NSF H1 grease
  • Suitable for air, water and steam in food, beverage and pharmaceutical lines; -5 to 150 deg C
  • No sealant on threads (no FDA-compliant sealant available); M5 uses FDA FKM O-ring M-5-F
  • Inner sleeves TJG-xxxx (SUS316) recommended for high temperature or large temperature changes
  • Inch-size (UNF/NPT) and G-thread versions are listed in the same catalog; bulkhead nut KQG2xx-P01 spare

Specifications

Fluid Air, water, steam
Operating pressure range -100 kPa to 1 MPa
Proof pressure 3.0 MPa
Ambient and fluid temperature -5 to 150 deg C (no freezing)
Material SUS316 metal parts, FDA-compliant FKM seals
Lubricant NSF H1 grease
Thread seal No sealant
Applicable tube FEP, PFA, nylon, soft nylon, polyurethane, polyolefin
Source SMC Korea catalog KFG2H-E/KFG2H-C/KQG2-F/KQB2-F/KFG2-F (SMCKR_KFG2H-E_KFG2H-C_KQ2-F_KFG2-F.pdf), p. 16-23
KQG2S23-M5-F Type: Hex socket male connector | Tube O.D.: 3.2 mm | Connection: M5x0.8 male
KQG2S04-M5-F Type: Hex socket male connector | Tube O.D.: 4 mm | Connection: M5x0.8 male
KQG2S04-01-F Type: Hex socket male connector | Tube O.D.: 4 mm | Connection: R1/8 male
KQG2S06-M5-F Type: Hex socket male connector | Tube O.D.: 6 mm | Connection: M5x0.8 male
KQG2S06-01-F Type: Hex socket male connector | Tube O.D.: 6 mm | Connection: R1/8 male
KQG2S06-02-F Type: Hex socket male connector | Tube O.D.: 6 mm | Connection: R1/4 male
KQG2S08-01-F Type: Hex socket male connector | Tube O.D.: 8 mm | Connection: R1/8 male
KQG2S08-02-F Type: Hex socket male connector | Tube O.D.: 8 mm | Connection: R1/4 male
KQG2S08-03-F Type: Hex socket male connector | Tube O.D.: 8 mm | Connection: R3/8 male
KQG2S10-01-F Type: Hex socket male connector | Tube O.D.: 10 mm | Connection: R1/8 male
KQG2S10-02-F Type: Hex socket male connector | Tube O.D.: 10 mm | Connection: R1/4 male
KQG2S10-03-F Type: Hex socket male connector | Tube O.D.: 10 mm | Connection: R3/8 male
KQG2S10-04-F Type: Hex socket male connector | Tube O.D.: 10 mm | Connection: R1/2 male
KQG2S12-02-F Type: Hex socket male connector | Tube O.D.: 12 mm | Connection: R1/4 male
KQG2S12-03-F Type: Hex socket male connector | Tube O.D.: 12 mm | Connection: R3/8 male
KQG2S12-04-F Type: Hex socket male connector | Tube O.D.: 12 mm | Connection: R1/2 male
KQG2S16-03-F Type: Hex socket male connector | Tube O.D.: 16 mm | Connection: R3/8 male
KQG2S16-04-F Type: Hex socket male connector | Tube O.D.: 16 mm | Connection: R1/2 male
KQG2H23-00-F Type: Union straight | Tube O.D.: 3.2 mm | Connection: Tube to tube
KQG2H04-00-F Type: Union straight | Tube O.D.: 4 mm | Connection: Tube to tube
KQG2H06-00-F Type: Union straight | Tube O.D.: 6 mm | Connection: Tube to tube
KQG2H08-00-F Type: Union straight | Tube O.D.: 8 mm | Connection: Tube to tube
KQG2H10-00-F Type: Union straight | Tube O.D.: 10 mm | Connection: Tube to tube
KQG2H12-00-F Type: Union straight | Tube O.D.: 12 mm | Connection: Tube to tube
KQG2H16-00-F Type: Union straight | Tube O.D.: 16 mm | Connection: Tube to tube
KQG2H23-M5-F Type: Male connector | Tube O.D.: 3.2 mm | Connection: M5x0.8 male
KQG2H23-01-F Type: Male connector | Tube O.D.: 3.2 mm | Connection: R1/8 male
KQG2H23-02-F Type: Male connector | Tube O.D.: 3.2 mm | Connection: R1/4 male
KQG2H04-M5-F Type: Male connector | Tube O.D.: 4 mm | Connection: M5x0.8 male
KQG2H04-01-F Type: Male connector | Tube O.D.: 4 mm | Connection: R1/8 male
KQG2H04-02-F Type: Male connector | Tube O.D.: 4 mm | Connection: R1/4 male
KQG2H06-M5-F Type: Male connector | Tube O.D.: 6 mm | Connection: M5x0.8 male
KQG2H06-01-F Type: Male connector | Tube O.D.: 6 mm | Connection: R1/8 male
KQG2H06-02-F Type: Male connector | Tube O.D.: 6 mm | Connection: R1/4 male
KQG2H06-03-F Type: Male connector | Tube O.D.: 6 mm | Connection: R3/8 male
KQG2H08-01-F Type: Male connector | Tube O.D.: 8 mm | Connection: R1/8 male
KQG2H08-02-F Type: Male connector | Tube O.D.: 8 mm | Connection: R1/4 male
KQG2H08-03-F Type: Male connector | Tube O.D.: 8 mm | Connection: R3/8 male
KQG2H10-01-F Type: Male connector | Tube O.D.: 10 mm | Connection: R1/8 male
KQG2H10-02-F Type: Male connector | Tube O.D.: 10 mm | Connection: R1/4 male
KQG2H10-03-F Type: Male connector | Tube O.D.: 10 mm | Connection: R3/8 male
KQG2H10-04-F Type: Male connector | Tube O.D.: 10 mm | Connection: R1/2 male
KQG2H12-02-F Type: Male connector | Tube O.D.: 12 mm | Connection: R1/4 male
KQG2H12-03-F Type: Male connector | Tube O.D.: 12 mm | Connection: R3/8 male
KQG2H12-04-F Type: Male connector | Tube O.D.: 12 mm | Connection: R1/2 male
KQG2H16-03-F Type: Male connector | Tube O.D.: 16 mm | Connection: R3/8 male
KQG2H16-04-F Type: Male connector | Tube O.D.: 16 mm | Connection: R1/2 male
KQG2L23-00-F Type: Union elbow | Tube O.D.: 3.2 mm | Connection: Tube to tube
KQG2L04-00-F Type: Union elbow | Tube O.D.: 4 mm | Connection: Tube to tube
KQG2L06-00-F Type: Union elbow | Tube O.D.: 6 mm | Connection: Tube to tube
KQG2L08-00-F Type: Union elbow | Tube O.D.: 8 mm | Connection: Tube to tube
KQG2L10-00-F Type: Union elbow | Tube O.D.: 10 mm | Connection: Tube to tube
KQG2L12-00-F Type: Union elbow | Tube O.D.: 12 mm | Connection: Tube to tube
KQG2L16-00-F Type: Union elbow | Tube O.D.: 16 mm | Connection: Tube to tube
KQG2T23-M5-F Type: Male branch tee | Tube O.D.: 3.2 mm | Connection: M5x0.8 male
KQG2T23-01-F Type: Male branch tee | Tube O.D.: 3.2 mm | Connection: R1/8 male
KQG2T23-02-F Type: Male branch tee | Tube O.D.: 3.2 mm | Connection: R1/4 male
KQG2T04-M5-F Type: Male branch tee | Tube O.D.: 4 mm | Connection: M5x0.8 male
KQG2T04-01-F Type: Male branch tee | Tube O.D.: 4 mm | Connection: R1/8 male
KQG2T04-02-F Type: Male branch tee | Tube O.D.: 4 mm | Connection: R1/4 male
KQG2T06-M5-F Type: Male branch tee | Tube O.D.: 6 mm | Connection: M5x0.8 male
KQG2T06-01-F Type: Male branch tee | Tube O.D.: 6 mm | Connection: R1/8 male
KQG2T06-02-F Type: Male branch tee | Tube O.D.: 6 mm | Connection: R1/4 male
KQG2T06-03-F Type: Male branch tee | Tube O.D.: 6 mm | Connection: R3/8 male
KQG2T08-01-F Type: Male branch tee | Tube O.D.: 8 mm | Connection: R1/8 male
KQG2T08-02-F Type: Male branch tee | Tube O.D.: 8 mm | Connection: R1/4 male
KQG2T08-03-F Type: Male branch tee | Tube O.D.: 8 mm | Connection: R3/8 male
KQG2T10-01-F Type: Male branch tee | Tube O.D.: 10 mm | Connection: R1/8 male
KQG2T10-02-F Type: Male branch tee | Tube O.D.: 10 mm | Connection: R1/4 male
KQG2T10-03-F Type: Male branch tee | Tube O.D.: 10 mm | Connection: R3/8 male
KQG2T10-04-F Type: Male branch tee | Tube O.D.: 10 mm | Connection: R1/2 male
KQG2T12-02-F Type: Male branch tee | Tube O.D.: 12 mm | Connection: R1/4 male
KQG2T12-03-F Type: Male branch tee | Tube O.D.: 12 mm | Connection: R3/8 male
KQG2T12-04-F Type: Male branch tee | Tube O.D.: 12 mm | Connection: R1/2 male
KQG2T16-03-F Type: Male branch tee | Tube O.D.: 16 mm | Connection: R3/8 male
KQG2T16-04-F Type: Male branch tee | Tube O.D.: 16 mm | Connection: R1/2 male
KQG2L23-M5-F Type: Male elbow | Tube O.D.: 3.2 mm | Connection: M5x0.8 male
KQG2L23-01-F Type: Male elbow | Tube O.D.: 3.2 mm | Connection: R1/8 male
KQG2L23-02-F Type: Male elbow | Tube O.D.: 3.2 mm | Connection: R1/4 male
KQG2L04-M5-F Type: Male elbow | Tube O.D.: 4 mm | Connection: M5x0.8 male
KQG2L04-01-F Type: Male elbow | Tube O.D.: 4 mm | Connection: R1/8 male
KQG2L04-02-F Type: Male elbow | Tube O.D.: 4 mm | Connection: R1/4 male
KQG2L06-M5-F Type: Male elbow | Tube O.D.: 6 mm | Connection: M5x0.8 male
KQG2L06-01-F Type: Male elbow | Tube O.D.: 6 mm | Connection: R1/8 male
KQG2L06-02-F Type: Male elbow | Tube O.D.: 6 mm | Connection: R1/4 male
KQG2L06-03-F Type: Male elbow | Tube O.D.: 6 mm | Connection: R3/8 male
KQG2L08-01-F Type: Male elbow | Tube O.D.: 8 mm | Connection: R1/8 male
KQG2L08-02-F Type: Male elbow | Tube O.D.: 8 mm | Connection: R1/4 male
KQG2L08-03-F Type: Male elbow | Tube O.D.: 8 mm | Connection: R3/8 male
KQG2L10-01-F Type: Male elbow | Tube O.D.: 10 mm | Connection: R1/8 male
KQG2L10-02-F Type: Male elbow | Tube O.D.: 10 mm | Connection: R1/4 male
KQG2L10-03-F Type: Male elbow | Tube O.D.: 10 mm | Connection: R3/8 male
KQG2L10-04-F Type: Male elbow | Tube O.D.: 10 mm | Connection: R1/2 male
KQG2L12-02-F Type: Male elbow | Tube O.D.: 12 mm | Connection: R1/4 male
KQG2L12-03-F Type: Male elbow | Tube O.D.: 12 mm | Connection: R3/8 male
KQG2L12-04-F Type: Male elbow | Tube O.D.: 12 mm | Connection: R1/2 male
KQG2L16-03-F Type: Male elbow | Tube O.D.: 16 mm | Connection: R3/8 male
KQG2L16-04-F Type: Male elbow | Tube O.D.: 16 mm | Connection: R1/2 male
KQG2T23-04-F Type: Reducing tee | Tube O.D.: 3.2 mm | Connection: Reducing to 4 mm tube
KQG2T04-06-F Type: Reducing tee | Tube O.D.: 4 mm | Connection: Reducing to 6 mm tube
KQG2T06-08-F Type: Reducing tee | Tube O.D.: 6 mm | Connection: Reducing to 8 mm tube
KQG2T08-10-F Type: Reducing tee | Tube O.D.: 8 mm | Connection: Reducing to 10 mm tube
KQG2T10-12-F Type: Reducing tee | Tube O.D.: 10 mm | Connection: Reducing to 12 mm tube
KQG2T12-16-F Type: Reducing tee | Tube O.D.: 12 mm | Connection: Reducing to 16 mm tube
KQG2U23-00-F Type: Union Y | Tube O.D.: 3.2 mm | Connection: Tube to tube
KQG2U04-00-F Type: Union Y | Tube O.D.: 4 mm | Connection: Tube to tube
KQG2U06-00-F Type: Union Y | Tube O.D.: 6 mm | Connection: Tube to tube
KQG2U08-00-F Type: Union Y | Tube O.D.: 8 mm | Connection: Tube to tube
KQG2U10-00-F Type: Union Y | Tube O.D.: 10 mm | Connection: Tube to tube
KQG2U12-00-F Type: Union Y | Tube O.D.: 12 mm | Connection: Tube to tube
KQG2U16-00-F Type: Union Y | Tube O.D.: 16 mm | Connection: Tube to tube
KQG2R23-04-F Type: Reducer | Tube O.D.: 3.2 mm | Connection: Plug-in stem for 4 mm fitting
KQG2R04-06-F Type: Reducer | Tube O.D.: 4 mm | Connection: Plug-in stem for 6 mm fitting
KQG2R06-08-F Type: Reducer | Tube O.D.: 6 mm | Connection: Plug-in stem for 8 mm fitting
KQG2R08-10-F Type: Reducer | Tube O.D.: 8 mm | Connection: Plug-in stem for 10 mm fitting
KQG2R10-12-F Type: Reducer | Tube O.D.: 10 mm | Connection: Plug-in stem for 12 mm fitting
KQG2R12-16-F Type: Reducer | Tube O.D.: 12 mm | Connection: Plug-in stem for 16 mm fitting
KQG2T23-00-F Type: Union tee | Tube O.D.: 3.2 mm | Connection: Tube to tube
KQG2T04-00-F Type: Union tee | Tube O.D.: 4 mm | Connection: Tube to tube
KQG2T06-00-F Type: Union tee | Tube O.D.: 6 mm | Connection: Tube to tube
KQG2T08-00-F Type: Union tee | Tube O.D.: 8 mm | Connection: Tube to tube
KQG2T10-00-F Type: Union tee | Tube O.D.: 10 mm | Connection: Tube to tube
KQG2T12-00-F Type: Union tee | Tube O.D.: 12 mm | Connection: Tube to tube
KQG2T16-00-F Type: Union tee | Tube O.D.: 16 mm | Connection: Tube to tube
KQG2E23-00-F Type: Bulkhead union | Tube O.D.: 3.2 mm | Connection: Tube to tube
KQG2E04-00-F Type: Bulkhead union | Tube O.D.: 4 mm | Connection: Tube to tube
KQG2E06-00-F Type: Bulkhead union | Tube O.D.: 6 mm | Connection: Tube to tube
KQG2E08-00-F Type: Bulkhead union | Tube O.D.: 8 mm | Connection: Tube to tube
KQG2E10-00-F Type: Bulkhead union | Tube O.D.: 10 mm | Connection: Tube to tube
KQG2E12-00-F Type: Bulkhead union | Tube O.D.: 12 mm | Connection: Tube to tube
KQG2E16-00-F Type: Bulkhead union | Tube O.D.: 16 mm | Connection: Tube to tube
KQG2E23-02-F Type: Bulkhead female connector | Tube O.D.: 3.2 mm | Connection: Rc1/4 female
KQG2E04-01-F Type: Bulkhead female connector | Tube O.D.: 4 mm | Connection: Rc1/8 female
KQG2E04-02-F Type: Bulkhead female connector | Tube O.D.: 4 mm | Connection: Rc1/4 female
KQG2E06-01-F Type: Bulkhead female connector | Tube O.D.: 6 mm | Connection: Rc1/8 female
KQG2E06-02-F Type: Bulkhead female connector | Tube O.D.: 6 mm | Connection: Rc1/4 female
KQG2E06-03-F Type: Bulkhead female connector | Tube O.D.: 6 mm | Connection: Rc3/8 female
KQG2E08-01-F Type: Bulkhead female connector | Tube O.D.: 8 mm | Connection: Rc1/8 female
KQG2E08-02-F Type: Bulkhead female connector | Tube O.D.: 8 mm | Connection: Rc1/4 female
KQG2E08-03-F Type: Bulkhead female connector | Tube O.D.: 8 mm | Connection: Rc3/8 female
KQG2E10-02-F Type: Bulkhead female connector | Tube O.D.: 10 mm | Connection: Rc1/4 female
KQG2E10-03-F Type: Bulkhead female connector | Tube O.D.: 10 mm | Connection: Rc3/8 female
KQG2E12-03-F Type: Bulkhead female connector | Tube O.D.: 12 mm | Connection: Rc3/8 female
KQG2E12-04-F Type: Bulkhead female connector | Tube O.D.: 12 mm | Connection: Rc1/2 female
KQG2E16-03-F Type: Bulkhead female connector | Tube O.D.: 16 mm | Connection: Rc3/8 female
KQG2E16-04-F Type: Bulkhead female connector | Tube O.D.: 16 mm | Connection: Rc1/2 female
KQG2U23-04-F Type: Reducing Y | Tube O.D.: 3.2 mm | Connection: Reducing to 4 mm tube
KQG2U04-06-F Type: Reducing Y | Tube O.D.: 4 mm | Connection: Reducing to 6 mm tube
KQG2U06-08-F Type: Reducing Y | Tube O.D.: 6 mm | Connection: Reducing to 8 mm tube
KQG2U08-10-F Type: Reducing Y | Tube O.D.: 8 mm | Connection: Reducing to 10 mm tube
KQG2U10-12-F Type: Reducing Y | Tube O.D.: 10 mm | Connection: Reducing to 12 mm tube
KQG2U12-16-F Type: Reducing Y | Tube O.D.: 12 mm | Connection: Reducing to 16 mm tube
KQG2H23-04-F Type: Reducing straight | Tube O.D.: 3.2 mm | Connection: Reducing to 4 mm tube
KQG2H04-06-F Type: Reducing straight | Tube O.D.: 4 mm | Connection: Reducing to 6 mm tube
KQG2H06-08-F Type: Reducing straight | Tube O.D.: 6 mm | Connection: Reducing to 8 mm tube
KQG2H08-10-F Type: Reducing straight | Tube O.D.: 8 mm | Connection: Reducing to 10 mm tube
KQG2H10-12-F Type: Reducing straight | Tube O.D.: 10 mm | Connection: Reducing to 12 mm tube
KQG2H12-16-F Type: Reducing straight | Tube O.D.: 12 mm | Connection: Reducing to 16 mm tube
KQG2P-23 Type: Plug | Tube O.D.: 3.2 mm | Connection: Plug-in stem
KQG2P-04 Type: Plug | Tube O.D.: 4 mm | Connection: Plug-in stem
KQG2P-06 Type: Plug | Tube O.D.: 6 mm | Connection: Plug-in stem
KQG2P-08 Type: Plug | Tube O.D.: 8 mm | Connection: Plug-in stem
KQG2P-10 Type: Plug | Tube O.D.: 10 mm | Connection: Plug-in stem
KQG2P-12 Type: Plug | Tube O.D.: 12 mm | Connection: Plug-in stem
KQG2P-16 Type: Plug | Tube O.D.: 16 mm | Connection: Plug-in stem
KQG2F23-01-F Type: Female connector | Tube O.D.: 3.2 mm | Connection: Rc1/8 female
KQG2F04-01-F Type: Female connector | Tube O.D.: 4 mm | Connection: Rc1/8 female
KQG2F04-02-F Type: Female connector | Tube O.D.: 4 mm | Connection: Rc1/4 female
KQG2F06-01-F Type: Female connector | Tube O.D.: 6 mm | Connection: Rc1/8 female
KQG2F06-02-F Type: Female connector | Tube O.D.: 6 mm | Connection: Rc1/4 female
KQG2F06-03-F Type: Female connector | Tube O.D.: 6 mm | Connection: Rc3/8 female
KQG2F08-01-F Type: Female connector | Tube O.D.: 8 mm | Connection: Rc1/8 female
KQG2F08-02-F Type: Female connector | Tube O.D.: 8 mm | Connection: Rc1/4 female
KQG2F08-03-F Type: Female connector | Tube O.D.: 8 mm | Connection: Rc3/8 female
KQG2F10-02-F Type: Female connector | Tube O.D.: 10 mm | Connection: Rc1/4 female
KQG2F10-03-F Type: Female connector | Tube O.D.: 10 mm | Connection: Rc3/8 female
KQG2F12-02-F Type: Female connector | Tube O.D.: 12 mm | Connection: Rc1/4 female
KQG2F12-03-F Type: Female connector | Tube O.D.: 12 mm | Connection: Rc3/8 female
KQG2F12-04-F Type: Female connector | Tube O.D.: 12 mm | Connection: Rc1/2 female
KQG2F16-03-F Type: Female connector | Tube O.D.: 16 mm | Connection: Rc3/8 female
KQG2F16-04-F Type: Female connector | Tube O.D.: 16 mm | Connection: Rc1/2 female
KQG2W23-M5-F Type: Extended male elbow | Tube O.D.: 3.2 mm | Connection: M5x0.8 male
KQG2W23-01-F Type: Extended male elbow | Tube O.D.: 3.2 mm | Connection: R1/8 male
KQG2W23-02-F Type: Extended male elbow | Tube O.D.: 3.2 mm | Connection: R1/4 male
KQG2W04-M5-F Type: Extended male elbow | Tube O.D.: 4 mm | Connection: M5x0.8 male
KQG2W04-01-F Type: Extended male elbow | Tube O.D.: 4 mm | Connection: R1/8 male
KQG2W04-02-F Type: Extended male elbow | Tube O.D.: 4 mm | Connection: R1/4 male
KQG2W06-M5-F Type: Extended male elbow | Tube O.D.: 6 mm | Connection: M5x0.8 male
KQG2W06-01-F Type: Extended male elbow | Tube O.D.: 6 mm | Connection: R1/8 male
KQG2W06-02-F Type: Extended male elbow | Tube O.D.: 6 mm | Connection: R1/4 male
KQG2W06-03-F Type: Extended male elbow | Tube O.D.: 6 mm | Connection: R3/8 male
KQG2W08-01-F Type: Extended male elbow | Tube O.D.: 8 mm | Connection: R1/8 male
KQG2W08-02-F Type: Extended male elbow | Tube O.D.: 8 mm | Connection: R1/4 male
KQG2W08-03-F Type: Extended male elbow | Tube O.D.: 8 mm | Connection: R3/8 male
KQG2W10-02-F Type: Extended male elbow | Tube O.D.: 10 mm | Connection: R1/4 male
KQG2W10-03-F Type: Extended male elbow | Tube O.D.: 10 mm | Connection: R3/8 male
KQG2W10-04-F Type: Extended male elbow | Tube O.D.: 10 mm | Connection: R1/2 male
KQG2W12-02-F Type: Extended male elbow | Tube O.D.: 12 mm | Connection: R1/4 male
KQG2W12-03-F Type: Extended male elbow | Tube O.D.: 12 mm | Connection: R3/8 male
KQG2W12-04-F Type: Extended male elbow | Tube O.D.: 12 mm | Connection: R1/2 male
KQG2W16-03-F Type: Extended male elbow | Tube O.D.: 16 mm | Connection: R3/8 male
KQG2W16-04-F Type: Extended male elbow | Tube O.D.: 16 mm | Connection: R1/2 male
FittingsSMC
202 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC KQG2-F FDA Compliant SUS316 One-Touch Fitting (M/R/Rc)

Brand SMC·Fittings

Available part numbers (202)

KQG2S23-M5-F, KQG2S04-M5-F, KQG2S04-01-F, KQG2S06-M5-F, KQG2S06-01-F, KQG2S06-02-F, KQG2S08-01-F, KQG2S08-02-F, KQG2S08-03-F, KQG2S10-01-F + 192 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KQG2S23-M5-FType: Hex socket male connector | Tube O.D.: 3.2 mm | Connection: M5x0.8 male
KQG2S04-M5-FType: Hex socket male connector | Tube O.D.: 4 mm | Connection: M5x0.8 male
KQG2S04-01-FType: Hex socket male connector | Tube O.D.: 4 mm | Connection: R1/8 male
KQG2S06-M5-FType: Hex socket male connector | Tube O.D.: 6 mm | Connection: M5x0.8 male
KQG2S06-01-FType: Hex socket male connector | Tube O.D.: 6 mm | Connection: R1/8 male
KQG2S06-02-FType: Hex socket male connector | Tube O.D.: 6 mm | Connection: R1/4 male
KQG2S08-01-FType: Hex socket male connector | Tube O.D.: 8 mm | Connection: R1/8 male
KQG2S08-02-FType: Hex socket male connector | Tube O.D.: 8 mm | Connection: R1/4 male
KQG2S08-03-FType: Hex socket male connector | Tube O.D.: 8 mm | Connection: R3/8 male
KQG2S10-01-FType: Hex socket male connector | Tube O.D.: 10 mm | Connection: R1/8 male
KQG2S10-02-FType: Hex socket male connector | Tube O.D.: 10 mm | Connection: R1/4 male
KQG2S10-03-FType: Hex socket male connector | Tube O.D.: 10 mm | Connection: R3/8 male
KQG2S10-04-FType: Hex socket male connector | Tube O.D.: 10 mm | Connection: R1/2 male
KQG2S12-02-FType: Hex socket male connector | Tube O.D.: 12 mm | Connection: R1/4 male
KQG2S12-03-FType: Hex socket male connector | Tube O.D.: 12 mm | Connection: R3/8 male
KQG2S12-04-FType: Hex socket male connector | Tube O.D.: 12 mm | Connection: R1/2 male
KQG2S16-03-FType: Hex socket male connector | Tube O.D.: 16 mm | Connection: R3/8 male
KQG2S16-04-FType: Hex socket male connector | Tube O.D.: 16 mm | Connection: R1/2 male
KQG2H23-00-FType: Union straight | Tube O.D.: 3.2 mm | Connection: Tube to tube
KQG2H04-00-FType: Union straight | Tube O.D.: 4 mm | Connection: Tube to tube
KQG2H06-00-FType: Union straight | Tube O.D.: 6 mm | Connection: Tube to tube
KQG2H08-00-FType: Union straight | Tube O.D.: 8 mm | Connection: Tube to tube
KQG2H10-00-FType: Union straight | Tube O.D.: 10 mm | Connection: Tube to tube
KQG2H12-00-FType: Union straight | Tube O.D.: 12 mm | Connection: Tube to tube
KQG2H16-00-FType: Union straight | Tube O.D.: 16 mm | Connection: Tube to tube
KQG2H23-M5-FType: Male connector | Tube O.D.: 3.2 mm | Connection: M5x0.8 male
KQG2H23-01-FType: Male connector | Tube O.D.: 3.2 mm | Connection: R1/8 male
KQG2H23-02-FType: Male connector | Tube O.D.: 3.2 mm | Connection: R1/4 male
KQG2H04-M5-FType: Male connector | Tube O.D.: 4 mm | Connection: M5x0.8 male
KQG2H04-01-FType: Male connector | Tube O.D.: 4 mm | Connection: R1/8 male
KQG2H04-02-FType: Male connector | Tube O.D.: 4 mm | Connection: R1/4 male
KQG2H06-M5-FType: Male connector | Tube O.D.: 6 mm | Connection: M5x0.8 male
KQG2H06-01-FType: Male connector | Tube O.D.: 6 mm | Connection: R1/8 male
KQG2H06-02-FType: Male connector | Tube O.D.: 6 mm | Connection: R1/4 male
KQG2H06-03-FType: Male connector | Tube O.D.: 6 mm | Connection: R3/8 male
KQG2H08-01-FType: Male connector | Tube O.D.: 8 mm | Connection: R1/8 male
KQG2H08-02-FType: Male connector | Tube O.D.: 8 mm | Connection: R1/4 male
KQG2H08-03-FType: Male connector | Tube O.D.: 8 mm | Connection: R3/8 male
KQG2H10-01-FType: Male connector | Tube O.D.: 10 mm | Connection: R1/8 male
KQG2H10-02-FType: Male connector | Tube O.D.: 10 mm | Connection: R1/4 male
KQG2H10-03-FType: Male connector | Tube O.D.: 10 mm | Connection: R3/8 male
KQG2H10-04-FType: Male connector | Tube O.D.: 10 mm | Connection: R1/2 male
KQG2H12-02-FType: Male connector | Tube O.D.: 12 mm | Connection: R1/4 male
KQG2H12-03-FType: Male connector | Tube O.D.: 12 mm | Connection: R3/8 male
KQG2H12-04-FType: Male connector | Tube O.D.: 12 mm | Connection: R1/2 male
KQG2H16-03-FType: Male connector | Tube O.D.: 16 mm | Connection: R3/8 male
KQG2H16-04-FType: Male connector | Tube O.D.: 16 mm | Connection: R1/2 male
KQG2L23-00-FType: Union elbow | Tube O.D.: 3.2 mm | Connection: Tube to tube
KQG2L04-00-FType: Union elbow | Tube O.D.: 4 mm | Connection: Tube to tube
KQG2L06-00-FType: Union elbow | Tube O.D.: 6 mm | Connection: Tube to tube
KQG2L08-00-FType: Union elbow | Tube O.D.: 8 mm | Connection: Tube to tube
KQG2L10-00-FType: Union elbow | Tube O.D.: 10 mm | Connection: Tube to tube
KQG2L12-00-FType: Union elbow | Tube O.D.: 12 mm | Connection: Tube to tube
KQG2L16-00-FType: Union elbow | Tube O.D.: 16 mm | Connection: Tube to tube
KQG2T23-M5-FType: Male branch tee | Tube O.D.: 3.2 mm | Connection: M5x0.8 male
KQG2T23-01-FType: Male branch tee | Tube O.D.: 3.2 mm | Connection: R1/8 male
KQG2T23-02-FType: Male branch tee | Tube O.D.: 3.2 mm | Connection: R1/4 male
KQG2T04-M5-FType: Male branch tee | Tube O.D.: 4 mm | Connection: M5x0.8 male
KQG2T04-01-FType: Male branch tee | Tube O.D.: 4 mm | Connection: R1/8 male
KQG2T04-02-FType: Male branch tee | Tube O.D.: 4 mm | Connection: R1/4 male
KQG2T06-M5-FType: Male branch tee | Tube O.D.: 6 mm | Connection: M5x0.8 male
KQG2T06-01-FType: Male branch tee | Tube O.D.: 6 mm | Connection: R1/8 male
KQG2T06-02-FType: Male branch tee | Tube O.D.: 6 mm | Connection: R1/4 male
KQG2T06-03-FType: Male branch tee | Tube O.D.: 6 mm | Connection: R3/8 male
KQG2T08-01-FType: Male branch tee | Tube O.D.: 8 mm | Connection: R1/8 male
KQG2T08-02-FType: Male branch tee | Tube O.D.: 8 mm | Connection: R1/4 male
KQG2T08-03-FType: Male branch tee | Tube O.D.: 8 mm | Connection: R3/8 male
KQG2T10-01-FType: Male branch tee | Tube O.D.: 10 mm | Connection: R1/8 male
KQG2T10-02-FType: Male branch tee | Tube O.D.: 10 mm | Connection: R1/4 male
KQG2T10-03-FType: Male branch tee | Tube O.D.: 10 mm | Connection: R3/8 male
KQG2T10-04-FType: Male branch tee | Tube O.D.: 10 mm | Connection: R1/2 male
KQG2T12-02-FType: Male branch tee | Tube O.D.: 12 mm | Connection: R1/4 male
KQG2T12-03-FType: Male branch tee | Tube O.D.: 12 mm | Connection: R3/8 male
KQG2T12-04-FType: Male branch tee | Tube O.D.: 12 mm | Connection: R1/2 male
KQG2T16-03-FType: Male branch tee | Tube O.D.: 16 mm | Connection: R3/8 male
KQG2T16-04-FType: Male branch tee | Tube O.D.: 16 mm | Connection: R1/2 male
KQG2L23-M5-FType: Male elbow | Tube O.D.: 3.2 mm | Connection: M5x0.8 male
KQG2L23-01-FType: Male elbow | Tube O.D.: 3.2 mm | Connection: R1/8 male
KQG2L23-02-FType: Male elbow | Tube O.D.: 3.2 mm | Connection: R1/4 male
KQG2L04-M5-FType: Male elbow | Tube O.D.: 4 mm | Connection: M5x0.8 male
KQG2L04-01-FType: Male elbow | Tube O.D.: 4 mm | Connection: R1/8 male
KQG2L04-02-FType: Male elbow | Tube O.D.: 4 mm | Connection: R1/4 male
KQG2L06-M5-FType: Male elbow | Tube O.D.: 6 mm | Connection: M5x0.8 male
KQG2L06-01-FType: Male elbow | Tube O.D.: 6 mm | Connection: R1/8 male
KQG2L06-02-FType: Male elbow | Tube O.D.: 6 mm | Connection: R1/4 male
KQG2L06-03-FType: Male elbow | Tube O.D.: 6 mm | Connection: R3/8 male
KQG2L08-01-FType: Male elbow | Tube O.D.: 8 mm | Connection: R1/8 male
KQG2L08-02-FType: Male elbow | Tube O.D.: 8 mm | Connection: R1/4 male
KQG2L08-03-FType: Male elbow | Tube O.D.: 8 mm | Connection: R3/8 male
KQG2L10-01-FType: Male elbow | Tube O.D.: 10 mm | Connection: R1/8 male
KQG2L10-02-FType: Male elbow | Tube O.D.: 10 mm | Connection: R1/4 male
KQG2L10-03-FType: Male elbow | Tube O.D.: 10 mm | Connection: R3/8 male
KQG2L10-04-FType: Male elbow | Tube O.D.: 10 mm | Connection: R1/2 male
KQG2L12-02-FType: Male elbow | Tube O.D.: 12 mm | Connection: R1/4 male
KQG2L12-03-FType: Male elbow | Tube O.D.: 12 mm | Connection: R3/8 male
KQG2L12-04-FType: Male elbow | Tube O.D.: 12 mm | Connection: R1/2 male
KQG2L16-03-FType: Male elbow | Tube O.D.: 16 mm | Connection: R3/8 male
KQG2L16-04-FType: Male elbow | Tube O.D.: 16 mm | Connection: R1/2 male
KQG2T23-04-FType: Reducing tee | Tube O.D.: 3.2 mm | Connection: Reducing to 4 mm tube
KQG2T04-06-FType: Reducing tee | Tube O.D.: 4 mm | Connection: Reducing to 6 mm tube
KQG2T06-08-FType: Reducing tee | Tube O.D.: 6 mm | Connection: Reducing to 8 mm tube
KQG2T08-10-FType: Reducing tee | Tube O.D.: 8 mm | Connection: Reducing to 10 mm tube
KQG2T10-12-FType: Reducing tee | Tube O.D.: 10 mm | Connection: Reducing to 12 mm tube
KQG2T12-16-FType: Reducing tee | Tube O.D.: 12 mm | Connection: Reducing to 16 mm tube
KQG2U23-00-FType: Union Y | Tube O.D.: 3.2 mm | Connection: Tube to tube
KQG2U04-00-FType: Union Y | Tube O.D.: 4 mm | Connection: Tube to tube
KQG2U06-00-FType: Union Y | Tube O.D.: 6 mm | Connection: Tube to tube
KQG2U08-00-FType: Union Y | Tube O.D.: 8 mm | Connection: Tube to tube
KQG2U10-00-FType: Union Y | Tube O.D.: 10 mm | Connection: Tube to tube
KQG2U12-00-FType: Union Y | Tube O.D.: 12 mm | Connection: Tube to tube
KQG2U16-00-FType: Union Y | Tube O.D.: 16 mm | Connection: Tube to tube
KQG2R23-04-FType: Reducer | Tube O.D.: 3.2 mm | Connection: Plug-in stem for 4 mm fitting
KQG2R04-06-FType: Reducer | Tube O.D.: 4 mm | Connection: Plug-in stem for 6 mm fitting
KQG2R06-08-FType: Reducer | Tube O.D.: 6 mm | Connection: Plug-in stem for 8 mm fitting
KQG2R08-10-FType: Reducer | Tube O.D.: 8 mm | Connection: Plug-in stem for 10 mm fitting
KQG2R10-12-FType: Reducer | Tube O.D.: 10 mm | Connection: Plug-in stem for 12 mm fitting
KQG2R12-16-FType: Reducer | Tube O.D.: 12 mm | Connection: Plug-in stem for 16 mm fitting
KQG2T23-00-FType: Union tee | Tube O.D.: 3.2 mm | Connection: Tube to tube
KQG2T04-00-FType: Union tee | Tube O.D.: 4 mm | Connection: Tube to tube
KQG2T06-00-FType: Union tee | Tube O.D.: 6 mm | Connection: Tube to tube
KQG2T08-00-FType: Union tee | Tube O.D.: 8 mm | Connection: Tube to tube
KQG2T10-00-FType: Union tee | Tube O.D.: 10 mm | Connection: Tube to tube
KQG2T12-00-FType: Union tee | Tube O.D.: 12 mm | Connection: Tube to tube
KQG2T16-00-FType: Union tee | Tube O.D.: 16 mm | Connection: Tube to tube
KQG2E23-00-FType: Bulkhead union | Tube O.D.: 3.2 mm | Connection: Tube to tube
KQG2E04-00-FType: Bulkhead union | Tube O.D.: 4 mm | Connection: Tube to tube
KQG2E06-00-FType: Bulkhead union | Tube O.D.: 6 mm | Connection: Tube to tube
KQG2E08-00-FType: Bulkhead union | Tube O.D.: 8 mm | Connection: Tube to tube
KQG2E10-00-FType: Bulkhead union | Tube O.D.: 10 mm | Connection: Tube to tube
KQG2E12-00-FType: Bulkhead union | Tube O.D.: 12 mm | Connection: Tube to tube
KQG2E16-00-FType: Bulkhead union | Tube O.D.: 16 mm | Connection: Tube to tube
KQG2E23-02-FType: Bulkhead female connector | Tube O.D.: 3.2 mm | Connection: Rc1/4 female
KQG2E04-01-FType: Bulkhead female connector | Tube O.D.: 4 mm | Connection: Rc1/8 female
KQG2E04-02-FType: Bulkhead female connector | Tube O.D.: 4 mm | Connection: Rc1/4 female
KQG2E06-01-FType: Bulkhead female connector | Tube O.D.: 6 mm | Connection: Rc1/8 female
KQG2E06-02-FType: Bulkhead female connector | Tube O.D.: 6 mm | Connection: Rc1/4 female
KQG2E06-03-FType: Bulkhead female connector | Tube O.D.: 6 mm | Connection: Rc3/8 female
KQG2E08-01-FType: Bulkhead female connector | Tube O.D.: 8 mm | Connection: Rc1/8 female
KQG2E08-02-FType: Bulkhead female connector | Tube O.D.: 8 mm | Connection: Rc1/4 female
KQG2E08-03-FType: Bulkhead female connector | Tube O.D.: 8 mm | Connection: Rc3/8 female
KQG2E10-02-FType: Bulkhead female connector | Tube O.D.: 10 mm | Connection: Rc1/4 female
KQG2E10-03-FType: Bulkhead female connector | Tube O.D.: 10 mm | Connection: Rc3/8 female
KQG2E12-03-FType: Bulkhead female connector | Tube O.D.: 12 mm | Connection: Rc3/8 female
KQG2E12-04-FType: Bulkhead female connector | Tube O.D.: 12 mm | Connection: Rc1/2 female
KQG2E16-03-FType: Bulkhead female connector | Tube O.D.: 16 mm | Connection: Rc3/8 female
KQG2E16-04-FType: Bulkhead female connector | Tube O.D.: 16 mm | Connection: Rc1/2 female
KQG2U23-04-FType: Reducing Y | Tube O.D.: 3.2 mm | Connection: Reducing to 4 mm tube
KQG2U04-06-FType: Reducing Y | Tube O.D.: 4 mm | Connection: Reducing to 6 mm tube
KQG2U06-08-FType: Reducing Y | Tube O.D.: 6 mm | Connection: Reducing to 8 mm tube
KQG2U08-10-FType: Reducing Y | Tube O.D.: 8 mm | Connection: Reducing to 10 mm tube
KQG2U10-12-FType: Reducing Y | Tube O.D.: 10 mm | Connection: Reducing to 12 mm tube
KQG2U12-16-FType: Reducing Y | Tube O.D.: 12 mm | Connection: Reducing to 16 mm tube
KQG2H23-04-FType: Reducing straight | Tube O.D.: 3.2 mm | Connection: Reducing to 4 mm tube
KQG2H04-06-FType: Reducing straight | Tube O.D.: 4 mm | Connection: Reducing to 6 mm tube
KQG2H06-08-FType: Reducing straight | Tube O.D.: 6 mm | Connection: Reducing to 8 mm tube
KQG2H08-10-FType: Reducing straight | Tube O.D.: 8 mm | Connection: Reducing to 10 mm tube
KQG2H10-12-FType: Reducing straight | Tube O.D.: 10 mm | Connection: Reducing to 12 mm tube
KQG2H12-16-FType: Reducing straight | Tube O.D.: 12 mm | Connection: Reducing to 16 mm tube
KQG2P-23Type: Plug | Tube O.D.: 3.2 mm | Connection: Plug-in stem
KQG2P-04Type: Plug | Tube O.D.: 4 mm | Connection: Plug-in stem
KQG2P-06Type: Plug | Tube O.D.: 6 mm | Connection: Plug-in stem
KQG2P-08Type: Plug | Tube O.D.: 8 mm | Connection: Plug-in stem
KQG2P-10Type: Plug | Tube O.D.: 10 mm | Connection: Plug-in stem
KQG2P-12Type: Plug | Tube O.D.: 12 mm | Connection: Plug-in stem
KQG2P-16Type: Plug | Tube O.D.: 16 mm | Connection: Plug-in stem
KQG2F23-01-FType: Female connector | Tube O.D.: 3.2 mm | Connection: Rc1/8 female
KQG2F04-01-FType: Female connector | Tube O.D.: 4 mm | Connection: Rc1/8 female
KQG2F04-02-FType: Female connector | Tube O.D.: 4 mm | Connection: Rc1/4 female
KQG2F06-01-FType: Female connector | Tube O.D.: 6 mm | Connection: Rc1/8 female
KQG2F06-02-FType: Female connector | Tube O.D.: 6 mm | Connection: Rc1/4 female
KQG2F06-03-FType: Female connector | Tube O.D.: 6 mm | Connection: Rc3/8 female
KQG2F08-01-FType: Female connector | Tube O.D.: 8 mm | Connection: Rc1/8 female
KQG2F08-02-FType: Female connector | Tube O.D.: 8 mm | Connection: Rc1/4 female
KQG2F08-03-FType: Female connector | Tube O.D.: 8 mm | Connection: Rc3/8 female
KQG2F10-02-FType: Female connector | Tube O.D.: 10 mm | Connection: Rc1/4 female
KQG2F10-03-FType: Female connector | Tube O.D.: 10 mm | Connection: Rc3/8 female
KQG2F12-02-FType: Female connector | Tube O.D.: 12 mm | Connection: Rc1/4 female
KQG2F12-03-FType: Female connector | Tube O.D.: 12 mm | Connection: Rc3/8 female
KQG2F12-04-FType: Female connector | Tube O.D.: 12 mm | Connection: Rc1/2 female
KQG2F16-03-FType: Female connector | Tube O.D.: 16 mm | Connection: Rc3/8 female
KQG2F16-04-FType: Female connector | Tube O.D.: 16 mm | Connection: Rc1/2 female
KQG2W23-M5-FType: Extended male elbow | Tube O.D.: 3.2 mm | Connection: M5x0.8 male
KQG2W23-01-FType: Extended male elbow | Tube O.D.: 3.2 mm | Connection: R1/8 male
KQG2W23-02-FType: Extended male elbow | Tube O.D.: 3.2 mm | Connection: R1/4 male
KQG2W04-M5-FType: Extended male elbow | Tube O.D.: 4 mm | Connection: M5x0.8 male
KQG2W04-01-FType: Extended male elbow | Tube O.D.: 4 mm | Connection: R1/8 male
KQG2W04-02-FType: Extended male elbow | Tube O.D.: 4 mm | Connection: R1/4 male
KQG2W06-M5-FType: Extended male elbow | Tube O.D.: 6 mm | Connection: M5x0.8 male
KQG2W06-01-FType: Extended male elbow | Tube O.D.: 6 mm | Connection: R1/8 male
KQG2W06-02-FType: Extended male elbow | Tube O.D.: 6 mm | Connection: R1/4 male
KQG2W06-03-FType: Extended male elbow | Tube O.D.: 6 mm | Connection: R3/8 male
KQG2W08-01-FType: Extended male elbow | Tube O.D.: 8 mm | Connection: R1/8 male
KQG2W08-02-FType: Extended male elbow | Tube O.D.: 8 mm | Connection: R1/4 male
KQG2W08-03-FType: Extended male elbow | Tube O.D.: 8 mm | Connection: R3/8 male
KQG2W10-02-FType: Extended male elbow | Tube O.D.: 10 mm | Connection: R1/4 male
KQG2W10-03-FType: Extended male elbow | Tube O.D.: 10 mm | Connection: R3/8 male
KQG2W10-04-FType: Extended male elbow | Tube O.D.: 10 mm | Connection: R1/2 male
KQG2W12-02-FType: Extended male elbow | Tube O.D.: 12 mm | Connection: R1/4 male
KQG2W12-03-FType: Extended male elbow | Tube O.D.: 12 mm | Connection: R3/8 male
KQG2W12-04-FType: Extended male elbow | Tube O.D.: 12 mm | Connection: R1/2 male
KQG2W16-03-FType: Extended male elbow | Tube O.D.: 16 mm | Connection: R3/8 male
KQG2W16-04-FType: Extended male elbow | Tube O.D.: 16 mm | Connection: R1/2 male

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
