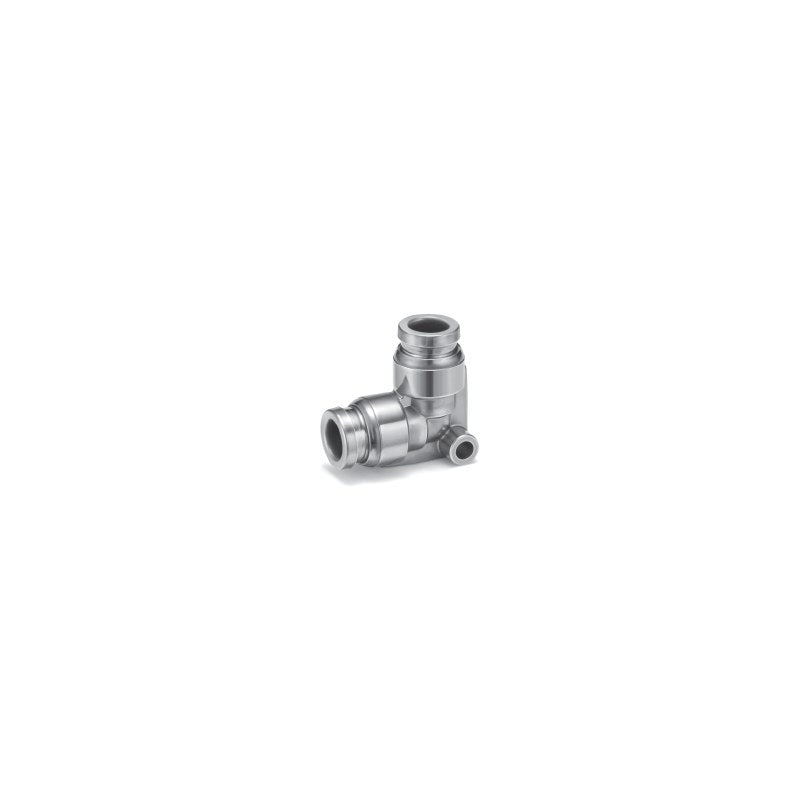

SMC KQG2 SUS316 Stainless One-Touch Fitting (Metric)

SMC KQG2 SUS316 Stainless One-Touch Fitting (Metric)

SMC KQG2 series SUS316 stainless steel one-touch fittings with FKM seals for air, water and steam up to 150 deg C, tube OD 3.2 to 16 mm, M5 / R / Rc threads.

Key features

  • All metal parts SUS316; special FKM seals; grease-free
  • About 30% smaller and 62% lighter than the previous KQG (KQG2L06-01S example)
  • Fluid temperature -5 to 150 deg C; usable with steam
  • Seal materials conform to Korean food sanitation standards for containers and packaging
  • Male connector, elbow, tee, Y, bulkhead, female, reducer and plug types; R threads with sealant
  • Inner sleeves (TJG series) required for FEP / Super PFA tubing at high temperature; panel nuts KQG2xx-P01 as spare

Specifications

Fluid Air, N2, water, steam
Operating pressure range -100 kPa to 1 MPa
Proof pressure 3.0 MPa
Ambient and fluid temperature -5 to 150 deg C (no freezing)
Applicable tubing FEP, PFA, nylon, soft nylon, polyurethane, polyolefin
Material SUS316; seals special FKM
Lubricant Grease-free
Thread seal Sealant (R threads)
Source SMC Korea catalog KQG2 Series (SMCKR_KQG2.pdf), p. 397-405
KQG2H23-M5 Type: Male connector (KQG2H) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KQG2H23-01S Type: Male connector (KQG2H) | Tube OD: 3.2 mm | Connection: R1/8 male
KQG2H23-02S Type: Male connector (KQG2H) | Tube OD: 3.2 mm | Connection: R1/4 male
KQG2H04-M5 Type: Male connector (KQG2H) | Tube OD: 4 mm | Connection: M5x0.8 male
KQG2H04-01S Type: Male connector (KQG2H) | Tube OD: 4 mm | Connection: R1/8 male
KQG2H04-02S Type: Male connector (KQG2H) | Tube OD: 4 mm | Connection: R1/4 male
KQG2H06-M5 Type: Male connector (KQG2H) | Tube OD: 6 mm | Connection: M5x0.8 male
KQG2H06-01S Type: Male connector (KQG2H) | Tube OD: 6 mm | Connection: R1/8 male
KQG2H06-02S Type: Male connector (KQG2H) | Tube OD: 6 mm | Connection: R1/4 male
KQG2H06-03S Type: Male connector (KQG2H) | Tube OD: 6 mm | Connection: R3/8 male
KQG2H08-01S Type: Male connector (KQG2H) | Tube OD: 8 mm | Connection: R1/8 male
KQG2H08-02S Type: Male connector (KQG2H) | Tube OD: 8 mm | Connection: R1/4 male
KQG2H08-03S Type: Male connector (KQG2H) | Tube OD: 8 mm | Connection: R3/8 male
KQG2H10-01S Type: Male connector (KQG2H) | Tube OD: 10 mm | Connection: R1/8 male
KQG2H10-02S Type: Male connector (KQG2H) | Tube OD: 10 mm | Connection: R1/4 male
KQG2H10-03S Type: Male connector (KQG2H) | Tube OD: 10 mm | Connection: R3/8 male
KQG2H10-04S Type: Male connector (KQG2H) | Tube OD: 10 mm | Connection: R1/2 male
KQG2H12-02S Type: Male connector (KQG2H) | Tube OD: 12 mm | Connection: R1/4 male
KQG2H12-03S Type: Male connector (KQG2H) | Tube OD: 12 mm | Connection: R3/8 male
KQG2H12-04S Type: Male connector (KQG2H) | Tube OD: 12 mm | Connection: R1/2 male
KQG2H16-03S Type: Male connector (KQG2H) | Tube OD: 16 mm | Connection: R3/8 male
KQG2H16-04S Type: Male connector (KQG2H) | Tube OD: 16 mm | Connection: R1/2 male
KQG2S23-M5 Type: Hex socket head male connector (KQG2S) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KQG2S04-M5 Type: Hex socket head male connector (KQG2S) | Tube OD: 4 mm | Connection: M5x0.8 male
KQG2S04-01S Type: Hex socket head male connector (KQG2S) | Tube OD: 4 mm | Connection: R1/8 male
KQG2S06-M5 Type: Hex socket head male connector (KQG2S) | Tube OD: 6 mm | Connection: M5x0.8 male
KQG2S06-01S Type: Hex socket head male connector (KQG2S) | Tube OD: 6 mm | Connection: R1/8 male
KQG2S06-02S Type: Hex socket head male connector (KQG2S) | Tube OD: 6 mm | Connection: R1/4 male
KQG2S08-01S Type: Hex socket head male connector (KQG2S) | Tube OD: 8 mm | Connection: R1/8 male
KQG2S08-02S Type: Hex socket head male connector (KQG2S) | Tube OD: 8 mm | Connection: R1/4 male
KQG2S08-03S Type: Hex socket head male connector (KQG2S) | Tube OD: 8 mm | Connection: R3/8 male
KQG2S10-01S Type: Hex socket head male connector (KQG2S) | Tube OD: 10 mm | Connection: R1/8 male
KQG2S10-02S Type: Hex socket head male connector (KQG2S) | Tube OD: 10 mm | Connection: R1/4 male
KQG2S10-03S Type: Hex socket head male connector (KQG2S) | Tube OD: 10 mm | Connection: R3/8 male
KQG2S10-04S Type: Hex socket head male connector (KQG2S) | Tube OD: 10 mm | Connection: R1/2 male
KQG2S12-02S Type: Hex socket head male connector (KQG2S) | Tube OD: 12 mm | Connection: R1/4 male
KQG2S12-03S Type: Hex socket head male connector (KQG2S) | Tube OD: 12 mm | Connection: R3/8 male
KQG2S12-04S Type: Hex socket head male connector (KQG2S) | Tube OD: 12 mm | Connection: R1/2 male
KQG2S16-03S Type: Hex socket head male connector (KQG2S) | Tube OD: 16 mm | Connection: R3/8 male
KQG2S16-04S Type: Hex socket head male connector (KQG2S) | Tube OD: 16 mm | Connection: R1/2 male
KQG2H23-00 Type: Union straight (KQG2H) | Tube OD: 3.2 mm | Connection: Tube to tube
KQG2H04-00 Type: Union straight (KQG2H) | Tube OD: 4 mm | Connection: Tube to tube
KQG2H06-00 Type: Union straight (KQG2H) | Tube OD: 6 mm | Connection: Tube to tube
KQG2H08-00 Type: Union straight (KQG2H) | Tube OD: 8 mm | Connection: Tube to tube
KQG2H10-00 Type: Union straight (KQG2H) | Tube OD: 10 mm | Connection: Tube to tube
KQG2H12-00 Type: Union straight (KQG2H) | Tube OD: 12 mm | Connection: Tube to tube
KQG2H16-00 Type: Union straight (KQG2H) | Tube OD: 16 mm | Connection: Tube to tube
KQG2L23-M5 Type: Male elbow (KQG2L) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KQG2L23-01S Type: Male elbow (KQG2L) | Tube OD: 3.2 mm | Connection: R1/8 male
KQG2L23-02S Type: Male elbow (KQG2L) | Tube OD: 3.2 mm | Connection: R1/4 male
KQG2L04-M5 Type: Male elbow (KQG2L) | Tube OD: 4 mm | Connection: M5x0.8 male
KQG2L04-01S Type: Male elbow (KQG2L) | Tube OD: 4 mm | Connection: R1/8 male
KQG2L04-02S Type: Male elbow (KQG2L) | Tube OD: 4 mm | Connection: R1/4 male
KQG2L06-M5 Type: Male elbow (KQG2L) | Tube OD: 6 mm | Connection: M5x0.8 male
KQG2L06-01S Type: Male elbow (KQG2L) | Tube OD: 6 mm | Connection: R1/8 male
KQG2L06-02S Type: Male elbow (KQG2L) | Tube OD: 6 mm | Connection: R1/4 male
KQG2L06-03S Type: Male elbow (KQG2L) | Tube OD: 6 mm | Connection: R3/8 male
KQG2L08-01S Type: Male elbow (KQG2L) | Tube OD: 8 mm | Connection: R1/8 male
KQG2L08-02S Type: Male elbow (KQG2L) | Tube OD: 8 mm | Connection: R1/4 male
KQG2L08-03S Type: Male elbow (KQG2L) | Tube OD: 8 mm | Connection: R3/8 male
KQG2L10-01S Type: Male elbow (KQG2L) | Tube OD: 10 mm | Connection: R1/8 male
KQG2L10-02S Type: Male elbow (KQG2L) | Tube OD: 10 mm | Connection: R1/4 male
KQG2L10-03S Type: Male elbow (KQG2L) | Tube OD: 10 mm | Connection: R3/8 male
KQG2L10-04S Type: Male elbow (KQG2L) | Tube OD: 10 mm | Connection: R1/2 male
KQG2L12-02S Type: Male elbow (KQG2L) | Tube OD: 12 mm | Connection: R1/4 male
KQG2L12-03S Type: Male elbow (KQG2L) | Tube OD: 12 mm | Connection: R3/8 male
KQG2L12-04S Type: Male elbow (KQG2L) | Tube OD: 12 mm | Connection: R1/2 male
KQG2L16-03S Type: Male elbow (KQG2L) | Tube OD: 16 mm | Connection: R3/8 male
KQG2L16-04S Type: Male elbow (KQG2L) | Tube OD: 16 mm | Connection: R1/2 male
KQG2T23-M5 Type: Branch tee (KQG2T) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KQG2T23-01S Type: Branch tee (KQG2T) | Tube OD: 3.2 mm | Connection: R1/8 male
KQG2T23-02S Type: Branch tee (KQG2T) | Tube OD: 3.2 mm | Connection: R1/4 male
KQG2T04-M5 Type: Branch tee (KQG2T) | Tube OD: 4 mm | Connection: M5x0.8 male
KQG2T04-01S Type: Branch tee (KQG2T) | Tube OD: 4 mm | Connection: R1/8 male
KQG2T04-02S Type: Branch tee (KQG2T) | Tube OD: 4 mm | Connection: R1/4 male
KQG2T06-M5 Type: Branch tee (KQG2T) | Tube OD: 6 mm | Connection: M5x0.8 male
KQG2T06-01S Type: Branch tee (KQG2T) | Tube OD: 6 mm | Connection: R1/8 male
KQG2T06-02S Type: Branch tee (KQG2T) | Tube OD: 6 mm | Connection: R1/4 male
KQG2T06-03S Type: Branch tee (KQG2T) | Tube OD: 6 mm | Connection: R3/8 male
KQG2T08-01S Type: Branch tee (KQG2T) | Tube OD: 8 mm | Connection: R1/8 male
KQG2T08-02S Type: Branch tee (KQG2T) | Tube OD: 8 mm | Connection: R1/4 male
KQG2T08-03S Type: Branch tee (KQG2T) | Tube OD: 8 mm | Connection: R3/8 male
KQG2T10-01S Type: Branch tee (KQG2T) | Tube OD: 10 mm | Connection: R1/8 male
KQG2T10-02S Type: Branch tee (KQG2T) | Tube OD: 10 mm | Connection: R1/4 male
KQG2T10-03S Type: Branch tee (KQG2T) | Tube OD: 10 mm | Connection: R3/8 male
KQG2T10-04S Type: Branch tee (KQG2T) | Tube OD: 10 mm | Connection: R1/2 male
KQG2T12-02S Type: Branch tee (KQG2T) | Tube OD: 12 mm | Connection: R1/4 male
KQG2T12-03S Type: Branch tee (KQG2T) | Tube OD: 12 mm | Connection: R3/8 male
KQG2T12-04S Type: Branch tee (KQG2T) | Tube OD: 12 mm | Connection: R1/2 male
KQG2T16-03S Type: Branch tee (KQG2T) | Tube OD: 16 mm | Connection: R3/8 male
KQG2T16-04S Type: Branch tee (KQG2T) | Tube OD: 16 mm | Connection: R1/2 male
KQG2L23-00 Type: Union elbow (KQG2L) | Tube OD: 3.2 mm | Connection: Tube to tube
KQG2L04-00 Type: Union elbow (KQG2L) | Tube OD: 4 mm | Connection: Tube to tube
KQG2L06-00 Type: Union elbow (KQG2L) | Tube OD: 6 mm | Connection: Tube to tube
KQG2L08-00 Type: Union elbow (KQG2L) | Tube OD: 8 mm | Connection: Tube to tube
KQG2L10-00 Type: Union elbow (KQG2L) | Tube OD: 10 mm | Connection: Tube to tube
KQG2L12-00 Type: Union elbow (KQG2L) | Tube OD: 12 mm | Connection: Tube to tube
KQG2L16-00 Type: Union elbow (KQG2L) | Tube OD: 16 mm | Connection: Tube to tube
KQG2E23-00 Type: Bulkhead union (KQG2E) | Tube OD: 3.2 mm | Connection: Tube to tube
KQG2E04-00 Type: Bulkhead union (KQG2E) | Tube OD: 4 mm | Connection: Tube to tube
KQG2E06-00 Type: Bulkhead union (KQG2E) | Tube OD: 6 mm | Connection: Tube to tube
KQG2E08-00 Type: Bulkhead union (KQG2E) | Tube OD: 8 mm | Connection: Tube to tube
KQG2E10-00 Type: Bulkhead union (KQG2E) | Tube OD: 10 mm | Connection: Tube to tube
KQG2E12-00 Type: Bulkhead union (KQG2E) | Tube OD: 12 mm | Connection: Tube to tube
KQG2E16-00 Type: Bulkhead union (KQG2E) | Tube OD: 16 mm | Connection: Tube to tube
KQG2T23-00 Type: Union tee (KQG2T) | Tube OD: 3.2 mm | Connection: Tube to tube
KQG2T04-00 Type: Union tee (KQG2T) | Tube OD: 4 mm | Connection: Tube to tube
KQG2T06-00 Type: Union tee (KQG2T) | Tube OD: 6 mm | Connection: Tube to tube
KQG2T08-00 Type: Union tee (KQG2T) | Tube OD: 8 mm | Connection: Tube to tube
KQG2T10-00 Type: Union tee (KQG2T) | Tube OD: 10 mm | Connection: Tube to tube
KQG2T12-00 Type: Union tee (KQG2T) | Tube OD: 12 mm | Connection: Tube to tube
KQG2T16-00 Type: Union tee (KQG2T) | Tube OD: 16 mm | Connection: Tube to tube
KQG2R23-04 Type: Plug-in reducer (KQG2R) | Tube OD: 3.2 mm | Connection: Fitting size 4 mm (plug-in)
KQG2R04-06 Type: Plug-in reducer (KQG2R) | Tube OD: 4 mm | Connection: Fitting size 6 mm (plug-in)
KQG2R06-08 Type: Plug-in reducer (KQG2R) | Tube OD: 6 mm | Connection: Fitting size 8 mm (plug-in)
KQG2R08-10 Type: Plug-in reducer (KQG2R) | Tube OD: 8 mm | Connection: Fitting size 10 mm (plug-in)
KQG2R10-12 Type: Plug-in reducer (KQG2R) | Tube OD: 10 mm | Connection: Fitting size 12 mm (plug-in)
KQG2R12-16 Type: Plug-in reducer (KQG2R) | Tube OD: 12 mm | Connection: Fitting size 16 mm (plug-in)
KQG2U23-00 Type: Union Y (KQG2U) | Tube OD: 3.2 mm | Connection: Tube to tube
KQG2U04-00 Type: Union Y (KQG2U) | Tube OD: 4 mm | Connection: Tube to tube
KQG2U06-00 Type: Union Y (KQG2U) | Tube OD: 6 mm | Connection: Tube to tube
KQG2U08-00 Type: Union Y (KQG2U) | Tube OD: 8 mm | Connection: Tube to tube
KQG2U10-00 Type: Union Y (KQG2U) | Tube OD: 10 mm | Connection: Tube to tube
KQG2U12-00 Type: Union Y (KQG2U) | Tube OD: 12 mm | Connection: Tube to tube
KQG2U16-00 Type: Union Y (KQG2U) | Tube OD: 16 mm | Connection: Tube to tube
KQG2T23-04 Type: Union tee (KQG2T) | Tube OD: 3.2 mm | Connection: Second tube OD 4 mm
KQG2T04-06 Type: Union tee (KQG2T) | Tube OD: 4 mm | Connection: Second tube OD 6 mm
KQG2T06-08 Type: Union tee (KQG2T) | Tube OD: 6 mm | Connection: Second tube OD 8 mm
KQG2T08-10 Type: Union tee (KQG2T) | Tube OD: 8 mm | Connection: Second tube OD 10 mm
KQG2T10-12 Type: Union tee (KQG2T) | Tube OD: 10 mm | Connection: Second tube OD 12 mm
KQG2T12-16 Type: Union tee (KQG2T) | Tube OD: 12 mm | Connection: Second tube OD 16 mm
KQG2H23-04 Type: Union straight (KQG2H) | Tube OD: 3.2 mm | Connection: Second tube OD 4 mm
KQG2H04-06 Type: Union straight (KQG2H) | Tube OD: 4 mm | Connection: Second tube OD 6 mm
KQG2H06-08 Type: Union straight (KQG2H) | Tube OD: 6 mm | Connection: Second tube OD 8 mm
KQG2H08-10 Type: Union straight (KQG2H) | Tube OD: 8 mm | Connection: Second tube OD 10 mm
KQG2H10-12 Type: Union straight (KQG2H) | Tube OD: 10 mm | Connection: Second tube OD 12 mm
KQG2H12-16 Type: Union straight (KQG2H) | Tube OD: 12 mm | Connection: Second tube OD 16 mm
KQG2U23-04 Type: Union Y (KQG2U) | Tube OD: 3.2 mm | Connection: Second tube OD 4 mm
KQG2U04-06 Type: Union Y (KQG2U) | Tube OD: 4 mm | Connection: Second tube OD 6 mm
KQG2U06-08 Type: Union Y (KQG2U) | Tube OD: 6 mm | Connection: Second tube OD 8 mm
KQG2U08-10 Type: Union Y (KQG2U) | Tube OD: 8 mm | Connection: Second tube OD 10 mm
KQG2U10-12 Type: Union Y (KQG2U) | Tube OD: 10 mm | Connection: Second tube OD 12 mm
KQG2U12-16 Type: Union Y (KQG2U) | Tube OD: 12 mm | Connection: Second tube OD 16 mm
KQG2E23-02 Type: Bulkhead female connector (KQG2E) | Tube OD: 3.2 mm | Connection: Rc1/4 female
KQG2E04-01 Type: Bulkhead female connector (KQG2E) | Tube OD: 4 mm | Connection: Rc1/8 female
KQG2E04-02 Type: Bulkhead female connector (KQG2E) | Tube OD: 4 mm | Connection: Rc1/4 female
KQG2E06-01 Type: Bulkhead female connector (KQG2E) | Tube OD: 6 mm | Connection: Rc1/8 female
KQG2E06-02 Type: Bulkhead female connector (KQG2E) | Tube OD: 6 mm | Connection: Rc1/4 female
KQG2E06-03 Type: Bulkhead female connector (KQG2E) | Tube OD: 6 mm | Connection: Rc3/8 female
KQG2E08-01 Type: Bulkhead female connector (KQG2E) | Tube OD: 8 mm | Connection: Rc1/8 female
KQG2E08-02 Type: Bulkhead female connector (KQG2E) | Tube OD: 8 mm | Connection: Rc1/4 female
KQG2E08-03 Type: Bulkhead female connector (KQG2E) | Tube OD: 8 mm | Connection: Rc3/8 female
KQG2E10-02 Type: Bulkhead female connector (KQG2E) | Tube OD: 10 mm | Connection: Rc1/4 female
KQG2E10-03 Type: Bulkhead female connector (KQG2E) | Tube OD: 10 mm | Connection: Rc3/8 female
KQG2E12-03 Type: Bulkhead female connector (KQG2E) | Tube OD: 12 mm | Connection: Rc3/8 female
KQG2E12-04 Type: Bulkhead female connector (KQG2E) | Tube OD: 12 mm | Connection: Rc1/2 female
KQG2E16-03 Type: Bulkhead female connector (KQG2E) | Tube OD: 16 mm | Connection: Rc3/8 female
KQG2E16-04 Type: Bulkhead female connector (KQG2E) | Tube OD: 16 mm | Connection: Rc1/2 female
KQG2W23-M5 Type: Extended male elbow (KQG2W) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KQG2W23-01S Type: Extended male elbow (KQG2W) | Tube OD: 3.2 mm | Connection: R1/8 male
KQG2W23-02S Type: Extended male elbow (KQG2W) | Tube OD: 3.2 mm | Connection: R1/4 male
KQG2W04-M5 Type: Extended male elbow (KQG2W) | Tube OD: 4 mm | Connection: M5x0.8 male
KQG2W04-01S Type: Extended male elbow (KQG2W) | Tube OD: 4 mm | Connection: R1/8 male
KQG2W04-02S Type: Extended male elbow (KQG2W) | Tube OD: 4 mm | Connection: R1/4 male
KQG2W06-M5 Type: Extended male elbow (KQG2W) | Tube OD: 6 mm | Connection: M5x0.8 male
KQG2W06-01S Type: Extended male elbow (KQG2W) | Tube OD: 6 mm | Connection: R1/8 male
KQG2W06-02S Type: Extended male elbow (KQG2W) | Tube OD: 6 mm | Connection: R1/4 male
KQG2W06-03S Type: Extended male elbow (KQG2W) | Tube OD: 6 mm | Connection: R3/8 male
KQG2W08-01S Type: Extended male elbow (KQG2W) | Tube OD: 8 mm | Connection: R1/8 male
KQG2W08-02S Type: Extended male elbow (KQG2W) | Tube OD: 8 mm | Connection: R1/4 male
KQG2W08-03S Type: Extended male elbow (KQG2W) | Tube OD: 8 mm | Connection: R3/8 male
KQG2W10-02S Type: Extended male elbow (KQG2W) | Tube OD: 10 mm | Connection: R1/4 male
KQG2W10-03S Type: Extended male elbow (KQG2W) | Tube OD: 10 mm | Connection: R3/8 male
KQG2W10-04S Type: Extended male elbow (KQG2W) | Tube OD: 10 mm | Connection: R1/2 male
KQG2W12-02S Type: Extended male elbow (KQG2W) | Tube OD: 12 mm | Connection: R1/4 male
KQG2W12-03S Type: Extended male elbow (KQG2W) | Tube OD: 12 mm | Connection: R3/8 male
KQG2W12-04S Type: Extended male elbow (KQG2W) | Tube OD: 12 mm | Connection: R1/2 male
KQG2W16-03S Type: Extended male elbow (KQG2W) | Tube OD: 16 mm | Connection: R3/8 male
KQG2W16-04S Type: Extended male elbow (KQG2W) | Tube OD: 16 mm | Connection: R1/2 male
KQG2F23-01 Type: Female connector (KQG2F) | Tube OD: 3.2 mm | Connection: Rc1/8 female
KQG2F04-01 Type: Female connector (KQG2F) | Tube OD: 4 mm | Connection: Rc1/8 female
KQG2F04-02 Type: Female connector (KQG2F) | Tube OD: 4 mm | Connection: Rc1/4 female
KQG2F06-01 Type: Female connector (KQG2F) | Tube OD: 6 mm | Connection: Rc1/8 female
KQG2F06-02 Type: Female connector (KQG2F) | Tube OD: 6 mm | Connection: Rc1/4 female
KQG2F06-03 Type: Female connector (KQG2F) | Tube OD: 6 mm | Connection: Rc3/8 female
KQG2F08-01 Type: Female connector (KQG2F) | Tube OD: 8 mm | Connection: Rc1/8 female
KQG2F08-02 Type: Female connector (KQG2F) | Tube OD: 8 mm | Connection: Rc1/4 female
KQG2F08-03 Type: Female connector (KQG2F) | Tube OD: 8 mm | Connection: Rc3/8 female
KQG2F10-02 Type: Female connector (KQG2F) | Tube OD: 10 mm | Connection: Rc1/4 female
KQG2F10-03 Type: Female connector (KQG2F) | Tube OD: 10 mm | Connection: Rc3/8 female
KQG2F12-02 Type: Female connector (KQG2F) | Tube OD: 12 mm | Connection: Rc1/4 female
KQG2F12-03 Type: Female connector (KQG2F) | Tube OD: 12 mm | Connection: Rc3/8 female
KQG2F12-04 Type: Female connector (KQG2F) | Tube OD: 12 mm | Connection: Rc1/2 female
KQG2F16-03 Type: Female connector (KQG2F) | Tube OD: 16 mm | Connection: Rc3/8 female
KQG2F16-04 Type: Female connector (KQG2F) | Tube OD: 16 mm | Connection: Rc1/2 female
FittingsSMC
195 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC KQG2 SUS316 Stainless One-Touch Fitting (Metric)

Brand SMC·Fittings

Available part numbers (195)

KQG2H23-M5, KQG2H23-01S, KQG2H23-02S, KQG2H04-M5, KQG2H04-01S, KQG2H04-02S, KQG2H06-M5, KQG2H06-01S, KQG2H06-02S, KQG2H06-03S + 185 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KQG2H23-M5Type: Male connector (KQG2H) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KQG2H23-01SType: Male connector (KQG2H) | Tube OD: 3.2 mm | Connection: R1/8 male
KQG2H23-02SType: Male connector (KQG2H) | Tube OD: 3.2 mm | Connection: R1/4 male
KQG2H04-M5Type: Male connector (KQG2H) | Tube OD: 4 mm | Connection: M5x0.8 male
KQG2H04-01SType: Male connector (KQG2H) | Tube OD: 4 mm | Connection: R1/8 male
KQG2H04-02SType: Male connector (KQG2H) | Tube OD: 4 mm | Connection: R1/4 male
KQG2H06-M5Type: Male connector (KQG2H) | Tube OD: 6 mm | Connection: M5x0.8 male
KQG2H06-01SType: Male connector (KQG2H) | Tube OD: 6 mm | Connection: R1/8 male
KQG2H06-02SType: Male connector (KQG2H) | Tube OD: 6 mm | Connection: R1/4 male
KQG2H06-03SType: Male connector (KQG2H) | Tube OD: 6 mm | Connection: R3/8 male
KQG2H08-01SType: Male connector (KQG2H) | Tube OD: 8 mm | Connection: R1/8 male
KQG2H08-02SType: Male connector (KQG2H) | Tube OD: 8 mm | Connection: R1/4 male
KQG2H08-03SType: Male connector (KQG2H) | Tube OD: 8 mm | Connection: R3/8 male
KQG2H10-01SType: Male connector (KQG2H) | Tube OD: 10 mm | Connection: R1/8 male
KQG2H10-02SType: Male connector (KQG2H) | Tube OD: 10 mm | Connection: R1/4 male
KQG2H10-03SType: Male connector (KQG2H) | Tube OD: 10 mm | Connection: R3/8 male
KQG2H10-04SType: Male connector (KQG2H) | Tube OD: 10 mm | Connection: R1/2 male
KQG2H12-02SType: Male connector (KQG2H) | Tube OD: 12 mm | Connection: R1/4 male
KQG2H12-03SType: Male connector (KQG2H) | Tube OD: 12 mm | Connection: R3/8 male
KQG2H12-04SType: Male connector (KQG2H) | Tube OD: 12 mm | Connection: R1/2 male
KQG2H16-03SType: Male connector (KQG2H) | Tube OD: 16 mm | Connection: R3/8 male
KQG2H16-04SType: Male connector (KQG2H) | Tube OD: 16 mm | Connection: R1/2 male
KQG2S23-M5Type: Hex socket head male connector (KQG2S) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KQG2S04-M5Type: Hex socket head male connector (KQG2S) | Tube OD: 4 mm | Connection: M5x0.8 male
KQG2S04-01SType: Hex socket head male connector (KQG2S) | Tube OD: 4 mm | Connection: R1/8 male
KQG2S06-M5Type: Hex socket head male connector (KQG2S) | Tube OD: 6 mm | Connection: M5x0.8 male
KQG2S06-01SType: Hex socket head male connector (KQG2S) | Tube OD: 6 mm | Connection: R1/8 male
KQG2S06-02SType: Hex socket head male connector (KQG2S) | Tube OD: 6 mm | Connection: R1/4 male
KQG2S08-01SType: Hex socket head male connector (KQG2S) | Tube OD: 8 mm | Connection: R1/8 male
KQG2S08-02SType: Hex socket head male connector (KQG2S) | Tube OD: 8 mm | Connection: R1/4 male
KQG2S08-03SType: Hex socket head male connector (KQG2S) | Tube OD: 8 mm | Connection: R3/8 male
KQG2S10-01SType: Hex socket head male connector (KQG2S) | Tube OD: 10 mm | Connection: R1/8 male
KQG2S10-02SType: Hex socket head male connector (KQG2S) | Tube OD: 10 mm | Connection: R1/4 male
KQG2S10-03SType: Hex socket head male connector (KQG2S) | Tube OD: 10 mm | Connection: R3/8 male
KQG2S10-04SType: Hex socket head male connector (KQG2S) | Tube OD: 10 mm | Connection: R1/2 male
KQG2S12-02SType: Hex socket head male connector (KQG2S) | Tube OD: 12 mm | Connection: R1/4 male
KQG2S12-03SType: Hex socket head male connector (KQG2S) | Tube OD: 12 mm | Connection: R3/8 male
KQG2S12-04SType: Hex socket head male connector (KQG2S) | Tube OD: 12 mm | Connection: R1/2 male
KQG2S16-03SType: Hex socket head male connector (KQG2S) | Tube OD: 16 mm | Connection: R3/8 male
KQG2S16-04SType: Hex socket head male connector (KQG2S) | Tube OD: 16 mm | Connection: R1/2 male
KQG2H23-00Type: Union straight (KQG2H) | Tube OD: 3.2 mm | Connection: Tube to tube
KQG2H04-00Type: Union straight (KQG2H) | Tube OD: 4 mm | Connection: Tube to tube
KQG2H06-00Type: Union straight (KQG2H) | Tube OD: 6 mm | Connection: Tube to tube
KQG2H08-00Type: Union straight (KQG2H) | Tube OD: 8 mm | Connection: Tube to tube
KQG2H10-00Type: Union straight (KQG2H) | Tube OD: 10 mm | Connection: Tube to tube
KQG2H12-00Type: Union straight (KQG2H) | Tube OD: 12 mm | Connection: Tube to tube
KQG2H16-00Type: Union straight (KQG2H) | Tube OD: 16 mm | Connection: Tube to tube
KQG2L23-M5Type: Male elbow (KQG2L) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KQG2L23-01SType: Male elbow (KQG2L) | Tube OD: 3.2 mm | Connection: R1/8 male
KQG2L23-02SType: Male elbow (KQG2L) | Tube OD: 3.2 mm | Connection: R1/4 male
KQG2L04-M5Type: Male elbow (KQG2L) | Tube OD: 4 mm | Connection: M5x0.8 male
KQG2L04-01SType: Male elbow (KQG2L) | Tube OD: 4 mm | Connection: R1/8 male
KQG2L04-02SType: Male elbow (KQG2L) | Tube OD: 4 mm | Connection: R1/4 male
KQG2L06-M5Type: Male elbow (KQG2L) | Tube OD: 6 mm | Connection: M5x0.8 male
KQG2L06-01SType: Male elbow (KQG2L) | Tube OD: 6 mm | Connection: R1/8 male
KQG2L06-02SType: Male elbow (KQG2L) | Tube OD: 6 mm | Connection: R1/4 male
KQG2L06-03SType: Male elbow (KQG2L) | Tube OD: 6 mm | Connection: R3/8 male
KQG2L08-01SType: Male elbow (KQG2L) | Tube OD: 8 mm | Connection: R1/8 male
KQG2L08-02SType: Male elbow (KQG2L) | Tube OD: 8 mm | Connection: R1/4 male
KQG2L08-03SType: Male elbow (KQG2L) | Tube OD: 8 mm | Connection: R3/8 male
KQG2L10-01SType: Male elbow (KQG2L) | Tube OD: 10 mm | Connection: R1/8 male
KQG2L10-02SType: Male elbow (KQG2L) | Tube OD: 10 mm | Connection: R1/4 male
KQG2L10-03SType: Male elbow (KQG2L) | Tube OD: 10 mm | Connection: R3/8 male
KQG2L10-04SType: Male elbow (KQG2L) | Tube OD: 10 mm | Connection: R1/2 male
KQG2L12-02SType: Male elbow (KQG2L) | Tube OD: 12 mm | Connection: R1/4 male
KQG2L12-03SType: Male elbow (KQG2L) | Tube OD: 12 mm | Connection: R3/8 male
KQG2L12-04SType: Male elbow (KQG2L) | Tube OD: 12 mm | Connection: R1/2 male
KQG2L16-03SType: Male elbow (KQG2L) | Tube OD: 16 mm | Connection: R3/8 male
KQG2L16-04SType: Male elbow (KQG2L) | Tube OD: 16 mm | Connection: R1/2 male
KQG2T23-M5Type: Branch tee (KQG2T) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KQG2T23-01SType: Branch tee (KQG2T) | Tube OD: 3.2 mm | Connection: R1/8 male
KQG2T23-02SType: Branch tee (KQG2T) | Tube OD: 3.2 mm | Connection: R1/4 male
KQG2T04-M5Type: Branch tee (KQG2T) | Tube OD: 4 mm | Connection: M5x0.8 male
KQG2T04-01SType: Branch tee (KQG2T) | Tube OD: 4 mm | Connection: R1/8 male
KQG2T04-02SType: Branch tee (KQG2T) | Tube OD: 4 mm | Connection: R1/4 male
KQG2T06-M5Type: Branch tee (KQG2T) | Tube OD: 6 mm | Connection: M5x0.8 male
KQG2T06-01SType: Branch tee (KQG2T) | Tube OD: 6 mm | Connection: R1/8 male
KQG2T06-02SType: Branch tee (KQG2T) | Tube OD: 6 mm | Connection: R1/4 male
KQG2T06-03SType: Branch tee (KQG2T) | Tube OD: 6 mm | Connection: R3/8 male
KQG2T08-01SType: Branch tee (KQG2T) | Tube OD: 8 mm | Connection: R1/8 male
KQG2T08-02SType: Branch tee (KQG2T) | Tube OD: 8 mm | Connection: R1/4 male
KQG2T08-03SType: Branch tee (KQG2T) | Tube OD: 8 mm | Connection: R3/8 male
KQG2T10-01SType: Branch tee (KQG2T) | Tube OD: 10 mm | Connection: R1/8 male
KQG2T10-02SType: Branch tee (KQG2T) | Tube OD: 10 mm | Connection: R1/4 male
KQG2T10-03SType: Branch tee (KQG2T) | Tube OD: 10 mm | Connection: R3/8 male
KQG2T10-04SType: Branch tee (KQG2T) | Tube OD: 10 mm | Connection: R1/2 male
KQG2T12-02SType: Branch tee (KQG2T) | Tube OD: 12 mm | Connection: R1/4 male
KQG2T12-03SType: Branch tee (KQG2T) | Tube OD: 12 mm | Connection: R3/8 male
KQG2T12-04SType: Branch tee (KQG2T) | Tube OD: 12 mm | Connection: R1/2 male
KQG2T16-03SType: Branch tee (KQG2T) | Tube OD: 16 mm | Connection: R3/8 male
KQG2T16-04SType: Branch tee (KQG2T) | Tube OD: 16 mm | Connection: R1/2 male
KQG2L23-00Type: Union elbow (KQG2L) | Tube OD: 3.2 mm | Connection: Tube to tube
KQG2L04-00Type: Union elbow (KQG2L) | Tube OD: 4 mm | Connection: Tube to tube
KQG2L06-00Type: Union elbow (KQG2L) | Tube OD: 6 mm | Connection: Tube to tube
KQG2L08-00Type: Union elbow (KQG2L) | Tube OD: 8 mm | Connection: Tube to tube
KQG2L10-00Type: Union elbow (KQG2L) | Tube OD: 10 mm | Connection: Tube to tube
KQG2L12-00Type: Union elbow (KQG2L) | Tube OD: 12 mm | Connection: Tube to tube
KQG2L16-00Type: Union elbow (KQG2L) | Tube OD: 16 mm | Connection: Tube to tube
KQG2E23-00Type: Bulkhead union (KQG2E) | Tube OD: 3.2 mm | Connection: Tube to tube
KQG2E04-00Type: Bulkhead union (KQG2E) | Tube OD: 4 mm | Connection: Tube to tube
KQG2E06-00Type: Bulkhead union (KQG2E) | Tube OD: 6 mm | Connection: Tube to tube
KQG2E08-00Type: Bulkhead union (KQG2E) | Tube OD: 8 mm | Connection: Tube to tube
KQG2E10-00Type: Bulkhead union (KQG2E) | Tube OD: 10 mm | Connection: Tube to tube
KQG2E12-00Type: Bulkhead union (KQG2E) | Tube OD: 12 mm | Connection: Tube to tube
KQG2E16-00Type: Bulkhead union (KQG2E) | Tube OD: 16 mm | Connection: Tube to tube
KQG2T23-00Type: Union tee (KQG2T) | Tube OD: 3.2 mm | Connection: Tube to tube
KQG2T04-00Type: Union tee (KQG2T) | Tube OD: 4 mm | Connection: Tube to tube
KQG2T06-00Type: Union tee (KQG2T) | Tube OD: 6 mm | Connection: Tube to tube
KQG2T08-00Type: Union tee (KQG2T) | Tube OD: 8 mm | Connection: Tube to tube
KQG2T10-00Type: Union tee (KQG2T) | Tube OD: 10 mm | Connection: Tube to tube
KQG2T12-00Type: Union tee (KQG2T) | Tube OD: 12 mm | Connection: Tube to tube
KQG2T16-00Type: Union tee (KQG2T) | Tube OD: 16 mm | Connection: Tube to tube
KQG2R23-04Type: Plug-in reducer (KQG2R) | Tube OD: 3.2 mm | Connection: Fitting size 4 mm (plug-in)
KQG2R04-06Type: Plug-in reducer (KQG2R) | Tube OD: 4 mm | Connection: Fitting size 6 mm (plug-in)
KQG2R06-08Type: Plug-in reducer (KQG2R) | Tube OD: 6 mm | Connection: Fitting size 8 mm (plug-in)
KQG2R08-10Type: Plug-in reducer (KQG2R) | Tube OD: 8 mm | Connection: Fitting size 10 mm (plug-in)
KQG2R10-12Type: Plug-in reducer (KQG2R) | Tube OD: 10 mm | Connection: Fitting size 12 mm (plug-in)
KQG2R12-16Type: Plug-in reducer (KQG2R) | Tube OD: 12 mm | Connection: Fitting size 16 mm (plug-in)
KQG2U23-00Type: Union Y (KQG2U) | Tube OD: 3.2 mm | Connection: Tube to tube
KQG2U04-00Type: Union Y (KQG2U) | Tube OD: 4 mm | Connection: Tube to tube
KQG2U06-00Type: Union Y (KQG2U) | Tube OD: 6 mm | Connection: Tube to tube
KQG2U08-00Type: Union Y (KQG2U) | Tube OD: 8 mm | Connection: Tube to tube
KQG2U10-00Type: Union Y (KQG2U) | Tube OD: 10 mm | Connection: Tube to tube
KQG2U12-00Type: Union Y (KQG2U) | Tube OD: 12 mm | Connection: Tube to tube
KQG2U16-00Type: Union Y (KQG2U) | Tube OD: 16 mm | Connection: Tube to tube
KQG2T23-04Type: Union tee (KQG2T) | Tube OD: 3.2 mm | Connection: Second tube OD 4 mm
KQG2T04-06Type: Union tee (KQG2T) | Tube OD: 4 mm | Connection: Second tube OD 6 mm
KQG2T06-08Type: Union tee (KQG2T) | Tube OD: 6 mm | Connection: Second tube OD 8 mm
KQG2T08-10Type: Union tee (KQG2T) | Tube OD: 8 mm | Connection: Second tube OD 10 mm
KQG2T10-12Type: Union tee (KQG2T) | Tube OD: 10 mm | Connection: Second tube OD 12 mm
KQG2T12-16Type: Union tee (KQG2T) | Tube OD: 12 mm | Connection: Second tube OD 16 mm
KQG2H23-04Type: Union straight (KQG2H) | Tube OD: 3.2 mm | Connection: Second tube OD 4 mm
KQG2H04-06Type: Union straight (KQG2H) | Tube OD: 4 mm | Connection: Second tube OD 6 mm
KQG2H06-08Type: Union straight (KQG2H) | Tube OD: 6 mm | Connection: Second tube OD 8 mm
KQG2H08-10Type: Union straight (KQG2H) | Tube OD: 8 mm | Connection: Second tube OD 10 mm
KQG2H10-12Type: Union straight (KQG2H) | Tube OD: 10 mm | Connection: Second tube OD 12 mm
KQG2H12-16Type: Union straight (KQG2H) | Tube OD: 12 mm | Connection: Second tube OD 16 mm
KQG2U23-04Type: Union Y (KQG2U) | Tube OD: 3.2 mm | Connection: Second tube OD 4 mm
KQG2U04-06Type: Union Y (KQG2U) | Tube OD: 4 mm | Connection: Second tube OD 6 mm
KQG2U06-08Type: Union Y (KQG2U) | Tube OD: 6 mm | Connection: Second tube OD 8 mm
KQG2U08-10Type: Union Y (KQG2U) | Tube OD: 8 mm | Connection: Second tube OD 10 mm
KQG2U10-12Type: Union Y (KQG2U) | Tube OD: 10 mm | Connection: Second tube OD 12 mm
KQG2U12-16Type: Union Y (KQG2U) | Tube OD: 12 mm | Connection: Second tube OD 16 mm
KQG2E23-02Type: Bulkhead female connector (KQG2E) | Tube OD: 3.2 mm | Connection: Rc1/4 female
KQG2E04-01Type: Bulkhead female connector (KQG2E) | Tube OD: 4 mm | Connection: Rc1/8 female
KQG2E04-02Type: Bulkhead female connector (KQG2E) | Tube OD: 4 mm | Connection: Rc1/4 female
KQG2E06-01Type: Bulkhead female connector (KQG2E) | Tube OD: 6 mm | Connection: Rc1/8 female
KQG2E06-02Type: Bulkhead female connector (KQG2E) | Tube OD: 6 mm | Connection: Rc1/4 female
KQG2E06-03Type: Bulkhead female connector (KQG2E) | Tube OD: 6 mm | Connection: Rc3/8 female
KQG2E08-01Type: Bulkhead female connector (KQG2E) | Tube OD: 8 mm | Connection: Rc1/8 female
KQG2E08-02Type: Bulkhead female connector (KQG2E) | Tube OD: 8 mm | Connection: Rc1/4 female
KQG2E08-03Type: Bulkhead female connector (KQG2E) | Tube OD: 8 mm | Connection: Rc3/8 female
KQG2E10-02Type: Bulkhead female connector (KQG2E) | Tube OD: 10 mm | Connection: Rc1/4 female
KQG2E10-03Type: Bulkhead female connector (KQG2E) | Tube OD: 10 mm | Connection: Rc3/8 female
KQG2E12-03Type: Bulkhead female connector (KQG2E) | Tube OD: 12 mm | Connection: Rc3/8 female
KQG2E12-04Type: Bulkhead female connector (KQG2E) | Tube OD: 12 mm | Connection: Rc1/2 female
KQG2E16-03Type: Bulkhead female connector (KQG2E) | Tube OD: 16 mm | Connection: Rc3/8 female
KQG2E16-04Type: Bulkhead female connector (KQG2E) | Tube OD: 16 mm | Connection: Rc1/2 female
KQG2W23-M5Type: Extended male elbow (KQG2W) | Tube OD: 3.2 mm | Connection: M5x0.8 male
KQG2W23-01SType: Extended male elbow (KQG2W) | Tube OD: 3.2 mm | Connection: R1/8 male
KQG2W23-02SType: Extended male elbow (KQG2W) | Tube OD: 3.2 mm | Connection: R1/4 male
KQG2W04-M5Type: Extended male elbow (KQG2W) | Tube OD: 4 mm | Connection: M5x0.8 male
KQG2W04-01SType: Extended male elbow (KQG2W) | Tube OD: 4 mm | Connection: R1/8 male
KQG2W04-02SType: Extended male elbow (KQG2W) | Tube OD: 4 mm | Connection: R1/4 male
KQG2W06-M5Type: Extended male elbow (KQG2W) | Tube OD: 6 mm | Connection: M5x0.8 male
KQG2W06-01SType: Extended male elbow (KQG2W) | Tube OD: 6 mm | Connection: R1/8 male
KQG2W06-02SType: Extended male elbow (KQG2W) | Tube OD: 6 mm | Connection: R1/4 male
KQG2W06-03SType: Extended male elbow (KQG2W) | Tube OD: 6 mm | Connection: R3/8 male
KQG2W08-01SType: Extended male elbow (KQG2W) | Tube OD: 8 mm | Connection: R1/8 male
KQG2W08-02SType: Extended male elbow (KQG2W) | Tube OD: 8 mm | Connection: R1/4 male
KQG2W08-03SType: Extended male elbow (KQG2W) | Tube OD: 8 mm | Connection: R3/8 male
KQG2W10-02SType: Extended male elbow (KQG2W) | Tube OD: 10 mm | Connection: R1/4 male
KQG2W10-03SType: Extended male elbow (KQG2W) | Tube OD: 10 mm | Connection: R3/8 male
KQG2W10-04SType: Extended male elbow (KQG2W) | Tube OD: 10 mm | Connection: R1/2 male
KQG2W12-02SType: Extended male elbow (KQG2W) | Tube OD: 12 mm | Connection: R1/4 male
KQG2W12-03SType: Extended male elbow (KQG2W) | Tube OD: 12 mm | Connection: R3/8 male
KQG2W12-04SType: Extended male elbow (KQG2W) | Tube OD: 12 mm | Connection: R1/2 male
KQG2W16-03SType: Extended male elbow (KQG2W) | Tube OD: 16 mm | Connection: R3/8 male
KQG2W16-04SType: Extended male elbow (KQG2W) | Tube OD: 16 mm | Connection: R1/2 male
KQG2F23-01Type: Female connector (KQG2F) | Tube OD: 3.2 mm | Connection: Rc1/8 female
KQG2F04-01Type: Female connector (KQG2F) | Tube OD: 4 mm | Connection: Rc1/8 female
KQG2F04-02Type: Female connector (KQG2F) | Tube OD: 4 mm | Connection: Rc1/4 female
KQG2F06-01Type: Female connector (KQG2F) | Tube OD: 6 mm | Connection: Rc1/8 female
KQG2F06-02Type: Female connector (KQG2F) | Tube OD: 6 mm | Connection: Rc1/4 female
KQG2F06-03Type: Female connector (KQG2F) | Tube OD: 6 mm | Connection: Rc3/8 female
KQG2F08-01Type: Female connector (KQG2F) | Tube OD: 8 mm | Connection: Rc1/8 female
KQG2F08-02Type: Female connector (KQG2F) | Tube OD: 8 mm | Connection: Rc1/4 female
KQG2F08-03Type: Female connector (KQG2F) | Tube OD: 8 mm | Connection: Rc3/8 female
KQG2F10-02Type: Female connector (KQG2F) | Tube OD: 10 mm | Connection: Rc1/4 female
KQG2F10-03Type: Female connector (KQG2F) | Tube OD: 10 mm | Connection: Rc3/8 female
KQG2F12-02Type: Female connector (KQG2F) | Tube OD: 12 mm | Connection: Rc1/4 female
KQG2F12-03Type: Female connector (KQG2F) | Tube OD: 12 mm | Connection: Rc3/8 female
KQG2F12-04Type: Female connector (KQG2F) | Tube OD: 12 mm | Connection: Rc1/2 female
KQG2F16-03Type: Female connector (KQG2F) | Tube OD: 16 mm | Connection: Rc3/8 female
KQG2F16-04Type: Female connector (KQG2F) | Tube OD: 16 mm | Connection: Rc1/2 female

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
