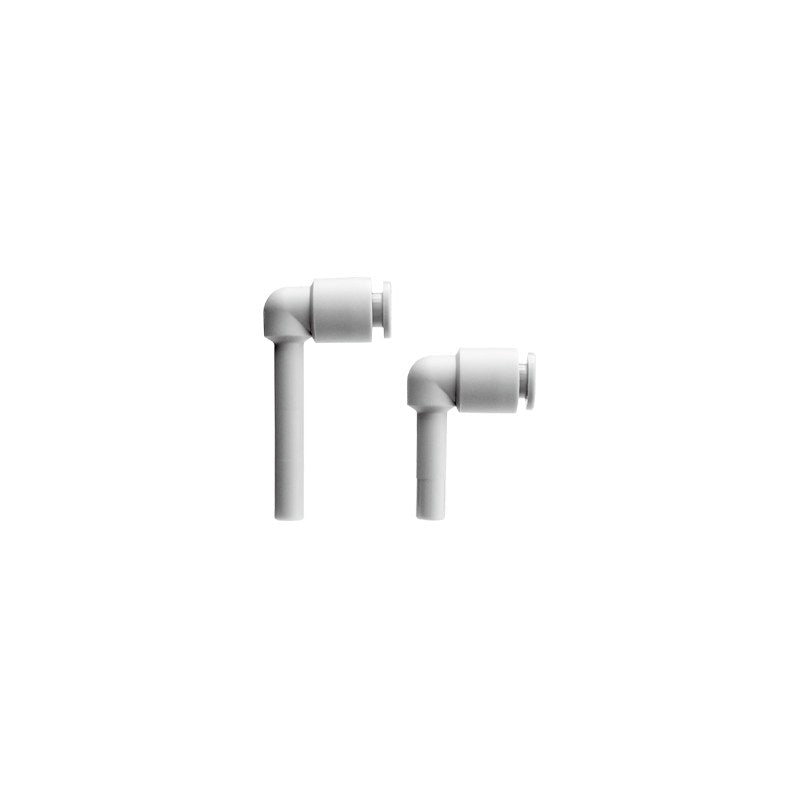

SMC KR-W2 Flame-Resistant One-Touch Fitting (UL-94 V-0)

SMC KR-W2 Flame-Resistant One-Touch Fitting (UL-94 V-0)

SMC KR-W2 series flame-resistant one-touch fittings (UL-94 V-0 equivalent) for FR tubing in welding and spatter environments, tube OD 6 to 12 mm.

Key features

  • Resin parts flame resistant to UL-94 V-0 equivalent; white body
  • For FR double-layer, FR soft nylon and FR double/triple-layer polyurethane tubing
  • Strong holding force from chuck and collet; light release with white release bushing
  • Usable from low vacuum to 1 MPa; sealant on R threads, no seal tape needed
  • Optional spatter covers prevent spatter entry and tube release failures
  • Copper-free (electroless nickel) version -X2 made to order

Specifications

Fluid Air, water
Operating pressure range -100 kPa to 1 MPa
Proof pressure 3 MPa (at 23 deg C)
Ambient and fluid temperature -5 to 60 deg C; water 0 to 60 deg C (no freezing)
Applicable tubing FR double-layer, FR soft nylon, FR double/triple-layer polyurethane
Thread R: JIS B 0203; M: JIS B 0205
Flame resistance UL-94 V-0 equivalent (external resin parts)
Main materials Body C3604 / FR PBT; chuck SUS304; seals NBR
Source SMC Korea catalog KR-W2 Series (SMCKR_KR-W2.pdf), p. 274-280
KRL06-02SW2 Type: Male elbow (KRL-W2) | Tube OD: 6 mm | Connection: R1/4 male, sealant
KRL06-01SW2 Type: Male elbow (KRL-W2) | Tube OD: 6 mm | Connection: R1/8 male, sealant
KRL08-01SW2 Type: Male elbow (KRL-W2) | Tube OD: 8 mm | Connection: R1/8 male, sealant
KRL08-02SW2 Type: Male elbow (KRL-W2) | Tube OD: 8 mm | Connection: R1/4 male, sealant
KRL08-03SW2 Type: Male elbow (KRL-W2) | Tube OD: 8 mm | Connection: R3/8 male, sealant
KRL10-01SW2 Type: Male elbow (KRL-W2) | Tube OD: 10 mm | Connection: R1/8 male, sealant
KRL10-02SW2 Type: Male elbow (KRL-W2) | Tube OD: 10 mm | Connection: R1/4 male, sealant
KRL10-03SW2 Type: Male elbow (KRL-W2) | Tube OD: 10 mm | Connection: R3/8 male, sealant
KRL12-02SW2 Type: Male elbow (KRL-W2) | Tube OD: 12 mm | Connection: R1/4 male, sealant
KRL12-03SW2 Type: Male elbow (KRL-W2) | Tube OD: 12 mm | Connection: R3/8 male, sealant
KRL06-03SW2 Type: Male elbow (KRL-W2) | Tube OD: 6 mm | Connection: R3/8 male, sealant
KRL10-04SW2 Type: Male elbow (KRL-W2) | Tube OD: 10 mm | Connection: R1/2 male, sealant
KRL12-04SW2 Type: Male elbow (KRL-W2) | Tube OD: 12 mm | Connection: R1/2 male, sealant
KRL06-M5W2 Type: Male elbow (KRL-W2) | Tube OD: 6 mm | Connection: M5x0.8 male
KRK06-02SW2 Type: 45 deg male elbow (KRK-W2) | Tube OD: 6 mm | Connection: R1/4 male, sealant
KRK06-01SW2 Type: 45 deg male elbow (KRK-W2) | Tube OD: 6 mm | Connection: R1/8 male, sealant
KRK08-01SW2 Type: 45 deg male elbow (KRK-W2) | Tube OD: 8 mm | Connection: R1/8 male, sealant
KRK08-02SW2 Type: 45 deg male elbow (KRK-W2) | Tube OD: 8 mm | Connection: R1/4 male, sealant
KRK08-03SW2 Type: 45 deg male elbow (KRK-W2) | Tube OD: 8 mm | Connection: R3/8 male, sealant
KRK10-01SW2 Type: 45 deg male elbow (KRK-W2) | Tube OD: 10 mm | Connection: R1/8 male, sealant
KRK10-02SW2 Type: 45 deg male elbow (KRK-W2) | Tube OD: 10 mm | Connection: R1/4 male, sealant
KRK10-03SW2 Type: 45 deg male elbow (KRK-W2) | Tube OD: 10 mm | Connection: R3/8 male, sealant
KRK12-02SW2 Type: 45 deg male elbow (KRK-W2) | Tube OD: 12 mm | Connection: R1/4 male, sealant
KRK12-03SW2 Type: 45 deg male elbow (KRK-W2) | Tube OD: 12 mm | Connection: R3/8 male, sealant
KRK06-03SW2 Type: 45 deg male elbow (KRK-W2) | Tube OD: 6 mm | Connection: R3/8 male, sealant
KRK10-04SW2 Type: 45 deg male elbow (KRK-W2) | Tube OD: 10 mm | Connection: R1/2 male, sealant
KRK12-04SW2 Type: 45 deg male elbow (KRK-W2) | Tube OD: 12 mm | Connection: R1/2 male, sealant
KRH06-02SW2 Type: Male connector (KRH-W2) | Tube OD: 6 mm | Connection: R1/4 male, sealant
KRH06-01SW2 Type: Male connector (KRH-W2) | Tube OD: 6 mm | Connection: R1/8 male, sealant
KRH08-01SW2 Type: Male connector (KRH-W2) | Tube OD: 8 mm | Connection: R1/8 male, sealant
KRH08-02SW2 Type: Male connector (KRH-W2) | Tube OD: 8 mm | Connection: R1/4 male, sealant
KRH08-03SW2 Type: Male connector (KRH-W2) | Tube OD: 8 mm | Connection: R3/8 male, sealant
KRH10-01SW2 Type: Male connector (KRH-W2) | Tube OD: 10 mm | Connection: R1/8 male, sealant
KRH10-02SW2 Type: Male connector (KRH-W2) | Tube OD: 10 mm | Connection: R1/4 male, sealant
KRH10-03SW2 Type: Male connector (KRH-W2) | Tube OD: 10 mm | Connection: R3/8 male, sealant
KRH12-02SW2 Type: Male connector (KRH-W2) | Tube OD: 12 mm | Connection: R1/4 male, sealant
KRH12-03SW2 Type: Male connector (KRH-W2) | Tube OD: 12 mm | Connection: R3/8 male, sealant
KRH06-03SW2 Type: Male connector (KRH-W2) | Tube OD: 6 mm | Connection: R3/8 male, sealant
KRH06-M5W2 Type: Male connector (KRH-W2) | Tube OD: 6 mm | Connection: M5x0.8 male
KRH10-04SW2 Type: Male connector (KRH-W2) | Tube OD: 10 mm | Connection: R1/2 male, sealant
KRH12-04SW2 Type: Male connector (KRH-W2) | Tube OD: 12 mm | Connection: R1/2 male, sealant
KRH08-00W2 Type: Straight union (KRH-W2) | Tube OD: 8 mm | Connection: Tube to tube
KRH06-00W2 Type: Straight union (KRH-W2) | Tube OD: 6 mm | Connection: Tube to tube
KRH10-00W2 Type: Straight union (KRH-W2) | Tube OD: 10 mm | Connection: Tube to tube
KRH12-00W2 Type: Straight union (KRH-W2) | Tube OD: 12 mm | Connection: Tube to tube
KRT08-00W2 Type: Union tee (KRT-W2) | Tube OD: 8 mm | Connection: Tube to tube
KRT06-00W2 Type: Union tee (KRT-W2) | Tube OD: 6 mm | Connection: Tube to tube
KRT10-00W2 Type: Union tee (KRT-W2) | Tube OD: 10 mm | Connection: Tube to tube
KRT12-00W2 Type: Union tee (KRT-W2) | Tube OD: 12 mm | Connection: Tube to tube
KRT06-02SW2 Type: Branch tee (KRT-W2) | Tube OD: 6 mm | Connection: R1/4 male, sealant
KRT06-01SW2 Type: Branch tee (KRT-W2) | Tube OD: 6 mm | Connection: R1/8 male, sealant
KRT08-01SW2 Type: Branch tee (KRT-W2) | Tube OD: 8 mm | Connection: R1/8 male, sealant
KRT08-02SW2 Type: Branch tee (KRT-W2) | Tube OD: 8 mm | Connection: R1/4 male, sealant
KRT08-03SW2 Type: Branch tee (KRT-W2) | Tube OD: 8 mm | Connection: R3/8 male, sealant
KRT10-01SW2 Type: Branch tee (KRT-W2) | Tube OD: 10 mm | Connection: R1/8 male, sealant
KRT10-02SW2 Type: Branch tee (KRT-W2) | Tube OD: 10 mm | Connection: R1/4 male, sealant
KRT10-03SW2 Type: Branch tee (KRT-W2) | Tube OD: 10 mm | Connection: R3/8 male, sealant
KRT12-02SW2 Type: Branch tee (KRT-W2) | Tube OD: 12 mm | Connection: R1/4 male, sealant
KRT12-03SW2 Type: Branch tee (KRT-W2) | Tube OD: 12 mm | Connection: R3/8 male, sealant
KRT06-03SW2 Type: Branch tee (KRT-W2) | Tube OD: 6 mm | Connection: R3/8 male, sealant
KRT10-04SW2 Type: Branch tee (KRT-W2) | Tube OD: 10 mm | Connection: R1/2 male, sealant
KRT12-04SW2 Type: Branch tee (KRT-W2) | Tube OD: 12 mm | Connection: R1/2 male, sealant
KRV06-02SW2 Type: Universal male elbow (KRV-W2) | Tube OD: 6 mm | Connection: R1/4 male, sealant
KRV06-01SW2 Type: Universal male elbow (KRV-W2) | Tube OD: 6 mm | Connection: R1/8 male, sealant
KRV08-01SW2 Type: Universal male elbow (KRV-W2) | Tube OD: 8 mm | Connection: R1/8 male, sealant
KRV08-02SW2 Type: Universal male elbow (KRV-W2) | Tube OD: 8 mm | Connection: R1/4 male, sealant
KRV08-03SW2 Type: Universal male elbow (KRV-W2) | Tube OD: 8 mm | Connection: R3/8 male, sealant
KRV10-02SW2 Type: Universal male elbow (KRV-W2) | Tube OD: 10 mm | Connection: R1/4 male, sealant
KRV10-03SW2 Type: Universal male elbow (KRV-W2) | Tube OD: 10 mm | Connection: R3/8 male, sealant
KRV12-03SW2 Type: Universal male elbow (KRV-W2) | Tube OD: 12 mm | Connection: R3/8 male, sealant
KRV12-04SW2 Type: Universal male elbow (KRV-W2) | Tube OD: 12 mm | Connection: R1/2 male, sealant
KRL08-00W2 Type: Union elbow (KRL-W2) | Tube OD: 8 mm | Connection: Tube to tube
KRL06-00W2 Type: Union elbow (KRL-W2) | Tube OD: 6 mm | Connection: Tube to tube
KRL10-00W2 Type: Union elbow (KRL-W2) | Tube OD: 10 mm | Connection: Tube to tube
KRL12-00W2 Type: Union elbow (KRL-W2) | Tube OD: 12 mm | Connection: Tube to tube
KRW06-02SW2 Type: Extended male elbow (KRW-W2) | Tube OD: 6 mm | Connection: R1/4 male, sealant
KRW06-01SW2 Type: Extended male elbow (KRW-W2) | Tube OD: 6 mm | Connection: R1/8 male, sealant
KRW08-01SW2 Type: Extended male elbow (KRW-W2) | Tube OD: 8 mm | Connection: R1/8 male, sealant
KRW08-02SW2 Type: Extended male elbow (KRW-W2) | Tube OD: 8 mm | Connection: R1/4 male, sealant
KRW08-03SW2 Type: Extended male elbow (KRW-W2) | Tube OD: 8 mm | Connection: R3/8 male, sealant
KRW10-02SW2 Type: Extended male elbow (KRW-W2) | Tube OD: 10 mm | Connection: R1/4 male, sealant
KRW10-03SW2 Type: Extended male elbow (KRW-W2) | Tube OD: 10 mm | Connection: R3/8 male, sealant
KRW10-04SW2 Type: Extended male elbow (KRW-W2) | Tube OD: 10 mm | Connection: R1/2 male, sealant
KRW12-02SW2 Type: Extended male elbow (KRW-W2) | Tube OD: 12 mm | Connection: R1/4 male, sealant
KRW12-03SW2 Type: Extended male elbow (KRW-W2) | Tube OD: 12 mm | Connection: R3/8 male, sealant
KRW06-03SW2 Type: Extended male elbow (KRW-W2) | Tube OD: 6 mm | Connection: R3/8 male, sealant
KRW12-04SW2 Type: Extended male elbow (KRW-W2) | Tube OD: 12 mm | Connection: R1/2 male, sealant
KRY06-02SW2 Type: Run tee (KRY-W2) | Tube OD: 6 mm | Connection: R1/4 male, sealant
KRY06-01SW2 Type: Run tee (KRY-W2) | Tube OD: 6 mm | Connection: R1/8 male, sealant
KRY08-01SW2 Type: Run tee (KRY-W2) | Tube OD: 8 mm | Connection: R1/8 male, sealant
KRY08-02SW2 Type: Run tee (KRY-W2) | Tube OD: 8 mm | Connection: R1/4 male, sealant
KRY08-03SW2 Type: Run tee (KRY-W2) | Tube OD: 8 mm | Connection: R3/8 male, sealant
KRY10-01SW2 Type: Run tee (KRY-W2) | Tube OD: 10 mm | Connection: R1/8 male, sealant
KRY10-02SW2 Type: Run tee (KRY-W2) | Tube OD: 10 mm | Connection: R1/4 male, sealant
KRY10-03SW2 Type: Run tee (KRY-W2) | Tube OD: 10 mm | Connection: R3/8 male, sealant
KRY12-02SW2 Type: Run tee (KRY-W2) | Tube OD: 12 mm | Connection: R1/4 male, sealant
KRY12-03SW2 Type: Run tee (KRY-W2) | Tube OD: 12 mm | Connection: R3/8 male, sealant
KRY06-03SW2 Type: Run tee (KRY-W2) | Tube OD: 6 mm | Connection: R3/8 male, sealant
KRY10-04SW2 Type: Run tee (KRY-W2) | Tube OD: 10 mm | Connection: R1/2 male, sealant
KRY12-04SW2 Type: Run tee (KRY-W2) | Tube OD: 12 mm | Connection: R1/2 male, sealant
KRU06-01SW2 Type: Branch Y (KRU-W2) | Tube OD: 6 mm | Connection: R1/8 male, sealant
KRU08-01SW2 Type: Branch Y (KRU-W2) | Tube OD: 8 mm | Connection: R1/8 male, sealant
KRU08-02SW2 Type: Branch Y (KRU-W2) | Tube OD: 8 mm | Connection: R1/4 male, sealant
KRU10-02SW2 Type: Branch Y (KRU-W2) | Tube OD: 10 mm | Connection: R1/4 male, sealant
KRU10-03SW2 Type: Branch Y (KRU-W2) | Tube OD: 10 mm | Connection: R3/8 male, sealant
KRU12-02SW2 Type: Branch Y (KRU-W2) | Tube OD: 12 mm | Connection: R1/4 male, sealant
KRU12-03SW2 Type: Branch Y (KRU-W2) | Tube OD: 12 mm | Connection: R3/8 male, sealant
KRU06-02SW2 Type: Branch Y (KRU-W2) | Tube OD: 6 mm | Connection: R1/4 male, sealant
KRU08-03SW2 Type: Branch Y (KRU-W2) | Tube OD: 8 mm | Connection: R3/8 male, sealant
KRU06-03SW2 Type: Branch Y (KRU-W2) | Tube OD: 6 mm | Connection: R3/8 male, sealant
KRU10-04SW2 Type: Branch Y (KRU-W2) | Tube OD: 10 mm | Connection: R1/2 male, sealant
KRU12-04SW2 Type: Branch Y (KRU-W2) | Tube OD: 12 mm | Connection: R1/2 male, sealant
KRU06-00W2 Type: Union Y (KRU-W2) | Tube OD: 6 mm | Connection: Tube to tube
KRU08-00W2 Type: Union Y (KRU-W2) | Tube OD: 8 mm | Connection: Tube to tube
KRU10-00W2 Type: Union Y (KRU-W2) | Tube OD: 10 mm | Connection: Tube to tube
KRU12-00W2 Type: Union Y (KRU-W2) | Tube OD: 12 mm | Connection: Tube to tube
KRU06-99W2 Type: Plug-in Y (KRU-W2) | Tube OD: 6 mm | Connection: Fitting size 6 mm (plug-in)
KRU08-99W2 Type: Plug-in Y (KRU-W2) | Tube OD: 8 mm | Connection: Fitting size 8 mm (plug-in)
KRU10-99W2 Type: Plug-in Y (KRU-W2) | Tube OD: 10 mm | Connection: Fitting size 10 mm (plug-in)
KRU12-99W2 Type: Plug-in Y (KRU-W2) | Tube OD: 12 mm | Connection: Fitting size 12 mm (plug-in)
KRR08-10W2 Type: Reducer (KRR-W2) | Tube OD: 8 mm | Connection: Fitting size 10 mm (plug-in)
KRR06-08W2 Type: Reducer (KRR-W2) | Tube OD: 6 mm | Connection: Fitting size 8 mm (plug-in)
KRR08-12W2 Type: Reducer (KRR-W2) | Tube OD: 8 mm | Connection: Fitting size 12 mm (plug-in)
KRR06-10W2 Type: Reducer (KRR-W2) | Tube OD: 6 mm | Connection: Fitting size 10 mm (plug-in)
KRR10-12W2 Type: Reducer (KRR-W2) | Tube OD: 10 mm | Connection: Fitting size 12 mm (plug-in)
KRE08-00W2 Type: Bulkhead union (KRE-W2) | Tube OD: 8 mm | Connection: Tube to tube
KRE06-00W2 Type: Bulkhead union (KRE-W2) | Tube OD: 6 mm | Connection: Tube to tube
KRE10-00W2 Type: Bulkhead union (KRE-W2) | Tube OD: 10 mm | Connection: Tube to tube
KRE12-00W2 Type: Bulkhead union (KRE-W2) | Tube OD: 12 mm | Connection: Tube to tube
KRE06-01W2 Type: Bulkhead female connector (KRE-W2) | Tube OD: 6 mm | Connection: Rc1/8 female
KRE06-02W2 Type: Bulkhead female connector (KRE-W2) | Tube OD: 6 mm | Connection: Rc1/4 female
KRE06-03W2 Type: Bulkhead female connector (KRE-W2) | Tube OD: 6 mm | Connection: Rc3/8 female
KRE08-01W2 Type: Bulkhead female connector (KRE-W2) | Tube OD: 8 mm | Connection: Rc1/8 female
KRE08-02W2 Type: Bulkhead female connector (KRE-W2) | Tube OD: 8 mm | Connection: Rc1/4 female
KRE08-03W2 Type: Bulkhead female connector (KRE-W2) | Tube OD: 8 mm | Connection: Rc3/8 female
KRE10-02W2 Type: Bulkhead female connector (KRE-W2) | Tube OD: 10 mm | Connection: Rc1/4 female
KRE10-03W2 Type: Bulkhead female connector (KRE-W2) | Tube OD: 10 mm | Connection: Rc3/8 female
KRE12-03W2 Type: Bulkhead female connector (KRE-W2) | Tube OD: 12 mm | Connection: Rc3/8 female
KRE12-04W2 Type: Bulkhead female connector (KRE-W2) | Tube OD: 12 mm | Connection: Rc1/2 female
KRW06-99W2 Type: Plug-in extended elbow (KRW-W2) | Tube OD: 6 mm | Connection: Fitting size 6 mm (plug-in)
KRW08-99W2 Type: Plug-in extended elbow (KRW-W2) | Tube OD: 8 mm | Connection: Fitting size 8 mm (plug-in)
KRW10-99W2 Type: Plug-in extended elbow (KRW-W2) | Tube OD: 10 mm | Connection: Fitting size 10 mm (plug-in)
KRW12-99W2 Type: Plug-in extended elbow (KRW-W2) | Tube OD: 12 mm | Connection: Fitting size 12 mm (plug-in)
KRL06-99W2 Type: Plug-in elbow (KRL-W2) | Tube OD: 6 mm | Connection: Fitting size 6 mm (plug-in)
KRL08-99W2 Type: Plug-in elbow (KRL-W2) | Tube OD: 8 mm | Connection: Fitting size 8 mm (plug-in)
KRL10-99W2 Type: Plug-in elbow (KRL-W2) | Tube OD: 10 mm | Connection: Fitting size 10 mm (plug-in)
KRL12-99W2 Type: Plug-in elbow (KRL-W2) | Tube OD: 12 mm | Connection: Fitting size 12 mm (plug-in)
KRP-06 Type: Plug (KRP) | Tube OD: 6 mm | Connection: Fitting size (plug-in)
KRP-08 Type: Plug (KRP) | Tube OD: 8 mm | Connection: Fitting size (plug-in)
KRP-10 Type: Plug (KRP) | Tube OD: 10 mm | Connection: Fitting size (plug-in)
KRP-12 Type: Plug (KRP) | Tube OD: 12 mm | Connection: Fitting size (plug-in)
KR-06C Type: Spatter cover 1 (FR soft nylon) | Tube OD: 6 mm | Connection: Accessory
KR-06C1 Type: Spatter cover 2 (FR nylon / FR 2-layer) | Tube OD: 6 mm | Connection: Accessory
KR-08C Type: Spatter cover 1 (FR soft nylon) | Tube OD: 8 mm | Connection: Accessory
KR-08C1 Type: Spatter cover 2 (FR nylon / FR 2-layer) | Tube OD: 8 mm | Connection: Accessory
KR-10C Type: Spatter cover 1 (FR soft nylon) | Tube OD: 10 mm | Connection: Accessory
KR-10C1 Type: Spatter cover 2 (FR nylon / FR 2-layer) | Tube OD: 10 mm | Connection: Accessory
KR-12C Type: Spatter cover 1 (FR soft nylon) | Tube OD: 12 mm | Connection: Accessory
KR-12C1 Type: Spatter cover 2 (FR nylon / FR 2-layer) | Tube OD: 12 mm | Connection: Accessory
FittingsSMC
159 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC KR-W2 Flame-Resistant One-Touch Fitting (UL-94 V-0)

Brand SMC·Fittings

Available part numbers (159)

KRL06-02SW2, KRL06-01SW2, KRL08-01SW2, KRL08-02SW2, KRL08-03SW2, KRL10-01SW2, KRL10-02SW2, KRL10-03SW2, KRL12-02SW2, KRL12-03SW2 + 149 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KRL06-02SW2Type: Male elbow (KRL-W2) | Tube OD: 6 mm | Connection: R1/4 male, sealant
KRL06-01SW2Type: Male elbow (KRL-W2) | Tube OD: 6 mm | Connection: R1/8 male, sealant
KRL08-01SW2Type: Male elbow (KRL-W2) | Tube OD: 8 mm | Connection: R1/8 male, sealant
KRL08-02SW2Type: Male elbow (KRL-W2) | Tube OD: 8 mm | Connection: R1/4 male, sealant
KRL08-03SW2Type: Male elbow (KRL-W2) | Tube OD: 8 mm | Connection: R3/8 male, sealant
KRL10-01SW2Type: Male elbow (KRL-W2) | Tube OD: 10 mm | Connection: R1/8 male, sealant
KRL10-02SW2Type: Male elbow (KRL-W2) | Tube OD: 10 mm | Connection: R1/4 male, sealant
KRL10-03SW2Type: Male elbow (KRL-W2) | Tube OD: 10 mm | Connection: R3/8 male, sealant
KRL12-02SW2Type: Male elbow (KRL-W2) | Tube OD: 12 mm | Connection: R1/4 male, sealant
KRL12-03SW2Type: Male elbow (KRL-W2) | Tube OD: 12 mm | Connection: R3/8 male, sealant
KRL06-03SW2Type: Male elbow (KRL-W2) | Tube OD: 6 mm | Connection: R3/8 male, sealant
KRL10-04SW2Type: Male elbow (KRL-W2) | Tube OD: 10 mm | Connection: R1/2 male, sealant
KRL12-04SW2Type: Male elbow (KRL-W2) | Tube OD: 12 mm | Connection: R1/2 male, sealant
KRL06-M5W2Type: Male elbow (KRL-W2) | Tube OD: 6 mm | Connection: M5x0.8 male
KRK06-02SW2Type: 45 deg male elbow (KRK-W2) | Tube OD: 6 mm | Connection: R1/4 male, sealant
KRK06-01SW2Type: 45 deg male elbow (KRK-W2) | Tube OD: 6 mm | Connection: R1/8 male, sealant
KRK08-01SW2Type: 45 deg male elbow (KRK-W2) | Tube OD: 8 mm | Connection: R1/8 male, sealant
KRK08-02SW2Type: 45 deg male elbow (KRK-W2) | Tube OD: 8 mm | Connection: R1/4 male, sealant
KRK08-03SW2Type: 45 deg male elbow (KRK-W2) | Tube OD: 8 mm | Connection: R3/8 male, sealant
KRK10-01SW2Type: 45 deg male elbow (KRK-W2) | Tube OD: 10 mm | Connection: R1/8 male, sealant
KRK10-02SW2Type: 45 deg male elbow (KRK-W2) | Tube OD: 10 mm | Connection: R1/4 male, sealant
KRK10-03SW2Type: 45 deg male elbow (KRK-W2) | Tube OD: 10 mm | Connection: R3/8 male, sealant
KRK12-02SW2Type: 45 deg male elbow (KRK-W2) | Tube OD: 12 mm | Connection: R1/4 male, sealant
KRK12-03SW2Type: 45 deg male elbow (KRK-W2) | Tube OD: 12 mm | Connection: R3/8 male, sealant
KRK06-03SW2Type: 45 deg male elbow (KRK-W2) | Tube OD: 6 mm | Connection: R3/8 male, sealant
KRK10-04SW2Type: 45 deg male elbow (KRK-W2) | Tube OD: 10 mm | Connection: R1/2 male, sealant
KRK12-04SW2Type: 45 deg male elbow (KRK-W2) | Tube OD: 12 mm | Connection: R1/2 male, sealant
KRH06-02SW2Type: Male connector (KRH-W2) | Tube OD: 6 mm | Connection: R1/4 male, sealant
KRH06-01SW2Type: Male connector (KRH-W2) | Tube OD: 6 mm | Connection: R1/8 male, sealant
KRH08-01SW2Type: Male connector (KRH-W2) | Tube OD: 8 mm | Connection: R1/8 male, sealant
KRH08-02SW2Type: Male connector (KRH-W2) | Tube OD: 8 mm | Connection: R1/4 male, sealant
KRH08-03SW2Type: Male connector (KRH-W2) | Tube OD: 8 mm | Connection: R3/8 male, sealant
KRH10-01SW2Type: Male connector (KRH-W2) | Tube OD: 10 mm | Connection: R1/8 male, sealant
KRH10-02SW2Type: Male connector (KRH-W2) | Tube OD: 10 mm | Connection: R1/4 male, sealant
KRH10-03SW2Type: Male connector (KRH-W2) | Tube OD: 10 mm | Connection: R3/8 male, sealant
KRH12-02SW2Type: Male connector (KRH-W2) | Tube OD: 12 mm | Connection: R1/4 male, sealant
KRH12-03SW2Type: Male connector (KRH-W2) | Tube OD: 12 mm | Connection: R3/8 male, sealant
KRH06-03SW2Type: Male connector (KRH-W2) | Tube OD: 6 mm | Connection: R3/8 male, sealant
KRH06-M5W2Type: Male connector (KRH-W2) | Tube OD: 6 mm | Connection: M5x0.8 male
KRH10-04SW2Type: Male connector (KRH-W2) | Tube OD: 10 mm | Connection: R1/2 male, sealant
KRH12-04SW2Type: Male connector (KRH-W2) | Tube OD: 12 mm | Connection: R1/2 male, sealant
KRH08-00W2Type: Straight union (KRH-W2) | Tube OD: 8 mm | Connection: Tube to tube
KRH06-00W2Type: Straight union (KRH-W2) | Tube OD: 6 mm | Connection: Tube to tube
KRH10-00W2Type: Straight union (KRH-W2) | Tube OD: 10 mm | Connection: Tube to tube
KRH12-00W2Type: Straight union (KRH-W2) | Tube OD: 12 mm | Connection: Tube to tube
KRT08-00W2Type: Union tee (KRT-W2) | Tube OD: 8 mm | Connection: Tube to tube
KRT06-00W2Type: Union tee (KRT-W2) | Tube OD: 6 mm | Connection: Tube to tube
KRT10-00W2Type: Union tee (KRT-W2) | Tube OD: 10 mm | Connection: Tube to tube
KRT12-00W2Type: Union tee (KRT-W2) | Tube OD: 12 mm | Connection: Tube to tube
KRT06-02SW2Type: Branch tee (KRT-W2) | Tube OD: 6 mm | Connection: R1/4 male, sealant
KRT06-01SW2Type: Branch tee (KRT-W2) | Tube OD: 6 mm | Connection: R1/8 male, sealant
KRT08-01SW2Type: Branch tee (KRT-W2) | Tube OD: 8 mm | Connection: R1/8 male, sealant
KRT08-02SW2Type: Branch tee (KRT-W2) | Tube OD: 8 mm | Connection: R1/4 male, sealant
KRT08-03SW2Type: Branch tee (KRT-W2) | Tube OD: 8 mm | Connection: R3/8 male, sealant
KRT10-01SW2Type: Branch tee (KRT-W2) | Tube OD: 10 mm | Connection: R1/8 male, sealant
KRT10-02SW2Type: Branch tee (KRT-W2) | Tube OD: 10 mm | Connection: R1/4 male, sealant
KRT10-03SW2Type: Branch tee (KRT-W2) | Tube OD: 10 mm | Connection: R3/8 male, sealant
KRT12-02SW2Type: Branch tee (KRT-W2) | Tube OD: 12 mm | Connection: R1/4 male, sealant
KRT12-03SW2Type: Branch tee (KRT-W2) | Tube OD: 12 mm | Connection: R3/8 male, sealant
KRT06-03SW2Type: Branch tee (KRT-W2) | Tube OD: 6 mm | Connection: R3/8 male, sealant
KRT10-04SW2Type: Branch tee (KRT-W2) | Tube OD: 10 mm | Connection: R1/2 male, sealant
KRT12-04SW2Type: Branch tee (KRT-W2) | Tube OD: 12 mm | Connection: R1/2 male, sealant
KRV06-02SW2Type: Universal male elbow (KRV-W2) | Tube OD: 6 mm | Connection: R1/4 male, sealant
KRV06-01SW2Type: Universal male elbow (KRV-W2) | Tube OD: 6 mm | Connection: R1/8 male, sealant
KRV08-01SW2Type: Universal male elbow (KRV-W2) | Tube OD: 8 mm | Connection: R1/8 male, sealant
KRV08-02SW2Type: Universal male elbow (KRV-W2) | Tube OD: 8 mm | Connection: R1/4 male, sealant
KRV08-03SW2Type: Universal male elbow (KRV-W2) | Tube OD: 8 mm | Connection: R3/8 male, sealant
KRV10-02SW2Type: Universal male elbow (KRV-W2) | Tube OD: 10 mm | Connection: R1/4 male, sealant
KRV10-03SW2Type: Universal male elbow (KRV-W2) | Tube OD: 10 mm | Connection: R3/8 male, sealant
KRV12-03SW2Type: Universal male elbow (KRV-W2) | Tube OD: 12 mm | Connection: R3/8 male, sealant
KRV12-04SW2Type: Universal male elbow (KRV-W2) | Tube OD: 12 mm | Connection: R1/2 male, sealant
KRL08-00W2Type: Union elbow (KRL-W2) | Tube OD: 8 mm | Connection: Tube to tube
KRL06-00W2Type: Union elbow (KRL-W2) | Tube OD: 6 mm | Connection: Tube to tube
KRL10-00W2Type: Union elbow (KRL-W2) | Tube OD: 10 mm | Connection: Tube to tube
KRL12-00W2Type: Union elbow (KRL-W2) | Tube OD: 12 mm | Connection: Tube to tube
KRW06-02SW2Type: Extended male elbow (KRW-W2) | Tube OD: 6 mm | Connection: R1/4 male, sealant
KRW06-01SW2Type: Extended male elbow (KRW-W2) | Tube OD: 6 mm | Connection: R1/8 male, sealant
KRW08-01SW2Type: Extended male elbow (KRW-W2) | Tube OD: 8 mm | Connection: R1/8 male, sealant
KRW08-02SW2Type: Extended male elbow (KRW-W2) | Tube OD: 8 mm | Connection: R1/4 male, sealant
KRW08-03SW2Type: Extended male elbow (KRW-W2) | Tube OD: 8 mm | Connection: R3/8 male, sealant
KRW10-02SW2Type: Extended male elbow (KRW-W2) | Tube OD: 10 mm | Connection: R1/4 male, sealant
KRW10-03SW2Type: Extended male elbow (KRW-W2) | Tube OD: 10 mm | Connection: R3/8 male, sealant
KRW10-04SW2Type: Extended male elbow (KRW-W2) | Tube OD: 10 mm | Connection: R1/2 male, sealant
KRW12-02SW2Type: Extended male elbow (KRW-W2) | Tube OD: 12 mm | Connection: R1/4 male, sealant
KRW12-03SW2Type: Extended male elbow (KRW-W2) | Tube OD: 12 mm | Connection: R3/8 male, sealant
KRW06-03SW2Type: Extended male elbow (KRW-W2) | Tube OD: 6 mm | Connection: R3/8 male, sealant
KRW12-04SW2Type: Extended male elbow (KRW-W2) | Tube OD: 12 mm | Connection: R1/2 male, sealant
KRY06-02SW2Type: Run tee (KRY-W2) | Tube OD: 6 mm | Connection: R1/4 male, sealant
KRY06-01SW2Type: Run tee (KRY-W2) | Tube OD: 6 mm | Connection: R1/8 male, sealant
KRY08-01SW2Type: Run tee (KRY-W2) | Tube OD: 8 mm | Connection: R1/8 male, sealant
KRY08-02SW2Type: Run tee (KRY-W2) | Tube OD: 8 mm | Connection: R1/4 male, sealant
KRY08-03SW2Type: Run tee (KRY-W2) | Tube OD: 8 mm | Connection: R3/8 male, sealant
KRY10-01SW2Type: Run tee (KRY-W2) | Tube OD: 10 mm | Connection: R1/8 male, sealant
KRY10-02SW2Type: Run tee (KRY-W2) | Tube OD: 10 mm | Connection: R1/4 male, sealant
KRY10-03SW2Type: Run tee (KRY-W2) | Tube OD: 10 mm | Connection: R3/8 male, sealant
KRY12-02SW2Type: Run tee (KRY-W2) | Tube OD: 12 mm | Connection: R1/4 male, sealant
KRY12-03SW2Type: Run tee (KRY-W2) | Tube OD: 12 mm | Connection: R3/8 male, sealant
KRY06-03SW2Type: Run tee (KRY-W2) | Tube OD: 6 mm | Connection: R3/8 male, sealant
KRY10-04SW2Type: Run tee (KRY-W2) | Tube OD: 10 mm | Connection: R1/2 male, sealant
KRY12-04SW2Type: Run tee (KRY-W2) | Tube OD: 12 mm | Connection: R1/2 male, sealant
KRU06-01SW2Type: Branch Y (KRU-W2) | Tube OD: 6 mm | Connection: R1/8 male, sealant
KRU08-01SW2Type: Branch Y (KRU-W2) | Tube OD: 8 mm | Connection: R1/8 male, sealant
KRU08-02SW2Type: Branch Y (KRU-W2) | Tube OD: 8 mm | Connection: R1/4 male, sealant
KRU10-02SW2Type: Branch Y (KRU-W2) | Tube OD: 10 mm | Connection: R1/4 male, sealant
KRU10-03SW2Type: Branch Y (KRU-W2) | Tube OD: 10 mm | Connection: R3/8 male, sealant
KRU12-02SW2Type: Branch Y (KRU-W2) | Tube OD: 12 mm | Connection: R1/4 male, sealant
KRU12-03SW2Type: Branch Y (KRU-W2) | Tube OD: 12 mm | Connection: R3/8 male, sealant
KRU06-02SW2Type: Branch Y (KRU-W2) | Tube OD: 6 mm | Connection: R1/4 male, sealant
KRU08-03SW2Type: Branch Y (KRU-W2) | Tube OD: 8 mm | Connection: R3/8 male, sealant
KRU06-03SW2Type: Branch Y (KRU-W2) | Tube OD: 6 mm | Connection: R3/8 male, sealant
KRU10-04SW2Type: Branch Y (KRU-W2) | Tube OD: 10 mm | Connection: R1/2 male, sealant
KRU12-04SW2Type: Branch Y (KRU-W2) | Tube OD: 12 mm | Connection: R1/2 male, sealant
KRU06-00W2Type: Union Y (KRU-W2) | Tube OD: 6 mm | Connection: Tube to tube
KRU08-00W2Type: Union Y (KRU-W2) | Tube OD: 8 mm | Connection: Tube to tube
KRU10-00W2Type: Union Y (KRU-W2) | Tube OD: 10 mm | Connection: Tube to tube
KRU12-00W2Type: Union Y (KRU-W2) | Tube OD: 12 mm | Connection: Tube to tube
KRU06-99W2Type: Plug-in Y (KRU-W2) | Tube OD: 6 mm | Connection: Fitting size 6 mm (plug-in)
KRU08-99W2Type: Plug-in Y (KRU-W2) | Tube OD: 8 mm | Connection: Fitting size 8 mm (plug-in)
KRU10-99W2Type: Plug-in Y (KRU-W2) | Tube OD: 10 mm | Connection: Fitting size 10 mm (plug-in)
KRU12-99W2Type: Plug-in Y (KRU-W2) | Tube OD: 12 mm | Connection: Fitting size 12 mm (plug-in)
KRR08-10W2Type: Reducer (KRR-W2) | Tube OD: 8 mm | Connection: Fitting size 10 mm (plug-in)
KRR06-08W2Type: Reducer (KRR-W2) | Tube OD: 6 mm | Connection: Fitting size 8 mm (plug-in)
KRR08-12W2Type: Reducer (KRR-W2) | Tube OD: 8 mm | Connection: Fitting size 12 mm (plug-in)
KRR06-10W2Type: Reducer (KRR-W2) | Tube OD: 6 mm | Connection: Fitting size 10 mm (plug-in)
KRR10-12W2Type: Reducer (KRR-W2) | Tube OD: 10 mm | Connection: Fitting size 12 mm (plug-in)
KRE08-00W2Type: Bulkhead union (KRE-W2) | Tube OD: 8 mm | Connection: Tube to tube
KRE06-00W2Type: Bulkhead union (KRE-W2) | Tube OD: 6 mm | Connection: Tube to tube
KRE10-00W2Type: Bulkhead union (KRE-W2) | Tube OD: 10 mm | Connection: Tube to tube
KRE12-00W2Type: Bulkhead union (KRE-W2) | Tube OD: 12 mm | Connection: Tube to tube
KRE06-01W2Type: Bulkhead female connector (KRE-W2) | Tube OD: 6 mm | Connection: Rc1/8 female
KRE06-02W2Type: Bulkhead female connector (KRE-W2) | Tube OD: 6 mm | Connection: Rc1/4 female
KRE06-03W2Type: Bulkhead female connector (KRE-W2) | Tube OD: 6 mm | Connection: Rc3/8 female
KRE08-01W2Type: Bulkhead female connector (KRE-W2) | Tube OD: 8 mm | Connection: Rc1/8 female
KRE08-02W2Type: Bulkhead female connector (KRE-W2) | Tube OD: 8 mm | Connection: Rc1/4 female
KRE08-03W2Type: Bulkhead female connector (KRE-W2) | Tube OD: 8 mm | Connection: Rc3/8 female
KRE10-02W2Type: Bulkhead female connector (KRE-W2) | Tube OD: 10 mm | Connection: Rc1/4 female
KRE10-03W2Type: Bulkhead female connector (KRE-W2) | Tube OD: 10 mm | Connection: Rc3/8 female
KRE12-03W2Type: Bulkhead female connector (KRE-W2) | Tube OD: 12 mm | Connection: Rc3/8 female
KRE12-04W2Type: Bulkhead female connector (KRE-W2) | Tube OD: 12 mm | Connection: Rc1/2 female
KRW06-99W2Type: Plug-in extended elbow (KRW-W2) | Tube OD: 6 mm | Connection: Fitting size 6 mm (plug-in)
KRW08-99W2Type: Plug-in extended elbow (KRW-W2) | Tube OD: 8 mm | Connection: Fitting size 8 mm (plug-in)
KRW10-99W2Type: Plug-in extended elbow (KRW-W2) | Tube OD: 10 mm | Connection: Fitting size 10 mm (plug-in)
KRW12-99W2Type: Plug-in extended elbow (KRW-W2) | Tube OD: 12 mm | Connection: Fitting size 12 mm (plug-in)
KRL06-99W2Type: Plug-in elbow (KRL-W2) | Tube OD: 6 mm | Connection: Fitting size 6 mm (plug-in)
KRL08-99W2Type: Plug-in elbow (KRL-W2) | Tube OD: 8 mm | Connection: Fitting size 8 mm (plug-in)
KRL10-99W2Type: Plug-in elbow (KRL-W2) | Tube OD: 10 mm | Connection: Fitting size 10 mm (plug-in)
KRL12-99W2Type: Plug-in elbow (KRL-W2) | Tube OD: 12 mm | Connection: Fitting size 12 mm (plug-in)
KRP-06Type: Plug (KRP) | Tube OD: 6 mm | Connection: Fitting size (plug-in)
KRP-08Type: Plug (KRP) | Tube OD: 8 mm | Connection: Fitting size (plug-in)
KRP-10Type: Plug (KRP) | Tube OD: 10 mm | Connection: Fitting size (plug-in)
KRP-12Type: Plug (KRP) | Tube OD: 12 mm | Connection: Fitting size (plug-in)
KR-06CType: Spatter cover 1 (FR soft nylon) | Tube OD: 6 mm | Connection: Accessory
KR-06C1Type: Spatter cover 2 (FR nylon / FR 2-layer) | Tube OD: 6 mm | Connection: Accessory
KR-08CType: Spatter cover 1 (FR soft nylon) | Tube OD: 8 mm | Connection: Accessory
KR-08C1Type: Spatter cover 2 (FR nylon / FR 2-layer) | Tube OD: 8 mm | Connection: Accessory
KR-10CType: Spatter cover 1 (FR soft nylon) | Tube OD: 10 mm | Connection: Accessory
KR-10C1Type: Spatter cover 2 (FR nylon / FR 2-layer) | Tube OD: 10 mm | Connection: Accessory
KR-12CType: Spatter cover 1 (FR soft nylon) | Tube OD: 12 mm | Connection: Accessory
KR-12C1Type: Spatter cover 2 (FR nylon / FR 2-layer) | Tube OD: 12 mm | Connection: Accessory

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
