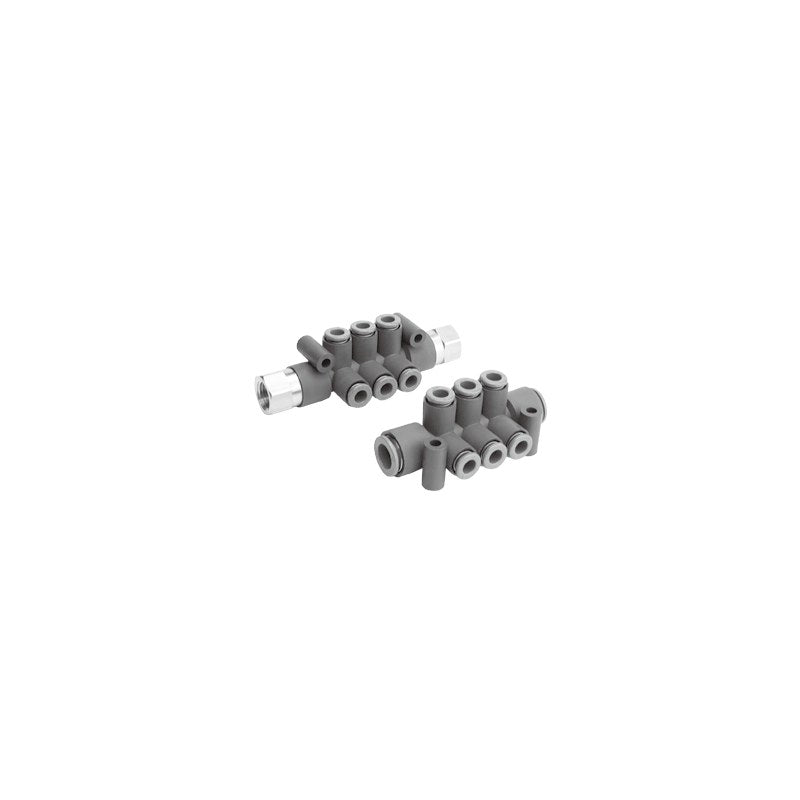

SMC KRM Flame-Resistant One-Touch Fitting Manifold

SMC KRM Flame-Resistant One-Touch Fitting Manifold

SMC KRM series flame-resistant (UL-94 V-0 equivalent) one-touch fitting manifolds distribute air or water to 6 or 10 tube outlets for compact, centralized piping.

Key features

  • Flame-resistant PBT body, release bushing and cover (UL-94 V-0 equivalent)
  • KRM11: one-touch fittings on both supply ends (tube OD 10 or 12 mm)
  • KRM12: Rc1/4 or Rc3/8 female supply port, with sealed hex socket plug supplied
  • 6 or 10 outlets for tube OD 6 or 8 mm
  • Optional KRMC spatter cover for FR soft nylon tubing

Specifications

Fluid Air, water
Max. operating pressure 1 MPa
Proof pressure 3 MPa
Ambient and fluid temperature -5 to 60 deg C; water 0 to 60 deg C (no freezing)
Applicable tubing FR double-layer, FR soft nylon
Thread JIS B 0203 (KRM12)
Materials Body FR PBT; chuck/guide SUS304; packing NBR
Source SMC Korea catalog KRM Series (SMCKR_KRM.pdf), p. 281-282
KRM11-06-10-6 Model: KRM11 (one-touch both ends) | Port A: Tube OD 6 mm | Port B: Tube OD 10 mm | Port A count: 6
KRM11-06-10-10 Model: KRM11 (one-touch both ends) | Port A: Tube OD 6 mm | Port B: Tube OD 10 mm | Port A count: 10
KRM11-08-12-6 Model: KRM11 (one-touch both ends) | Port A: Tube OD 8 mm | Port B: Tube OD 12 mm | Port A count: 6
KRM11-08-12-10 Model: KRM11 (one-touch both ends) | Port A: Tube OD 8 mm | Port B: Tube OD 12 mm | Port A count: 10
KRM12-06-02-6 Model: KRM12 (Rc female supply) | Port A: Tube OD 6 mm | Port B: Rc1/4 female | Port A count: 6
KRM12-06-02-10 Model: KRM12 (Rc female supply) | Port A: Tube OD 6 mm | Port B: Rc1/4 female | Port A count: 10
KRM12-08-03-6 Model: KRM12 (Rc female supply) | Port A: Tube OD 8 mm | Port B: Rc3/8 female | Port A count: 6
KRM12-08-03-10 Model: KRM12 (Rc female supply) | Port A: Tube OD 8 mm | Port B: Rc3/8 female | Port A count: 10
KRMC-06-6 Model: KRMC spatter cover 3 | Port A: Tube OD 6 mm | Port B: Accessory | Port A count: 6
KRMC-06-10 Model: KRMC spatter cover 3 | Port A: Tube OD 6 mm | Port B: Accessory | Port A count: 10
KRMC-08-6 Model: KRMC spatter cover 3 | Port A: Tube OD 8 mm | Port B: Accessory | Port A count: 6
KRMC-08-10 Model: KRMC spatter cover 3 | Port A: Tube OD 8 mm | Port B: Accessory | Port A count: 10
FittingsSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC KRM Flame-Resistant One-Touch Fitting Manifold

Brand SMC·Fittings

Available part numbers (12)

KRM11-06-10-6, KRM11-06-10-10, KRM11-08-12-6, KRM11-08-12-10, KRM12-06-02-6, KRM12-06-02-10, KRM12-08-03-6, KRM12-08-03-10, KRMC-06-6, KRMC-06-10 + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KRM11-06-10-6Model: KRM11 (one-touch both ends) | Port A: Tube OD 6 mm | Port B: Tube OD 10 mm | Port A count: 6
KRM11-06-10-10Model: KRM11 (one-touch both ends) | Port A: Tube OD 6 mm | Port B: Tube OD 10 mm | Port A count: 10
KRM11-08-12-6Model: KRM11 (one-touch both ends) | Port A: Tube OD 8 mm | Port B: Tube OD 12 mm | Port A count: 6
KRM11-08-12-10Model: KRM11 (one-touch both ends) | Port A: Tube OD 8 mm | Port B: Tube OD 12 mm | Port A count: 10
KRM12-06-02-6Model: KRM12 (Rc female supply) | Port A: Tube OD 6 mm | Port B: Rc1/4 female | Port A count: 6
KRM12-06-02-10Model: KRM12 (Rc female supply) | Port A: Tube OD 6 mm | Port B: Rc1/4 female | Port A count: 10
KRM12-08-03-6Model: KRM12 (Rc female supply) | Port A: Tube OD 8 mm | Port B: Rc3/8 female | Port A count: 6
KRM12-08-03-10Model: KRM12 (Rc female supply) | Port A: Tube OD 8 mm | Port B: Rc3/8 female | Port A count: 10
KRMC-06-6Model: KRMC spatter cover 3 | Port A: Tube OD 6 mm | Port B: Accessory | Port A count: 6
KRMC-06-10Model: KRMC spatter cover 3 | Port A: Tube OD 6 mm | Port B: Accessory | Port A count: 10
KRMC-08-6Model: KRMC spatter cover 3 | Port A: Tube OD 8 mm | Port B: Accessory | Port A count: 6
KRMC-08-10Model: KRMC spatter cover 3 | Port A: Tube OD 8 mm | Port B: Accessory | Port A count: 10
