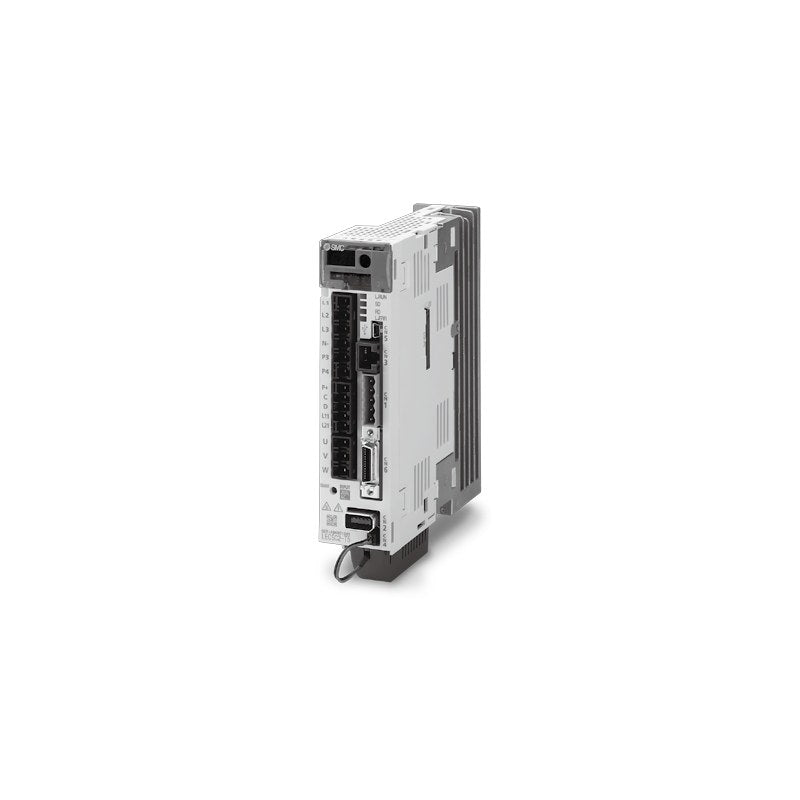

SMC LECYM/LECYU AC Servo Motor Driver (MECHATROLINK-II/III)

SMC LECYM/LECYU AC Servo Motor Driver (MECHATROLINK-II/III)

SMC LECYM (MECHATROLINK-II) and LECYU (MECHATROLINK-III) absolute encoder AC servo motor drivers for AC servo motor LE series electric actuators, with motor, encoder and network cables.

Key features

  • MECHATROLINK-II (LECYM) or MECHATROLINK-III (LECYU) network control: position, speed and torque control
  • Absolute 20-bit encoder (1,048,576 pulse/rotation); motors 100, 200 and 400 W
  • Motor cables LE-CYM/LE-CYB (with lock) and encoder cable LE-CYE with battery unit, standard or robot cable, 3 to 20 m
  • MECHATROLINK cables LEC-CYM-/LEC-CYU-, terminator LEC-CYRM, I/O connector LE-CYNA; I/O cable LEC-CSNA-1 (listed with LECS)
  • SigmaWin+ setup software (download) with USB cable LEC-JZ-CVUSB; replacement battery JZSP-BA01 from Yaskawa

Specifications

Motor AC servo motor 100 to 400 W
Main circuit power Three-phase AC200-230V 50/60Hz
Control power Single-phase AC200-230V 50/60Hz
Encoder Absolute 20-bit
Parallel I/O 7 inputs, 4 outputs (NPN/PNP)
Network MECHATROLINK-II (10 Mbps) / MECHATROLINK-III (100 Mbps)
Operating temperature 0 to 55°C (no freezing)
Operating humidity 90% RH or less (no condensation)
Source SMC Korea catalog AC servo drivers LECS/LECY (SMCKR_LECS_LECY.pdf), p. 1128-1137 (PDF p. 34-43)
LECYM2-V5 Item: Driver | Detail: MECHATROLINK-II | Motor: 100 W | Length: n/a
LECYM2-V7 Item: Driver | Detail: MECHATROLINK-II | Motor: 200 W | Length: n/a
LECYM2-V8 Item: Driver | Detail: MECHATROLINK-II | Motor: 400 W | Length: n/a
LECYU2-V5 Item: Driver | Detail: MECHATROLINK-III | Motor: 100 W | Length: n/a
LECYU2-V7 Item: Driver | Detail: MECHATROLINK-III | Motor: 200 W | Length: n/a
LECYU2-V8 Item: Driver | Detail: MECHATROLINK-III | Motor: 400 W | Length: n/a
LE-CYM-S3A-5 Item: Motor cable | Detail: standard cable | Motor: 100 W | Length: 3 m
LE-CYM-S3A-7 Item: Motor cable | Detail: standard cable | Motor: 200/400 W | Length: 3 m
LE-CYM-S5A-5 Item: Motor cable | Detail: standard cable | Motor: 100 W | Length: 5 m
LE-CYM-S5A-7 Item: Motor cable | Detail: standard cable | Motor: 200/400 W | Length: 5 m
LE-CYM-SAA-5 Item: Motor cable | Detail: standard cable | Motor: 100 W | Length: 10 m
LE-CYM-SAA-7 Item: Motor cable | Detail: standard cable | Motor: 200/400 W | Length: 10 m
LE-CYM-SCA-5 Item: Motor cable | Detail: standard cable | Motor: 100 W | Length: 20 m
LE-CYM-SCA-7 Item: Motor cable | Detail: standard cable | Motor: 200/400 W | Length: 20 m
LE-CYM-R3A-5 Item: Motor cable | Detail: robot cable | Motor: 100 W | Length: 3 m
LE-CYM-R3A-7 Item: Motor cable | Detail: robot cable | Motor: 200/400 W | Length: 3 m
LE-CYM-R5A-5 Item: Motor cable | Detail: robot cable | Motor: 100 W | Length: 5 m
LE-CYM-R5A-7 Item: Motor cable | Detail: robot cable | Motor: 200/400 W | Length: 5 m
LE-CYM-RAA-5 Item: Motor cable | Detail: robot cable | Motor: 100 W | Length: 10 m
LE-CYM-RAA-7 Item: Motor cable | Detail: robot cable | Motor: 200/400 W | Length: 10 m
LE-CYM-RCA-5 Item: Motor cable | Detail: robot cable | Motor: 100 W | Length: 20 m
LE-CYM-RCA-7 Item: Motor cable | Detail: robot cable | Motor: 200/400 W | Length: 20 m
LE-CYB-S3A-5 Item: Motor cable with lock | Detail: standard cable | Motor: 100 W | Length: 3 m
LE-CYB-S3A-7 Item: Motor cable with lock | Detail: standard cable | Motor: 200/400 W | Length: 3 m
LE-CYB-S5A-5 Item: Motor cable with lock | Detail: standard cable | Motor: 100 W | Length: 5 m
LE-CYB-S5A-7 Item: Motor cable with lock | Detail: standard cable | Motor: 200/400 W | Length: 5 m
LE-CYB-SAA-5 Item: Motor cable with lock | Detail: standard cable | Motor: 100 W | Length: 10 m
LE-CYB-SAA-7 Item: Motor cable with lock | Detail: standard cable | Motor: 200/400 W | Length: 10 m
LE-CYB-SCA-5 Item: Motor cable with lock | Detail: standard cable | Motor: 100 W | Length: 20 m
LE-CYB-SCA-7 Item: Motor cable with lock | Detail: standard cable | Motor: 200/400 W | Length: 20 m
LE-CYB-R3A-5 Item: Motor cable with lock | Detail: robot cable | Motor: 100 W | Length: 3 m
LE-CYB-R3A-7 Item: Motor cable with lock | Detail: robot cable | Motor: 200/400 W | Length: 3 m
LE-CYB-R5A-5 Item: Motor cable with lock | Detail: robot cable | Motor: 100 W | Length: 5 m
LE-CYB-R5A-7 Item: Motor cable with lock | Detail: robot cable | Motor: 200/400 W | Length: 5 m
LE-CYB-RAA-5 Item: Motor cable with lock | Detail: robot cable | Motor: 100 W | Length: 10 m
LE-CYB-RAA-7 Item: Motor cable with lock | Detail: robot cable | Motor: 200/400 W | Length: 10 m
LE-CYB-RCA-5 Item: Motor cable with lock | Detail: robot cable | Motor: 100 W | Length: 20 m
LE-CYB-RCA-7 Item: Motor cable with lock | Detail: robot cable | Motor: 200/400 W | Length: 20 m
LE-CYE-S3A Item: Encoder cable with battery unit | Detail: standard cable | Motor: All | Length: 3 m
LE-CYE-S5A Item: Encoder cable with battery unit | Detail: standard cable | Motor: All | Length: 5 m
LE-CYE-SAA Item: Encoder cable with battery unit | Detail: standard cable | Motor: All | Length: 10 m
LE-CYE-SCA Item: Encoder cable with battery unit | Detail: standard cable | Motor: All | Length: 20 m
LE-CYE-R3A Item: Encoder cable with battery unit | Detail: robot cable | Motor: All | Length: 3 m
LE-CYE-R5A Item: Encoder cable with battery unit | Detail: robot cable | Motor: All | Length: 5 m
LE-CYE-RAA Item: Encoder cable with battery unit | Detail: robot cable | Motor: All | Length: 10 m
LE-CYE-RCA Item: Encoder cable with battery unit | Detail: robot cable | Motor: All | Length: 20 m
LE-CYNA Item: I/O connector | Detail: Connector only, for LECYM2/LECYU2 | Motor: n/a | Length: n/a
LEC-CYM-J Item: MECHATROLINK cable | Detail: MECHATROLINK-II | Motor: n/a | Length: 0.5 m
LEC-CYM-1 Item: MECHATROLINK cable | Detail: MECHATROLINK-II | Motor: n/a | Length: 1 m
LEC-CYM-3 Item: MECHATROLINK cable | Detail: MECHATROLINK-II | Motor: n/a | Length: 3 m
LEC-CYU-L Item: MECHATROLINK cable | Detail: MECHATROLINK-III | Motor: n/a | Length: 0.2 m
LEC-CYU-J Item: MECHATROLINK cable | Detail: MECHATROLINK-III | Motor: n/a | Length: 0.5 m
LEC-CYU-1 Item: MECHATROLINK cable | Detail: MECHATROLINK-III | Motor: n/a | Length: 1 m
LEC-CYU-3 Item: MECHATROLINK cable | Detail: MECHATROLINK-III | Motor: n/a | Length: 3 m
LEC-CYRM Item: Terminating connector | Detail: MECHATROLINK-II | Motor: n/a | Length: n/a
LEC-JZ-CVUSB Item: USB cable | Detail: For SigmaWin+ setup software | Motor: n/a | Length: 2.5 m
LEC-JZ-CVSAF Item: Safety connection cable | Detail: For safety function | Motor: n/a | Length: 3 m
