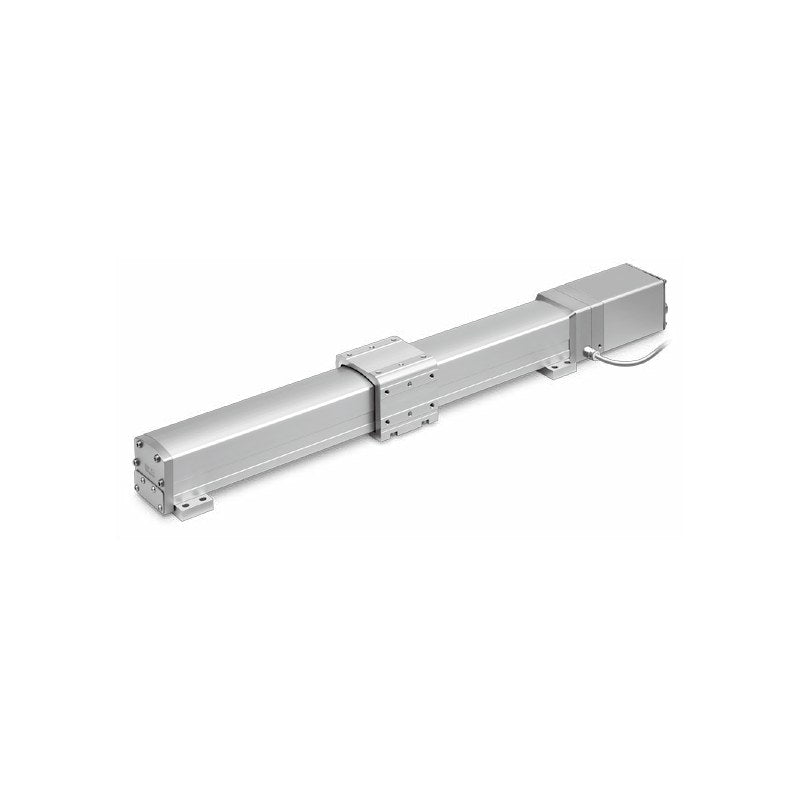

SMC LEFSW Electric Slider, Dust/Drip Proof IP65 (16/25/32/40)

SMC LEFSW Electric Slider, Dust/Drip Proof IP65 (16/25/32/40)

SMC LEFSW slider-type electric actuator in dust-tight/drip-proof (IP65 equivalent) design with battery-less absolute step motor (DC24V), sizes 16 to 40.

Key features

  • Special wear-resistant seal band mounted on the bottom side reduces dust and water ingress; purge air port
  • IP65-equivalent motor section with aluminium cover and detachable metal connectors (actuator body has an opening)
  • Max. payload 65 kg (size 40, lead 10) and max. stroke 1200 mm (size 40); table mountable from 4 sides
  • Robot actuator cable (R1/R3/R5, R8/RA/RB/RC made to order) ordered as suffix; listed codes are without cable
  • Controller JXC series (Parallel NPN/PNP, EtherCAT, EtherNet/IP, PROFINET, DeviceNet, IO-Link, CC-Link, STO types) ordered as C suffix; listed codes are without controller

Specifications

Motor Battery-less absolute step motor DC24V
Drive Ball screw
Guide Linear guide
Enclosure IP65 equivalent (motor section)
Installation Horizontal only
Horizontal payload (by lead) LEFSW16 14/15; 25 8/25/30; 32 18/40/50; 40 20/55/65 kg
Max. acceleration/deceleration 3000 mm/s²
Repeatability ±0.02 mm
Purge air flow 20 L/min (ANR); plug KQ2P-06 if unused
Operating temperature 5 to 40°C
Power supply DC24V ±10%
Source SMC Korea catalog CAT.KS100-163A (SMCKR_LEFSW.pdf), p. 11-13
LEFSW16EA-50 Size: 16 | Lead: 10 mm | Stroke: 50 mm | Mounting: Floor mounting
LEFSW16EA-50G Size: 16 | Lead: 10 mm | Stroke: 50 mm | Mounting: Wall mounting
LEFSW16EA-50J Size: 16 | Lead: 10 mm | Stroke: 50 mm | Mounting: Ceiling mounting
LEFSW16EA-100 Size: 16 | Lead: 10 mm | Stroke: 100 mm | Mounting: Floor mounting
LEFSW16EA-100G Size: 16 | Lead: 10 mm | Stroke: 100 mm | Mounting: Wall mounting
LEFSW16EA-100J Size: 16 | Lead: 10 mm | Stroke: 100 mm | Mounting: Ceiling mounting
LEFSW16EA-150 Size: 16 | Lead: 10 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW16EA-150G Size: 16 | Lead: 10 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW16EA-150J Size: 16 | Lead: 10 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW16EA-200 Size: 16 | Lead: 10 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW16EA-200G Size: 16 | Lead: 10 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW16EA-200J Size: 16 | Lead: 10 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW16EA-250 Size: 16 | Lead: 10 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW16EA-250G Size: 16 | Lead: 10 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW16EA-250J Size: 16 | Lead: 10 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW16EA-300 Size: 16 | Lead: 10 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW16EA-300G Size: 16 | Lead: 10 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW16EA-300J Size: 16 | Lead: 10 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW16EA-350 Size: 16 | Lead: 10 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW16EA-350G Size: 16 | Lead: 10 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW16EA-350J Size: 16 | Lead: 10 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW16EA-400 Size: 16 | Lead: 10 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW16EA-400G Size: 16 | Lead: 10 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW16EA-400J Size: 16 | Lead: 10 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW16EA-450 Size: 16 | Lead: 10 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW16EA-450G Size: 16 | Lead: 10 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW16EA-450J Size: 16 | Lead: 10 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW16EA-500 Size: 16 | Lead: 10 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW16EA-500G Size: 16 | Lead: 10 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW16EA-500J Size: 16 | Lead: 10 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW16EB-50 Size: 16 | Lead: 5 mm | Stroke: 50 mm | Mounting: Floor mounting
LEFSW16EB-50G Size: 16 | Lead: 5 mm | Stroke: 50 mm | Mounting: Wall mounting
LEFSW16EB-50J Size: 16 | Lead: 5 mm | Stroke: 50 mm | Mounting: Ceiling mounting
LEFSW16EB-100 Size: 16 | Lead: 5 mm | Stroke: 100 mm | Mounting: Floor mounting
LEFSW16EB-100G Size: 16 | Lead: 5 mm | Stroke: 100 mm | Mounting: Wall mounting
LEFSW16EB-100J Size: 16 | Lead: 5 mm | Stroke: 100 mm | Mounting: Ceiling mounting
LEFSW16EB-150 Size: 16 | Lead: 5 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW16EB-150G Size: 16 | Lead: 5 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW16EB-150J Size: 16 | Lead: 5 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW16EB-200 Size: 16 | Lead: 5 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW16EB-200G Size: 16 | Lead: 5 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW16EB-200J Size: 16 | Lead: 5 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW16EB-250 Size: 16 | Lead: 5 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW16EB-250G Size: 16 | Lead: 5 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW16EB-250J Size: 16 | Lead: 5 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW16EB-300 Size: 16 | Lead: 5 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW16EB-300G Size: 16 | Lead: 5 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW16EB-300J Size: 16 | Lead: 5 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW16EB-350 Size: 16 | Lead: 5 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW16EB-350G Size: 16 | Lead: 5 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW16EB-350J Size: 16 | Lead: 5 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW16EB-400 Size: 16 | Lead: 5 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW16EB-400G Size: 16 | Lead: 5 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW16EB-400J Size: 16 | Lead: 5 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW16EB-450 Size: 16 | Lead: 5 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW16EB-450G Size: 16 | Lead: 5 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW16EB-450J Size: 16 | Lead: 5 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW16EB-500 Size: 16 | Lead: 5 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW16EB-500G Size: 16 | Lead: 5 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW16EB-500J Size: 16 | Lead: 5 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW25EH-50 Size: 25 | Lead: 20 mm | Stroke: 50 mm | Mounting: Floor mounting
LEFSW25EH-50G Size: 25 | Lead: 20 mm | Stroke: 50 mm | Mounting: Wall mounting
LEFSW25EH-50J Size: 25 | Lead: 20 mm | Stroke: 50 mm | Mounting: Ceiling mounting
LEFSW25EH-100 Size: 25 | Lead: 20 mm | Stroke: 100 mm | Mounting: Floor mounting
LEFSW25EH-100G Size: 25 | Lead: 20 mm | Stroke: 100 mm | Mounting: Wall mounting
LEFSW25EH-100J Size: 25 | Lead: 20 mm | Stroke: 100 mm | Mounting: Ceiling mounting
LEFSW25EH-150 Size: 25 | Lead: 20 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW25EH-150G Size: 25 | Lead: 20 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW25EH-150J Size: 25 | Lead: 20 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW25EH-200 Size: 25 | Lead: 20 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW25EH-200G Size: 25 | Lead: 20 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW25EH-200J Size: 25 | Lead: 20 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW25EH-250 Size: 25 | Lead: 20 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW25EH-250G Size: 25 | Lead: 20 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW25EH-250J Size: 25 | Lead: 20 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW25EH-300 Size: 25 | Lead: 20 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW25EH-300G Size: 25 | Lead: 20 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW25EH-300J Size: 25 | Lead: 20 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW25EH-350 Size: 25 | Lead: 20 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW25EH-350G Size: 25 | Lead: 20 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW25EH-350J Size: 25 | Lead: 20 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW25EH-400 Size: 25 | Lead: 20 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW25EH-400G Size: 25 | Lead: 20 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW25EH-400J Size: 25 | Lead: 20 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW25EH-450 Size: 25 | Lead: 20 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW25EH-450G Size: 25 | Lead: 20 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW25EH-450J Size: 25 | Lead: 20 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW25EH-500 Size: 25 | Lead: 20 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW25EH-500G Size: 25 | Lead: 20 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW25EH-500J Size: 25 | Lead: 20 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW25EH-550 Size: 25 | Lead: 20 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW25EH-550G Size: 25 | Lead: 20 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW25EH-550J Size: 25 | Lead: 20 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW25EH-600 Size: 25 | Lead: 20 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW25EH-600G Size: 25 | Lead: 20 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW25EH-600J Size: 25 | Lead: 20 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW25EH-650 Size: 25 | Lead: 20 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW25EH-650G Size: 25 | Lead: 20 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW25EH-650J Size: 25 | Lead: 20 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW25EH-700 Size: 25 | Lead: 20 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW25EH-700G Size: 25 | Lead: 20 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW25EH-700J Size: 25 | Lead: 20 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW25EH-750 Size: 25 | Lead: 20 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW25EH-750G Size: 25 | Lead: 20 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW25EH-750J Size: 25 | Lead: 20 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW25EH-800 Size: 25 | Lead: 20 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW25EH-800G Size: 25 | Lead: 20 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW25EH-800J Size: 25 | Lead: 20 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW25EA-50 Size: 25 | Lead: 12 mm | Stroke: 50 mm | Mounting: Floor mounting
LEFSW25EA-50G Size: 25 | Lead: 12 mm | Stroke: 50 mm | Mounting: Wall mounting
LEFSW25EA-50J Size: 25 | Lead: 12 mm | Stroke: 50 mm | Mounting: Ceiling mounting
LEFSW25EA-100 Size: 25 | Lead: 12 mm | Stroke: 100 mm | Mounting: Floor mounting
LEFSW25EA-100G Size: 25 | Lead: 12 mm | Stroke: 100 mm | Mounting: Wall mounting
LEFSW25EA-100J Size: 25 | Lead: 12 mm | Stroke: 100 mm | Mounting: Ceiling mounting
LEFSW25EA-150 Size: 25 | Lead: 12 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW25EA-150G Size: 25 | Lead: 12 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW25EA-150J Size: 25 | Lead: 12 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW25EA-200 Size: 25 | Lead: 12 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW25EA-200G Size: 25 | Lead: 12 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW25EA-200J Size: 25 | Lead: 12 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW25EA-250 Size: 25 | Lead: 12 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW25EA-250G Size: 25 | Lead: 12 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW25EA-250J Size: 25 | Lead: 12 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW25EA-300 Size: 25 | Lead: 12 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW25EA-300G Size: 25 | Lead: 12 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW25EA-300J Size: 25 | Lead: 12 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW25EA-350 Size: 25 | Lead: 12 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW25EA-350G Size: 25 | Lead: 12 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW25EA-350J Size: 25 | Lead: 12 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW25EA-400 Size: 25 | Lead: 12 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW25EA-400G Size: 25 | Lead: 12 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW25EA-400J Size: 25 | Lead: 12 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW25EA-450 Size: 25 | Lead: 12 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW25EA-450G Size: 25 | Lead: 12 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW25EA-450J Size: 25 | Lead: 12 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW25EA-500 Size: 25 | Lead: 12 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW25EA-500G Size: 25 | Lead: 12 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW25EA-500J Size: 25 | Lead: 12 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW25EA-550 Size: 25 | Lead: 12 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW25EA-550G Size: 25 | Lead: 12 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW25EA-550J Size: 25 | Lead: 12 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW25EA-600 Size: 25 | Lead: 12 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW25EA-600G Size: 25 | Lead: 12 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW25EA-600J Size: 25 | Lead: 12 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW25EA-650 Size: 25 | Lead: 12 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW25EA-650G Size: 25 | Lead: 12 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW25EA-650J Size: 25 | Lead: 12 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW25EA-700 Size: 25 | Lead: 12 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW25EA-700G Size: 25 | Lead: 12 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW25EA-700J Size: 25 | Lead: 12 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW25EA-750 Size: 25 | Lead: 12 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW25EA-750G Size: 25 | Lead: 12 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW25EA-750J Size: 25 | Lead: 12 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW25EA-800 Size: 25 | Lead: 12 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW25EA-800G Size: 25 | Lead: 12 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW25EA-800J Size: 25 | Lead: 12 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW25EB-50 Size: 25 | Lead: 6 mm | Stroke: 50 mm | Mounting: Floor mounting
LEFSW25EB-50G Size: 25 | Lead: 6 mm | Stroke: 50 mm | Mounting: Wall mounting
LEFSW25EB-50J Size: 25 | Lead: 6 mm | Stroke: 50 mm | Mounting: Ceiling mounting
LEFSW25EB-100 Size: 25 | Lead: 6 mm | Stroke: 100 mm | Mounting: Floor mounting
LEFSW25EB-100G Size: 25 | Lead: 6 mm | Stroke: 100 mm | Mounting: Wall mounting
LEFSW25EB-100J Size: 25 | Lead: 6 mm | Stroke: 100 mm | Mounting: Ceiling mounting
LEFSW25EB-150 Size: 25 | Lead: 6 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW25EB-150G Size: 25 | Lead: 6 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW25EB-150J Size: 25 | Lead: 6 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW25EB-200 Size: 25 | Lead: 6 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW25EB-200G Size: 25 | Lead: 6 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW25EB-200J Size: 25 | Lead: 6 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW25EB-250 Size: 25 | Lead: 6 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW25EB-250G Size: 25 | Lead: 6 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW25EB-250J Size: 25 | Lead: 6 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW25EB-300 Size: 25 | Lead: 6 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW25EB-300G Size: 25 | Lead: 6 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW25EB-300J Size: 25 | Lead: 6 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW25EB-350 Size: 25 | Lead: 6 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW25EB-350G Size: 25 | Lead: 6 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW25EB-350J Size: 25 | Lead: 6 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW25EB-400 Size: 25 | Lead: 6 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW25EB-400G Size: 25 | Lead: 6 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW25EB-400J Size: 25 | Lead: 6 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW25EB-450 Size: 25 | Lead: 6 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW25EB-450G Size: 25 | Lead: 6 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW25EB-450J Size: 25 | Lead: 6 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW25EB-500 Size: 25 | Lead: 6 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW25EB-500G Size: 25 | Lead: 6 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW25EB-500J Size: 25 | Lead: 6 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW25EB-550 Size: 25 | Lead: 6 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW25EB-550G Size: 25 | Lead: 6 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW25EB-550J Size: 25 | Lead: 6 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW25EB-600 Size: 25 | Lead: 6 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW25EB-600G Size: 25 | Lead: 6 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW25EB-600J Size: 25 | Lead: 6 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW25EB-650 Size: 25 | Lead: 6 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW25EB-650G Size: 25 | Lead: 6 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW25EB-650J Size: 25 | Lead: 6 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW25EB-700 Size: 25 | Lead: 6 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW25EB-700G Size: 25 | Lead: 6 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW25EB-700J Size: 25 | Lead: 6 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW25EB-750 Size: 25 | Lead: 6 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW25EB-750G Size: 25 | Lead: 6 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW25EB-750J Size: 25 | Lead: 6 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW25EB-800 Size: 25 | Lead: 6 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW25EB-800G Size: 25 | Lead: 6 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW25EB-800J Size: 25 | Lead: 6 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW32EH-50 Size: 32 | Lead: 24 mm | Stroke: 50 mm | Mounting: Floor mounting
LEFSW32EH-50G Size: 32 | Lead: 24 mm | Stroke: 50 mm | Mounting: Wall mounting
LEFSW32EH-50J Size: 32 | Lead: 24 mm | Stroke: 50 mm | Mounting: Ceiling mounting
LEFSW32EH-100 Size: 32 | Lead: 24 mm | Stroke: 100 mm | Mounting: Floor mounting
LEFSW32EH-100G Size: 32 | Lead: 24 mm | Stroke: 100 mm | Mounting: Wall mounting
LEFSW32EH-100J Size: 32 | Lead: 24 mm | Stroke: 100 mm | Mounting: Ceiling mounting
LEFSW32EH-150 Size: 32 | Lead: 24 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW32EH-150G Size: 32 | Lead: 24 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW32EH-150J Size: 32 | Lead: 24 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW32EH-200 Size: 32 | Lead: 24 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW32EH-200G Size: 32 | Lead: 24 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW32EH-200J Size: 32 | Lead: 24 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW32EH-250 Size: 32 | Lead: 24 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW32EH-250G Size: 32 | Lead: 24 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW32EH-250J Size: 32 | Lead: 24 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW32EH-300 Size: 32 | Lead: 24 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW32EH-300G Size: 32 | Lead: 24 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW32EH-300J Size: 32 | Lead: 24 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW32EH-350 Size: 32 | Lead: 24 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW32EH-350G Size: 32 | Lead: 24 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW32EH-350J Size: 32 | Lead: 24 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW32EH-400 Size: 32 | Lead: 24 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW32EH-400G Size: 32 | Lead: 24 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW32EH-400J Size: 32 | Lead: 24 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW32EH-450 Size: 32 | Lead: 24 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW32EH-450G Size: 32 | Lead: 24 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW32EH-450J Size: 32 | Lead: 24 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW32EH-500 Size: 32 | Lead: 24 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW32EH-500G Size: 32 | Lead: 24 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW32EH-500J Size: 32 | Lead: 24 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW32EH-550 Size: 32 | Lead: 24 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW32EH-550G Size: 32 | Lead: 24 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW32EH-550J Size: 32 | Lead: 24 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW32EH-600 Size: 32 | Lead: 24 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW32EH-600G Size: 32 | Lead: 24 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW32EH-600J Size: 32 | Lead: 24 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW32EH-650 Size: 32 | Lead: 24 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW32EH-650G Size: 32 | Lead: 24 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW32EH-650J Size: 32 | Lead: 24 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW32EH-700 Size: 32 | Lead: 24 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW32EH-700G Size: 32 | Lead: 24 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW32EH-700J Size: 32 | Lead: 24 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW32EH-750 Size: 32 | Lead: 24 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW32EH-750G Size: 32 | Lead: 24 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW32EH-750J Size: 32 | Lead: 24 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW32EH-800 Size: 32 | Lead: 24 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW32EH-800G Size: 32 | Lead: 24 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW32EH-800J Size: 32 | Lead: 24 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW32EH-850 Size: 32 | Lead: 24 mm | Stroke: 850 mm | Mounting: Floor mounting
LEFSW32EH-850G Size: 32 | Lead: 24 mm | Stroke: 850 mm | Mounting: Wall mounting
LEFSW32EH-850J Size: 32 | Lead: 24 mm | Stroke: 850 mm | Mounting: Ceiling mounting
LEFSW32EH-900 Size: 32 | Lead: 24 mm | Stroke: 900 mm | Mounting: Floor mounting
LEFSW32EH-900G Size: 32 | Lead: 24 mm | Stroke: 900 mm | Mounting: Wall mounting
LEFSW32EH-900J Size: 32 | Lead: 24 mm | Stroke: 900 mm | Mounting: Ceiling mounting
LEFSW32EH-950 Size: 32 | Lead: 24 mm | Stroke: 950 mm | Mounting: Floor mounting
LEFSW32EH-950G Size: 32 | Lead: 24 mm | Stroke: 950 mm | Mounting: Wall mounting
LEFSW32EH-950J Size: 32 | Lead: 24 mm | Stroke: 950 mm | Mounting: Ceiling mounting
LEFSW32EH-1000 Size: 32 | Lead: 24 mm | Stroke: 1000 mm | Mounting: Floor mounting
LEFSW32EH-1000G Size: 32 | Lead: 24 mm | Stroke: 1000 mm | Mounting: Wall mounting
LEFSW32EH-1000J Size: 32 | Lead: 24 mm | Stroke: 1000 mm | Mounting: Ceiling mounting
LEFSW32EA-50 Size: 32 | Lead: 16 mm | Stroke: 50 mm | Mounting: Floor mounting
LEFSW32EA-50G Size: 32 | Lead: 16 mm | Stroke: 50 mm | Mounting: Wall mounting
LEFSW32EA-50J Size: 32 | Lead: 16 mm | Stroke: 50 mm | Mounting: Ceiling mounting
LEFSW32EA-100 Size: 32 | Lead: 16 mm | Stroke: 100 mm | Mounting: Floor mounting
LEFSW32EA-100G Size: 32 | Lead: 16 mm | Stroke: 100 mm | Mounting: Wall mounting
LEFSW32EA-100J Size: 32 | Lead: 16 mm | Stroke: 100 mm | Mounting: Ceiling mounting
LEFSW32EA-150 Size: 32 | Lead: 16 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW32EA-150G Size: 32 | Lead: 16 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW32EA-150J Size: 32 | Lead: 16 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW32EA-200 Size: 32 | Lead: 16 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW32EA-200G Size: 32 | Lead: 16 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW32EA-200J Size: 32 | Lead: 16 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW32EA-250 Size: 32 | Lead: 16 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW32EA-250G Size: 32 | Lead: 16 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW32EA-250J Size: 32 | Lead: 16 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW32EA-300 Size: 32 | Lead: 16 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW32EA-300G Size: 32 | Lead: 16 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW32EA-300J Size: 32 | Lead: 16 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW32EA-350 Size: 32 | Lead: 16 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW32EA-350G Size: 32 | Lead: 16 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW32EA-350J Size: 32 | Lead: 16 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW32EA-400 Size: 32 | Lead: 16 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW32EA-400G Size: 32 | Lead: 16 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW32EA-400J Size: 32 | Lead: 16 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW32EA-450 Size: 32 | Lead: 16 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW32EA-450G Size: 32 | Lead: 16 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW32EA-450J Size: 32 | Lead: 16 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW32EA-500 Size: 32 | Lead: 16 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW32EA-500G Size: 32 | Lead: 16 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW32EA-500J Size: 32 | Lead: 16 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW32EA-550 Size: 32 | Lead: 16 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW32EA-550G Size: 32 | Lead: 16 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW32EA-550J Size: 32 | Lead: 16 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW32EA-600 Size: 32 | Lead: 16 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW32EA-600G Size: 32 | Lead: 16 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW32EA-600J Size: 32 | Lead: 16 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW32EA-650 Size: 32 | Lead: 16 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW32EA-650G Size: 32 | Lead: 16 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW32EA-650J Size: 32 | Lead: 16 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW32EA-700 Size: 32 | Lead: 16 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW32EA-700G Size: 32 | Lead: 16 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW32EA-700J Size: 32 | Lead: 16 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW32EA-750 Size: 32 | Lead: 16 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW32EA-750G Size: 32 | Lead: 16 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW32EA-750J Size: 32 | Lead: 16 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW32EA-800 Size: 32 | Lead: 16 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW32EA-800G Size: 32 | Lead: 16 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW32EA-800J Size: 32 | Lead: 16 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW32EA-850 Size: 32 | Lead: 16 mm | Stroke: 850 mm | Mounting: Floor mounting
LEFSW32EA-850G Size: 32 | Lead: 16 mm | Stroke: 850 mm | Mounting: Wall mounting
LEFSW32EA-850J Size: 32 | Lead: 16 mm | Stroke: 850 mm | Mounting: Ceiling mounting
LEFSW32EA-900 Size: 32 | Lead: 16 mm | Stroke: 900 mm | Mounting: Floor mounting
LEFSW32EA-900G Size: 32 | Lead: 16 mm | Stroke: 900 mm | Mounting: Wall mounting
LEFSW32EA-900J Size: 32 | Lead: 16 mm | Stroke: 900 mm | Mounting: Ceiling mounting
LEFSW32EA-950 Size: 32 | Lead: 16 mm | Stroke: 950 mm | Mounting: Floor mounting
LEFSW32EA-950G Size: 32 | Lead: 16 mm | Stroke: 950 mm | Mounting: Wall mounting
LEFSW32EA-950J Size: 32 | Lead: 16 mm | Stroke: 950 mm | Mounting: Ceiling mounting
LEFSW32EA-1000 Size: 32 | Lead: 16 mm | Stroke: 1000 mm | Mounting: Floor mounting
LEFSW32EA-1000G Size: 32 | Lead: 16 mm | Stroke: 1000 mm | Mounting: Wall mounting
LEFSW32EA-1000J Size: 32 | Lead: 16 mm | Stroke: 1000 mm | Mounting: Ceiling mounting
LEFSW32EB-50 Size: 32 | Lead: 8 mm | Stroke: 50 mm | Mounting: Floor mounting
LEFSW32EB-50G Size: 32 | Lead: 8 mm | Stroke: 50 mm | Mounting: Wall mounting
LEFSW32EB-50J Size: 32 | Lead: 8 mm | Stroke: 50 mm | Mounting: Ceiling mounting
LEFSW32EB-100 Size: 32 | Lead: 8 mm | Stroke: 100 mm | Mounting: Floor mounting
LEFSW32EB-100G Size: 32 | Lead: 8 mm | Stroke: 100 mm | Mounting: Wall mounting
LEFSW32EB-100J Size: 32 | Lead: 8 mm | Stroke: 100 mm | Mounting: Ceiling mounting
LEFSW32EB-150 Size: 32 | Lead: 8 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW32EB-150G Size: 32 | Lead: 8 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW32EB-150J Size: 32 | Lead: 8 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW32EB-200 Size: 32 | Lead: 8 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW32EB-200G Size: 32 | Lead: 8 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW32EB-200J Size: 32 | Lead: 8 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW32EB-250 Size: 32 | Lead: 8 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW32EB-250G Size: 32 | Lead: 8 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW32EB-250J Size: 32 | Lead: 8 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW32EB-300 Size: 32 | Lead: 8 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW32EB-300G Size: 32 | Lead: 8 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW32EB-300J Size: 32 | Lead: 8 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW32EB-350 Size: 32 | Lead: 8 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW32EB-350G Size: 32 | Lead: 8 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW32EB-350J Size: 32 | Lead: 8 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW32EB-400 Size: 32 | Lead: 8 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW32EB-400G Size: 32 | Lead: 8 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW32EB-400J Size: 32 | Lead: 8 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW32EB-450 Size: 32 | Lead: 8 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW32EB-450G Size: 32 | Lead: 8 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW32EB-450J Size: 32 | Lead: 8 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW32EB-500 Size: 32 | Lead: 8 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW32EB-500G Size: 32 | Lead: 8 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW32EB-500J Size: 32 | Lead: 8 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW32EB-550 Size: 32 | Lead: 8 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW32EB-550G Size: 32 | Lead: 8 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW32EB-550J Size: 32 | Lead: 8 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW32EB-600 Size: 32 | Lead: 8 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW32EB-600G Size: 32 | Lead: 8 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW32EB-600J Size: 32 | Lead: 8 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW32EB-650 Size: 32 | Lead: 8 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW32EB-650G Size: 32 | Lead: 8 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW32EB-650J Size: 32 | Lead: 8 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW32EB-700 Size: 32 | Lead: 8 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW32EB-700G Size: 32 | Lead: 8 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW32EB-700J Size: 32 | Lead: 8 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW32EB-750 Size: 32 | Lead: 8 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW32EB-750G Size: 32 | Lead: 8 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW32EB-750J Size: 32 | Lead: 8 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW32EB-800 Size: 32 | Lead: 8 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW32EB-800G Size: 32 | Lead: 8 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW32EB-800J Size: 32 | Lead: 8 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW32EB-850 Size: 32 | Lead: 8 mm | Stroke: 850 mm | Mounting: Floor mounting
LEFSW32EB-850G Size: 32 | Lead: 8 mm | Stroke: 850 mm | Mounting: Wall mounting
LEFSW32EB-850J Size: 32 | Lead: 8 mm | Stroke: 850 mm | Mounting: Ceiling mounting
LEFSW32EB-900 Size: 32 | Lead: 8 mm | Stroke: 900 mm | Mounting: Floor mounting
LEFSW32EB-900G Size: 32 | Lead: 8 mm | Stroke: 900 mm | Mounting: Wall mounting
LEFSW32EB-900J Size: 32 | Lead: 8 mm | Stroke: 900 mm | Mounting: Ceiling mounting
LEFSW32EB-950 Size: 32 | Lead: 8 mm | Stroke: 950 mm | Mounting: Floor mounting
LEFSW32EB-950G Size: 32 | Lead: 8 mm | Stroke: 950 mm | Mounting: Wall mounting
LEFSW32EB-950J Size: 32 | Lead: 8 mm | Stroke: 950 mm | Mounting: Ceiling mounting
LEFSW32EB-1000 Size: 32 | Lead: 8 mm | Stroke: 1000 mm | Mounting: Floor mounting
LEFSW32EB-1000G Size: 32 | Lead: 8 mm | Stroke: 1000 mm | Mounting: Wall mounting
LEFSW32EB-1000J Size: 32 | Lead: 8 mm | Stroke: 1000 mm | Mounting: Ceiling mounting
LEFSW40EH-150 Size: 40 | Lead: 30 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW40EH-150G Size: 40 | Lead: 30 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW40EH-150J Size: 40 | Lead: 30 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW40EH-200 Size: 40 | Lead: 30 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW40EH-200G Size: 40 | Lead: 30 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW40EH-200J Size: 40 | Lead: 30 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW40EH-250 Size: 40 | Lead: 30 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW40EH-250G Size: 40 | Lead: 30 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW40EH-250J Size: 40 | Lead: 30 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW40EH-300 Size: 40 | Lead: 30 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW40EH-300G Size: 40 | Lead: 30 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW40EH-300J Size: 40 | Lead: 30 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW40EH-350 Size: 40 | Lead: 30 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW40EH-350G Size: 40 | Lead: 30 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW40EH-350J Size: 40 | Lead: 30 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW40EH-400 Size: 40 | Lead: 30 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW40EH-400G Size: 40 | Lead: 30 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW40EH-400J Size: 40 | Lead: 30 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW40EH-450 Size: 40 | Lead: 30 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW40EH-450G Size: 40 | Lead: 30 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW40EH-450J Size: 40 | Lead: 30 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW40EH-500 Size: 40 | Lead: 30 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW40EH-500G Size: 40 | Lead: 30 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW40EH-500J Size: 40 | Lead: 30 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW40EH-550 Size: 40 | Lead: 30 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW40EH-550G Size: 40 | Lead: 30 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW40EH-550J Size: 40 | Lead: 30 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW40EH-600 Size: 40 | Lead: 30 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW40EH-600G Size: 40 | Lead: 30 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW40EH-600J Size: 40 | Lead: 30 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW40EH-650 Size: 40 | Lead: 30 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW40EH-650G Size: 40 | Lead: 30 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW40EH-650J Size: 40 | Lead: 30 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW40EH-700 Size: 40 | Lead: 30 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW40EH-700G Size: 40 | Lead: 30 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW40EH-700J Size: 40 | Lead: 30 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW40EH-750 Size: 40 | Lead: 30 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW40EH-750G Size: 40 | Lead: 30 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW40EH-750J Size: 40 | Lead: 30 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW40EH-800 Size: 40 | Lead: 30 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW40EH-800G Size: 40 | Lead: 30 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW40EH-800J Size: 40 | Lead: 30 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW40EH-850 Size: 40 | Lead: 30 mm | Stroke: 850 mm | Mounting: Floor mounting
LEFSW40EH-850G Size: 40 | Lead: 30 mm | Stroke: 850 mm | Mounting: Wall mounting
LEFSW40EH-850J Size: 40 | Lead: 30 mm | Stroke: 850 mm | Mounting: Ceiling mounting
LEFSW40EH-900 Size: 40 | Lead: 30 mm | Stroke: 900 mm | Mounting: Floor mounting
LEFSW40EH-900G Size: 40 | Lead: 30 mm | Stroke: 900 mm | Mounting: Wall mounting
LEFSW40EH-900J Size: 40 | Lead: 30 mm | Stroke: 900 mm | Mounting: Ceiling mounting
LEFSW40EH-950 Size: 40 | Lead: 30 mm | Stroke: 950 mm | Mounting: Floor mounting
LEFSW40EH-950G Size: 40 | Lead: 30 mm | Stroke: 950 mm | Mounting: Wall mounting
LEFSW40EH-950J Size: 40 | Lead: 30 mm | Stroke: 950 mm | Mounting: Ceiling mounting
LEFSW40EH-1000 Size: 40 | Lead: 30 mm | Stroke: 1000 mm | Mounting: Floor mounting
LEFSW40EH-1000G Size: 40 | Lead: 30 mm | Stroke: 1000 mm | Mounting: Wall mounting
LEFSW40EH-1000J Size: 40 | Lead: 30 mm | Stroke: 1000 mm | Mounting: Ceiling mounting
LEFSW40EH-1100 Size: 40 | Lead: 30 mm | Stroke: 1100 mm | Mounting: Floor mounting
LEFSW40EH-1100G Size: 40 | Lead: 30 mm | Stroke: 1100 mm | Mounting: Wall mounting
LEFSW40EH-1100J Size: 40 | Lead: 30 mm | Stroke: 1100 mm | Mounting: Ceiling mounting
LEFSW40EH-1200 Size: 40 | Lead: 30 mm | Stroke: 1200 mm | Mounting: Floor mounting
LEFSW40EH-1200G Size: 40 | Lead: 30 mm | Stroke: 1200 mm | Mounting: Wall mounting
LEFSW40EH-1200J Size: 40 | Lead: 30 mm | Stroke: 1200 mm | Mounting: Ceiling mounting
LEFSW40EA-150 Size: 40 | Lead: 20 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW40EA-150G Size: 40 | Lead: 20 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW40EA-150J Size: 40 | Lead: 20 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW40EA-200 Size: 40 | Lead: 20 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW40EA-200G Size: 40 | Lead: 20 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW40EA-200J Size: 40 | Lead: 20 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW40EA-250 Size: 40 | Lead: 20 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW40EA-250G Size: 40 | Lead: 20 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW40EA-250J Size: 40 | Lead: 20 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW40EA-300 Size: 40 | Lead: 20 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW40EA-300G Size: 40 | Lead: 20 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW40EA-300J Size: 40 | Lead: 20 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW40EA-350 Size: 40 | Lead: 20 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW40EA-350G Size: 40 | Lead: 20 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW40EA-350J Size: 40 | Lead: 20 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW40EA-400 Size: 40 | Lead: 20 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW40EA-400G Size: 40 | Lead: 20 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW40EA-400J Size: 40 | Lead: 20 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW40EA-450 Size: 40 | Lead: 20 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW40EA-450G Size: 40 | Lead: 20 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW40EA-450J Size: 40 | Lead: 20 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW40EA-500 Size: 40 | Lead: 20 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW40EA-500G Size: 40 | Lead: 20 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW40EA-500J Size: 40 | Lead: 20 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW40EA-550 Size: 40 | Lead: 20 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW40EA-550G Size: 40 | Lead: 20 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW40EA-550J Size: 40 | Lead: 20 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW40EA-600 Size: 40 | Lead: 20 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW40EA-600G Size: 40 | Lead: 20 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW40EA-600J Size: 40 | Lead: 20 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW40EA-650 Size: 40 | Lead: 20 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW40EA-650G Size: 40 | Lead: 20 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW40EA-650J Size: 40 | Lead: 20 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW40EA-700 Size: 40 | Lead: 20 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW40EA-700G Size: 40 | Lead: 20 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW40EA-700J Size: 40 | Lead: 20 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW40EA-750 Size: 40 | Lead: 20 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW40EA-750G Size: 40 | Lead: 20 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW40EA-750J Size: 40 | Lead: 20 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW40EA-800 Size: 40 | Lead: 20 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW40EA-800G Size: 40 | Lead: 20 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW40EA-800J Size: 40 | Lead: 20 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW40EA-850 Size: 40 | Lead: 20 mm | Stroke: 850 mm | Mounting: Floor mounting
LEFSW40EA-850G Size: 40 | Lead: 20 mm | Stroke: 850 mm | Mounting: Wall mounting
LEFSW40EA-850J Size: 40 | Lead: 20 mm | Stroke: 850 mm | Mounting: Ceiling mounting
LEFSW40EA-900 Size: 40 | Lead: 20 mm | Stroke: 900 mm | Mounting: Floor mounting
LEFSW40EA-900G Size: 40 | Lead: 20 mm | Stroke: 900 mm | Mounting: Wall mounting
LEFSW40EA-900J Size: 40 | Lead: 20 mm | Stroke: 900 mm | Mounting: Ceiling mounting
LEFSW40EA-950 Size: 40 | Lead: 20 mm | Stroke: 950 mm | Mounting: Floor mounting
LEFSW40EA-950G Size: 40 | Lead: 20 mm | Stroke: 950 mm | Mounting: Wall mounting
LEFSW40EA-950J Size: 40 | Lead: 20 mm | Stroke: 950 mm | Mounting: Ceiling mounting
LEFSW40EA-1000 Size: 40 | Lead: 20 mm | Stroke: 1000 mm | Mounting: Floor mounting
LEFSW40EA-1000G Size: 40 | Lead: 20 mm | Stroke: 1000 mm | Mounting: Wall mounting
LEFSW40EA-1000J Size: 40 | Lead: 20 mm | Stroke: 1000 mm | Mounting: Ceiling mounting
LEFSW40EA-1100 Size: 40 | Lead: 20 mm | Stroke: 1100 mm | Mounting: Floor mounting
LEFSW40EA-1100G Size: 40 | Lead: 20 mm | Stroke: 1100 mm | Mounting: Wall mounting
LEFSW40EA-1100J Size: 40 | Lead: 20 mm | Stroke: 1100 mm | Mounting: Ceiling mounting
LEFSW40EA-1200 Size: 40 | Lead: 20 mm | Stroke: 1200 mm | Mounting: Floor mounting
LEFSW40EA-1200G Size: 40 | Lead: 20 mm | Stroke: 1200 mm | Mounting: Wall mounting
LEFSW40EA-1200J Size: 40 | Lead: 20 mm | Stroke: 1200 mm | Mounting: Ceiling mounting
LEFSW40EB-150 Size: 40 | Lead: 10 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW40EB-150G Size: 40 | Lead: 10 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW40EB-150J Size: 40 | Lead: 10 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW40EB-200 Size: 40 | Lead: 10 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW40EB-200G Size: 40 | Lead: 10 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW40EB-200J Size: 40 | Lead: 10 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW40EB-250 Size: 40 | Lead: 10 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW40EB-250G Size: 40 | Lead: 10 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW40EB-250J Size: 40 | Lead: 10 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW40EB-300 Size: 40 | Lead: 10 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW40EB-300G Size: 40 | Lead: 10 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW40EB-300J Size: 40 | Lead: 10 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW40EB-350 Size: 40 | Lead: 10 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW40EB-350G Size: 40 | Lead: 10 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW40EB-350J Size: 40 | Lead: 10 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW40EB-400 Size: 40 | Lead: 10 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW40EB-400G Size: 40 | Lead: 10 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW40EB-400J Size: 40 | Lead: 10 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW40EB-450 Size: 40 | Lead: 10 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW40EB-450G Size: 40 | Lead: 10 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW40EB-450J Size: 40 | Lead: 10 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW40EB-500 Size: 40 | Lead: 10 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW40EB-500G Size: 40 | Lead: 10 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW40EB-500J Size: 40 | Lead: 10 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW40EB-550 Size: 40 | Lead: 10 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW40EB-550G Size: 40 | Lead: 10 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW40EB-550J Size: 40 | Lead: 10 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW40EB-600 Size: 40 | Lead: 10 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW40EB-600G Size: 40 | Lead: 10 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW40EB-600J Size: 40 | Lead: 10 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW40EB-650 Size: 40 | Lead: 10 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW40EB-650G Size: 40 | Lead: 10 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW40EB-650J Size: 40 | Lead: 10 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW40EB-700 Size: 40 | Lead: 10 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW40EB-700G Size: 40 | Lead: 10 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW40EB-700J Size: 40 | Lead: 10 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW40EB-750 Size: 40 | Lead: 10 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW40EB-750G Size: 40 | Lead: 10 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW40EB-750J Size: 40 | Lead: 10 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW40EB-800 Size: 40 | Lead: 10 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW40EB-800G Size: 40 | Lead: 10 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW40EB-800J Size: 40 | Lead: 10 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW40EB-850 Size: 40 | Lead: 10 mm | Stroke: 850 mm | Mounting: Floor mounting
LEFSW40EB-850G Size: 40 | Lead: 10 mm | Stroke: 850 mm | Mounting: Wall mounting
LEFSW40EB-850J Size: 40 | Lead: 10 mm | Stroke: 850 mm | Mounting: Ceiling mounting
LEFSW40EB-900 Size: 40 | Lead: 10 mm | Stroke: 900 mm | Mounting: Floor mounting
LEFSW40EB-900G Size: 40 | Lead: 10 mm | Stroke: 900 mm | Mounting: Wall mounting
LEFSW40EB-900J Size: 40 | Lead: 10 mm | Stroke: 900 mm | Mounting: Ceiling mounting
LEFSW40EB-950 Size: 40 | Lead: 10 mm | Stroke: 950 mm | Mounting: Floor mounting
LEFSW40EB-950G Size: 40 | Lead: 10 mm | Stroke: 950 mm | Mounting: Wall mounting
LEFSW40EB-950J Size: 40 | Lead: 10 mm | Stroke: 950 mm | Mounting: Ceiling mounting
LEFSW40EB-1000 Size: 40 | Lead: 10 mm | Stroke: 1000 mm | Mounting: Floor mounting
LEFSW40EB-1000G Size: 40 | Lead: 10 mm | Stroke: 1000 mm | Mounting: Wall mounting
LEFSW40EB-1000J Size: 40 | Lead: 10 mm | Stroke: 1000 mm | Mounting: Ceiling mounting
LEFSW40EB-1100 Size: 40 | Lead: 10 mm | Stroke: 1100 mm | Mounting: Floor mounting
LEFSW40EB-1100G Size: 40 | Lead: 10 mm | Stroke: 1100 mm | Mounting: Wall mounting
LEFSW40EB-1100J Size: 40 | Lead: 10 mm | Stroke: 1100 mm | Mounting: Ceiling mounting
LEFSW40EB-1200 Size: 40 | Lead: 10 mm | Stroke: 1200 mm | Mounting: Floor mounting
LEFSW40EB-1200G Size: 40 | Lead: 10 mm | Stroke: 1200 mm | Mounting: Wall mounting
LEFSW40EB-1200J Size: 40 | Lead: 10 mm | Stroke: 1200 mm | Mounting: Ceiling mounting
Electric ActuatorsSMC
564 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEFSW Electric Slider, Dust/Drip Proof IP65 (16/25/32/40)

Brand SMC·Electric Actuators

Available part numbers (564)

LEFSW16EA-50, LEFSW16EA-50G, LEFSW16EA-50J, LEFSW16EA-100, LEFSW16EA-100G, LEFSW16EA-100J, LEFSW16EA-150, LEFSW16EA-150G, LEFSW16EA-150J, LEFSW16EA-200 + 554 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LEFSW16EA-50Size: 16 | Lead: 10 mm | Stroke: 50 mm | Mounting: Floor mounting
LEFSW16EA-50GSize: 16 | Lead: 10 mm | Stroke: 50 mm | Mounting: Wall mounting
LEFSW16EA-50JSize: 16 | Lead: 10 mm | Stroke: 50 mm | Mounting: Ceiling mounting
LEFSW16EA-100Size: 16 | Lead: 10 mm | Stroke: 100 mm | Mounting: Floor mounting
LEFSW16EA-100GSize: 16 | Lead: 10 mm | Stroke: 100 mm | Mounting: Wall mounting
LEFSW16EA-100JSize: 16 | Lead: 10 mm | Stroke: 100 mm | Mounting: Ceiling mounting
LEFSW16EA-150Size: 16 | Lead: 10 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW16EA-150GSize: 16 | Lead: 10 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW16EA-150JSize: 16 | Lead: 10 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW16EA-200Size: 16 | Lead: 10 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW16EA-200GSize: 16 | Lead: 10 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW16EA-200JSize: 16 | Lead: 10 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW16EA-250Size: 16 | Lead: 10 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW16EA-250GSize: 16 | Lead: 10 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW16EA-250JSize: 16 | Lead: 10 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW16EA-300Size: 16 | Lead: 10 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW16EA-300GSize: 16 | Lead: 10 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW16EA-300JSize: 16 | Lead: 10 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW16EA-350Size: 16 | Lead: 10 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW16EA-350GSize: 16 | Lead: 10 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW16EA-350JSize: 16 | Lead: 10 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW16EA-400Size: 16 | Lead: 10 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW16EA-400GSize: 16 | Lead: 10 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW16EA-400JSize: 16 | Lead: 10 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW16EA-450Size: 16 | Lead: 10 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW16EA-450GSize: 16 | Lead: 10 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW16EA-450JSize: 16 | Lead: 10 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW16EA-500Size: 16 | Lead: 10 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW16EA-500GSize: 16 | Lead: 10 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW16EA-500JSize: 16 | Lead: 10 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW16EB-50Size: 16 | Lead: 5 mm | Stroke: 50 mm | Mounting: Floor mounting
LEFSW16EB-50GSize: 16 | Lead: 5 mm | Stroke: 50 mm | Mounting: Wall mounting
LEFSW16EB-50JSize: 16 | Lead: 5 mm | Stroke: 50 mm | Mounting: Ceiling mounting
LEFSW16EB-100Size: 16 | Lead: 5 mm | Stroke: 100 mm | Mounting: Floor mounting
LEFSW16EB-100GSize: 16 | Lead: 5 mm | Stroke: 100 mm | Mounting: Wall mounting
LEFSW16EB-100JSize: 16 | Lead: 5 mm | Stroke: 100 mm | Mounting: Ceiling mounting
LEFSW16EB-150Size: 16 | Lead: 5 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW16EB-150GSize: 16 | Lead: 5 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW16EB-150JSize: 16 | Lead: 5 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW16EB-200Size: 16 | Lead: 5 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW16EB-200GSize: 16 | Lead: 5 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW16EB-200JSize: 16 | Lead: 5 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW16EB-250Size: 16 | Lead: 5 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW16EB-250GSize: 16 | Lead: 5 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW16EB-250JSize: 16 | Lead: 5 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW16EB-300Size: 16 | Lead: 5 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW16EB-300GSize: 16 | Lead: 5 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW16EB-300JSize: 16 | Lead: 5 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW16EB-350Size: 16 | Lead: 5 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW16EB-350GSize: 16 | Lead: 5 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW16EB-350JSize: 16 | Lead: 5 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW16EB-400Size: 16 | Lead: 5 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW16EB-400GSize: 16 | Lead: 5 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW16EB-400JSize: 16 | Lead: 5 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW16EB-450Size: 16 | Lead: 5 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW16EB-450GSize: 16 | Lead: 5 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW16EB-450JSize: 16 | Lead: 5 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW16EB-500Size: 16 | Lead: 5 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW16EB-500GSize: 16 | Lead: 5 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW16EB-500JSize: 16 | Lead: 5 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW25EH-50Size: 25 | Lead: 20 mm | Stroke: 50 mm | Mounting: Floor mounting
LEFSW25EH-50GSize: 25 | Lead: 20 mm | Stroke: 50 mm | Mounting: Wall mounting
LEFSW25EH-50JSize: 25 | Lead: 20 mm | Stroke: 50 mm | Mounting: Ceiling mounting
LEFSW25EH-100Size: 25 | Lead: 20 mm | Stroke: 100 mm | Mounting: Floor mounting
LEFSW25EH-100GSize: 25 | Lead: 20 mm | Stroke: 100 mm | Mounting: Wall mounting
LEFSW25EH-100JSize: 25 | Lead: 20 mm | Stroke: 100 mm | Mounting: Ceiling mounting
LEFSW25EH-150Size: 25 | Lead: 20 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW25EH-150GSize: 25 | Lead: 20 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW25EH-150JSize: 25 | Lead: 20 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW25EH-200Size: 25 | Lead: 20 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW25EH-200GSize: 25 | Lead: 20 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW25EH-200JSize: 25 | Lead: 20 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW25EH-250Size: 25 | Lead: 20 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW25EH-250GSize: 25 | Lead: 20 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW25EH-250JSize: 25 | Lead: 20 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW25EH-300Size: 25 | Lead: 20 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW25EH-300GSize: 25 | Lead: 20 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW25EH-300JSize: 25 | Lead: 20 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW25EH-350Size: 25 | Lead: 20 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW25EH-350GSize: 25 | Lead: 20 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW25EH-350JSize: 25 | Lead: 20 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW25EH-400Size: 25 | Lead: 20 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW25EH-400GSize: 25 | Lead: 20 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW25EH-400JSize: 25 | Lead: 20 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW25EH-450Size: 25 | Lead: 20 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW25EH-450GSize: 25 | Lead: 20 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW25EH-450JSize: 25 | Lead: 20 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW25EH-500Size: 25 | Lead: 20 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW25EH-500GSize: 25 | Lead: 20 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW25EH-500JSize: 25 | Lead: 20 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW25EH-550Size: 25 | Lead: 20 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW25EH-550GSize: 25 | Lead: 20 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW25EH-550JSize: 25 | Lead: 20 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW25EH-600Size: 25 | Lead: 20 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW25EH-600GSize: 25 | Lead: 20 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW25EH-600JSize: 25 | Lead: 20 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW25EH-650Size: 25 | Lead: 20 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW25EH-650GSize: 25 | Lead: 20 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW25EH-650JSize: 25 | Lead: 20 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW25EH-700Size: 25 | Lead: 20 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW25EH-700GSize: 25 | Lead: 20 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW25EH-700JSize: 25 | Lead: 20 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW25EH-750Size: 25 | Lead: 20 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW25EH-750GSize: 25 | Lead: 20 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW25EH-750JSize: 25 | Lead: 20 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW25EH-800Size: 25 | Lead: 20 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW25EH-800GSize: 25 | Lead: 20 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW25EH-800JSize: 25 | Lead: 20 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW25EA-50Size: 25 | Lead: 12 mm | Stroke: 50 mm | Mounting: Floor mounting
LEFSW25EA-50GSize: 25 | Lead: 12 mm | Stroke: 50 mm | Mounting: Wall mounting
LEFSW25EA-50JSize: 25 | Lead: 12 mm | Stroke: 50 mm | Mounting: Ceiling mounting
LEFSW25EA-100Size: 25 | Lead: 12 mm | Stroke: 100 mm | Mounting: Floor mounting
LEFSW25EA-100GSize: 25 | Lead: 12 mm | Stroke: 100 mm | Mounting: Wall mounting
LEFSW25EA-100JSize: 25 | Lead: 12 mm | Stroke: 100 mm | Mounting: Ceiling mounting
LEFSW25EA-150Size: 25 | Lead: 12 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW25EA-150GSize: 25 | Lead: 12 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW25EA-150JSize: 25 | Lead: 12 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW25EA-200Size: 25 | Lead: 12 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW25EA-200GSize: 25 | Lead: 12 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW25EA-200JSize: 25 | Lead: 12 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW25EA-250Size: 25 | Lead: 12 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW25EA-250GSize: 25 | Lead: 12 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW25EA-250JSize: 25 | Lead: 12 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW25EA-300Size: 25 | Lead: 12 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW25EA-300GSize: 25 | Lead: 12 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW25EA-300JSize: 25 | Lead: 12 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW25EA-350Size: 25 | Lead: 12 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW25EA-350GSize: 25 | Lead: 12 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW25EA-350JSize: 25 | Lead: 12 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW25EA-400Size: 25 | Lead: 12 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW25EA-400GSize: 25 | Lead: 12 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW25EA-400JSize: 25 | Lead: 12 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW25EA-450Size: 25 | Lead: 12 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW25EA-450GSize: 25 | Lead: 12 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW25EA-450JSize: 25 | Lead: 12 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW25EA-500Size: 25 | Lead: 12 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW25EA-500GSize: 25 | Lead: 12 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW25EA-500JSize: 25 | Lead: 12 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW25EA-550Size: 25 | Lead: 12 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW25EA-550GSize: 25 | Lead: 12 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW25EA-550JSize: 25 | Lead: 12 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW25EA-600Size: 25 | Lead: 12 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW25EA-600GSize: 25 | Lead: 12 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW25EA-600JSize: 25 | Lead: 12 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW25EA-650Size: 25 | Lead: 12 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW25EA-650GSize: 25 | Lead: 12 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW25EA-650JSize: 25 | Lead: 12 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW25EA-700Size: 25 | Lead: 12 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW25EA-700GSize: 25 | Lead: 12 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW25EA-700JSize: 25 | Lead: 12 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW25EA-750Size: 25 | Lead: 12 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW25EA-750GSize: 25 | Lead: 12 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW25EA-750JSize: 25 | Lead: 12 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW25EA-800Size: 25 | Lead: 12 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW25EA-800GSize: 25 | Lead: 12 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW25EA-800JSize: 25 | Lead: 12 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW25EB-50Size: 25 | Lead: 6 mm | Stroke: 50 mm | Mounting: Floor mounting
LEFSW25EB-50GSize: 25 | Lead: 6 mm | Stroke: 50 mm | Mounting: Wall mounting
LEFSW25EB-50JSize: 25 | Lead: 6 mm | Stroke: 50 mm | Mounting: Ceiling mounting
LEFSW25EB-100Size: 25 | Lead: 6 mm | Stroke: 100 mm | Mounting: Floor mounting
LEFSW25EB-100GSize: 25 | Lead: 6 mm | Stroke: 100 mm | Mounting: Wall mounting
LEFSW25EB-100JSize: 25 | Lead: 6 mm | Stroke: 100 mm | Mounting: Ceiling mounting
LEFSW25EB-150Size: 25 | Lead: 6 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW25EB-150GSize: 25 | Lead: 6 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW25EB-150JSize: 25 | Lead: 6 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW25EB-200Size: 25 | Lead: 6 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW25EB-200GSize: 25 | Lead: 6 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW25EB-200JSize: 25 | Lead: 6 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW25EB-250Size: 25 | Lead: 6 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW25EB-250GSize: 25 | Lead: 6 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW25EB-250JSize: 25 | Lead: 6 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW25EB-300Size: 25 | Lead: 6 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW25EB-300GSize: 25 | Lead: 6 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW25EB-300JSize: 25 | Lead: 6 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW25EB-350Size: 25 | Lead: 6 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW25EB-350GSize: 25 | Lead: 6 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW25EB-350JSize: 25 | Lead: 6 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW25EB-400Size: 25 | Lead: 6 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW25EB-400GSize: 25 | Lead: 6 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW25EB-400JSize: 25 | Lead: 6 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW25EB-450Size: 25 | Lead: 6 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW25EB-450GSize: 25 | Lead: 6 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW25EB-450JSize: 25 | Lead: 6 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW25EB-500Size: 25 | Lead: 6 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW25EB-500GSize: 25 | Lead: 6 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW25EB-500JSize: 25 | Lead: 6 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW25EB-550Size: 25 | Lead: 6 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW25EB-550GSize: 25 | Lead: 6 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW25EB-550JSize: 25 | Lead: 6 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW25EB-600Size: 25 | Lead: 6 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW25EB-600GSize: 25 | Lead: 6 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW25EB-600JSize: 25 | Lead: 6 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW25EB-650Size: 25 | Lead: 6 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW25EB-650GSize: 25 | Lead: 6 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW25EB-650JSize: 25 | Lead: 6 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW25EB-700Size: 25 | Lead: 6 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW25EB-700GSize: 25 | Lead: 6 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW25EB-700JSize: 25 | Lead: 6 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW25EB-750Size: 25 | Lead: 6 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW25EB-750GSize: 25 | Lead: 6 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW25EB-750JSize: 25 | Lead: 6 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW25EB-800Size: 25 | Lead: 6 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW25EB-800GSize: 25 | Lead: 6 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW25EB-800JSize: 25 | Lead: 6 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW32EH-50Size: 32 | Lead: 24 mm | Stroke: 50 mm | Mounting: Floor mounting
LEFSW32EH-50GSize: 32 | Lead: 24 mm | Stroke: 50 mm | Mounting: Wall mounting
LEFSW32EH-50JSize: 32 | Lead: 24 mm | Stroke: 50 mm | Mounting: Ceiling mounting
LEFSW32EH-100Size: 32 | Lead: 24 mm | Stroke: 100 mm | Mounting: Floor mounting
LEFSW32EH-100GSize: 32 | Lead: 24 mm | Stroke: 100 mm | Mounting: Wall mounting
LEFSW32EH-100JSize: 32 | Lead: 24 mm | Stroke: 100 mm | Mounting: Ceiling mounting
LEFSW32EH-150Size: 32 | Lead: 24 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW32EH-150GSize: 32 | Lead: 24 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW32EH-150JSize: 32 | Lead: 24 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW32EH-200Size: 32 | Lead: 24 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW32EH-200GSize: 32 | Lead: 24 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW32EH-200JSize: 32 | Lead: 24 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW32EH-250Size: 32 | Lead: 24 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW32EH-250GSize: 32 | Lead: 24 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW32EH-250JSize: 32 | Lead: 24 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW32EH-300Size: 32 | Lead: 24 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW32EH-300GSize: 32 | Lead: 24 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW32EH-300JSize: 32 | Lead: 24 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW32EH-350Size: 32 | Lead: 24 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW32EH-350GSize: 32 | Lead: 24 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW32EH-350JSize: 32 | Lead: 24 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW32EH-400Size: 32 | Lead: 24 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW32EH-400GSize: 32 | Lead: 24 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW32EH-400JSize: 32 | Lead: 24 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW32EH-450Size: 32 | Lead: 24 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW32EH-450GSize: 32 | Lead: 24 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW32EH-450JSize: 32 | Lead: 24 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW32EH-500Size: 32 | Lead: 24 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW32EH-500GSize: 32 | Lead: 24 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW32EH-500JSize: 32 | Lead: 24 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW32EH-550Size: 32 | Lead: 24 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW32EH-550GSize: 32 | Lead: 24 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW32EH-550JSize: 32 | Lead: 24 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW32EH-600Size: 32 | Lead: 24 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW32EH-600GSize: 32 | Lead: 24 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW32EH-600JSize: 32 | Lead: 24 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW32EH-650Size: 32 | Lead: 24 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW32EH-650GSize: 32 | Lead: 24 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW32EH-650JSize: 32 | Lead: 24 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW32EH-700Size: 32 | Lead: 24 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW32EH-700GSize: 32 | Lead: 24 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW32EH-700JSize: 32 | Lead: 24 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW32EH-750Size: 32 | Lead: 24 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW32EH-750GSize: 32 | Lead: 24 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW32EH-750JSize: 32 | Lead: 24 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW32EH-800Size: 32 | Lead: 24 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW32EH-800GSize: 32 | Lead: 24 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW32EH-800JSize: 32 | Lead: 24 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW32EH-850Size: 32 | Lead: 24 mm | Stroke: 850 mm | Mounting: Floor mounting
LEFSW32EH-850GSize: 32 | Lead: 24 mm | Stroke: 850 mm | Mounting: Wall mounting
LEFSW32EH-850JSize: 32 | Lead: 24 mm | Stroke: 850 mm | Mounting: Ceiling mounting
LEFSW32EH-900Size: 32 | Lead: 24 mm | Stroke: 900 mm | Mounting: Floor mounting
LEFSW32EH-900GSize: 32 | Lead: 24 mm | Stroke: 900 mm | Mounting: Wall mounting
LEFSW32EH-900JSize: 32 | Lead: 24 mm | Stroke: 900 mm | Mounting: Ceiling mounting
LEFSW32EH-950Size: 32 | Lead: 24 mm | Stroke: 950 mm | Mounting: Floor mounting
LEFSW32EH-950GSize: 32 | Lead: 24 mm | Stroke: 950 mm | Mounting: Wall mounting
LEFSW32EH-950JSize: 32 | Lead: 24 mm | Stroke: 950 mm | Mounting: Ceiling mounting
LEFSW32EH-1000Size: 32 | Lead: 24 mm | Stroke: 1000 mm | Mounting: Floor mounting
LEFSW32EH-1000GSize: 32 | Lead: 24 mm | Stroke: 1000 mm | Mounting: Wall mounting
LEFSW32EH-1000JSize: 32 | Lead: 24 mm | Stroke: 1000 mm | Mounting: Ceiling mounting
LEFSW32EA-50Size: 32 | Lead: 16 mm | Stroke: 50 mm | Mounting: Floor mounting
LEFSW32EA-50GSize: 32 | Lead: 16 mm | Stroke: 50 mm | Mounting: Wall mounting
LEFSW32EA-50JSize: 32 | Lead: 16 mm | Stroke: 50 mm | Mounting: Ceiling mounting
LEFSW32EA-100Size: 32 | Lead: 16 mm | Stroke: 100 mm | Mounting: Floor mounting
LEFSW32EA-100GSize: 32 | Lead: 16 mm | Stroke: 100 mm | Mounting: Wall mounting
LEFSW32EA-100JSize: 32 | Lead: 16 mm | Stroke: 100 mm | Mounting: Ceiling mounting
LEFSW32EA-150Size: 32 | Lead: 16 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW32EA-150GSize: 32 | Lead: 16 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW32EA-150JSize: 32 | Lead: 16 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW32EA-200Size: 32 | Lead: 16 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW32EA-200GSize: 32 | Lead: 16 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW32EA-200JSize: 32 | Lead: 16 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW32EA-250Size: 32 | Lead: 16 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW32EA-250GSize: 32 | Lead: 16 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW32EA-250JSize: 32 | Lead: 16 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW32EA-300Size: 32 | Lead: 16 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW32EA-300GSize: 32 | Lead: 16 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW32EA-300JSize: 32 | Lead: 16 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW32EA-350Size: 32 | Lead: 16 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW32EA-350GSize: 32 | Lead: 16 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW32EA-350JSize: 32 | Lead: 16 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW32EA-400Size: 32 | Lead: 16 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW32EA-400GSize: 32 | Lead: 16 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW32EA-400JSize: 32 | Lead: 16 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW32EA-450Size: 32 | Lead: 16 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW32EA-450GSize: 32 | Lead: 16 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW32EA-450JSize: 32 | Lead: 16 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW32EA-500Size: 32 | Lead: 16 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW32EA-500GSize: 32 | Lead: 16 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW32EA-500JSize: 32 | Lead: 16 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW32EA-550Size: 32 | Lead: 16 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW32EA-550GSize: 32 | Lead: 16 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW32EA-550JSize: 32 | Lead: 16 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW32EA-600Size: 32 | Lead: 16 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW32EA-600GSize: 32 | Lead: 16 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW32EA-600JSize: 32 | Lead: 16 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW32EA-650Size: 32 | Lead: 16 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW32EA-650GSize: 32 | Lead: 16 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW32EA-650JSize: 32 | Lead: 16 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW32EA-700Size: 32 | Lead: 16 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW32EA-700GSize: 32 | Lead: 16 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW32EA-700JSize: 32 | Lead: 16 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW32EA-750Size: 32 | Lead: 16 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW32EA-750GSize: 32 | Lead: 16 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW32EA-750JSize: 32 | Lead: 16 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW32EA-800Size: 32 | Lead: 16 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW32EA-800GSize: 32 | Lead: 16 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW32EA-800JSize: 32 | Lead: 16 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW32EA-850Size: 32 | Lead: 16 mm | Stroke: 850 mm | Mounting: Floor mounting
LEFSW32EA-850GSize: 32 | Lead: 16 mm | Stroke: 850 mm | Mounting: Wall mounting
LEFSW32EA-850JSize: 32 | Lead: 16 mm | Stroke: 850 mm | Mounting: Ceiling mounting
LEFSW32EA-900Size: 32 | Lead: 16 mm | Stroke: 900 mm | Mounting: Floor mounting
LEFSW32EA-900GSize: 32 | Lead: 16 mm | Stroke: 900 mm | Mounting: Wall mounting
LEFSW32EA-900JSize: 32 | Lead: 16 mm | Stroke: 900 mm | Mounting: Ceiling mounting
LEFSW32EA-950Size: 32 | Lead: 16 mm | Stroke: 950 mm | Mounting: Floor mounting
LEFSW32EA-950GSize: 32 | Lead: 16 mm | Stroke: 950 mm | Mounting: Wall mounting
LEFSW32EA-950JSize: 32 | Lead: 16 mm | Stroke: 950 mm | Mounting: Ceiling mounting
LEFSW32EA-1000Size: 32 | Lead: 16 mm | Stroke: 1000 mm | Mounting: Floor mounting
LEFSW32EA-1000GSize: 32 | Lead: 16 mm | Stroke: 1000 mm | Mounting: Wall mounting
LEFSW32EA-1000JSize: 32 | Lead: 16 mm | Stroke: 1000 mm | Mounting: Ceiling mounting
LEFSW32EB-50Size: 32 | Lead: 8 mm | Stroke: 50 mm | Mounting: Floor mounting
LEFSW32EB-50GSize: 32 | Lead: 8 mm | Stroke: 50 mm | Mounting: Wall mounting
LEFSW32EB-50JSize: 32 | Lead: 8 mm | Stroke: 50 mm | Mounting: Ceiling mounting
LEFSW32EB-100Size: 32 | Lead: 8 mm | Stroke: 100 mm | Mounting: Floor mounting
LEFSW32EB-100GSize: 32 | Lead: 8 mm | Stroke: 100 mm | Mounting: Wall mounting
LEFSW32EB-100JSize: 32 | Lead: 8 mm | Stroke: 100 mm | Mounting: Ceiling mounting
LEFSW32EB-150Size: 32 | Lead: 8 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW32EB-150GSize: 32 | Lead: 8 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW32EB-150JSize: 32 | Lead: 8 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW32EB-200Size: 32 | Lead: 8 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW32EB-200GSize: 32 | Lead: 8 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW32EB-200JSize: 32 | Lead: 8 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW32EB-250Size: 32 | Lead: 8 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW32EB-250GSize: 32 | Lead: 8 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW32EB-250JSize: 32 | Lead: 8 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW32EB-300Size: 32 | Lead: 8 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW32EB-300GSize: 32 | Lead: 8 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW32EB-300JSize: 32 | Lead: 8 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW32EB-350Size: 32 | Lead: 8 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW32EB-350GSize: 32 | Lead: 8 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW32EB-350JSize: 32 | Lead: 8 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW32EB-400Size: 32 | Lead: 8 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW32EB-400GSize: 32 | Lead: 8 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW32EB-400JSize: 32 | Lead: 8 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW32EB-450Size: 32 | Lead: 8 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW32EB-450GSize: 32 | Lead: 8 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW32EB-450JSize: 32 | Lead: 8 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW32EB-500Size: 32 | Lead: 8 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW32EB-500GSize: 32 | Lead: 8 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW32EB-500JSize: 32 | Lead: 8 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW32EB-550Size: 32 | Lead: 8 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW32EB-550GSize: 32 | Lead: 8 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW32EB-550JSize: 32 | Lead: 8 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW32EB-600Size: 32 | Lead: 8 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW32EB-600GSize: 32 | Lead: 8 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW32EB-600JSize: 32 | Lead: 8 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW32EB-650Size: 32 | Lead: 8 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW32EB-650GSize: 32 | Lead: 8 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW32EB-650JSize: 32 | Lead: 8 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW32EB-700Size: 32 | Lead: 8 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW32EB-700GSize: 32 | Lead: 8 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW32EB-700JSize: 32 | Lead: 8 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW32EB-750Size: 32 | Lead: 8 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW32EB-750GSize: 32 | Lead: 8 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW32EB-750JSize: 32 | Lead: 8 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW32EB-800Size: 32 | Lead: 8 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW32EB-800GSize: 32 | Lead: 8 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW32EB-800JSize: 32 | Lead: 8 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW32EB-850Size: 32 | Lead: 8 mm | Stroke: 850 mm | Mounting: Floor mounting
LEFSW32EB-850GSize: 32 | Lead: 8 mm | Stroke: 850 mm | Mounting: Wall mounting
LEFSW32EB-850JSize: 32 | Lead: 8 mm | Stroke: 850 mm | Mounting: Ceiling mounting
LEFSW32EB-900Size: 32 | Lead: 8 mm | Stroke: 900 mm | Mounting: Floor mounting
LEFSW32EB-900GSize: 32 | Lead: 8 mm | Stroke: 900 mm | Mounting: Wall mounting
LEFSW32EB-900JSize: 32 | Lead: 8 mm | Stroke: 900 mm | Mounting: Ceiling mounting
LEFSW32EB-950Size: 32 | Lead: 8 mm | Stroke: 950 mm | Mounting: Floor mounting
LEFSW32EB-950GSize: 32 | Lead: 8 mm | Stroke: 950 mm | Mounting: Wall mounting
LEFSW32EB-950JSize: 32 | Lead: 8 mm | Stroke: 950 mm | Mounting: Ceiling mounting
LEFSW32EB-1000Size: 32 | Lead: 8 mm | Stroke: 1000 mm | Mounting: Floor mounting
LEFSW32EB-1000GSize: 32 | Lead: 8 mm | Stroke: 1000 mm | Mounting: Wall mounting
LEFSW32EB-1000JSize: 32 | Lead: 8 mm | Stroke: 1000 mm | Mounting: Ceiling mounting
LEFSW40EH-150Size: 40 | Lead: 30 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW40EH-150GSize: 40 | Lead: 30 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW40EH-150JSize: 40 | Lead: 30 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW40EH-200Size: 40 | Lead: 30 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW40EH-200GSize: 40 | Lead: 30 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW40EH-200JSize: 40 | Lead: 30 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW40EH-250Size: 40 | Lead: 30 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW40EH-250GSize: 40 | Lead: 30 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW40EH-250JSize: 40 | Lead: 30 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW40EH-300Size: 40 | Lead: 30 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW40EH-300GSize: 40 | Lead: 30 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW40EH-300JSize: 40 | Lead: 30 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW40EH-350Size: 40 | Lead: 30 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW40EH-350GSize: 40 | Lead: 30 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW40EH-350JSize: 40 | Lead: 30 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW40EH-400Size: 40 | Lead: 30 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW40EH-400GSize: 40 | Lead: 30 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW40EH-400JSize: 40 | Lead: 30 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW40EH-450Size: 40 | Lead: 30 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW40EH-450GSize: 40 | Lead: 30 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW40EH-450JSize: 40 | Lead: 30 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW40EH-500Size: 40 | Lead: 30 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW40EH-500GSize: 40 | Lead: 30 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW40EH-500JSize: 40 | Lead: 30 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW40EH-550Size: 40 | Lead: 30 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW40EH-550GSize: 40 | Lead: 30 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW40EH-550JSize: 40 | Lead: 30 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW40EH-600Size: 40 | Lead: 30 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW40EH-600GSize: 40 | Lead: 30 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW40EH-600JSize: 40 | Lead: 30 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW40EH-650Size: 40 | Lead: 30 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW40EH-650GSize: 40 | Lead: 30 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW40EH-650JSize: 40 | Lead: 30 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW40EH-700Size: 40 | Lead: 30 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW40EH-700GSize: 40 | Lead: 30 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW40EH-700JSize: 40 | Lead: 30 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW40EH-750Size: 40 | Lead: 30 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW40EH-750GSize: 40 | Lead: 30 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW40EH-750JSize: 40 | Lead: 30 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW40EH-800Size: 40 | Lead: 30 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW40EH-800GSize: 40 | Lead: 30 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW40EH-800JSize: 40 | Lead: 30 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW40EH-850Size: 40 | Lead: 30 mm | Stroke: 850 mm | Mounting: Floor mounting
LEFSW40EH-850GSize: 40 | Lead: 30 mm | Stroke: 850 mm | Mounting: Wall mounting
LEFSW40EH-850JSize: 40 | Lead: 30 mm | Stroke: 850 mm | Mounting: Ceiling mounting
LEFSW40EH-900Size: 40 | Lead: 30 mm | Stroke: 900 mm | Mounting: Floor mounting
LEFSW40EH-900GSize: 40 | Lead: 30 mm | Stroke: 900 mm | Mounting: Wall mounting
LEFSW40EH-900JSize: 40 | Lead: 30 mm | Stroke: 900 mm | Mounting: Ceiling mounting
LEFSW40EH-950Size: 40 | Lead: 30 mm | Stroke: 950 mm | Mounting: Floor mounting
LEFSW40EH-950GSize: 40 | Lead: 30 mm | Stroke: 950 mm | Mounting: Wall mounting
LEFSW40EH-950JSize: 40 | Lead: 30 mm | Stroke: 950 mm | Mounting: Ceiling mounting
LEFSW40EH-1000Size: 40 | Lead: 30 mm | Stroke: 1000 mm | Mounting: Floor mounting
LEFSW40EH-1000GSize: 40 | Lead: 30 mm | Stroke: 1000 mm | Mounting: Wall mounting
LEFSW40EH-1000JSize: 40 | Lead: 30 mm | Stroke: 1000 mm | Mounting: Ceiling mounting
LEFSW40EH-1100Size: 40 | Lead: 30 mm | Stroke: 1100 mm | Mounting: Floor mounting
LEFSW40EH-1100GSize: 40 | Lead: 30 mm | Stroke: 1100 mm | Mounting: Wall mounting
LEFSW40EH-1100JSize: 40 | Lead: 30 mm | Stroke: 1100 mm | Mounting: Ceiling mounting
LEFSW40EH-1200Size: 40 | Lead: 30 mm | Stroke: 1200 mm | Mounting: Floor mounting
LEFSW40EH-1200GSize: 40 | Lead: 30 mm | Stroke: 1200 mm | Mounting: Wall mounting
LEFSW40EH-1200JSize: 40 | Lead: 30 mm | Stroke: 1200 mm | Mounting: Ceiling mounting
LEFSW40EA-150Size: 40 | Lead: 20 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW40EA-150GSize: 40 | Lead: 20 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW40EA-150JSize: 40 | Lead: 20 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW40EA-200Size: 40 | Lead: 20 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW40EA-200GSize: 40 | Lead: 20 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW40EA-200JSize: 40 | Lead: 20 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW40EA-250Size: 40 | Lead: 20 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW40EA-250GSize: 40 | Lead: 20 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW40EA-250JSize: 40 | Lead: 20 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW40EA-300Size: 40 | Lead: 20 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW40EA-300GSize: 40 | Lead: 20 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW40EA-300JSize: 40 | Lead: 20 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW40EA-350Size: 40 | Lead: 20 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW40EA-350GSize: 40 | Lead: 20 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW40EA-350JSize: 40 | Lead: 20 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW40EA-400Size: 40 | Lead: 20 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW40EA-400GSize: 40 | Lead: 20 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW40EA-400JSize: 40 | Lead: 20 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW40EA-450Size: 40 | Lead: 20 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW40EA-450GSize: 40 | Lead: 20 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW40EA-450JSize: 40 | Lead: 20 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW40EA-500Size: 40 | Lead: 20 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW40EA-500GSize: 40 | Lead: 20 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW40EA-500JSize: 40 | Lead: 20 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW40EA-550Size: 40 | Lead: 20 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW40EA-550GSize: 40 | Lead: 20 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW40EA-550JSize: 40 | Lead: 20 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW40EA-600Size: 40 | Lead: 20 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW40EA-600GSize: 40 | Lead: 20 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW40EA-600JSize: 40 | Lead: 20 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW40EA-650Size: 40 | Lead: 20 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW40EA-650GSize: 40 | Lead: 20 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW40EA-650JSize: 40 | Lead: 20 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW40EA-700Size: 40 | Lead: 20 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW40EA-700GSize: 40 | Lead: 20 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW40EA-700JSize: 40 | Lead: 20 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW40EA-750Size: 40 | Lead: 20 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW40EA-750GSize: 40 | Lead: 20 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW40EA-750JSize: 40 | Lead: 20 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW40EA-800Size: 40 | Lead: 20 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW40EA-800GSize: 40 | Lead: 20 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW40EA-800JSize: 40 | Lead: 20 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW40EA-850Size: 40 | Lead: 20 mm | Stroke: 850 mm | Mounting: Floor mounting
LEFSW40EA-850GSize: 40 | Lead: 20 mm | Stroke: 850 mm | Mounting: Wall mounting
LEFSW40EA-850JSize: 40 | Lead: 20 mm | Stroke: 850 mm | Mounting: Ceiling mounting
LEFSW40EA-900Size: 40 | Lead: 20 mm | Stroke: 900 mm | Mounting: Floor mounting
LEFSW40EA-900GSize: 40 | Lead: 20 mm | Stroke: 900 mm | Mounting: Wall mounting
LEFSW40EA-900JSize: 40 | Lead: 20 mm | Stroke: 900 mm | Mounting: Ceiling mounting
LEFSW40EA-950Size: 40 | Lead: 20 mm | Stroke: 950 mm | Mounting: Floor mounting
LEFSW40EA-950GSize: 40 | Lead: 20 mm | Stroke: 950 mm | Mounting: Wall mounting
LEFSW40EA-950JSize: 40 | Lead: 20 mm | Stroke: 950 mm | Mounting: Ceiling mounting
LEFSW40EA-1000Size: 40 | Lead: 20 mm | Stroke: 1000 mm | Mounting: Floor mounting
LEFSW40EA-1000GSize: 40 | Lead: 20 mm | Stroke: 1000 mm | Mounting: Wall mounting
LEFSW40EA-1000JSize: 40 | Lead: 20 mm | Stroke: 1000 mm | Mounting: Ceiling mounting
LEFSW40EA-1100Size: 40 | Lead: 20 mm | Stroke: 1100 mm | Mounting: Floor mounting
LEFSW40EA-1100GSize: 40 | Lead: 20 mm | Stroke: 1100 mm | Mounting: Wall mounting
LEFSW40EA-1100JSize: 40 | Lead: 20 mm | Stroke: 1100 mm | Mounting: Ceiling mounting
LEFSW40EA-1200Size: 40 | Lead: 20 mm | Stroke: 1200 mm | Mounting: Floor mounting
LEFSW40EA-1200GSize: 40 | Lead: 20 mm | Stroke: 1200 mm | Mounting: Wall mounting
LEFSW40EA-1200JSize: 40 | Lead: 20 mm | Stroke: 1200 mm | Mounting: Ceiling mounting
LEFSW40EB-150Size: 40 | Lead: 10 mm | Stroke: 150 mm | Mounting: Floor mounting
LEFSW40EB-150GSize: 40 | Lead: 10 mm | Stroke: 150 mm | Mounting: Wall mounting
LEFSW40EB-150JSize: 40 | Lead: 10 mm | Stroke: 150 mm | Mounting: Ceiling mounting
LEFSW40EB-200Size: 40 | Lead: 10 mm | Stroke: 200 mm | Mounting: Floor mounting
LEFSW40EB-200GSize: 40 | Lead: 10 mm | Stroke: 200 mm | Mounting: Wall mounting
LEFSW40EB-200JSize: 40 | Lead: 10 mm | Stroke: 200 mm | Mounting: Ceiling mounting
LEFSW40EB-250Size: 40 | Lead: 10 mm | Stroke: 250 mm | Mounting: Floor mounting
LEFSW40EB-250GSize: 40 | Lead: 10 mm | Stroke: 250 mm | Mounting: Wall mounting
LEFSW40EB-250JSize: 40 | Lead: 10 mm | Stroke: 250 mm | Mounting: Ceiling mounting
LEFSW40EB-300Size: 40 | Lead: 10 mm | Stroke: 300 mm | Mounting: Floor mounting
LEFSW40EB-300GSize: 40 | Lead: 10 mm | Stroke: 300 mm | Mounting: Wall mounting
LEFSW40EB-300JSize: 40 | Lead: 10 mm | Stroke: 300 mm | Mounting: Ceiling mounting
LEFSW40EB-350Size: 40 | Lead: 10 mm | Stroke: 350 mm | Mounting: Floor mounting
LEFSW40EB-350GSize: 40 | Lead: 10 mm | Stroke: 350 mm | Mounting: Wall mounting
LEFSW40EB-350JSize: 40 | Lead: 10 mm | Stroke: 350 mm | Mounting: Ceiling mounting
LEFSW40EB-400Size: 40 | Lead: 10 mm | Stroke: 400 mm | Mounting: Floor mounting
LEFSW40EB-400GSize: 40 | Lead: 10 mm | Stroke: 400 mm | Mounting: Wall mounting
LEFSW40EB-400JSize: 40 | Lead: 10 mm | Stroke: 400 mm | Mounting: Ceiling mounting
LEFSW40EB-450Size: 40 | Lead: 10 mm | Stroke: 450 mm | Mounting: Floor mounting
LEFSW40EB-450GSize: 40 | Lead: 10 mm | Stroke: 450 mm | Mounting: Wall mounting
LEFSW40EB-450JSize: 40 | Lead: 10 mm | Stroke: 450 mm | Mounting: Ceiling mounting
LEFSW40EB-500Size: 40 | Lead: 10 mm | Stroke: 500 mm | Mounting: Floor mounting
LEFSW40EB-500GSize: 40 | Lead: 10 mm | Stroke: 500 mm | Mounting: Wall mounting
LEFSW40EB-500JSize: 40 | Lead: 10 mm | Stroke: 500 mm | Mounting: Ceiling mounting
LEFSW40EB-550Size: 40 | Lead: 10 mm | Stroke: 550 mm | Mounting: Floor mounting
LEFSW40EB-550GSize: 40 | Lead: 10 mm | Stroke: 550 mm | Mounting: Wall mounting
LEFSW40EB-550JSize: 40 | Lead: 10 mm | Stroke: 550 mm | Mounting: Ceiling mounting
LEFSW40EB-600Size: 40 | Lead: 10 mm | Stroke: 600 mm | Mounting: Floor mounting
LEFSW40EB-600GSize: 40 | Lead: 10 mm | Stroke: 600 mm | Mounting: Wall mounting
LEFSW40EB-600JSize: 40 | Lead: 10 mm | Stroke: 600 mm | Mounting: Ceiling mounting
LEFSW40EB-650Size: 40 | Lead: 10 mm | Stroke: 650 mm | Mounting: Floor mounting
LEFSW40EB-650GSize: 40 | Lead: 10 mm | Stroke: 650 mm | Mounting: Wall mounting
LEFSW40EB-650JSize: 40 | Lead: 10 mm | Stroke: 650 mm | Mounting: Ceiling mounting
LEFSW40EB-700Size: 40 | Lead: 10 mm | Stroke: 700 mm | Mounting: Floor mounting
LEFSW40EB-700GSize: 40 | Lead: 10 mm | Stroke: 700 mm | Mounting: Wall mounting
LEFSW40EB-700JSize: 40 | Lead: 10 mm | Stroke: 700 mm | Mounting: Ceiling mounting
LEFSW40EB-750Size: 40 | Lead: 10 mm | Stroke: 750 mm | Mounting: Floor mounting
LEFSW40EB-750GSize: 40 | Lead: 10 mm | Stroke: 750 mm | Mounting: Wall mounting
LEFSW40EB-750JSize: 40 | Lead: 10 mm | Stroke: 750 mm | Mounting: Ceiling mounting
LEFSW40EB-800Size: 40 | Lead: 10 mm | Stroke: 800 mm | Mounting: Floor mounting
LEFSW40EB-800GSize: 40 | Lead: 10 mm | Stroke: 800 mm | Mounting: Wall mounting
LEFSW40EB-800JSize: 40 | Lead: 10 mm | Stroke: 800 mm | Mounting: Ceiling mounting
LEFSW40EB-850Size: 40 | Lead: 10 mm | Stroke: 850 mm | Mounting: Floor mounting
LEFSW40EB-850GSize: 40 | Lead: 10 mm | Stroke: 850 mm | Mounting: Wall mounting
LEFSW40EB-850JSize: 40 | Lead: 10 mm | Stroke: 850 mm | Mounting: Ceiling mounting
LEFSW40EB-900Size: 40 | Lead: 10 mm | Stroke: 900 mm | Mounting: Floor mounting
LEFSW40EB-900GSize: 40 | Lead: 10 mm | Stroke: 900 mm | Mounting: Wall mounting
LEFSW40EB-900JSize: 40 | Lead: 10 mm | Stroke: 900 mm | Mounting: Ceiling mounting
LEFSW40EB-950Size: 40 | Lead: 10 mm | Stroke: 950 mm | Mounting: Floor mounting
LEFSW40EB-950GSize: 40 | Lead: 10 mm | Stroke: 950 mm | Mounting: Wall mounting
LEFSW40EB-950JSize: 40 | Lead: 10 mm | Stroke: 950 mm | Mounting: Ceiling mounting
LEFSW40EB-1000Size: 40 | Lead: 10 mm | Stroke: 1000 mm | Mounting: Floor mounting
LEFSW40EB-1000GSize: 40 | Lead: 10 mm | Stroke: 1000 mm | Mounting: Wall mounting
LEFSW40EB-1000JSize: 40 | Lead: 10 mm | Stroke: 1000 mm | Mounting: Ceiling mounting
LEFSW40EB-1100Size: 40 | Lead: 10 mm | Stroke: 1100 mm | Mounting: Floor mounting
LEFSW40EB-1100GSize: 40 | Lead: 10 mm | Stroke: 1100 mm | Mounting: Wall mounting
LEFSW40EB-1100JSize: 40 | Lead: 10 mm | Stroke: 1100 mm | Mounting: Ceiling mounting
LEFSW40EB-1200Size: 40 | Lead: 10 mm | Stroke: 1200 mm | Mounting: Floor mounting
LEFSW40EB-1200GSize: 40 | Lead: 10 mm | Stroke: 1200 mm | Mounting: Wall mounting
LEFSW40EB-1200JSize: 40 | Lead: 10 mm | Stroke: 1200 mm | Mounting: Ceiling mounting

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
