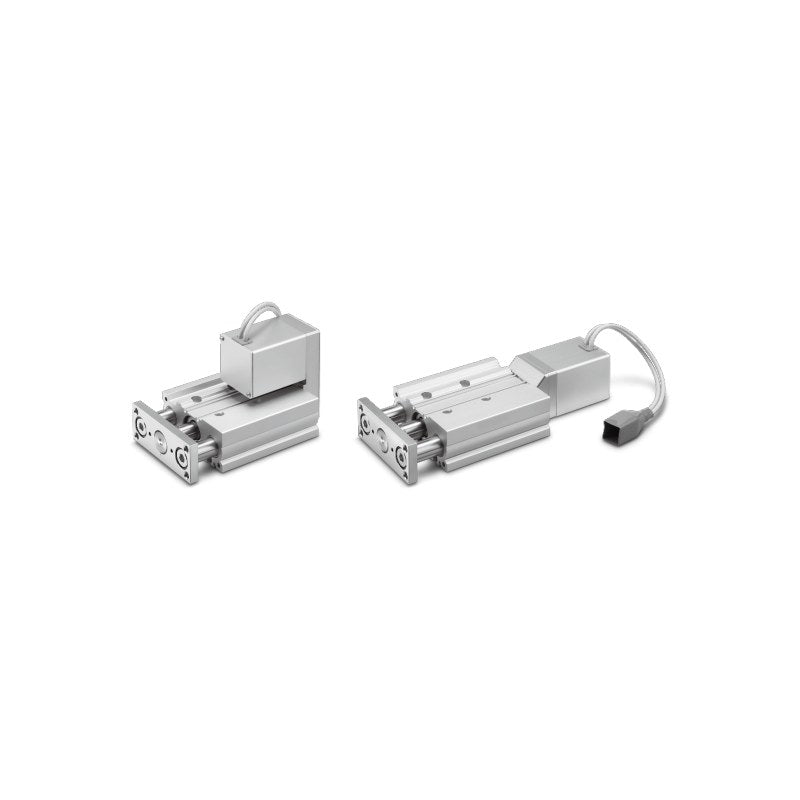

SMC LEG High-Rigidity Guided Rod Electric Actuator (High Speed)

SMC LEG High-Rigidity Guided Rod Electric Actuator (High Speed)

SMC LEG series high-rigidity guided rod type electric actuator for high-speed tact, sizes 25, 32 and 40, with battery-less absolute step motor (DC24V).

Key features

  • Compact integrated guide unit with slide bearing; lateral load resistance up to 5x the rod type (size 25, 100 mm stroke)
  • Max. work load 75/100/150 kg (size 25/32/40), max. acceleration/deceleration 5000 mm/s²
  • Battery-less absolute encoder; restart from the stop position after power recovery without return to origin
  • Compact auto switches (D-M9, D-P3DWA) mount directly on two sides (in-line motor layout only)
  • Motor cover (C) or lock with motor cover (W) selected as motor option
  • Controller (JXC5H/6H parallel I/O, JXCEH/9H/PH EtherCAT, EtherNet/IP, PROFINET) and robot cable (1.5 to 20 m) are suffixes; codes are actuator only

Specifications

Motor type Battery-less absolute step motor (DC24V), high-speed tact
Bearing Slide bearing (M)
Power supply DC24V ±10%
Repeatability ±0.02 mm
Max. acceleration/deceleration 5000 mm/s²
Speed 18 to 250 mm/s (by size)
Pushing force 126 to 553 N (by size)
Drive Ball screw + belt (parallel), ball screw (in-line)
Operating temperature 5 to 40°C
Enclosure IP30
