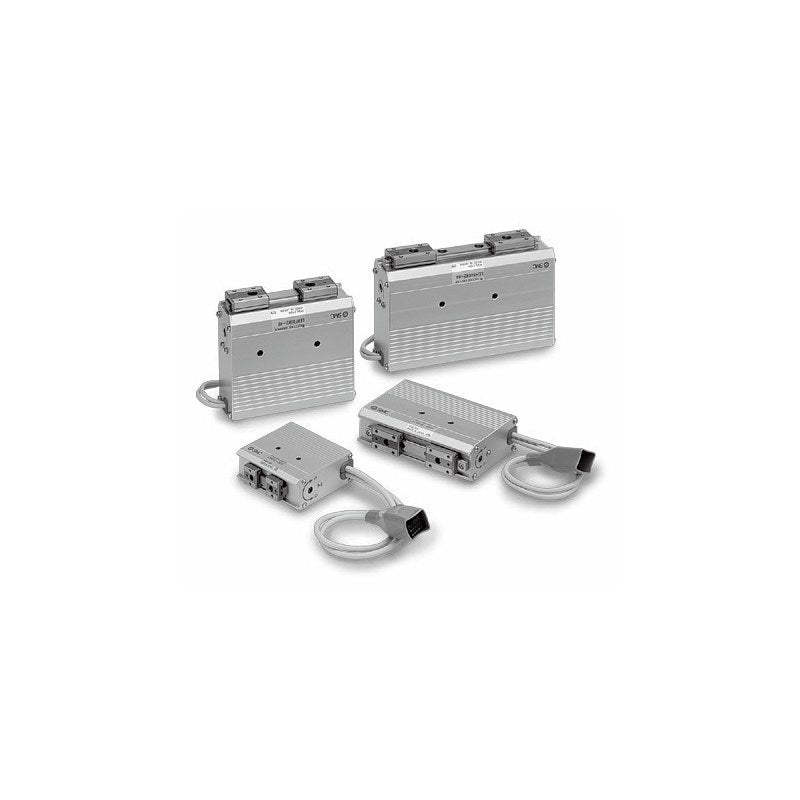

SMC LEHF Electric Gripper, 2-Finger Long Stroke (Step Motor, 10-40)

SMC LEHF Electric Gripper, 2-Finger Long Stroke (Step Motor, 10-40)

SMC LEHF 2-finger long stroke electric gripper with step motor (DC24V, incremental), sizes 10 to 40, for handling workpieces of different sizes.

Key features

  • Slide screw + belt drive; basic or long stroke up to 80 mm (both sides)
  • Gripping force 3 to 180 N; repeatability ±0.05 mm
  • Self-lock mechanism holds workpiece at power off
  • Motor cable exit right side (basic) or left side (L)
  • Controller/driver (JXC51/61 step data, JXCE1/91/P1/D1/L1/M1 fieldbus direct input, LECPA pulse input), actuator cable (S1-S5 standard, R1-RC robot 1.5 to 20 m) and I/O cable are ordered as suffixes, not listed

Specifications

Motor Step motor (servo/DC24V), incremental encoder
Power supply voltage DC24V ±10%
Lead K (basic)
Max. operating frequency 60 c.p.m.
Impact/vibration resistance 150/30 m/s²
Operating temperature 5 to 40°C
Drive Slide screw + belt
Finger guide Linear guide (non-circulating)
Repeatability ±0.05 mm
Enclosure IP20
Motor size 20 (10), 28 (20), 42 (32, 40)
Source SMC Korea catalog LEH (SMCKR_LEH.pdf), p. 855-858 (PDF p. 52-55)
LEHF10K2-16 Size: 10 | Stroke (both sides): 16 mm (basic) | Cable exit: Right side (basic)
LEHF10K2-16L Size: 10 | Stroke (both sides): 16 mm (basic) | Cable exit: Left side
LEHF10K2-32 Size: 10 | Stroke (both sides): 32 mm (long) | Cable exit: Right side (basic)
LEHF10K2-32L Size: 10 | Stroke (both sides): 32 mm (long) | Cable exit: Left side
LEHF20K2-24 Size: 20 | Stroke (both sides): 24 mm (basic) | Cable exit: Right side (basic)
LEHF20K2-24L Size: 20 | Stroke (both sides): 24 mm (basic) | Cable exit: Left side
LEHF20K2-48 Size: 20 | Stroke (both sides): 48 mm (long) | Cable exit: Right side (basic)
LEHF20K2-48L Size: 20 | Stroke (both sides): 48 mm (long) | Cable exit: Left side
LEHF32K2-32 Size: 32 | Stroke (both sides): 32 mm (basic) | Cable exit: Right side (basic)
LEHF32K2-32L Size: 32 | Stroke (both sides): 32 mm (basic) | Cable exit: Left side
LEHF32K2-64 Size: 32 | Stroke (both sides): 64 mm (long) | Cable exit: Right side (basic)
LEHF32K2-64L Size: 32 | Stroke (both sides): 64 mm (long) | Cable exit: Left side
LEHF40K2-40 Size: 40 | Stroke (both sides): 40 mm (basic) | Cable exit: Right side (basic)
LEHF40K2-40L Size: 40 | Stroke (both sides): 40 mm (basic) | Cable exit: Left side
LEHF40K2-80 Size: 40 | Stroke (both sides): 80 mm (long) | Cable exit: Right side (basic)
LEHF40K2-80L Size: 40 | Stroke (both sides): 80 mm (long) | Cable exit: Left side
