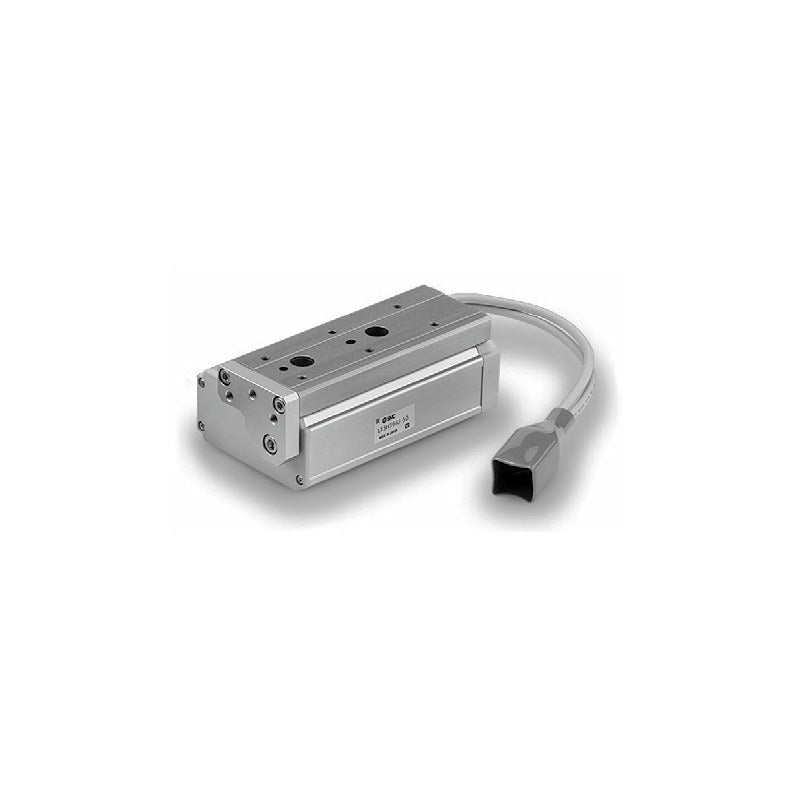

SMC LESH Electric Slide Table, High Rigidity (Step/Servo 24V)

SMC LESH Electric Slide Table, High Rigidity (Step/Servo 24V)

SMC LESH series high-rigidity electric slide table, sizes 8, 16 and 25, with incremental step motor (servo/DC24V) or servo motor (DC24V) and integrated recirculating linear guide.

Key features

  • High-rigidity body with integrated recirculating linear guide; lost motion 0.15 mm or less
  • Three motor layouts: basic (R type), symmetrical (L type) and in-line motor (D type)
  • Slide screw drive, repeatability ±0.05 mm, max. acceleration/deceleration 5000 mm/s²
  • Non-excitation lock option (B); R/L types of size 8/16 accept the lock only at the longer stroke (75/100 mm)
  • Dust-protected body (S, IP5X equivalent) and side holder mounting (H, D type only) are ordered as suffix options
  • Controller/driver (JXC51/61, JXCE1/91/P1/D1/L1/M1, STO types JXCEF/9F/PF/LF, LECPA for step motor; LECA6 for servo motor), actuator cable (standard S1-S5 or robot R1-RC) and I/O cable are suffixes; codes are actuator only

Specifications

Encoder Incremental
Power supply DC24V ±10%
Repeatability ±0.05 mm
Lost motion 0.15 mm or less
Max. acceleration/deceleration 5000 mm/s²
Max. speed 400 mm/s
Horizontal work load (step motor) Up to 12 kg (size 25)
Drive Slide screw + belt (R/L), slide screw (D)
Guide Linear guide (recirculating)
Operating temperature 5 to 40°C
Enclosure IP30
Source SMC Korea electric actuator catalog (SMCKR_LES_LESH.pdf), p. 715-719 (PDF p. 82-86)
LESH8RJ-50 Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH8RJ-75 Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LESH8RJ-75B Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LESH8RK-50 Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LESH8RK-75 Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LESH8RK-75B Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LESH8RAJ-50 Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH8RAJ-75 Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LESH8RAJ-75B Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LESH8RAK-50 Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LESH8RAK-75 Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LESH8RAK-75B Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LESH8LJ-50 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH8LJ-75 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LESH8LJ-75B Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LESH8LK-50 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LESH8LK-75 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LESH8LK-75B Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LESH8LAJ-50 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH8LAJ-75 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LESH8LAJ-75B Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LESH8LAK-50 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LESH8LAK-75 Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LESH8LAK-75B Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LESH8DJ-50 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH8DJ-50B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LESH8DJ-75 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LESH8DJ-75B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LESH8DK-50 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LESH8DK-50B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: With lock
LESH8DK-75 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LESH8DK-75B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LESH8DAJ-50 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH8DAJ-50B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LESH8DAJ-75 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LESH8DAJ-75B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LESH8DAK-50 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LESH8DAK-50B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: With lock
LESH8DAK-75 Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LESH8DAK-75B Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LESH16RJ-50 Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LESH16RJ-100 Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LESH16RJ-100B Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LESH16RK-50 Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LESH16RK-100 Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LESH16RK-100B Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LESH16RAJ-50 Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LESH16RAJ-100 Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LESH16RAJ-100B Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LESH16RAK-50 Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LESH16RAK-100 Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LESH16RAK-100B Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LESH16LJ-50 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LESH16LJ-100 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LESH16LJ-100B Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LESH16LK-50 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LESH16LK-100 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LESH16LK-100B Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LESH16LAJ-50 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LESH16LAJ-100 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LESH16LAJ-100B Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LESH16LAK-50 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LESH16LAK-100 Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LESH16LAK-100B Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LESH16DJ-50 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LESH16DJ-50B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: With lock
LESH16DJ-100 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LESH16DJ-100B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LESH16DK-50 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LESH16DK-50B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: With lock
LESH16DK-100 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LESH16DK-100B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LESH16DAJ-50 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LESH16DAJ-50B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: With lock
LESH16DAJ-100 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LESH16DAJ-100B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LESH16DAK-50 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LESH16DAK-50B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: With lock
LESH16DAK-100 Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LESH16DAK-100B Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LESH25RJ-50 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LESH25RJ-50B Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LESH25RJ-100 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LESH25RJ-100B Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LESH25RJ-150 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LESH25RJ-150B Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LESH25RK-50 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH25RK-50B Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LESH25RK-100 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LESH25RK-100B Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LESH25RK-150 Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LESH25RK-150B Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
LESH25RAJ-50 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LESH25RAJ-50B Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LESH25RAJ-100 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LESH25RAJ-100B Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LESH25RAJ-150 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LESH25RAJ-150B Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LESH25RAK-50 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH25RAK-50B Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LESH25RAK-100 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LESH25RAK-100B Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LESH25RAK-150 Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LESH25RAK-150B Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
LESH25LJ-50 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LESH25LJ-50B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LESH25LJ-100 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LESH25LJ-100B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LESH25LJ-150 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LESH25LJ-150B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LESH25LK-50 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH25LK-50B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LESH25LK-100 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LESH25LK-100B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LESH25LK-150 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LESH25LK-150B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
LESH25LAJ-50 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LESH25LAJ-50B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LESH25LAJ-100 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LESH25LAJ-100B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LESH25LAJ-150 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LESH25LAJ-150B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LESH25LAK-50 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH25LAK-50B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LESH25LAK-100 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LESH25LAK-100B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LESH25LAK-150 Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LESH25LAK-150B Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
LESH25DJ-50 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LESH25DJ-50B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LESH25DJ-100 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LESH25DJ-100B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LESH25DJ-150 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LESH25DJ-150B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LESH25DK-50 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH25DK-50B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LESH25DK-100 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LESH25DK-100B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LESH25DK-150 Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LESH25DK-150B Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
Electric ActuatorsSMC
140 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LESH Electric Slide Table, High Rigidity (Step/Servo 24V)

Brand SMC·Electric Actuators

Available part numbers (140)

LESH8RJ-50, LESH8RJ-75, LESH8RJ-75B, LESH8RK-50, LESH8RK-75, LESH8RK-75B, LESH8RAJ-50, LESH8RAJ-75, LESH8RAJ-75B, LESH8RAK-50 + 130 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LESH8RJ-50Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH8RJ-75Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LESH8RJ-75BSize: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LESH8RK-50Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LESH8RK-75Size: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LESH8RK-75BSize: 8 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LESH8RAJ-50Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH8RAJ-75Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LESH8RAJ-75BSize: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LESH8RAK-50Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LESH8RAK-75Size: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LESH8RAK-75BSize: 8 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LESH8LJ-50Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH8LJ-75Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LESH8LJ-75BSize: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LESH8LK-50Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LESH8LK-75Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LESH8LK-75BSize: 8 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LESH8LAJ-50Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH8LAJ-75Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LESH8LAJ-75BSize: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LESH8LAK-50Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LESH8LAK-75Size: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LESH8LAK-75BSize: 8 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LESH8DJ-50Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH8DJ-50BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LESH8DJ-75Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LESH8DJ-75BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LESH8DK-50Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LESH8DK-50BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: With lock
LESH8DK-75Size: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LESH8DK-75BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LESH8DAJ-50Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH8DAJ-50BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LESH8DAJ-75Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: None
LESH8DAJ-75BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 75 mm | Lock: With lock
LESH8DAK-50Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: None
LESH8DAK-50BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 50 mm | Lock: With lock
LESH8DAK-75Size: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: None
LESH8DAK-75BSize: 8 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 4 mm | Stroke: 75 mm | Lock: With lock
LESH16RJ-50Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LESH16RJ-100Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LESH16RJ-100BSize: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LESH16RK-50Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LESH16RK-100Size: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LESH16RK-100BSize: 16 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LESH16RAJ-50Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LESH16RAJ-100Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LESH16RAJ-100BSize: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LESH16RAK-50Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LESH16RAK-100Size: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LESH16RAK-100BSize: 16 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LESH16LJ-50Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LESH16LJ-100Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LESH16LJ-100BSize: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LESH16LK-50Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LESH16LK-100Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LESH16LK-100BSize: 16 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LESH16LAJ-50Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LESH16LAJ-100Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LESH16LAJ-100BSize: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LESH16LAK-50Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LESH16LAK-100Size: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LESH16LAK-100BSize: 16 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LESH16DJ-50Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LESH16DJ-50BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: With lock
LESH16DJ-100Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LESH16DJ-100BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LESH16DK-50Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LESH16DK-50BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: With lock
LESH16DK-100Size: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LESH16DK-100BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LESH16DAJ-50Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: None
LESH16DAJ-50BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 50 mm | Lock: With lock
LESH16DAJ-100Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: None
LESH16DAJ-100BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 10 mm | Stroke: 100 mm | Lock: With lock
LESH16DAK-50Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: None
LESH16DAK-50BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 50 mm | Lock: With lock
LESH16DAK-100Size: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: None
LESH16DAK-100BSize: 16 | Motor layout: In-line motor (D type) | Motor type: Servo motor (DC24V) | Lead: 5 mm | Stroke: 100 mm | Lock: With lock
LESH25RJ-50Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LESH25RJ-50BSize: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LESH25RJ-100Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LESH25RJ-100BSize: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LESH25RJ-150Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LESH25RJ-150BSize: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LESH25RK-50Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH25RK-50BSize: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LESH25RK-100Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LESH25RK-100BSize: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LESH25RK-150Size: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LESH25RK-150BSize: 25 | Motor layout: Basic (R type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
LESH25RAJ-50Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LESH25RAJ-50BSize: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LESH25RAJ-100Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LESH25RAJ-100BSize: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LESH25RAJ-150Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LESH25RAJ-150BSize: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LESH25RAK-50Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH25RAK-50BSize: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LESH25RAK-100Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LESH25RAK-100BSize: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LESH25RAK-150Size: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LESH25RAK-150BSize: 25 | Motor layout: Basic (R type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
LESH25LJ-50Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LESH25LJ-50BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LESH25LJ-100Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LESH25LJ-100BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LESH25LJ-150Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LESH25LJ-150BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LESH25LK-50Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH25LK-50BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LESH25LK-100Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LESH25LK-100BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LESH25LK-150Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LESH25LK-150BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
LESH25LAJ-50Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LESH25LAJ-50BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LESH25LAJ-100Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LESH25LAJ-100BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LESH25LAJ-150Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LESH25LAJ-150BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LESH25LAK-50Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH25LAK-50BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LESH25LAK-100Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LESH25LAK-100BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LESH25LAK-150Size: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LESH25LAK-150BSize: 25 | Motor layout: Symmetrical (L type) | Motor type: Servo motor (DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock
LESH25DJ-50Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: None
LESH25DJ-50BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 50 mm | Lock: With lock
LESH25DJ-100Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: None
LESH25DJ-100BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 100 mm | Lock: With lock
LESH25DJ-150Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: None
LESH25DJ-150BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 16 mm | Stroke: 150 mm | Lock: With lock
LESH25DK-50Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: None
LESH25DK-50BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 50 mm | Lock: With lock
LESH25DK-100Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: None
LESH25DK-100BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 100 mm | Lock: With lock
LESH25DK-150Size: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: None
LESH25DK-150BSize: 25 | Motor layout: In-line motor (D type) | Motor type: Step motor (servo/DC24V) | Lead: 8 mm | Stroke: 150 mm | Lock: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
