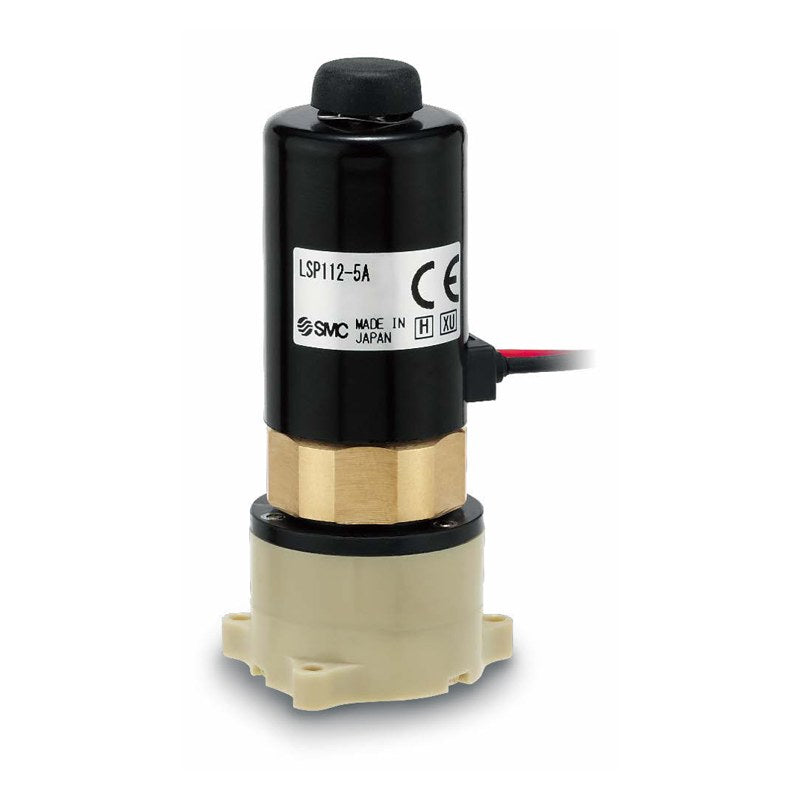

SMC LSP Metering Pump (Solenoid Type, 5 to 200 uL/shot)

SMC LSP Metering Pump (Solenoid Type, 5 to 200 uL/shot)

SMC LSP series compact solenoid-driven diaphragm metering pump that discharges a fixed, adjustable volume of liquid from 5 uL per shot.

Key features

  • Adjustable discharge volume per shot: 5 to 50, 50 to 100 or 100 to 200 uL
  • Repeatability ±1% (±2% at 5 to 15 uL); shut-off function and self-priming
  • Direct piping (M5, M6, 1/4-28UNF thread or tube insertion) or base mounted type
  • Wetted parts PEEK or PP body with EPDM or FKM diaphragm/check valve, for water, deionized water, diluents and cleaning liquids
  • Coil DC24V or DC12V, IP40 equivalent, power 4 W (LSP11), 9 W (LSP12), 17 W (LSP13)

Specifications

Discharge pressure 10 kPa
Suction pressure Dry 15 kPa, wet 35 kPa
Max. operating frequency 2 Hz (min. ON 200 ms / OFF 300 ms)
Fluid / ambient temperature 10 to 50°C (no freezing)
Mounting orientation Unrestricted
Enclosure IP40 equivalent
Allowable voltage fluctuation ±10% of rated voltage
Coil insulation Class B
Lead wire AWG20 (insulator O.D. 1.79 mm)
Mass 90 g (thread), 85 g (tube insertion, base mounted)
Noise 60 dB or less
Source SMC Korea catalog CAT.KS100-135A (SMCKR_LSP.pdf), p. 2 (PDF p. 3)
LSP111-5A1 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP111-5A2 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP111-5A3 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP111-5A4 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP112-5A Discharge: 5 to 50 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP111-5B1 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP111-5B2 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP111-5B3 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP111-5B4 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP112-5B Discharge: 5 to 50 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP111-5C1 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP111-5C2 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP111-5C3 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP111-5C4 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP112-5C Discharge: 5 to 50 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP111-5D1 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP111-5D2 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP111-5D3 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP111-5D4 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP112-5D Discharge: 5 to 50 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP111-6A1 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP111-6A2 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP111-6A3 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP111-6A4 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP112-6A Discharge: 5 to 50 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP111-6B1 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP111-6B2 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP111-6B3 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP111-6B4 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP112-6B Discharge: 5 to 50 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP111-6C1 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP111-6C2 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP111-6C3 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP111-6C4 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP112-6C Discharge: 5 to 50 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP111-6D1 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP111-6D2 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP111-6D3 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP111-6D4 Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP112-6D Discharge: 5 to 50 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP121-5A1 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP121-5A2 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP121-5A3 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP121-5A4 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP122-5A Discharge: 50 to 100 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP121-5B1 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP121-5B2 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP121-5B3 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP121-5B4 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP122-5B Discharge: 50 to 100 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP121-5C1 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP121-5C2 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP121-5C3 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP121-5C4 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP122-5C Discharge: 50 to 100 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP121-5D1 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP121-5D2 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP121-5D3 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP121-5D4 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP122-5D Discharge: 50 to 100 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP121-6A1 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP121-6A2 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP121-6A3 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP121-6A4 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP122-6A Discharge: 50 to 100 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP121-6B1 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP121-6B2 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP121-6B3 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP121-6B4 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP122-6B Discharge: 50 to 100 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP121-6C1 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP121-6C2 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP121-6C3 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP121-6C4 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP122-6C Discharge: 50 to 100 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP121-6D1 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP121-6D2 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP121-6D3 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP121-6D4 Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP122-6D Discharge: 50 to 100 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP131-5A1 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP131-5A2 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP131-5A3 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP131-5A4 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP132-5A Discharge: 100 to 200 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP131-5B1 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP131-5B2 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP131-5B3 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP131-5B4 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP132-5B Discharge: 100 to 200 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP131-5C1 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP131-5C2 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP131-5C3 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP131-5C4 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP132-5C Discharge: 100 to 200 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP131-5D1 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP131-5D2 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP131-5D3 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP131-5D4 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP132-5D Discharge: 100 to 200 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP131-6A1 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP131-6A2 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP131-6A3 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP131-6A4 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP132-6A Discharge: 100 to 200 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP131-6B1 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP131-6B2 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP131-6B3 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP131-6B4 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP132-6B Discharge: 100 to 200 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP131-6C1 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP131-6C2 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP131-6C3 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP131-6C4 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP132-6C Discharge: 100 to 200 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP131-6D1 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP131-6D2 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP131-6D3 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP131-6D4 Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP132-6D Discharge: 100 to 200 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
Process PumpsSMC
120 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LSP Metering Pump (Solenoid Type, 5 to 200 uL/shot)

Brand SMC·Process Pumps

Available part numbers (120)

LSP111-5A1, LSP111-5A2, LSP111-5A3, LSP111-5A4, LSP112-5A, LSP111-5B1, LSP111-5B2, LSP111-5B3, LSP111-5B4, LSP112-5B + 110 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSP111-5A1Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP111-5A2Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP111-5A3Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP111-5A4Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP112-5ADischarge: 5 to 50 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP111-5B1Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP111-5B2Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP111-5B3Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP111-5B4Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP112-5BDischarge: 5 to 50 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP111-5C1Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP111-5C2Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP111-5C3Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP111-5C4Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP112-5CDischarge: 5 to 50 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP111-5D1Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP111-5D2Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP111-5D3Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP111-5D4Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP112-5DDischarge: 5 to 50 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP111-6A1Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP111-6A2Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP111-6A3Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP111-6A4Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP112-6ADischarge: 5 to 50 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP111-6B1Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP111-6B2Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP111-6B3Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP111-6B4Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP112-6BDischarge: 5 to 50 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP111-6C1Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP111-6C2Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP111-6C3Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP111-6C4Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP112-6CDischarge: 5 to 50 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP111-6D1Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP111-6D2Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP111-6D3Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP111-6D4Discharge: 5 to 50 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP112-6DDischarge: 5 to 50 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP121-5A1Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP121-5A2Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP121-5A3Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP121-5A4Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP122-5ADischarge: 50 to 100 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP121-5B1Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP121-5B2Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP121-5B3Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP121-5B4Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP122-5BDischarge: 50 to 100 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP121-5C1Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP121-5C2Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP121-5C3Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP121-5C4Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP122-5CDischarge: 50 to 100 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP121-5D1Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP121-5D2Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP121-5D3Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP121-5D4Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP122-5DDischarge: 50 to 100 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP121-6A1Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP121-6A2Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP121-6A3Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP121-6A4Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP122-6ADischarge: 50 to 100 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP121-6B1Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP121-6B2Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP121-6B3Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP121-6B4Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP122-6BDischarge: 50 to 100 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP121-6C1Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP121-6C2Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP121-6C3Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP121-6C4Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP122-6CDischarge: 50 to 100 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP121-6D1Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP121-6D2Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP121-6D3Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP121-6D4Discharge: 50 to 100 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP122-6DDischarge: 50 to 100 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP131-5A1Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP131-5A2Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP131-5A3Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP131-5A4Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP132-5ADischarge: 100 to 200 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PEEK body, EPDM diaphragm/check
LSP131-5B1Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP131-5B2Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP131-5B3Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP131-5B4Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP132-5BDischarge: 100 to 200 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PEEK body, FKM diaphragm/check
LSP131-5C1Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP131-5C2Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP131-5C3Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP131-5C4Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP132-5CDischarge: 100 to 200 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PP body, EPDM diaphragm/check
LSP131-5D1Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP131-5D2Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP131-5D3Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP131-5D4Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP132-5DDischarge: 100 to 200 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC24V | Wetted material: PP body, FKM diaphragm/check
LSP131-6A1Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP131-6A2Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP131-6A3Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP131-6A4Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP132-6ADischarge: 100 to 200 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PEEK body, EPDM diaphragm/check
LSP131-6B1Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP131-6B2Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP131-6B3Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP131-6B4Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP132-6BDischarge: 100 to 200 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PEEK body, FKM diaphragm/check
LSP131-6C1Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP131-6C2Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP131-6C3Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP131-6C4Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP132-6CDischarge: 100 to 200 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PP body, EPDM diaphragm/check
LSP131-6D1Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M5 thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP131-6D2Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: M6 thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP131-6D3Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: 1/4-28UNF thread | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP131-6D4Discharge: 100 to 200 uL/shot | Piping: Direct piping | Connection: Tube insertion | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check
LSP132-6DDischarge: 100 to 200 uL/shot | Piping: Base mounted | Connection: Base (sub-plate) | Coil voltage: DC12V | Wetted material: PP body, FKM diaphragm/check

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
