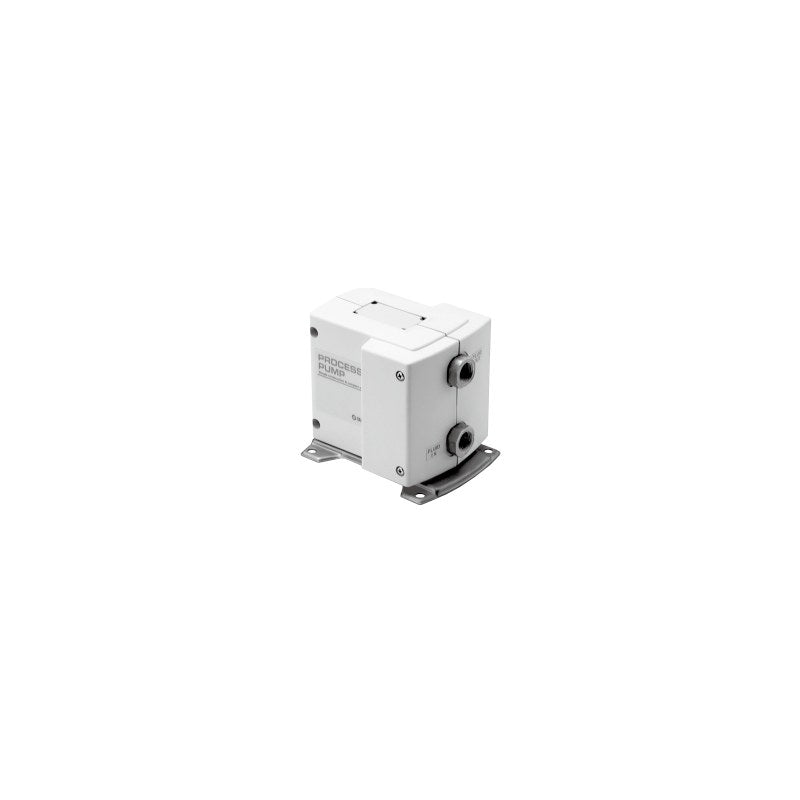

SMC PA3000 Process Pump (Auto / Air Operated, 3/8")

SMC PA3000 Process Pump (Auto / Air Operated, 3/8")

SMC PA3000 series air-driven diaphragm process pump with aluminum or stainless wetted body, available as an automatically operated (internal switching) or air operated (external switching) type.

Key features

  • Self-priming: exhausts the air in the suction piping, no priming water needed
  • Automatically operated type: built-in switching valve, discharge 1 to 20 L/min, average discharge pressure 0 to 0.6 MPa
  • Air operated type: switched by an external 5-port solenoid valve (1 to 7 Hz), discharge 0.1 to 12 L/min, easy flow control by ON/OFF cycle
  • No sliding parts in the wetted area, high wear resistance and low particle generation
  • Options: silencer (N) for AIR EXH, NPT/G/NPTF threads; made to order ATEX (55-/56-), air operated reset port (-X2) and operation count port (-X8)

Specifications

Main fluid suction/discharge port Rc 3/8" female thread
Pilot air supply/exhaust port Rc 1/4" female thread
Check valve PTFE, PFA
Pilot air pressure 0.2 to 0.7 MPa (auto), 0.1 to 0.5 MPa (air operated)
Air consumption 200 L/min (ANR) or less (auto), 150 L/min (ANR) or less (air operated)
Suction lift Dry 1 m, wet 6 m
Proof pressure 1.05 MPa (auto), 0.75 MPa (air operated)
Diaphragm life PTFE 100 million (auto), 50 million cycles (NBR, air operated)
Fluid / ambient temperature 0 to 60°C (no freezing)
Max. viscosity 1000 mPa·s
Mounting Horizontal (bottom mounting)
Source SMC Korea catalog PA3000/5000 (SMCKR_PA_PAP_PAX.pdf), p. 554, 563-564 (PDF p. 2, 11-12)
PA3110-03 Drive: Automatically operated | Body material: ADC12 (aluminum) | Diaphragm: PTFE | Discharge flow: 1 to 20 L/min | Mass: 1.7 kg
PA3113-03 Drive: Air operated | Body material: ADC12 (aluminum) | Diaphragm: PTFE | Discharge flow: 0.1 to 12 L/min | Mass: 1.7 kg
PA3120-03 Drive: Automatically operated | Body material: ADC12 (aluminum) | Diaphragm: NBR | Discharge flow: 1 to 20 L/min | Mass: 1.7 kg
PA3210-03 Drive: Automatically operated | Body material: SCS14 (stainless) | Diaphragm: PTFE | Discharge flow: 1 to 20 L/min | Mass: 2.2 kg
PA3213-03 Drive: Air operated | Body material: SCS14 (stainless) | Diaphragm: PTFE | Discharge flow: 0.1 to 12 L/min | Mass: 2.2 kg
PA3220-03 Drive: Automatically operated | Body material: SCS14 (stainless) | Diaphragm: NBR | Discharge flow: 1 to 20 L/min | Mass: 2.2 kg
Process PumpsSMC
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PA3000 Process Pump (Auto / Air Operated, 3/8")

Brand SMC·Process Pumps

Available part numbers (6)

PA3110-03, PA3113-03, PA3120-03, PA3210-03, PA3213-03, PA3220-03

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PA3110-03Drive: Automatically operated | Body material: ADC12 (aluminum) | Diaphragm: PTFE | Discharge flow: 1 to 20 L/min | Mass: 1.7 kg
PA3113-03Drive: Air operated | Body material: ADC12 (aluminum) | Diaphragm: PTFE | Discharge flow: 0.1 to 12 L/min | Mass: 1.7 kg
PA3120-03Drive: Automatically operated | Body material: ADC12 (aluminum) | Diaphragm: NBR | Discharge flow: 1 to 20 L/min | Mass: 1.7 kg
PA3210-03Drive: Automatically operated | Body material: SCS14 (stainless) | Diaphragm: PTFE | Discharge flow: 1 to 20 L/min | Mass: 2.2 kg
PA3213-03Drive: Air operated | Body material: SCS14 (stainless) | Diaphragm: PTFE | Discharge flow: 0.1 to 12 L/min | Mass: 2.2 kg
PA3220-03Drive: Automatically operated | Body material: SCS14 (stainless) | Diaphragm: NBR | Discharge flow: 1 to 20 L/min | Mass: 2.2 kg
