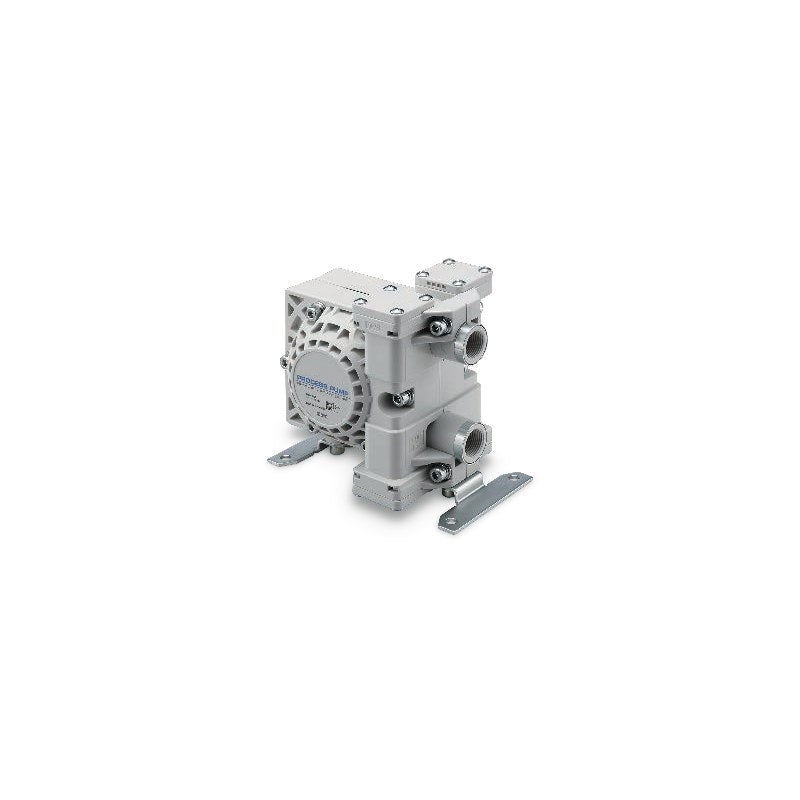

SMC PA5000 Process Pump (Auto / Air Operated, 1/2" and 3/4")

SMC PA5000 Process Pump (Auto / Air Operated, 1/2" and 3/4")

SMC PA5000 series air-driven diaphragm process pump for 1/2" and 3/4" piping, with aluminum, stainless steel or polypropylene wetted body.

Key features

  • Automatically operated type (internal switching): discharge up to 63 L/min, average discharge pressure 0 to 0.6 MPa
  • Air operated type (external switching): discharge up to 50 L/min, 0 to 0.4 MPa, flow set by solenoid valve ON/OFF cycle (1 to 7 Hz)
  • Polypropylene (PP) body added: compact, energy-saving design with FFKM wetted seals
  • Self-priming, handles viscosities up to 5000 mPa·s
  • Options: silencer (N) for AIR EXH, NPT/G/NPTF threads (NPTF not for PP); made to order ATEX, reset port and operation count port

Specifications

Pilot air port Rc 1/4" female thread
Check valve PTFE, PFA (PP body: PTFE, PP, PFA)
Wetted seal PTFE (PP body: FFKM)
Pilot air pressure 0.2 to 0.7 MPa (auto), 0.1 to 0.5 MPa (air operated)
Suction lift Dry 2 m (auto) / 0.5 m (air operated), wet 6 m
Proof pressure 1.05 MPa (auto), 0.75 MPa (air operated)
Diaphragm life 50 million cycles (reference)
Fluid / ambient temperature 0 to 60°C (no freezing)
Max. viscosity 5000 mPa·s
Mounting Horizontal (bottom mounting)
Source SMC Korea catalog CAT.KS100-137A (SMCKR_PA5000.pdf), p. 4-5 (PDF p. 5-6)
PA5110-04 Drive: Automatically operated | Body material: ADC12 (aluminum) | Diaphragm: PTFE | Port size: Rc 1/2" | Discharge flow: 5 to 50 L/min | Mass: 3.5 kg
PA5110-06 Drive: Automatically operated | Body material: ADC12 (aluminum) | Diaphragm: PTFE | Port size: Rc 3/4" | Discharge flow: 5 to 60 L/min | Mass: 3.5 kg
PA5113-04 Drive: Air operated | Body material: ADC12 (aluminum) | Diaphragm: PTFE | Port size: Rc 1/2" | Discharge flow: 1 to 45 L/min | Mass: 3.5 kg
PA5113-06 Drive: Air operated | Body material: ADC12 (aluminum) | Diaphragm: PTFE | Port size: Rc 3/4" | Discharge flow: 1 to 50 L/min | Mass: 3.5 kg
PA5120-04 Drive: Automatically operated | Body material: ADC12 (aluminum) | Diaphragm: NBR | Port size: Rc 1/2" | Discharge flow: 5 to 50 L/min | Mass: 3.5 kg
PA5120-06 Drive: Automatically operated | Body material: ADC12 (aluminum) | Diaphragm: NBR | Port size: Rc 3/4" | Discharge flow: 5 to 60 L/min | Mass: 3.5 kg
PA5210-04 Drive: Automatically operated | Body material: SCS14 (stainless) | Diaphragm: PTFE | Port size: Rc 1/2" | Discharge flow: 5 to 50 L/min | Mass: 6.5 kg
PA5210-06 Drive: Automatically operated | Body material: SCS14 (stainless) | Diaphragm: PTFE | Port size: Rc 3/4" | Discharge flow: 5 to 60 L/min | Mass: 6.5 kg
PA5213-04 Drive: Air operated | Body material: SCS14 (stainless) | Diaphragm: PTFE | Port size: Rc 1/2" | Discharge flow: 1 to 45 L/min | Mass: 6.5 kg
PA5213-06 Drive: Air operated | Body material: SCS14 (stainless) | Diaphragm: PTFE | Port size: Rc 3/4" | Discharge flow: 1 to 50 L/min | Mass: 6.5 kg
PA5220-04 Drive: Automatically operated | Body material: SCS14 (stainless) | Diaphragm: NBR | Port size: Rc 1/2" | Discharge flow: 5 to 50 L/min | Mass: 6.5 kg
PA5220-06 Drive: Automatically operated | Body material: SCS14 (stainless) | Diaphragm: NBR | Port size: Rc 3/4" | Discharge flow: 5 to 60 L/min | Mass: 6.5 kg
PA5010-04 Drive: Automatically operated | Body material: PP (polypropylene) | Diaphragm: PTFE | Port size: Rc 1/2" | Discharge flow: 5 to 53 L/min | Mass: 3.0 kg
PA5010-06 Drive: Automatically operated | Body material: PP (polypropylene) | Diaphragm: PTFE | Port size: Rc 3/4" | Discharge flow: 5 to 63 L/min | Mass: 3.0 kg
PA5013-04 Drive: Air operated | Body material: PP (polypropylene) | Diaphragm: PTFE | Port size: Rc 1/2" | Discharge flow: 1 to 45 L/min | Mass: 3.0 kg
PA5013-06 Drive: Air operated | Body material: PP (polypropylene) | Diaphragm: PTFE | Port size: Rc 3/4" | Discharge flow: 1 to 50 L/min | Mass: 3.0 kg
Process PumpsSMC
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PA5000 Process Pump (Auto / Air Operated, 1/2" and 3/4")

Brand SMC·Process Pumps

Available part numbers (16)

PA5110-04, PA5110-06, PA5113-04, PA5113-06, PA5120-04, PA5120-06, PA5210-04, PA5210-06, PA5213-04, PA5213-06 + 6 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PA5110-04Drive: Automatically operated | Body material: ADC12 (aluminum) | Diaphragm: PTFE | Port size: Rc 1/2" | Discharge flow: 5 to 50 L/min | Mass: 3.5 kg
PA5110-06Drive: Automatically operated | Body material: ADC12 (aluminum) | Diaphragm: PTFE | Port size: Rc 3/4" | Discharge flow: 5 to 60 L/min | Mass: 3.5 kg
PA5113-04Drive: Air operated | Body material: ADC12 (aluminum) | Diaphragm: PTFE | Port size: Rc 1/2" | Discharge flow: 1 to 45 L/min | Mass: 3.5 kg
PA5113-06Drive: Air operated | Body material: ADC12 (aluminum) | Diaphragm: PTFE | Port size: Rc 3/4" | Discharge flow: 1 to 50 L/min | Mass: 3.5 kg
PA5120-04Drive: Automatically operated | Body material: ADC12 (aluminum) | Diaphragm: NBR | Port size: Rc 1/2" | Discharge flow: 5 to 50 L/min | Mass: 3.5 kg
PA5120-06Drive: Automatically operated | Body material: ADC12 (aluminum) | Diaphragm: NBR | Port size: Rc 3/4" | Discharge flow: 5 to 60 L/min | Mass: 3.5 kg
PA5210-04Drive: Automatically operated | Body material: SCS14 (stainless) | Diaphragm: PTFE | Port size: Rc 1/2" | Discharge flow: 5 to 50 L/min | Mass: 6.5 kg
PA5210-06Drive: Automatically operated | Body material: SCS14 (stainless) | Diaphragm: PTFE | Port size: Rc 3/4" | Discharge flow: 5 to 60 L/min | Mass: 6.5 kg
PA5213-04Drive: Air operated | Body material: SCS14 (stainless) | Diaphragm: PTFE | Port size: Rc 1/2" | Discharge flow: 1 to 45 L/min | Mass: 6.5 kg
PA5213-06Drive: Air operated | Body material: SCS14 (stainless) | Diaphragm: PTFE | Port size: Rc 3/4" | Discharge flow: 1 to 50 L/min | Mass: 6.5 kg
PA5220-04Drive: Automatically operated | Body material: SCS14 (stainless) | Diaphragm: NBR | Port size: Rc 1/2" | Discharge flow: 5 to 50 L/min | Mass: 6.5 kg
PA5220-06Drive: Automatically operated | Body material: SCS14 (stainless) | Diaphragm: NBR | Port size: Rc 3/4" | Discharge flow: 5 to 60 L/min | Mass: 6.5 kg
PA5010-04Drive: Automatically operated | Body material: PP (polypropylene) | Diaphragm: PTFE | Port size: Rc 1/2" | Discharge flow: 5 to 53 L/min | Mass: 3.0 kg
PA5010-06Drive: Automatically operated | Body material: PP (polypropylene) | Diaphragm: PTFE | Port size: Rc 3/4" | Discharge flow: 5 to 63 L/min | Mass: 3.0 kg
PA5013-04Drive: Air operated | Body material: PP (polypropylene) | Diaphragm: PTFE | Port size: Rc 1/2" | Discharge flow: 1 to 45 L/min | Mass: 3.0 kg
PA5013-06Drive: Air operated | Body material: PP (polypropylene) | Diaphragm: PTFE | Port size: Rc 3/4" | Discharge flow: 1 to 50 L/min | Mass: 3.0 kg
