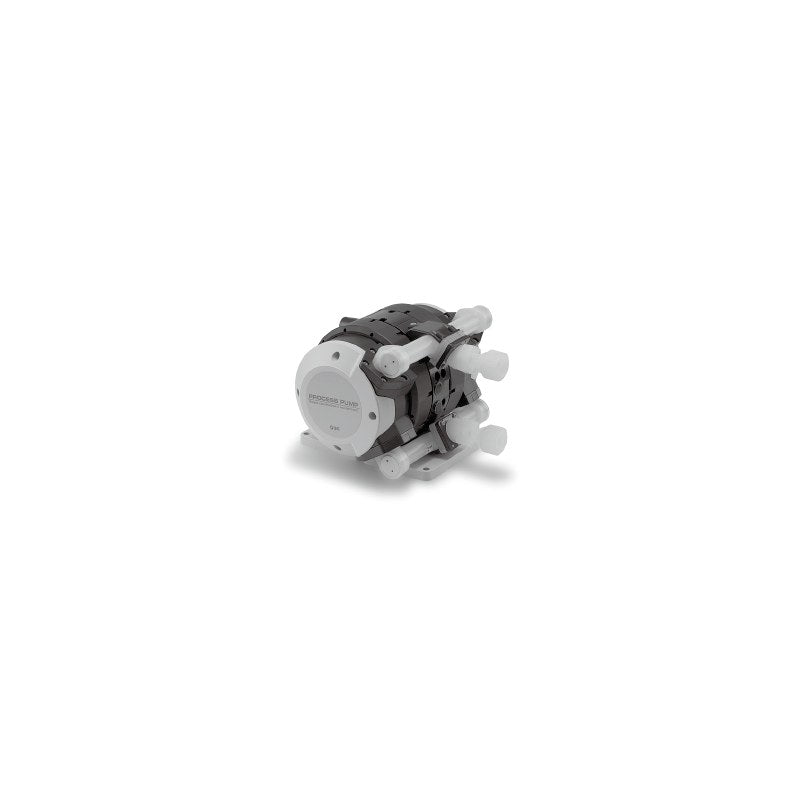

SMC PAF3000 Process Pump (New PFA, Non-Metallic, 3/8" to 1/2")

SMC PAF3000 Process Pump (New PFA, Non-Metallic, 3/8" to 1/2")

SMC PAF3000 series all-fluoropolymer process pump with New PFA wetted parts and no metal parts, for chemical and high-purity liquid transfer up to 20 L/min.

Key features

  • Wetted parts New PFA; PPS/PFA double structure improves pressure and heat cycle resistance; no metal parts (non-metallic)
  • Clean Wet series: clean room assembly and double packaging
  • Automatically operated (internal switching) or air operated (external switching) types
  • Connections: female thread, integral tube or nut type for LQ1 (insert bushing) / LQ3 (flare) fittings ordered separately
  • Options: foot (B), silencer (N) for AIR EXH, NPT/G threads

Specifications

Wetted material New PFA
Average discharge pressure 0 to 0.4 MPa
Pilot air pressure 0.2 to 0.5 MPa (0 to 60°C)
Pilot air port Rc 1/4" (auto), Rc 1/8" (air operated) female thread
Air consumption 230 L/min (ANR) or less
Suction lift Dry 1 m, wet 4 m
Proof pressure 0.75 MPa
Diaphragm life 50 million cycles (water)
Fluid temperature 0 to 90°C (no freezing)
Ambient temperature 0 to 70°C (no freezing)
Mass (without foot) 1.6 kg (auto), 1.3 kg (air operated)
Nut size vs. tube Size 4: 10x8, 12x10, 3/8"x1/4", 1/2"x3/8"; 5: 12x10, 19x16, 1/2"x3/8", 3/4"x5/8"; 6: 19x16, 25x22, 3/4"x5/8", 1"x7/8"
Source SMC Korea catalog PAF3000/5000 (SMCKR_PAF3000_5000.pdf), p. 598, 601 (PDF p. 4, 7)
PAF3410-03 Drive: Automatically operated | Connection: Female thread | Fitting: None | Size: Rc 3/8" | Discharge flow: 1 to 20 L/min
PAF3410-P13 Drive: Automatically operated | Connection: Tube integral | Fitting: None | Size: 1/2" tube | Discharge flow: 1 to 20 L/min
PAF3410S-1S13 Drive: Automatically operated | Connection: With nut | Fitting: LQ1 | Size: Size 4 | Discharge flow: 1 to 20 L/min
PAF3410S-1S1319 Drive: Automatically operated | Connection: With nut | Fitting: LQ1 | Size: IN size 4 / OUT size 5 | Discharge flow: 1 to 20 L/min
PAF3410S-1S1913 Drive: Automatically operated | Connection: With nut | Fitting: LQ1 | Size: IN size 5 / OUT size 4 | Discharge flow: 1 to 20 L/min
PAF3410S-1S19 Drive: Automatically operated | Connection: With nut | Fitting: LQ1 | Size: Size 5 | Discharge flow: 1 to 20 L/min
PAF3410S-3S13 Drive: Automatically operated | Connection: With nut | Fitting: LQ3 | Size: Size 4 | Discharge flow: 1 to 20 L/min
PAF3413-03 Drive: Air operated | Connection: Female thread | Fitting: None | Size: Rc 3/8" | Discharge flow: 1 to 15 L/min
PAF3413-P13 Drive: Air operated | Connection: Tube integral | Fitting: None | Size: 1/2" tube | Discharge flow: 1 to 15 L/min
PAF3413S-1S13 Drive: Air operated | Connection: With nut | Fitting: LQ1 | Size: Size 4 | Discharge flow: 1 to 15 L/min
PAF3413S-1S1319 Drive: Air operated | Connection: With nut | Fitting: LQ1 | Size: IN size 4 / OUT size 5 | Discharge flow: 1 to 15 L/min
PAF3413S-1S1913 Drive: Air operated | Connection: With nut | Fitting: LQ1 | Size: IN size 5 / OUT size 4 | Discharge flow: 1 to 15 L/min
PAF3413S-1S19 Drive: Air operated | Connection: With nut | Fitting: LQ1 | Size: Size 5 | Discharge flow: 1 to 15 L/min
PAF3413S-3S13 Drive: Air operated | Connection: With nut | Fitting: LQ3 | Size: Size 4 | Discharge flow: 1 to 15 L/min
Process PumpsSMC
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PAF3000 Process Pump (New PFA, Non-Metallic, 3/8" to 1/2")

Brand SMC·Process Pumps

Available part numbers (14)

PAF3410-03, PAF3410-P13, PAF3410S-1S13, PAF3410S-1S1319, PAF3410S-1S1913, PAF3410S-1S19, PAF3410S-3S13, PAF3413-03, PAF3413-P13, PAF3413S-1S13 + 4 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PAF3410-03Drive: Automatically operated | Connection: Female thread | Fitting: None | Size: Rc 3/8" | Discharge flow: 1 to 20 L/min
PAF3410-P13Drive: Automatically operated | Connection: Tube integral | Fitting: None | Size: 1/2" tube | Discharge flow: 1 to 20 L/min
PAF3410S-1S13Drive: Automatically operated | Connection: With nut | Fitting: LQ1 | Size: Size 4 | Discharge flow: 1 to 20 L/min
PAF3410S-1S1319Drive: Automatically operated | Connection: With nut | Fitting: LQ1 | Size: IN size 4 / OUT size 5 | Discharge flow: 1 to 20 L/min
PAF3410S-1S1913Drive: Automatically operated | Connection: With nut | Fitting: LQ1 | Size: IN size 5 / OUT size 4 | Discharge flow: 1 to 20 L/min
PAF3410S-1S19Drive: Automatically operated | Connection: With nut | Fitting: LQ1 | Size: Size 5 | Discharge flow: 1 to 20 L/min
PAF3410S-3S13Drive: Automatically operated | Connection: With nut | Fitting: LQ3 | Size: Size 4 | Discharge flow: 1 to 20 L/min
PAF3413-03Drive: Air operated | Connection: Female thread | Fitting: None | Size: Rc 3/8" | Discharge flow: 1 to 15 L/min
PAF3413-P13Drive: Air operated | Connection: Tube integral | Fitting: None | Size: 1/2" tube | Discharge flow: 1 to 15 L/min
PAF3413S-1S13Drive: Air operated | Connection: With nut | Fitting: LQ1 | Size: Size 4 | Discharge flow: 1 to 15 L/min
PAF3413S-1S1319Drive: Air operated | Connection: With nut | Fitting: LQ1 | Size: IN size 4 / OUT size 5 | Discharge flow: 1 to 15 L/min
PAF3413S-1S1913Drive: Air operated | Connection: With nut | Fitting: LQ1 | Size: IN size 5 / OUT size 4 | Discharge flow: 1 to 15 L/min
PAF3413S-1S19Drive: Air operated | Connection: With nut | Fitting: LQ1 | Size: Size 5 | Discharge flow: 1 to 15 L/min
PAF3413S-3S13Drive: Air operated | Connection: With nut | Fitting: LQ3 | Size: Size 4 | Discharge flow: 1 to 15 L/min
