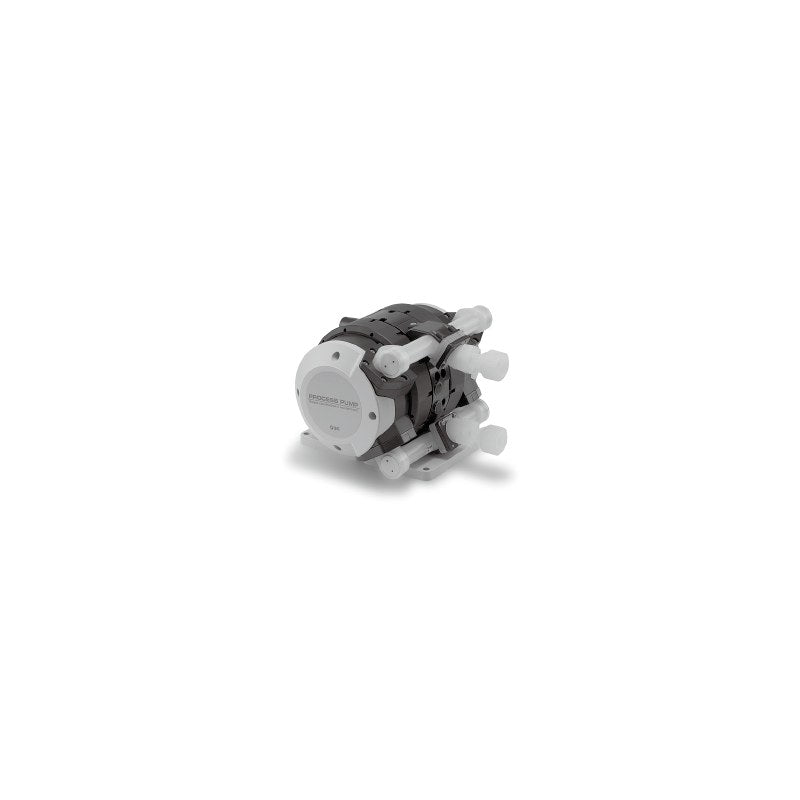

SMC PAF5000 Process Pump (New PFA, Non-Metallic, 3/4")

SMC PAF5000 Process Pump (New PFA, Non-Metallic, 3/4")

SMC PAF5000 series all-fluoropolymer process pump with New PFA wetted parts and no metal parts, delivering up to 45 L/min in automatic operation.

Key features

  • Wetted parts New PFA; PPS/PFA double structure improves pressure and heat cycle resistance; no metal parts (non-metallic)
  • Clean Wet series: clean room assembly and double packaging
  • Automatically operated (internal switching) or air operated (external switching) types
  • Connections: female thread, integral tube or nut type for LQ1 (insert bushing) / LQ3 (flare) fittings ordered separately
  • Options: foot (B), silencer (N) for AIR EXH, NPT/G threads

Specifications

Wetted material New PFA
Average discharge pressure 0 to 0.4 MPa
Pilot air pressure 0.2 to 0.5 MPa (0 to 60°C)
Pilot air port Rc 1/4" female thread
Air consumption 300 L/min (ANR) or less
Suction lift Dry 1 m, wet 4 m
Proof pressure 0.75 MPa
Diaphragm life 50 million cycles (water)
Fluid temperature 0 to 90°C (no freezing)
Ambient temperature 0 to 70°C (no freezing)
Mass (without foot) 6 kg
Nut size vs. tube Size 4: 10x8, 12x10, 3/8"x1/4", 1/2"x3/8"; 5: 12x10, 19x16, 1/2"x3/8", 3/4"x5/8"; 6: 19x16, 25x22, 3/4"x5/8", 1"x7/8"
Source SMC Korea catalog PAF3000/5000 (SMCKR_PAF3000_5000.pdf), p. 599, 601 (PDF p. 5, 7)
PAF5410-06 Drive: Automatically operated | Connection: Female thread | Fitting: None | Size: Rc 3/4" | Discharge flow: 5 to 45 L/min
PAF5410-P19 Drive: Automatically operated | Connection: Tube integral | Fitting: None | Size: 3/4" tube | Discharge flow: 5 to 45 L/min
PAF5410S-1S19 Drive: Automatically operated | Connection: With nut | Fitting: LQ1 | Size: Size 5 | Discharge flow: 5 to 45 L/min
PAF5410S-1S1925 Drive: Automatically operated | Connection: With nut | Fitting: LQ1 | Size: IN size 5 / OUT size 6 | Discharge flow: 5 to 45 L/min
PAF5410S-1S2519 Drive: Automatically operated | Connection: With nut | Fitting: LQ1 | Size: IN size 6 / OUT size 5 | Discharge flow: 5 to 45 L/min
PAF5410S-1S25 Drive: Automatically operated | Connection: With nut | Fitting: LQ1 | Size: Size 6 | Discharge flow: 5 to 45 L/min
PAF5410S-3S19 Drive: Automatically operated | Connection: With nut | Fitting: LQ3 | Size: Size 5 | Discharge flow: 5 to 45 L/min
PAF5413-06 Drive: Air operated | Connection: Female thread | Fitting: None | Size: Rc 3/4" | Discharge flow: 5 to 38 L/min
PAF5413-P19 Drive: Air operated | Connection: Tube integral | Fitting: None | Size: 3/4" tube | Discharge flow: 5 to 38 L/min
PAF5413S-1S19 Drive: Air operated | Connection: With nut | Fitting: LQ1 | Size: Size 5 | Discharge flow: 5 to 38 L/min
PAF5413S-1S1925 Drive: Air operated | Connection: With nut | Fitting: LQ1 | Size: IN size 5 / OUT size 6 | Discharge flow: 5 to 38 L/min
PAF5413S-1S2519 Drive: Air operated | Connection: With nut | Fitting: LQ1 | Size: IN size 6 / OUT size 5 | Discharge flow: 5 to 38 L/min
PAF5413S-1S25 Drive: Air operated | Connection: With nut | Fitting: LQ1 | Size: Size 6 | Discharge flow: 5 to 38 L/min
PAF5413S-3S19 Drive: Air operated | Connection: With nut | Fitting: LQ3 | Size: Size 5 | Discharge flow: 5 to 38 L/min
Process PumpsSMC
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PAF5000 Process Pump (New PFA, Non-Metallic, 3/4")

Brand SMC·Process Pumps

Available part numbers (14)

PAF5410-06, PAF5410-P19, PAF5410S-1S19, PAF5410S-1S1925, PAF5410S-1S2519, PAF5410S-1S25, PAF5410S-3S19, PAF5413-06, PAF5413-P19, PAF5413S-1S19 + 4 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PAF5410-06Drive: Automatically operated | Connection: Female thread | Fitting: None | Size: Rc 3/4" | Discharge flow: 5 to 45 L/min
PAF5410-P19Drive: Automatically operated | Connection: Tube integral | Fitting: None | Size: 3/4" tube | Discharge flow: 5 to 45 L/min
PAF5410S-1S19Drive: Automatically operated | Connection: With nut | Fitting: LQ1 | Size: Size 5 | Discharge flow: 5 to 45 L/min
PAF5410S-1S1925Drive: Automatically operated | Connection: With nut | Fitting: LQ1 | Size: IN size 5 / OUT size 6 | Discharge flow: 5 to 45 L/min
PAF5410S-1S2519Drive: Automatically operated | Connection: With nut | Fitting: LQ1 | Size: IN size 6 / OUT size 5 | Discharge flow: 5 to 45 L/min
PAF5410S-1S25Drive: Automatically operated | Connection: With nut | Fitting: LQ1 | Size: Size 6 | Discharge flow: 5 to 45 L/min
PAF5410S-3S19Drive: Automatically operated | Connection: With nut | Fitting: LQ3 | Size: Size 5 | Discharge flow: 5 to 45 L/min
PAF5413-06Drive: Air operated | Connection: Female thread | Fitting: None | Size: Rc 3/4" | Discharge flow: 5 to 38 L/min
PAF5413-P19Drive: Air operated | Connection: Tube integral | Fitting: None | Size: 3/4" tube | Discharge flow: 5 to 38 L/min
PAF5413S-1S19Drive: Air operated | Connection: With nut | Fitting: LQ1 | Size: Size 5 | Discharge flow: 5 to 38 L/min
PAF5413S-1S1925Drive: Air operated | Connection: With nut | Fitting: LQ1 | Size: IN size 5 / OUT size 6 | Discharge flow: 5 to 38 L/min
PAF5413S-1S2519Drive: Air operated | Connection: With nut | Fitting: LQ1 | Size: IN size 6 / OUT size 5 | Discharge flow: 5 to 38 L/min
PAF5413S-1S25Drive: Air operated | Connection: With nut | Fitting: LQ1 | Size: Size 6 | Discharge flow: 5 to 38 L/min
PAF5413S-3S19Drive: Air operated | Connection: With nut | Fitting: LQ3 | Size: Size 5 | Discharge flow: 5 to 38 L/min
