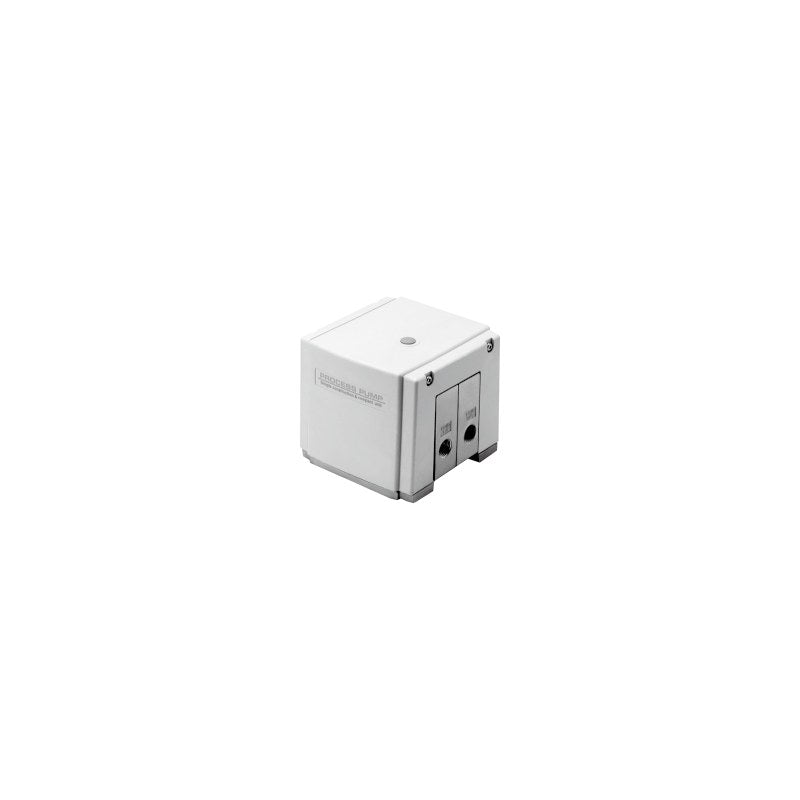

SMC PAX1000 Process Pump (Built-in Pulsation Damper)

SMC PAX1000 Process Pump (Built-in Pulsation Damper)

SMC PAX1000 series automatically operated diaphragm process pump with a built-in pulsation damper for low-pulsation liquid transfer.

Key features

  • Built-in pulsation damper reduces discharge pulsation
  • Automatically operated (internal switching type), self-priming
  • Wetted body in ADC12 aluminum or SCS14 stainless steel; PTFE diaphragm
  • Discharge 0.5 to 10 L/min, average discharge pressure 0 to 0.6 MPa
  • Options: silencer (N) for AIR EXH, NPT/G/NPTF threads

Specifications

Drive Automatically operated, built-in pulsation damper
Diaphragm PTFE
Check valve PTFE, SCS14
Discharge flow 0.5 to 10 L/min
Pilot air pressure 0.2 to 0.7 MPa
Air consumption 150 L/min (ANR) or less
Pilot air port Rc 1/4" female thread
Suction lift Dry 2 m, wet 6 m
Proof pressure 1.05 MPa
Diaphragm life 50 million cycles (water)
Fluid / ambient temperature 0 to 60°C (no freezing)
Source SMC Korea catalog PA/PAX (SMCKR_PA_PAP_PAX.pdf), p. 575 (PDF p. 14)
PAX1112-02 Body material: ADC12 (aluminum) | Port size: Rc 1/4" | Mass: 2.0 kg
PAX1112-03 Body material: ADC12 (aluminum) | Port size: Rc 3/8" | Mass: 2.0 kg
PAX1212-02 Body material: SCS14 (stainless) | Port size: Rc 1/4" | Mass: 3.5 kg
PAX1212-03 Body material: SCS14 (stainless) | Port size: Rc 3/8" | Mass: 3.5 kg
Process PumpsSMC
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC PAX1000 Process Pump (Built-in Pulsation Damper)

Brand SMC·Process Pumps

Available part numbers (4)

PAX1112-02, PAX1112-03, PAX1212-02, PAX1212-03
