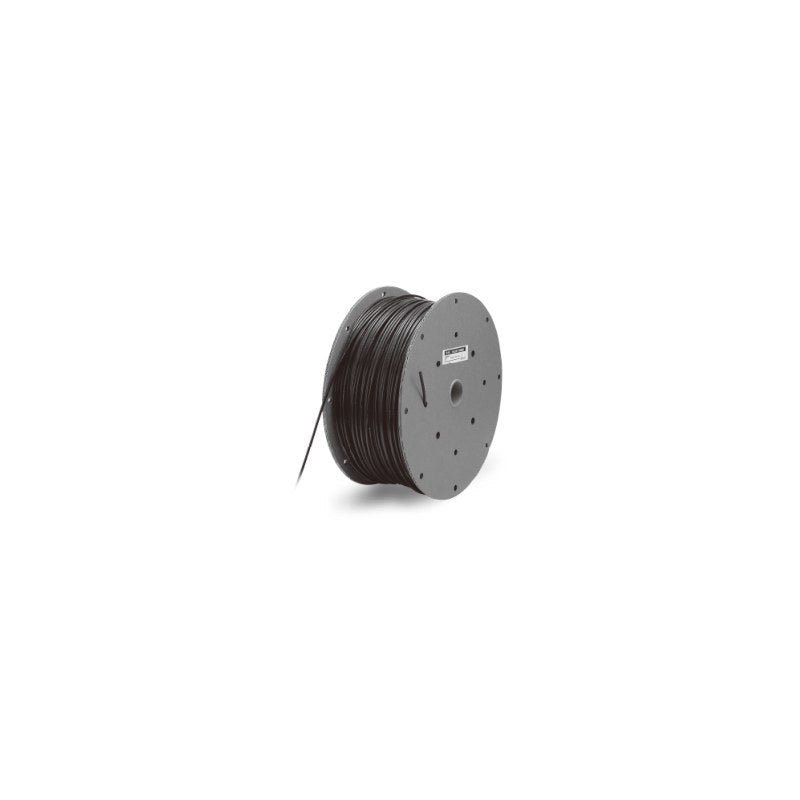

SMC T/TIA Nylon Tubing (Metric and Inch Sizes)

SMC T/TIA Nylon Tubing (Metric and Inch Sizes)

SMC T series (metric) and TIA series (inch) nylon 12 tubing for general pneumatic piping, also suitable for water and turbine oil, supplied in 20 m and 100 m lengths.

Key features

  • Nylon 12 tube with high pressure rating: up to 3.3 MPa (T0425) at 20C, derated with temperature
  • Metric sizes 4 to 16 mm OD (T series) and inch sizes 1/8 to 1/2 in (TIA series)
  • Six colors on the main sizes: black, white, red, blue, yellow, green; black and white also on 100 m rolls
  • Fluids: air and water with one-touch, insert, nut-type and miniature fittings; turbine oil (ISO VG32) with insert fittings
  • Made to order: 100 m reels and longer reels (-X3), inch 20 m rolls in other colors (-X4), reinforced cardboard reel (-X64)
  • Weather-resistant version available in black only

Specifications

Material Nylon 12
Fluid Air, water; turbine oil (ISO VG32) with insert fittings
Operating temperature Air/oil -40 to 100C, water 0 to 70C (no freezing)
Max. operating vacuum -101.3 kPa (depends on fitting)
Pressure derating e.g. T0425: 3.3 MPa at 20C, 2.3 at 40C, 1.65 at 60C, 1.2 at 100C
Min. bending radius 13 mm (T0425) to 100 mm (T1613); TIA 15 to 65 mm
Length 20 m roll; 100 m roll (black/white; T1613 100 m reel)
Standards RoHS
Source SMC Korea catalog (SMCKR_T_TIA.pdf), p. 676-677
T0425B-20 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 3.3 MPa
T0425B-100 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 100 m roll | Max. pressure (20C): 3.3 MPa
T0425W-20 Tube size: 4 x 2.5 mm | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 3.3 MPa
T0425W-100 Tube size: 4 x 2.5 mm | Color: White (W) | Length: 100 m roll | Max. pressure (20C): 3.3 MPa
T0425R-20 Tube size: 4 x 2.5 mm | Color: Red (R) | Length: 20 m roll | Max. pressure (20C): 3.3 MPa
T0425BU-20 Tube size: 4 x 2.5 mm | Color: Blue (BU) | Length: 20 m roll | Max. pressure (20C): 3.3 MPa
T0425Y-20 Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 20 m roll | Max. pressure (20C): 3.3 MPa
T0425G-20 Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 20 m roll | Max. pressure (20C): 3.3 MPa
T0604B-20 Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 3.0 MPa
T0604B-100 Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m roll | Max. pressure (20C): 3.0 MPa
T0604W-20 Tube size: 6 x 4 mm | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 3.0 MPa
T0604W-100 Tube size: 6 x 4 mm | Color: White (W) | Length: 100 m roll | Max. pressure (20C): 3.0 MPa
T0604R-20 Tube size: 6 x 4 mm | Color: Red (R) | Length: 20 m roll | Max. pressure (20C): 3.0 MPa
T0604BU-20 Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 20 m roll | Max. pressure (20C): 3.0 MPa
T0604Y-20 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 20 m roll | Max. pressure (20C): 3.0 MPa
T0604G-20 Tube size: 6 x 4 mm | Color: Green (G) | Length: 20 m roll | Max. pressure (20C): 3.0 MPa
T0806B-20 Tube size: 8 x 6 mm | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T0806B-100 Tube size: 8 x 6 mm | Color: Black (B) | Length: 100 m roll | Max. pressure (20C): 2.0 MPa
T0806W-20 Tube size: 8 x 6 mm | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T0806W-100 Tube size: 8 x 6 mm | Color: White (W) | Length: 100 m roll | Max. pressure (20C): 2.0 MPa
T0806R-20 Tube size: 8 x 6 mm | Color: Red (R) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T0806BU-20 Tube size: 8 x 6 mm | Color: Blue (BU) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T0806Y-20 Tube size: 8 x 6 mm | Color: Yellow (Y) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T0806G-20 Tube size: 8 x 6 mm | Color: Green (G) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T1075B-20 Tube size: 10 x 7.5 mm | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T1075B-100 Tube size: 10 x 7.5 mm | Color: Black (B) | Length: 100 m roll | Max. pressure (20C): 2.0 MPa
T1075W-20 Tube size: 10 x 7.5 mm | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T1075W-100 Tube size: 10 x 7.5 mm | Color: White (W) | Length: 100 m roll | Max. pressure (20C): 2.0 MPa
T1075R-20 Tube size: 10 x 7.5 mm | Color: Red (R) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T1075BU-20 Tube size: 10 x 7.5 mm | Color: Blue (BU) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T1075Y-20 Tube size: 10 x 7.5 mm | Color: Yellow (Y) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T1075G-20 Tube size: 10 x 7.5 mm | Color: Green (G) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T1209B-20 Tube size: 12 x 9 mm | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T1209B-100 Tube size: 12 x 9 mm | Color: Black (B) | Length: 100 m roll | Max. pressure (20C): 2.0 MPa
T1209W-20 Tube size: 12 x 9 mm | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T1209W-100 Tube size: 12 x 9 mm | Color: White (W) | Length: 100 m roll | Max. pressure (20C): 2.0 MPa
T1209R-20 Tube size: 12 x 9 mm | Color: Red (R) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T1209BU-20 Tube size: 12 x 9 mm | Color: Blue (BU) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T1209Y-20 Tube size: 12 x 9 mm | Color: Yellow (Y) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T1209G-20 Tube size: 12 x 9 mm | Color: Green (G) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T0403B-20 Tube size: 4 x 3 mm | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T0403W-20 Tube size: 4 x 3 mm | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T0645B-20 Tube size: 6 x 4.5 mm | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T0645B-100 Tube size: 6 x 4.5 mm | Color: Black (B) | Length: 100 m roll | Max. pressure (20C): 2.0 MPa
T0645W-20 Tube size: 6 x 4.5 mm | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
T0645W-100 Tube size: 6 x 4.5 mm | Color: White (W) | Length: 100 m roll | Max. pressure (20C): 2.0 MPa
T1613B-20 Tube size: 16 x 13 mm | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 1.6 MPa
T1613B-100 Tube size: 16 x 13 mm | Color: Black (B) | Length: 100 m reel | Max. pressure (20C): 1.6 MPa
T1613W-20 Tube size: 16 x 13 mm | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 1.6 MPa
T1613W-100 Tube size: 16 x 13 mm | Color: White (W) | Length: 100 m reel | Max. pressure (20C): 1.6 MPa
TIA01B-20 Tube size: 1/8 in (3.18 x 2.18 mm) | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 2.3 MPa
TIA01W-20 Tube size: 1/8 in (3.18 x 2.18 mm) | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 2.3 MPa
TIA05B-20 Tube size: 3/16 in (4.76 x 3.48 mm) | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 2.3 MPa
TIA05W-20 Tube size: 3/16 in (4.76 x 3.48 mm) | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 2.3 MPa
TIA07B-20 Tube size: 1/4 in (6.35 x 4.57 mm) | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 2.3 MPa
TIA07W-20 Tube size: 1/4 in (6.35 x 4.57 mm) | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 2.3 MPa
TIA11B-20 Tube size: 3/8 in (9.53 x 6.99 mm) | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 2.3 MPa
TIA11W-20 Tube size: 3/8 in (9.53 x 6.99 mm) | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 2.3 MPa
TIA13B-20 Tube size: 1/2 in (12.7 x 9.56 mm) | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 2.3 MPa
TIA13W-20 Tube size: 1/2 in (12.7 x 9.56 mm) | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 2.3 MPa
TubingSMC
60 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC T/TIA Nylon Tubing (Metric and Inch Sizes)

Brand SMC·Tubing

Available part numbers (60)

T0425B-20, T0425B-100, T0425W-20, T0425W-100, T0425R-20, T0425BU-20, T0425Y-20, T0425G-20, T0604B-20, T0604B-100 + 50 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
