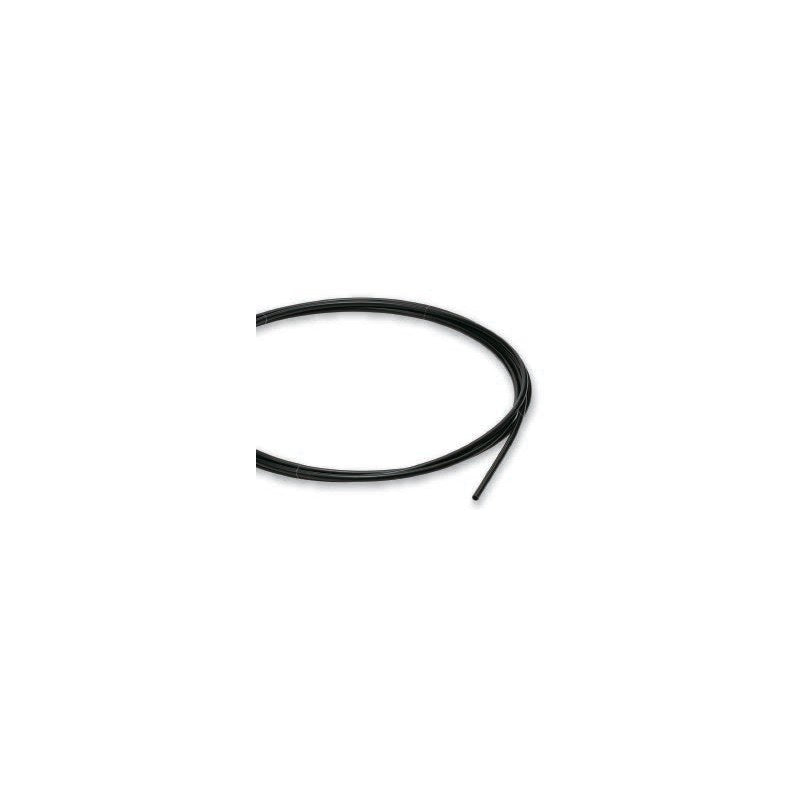

SMC TD/TID Soft Fluoropolymer Tubing (Modified PTFE)

SMC TD/TID Soft Fluoropolymer Tubing (Modified PTFE)

SMC TD series (metric) and TID series (inch) soft fluoropolymer tubing made of modified PTFE, about 20% more flexible than TL/TIL, for chemical lines up to 260C.

Key features

  • Modified PTFE: about 20% more flexible than Super PFA TL/TIL tubing (SMC comparison)
  • Operating temperature -65 to 260C (air/inert gas), water 0 to 100C
  • Flame resistant (UL-94 V-0 equivalent); Japan Food Sanitation Act and FDA 177.1550 compliant
  • Metric 4 to 12 mm OD on 10 m and 20 m rolls; inch 1/8 to 1/2 in on 8 m (25 ft) and 16 m (50 ft) rolls
  • Recommended where KFG2 insert fittings see repeated heating and cooling

Specifications

Material Modified PTFE
Color Translucent (natural)
Fluid Air, water, inert gas, chemicals (see fluid table)
Operating temperature -65 to 260C (fixed use)
Max. operating pressure 0.9 to 1.6 MPa at 20C depending on size
Max. operating vacuum -101.3 kPa
Applicable fittings KF/KFG2 insert, M/MS miniature, LQ fluoropolymer
Standards RoHS, UL-94 V-0 equivalent, FDA 177.1550
Source SMC Korea catalog (SMCKR_TL_TH_TD.pdf), p. 729-730
TD0425-10 Tube size: 4 x 2.5 mm | Length: 10 m roll | Min. bending radius: 15 mm
TD0425-20 Tube size: 4 x 2.5 mm | Length: 20 m roll | Min. bending radius: 15 mm
TD0604-10 Tube size: 6 x 4 mm | Length: 10 m roll | Min. bending radius: 25 mm
TD0604-20 Tube size: 6 x 4 mm | Length: 20 m roll | Min. bending radius: 25 mm
TD0806-10 Tube size: 8 x 6 mm | Length: 10 m roll | Min. bending radius: 45 mm
TD0806-20 Tube size: 8 x 6 mm | Length: 20 m roll | Min. bending radius: 45 mm
TD1075-10 Tube size: 10 x 7.5 mm | Length: 10 m roll | Min. bending radius: 55 mm
TD1075-20 Tube size: 10 x 7.5 mm | Length: 20 m roll | Min. bending radius: 55 mm
TD1209-10 Tube size: 12 x 9 mm | Length: 10 m roll | Min. bending radius: 75 mm
TD1209-20 Tube size: 12 x 9 mm | Length: 20 m roll | Min. bending radius: 75 mm
TID01-8 Tube size: 1/8 x 0.086 in | Length: 8 m (25 ft) roll | Min. bending radius: 15 mm
TID01-16 Tube size: 1/8 x 0.086 in | Length: 16 m (50 ft) roll | Min. bending radius: 15 mm
TID05-8 Tube size: 3/16 x 1/8 in | Length: 8 m (25 ft) roll | Min. bending radius: 20 mm
TID05-16 Tube size: 3/16 x 1/8 in | Length: 16 m (50 ft) roll | Min. bending radius: 20 mm
TID07-8 Tube size: 1/4 x 5/32 in | Length: 8 m (25 ft) roll | Min. bending radius: 25 mm
TID07-16 Tube size: 1/4 x 5/32 in | Length: 16 m (50 ft) roll | Min. bending radius: 25 mm
TID11-8 Tube size: 3/8 x 1/4 in | Length: 8 m (25 ft) roll | Min. bending radius: 40 mm
TID11-16 Tube size: 3/8 x 1/4 in | Length: 16 m (50 ft) roll | Min. bending radius: 40 mm
TID13-8 Tube size: 1/2 x 3/8 in | Length: 8 m (25 ft) roll | Min. bending radius: 75 mm
TID13-16 Tube size: 1/2 x 3/8 in | Length: 16 m (50 ft) roll | Min. bending radius: 75 mm
TubingSMC
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC TD/TID Soft Fluoropolymer Tubing (Modified PTFE)

Brand SMC·Tubing

Available part numbers (20)

TD0425-10, TD0425-20, TD0604-10, TD0604-20, TD0806-10, TD0806-20, TD1075-10, TD1075-20, TD1209-10, TD1209-20 + 10 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TD0425-10Tube size: 4 x 2.5 mm | Length: 10 m roll | Min. bending radius: 15 mm
TD0425-20Tube size: 4 x 2.5 mm | Length: 20 m roll | Min. bending radius: 15 mm
TD0604-10Tube size: 6 x 4 mm | Length: 10 m roll | Min. bending radius: 25 mm
TD0604-20Tube size: 6 x 4 mm | Length: 20 m roll | Min. bending radius: 25 mm
TD0806-10Tube size: 8 x 6 mm | Length: 10 m roll | Min. bending radius: 45 mm
TD0806-20Tube size: 8 x 6 mm | Length: 20 m roll | Min. bending radius: 45 mm
TD1075-10Tube size: 10 x 7.5 mm | Length: 10 m roll | Min. bending radius: 55 mm
TD1075-20Tube size: 10 x 7.5 mm | Length: 20 m roll | Min. bending radius: 55 mm
TD1209-10Tube size: 12 x 9 mm | Length: 10 m roll | Min. bending radius: 75 mm
TD1209-20Tube size: 12 x 9 mm | Length: 20 m roll | Min. bending radius: 75 mm
TID01-8Tube size: 1/8 x 0.086 in | Length: 8 m (25 ft) roll | Min. bending radius: 15 mm
TID01-16Tube size: 1/8 x 0.086 in | Length: 16 m (50 ft) roll | Min. bending radius: 15 mm
TID05-8Tube size: 3/16 x 1/8 in | Length: 8 m (25 ft) roll | Min. bending radius: 20 mm
TID05-16Tube size: 3/16 x 1/8 in | Length: 16 m (50 ft) roll | Min. bending radius: 20 mm
TID07-8Tube size: 1/4 x 5/32 in | Length: 8 m (25 ft) roll | Min. bending radius: 25 mm
TID07-16Tube size: 1/4 x 5/32 in | Length: 16 m (50 ft) roll | Min. bending radius: 25 mm
TID11-8Tube size: 3/8 x 1/4 in | Length: 8 m (25 ft) roll | Min. bending radius: 40 mm
TID11-16Tube size: 3/8 x 1/4 in | Length: 16 m (50 ft) roll | Min. bending radius: 40 mm
TID13-8Tube size: 1/2 x 3/8 in | Length: 8 m (25 ft) roll | Min. bending radius: 75 mm
TID13-16Tube size: 1/2 x 3/8 in | Length: 16 m (50 ft) roll | Min. bending radius: 75 mm
