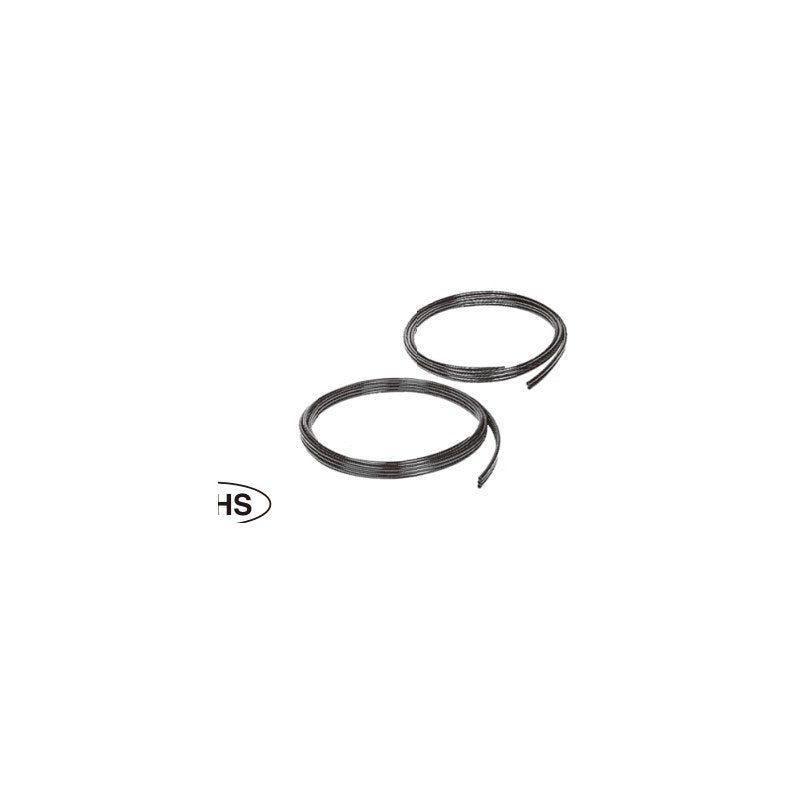

SMC TFU Polyurethane Flat Tubing (2 and 3 Cores, Black)

SMC TFU Polyurethane Flat Tubing (2 and 3 Cores, Black)

SMC TFU series polyurethane flat tubing with 2 or 3 bonded cores of the same color, printed with identification lines, for compact piping.

Key features

  • 2 or 3 black polyurethane tubes bonded side by side; identification line printed on the tube
  • Sizes 4, 6 and 8 mm OD; supplied on 10 m rolls
  • Made to order: other colors on 10 m rolls (-X4), 50/100 m reels (-X3), 4 to 8 cores (-X4)
  • Slight leakage between cores may occur by nature of the product

Specifications

Material Polyurethane
Color Black (opaque)
Roll length 10 m
Fluid Air
Max. operating pressure 0.8 MPa at 20C, 0.65 at 40C, 0.5 at 60C
Max. operating vacuum -101.3 kPa
Operating temperature -20 to 60C (no freezing)
Standards RoHS
Source SMC Korea catalog (SMCKR_TFU.pdf), p. 700
TFU0425B-2 Tube size: 4 x 2.5 mm | Cores: 2 | Min. bending radius: 10 mm
TFU0425B-3 Tube size: 4 x 2.5 mm | Cores: 3 | Min. bending radius: 10 mm
TFU0604B-2 Tube size: 6 x 4 mm | Cores: 2 | Min. bending radius: 15 mm
TFU0604B-3 Tube size: 6 x 4 mm | Cores: 3 | Min. bending radius: 15 mm
TFU0805B-2 Tube size: 8 x 5 mm | Cores: 2 | Min. bending radius: 20 mm
TFU0805B-3 Tube size: 8 x 5 mm | Cores: 3 | Min. bending radius: 20 mm
TubingSMC
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC TFU Polyurethane Flat Tubing (2 and 3 Cores, Black)

Brand SMC·Tubing

Available part numbers (6)

TFU0425B-2, TFU0425B-3, TFU0604B-2, TFU0604B-3, TFU0805B-2, TFU0805B-3

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TFU0425B-2Tube size: 4 x 2.5 mm | Cores: 2 | Min. bending radius: 10 mm
TFU0425B-3Tube size: 4 x 2.5 mm | Cores: 3 | Min. bending radius: 10 mm
TFU0604B-2Tube size: 6 x 4 mm | Cores: 2 | Min. bending radius: 15 mm
TFU0604B-3Tube size: 6 x 4 mm | Cores: 3 | Min. bending radius: 15 mm
TFU0805B-2Tube size: 8 x 5 mm | Cores: 2 | Min. bending radius: 20 mm
TFU0805B-3Tube size: 8 x 5 mm | Cores: 3 | Min. bending radius: 20 mm
