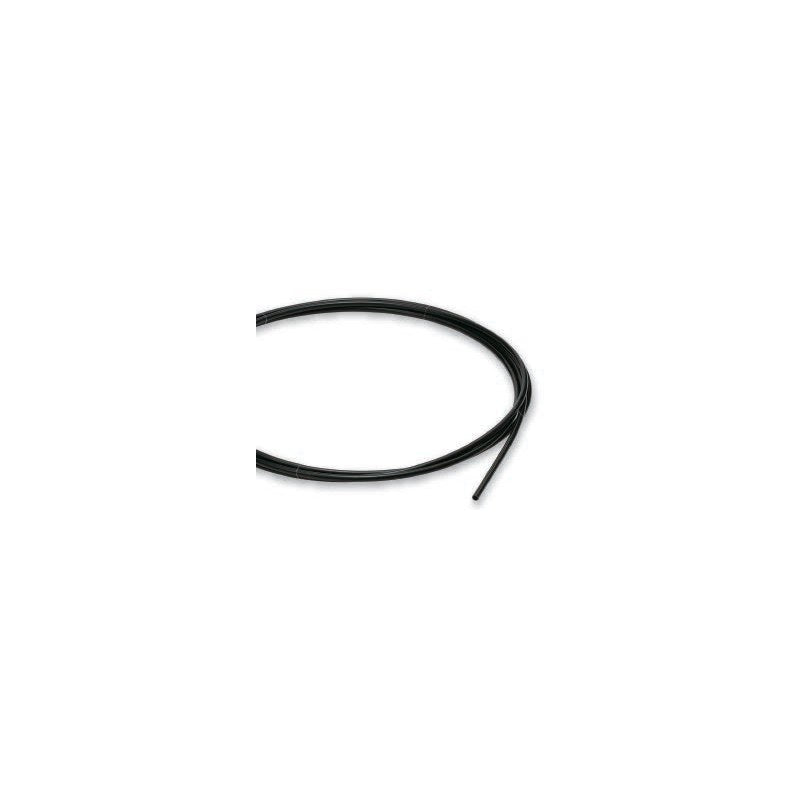

SMC TH/TIH FEP Fluoropolymer Tubing (Metric and Inch Sizes)

SMC TH/TIH FEP Fluoropolymer Tubing (Metric and Inch Sizes)

SMC TH series (metric) and TIH series (inch) FEP fluoropolymer tubing with high durability in chemical environments, usable up to 200C.

Key features

  • FEP material, operating temperature -65 to 200C (air/inert gas), water 0 to 100C
  • Flame resistant (UL-94 V-0 equivalent); Japan Food Sanitation Act and FDA 177.1550 compliant
  • Metric 4 to 12 mm OD (8 sizes) and inch 1/8 to 3/4 in (11 sizes, several wall thicknesses)
  • Four colors on 20 m (metric) or 16 m/50 ft (inch) rolls; translucent also on 100 m / 33 m rolls
  • Fittings: one-touch, insert, LQ fluoropolymer (not for TH0402/0425/1075/1209), M/MS miniature
  • Made to order: TH0604N 250/500 m reels on reinforced cardboard (-X64)

Specifications

Material FEP
Fluid Air, water, inert gas
Operating temperature Air/inert gas -65 to 200C, water 0 to 100C
Max. operating pressure Up to 2.3 MPa at 20C (TH0402), see derating curves
Max. operating vacuum -101.3 kPa
Min. bending radius 10 to 220 mm depending on size
Standards RoHS, UL-94 V-0 equivalent, FDA 177.1550
Source SMC Korea catalog (SMCKR_TL_TH_TD.pdf), p. 726-728
TH0402N-20 Tube size: 4 x 2 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TH0402N-100 Tube size: 4 x 2 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TH0402R-20 Tube size: 4 x 2 mm | Color: Red (translucent) (R) | Length: 20 m roll
TH0402BU-20 Tube size: 4 x 2 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TH0402B-20 Tube size: 4 x 2 mm | Color: Black (B) | Length: 20 m roll
TH0425N-20 Tube size: 4 x 2.5 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TH0425N-100 Tube size: 4 x 2.5 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TH0425R-20 Tube size: 4 x 2.5 mm | Color: Red (translucent) (R) | Length: 20 m roll
TH0425BU-20 Tube size: 4 x 2.5 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TH0425B-20 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 20 m roll
TH0604N-20 Tube size: 6 x 4 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TH0604N-100 Tube size: 6 x 4 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TH0604R-20 Tube size: 6 x 4 mm | Color: Red (translucent) (R) | Length: 20 m roll
TH0604BU-20 Tube size: 6 x 4 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TH0604B-20 Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll
TH0806N-20 Tube size: 8 x 6 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TH0806N-100 Tube size: 8 x 6 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TH0806R-20 Tube size: 8 x 6 mm | Color: Red (translucent) (R) | Length: 20 m roll
TH0806BU-20 Tube size: 8 x 6 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TH0806B-20 Tube size: 8 x 6 mm | Color: Black (B) | Length: 20 m roll
TH1075N-20 Tube size: 10 x 7.5 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TH1075N-100 Tube size: 10 x 7.5 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TH1075R-20 Tube size: 10 x 7.5 mm | Color: Red (translucent) (R) | Length: 20 m roll
TH1075BU-20 Tube size: 10 x 7.5 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TH1075B-20 Tube size: 10 x 7.5 mm | Color: Black (B) | Length: 20 m roll
TH1008N-20 Tube size: 10 x 8 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TH1008N-100 Tube size: 10 x 8 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TH1008R-20 Tube size: 10 x 8 mm | Color: Red (translucent) (R) | Length: 20 m roll
TH1008BU-20 Tube size: 10 x 8 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TH1008B-20 Tube size: 10 x 8 mm | Color: Black (B) | Length: 20 m roll
TH1209N-20 Tube size: 12 x 9 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TH1209N-100 Tube size: 12 x 9 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TH1209R-20 Tube size: 12 x 9 mm | Color: Red (translucent) (R) | Length: 20 m roll
TH1209BU-20 Tube size: 12 x 9 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TH1209B-20 Tube size: 12 x 9 mm | Color: Black (B) | Length: 20 m roll
TH1210N-20 Tube size: 12 x 10 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TH1210N-100 Tube size: 12 x 10 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TH1210R-20 Tube size: 12 x 10 mm | Color: Red (translucent) (R) | Length: 20 m roll
TH1210BU-20 Tube size: 12 x 10 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TH1210B-20 Tube size: 12 x 10 mm | Color: Black (B) | Length: 20 m roll
TIHA01N-16 Tube size: 1/8 x 0.093 in | Color: Translucent (natural) (N) | Length: 16 m (50 ft) roll
TIHA01N-33 Tube size: 1/8 x 0.093 in | Color: Translucent (natural) (N) | Length: 33 m (100 ft) roll
TIHA01R-16 Tube size: 1/8 x 0.093 in | Color: Red (translucent) (R) | Length: 16 m (50 ft) roll
TIHA01BU-16 Tube size: 1/8 x 0.093 in | Color: Blue (translucent) (BU) | Length: 16 m (50 ft) roll
TIHA01B-16 Tube size: 1/8 x 0.093 in | Color: Black (B) | Length: 16 m (50 ft) roll
TIHB01N-16 Tube size: 1/8 x 0.086 in | Color: Translucent (natural) (N) | Length: 16 m (50 ft) roll
TIHB01N-33 Tube size: 1/8 x 0.086 in | Color: Translucent (natural) (N) | Length: 33 m (100 ft) roll
TIHB01R-16 Tube size: 1/8 x 0.086 in | Color: Red (translucent) (R) | Length: 16 m (50 ft) roll
TIHB01BU-16 Tube size: 1/8 x 0.086 in | Color: Blue (translucent) (BU) | Length: 16 m (50 ft) roll
TIHB01B-16 Tube size: 1/8 x 0.086 in | Color: Black (B) | Length: 16 m (50 ft) roll
TIHC01N-16 Tube size: 1/8 x 0.065 in | Color: Translucent (natural) (N) | Length: 16 m (50 ft) roll
TIHC01N-33 Tube size: 1/8 x 0.065 in | Color: Translucent (natural) (N) | Length: 33 m (100 ft) roll
TIHC01R-16 Tube size: 1/8 x 0.065 in | Color: Red (translucent) (R) | Length: 16 m (50 ft) roll
TIHC01BU-16 Tube size: 1/8 x 0.065 in | Color: Blue (translucent) (BU) | Length: 16 m (50 ft) roll
TIHC01B-16 Tube size: 1/8 x 0.065 in | Color: Black (B) | Length: 16 m (50 ft) roll
TIHA05N-16 Tube size: 3/16 x 0.137 in | Color: Translucent (natural) (N) | Length: 16 m (50 ft) roll
TIHA05N-33 Tube size: 3/16 x 0.137 in | Color: Translucent (natural) (N) | Length: 33 m (100 ft) roll
TIHA05R-16 Tube size: 3/16 x 0.137 in | Color: Red (translucent) (R) | Length: 16 m (50 ft) roll
TIHA05BU-16 Tube size: 3/16 x 0.137 in | Color: Blue (translucent) (BU) | Length: 16 m (50 ft) roll
TIHA05B-16 Tube size: 3/16 x 0.137 in | Color: Black (B) | Length: 16 m (50 ft) roll
TIHB05N-16 Tube size: 3/16 x 0.124 in | Color: Translucent (natural) (N) | Length: 16 m (50 ft) roll
TIHB05N-33 Tube size: 3/16 x 0.124 in | Color: Translucent (natural) (N) | Length: 33 m (100 ft) roll
TIHB05R-16 Tube size: 3/16 x 0.124 in | Color: Red (translucent) (R) | Length: 16 m (50 ft) roll
TIHB05BU-16 Tube size: 3/16 x 0.124 in | Color: Blue (translucent) (BU) | Length: 16 m (50 ft) roll
TIHB05B-16 Tube size: 3/16 x 0.124 in | Color: Black (B) | Length: 16 m (50 ft) roll
TIHA07N-16 Tube size: 1/4 x 0.18 in | Color: Translucent (natural) (N) | Length: 16 m (50 ft) roll
TIHA07N-33 Tube size: 1/4 x 0.18 in | Color: Translucent (natural) (N) | Length: 33 m (100 ft) roll
TIHA07R-16 Tube size: 1/4 x 0.18 in | Color: Red (translucent) (R) | Length: 16 m (50 ft) roll
TIHA07BU-16 Tube size: 1/4 x 0.18 in | Color: Blue (translucent) (BU) | Length: 16 m (50 ft) roll
TIHA07B-16 Tube size: 1/4 x 0.18 in | Color: Black (B) | Length: 16 m (50 ft) roll
TIHB07N-16 Tube size: 1/4 x 0.156 in | Color: Translucent (natural) (N) | Length: 16 m (50 ft) roll
TIHB07N-33 Tube size: 1/4 x 0.156 in | Color: Translucent (natural) (N) | Length: 33 m (100 ft) roll
TIHB07R-16 Tube size: 1/4 x 0.156 in | Color: Red (translucent) (R) | Length: 16 m (50 ft) roll
TIHB07BU-16 Tube size: 1/4 x 0.156 in | Color: Blue (translucent) (BU) | Length: 16 m (50 ft) roll
TIHB07B-16 Tube size: 1/4 x 0.156 in | Color: Black (B) | Length: 16 m (50 ft) roll
TIHA11N-16 Tube size: 3/8 x 0.275 in | Color: Translucent (natural) (N) | Length: 16 m (50 ft) roll
TIHA11N-33 Tube size: 3/8 x 0.275 in | Color: Translucent (natural) (N) | Length: 33 m (100 ft) roll
TIHA11R-16 Tube size: 3/8 x 0.275 in | Color: Red (translucent) (R) | Length: 16 m (50 ft) roll
TIHA11BU-16 Tube size: 3/8 x 0.275 in | Color: Blue (translucent) (BU) | Length: 16 m (50 ft) roll
TIHA11B-16 Tube size: 3/8 x 0.275 in | Color: Black (B) | Length: 16 m (50 ft) roll
TIHB11N-16 Tube size: 3/8 x 0.25 in | Color: Translucent (natural) (N) | Length: 16 m (50 ft) roll
TIHB11N-33 Tube size: 3/8 x 0.25 in | Color: Translucent (natural) (N) | Length: 33 m (100 ft) roll
TIHB11R-16 Tube size: 3/8 x 0.25 in | Color: Red (translucent) (R) | Length: 16 m (50 ft) roll
TIHB11BU-16 Tube size: 3/8 x 0.25 in | Color: Blue (translucent) (BU) | Length: 16 m (50 ft) roll
TIHB11B-16 Tube size: 3/8 x 0.25 in | Color: Black (B) | Length: 16 m (50 ft) roll
TIH13N-16 Tube size: 1/2 x 0.374 in | Color: Translucent (natural) (N) | Length: 16 m (50 ft) roll
TIH13N-33 Tube size: 1/2 x 0.374 in | Color: Translucent (natural) (N) | Length: 33 m (100 ft) roll
TIH13R-16 Tube size: 1/2 x 0.374 in | Color: Red (translucent) (R) | Length: 16 m (50 ft) roll
TIH13BU-16 Tube size: 1/2 x 0.374 in | Color: Blue (translucent) (BU) | Length: 16 m (50 ft) roll
TIH13B-16 Tube size: 1/2 x 0.374 in | Color: Black (B) | Length: 16 m (50 ft) roll
TIH19N-16 Tube size: 3/4 x 0.624 in | Color: Translucent (natural) (N) | Length: 16 m (50 ft) roll
TIH19N-33 Tube size: 3/4 x 0.624 in | Color: Translucent (natural) (N) | Length: 33 m (100 ft) roll
TIH19R-16 Tube size: 3/4 x 0.624 in | Color: Red (translucent) (R) | Length: 16 m (50 ft) roll
TIH19BU-16 Tube size: 3/4 x 0.624 in | Color: Blue (translucent) (BU) | Length: 16 m (50 ft) roll
TIH19B-16 Tube size: 3/4 x 0.624 in | Color: Black (B) | Length: 16 m (50 ft) roll
TubingSMC
95 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC TH/TIH FEP Fluoropolymer Tubing (Metric and Inch Sizes)

Brand SMC·Tubing

Available part numbers (95)

TH0402N-20, TH0402N-100, TH0402R-20, TH0402BU-20, TH0402B-20, TH0425N-20, TH0425N-100, TH0425R-20, TH0425BU-20, TH0425B-20 + 85 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
