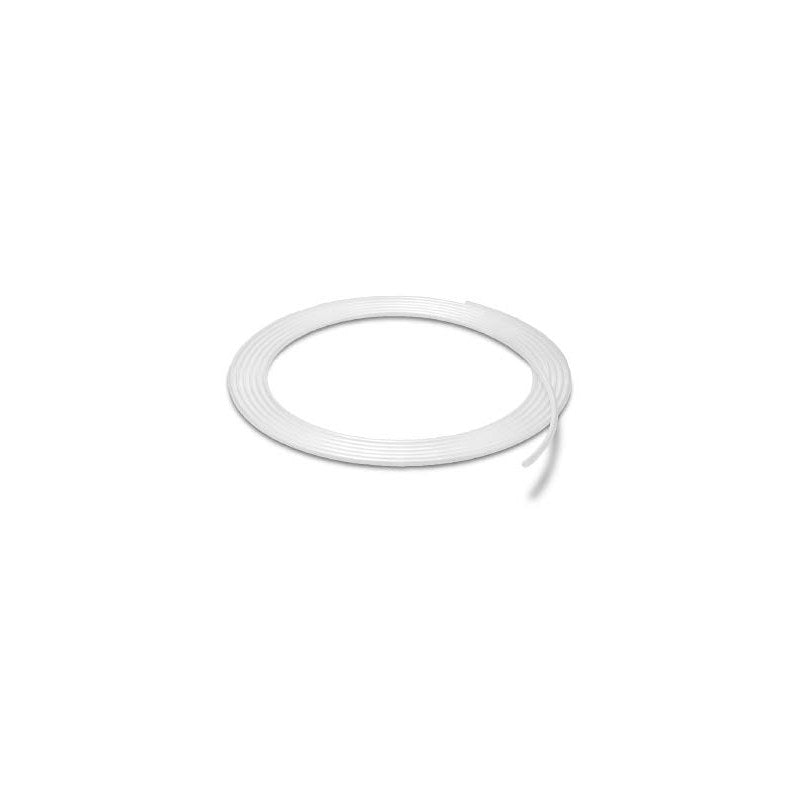

SMC TPH Clean Polyolefin Tubing

SMC TPH Clean Polyolefin Tubing

SMC TPH series clean polyolefin tubing for air, nitrogen, water and deionized water in clean applications.

Key features

  • Polyolefin resin tube for clean piping; air, N2, water and deionized (pure) water
  • White (natural), black and blue meet FDA 175.300 elution test
  • Six colors, each on 20 m and 100 m rolls; sizes 4 to 12 mm OD
  • Fittings: clean one-touch, KQB2 metal one-touch, KQG2 SUS316 one-touch, insert fittings
  • Not suitable for general pneumatic lines with mineral oil (polyolefin degrades)

Specifications

Material Polyolefin resin
Fluid Air, nitrogen, water, deionized water
Max. operating pressure 1.0 MPa (4/6 mm) or 0.7 MPa (8-12 mm) at 20C; 0.4/0.3 MPa at 80C
Operating temperature -20 to 80C (water 5 to 80C)
FDA 175.300 compliant colors White, black, blue
Min. bending radius 15 to 55 mm
Standards RoHS
Source SMC Korea catalog (SMCKR_TPH.pdf), p. 516
TPH0425W-20 Tube size: 4 x 2.5 mm | Color: White (natural) (W) | Length: 20 m roll
TPH0425W-100 Tube size: 4 x 2.5 mm | Color: White (natural) (W) | Length: 100 m roll
TPH0425B-20 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 20 m roll
TPH0425B-100 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 100 m roll
TPH0425R-20 Tube size: 4 x 2.5 mm | Color: Red (R) | Length: 20 m roll
TPH0425R-100 Tube size: 4 x 2.5 mm | Color: Red (R) | Length: 100 m roll
TPH0425BU-20 Tube size: 4 x 2.5 mm | Color: Blue (BU) | Length: 20 m roll
TPH0425BU-100 Tube size: 4 x 2.5 mm | Color: Blue (BU) | Length: 100 m roll
TPH0425Y-20 Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 20 m roll
TPH0425Y-100 Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 100 m roll
TPH0425G-20 Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 20 m roll
TPH0425G-100 Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 100 m roll
TPH0604W-20 Tube size: 6 x 4 mm | Color: White (natural) (W) | Length: 20 m roll
TPH0604W-100 Tube size: 6 x 4 mm | Color: White (natural) (W) | Length: 100 m roll
TPH0604B-20 Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll
TPH0604B-100 Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m roll
TPH0604R-20 Tube size: 6 x 4 mm | Color: Red (R) | Length: 20 m roll
TPH0604R-100 Tube size: 6 x 4 mm | Color: Red (R) | Length: 100 m roll
TPH0604BU-20 Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 20 m roll
TPH0604BU-100 Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 100 m roll
TPH0604Y-20 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 20 m roll
TPH0604Y-100 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 100 m roll
TPH0604G-20 Tube size: 6 x 4 mm | Color: Green (G) | Length: 20 m roll
TPH0604G-100 Tube size: 6 x 4 mm | Color: Green (G) | Length: 100 m roll
TPH0806W-20 Tube size: 8 x 6 mm | Color: White (natural) (W) | Length: 20 m roll
TPH0806W-100 Tube size: 8 x 6 mm | Color: White (natural) (W) | Length: 100 m roll
TPH0806B-20 Tube size: 8 x 6 mm | Color: Black (B) | Length: 20 m roll
TPH0806B-100 Tube size: 8 x 6 mm | Color: Black (B) | Length: 100 m roll
TPH0806R-20 Tube size: 8 x 6 mm | Color: Red (R) | Length: 20 m roll
TPH0806R-100 Tube size: 8 x 6 mm | Color: Red (R) | Length: 100 m roll
TPH0806BU-20 Tube size: 8 x 6 mm | Color: Blue (BU) | Length: 20 m roll
TPH0806BU-100 Tube size: 8 x 6 mm | Color: Blue (BU) | Length: 100 m roll
TPH0806Y-20 Tube size: 8 x 6 mm | Color: Yellow (Y) | Length: 20 m roll
TPH0806Y-100 Tube size: 8 x 6 mm | Color: Yellow (Y) | Length: 100 m roll
TPH0806G-20 Tube size: 8 x 6 mm | Color: Green (G) | Length: 20 m roll
TPH0806G-100 Tube size: 8 x 6 mm | Color: Green (G) | Length: 100 m roll
TPH1075W-20 Tube size: 10 x 7.5 mm | Color: White (natural) (W) | Length: 20 m roll
TPH1075W-100 Tube size: 10 x 7.5 mm | Color: White (natural) (W) | Length: 100 m roll
TPH1075B-20 Tube size: 10 x 7.5 mm | Color: Black (B) | Length: 20 m roll
TPH1075B-100 Tube size: 10 x 7.5 mm | Color: Black (B) | Length: 100 m roll
TPH1075R-20 Tube size: 10 x 7.5 mm | Color: Red (R) | Length: 20 m roll
TPH1075R-100 Tube size: 10 x 7.5 mm | Color: Red (R) | Length: 100 m roll
TPH1075BU-20 Tube size: 10 x 7.5 mm | Color: Blue (BU) | Length: 20 m roll
TPH1075BU-100 Tube size: 10 x 7.5 mm | Color: Blue (BU) | Length: 100 m roll
TPH1075Y-20 Tube size: 10 x 7.5 mm | Color: Yellow (Y) | Length: 20 m roll
TPH1075Y-100 Tube size: 10 x 7.5 mm | Color: Yellow (Y) | Length: 100 m roll
TPH1075G-20 Tube size: 10 x 7.5 mm | Color: Green (G) | Length: 20 m roll
TPH1075G-100 Tube size: 10 x 7.5 mm | Color: Green (G) | Length: 100 m roll
TPH1209W-20 Tube size: 12 x 9 mm | Color: White (natural) (W) | Length: 20 m roll
TPH1209W-100 Tube size: 12 x 9 mm | Color: White (natural) (W) | Length: 100 m roll
TPH1209B-20 Tube size: 12 x 9 mm | Color: Black (B) | Length: 20 m roll
TPH1209B-100 Tube size: 12 x 9 mm | Color: Black (B) | Length: 100 m roll
TPH1209R-20 Tube size: 12 x 9 mm | Color: Red (R) | Length: 20 m roll
TPH1209R-100 Tube size: 12 x 9 mm | Color: Red (R) | Length: 100 m roll
TPH1209BU-20 Tube size: 12 x 9 mm | Color: Blue (BU) | Length: 20 m roll
TPH1209BU-100 Tube size: 12 x 9 mm | Color: Blue (BU) | Length: 100 m roll
TPH1209Y-20 Tube size: 12 x 9 mm | Color: Yellow (Y) | Length: 20 m roll
TPH1209Y-100 Tube size: 12 x 9 mm | Color: Yellow (Y) | Length: 100 m roll
TPH1209G-20 Tube size: 12 x 9 mm | Color: Green (G) | Length: 20 m roll
TPH1209G-100 Tube size: 12 x 9 mm | Color: Green (G) | Length: 100 m roll
