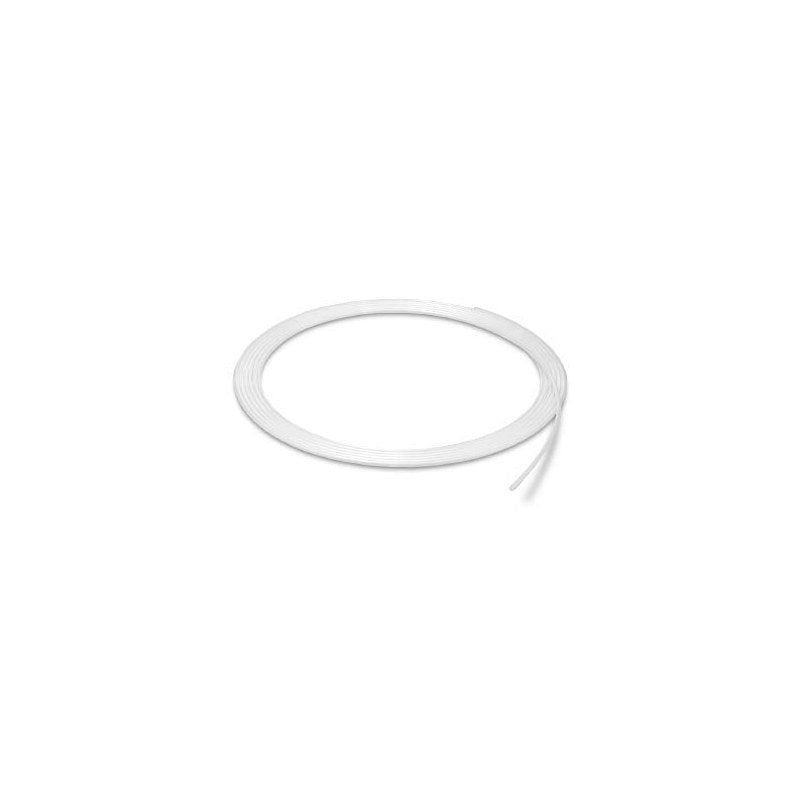

SMC TPS Clean Soft Polyolefin Tubing

SMC TPS Clean Soft Polyolefin Tubing

SMC TPS series clean soft polyolefin tubing for air, nitrogen, water and deionized water in clean applications.

Key features

  • Polyolefin resin tube for clean piping; air, N2, water and deionized (pure) water
  • White (natural), black and blue meet FDA 175.300 elution test
  • Six colors, each on 20 m and 100 m rolls; sizes 4 to 12 mm OD
  • Fittings: clean one-touch, KQB2 metal one-touch, KQG2 SUS316 one-touch, insert fittings
  • Not suitable for general pneumatic lines with mineral oil (polyolefin degrades)

Specifications

Material Polyolefin resin
Fluid Air, nitrogen, water, deionized water
Max. operating pressure 0.7 MPa at 20C, 0.46 at 40C, 0.33 at 60C
Operating temperature -20 to 80C (water 5 to 80C)
FDA 175.300 compliant colors White, black, blue
Min. bending radius 10 to 40 mm
Standards RoHS
Source SMC Korea catalog (SMCKR_TPS.pdf), p. 738
TPS0425W-20 Tube size: 4 x 2.5 mm | Color: White (natural) (W) | Length: 20 m roll
TPS0425W-100 Tube size: 4 x 2.5 mm | Color: White (natural) (W) | Length: 100 m roll
TPS0425B-20 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 20 m roll
TPS0425B-100 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 100 m roll
TPS0425R-20 Tube size: 4 x 2.5 mm | Color: Red (R) | Length: 20 m roll
TPS0425R-100 Tube size: 4 x 2.5 mm | Color: Red (R) | Length: 100 m roll
TPS0425BU-20 Tube size: 4 x 2.5 mm | Color: Blue (BU) | Length: 20 m roll
TPS0425BU-100 Tube size: 4 x 2.5 mm | Color: Blue (BU) | Length: 100 m roll
TPS0425Y-20 Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 20 m roll
TPS0425Y-100 Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 100 m roll
TPS0425G-20 Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 20 m roll
TPS0425G-100 Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 100 m roll
TPS0604W-20 Tube size: 6 x 4 mm | Color: White (natural) (W) | Length: 20 m roll
TPS0604W-100 Tube size: 6 x 4 mm | Color: White (natural) (W) | Length: 100 m roll
TPS0604B-20 Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll
TPS0604B-100 Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m roll
TPS0604R-20 Tube size: 6 x 4 mm | Color: Red (R) | Length: 20 m roll
TPS0604R-100 Tube size: 6 x 4 mm | Color: Red (R) | Length: 100 m roll
TPS0604BU-20 Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 20 m roll
TPS0604BU-100 Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 100 m roll
TPS0604Y-20 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 20 m roll
TPS0604Y-100 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 100 m roll
TPS0604G-20 Tube size: 6 x 4 mm | Color: Green (G) | Length: 20 m roll
TPS0604G-100 Tube size: 6 x 4 mm | Color: Green (G) | Length: 100 m roll
TPS0805W-20 Tube size: 8 x 5 mm | Color: White (natural) (W) | Length: 20 m roll
TPS0805W-100 Tube size: 8 x 5 mm | Color: White (natural) (W) | Length: 100 m roll
TPS0805B-20 Tube size: 8 x 5 mm | Color: Black (B) | Length: 20 m roll
TPS0805B-100 Tube size: 8 x 5 mm | Color: Black (B) | Length: 100 m roll
TPS0805R-20 Tube size: 8 x 5 mm | Color: Red (R) | Length: 20 m roll
TPS0805R-100 Tube size: 8 x 5 mm | Color: Red (R) | Length: 100 m roll
TPS0805BU-20 Tube size: 8 x 5 mm | Color: Blue (BU) | Length: 20 m roll
TPS0805BU-100 Tube size: 8 x 5 mm | Color: Blue (BU) | Length: 100 m roll
TPS0805Y-20 Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 20 m roll
TPS0805Y-100 Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 100 m roll
TPS0805G-20 Tube size: 8 x 5 mm | Color: Green (G) | Length: 20 m roll
TPS0805G-100 Tube size: 8 x 5 mm | Color: Green (G) | Length: 100 m roll
TPS1065W-20 Tube size: 10 x 6.5 mm | Color: White (natural) (W) | Length: 20 m roll
TPS1065W-100 Tube size: 10 x 6.5 mm | Color: White (natural) (W) | Length: 100 m roll
TPS1065B-20 Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 20 m roll
TPS1065B-100 Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 100 m roll
TPS1065R-20 Tube size: 10 x 6.5 mm | Color: Red (R) | Length: 20 m roll
TPS1065R-100 Tube size: 10 x 6.5 mm | Color: Red (R) | Length: 100 m roll
TPS1065BU-20 Tube size: 10 x 6.5 mm | Color: Blue (BU) | Length: 20 m roll
TPS1065BU-100 Tube size: 10 x 6.5 mm | Color: Blue (BU) | Length: 100 m roll
TPS1065Y-20 Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 20 m roll
TPS1065Y-100 Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 100 m roll
TPS1065G-20 Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 20 m roll
TPS1065G-100 Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 100 m roll
TPS1208W-20 Tube size: 12 x 8 mm | Color: White (natural) (W) | Length: 20 m roll
TPS1208W-100 Tube size: 12 x 8 mm | Color: White (natural) (W) | Length: 100 m roll
TPS1208B-20 Tube size: 12 x 8 mm | Color: Black (B) | Length: 20 m roll
TPS1208B-100 Tube size: 12 x 8 mm | Color: Black (B) | Length: 100 m roll
TPS1208R-20 Tube size: 12 x 8 mm | Color: Red (R) | Length: 20 m roll
TPS1208R-100 Tube size: 12 x 8 mm | Color: Red (R) | Length: 100 m roll
TPS1208BU-20 Tube size: 12 x 8 mm | Color: Blue (BU) | Length: 20 m roll
TPS1208BU-100 Tube size: 12 x 8 mm | Color: Blue (BU) | Length: 100 m roll
TPS1208Y-20 Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 20 m roll
TPS1208Y-100 Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 100 m roll
TPS1208G-20 Tube size: 12 x 8 mm | Color: Green (G) | Length: 20 m roll
TPS1208G-100 Tube size: 12 x 8 mm | Color: Green (G) | Length: 100 m roll
TubingSMC
60 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC TPS Clean Soft Polyolefin Tubing

Brand SMC·Tubing

Available part numbers (60)

TPS0425W-20, TPS0425W-100, TPS0425B-20, TPS0425B-100, TPS0425R-20, TPS0425R-100, TPS0425BU-20, TPS0425BU-100, TPS0425Y-20, TPS0425Y-100 + 50 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TPS0425W-20Tube size: 4 x 2.5 mm | Color: White (natural) (W) | Length: 20 m roll
TPS0425W-100Tube size: 4 x 2.5 mm | Color: White (natural) (W) | Length: 100 m roll
TPS0425B-20Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 20 m roll
TPS0425B-100Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 100 m roll
TPS0425R-20Tube size: 4 x 2.5 mm | Color: Red (R) | Length: 20 m roll
TPS0425R-100Tube size: 4 x 2.5 mm | Color: Red (R) | Length: 100 m roll
TPS0425BU-20Tube size: 4 x 2.5 mm | Color: Blue (BU) | Length: 20 m roll
TPS0425BU-100Tube size: 4 x 2.5 mm | Color: Blue (BU) | Length: 100 m roll
TPS0425Y-20Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 20 m roll
TPS0425Y-100Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 100 m roll
TPS0425G-20Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 20 m roll
TPS0425G-100Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 100 m roll
TPS0604W-20Tube size: 6 x 4 mm | Color: White (natural) (W) | Length: 20 m roll
TPS0604W-100Tube size: 6 x 4 mm | Color: White (natural) (W) | Length: 100 m roll
TPS0604B-20Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll
TPS0604B-100Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m roll
TPS0604R-20Tube size: 6 x 4 mm | Color: Red (R) | Length: 20 m roll
TPS0604R-100Tube size: 6 x 4 mm | Color: Red (R) | Length: 100 m roll
TPS0604BU-20Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 20 m roll
TPS0604BU-100Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 100 m roll
TPS0604Y-20Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 20 m roll
TPS0604Y-100Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 100 m roll
TPS0604G-20Tube size: 6 x 4 mm | Color: Green (G) | Length: 20 m roll
TPS0604G-100Tube size: 6 x 4 mm | Color: Green (G) | Length: 100 m roll
TPS0805W-20Tube size: 8 x 5 mm | Color: White (natural) (W) | Length: 20 m roll
TPS0805W-100Tube size: 8 x 5 mm | Color: White (natural) (W) | Length: 100 m roll
TPS0805B-20Tube size: 8 x 5 mm | Color: Black (B) | Length: 20 m roll
TPS0805B-100Tube size: 8 x 5 mm | Color: Black (B) | Length: 100 m roll
TPS0805R-20Tube size: 8 x 5 mm | Color: Red (R) | Length: 20 m roll
TPS0805R-100Tube size: 8 x 5 mm | Color: Red (R) | Length: 100 m roll
TPS0805BU-20Tube size: 8 x 5 mm | Color: Blue (BU) | Length: 20 m roll
TPS0805BU-100Tube size: 8 x 5 mm | Color: Blue (BU) | Length: 100 m roll
TPS0805Y-20Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 20 m roll
TPS0805Y-100Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 100 m roll
TPS0805G-20Tube size: 8 x 5 mm | Color: Green (G) | Length: 20 m roll
TPS0805G-100Tube size: 8 x 5 mm | Color: Green (G) | Length: 100 m roll
TPS1065W-20Tube size: 10 x 6.5 mm | Color: White (natural) (W) | Length: 20 m roll
TPS1065W-100Tube size: 10 x 6.5 mm | Color: White (natural) (W) | Length: 100 m roll
TPS1065B-20Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 20 m roll
TPS1065B-100Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 100 m roll
TPS1065R-20Tube size: 10 x 6.5 mm | Color: Red (R) | Length: 20 m roll
TPS1065R-100Tube size: 10 x 6.5 mm | Color: Red (R) | Length: 100 m roll
TPS1065BU-20Tube size: 10 x 6.5 mm | Color: Blue (BU) | Length: 20 m roll
TPS1065BU-100Tube size: 10 x 6.5 mm | Color: Blue (BU) | Length: 100 m roll
TPS1065Y-20Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 20 m roll
TPS1065Y-100Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 100 m roll
TPS1065G-20Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 20 m roll
TPS1065G-100Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 100 m roll
TPS1208W-20Tube size: 12 x 8 mm | Color: White (natural) (W) | Length: 20 m roll
TPS1208W-100Tube size: 12 x 8 mm | Color: White (natural) (W) | Length: 100 m roll
TPS1208B-20Tube size: 12 x 8 mm | Color: Black (B) | Length: 20 m roll
TPS1208B-100Tube size: 12 x 8 mm | Color: Black (B) | Length: 100 m roll
TPS1208R-20Tube size: 12 x 8 mm | Color: Red (R) | Length: 20 m roll
TPS1208R-100Tube size: 12 x 8 mm | Color: Red (R) | Length: 100 m roll
TPS1208BU-20Tube size: 12 x 8 mm | Color: Blue (BU) | Length: 20 m roll
TPS1208BU-100Tube size: 12 x 8 mm | Color: Blue (BU) | Length: 100 m roll
TPS1208Y-20Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 20 m roll
TPS1208Y-100Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 100 m roll
TPS1208G-20Tube size: 12 x 8 mm | Color: Green (G) | Length: 20 m roll
TPS1208G-100Tube size: 12 x 8 mm | Color: Green (G) | Length: 100 m roll
