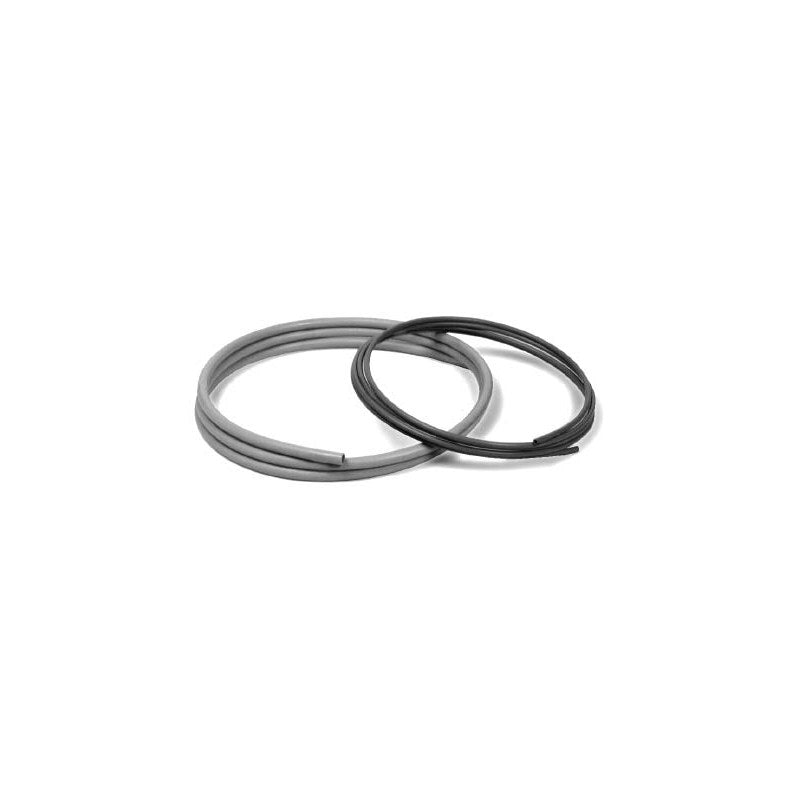

SMC TRBU Flame-Resistant Double-Layer Polyurethane Tubing

SMC TRBU Flame-Resistant Double-Layer Polyurethane Tubing

SMC TRBU series flame-resistant double-layer tubing: polyurethane inner tube with a UL-94 V-0 equivalent polyolefin outer layer, for welding spatter environments.

Key features

  • Polyurethane inner tube (black) for flexibility, flame-resistant polyolefin outer layer (1 mm)
  • Inner tube sizes 6 to 12 mm OD; six outer layer colors (opaque)
  • 20 m rolls and 100 m reels
  • Outer layer marked with insertion pitch; strip with the TKS double-layer tube stripper
  • Use with FR one-touch fittings KR-W2 series

Specifications

Material Inner polyurethane, outer polyolefin (UL-94 V-0 equivalent)
Fluid Air, water
Max. operating pressure 0.8 MPa at 20C, 0.65 at 40C, 0.5 at 60C
Operating temperature -20 to 60C (water 0 to 40C, no freezing)
Min. bending radius 15 to 35 mm depending on size
Inner tube color Black
Standards RoHS
Source SMC Korea catalog (SMCKR_TRBU.pdf), p. 486-487
TRBU0604B-20 Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll
TRBU0604B-100 Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m reel
TRBU0604W-20 Tube size: 6 x 4 mm | Color: White (W) | Length: 20 m roll
TRBU0604W-100 Tube size: 6 x 4 mm | Color: White (W) | Length: 100 m reel
TRBU0604R-20 Tube size: 6 x 4 mm | Color: Red (R) | Length: 20 m roll
TRBU0604R-100 Tube size: 6 x 4 mm | Color: Red (R) | Length: 100 m reel
TRBU0604BU-20 Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 20 m roll
TRBU0604BU-100 Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 100 m reel
TRBU0604Y-20 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 20 m roll
TRBU0604Y-100 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 100 m reel
TRBU0604G-20 Tube size: 6 x 4 mm | Color: Green (G) | Length: 20 m roll
TRBU0604G-100 Tube size: 6 x 4 mm | Color: Green (G) | Length: 100 m reel
TRBU0805B-20 Tube size: 8 x 5 mm | Color: Black (B) | Length: 20 m roll
TRBU0805B-100 Tube size: 8 x 5 mm | Color: Black (B) | Length: 100 m reel
TRBU0805W-20 Tube size: 8 x 5 mm | Color: White (W) | Length: 20 m roll
TRBU0805W-100 Tube size: 8 x 5 mm | Color: White (W) | Length: 100 m reel
TRBU0805R-20 Tube size: 8 x 5 mm | Color: Red (R) | Length: 20 m roll
TRBU0805R-100 Tube size: 8 x 5 mm | Color: Red (R) | Length: 100 m reel
TRBU0805BU-20 Tube size: 8 x 5 mm | Color: Blue (BU) | Length: 20 m roll
TRBU0805BU-100 Tube size: 8 x 5 mm | Color: Blue (BU) | Length: 100 m reel
TRBU0805Y-20 Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 20 m roll
TRBU0805Y-100 Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 100 m reel
TRBU0805G-20 Tube size: 8 x 5 mm | Color: Green (G) | Length: 20 m roll
TRBU0805G-100 Tube size: 8 x 5 mm | Color: Green (G) | Length: 100 m reel
TRBU1065B-20 Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 20 m roll
TRBU1065B-100 Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 100 m reel
TRBU1065W-20 Tube size: 10 x 6.5 mm | Color: White (W) | Length: 20 m roll
TRBU1065W-100 Tube size: 10 x 6.5 mm | Color: White (W) | Length: 100 m reel
TRBU1065R-20 Tube size: 10 x 6.5 mm | Color: Red (R) | Length: 20 m roll
TRBU1065R-100 Tube size: 10 x 6.5 mm | Color: Red (R) | Length: 100 m reel
TRBU1065BU-20 Tube size: 10 x 6.5 mm | Color: Blue (BU) | Length: 20 m roll
TRBU1065BU-100 Tube size: 10 x 6.5 mm | Color: Blue (BU) | Length: 100 m reel
TRBU1065Y-20 Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 20 m roll
TRBU1065Y-100 Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 100 m reel
TRBU1065G-20 Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 20 m roll
TRBU1065G-100 Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 100 m reel
TRBU1208B-20 Tube size: 12 x 8 mm | Color: Black (B) | Length: 20 m roll
TRBU1208B-100 Tube size: 12 x 8 mm | Color: Black (B) | Length: 100 m reel
TRBU1208W-20 Tube size: 12 x 8 mm | Color: White (W) | Length: 20 m roll
TRBU1208W-100 Tube size: 12 x 8 mm | Color: White (W) | Length: 100 m reel
TRBU1208R-20 Tube size: 12 x 8 mm | Color: Red (R) | Length: 20 m roll
TRBU1208R-100 Tube size: 12 x 8 mm | Color: Red (R) | Length: 100 m reel
TRBU1208BU-20 Tube size: 12 x 8 mm | Color: Blue (BU) | Length: 20 m roll
TRBU1208BU-100 Tube size: 12 x 8 mm | Color: Blue (BU) | Length: 100 m reel
TRBU1208Y-20 Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 20 m roll
TRBU1208Y-100 Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 100 m reel
TRBU1208G-20 Tube size: 12 x 8 mm | Color: Green (G) | Length: 20 m roll
TRBU1208G-100 Tube size: 12 x 8 mm | Color: Green (G) | Length: 100 m reel
TubingSMC
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC TRBU Flame-Resistant Double-Layer Polyurethane Tubing

Brand SMC·Tubing

Available part numbers (48)

TRBU0604B-20, TRBU0604B-100, TRBU0604W-20, TRBU0604W-100, TRBU0604R-20, TRBU0604R-100, TRBU0604BU-20, TRBU0604BU-100, TRBU0604Y-20, TRBU0604Y-100 + 38 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TRBU0604B-20Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll
TRBU0604B-100Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m reel
TRBU0604W-20Tube size: 6 x 4 mm | Color: White (W) | Length: 20 m roll
TRBU0604W-100Tube size: 6 x 4 mm | Color: White (W) | Length: 100 m reel
TRBU0604R-20Tube size: 6 x 4 mm | Color: Red (R) | Length: 20 m roll
TRBU0604R-100Tube size: 6 x 4 mm | Color: Red (R) | Length: 100 m reel
TRBU0604BU-20Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 20 m roll
TRBU0604BU-100Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 100 m reel
TRBU0604Y-20Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 20 m roll
TRBU0604Y-100Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 100 m reel
TRBU0604G-20Tube size: 6 x 4 mm | Color: Green (G) | Length: 20 m roll
TRBU0604G-100Tube size: 6 x 4 mm | Color: Green (G) | Length: 100 m reel
TRBU0805B-20Tube size: 8 x 5 mm | Color: Black (B) | Length: 20 m roll
TRBU0805B-100Tube size: 8 x 5 mm | Color: Black (B) | Length: 100 m reel
TRBU0805W-20Tube size: 8 x 5 mm | Color: White (W) | Length: 20 m roll
TRBU0805W-100Tube size: 8 x 5 mm | Color: White (W) | Length: 100 m reel
TRBU0805R-20Tube size: 8 x 5 mm | Color: Red (R) | Length: 20 m roll
TRBU0805R-100Tube size: 8 x 5 mm | Color: Red (R) | Length: 100 m reel
TRBU0805BU-20Tube size: 8 x 5 mm | Color: Blue (BU) | Length: 20 m roll
TRBU0805BU-100Tube size: 8 x 5 mm | Color: Blue (BU) | Length: 100 m reel
TRBU0805Y-20Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 20 m roll
TRBU0805Y-100Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 100 m reel
TRBU0805G-20Tube size: 8 x 5 mm | Color: Green (G) | Length: 20 m roll
TRBU0805G-100Tube size: 8 x 5 mm | Color: Green (G) | Length: 100 m reel
TRBU1065B-20Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 20 m roll
TRBU1065B-100Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 100 m reel
TRBU1065W-20Tube size: 10 x 6.5 mm | Color: White (W) | Length: 20 m roll
TRBU1065W-100Tube size: 10 x 6.5 mm | Color: White (W) | Length: 100 m reel
TRBU1065R-20Tube size: 10 x 6.5 mm | Color: Red (R) | Length: 20 m roll
TRBU1065R-100Tube size: 10 x 6.5 mm | Color: Red (R) | Length: 100 m reel
TRBU1065BU-20Tube size: 10 x 6.5 mm | Color: Blue (BU) | Length: 20 m roll
TRBU1065BU-100Tube size: 10 x 6.5 mm | Color: Blue (BU) | Length: 100 m reel
TRBU1065Y-20Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 20 m roll
TRBU1065Y-100Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 100 m reel
TRBU1065G-20Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 20 m roll
TRBU1065G-100Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 100 m reel
TRBU1208B-20Tube size: 12 x 8 mm | Color: Black (B) | Length: 20 m roll
TRBU1208B-100Tube size: 12 x 8 mm | Color: Black (B) | Length: 100 m reel
TRBU1208W-20Tube size: 12 x 8 mm | Color: White (W) | Length: 20 m roll
TRBU1208W-100Tube size: 12 x 8 mm | Color: White (W) | Length: 100 m reel
TRBU1208R-20Tube size: 12 x 8 mm | Color: Red (R) | Length: 20 m roll
TRBU1208R-100Tube size: 12 x 8 mm | Color: Red (R) | Length: 100 m reel
TRBU1208BU-20Tube size: 12 x 8 mm | Color: Blue (BU) | Length: 20 m roll
TRBU1208BU-100Tube size: 12 x 8 mm | Color: Blue (BU) | Length: 100 m reel
TRBU1208Y-20Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 20 m roll
TRBU1208Y-100Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 100 m reel
TRBU1208G-20Tube size: 12 x 8 mm | Color: Green (G) | Length: 20 m roll
TRBU1208G-100Tube size: 12 x 8 mm | Color: Green (G) | Length: 100 m reel
