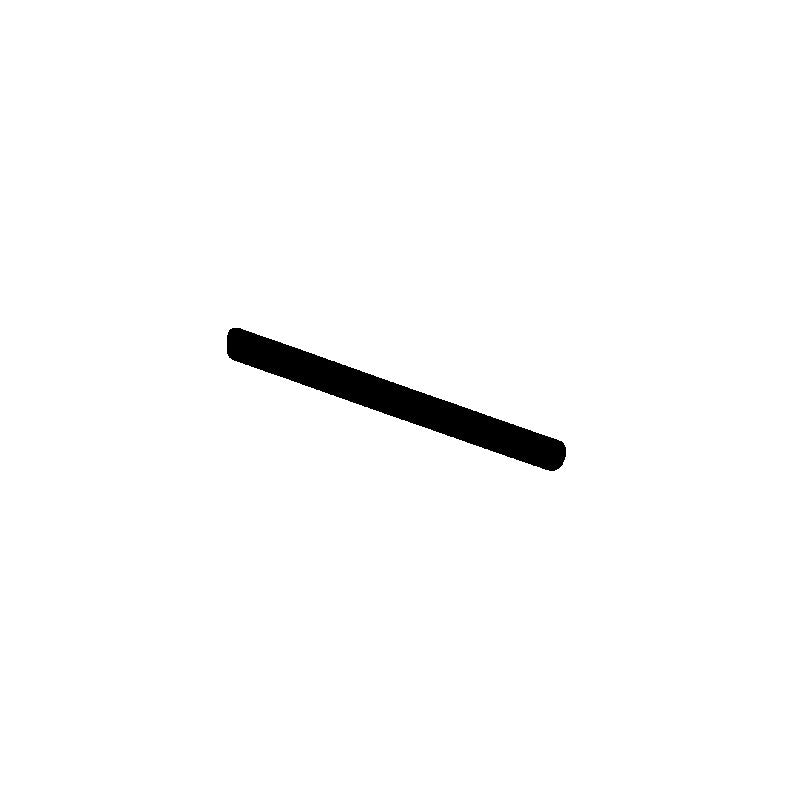

SMC TRTU Flame-Resistant Triple-Layer Polyurethane Tubing

SMC TRTU Flame-Resistant Triple-Layer Polyurethane Tubing

SMC TRTU series flame-resistant triple-layer tubing with an aluminum laminate middle layer, giving about twice the spatter resistance of TRBU for arc welding environments.

Key features

  • Three layers: polyurethane inner tube, aluminum laminate film, flame-resistant polyolefin outer layer
  • About 2x spatter life compared with TRBU (SMC conditions)
  • Inner tube sizes 6 to 12 mm OD; six outer layer colors
  • 20 m rolls and 100 m reels
  • Fittings: FR one-touch KR-W2 and metal one-touch KQB2; dedicated stripping tool YS-100

Specifications

Material Polyurethane / aluminum laminate / polyolefin (UL-94 V-0 eq.)
Fluid Air, water
Max. operating pressure 0.8 MPa at 20C, 0.65 at 40C, 0.5 at 60C
Operating temperature -20 to 60C (water 0 to 40C, no freezing)
Min. bending radius 50 to 80 mm depending on size
Inner tube color Black
Standards RoHS
Source SMC Korea catalog (SMCKR_TRTU.pdf), p. 436-438
TRTU0604B-20 Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll
TRTU0604B-100 Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m reel
TRTU0604W-20 Tube size: 6 x 4 mm | Color: White (W) | Length: 20 m roll
TRTU0604W-100 Tube size: 6 x 4 mm | Color: White (W) | Length: 100 m reel
TRTU0604R-20 Tube size: 6 x 4 mm | Color: Red (R) | Length: 20 m roll
TRTU0604R-100 Tube size: 6 x 4 mm | Color: Red (R) | Length: 100 m reel
TRTU0604BU-20 Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 20 m roll
TRTU0604BU-100 Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 100 m reel
TRTU0604Y-20 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 20 m roll
TRTU0604Y-100 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 100 m reel
TRTU0604G-20 Tube size: 6 x 4 mm | Color: Green (G) | Length: 20 m roll
TRTU0604G-100 Tube size: 6 x 4 mm | Color: Green (G) | Length: 100 m reel
TRTU0805B-20 Tube size: 8 x 5 mm | Color: Black (B) | Length: 20 m roll
TRTU0805B-100 Tube size: 8 x 5 mm | Color: Black (B) | Length: 100 m reel
TRTU0805W-20 Tube size: 8 x 5 mm | Color: White (W) | Length: 20 m roll
TRTU0805W-100 Tube size: 8 x 5 mm | Color: White (W) | Length: 100 m reel
TRTU0805R-20 Tube size: 8 x 5 mm | Color: Red (R) | Length: 20 m roll
TRTU0805R-100 Tube size: 8 x 5 mm | Color: Red (R) | Length: 100 m reel
TRTU0805BU-20 Tube size: 8 x 5 mm | Color: Blue (BU) | Length: 20 m roll
TRTU0805BU-100 Tube size: 8 x 5 mm | Color: Blue (BU) | Length: 100 m reel
TRTU0805Y-20 Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 20 m roll
TRTU0805Y-100 Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 100 m reel
TRTU0805G-20 Tube size: 8 x 5 mm | Color: Green (G) | Length: 20 m roll
TRTU0805G-100 Tube size: 8 x 5 mm | Color: Green (G) | Length: 100 m reel
TRTU1065B-20 Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 20 m roll
TRTU1065B-100 Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 100 m reel
TRTU1065W-20 Tube size: 10 x 6.5 mm | Color: White (W) | Length: 20 m roll
TRTU1065W-100 Tube size: 10 x 6.5 mm | Color: White (W) | Length: 100 m reel
TRTU1065R-20 Tube size: 10 x 6.5 mm | Color: Red (R) | Length: 20 m roll
TRTU1065R-100 Tube size: 10 x 6.5 mm | Color: Red (R) | Length: 100 m reel
TRTU1065BU-20 Tube size: 10 x 6.5 mm | Color: Blue (BU) | Length: 20 m roll
TRTU1065BU-100 Tube size: 10 x 6.5 mm | Color: Blue (BU) | Length: 100 m reel
TRTU1065Y-20 Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 20 m roll
TRTU1065Y-100 Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 100 m reel
TRTU1065G-20 Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 20 m roll
TRTU1065G-100 Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 100 m reel
TRTU1208B-20 Tube size: 12 x 8 mm | Color: Black (B) | Length: 20 m roll
TRTU1208B-100 Tube size: 12 x 8 mm | Color: Black (B) | Length: 100 m reel
TRTU1208W-20 Tube size: 12 x 8 mm | Color: White (W) | Length: 20 m roll
TRTU1208W-100 Tube size: 12 x 8 mm | Color: White (W) | Length: 100 m reel
TRTU1208R-20 Tube size: 12 x 8 mm | Color: Red (R) | Length: 20 m roll
TRTU1208R-100 Tube size: 12 x 8 mm | Color: Red (R) | Length: 100 m reel
TRTU1208BU-20 Tube size: 12 x 8 mm | Color: Blue (BU) | Length: 20 m roll
TRTU1208BU-100 Tube size: 12 x 8 mm | Color: Blue (BU) | Length: 100 m reel
TRTU1208Y-20 Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 20 m roll
TRTU1208Y-100 Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 100 m reel
TRTU1208G-20 Tube size: 12 x 8 mm | Color: Green (G) | Length: 20 m roll
TRTU1208G-100 Tube size: 12 x 8 mm | Color: Green (G) | Length: 100 m reel
TubingSMC
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC TRTU Flame-Resistant Triple-Layer Polyurethane Tubing

Brand SMC·Tubing

Available part numbers (48)

TRTU0604B-20, TRTU0604B-100, TRTU0604W-20, TRTU0604W-100, TRTU0604R-20, TRTU0604R-100, TRTU0604BU-20, TRTU0604BU-100, TRTU0604Y-20, TRTU0604Y-100 + 38 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TRTU0604B-20Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll
TRTU0604B-100Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m reel
TRTU0604W-20Tube size: 6 x 4 mm | Color: White (W) | Length: 20 m roll
TRTU0604W-100Tube size: 6 x 4 mm | Color: White (W) | Length: 100 m reel
TRTU0604R-20Tube size: 6 x 4 mm | Color: Red (R) | Length: 20 m roll
TRTU0604R-100Tube size: 6 x 4 mm | Color: Red (R) | Length: 100 m reel
TRTU0604BU-20Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 20 m roll
TRTU0604BU-100Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 100 m reel
TRTU0604Y-20Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 20 m roll
TRTU0604Y-100Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 100 m reel
TRTU0604G-20Tube size: 6 x 4 mm | Color: Green (G) | Length: 20 m roll
TRTU0604G-100Tube size: 6 x 4 mm | Color: Green (G) | Length: 100 m reel
TRTU0805B-20Tube size: 8 x 5 mm | Color: Black (B) | Length: 20 m roll
TRTU0805B-100Tube size: 8 x 5 mm | Color: Black (B) | Length: 100 m reel
TRTU0805W-20Tube size: 8 x 5 mm | Color: White (W) | Length: 20 m roll
TRTU0805W-100Tube size: 8 x 5 mm | Color: White (W) | Length: 100 m reel
TRTU0805R-20Tube size: 8 x 5 mm | Color: Red (R) | Length: 20 m roll
TRTU0805R-100Tube size: 8 x 5 mm | Color: Red (R) | Length: 100 m reel
TRTU0805BU-20Tube size: 8 x 5 mm | Color: Blue (BU) | Length: 20 m roll
TRTU0805BU-100Tube size: 8 x 5 mm | Color: Blue (BU) | Length: 100 m reel
TRTU0805Y-20Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 20 m roll
TRTU0805Y-100Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 100 m reel
TRTU0805G-20Tube size: 8 x 5 mm | Color: Green (G) | Length: 20 m roll
TRTU0805G-100Tube size: 8 x 5 mm | Color: Green (G) | Length: 100 m reel
TRTU1065B-20Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 20 m roll
TRTU1065B-100Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 100 m reel
TRTU1065W-20Tube size: 10 x 6.5 mm | Color: White (W) | Length: 20 m roll
TRTU1065W-100Tube size: 10 x 6.5 mm | Color: White (W) | Length: 100 m reel
TRTU1065R-20Tube size: 10 x 6.5 mm | Color: Red (R) | Length: 20 m roll
TRTU1065R-100Tube size: 10 x 6.5 mm | Color: Red (R) | Length: 100 m reel
TRTU1065BU-20Tube size: 10 x 6.5 mm | Color: Blue (BU) | Length: 20 m roll
TRTU1065BU-100Tube size: 10 x 6.5 mm | Color: Blue (BU) | Length: 100 m reel
TRTU1065Y-20Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 20 m roll
TRTU1065Y-100Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 100 m reel
TRTU1065G-20Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 20 m roll
TRTU1065G-100Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 100 m reel
TRTU1208B-20Tube size: 12 x 8 mm | Color: Black (B) | Length: 20 m roll
TRTU1208B-100Tube size: 12 x 8 mm | Color: Black (B) | Length: 100 m reel
TRTU1208W-20Tube size: 12 x 8 mm | Color: White (W) | Length: 20 m roll
TRTU1208W-100Tube size: 12 x 8 mm | Color: White (W) | Length: 100 m reel
TRTU1208R-20Tube size: 12 x 8 mm | Color: Red (R) | Length: 20 m roll
TRTU1208R-100Tube size: 12 x 8 mm | Color: Red (R) | Length: 100 m reel
TRTU1208BU-20Tube size: 12 x 8 mm | Color: Blue (BU) | Length: 20 m roll
TRTU1208BU-100Tube size: 12 x 8 mm | Color: Blue (BU) | Length: 100 m reel
TRTU1208Y-20Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 20 m roll
TRTU1208Y-100Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 100 m reel
TRTU1208G-20Tube size: 12 x 8 mm | Color: Green (G) | Length: 20 m roll
TRTU1208G-100Tube size: 12 x 8 mm | Color: Green (G) | Length: 100 m reel
