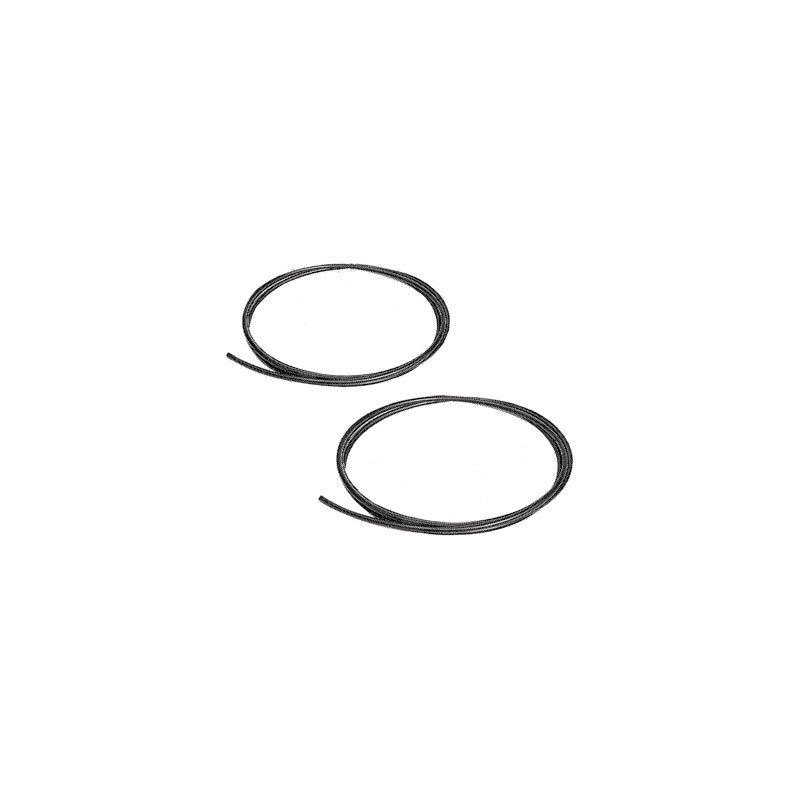

SMC TS/TISA Soft Nylon Tubing (Metric and Inch Sizes)

SMC TS/TISA Soft Nylon Tubing (Metric and Inch Sizes)

SMC TS series (metric) and TISA series (inch) soft nylon tubing, slightly more flexible than standard nylon, for general pneumatic and water piping.

Key features

  • Soft nylon 12 tube: easier routing than T series while keeping 1.3 to 2.0 MPa max. pressure at 20C
  • Metric 4 to 16 mm OD and inch 1/8 to 1/2 in sizes
  • Six colors on 4 to 12 mm sizes; black and white on 100 m rolls (TS1612: 100 m reel)
  • Usable with one-touch, insert, nut-type and miniature fittings; turbine oil with insert fittings
  • Made to order: 100 m reels and long reels (-X3), inch 20 m rolls in red/blue/yellow/green (-X4)

Specifications

Material Nylon 12 (soft)
Fluid Air, water; turbine oil (ISO VG32) with insert fittings
Operating temperature Air/oil -40 to 100C, water 0 to 50C (no freezing)
Max. operating vacuum -101.3 kPa (depends on fitting)
Pressure derating TS0806 and larger: 1.3 MPa at 20C, 0.9 at 40C, 0.65 at 60C, 0.35 at 100C
Min. bending radius 15 mm (TS0425) to 90 mm (TS1612)
Standards RoHS
Source SMC Korea catalog (SMCKR_TS_TISA.pdf), p. 678
TS0425B-20 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
TS0425B-100 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 100 m roll | Max. pressure (20C): 2.0 MPa
TS0425W-20 Tube size: 4 x 2.5 mm | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
TS0425W-100 Tube size: 4 x 2.5 mm | Color: White (W) | Length: 100 m roll | Max. pressure (20C): 2.0 MPa
TS0425R-20 Tube size: 4 x 2.5 mm | Color: Red (R) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
TS0425BU-20 Tube size: 4 x 2.5 mm | Color: Blue (BU) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
TS0425Y-20 Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
TS0425G-20 Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 20 m roll | Max. pressure (20C): 2.0 MPa
TS0604B-20 Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 1.7 MPa
TS0604B-100 Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m roll | Max. pressure (20C): 1.7 MPa
TS0604W-20 Tube size: 6 x 4 mm | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 1.7 MPa
TS0604W-100 Tube size: 6 x 4 mm | Color: White (W) | Length: 100 m roll | Max. pressure (20C): 1.7 MPa
TS0604R-20 Tube size: 6 x 4 mm | Color: Red (R) | Length: 20 m roll | Max. pressure (20C): 1.7 MPa
TS0604BU-20 Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 20 m roll | Max. pressure (20C): 1.7 MPa
TS0604Y-20 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 20 m roll | Max. pressure (20C): 1.7 MPa
TS0604G-20 Tube size: 6 x 4 mm | Color: Green (G) | Length: 20 m roll | Max. pressure (20C): 1.7 MPa
TS0806B-20 Tube size: 8 x 6 mm | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS0806B-100 Tube size: 8 x 6 mm | Color: Black (B) | Length: 100 m roll | Max. pressure (20C): 1.3 MPa
TS0806W-20 Tube size: 8 x 6 mm | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS0806W-100 Tube size: 8 x 6 mm | Color: White (W) | Length: 100 m roll | Max. pressure (20C): 1.3 MPa
TS0806R-20 Tube size: 8 x 6 mm | Color: Red (R) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS0806BU-20 Tube size: 8 x 6 mm | Color: Blue (BU) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS0806Y-20 Tube size: 8 x 6 mm | Color: Yellow (Y) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS0806G-20 Tube size: 8 x 6 mm | Color: Green (G) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS1075B-20 Tube size: 10 x 7.5 mm | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS1075B-100 Tube size: 10 x 7.5 mm | Color: Black (B) | Length: 100 m roll | Max. pressure (20C): 1.3 MPa
TS1075W-20 Tube size: 10 x 7.5 mm | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS1075W-100 Tube size: 10 x 7.5 mm | Color: White (W) | Length: 100 m roll | Max. pressure (20C): 1.3 MPa
TS1075R-20 Tube size: 10 x 7.5 mm | Color: Red (R) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS1075BU-20 Tube size: 10 x 7.5 mm | Color: Blue (BU) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS1075Y-20 Tube size: 10 x 7.5 mm | Color: Yellow (Y) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS1075G-20 Tube size: 10 x 7.5 mm | Color: Green (G) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS1209B-20 Tube size: 12 x 9 mm | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS1209B-100 Tube size: 12 x 9 mm | Color: Black (B) | Length: 100 m roll | Max. pressure (20C): 1.3 MPa
TS1209W-20 Tube size: 12 x 9 mm | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS1209W-100 Tube size: 12 x 9 mm | Color: White (W) | Length: 100 m roll | Max. pressure (20C): 1.3 MPa
TS1209R-20 Tube size: 12 x 9 mm | Color: Red (R) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS1209BU-20 Tube size: 12 x 9 mm | Color: Blue (BU) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS1209Y-20 Tube size: 12 x 9 mm | Color: Yellow (Y) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS1209G-20 Tube size: 12 x 9 mm | Color: Green (G) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS1612B-20 Tube size: 16 x 12 mm | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS1612B-100 Tube size: 16 x 12 mm | Color: Black (B) | Length: 100 m reel | Max. pressure (20C): 1.3 MPa
TS1612W-20 Tube size: 16 x 12 mm | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TS1612W-100 Tube size: 16 x 12 mm | Color: White (W) | Length: 100 m reel | Max. pressure (20C): 1.3 MPa
TISA01B-20 Tube size: 1/8 in (3.18 x 2.18 mm) | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TISA01W-20 Tube size: 1/8 in (3.18 x 2.18 mm) | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TISA05B-20 Tube size: 3/16 in (4.76 x 3.48 mm) | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TISA05W-20 Tube size: 3/16 in (4.76 x 3.48 mm) | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TISA07B-20 Tube size: 1/4 in (6.35 x 4.57 mm) | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TISA07W-20 Tube size: 1/4 in (6.35 x 4.57 mm) | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TISA11B-20 Tube size: 3/8 in (9.53 x 6.99 mm) | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TISA11W-20 Tube size: 3/8 in (9.53 x 6.99 mm) | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TISA13B-20 Tube size: 1/2 in (12.7 x 9.56 mm) | Color: Black (B) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TISA13W-20 Tube size: 1/2 in (12.7 x 9.56 mm) | Color: White (W) | Length: 20 m roll | Max. pressure (20C): 1.3 MPa
TubingSMC
54 product codes available in this family
