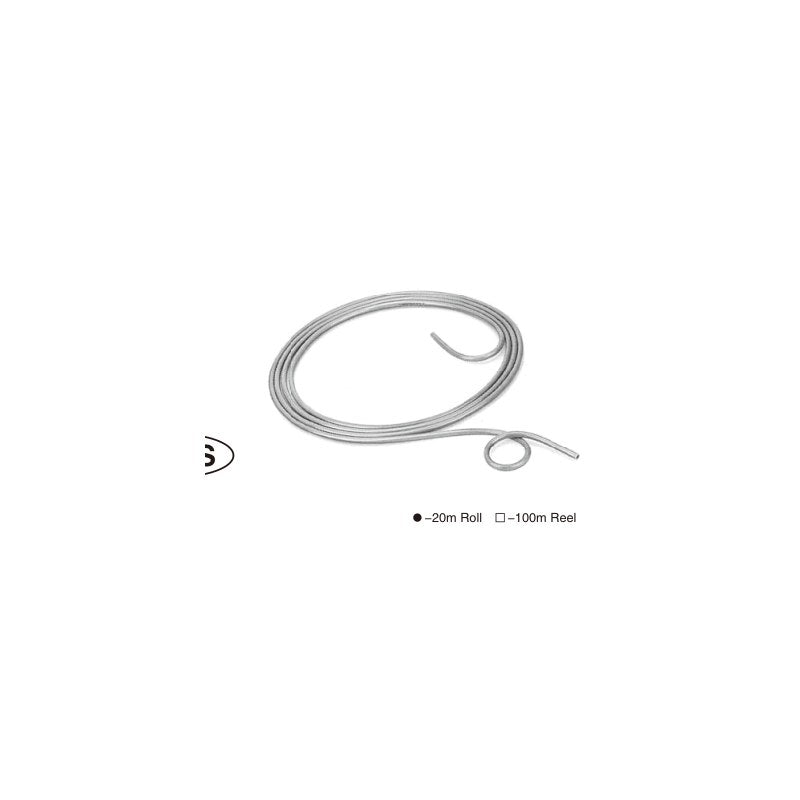

SMC TU/TIUB Polyurethane Tubing (Standard 8 Colors)

SMC TU/TIUB Polyurethane Tubing (Standard 8 Colors)

SMC TU series (metric) and TIUB series (inch) flexible polyurethane tubing for general pneumatic piping, in the eight standard colors.

Key features

  • Flexible polyurethane tube, 0.8 MPa max. pressure at 20C
  • Metric 2 to 16 mm OD and inch 1/8 to 1/2 in sizes
  • Eight standard colors: black, white, red, blue, yellow, green, clear and orange
  • TU0425/TU0604 also on 200 m rolls; TU1610 100 m is a reel
  • TIUB 3/16 to 1/2 in: black and blue standard, other colors semi-standard (ask)
  • Made to order: 100 to 500 m reels (-X3), inch 20 m rolls (-X4), food-grade/FDA versions (-X217, -X214)

Specifications

Material Polyurethane
Fluid Air, water
Max. operating pressure 0.8 MPa at 20C, 0.65 at 40C, 0.5 at 60C
Max. operating vacuum -101.3 kPa (depends on fitting)
Operating temperature -20 to 60C (water 0 to 40C, no freezing)
Applicable fittings One-touch, insert and miniature fittings
Min. bending radius 4 mm (TU0212) to 35 mm (TU1208)
Standards RoHS
Source SMC Korea catalog (SMCKR_TU_TIUB.pdf), p. 682-683
TU0212B-20 Tube size: 2 x 1.2 mm | Color: Black (B) | Length: 20 m roll
TU0212W-20 Tube size: 2 x 1.2 mm | Color: White (W) | Length: 20 m roll
TU0212R-20 Tube size: 2 x 1.2 mm | Color: Red (translucent) (R) | Length: 20 m roll
TU0212BU-20 Tube size: 2 x 1.2 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TU0212Y-20 Tube size: 2 x 1.2 mm | Color: Yellow (Y) | Length: 20 m roll
TU0212G-20 Tube size: 2 x 1.2 mm | Color: Green (G) | Length: 20 m roll
TU0212C-20 Tube size: 2 x 1.2 mm | Color: Clear (C) | Length: 20 m roll
TU0212YR-20 Tube size: 2 x 1.2 mm | Color: Orange (YR) | Length: 20 m roll
TU0425B-20 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 20 m roll
TU0425B-100 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 100 m roll
TU0425B-200 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 200 m roll
TU0425W-20 Tube size: 4 x 2.5 mm | Color: White (W) | Length: 20 m roll
TU0425W-100 Tube size: 4 x 2.5 mm | Color: White (W) | Length: 100 m roll
TU0425W-200 Tube size: 4 x 2.5 mm | Color: White (W) | Length: 200 m roll
TU0425R-20 Tube size: 4 x 2.5 mm | Color: Red (translucent) (R) | Length: 20 m roll
TU0425R-100 Tube size: 4 x 2.5 mm | Color: Red (translucent) (R) | Length: 100 m roll
TU0425R-200 Tube size: 4 x 2.5 mm | Color: Red (translucent) (R) | Length: 200 m roll
TU0425BU-20 Tube size: 4 x 2.5 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TU0425BU-100 Tube size: 4 x 2.5 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TU0425BU-200 Tube size: 4 x 2.5 mm | Color: Blue (translucent) (BU) | Length: 200 m roll
TU0425Y-20 Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 20 m roll
TU0425Y-100 Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 100 m roll
TU0425Y-200 Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 200 m roll
TU0425G-20 Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 20 m roll
TU0425G-100 Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 100 m roll
TU0425G-200 Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 200 m roll
TU0425C-20 Tube size: 4 x 2.5 mm | Color: Clear (C) | Length: 20 m roll
TU0425C-100 Tube size: 4 x 2.5 mm | Color: Clear (C) | Length: 100 m roll
TU0425C-200 Tube size: 4 x 2.5 mm | Color: Clear (C) | Length: 200 m roll
TU0425YR-20 Tube size: 4 x 2.5 mm | Color: Orange (YR) | Length: 20 m roll
TU0425YR-100 Tube size: 4 x 2.5 mm | Color: Orange (YR) | Length: 100 m roll
TU0425YR-200 Tube size: 4 x 2.5 mm | Color: Orange (YR) | Length: 200 m roll
TU0604B-20 Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll
TU0604B-100 Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m roll
TU0604B-200 Tube size: 6 x 4 mm | Color: Black (B) | Length: 200 m roll
TU0604W-20 Tube size: 6 x 4 mm | Color: White (W) | Length: 20 m roll
TU0604W-100 Tube size: 6 x 4 mm | Color: White (W) | Length: 100 m roll
TU0604W-200 Tube size: 6 x 4 mm | Color: White (W) | Length: 200 m roll
TU0604R-20 Tube size: 6 x 4 mm | Color: Red (translucent) (R) | Length: 20 m roll
TU0604R-100 Tube size: 6 x 4 mm | Color: Red (translucent) (R) | Length: 100 m roll
TU0604R-200 Tube size: 6 x 4 mm | Color: Red (translucent) (R) | Length: 200 m roll
TU0604BU-20 Tube size: 6 x 4 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TU0604BU-100 Tube size: 6 x 4 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TU0604BU-200 Tube size: 6 x 4 mm | Color: Blue (translucent) (BU) | Length: 200 m roll
TU0604Y-20 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 20 m roll
TU0604Y-100 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 100 m roll
TU0604Y-200 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 200 m roll
TU0604G-20 Tube size: 6 x 4 mm | Color: Green (G) | Length: 20 m roll
TU0604G-100 Tube size: 6 x 4 mm | Color: Green (G) | Length: 100 m roll
TU0604G-200 Tube size: 6 x 4 mm | Color: Green (G) | Length: 200 m roll
TU0604C-20 Tube size: 6 x 4 mm | Color: Clear (C) | Length: 20 m roll
TU0604C-100 Tube size: 6 x 4 mm | Color: Clear (C) | Length: 100 m roll
TU0604C-200 Tube size: 6 x 4 mm | Color: Clear (C) | Length: 200 m roll
TU0604YR-20 Tube size: 6 x 4 mm | Color: Orange (YR) | Length: 20 m roll
TU0604YR-100 Tube size: 6 x 4 mm | Color: Orange (YR) | Length: 100 m roll
TU0604YR-200 Tube size: 6 x 4 mm | Color: Orange (YR) | Length: 200 m roll
TU0805B-20 Tube size: 8 x 5 mm | Color: Black (B) | Length: 20 m roll
TU0805B-100 Tube size: 8 x 5 mm | Color: Black (B) | Length: 100 m roll
TU0805W-20 Tube size: 8 x 5 mm | Color: White (W) | Length: 20 m roll
TU0805W-100 Tube size: 8 x 5 mm | Color: White (W) | Length: 100 m roll
TU0805R-20 Tube size: 8 x 5 mm | Color: Red (translucent) (R) | Length: 20 m roll
TU0805R-100 Tube size: 8 x 5 mm | Color: Red (translucent) (R) | Length: 100 m roll
TU0805BU-20 Tube size: 8 x 5 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TU0805BU-100 Tube size: 8 x 5 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TU0805Y-20 Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 20 m roll
TU0805Y-100 Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 100 m roll
TU0805G-20 Tube size: 8 x 5 mm | Color: Green (G) | Length: 20 m roll
TU0805G-100 Tube size: 8 x 5 mm | Color: Green (G) | Length: 100 m roll
TU0805C-20 Tube size: 8 x 5 mm | Color: Clear (C) | Length: 20 m roll
TU0805C-100 Tube size: 8 x 5 mm | Color: Clear (C) | Length: 100 m roll
TU0805YR-20 Tube size: 8 x 5 mm | Color: Orange (YR) | Length: 20 m roll
TU0805YR-100 Tube size: 8 x 5 mm | Color: Orange (YR) | Length: 100 m roll
TU1065B-20 Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 20 m roll
TU1065B-100 Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 100 m roll
TU1065W-20 Tube size: 10 x 6.5 mm | Color: White (W) | Length: 20 m roll
TU1065W-100 Tube size: 10 x 6.5 mm | Color: White (W) | Length: 100 m roll
TU1065R-20 Tube size: 10 x 6.5 mm | Color: Red (translucent) (R) | Length: 20 m roll
TU1065R-100 Tube size: 10 x 6.5 mm | Color: Red (translucent) (R) | Length: 100 m roll
TU1065BU-20 Tube size: 10 x 6.5 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TU1065BU-100 Tube size: 10 x 6.5 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TU1065Y-20 Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 20 m roll
TU1065Y-100 Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 100 m roll
TU1065G-20 Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 20 m roll
TU1065G-100 Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 100 m roll
TU1065C-20 Tube size: 10 x 6.5 mm | Color: Clear (C) | Length: 20 m roll
TU1065C-100 Tube size: 10 x 6.5 mm | Color: Clear (C) | Length: 100 m roll
TU1065YR-20 Tube size: 10 x 6.5 mm | Color: Orange (YR) | Length: 20 m roll
TU1065YR-100 Tube size: 10 x 6.5 mm | Color: Orange (YR) | Length: 100 m roll
TU1208B-20 Tube size: 12 x 8 mm | Color: Black (B) | Length: 20 m roll
TU1208B-100 Tube size: 12 x 8 mm | Color: Black (B) | Length: 100 m roll
TU1208W-20 Tube size: 12 x 8 mm | Color: White (W) | Length: 20 m roll
TU1208W-100 Tube size: 12 x 8 mm | Color: White (W) | Length: 100 m roll
TU1208R-20 Tube size: 12 x 8 mm | Color: Red (translucent) (R) | Length: 20 m roll
TU1208R-100 Tube size: 12 x 8 mm | Color: Red (translucent) (R) | Length: 100 m roll
TU1208BU-20 Tube size: 12 x 8 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TU1208BU-100 Tube size: 12 x 8 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TU1208Y-20 Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 20 m roll
TU1208Y-100 Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 100 m roll
TU1208G-20 Tube size: 12 x 8 mm | Color: Green (G) | Length: 20 m roll
TU1208G-100 Tube size: 12 x 8 mm | Color: Green (G) | Length: 100 m roll
TU1208C-20 Tube size: 12 x 8 mm | Color: Clear (C) | Length: 20 m roll
TU1208C-100 Tube size: 12 x 8 mm | Color: Clear (C) | Length: 100 m roll
TU1208YR-20 Tube size: 12 x 8 mm | Color: Orange (YR) | Length: 20 m roll
TU1208YR-100 Tube size: 12 x 8 mm | Color: Orange (YR) | Length: 100 m roll
TIUB01B-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Black (B) | Length: 20 m roll
TIUB01B-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Black (B) | Length: 100 m roll
TIUB01W-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: White (W) | Length: 20 m roll
TIUB01W-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: White (W) | Length: 100 m roll
TIUB01R-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Red (translucent) (R) | Length: 20 m roll
TIUB01R-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Red (translucent) (R) | Length: 100 m roll
TIUB01BU-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Blue (translucent) (BU) | Length: 20 m roll
TIUB01BU-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Blue (translucent) (BU) | Length: 100 m roll
TIUB01Y-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Yellow (Y) | Length: 20 m roll
TIUB01Y-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Yellow (Y) | Length: 100 m roll
TIUB01G-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Green (G) | Length: 20 m roll
TIUB01G-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Green (G) | Length: 100 m roll
TIUB01C-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear (C) | Length: 20 m roll
TIUB01C-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear (C) | Length: 100 m roll
TIUB01YR-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Orange (YR) | Length: 20 m roll
TIUB01YR-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Orange (YR) | Length: 100 m roll
TU1610B-20 Tube size: 16 x 10 mm | Color: Black (B) | Length: 20 m roll
TU1610B-100 Tube size: 16 x 10 mm | Color: Black (B) | Length: 100 m reel
TU1610W-20 Tube size: 16 x 10 mm | Color: White (W) | Length: 20 m roll
TU1610W-100 Tube size: 16 x 10 mm | Color: White (W) | Length: 100 m reel
TU1610BU-20 Tube size: 16 x 10 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TU1610BU-100 Tube size: 16 x 10 mm | Color: Blue (translucent) (BU) | Length: 100 m reel
TU1610C-20 Tube size: 16 x 10 mm | Color: Clear (C) | Length: 20 m roll
TU1610C-100 Tube size: 16 x 10 mm | Color: Clear (C) | Length: 100 m reel
TIUB05B-20 Tube size: 3/16 in (4.76 x 3.18 mm) | Color: Black (B) | Length: 20 m roll
TIUB05BU-20 Tube size: 3/16 in (4.76 x 3.18 mm) | Color: Blue (translucent) (BU) | Length: 20 m roll
TIUB07B-20 Tube size: 1/4 in (6.35 x 4.23 mm) | Color: Black (B) | Length: 20 m roll
TIUB07BU-20 Tube size: 1/4 in (6.35 x 4.23 mm) | Color: Blue (translucent) (BU) | Length: 20 m roll
TIUB11B-20 Tube size: 3/8 in (9.53 x 6.35 mm) | Color: Black (B) | Length: 20 m roll
TIUB11BU-20 Tube size: 3/8 in (9.53 x 6.35 mm) | Color: Blue (translucent) (BU) | Length: 20 m roll
TIUB13B-20 Tube size: 1/2 in (12.7 x 8.46 mm) | Color: Black (B) | Length: 20 m roll
TIUB13BU-20 Tube size: 1/2 in (12.7 x 8.46 mm) | Color: Blue (translucent) (BU) | Length: 20 m roll
TubingSMC
136 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC TU/TIUB Polyurethane Tubing (Standard 8 Colors)

Brand SMC·Tubing

Available part numbers (136)

TU0212B-20, TU0212W-20, TU0212R-20, TU0212BU-20, TU0212Y-20, TU0212G-20, TU0212C-20, TU0212YR-20, TU0425B-20, TU0425B-100 + 126 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TU0212B-20Tube size: 2 x 1.2 mm | Color: Black (B) | Length: 20 m roll
TU0212W-20Tube size: 2 x 1.2 mm | Color: White (W) | Length: 20 m roll
TU0212R-20Tube size: 2 x 1.2 mm | Color: Red (translucent) (R) | Length: 20 m roll
TU0212BU-20Tube size: 2 x 1.2 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TU0212Y-20Tube size: 2 x 1.2 mm | Color: Yellow (Y) | Length: 20 m roll
TU0212G-20Tube size: 2 x 1.2 mm | Color: Green (G) | Length: 20 m roll
TU0212C-20Tube size: 2 x 1.2 mm | Color: Clear (C) | Length: 20 m roll
TU0212YR-20Tube size: 2 x 1.2 mm | Color: Orange (YR) | Length: 20 m roll
TU0425B-20Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 20 m roll
TU0425B-100Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 100 m roll
TU0425B-200Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 200 m roll
TU0425W-20Tube size: 4 x 2.5 mm | Color: White (W) | Length: 20 m roll
TU0425W-100Tube size: 4 x 2.5 mm | Color: White (W) | Length: 100 m roll
TU0425W-200Tube size: 4 x 2.5 mm | Color: White (W) | Length: 200 m roll
TU0425R-20Tube size: 4 x 2.5 mm | Color: Red (translucent) (R) | Length: 20 m roll
TU0425R-100Tube size: 4 x 2.5 mm | Color: Red (translucent) (R) | Length: 100 m roll
TU0425R-200Tube size: 4 x 2.5 mm | Color: Red (translucent) (R) | Length: 200 m roll
TU0425BU-20Tube size: 4 x 2.5 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TU0425BU-100Tube size: 4 x 2.5 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TU0425BU-200Tube size: 4 x 2.5 mm | Color: Blue (translucent) (BU) | Length: 200 m roll
TU0425Y-20Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 20 m roll
TU0425Y-100Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 100 m roll
TU0425Y-200Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 200 m roll
TU0425G-20Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 20 m roll
TU0425G-100Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 100 m roll
TU0425G-200Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 200 m roll
TU0425C-20Tube size: 4 x 2.5 mm | Color: Clear (C) | Length: 20 m roll
TU0425C-100Tube size: 4 x 2.5 mm | Color: Clear (C) | Length: 100 m roll
TU0425C-200Tube size: 4 x 2.5 mm | Color: Clear (C) | Length: 200 m roll
TU0425YR-20Tube size: 4 x 2.5 mm | Color: Orange (YR) | Length: 20 m roll
TU0425YR-100Tube size: 4 x 2.5 mm | Color: Orange (YR) | Length: 100 m roll
TU0425YR-200Tube size: 4 x 2.5 mm | Color: Orange (YR) | Length: 200 m roll
TU0604B-20Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll
TU0604B-100Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m roll
TU0604B-200Tube size: 6 x 4 mm | Color: Black (B) | Length: 200 m roll
TU0604W-20Tube size: 6 x 4 mm | Color: White (W) | Length: 20 m roll
TU0604W-100Tube size: 6 x 4 mm | Color: White (W) | Length: 100 m roll
TU0604W-200Tube size: 6 x 4 mm | Color: White (W) | Length: 200 m roll
TU0604R-20Tube size: 6 x 4 mm | Color: Red (translucent) (R) | Length: 20 m roll
TU0604R-100Tube size: 6 x 4 mm | Color: Red (translucent) (R) | Length: 100 m roll
TU0604R-200Tube size: 6 x 4 mm | Color: Red (translucent) (R) | Length: 200 m roll
TU0604BU-20Tube size: 6 x 4 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TU0604BU-100Tube size: 6 x 4 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TU0604BU-200Tube size: 6 x 4 mm | Color: Blue (translucent) (BU) | Length: 200 m roll
TU0604Y-20Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 20 m roll
TU0604Y-100Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 100 m roll
TU0604Y-200Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 200 m roll
TU0604G-20Tube size: 6 x 4 mm | Color: Green (G) | Length: 20 m roll
TU0604G-100Tube size: 6 x 4 mm | Color: Green (G) | Length: 100 m roll
TU0604G-200Tube size: 6 x 4 mm | Color: Green (G) | Length: 200 m roll
TU0604C-20Tube size: 6 x 4 mm | Color: Clear (C) | Length: 20 m roll
TU0604C-100Tube size: 6 x 4 mm | Color: Clear (C) | Length: 100 m roll
TU0604C-200Tube size: 6 x 4 mm | Color: Clear (C) | Length: 200 m roll
TU0604YR-20Tube size: 6 x 4 mm | Color: Orange (YR) | Length: 20 m roll
TU0604YR-100Tube size: 6 x 4 mm | Color: Orange (YR) | Length: 100 m roll
TU0604YR-200Tube size: 6 x 4 mm | Color: Orange (YR) | Length: 200 m roll
TU0805B-20Tube size: 8 x 5 mm | Color: Black (B) | Length: 20 m roll
TU0805B-100Tube size: 8 x 5 mm | Color: Black (B) | Length: 100 m roll
TU0805W-20Tube size: 8 x 5 mm | Color: White (W) | Length: 20 m roll
TU0805W-100Tube size: 8 x 5 mm | Color: White (W) | Length: 100 m roll
TU0805R-20Tube size: 8 x 5 mm | Color: Red (translucent) (R) | Length: 20 m roll
TU0805R-100Tube size: 8 x 5 mm | Color: Red (translucent) (R) | Length: 100 m roll
TU0805BU-20Tube size: 8 x 5 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TU0805BU-100Tube size: 8 x 5 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TU0805Y-20Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 20 m roll
TU0805Y-100Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 100 m roll
TU0805G-20Tube size: 8 x 5 mm | Color: Green (G) | Length: 20 m roll
TU0805G-100Tube size: 8 x 5 mm | Color: Green (G) | Length: 100 m roll
TU0805C-20Tube size: 8 x 5 mm | Color: Clear (C) | Length: 20 m roll
TU0805C-100Tube size: 8 x 5 mm | Color: Clear (C) | Length: 100 m roll
TU0805YR-20Tube size: 8 x 5 mm | Color: Orange (YR) | Length: 20 m roll
TU0805YR-100Tube size: 8 x 5 mm | Color: Orange (YR) | Length: 100 m roll
TU1065B-20Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 20 m roll
TU1065B-100Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 100 m roll
TU1065W-20Tube size: 10 x 6.5 mm | Color: White (W) | Length: 20 m roll
TU1065W-100Tube size: 10 x 6.5 mm | Color: White (W) | Length: 100 m roll
TU1065R-20Tube size: 10 x 6.5 mm | Color: Red (translucent) (R) | Length: 20 m roll
TU1065R-100Tube size: 10 x 6.5 mm | Color: Red (translucent) (R) | Length: 100 m roll
TU1065BU-20Tube size: 10 x 6.5 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TU1065BU-100Tube size: 10 x 6.5 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TU1065Y-20Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 20 m roll
TU1065Y-100Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 100 m roll
TU1065G-20Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 20 m roll
TU1065G-100Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 100 m roll
TU1065C-20Tube size: 10 x 6.5 mm | Color: Clear (C) | Length: 20 m roll
TU1065C-100Tube size: 10 x 6.5 mm | Color: Clear (C) | Length: 100 m roll
TU1065YR-20Tube size: 10 x 6.5 mm | Color: Orange (YR) | Length: 20 m roll
TU1065YR-100Tube size: 10 x 6.5 mm | Color: Orange (YR) | Length: 100 m roll
TU1208B-20Tube size: 12 x 8 mm | Color: Black (B) | Length: 20 m roll
TU1208B-100Tube size: 12 x 8 mm | Color: Black (B) | Length: 100 m roll
TU1208W-20Tube size: 12 x 8 mm | Color: White (W) | Length: 20 m roll
TU1208W-100Tube size: 12 x 8 mm | Color: White (W) | Length: 100 m roll
TU1208R-20Tube size: 12 x 8 mm | Color: Red (translucent) (R) | Length: 20 m roll
TU1208R-100Tube size: 12 x 8 mm | Color: Red (translucent) (R) | Length: 100 m roll
TU1208BU-20Tube size: 12 x 8 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TU1208BU-100Tube size: 12 x 8 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TU1208Y-20Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 20 m roll
TU1208Y-100Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 100 m roll
TU1208G-20Tube size: 12 x 8 mm | Color: Green (G) | Length: 20 m roll
TU1208G-100Tube size: 12 x 8 mm | Color: Green (G) | Length: 100 m roll
TU1208C-20Tube size: 12 x 8 mm | Color: Clear (C) | Length: 20 m roll
TU1208C-100Tube size: 12 x 8 mm | Color: Clear (C) | Length: 100 m roll
TU1208YR-20Tube size: 12 x 8 mm | Color: Orange (YR) | Length: 20 m roll
TU1208YR-100Tube size: 12 x 8 mm | Color: Orange (YR) | Length: 100 m roll
TIUB01B-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Black (B) | Length: 20 m roll
TIUB01B-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Black (B) | Length: 100 m roll
TIUB01W-20Tube size: 1/8 in (3.18 x 2 mm) | Color: White (W) | Length: 20 m roll
TIUB01W-100Tube size: 1/8 in (3.18 x 2 mm) | Color: White (W) | Length: 100 m roll
TIUB01R-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Red (translucent) (R) | Length: 20 m roll
TIUB01R-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Red (translucent) (R) | Length: 100 m roll
TIUB01BU-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Blue (translucent) (BU) | Length: 20 m roll
TIUB01BU-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Blue (translucent) (BU) | Length: 100 m roll
TIUB01Y-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Yellow (Y) | Length: 20 m roll
TIUB01Y-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Yellow (Y) | Length: 100 m roll
TIUB01G-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Green (G) | Length: 20 m roll
TIUB01G-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Green (G) | Length: 100 m roll
TIUB01C-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear (C) | Length: 20 m roll
TIUB01C-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear (C) | Length: 100 m roll
TIUB01YR-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Orange (YR) | Length: 20 m roll
TIUB01YR-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Orange (YR) | Length: 100 m roll
TU1610B-20Tube size: 16 x 10 mm | Color: Black (B) | Length: 20 m roll
TU1610B-100Tube size: 16 x 10 mm | Color: Black (B) | Length: 100 m reel
TU1610W-20Tube size: 16 x 10 mm | Color: White (W) | Length: 20 m roll
TU1610W-100Tube size: 16 x 10 mm | Color: White (W) | Length: 100 m reel
TU1610BU-20Tube size: 16 x 10 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TU1610BU-100Tube size: 16 x 10 mm | Color: Blue (translucent) (BU) | Length: 100 m reel
TU1610C-20Tube size: 16 x 10 mm | Color: Clear (C) | Length: 20 m roll
TU1610C-100Tube size: 16 x 10 mm | Color: Clear (C) | Length: 100 m reel
TIUB05B-20Tube size: 3/16 in (4.76 x 3.18 mm) | Color: Black (B) | Length: 20 m roll
TIUB05BU-20Tube size: 3/16 in (4.76 x 3.18 mm) | Color: Blue (translucent) (BU) | Length: 20 m roll
TIUB07B-20Tube size: 1/4 in (6.35 x 4.23 mm) | Color: Black (B) | Length: 20 m roll
TIUB07BU-20Tube size: 1/4 in (6.35 x 4.23 mm) | Color: Blue (translucent) (BU) | Length: 20 m roll
TIUB11B-20Tube size: 3/8 in (9.53 x 6.35 mm) | Color: Black (B) | Length: 20 m roll
TIUB11BU-20Tube size: 3/8 in (9.53 x 6.35 mm) | Color: Blue (translucent) (BU) | Length: 20 m roll
TIUB13B-20Tube size: 1/2 in (12.7 x 8.46 mm) | Color: Black (B) | Length: 20 m roll
TIUB13BU-20Tube size: 1/2 in (12.7 x 8.46 mm) | Color: Blue (translucent) (BU) | Length: 20 m roll

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
