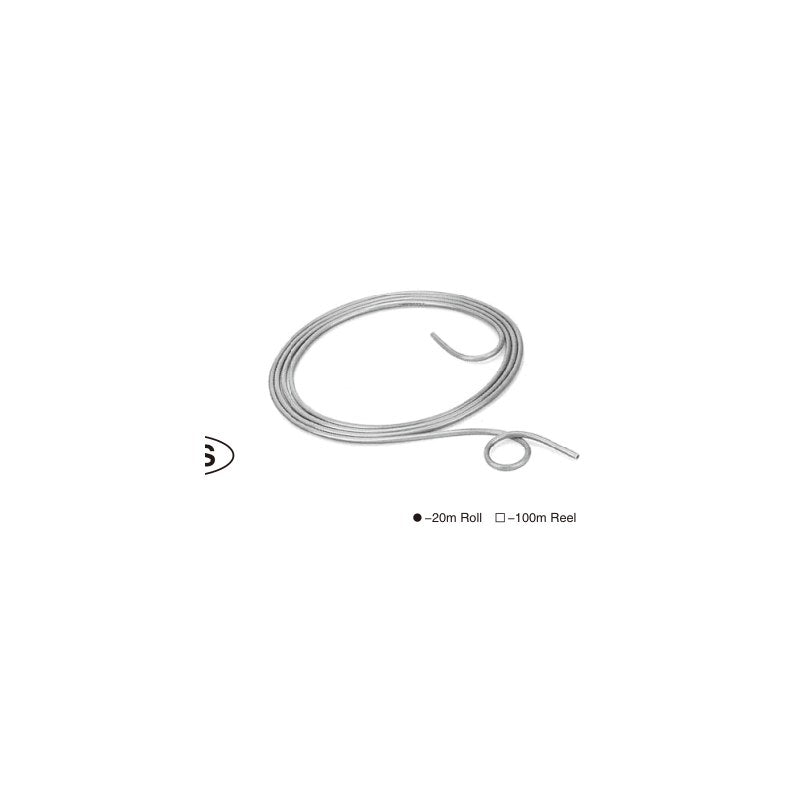

SMC TU/TIUB Polyurethane Tubing (21 Additional Colors)

SMC TU/TIUB Polyurethane Tubing (21 Additional Colors)

SMC TU/TIUB polyurethane tubing in the 21 additional colors (neon, clear and dark shades) for color-coded pneumatic circuits, on 20 m and 100 m rolls.

Key features

  • 21 additional colors: blues, greens, grays, pink, purples, reds, silver, yellows and oranges
  • Available in TU0425 to TU1208 and TIUB01 (1/8 in) on 20 m and 100 m rolls
  • Same polyurethane material and ratings as standard TU tubing: 0.8 MPa at 20C
  • Other sizes in these colors are order-only items (ask)
  • Color symbol is a 2-3 character suffix after the size code, e.g. TU0425BU1-20

Specifications

Material Polyurethane
Fluid Air, water
Max. operating pressure 0.8 MPa at 20C, 0.65 at 40C, 0.5 at 60C
Max. operating vacuum -101.3 kPa (depends on fitting)
Operating temperature -20 to 60C (water 0 to 40C, no freezing)
Applicable fittings One-touch, insert and miniature fittings
Min. bending radius 10 mm (TU0425) to 35 mm (TU1208)
Standards RoHS
Source SMC Korea catalog (SMCKR_TU_TIUB.pdf), p. 682-683
TU0425BU1-20 Tube size: 4 x 2.5 mm | Color: Dark blue (BU1) | Length: 20 m roll
TU0425BU1-100 Tube size: 4 x 2.5 mm | Color: Dark blue (BU1) | Length: 100 m roll
TU0425BU2-20 Tube size: 4 x 2.5 mm | Color: Clear blue (BU2) | Length: 20 m roll
TU0425BU2-100 Tube size: 4 x 2.5 mm | Color: Clear blue (BU2) | Length: 100 m roll
TU0425BU3-20 Tube size: 4 x 2.5 mm | Color: Light blue (BU3) | Length: 20 m roll
TU0425BU3-100 Tube size: 4 x 2.5 mm | Color: Light blue (BU3) | Length: 100 m roll
TU0425BR1-20 Tube size: 4 x 2.5 mm | Color: Brown (BR1) | Length: 20 m roll
TU0425BR1-100 Tube size: 4 x 2.5 mm | Color: Brown (BR1) | Length: 100 m roll
TU0425G1-20 Tube size: 4 x 2.5 mm | Color: Deep green (G1) | Length: 20 m roll
TU0425G1-100 Tube size: 4 x 2.5 mm | Color: Deep green (G1) | Length: 100 m roll
TU0425G2-20 Tube size: 4 x 2.5 mm | Color: Clear green (G2) | Length: 20 m roll
TU0425G2-100 Tube size: 4 x 2.5 mm | Color: Clear green (G2) | Length: 100 m roll
TU0425G3-20 Tube size: 4 x 2.5 mm | Color: Neon green (G3) | Length: 20 m roll
TU0425G3-100 Tube size: 4 x 2.5 mm | Color: Neon green (G3) | Length: 100 m roll
TU0425G4-20 Tube size: 4 x 2.5 mm | Color: Dark green (G4) | Length: 20 m roll
TU0425G4-100 Tube size: 4 x 2.5 mm | Color: Dark green (G4) | Length: 100 m roll
TU0425GR1-20 Tube size: 4 x 2.5 mm | Color: Gray (GR1) | Length: 20 m roll
TU0425GR1-100 Tube size: 4 x 2.5 mm | Color: Gray (GR1) | Length: 100 m roll
TU0425GR2-20 Tube size: 4 x 2.5 mm | Color: Light gray (GR2) | Length: 20 m roll
TU0425GR2-100 Tube size: 4 x 2.5 mm | Color: Light gray (GR2) | Length: 100 m roll
TU0425P1-20 Tube size: 4 x 2.5 mm | Color: Neon pink (P1) | Length: 20 m roll
TU0425P1-100 Tube size: 4 x 2.5 mm | Color: Neon pink (P1) | Length: 100 m roll
TU0425PU1-20 Tube size: 4 x 2.5 mm | Color: Dark purple (PU1) | Length: 20 m roll
TU0425PU1-100 Tube size: 4 x 2.5 mm | Color: Dark purple (PU1) | Length: 100 m roll
TU0425PU2-20 Tube size: 4 x 2.5 mm | Color: Clear purple (PU2) | Length: 20 m roll
TU0425PU2-100 Tube size: 4 x 2.5 mm | Color: Clear purple (PU2) | Length: 100 m roll
TU0425R1-20 Tube size: 4 x 2.5 mm | Color: Dark red (R1) | Length: 20 m roll
TU0425R1-100 Tube size: 4 x 2.5 mm | Color: Dark red (R1) | Length: 100 m roll
TU0425R2-20 Tube size: 4 x 2.5 mm | Color: Clear red (R2) | Length: 20 m roll
TU0425R2-100 Tube size: 4 x 2.5 mm | Color: Clear red (R2) | Length: 100 m roll
TU0425S1-20 Tube size: 4 x 2.5 mm | Color: Silver (S1) | Length: 20 m roll
TU0425S1-100 Tube size: 4 x 2.5 mm | Color: Silver (S1) | Length: 100 m roll
TU0425Y1-20 Tube size: 4 x 2.5 mm | Color: Dark yellow (Y1) | Length: 20 m roll
TU0425Y1-100 Tube size: 4 x 2.5 mm | Color: Dark yellow (Y1) | Length: 100 m roll
TU0425Y2-20 Tube size: 4 x 2.5 mm | Color: Clear yellow (Y2) | Length: 20 m roll
TU0425Y2-100 Tube size: 4 x 2.5 mm | Color: Clear yellow (Y2) | Length: 100 m roll
TU0425Y3-20 Tube size: 4 x 2.5 mm | Color: Neon yellow (Y3) | Length: 20 m roll
TU0425Y3-100 Tube size: 4 x 2.5 mm | Color: Neon yellow (Y3) | Length: 100 m roll
TU0425YR1-20 Tube size: 4 x 2.5 mm | Color: Clear orange (YR1) | Length: 20 m roll
TU0425YR1-100 Tube size: 4 x 2.5 mm | Color: Clear orange (YR1) | Length: 100 m roll
TU0425YR2-20 Tube size: 4 x 2.5 mm | Color: Neon orange (YR2) | Length: 20 m roll
TU0425YR2-100 Tube size: 4 x 2.5 mm | Color: Neon orange (YR2) | Length: 100 m roll
TU0604BU1-20 Tube size: 6 x 4 mm | Color: Dark blue (BU1) | Length: 20 m roll
TU0604BU1-100 Tube size: 6 x 4 mm | Color: Dark blue (BU1) | Length: 100 m roll
TU0604BU2-20 Tube size: 6 x 4 mm | Color: Clear blue (BU2) | Length: 20 m roll
TU0604BU2-100 Tube size: 6 x 4 mm | Color: Clear blue (BU2) | Length: 100 m roll
TU0604BU3-20 Tube size: 6 x 4 mm | Color: Light blue (BU3) | Length: 20 m roll
TU0604BU3-100 Tube size: 6 x 4 mm | Color: Light blue (BU3) | Length: 100 m roll
TU0604BR1-20 Tube size: 6 x 4 mm | Color: Brown (BR1) | Length: 20 m roll
TU0604BR1-100 Tube size: 6 x 4 mm | Color: Brown (BR1) | Length: 100 m roll
TU0604G1-20 Tube size: 6 x 4 mm | Color: Deep green (G1) | Length: 20 m roll
TU0604G1-100 Tube size: 6 x 4 mm | Color: Deep green (G1) | Length: 100 m roll
TU0604G2-20 Tube size: 6 x 4 mm | Color: Clear green (G2) | Length: 20 m roll
TU0604G2-100 Tube size: 6 x 4 mm | Color: Clear green (G2) | Length: 100 m roll
TU0604G3-20 Tube size: 6 x 4 mm | Color: Neon green (G3) | Length: 20 m roll
TU0604G3-100 Tube size: 6 x 4 mm | Color: Neon green (G3) | Length: 100 m roll
TU0604G4-20 Tube size: 6 x 4 mm | Color: Dark green (G4) | Length: 20 m roll
TU0604G4-100 Tube size: 6 x 4 mm | Color: Dark green (G4) | Length: 100 m roll
TU0604GR1-20 Tube size: 6 x 4 mm | Color: Gray (GR1) | Length: 20 m roll
TU0604GR1-100 Tube size: 6 x 4 mm | Color: Gray (GR1) | Length: 100 m roll
TU0604GR2-20 Tube size: 6 x 4 mm | Color: Light gray (GR2) | Length: 20 m roll
TU0604GR2-100 Tube size: 6 x 4 mm | Color: Light gray (GR2) | Length: 100 m roll
TU0604P1-20 Tube size: 6 x 4 mm | Color: Neon pink (P1) | Length: 20 m roll
TU0604P1-100 Tube size: 6 x 4 mm | Color: Neon pink (P1) | Length: 100 m roll
TU0604PU1-20 Tube size: 6 x 4 mm | Color: Dark purple (PU1) | Length: 20 m roll
TU0604PU1-100 Tube size: 6 x 4 mm | Color: Dark purple (PU1) | Length: 100 m roll
TU0604PU2-20 Tube size: 6 x 4 mm | Color: Clear purple (PU2) | Length: 20 m roll
TU0604PU2-100 Tube size: 6 x 4 mm | Color: Clear purple (PU2) | Length: 100 m roll
TU0604R1-20 Tube size: 6 x 4 mm | Color: Dark red (R1) | Length: 20 m roll
TU0604R1-100 Tube size: 6 x 4 mm | Color: Dark red (R1) | Length: 100 m roll
TU0604R2-20 Tube size: 6 x 4 mm | Color: Clear red (R2) | Length: 20 m roll
TU0604R2-100 Tube size: 6 x 4 mm | Color: Clear red (R2) | Length: 100 m roll
TU0604S1-20 Tube size: 6 x 4 mm | Color: Silver (S1) | Length: 20 m roll
TU0604S1-100 Tube size: 6 x 4 mm | Color: Silver (S1) | Length: 100 m roll
TU0604Y1-20 Tube size: 6 x 4 mm | Color: Dark yellow (Y1) | Length: 20 m roll
TU0604Y1-100 Tube size: 6 x 4 mm | Color: Dark yellow (Y1) | Length: 100 m roll
TU0604Y2-20 Tube size: 6 x 4 mm | Color: Clear yellow (Y2) | Length: 20 m roll
TU0604Y2-100 Tube size: 6 x 4 mm | Color: Clear yellow (Y2) | Length: 100 m roll
TU0604Y3-20 Tube size: 6 x 4 mm | Color: Neon yellow (Y3) | Length: 20 m roll
TU0604Y3-100 Tube size: 6 x 4 mm | Color: Neon yellow (Y3) | Length: 100 m roll
TU0604YR1-20 Tube size: 6 x 4 mm | Color: Clear orange (YR1) | Length: 20 m roll
TU0604YR1-100 Tube size: 6 x 4 mm | Color: Clear orange (YR1) | Length: 100 m roll
TU0604YR2-20 Tube size: 6 x 4 mm | Color: Neon orange (YR2) | Length: 20 m roll
TU0604YR2-100 Tube size: 6 x 4 mm | Color: Neon orange (YR2) | Length: 100 m roll
TU0805BU1-20 Tube size: 8 x 5 mm | Color: Dark blue (BU1) | Length: 20 m roll
TU0805BU1-100 Tube size: 8 x 5 mm | Color: Dark blue (BU1) | Length: 100 m roll
TU0805BU2-20 Tube size: 8 x 5 mm | Color: Clear blue (BU2) | Length: 20 m roll
TU0805BU2-100 Tube size: 8 x 5 mm | Color: Clear blue (BU2) | Length: 100 m roll
TU0805BU3-20 Tube size: 8 x 5 mm | Color: Light blue (BU3) | Length: 20 m roll
TU0805BU3-100 Tube size: 8 x 5 mm | Color: Light blue (BU3) | Length: 100 m roll
TU0805BR1-20 Tube size: 8 x 5 mm | Color: Brown (BR1) | Length: 20 m roll
TU0805BR1-100 Tube size: 8 x 5 mm | Color: Brown (BR1) | Length: 100 m roll
TU0805G1-20 Tube size: 8 x 5 mm | Color: Deep green (G1) | Length: 20 m roll
TU0805G1-100 Tube size: 8 x 5 mm | Color: Deep green (G1) | Length: 100 m roll
TU0805G2-20 Tube size: 8 x 5 mm | Color: Clear green (G2) | Length: 20 m roll
TU0805G2-100 Tube size: 8 x 5 mm | Color: Clear green (G2) | Length: 100 m roll
TU0805G3-20 Tube size: 8 x 5 mm | Color: Neon green (G3) | Length: 20 m roll
TU0805G3-100 Tube size: 8 x 5 mm | Color: Neon green (G3) | Length: 100 m roll
TU0805G4-20 Tube size: 8 x 5 mm | Color: Dark green (G4) | Length: 20 m roll
TU0805G4-100 Tube size: 8 x 5 mm | Color: Dark green (G4) | Length: 100 m roll
TU0805GR1-20 Tube size: 8 x 5 mm | Color: Gray (GR1) | Length: 20 m roll
TU0805GR1-100 Tube size: 8 x 5 mm | Color: Gray (GR1) | Length: 100 m roll
TU0805GR2-20 Tube size: 8 x 5 mm | Color: Light gray (GR2) | Length: 20 m roll
TU0805GR2-100 Tube size: 8 x 5 mm | Color: Light gray (GR2) | Length: 100 m roll
TU0805P1-20 Tube size: 8 x 5 mm | Color: Neon pink (P1) | Length: 20 m roll
TU0805P1-100 Tube size: 8 x 5 mm | Color: Neon pink (P1) | Length: 100 m roll
TU0805PU1-20 Tube size: 8 x 5 mm | Color: Dark purple (PU1) | Length: 20 m roll
TU0805PU1-100 Tube size: 8 x 5 mm | Color: Dark purple (PU1) | Length: 100 m roll
TU0805PU2-20 Tube size: 8 x 5 mm | Color: Clear purple (PU2) | Length: 20 m roll
TU0805PU2-100 Tube size: 8 x 5 mm | Color: Clear purple (PU2) | Length: 100 m roll
TU0805R1-20 Tube size: 8 x 5 mm | Color: Dark red (R1) | Length: 20 m roll
TU0805R1-100 Tube size: 8 x 5 mm | Color: Dark red (R1) | Length: 100 m roll
TU0805R2-20 Tube size: 8 x 5 mm | Color: Clear red (R2) | Length: 20 m roll
TU0805R2-100 Tube size: 8 x 5 mm | Color: Clear red (R2) | Length: 100 m roll
TU0805S1-20 Tube size: 8 x 5 mm | Color: Silver (S1) | Length: 20 m roll
TU0805S1-100 Tube size: 8 x 5 mm | Color: Silver (S1) | Length: 100 m roll
TU0805Y1-20 Tube size: 8 x 5 mm | Color: Dark yellow (Y1) | Length: 20 m roll
TU0805Y1-100 Tube size: 8 x 5 mm | Color: Dark yellow (Y1) | Length: 100 m roll
TU0805Y2-20 Tube size: 8 x 5 mm | Color: Clear yellow (Y2) | Length: 20 m roll
TU0805Y2-100 Tube size: 8 x 5 mm | Color: Clear yellow (Y2) | Length: 100 m roll
TU0805Y3-20 Tube size: 8 x 5 mm | Color: Neon yellow (Y3) | Length: 20 m roll
TU0805Y3-100 Tube size: 8 x 5 mm | Color: Neon yellow (Y3) | Length: 100 m roll
TU0805YR1-20 Tube size: 8 x 5 mm | Color: Clear orange (YR1) | Length: 20 m roll
TU0805YR1-100 Tube size: 8 x 5 mm | Color: Clear orange (YR1) | Length: 100 m roll
TU0805YR2-20 Tube size: 8 x 5 mm | Color: Neon orange (YR2) | Length: 20 m roll
TU0805YR2-100 Tube size: 8 x 5 mm | Color: Neon orange (YR2) | Length: 100 m roll
TU1065BU1-20 Tube size: 10 x 6.5 mm | Color: Dark blue (BU1) | Length: 20 m roll
TU1065BU1-100 Tube size: 10 x 6.5 mm | Color: Dark blue (BU1) | Length: 100 m roll
TU1065BU2-20 Tube size: 10 x 6.5 mm | Color: Clear blue (BU2) | Length: 20 m roll
TU1065BU2-100 Tube size: 10 x 6.5 mm | Color: Clear blue (BU2) | Length: 100 m roll
TU1065BU3-20 Tube size: 10 x 6.5 mm | Color: Light blue (BU3) | Length: 20 m roll
TU1065BU3-100 Tube size: 10 x 6.5 mm | Color: Light blue (BU3) | Length: 100 m roll
TU1065BR1-20 Tube size: 10 x 6.5 mm | Color: Brown (BR1) | Length: 20 m roll
TU1065BR1-100 Tube size: 10 x 6.5 mm | Color: Brown (BR1) | Length: 100 m roll
TU1065G1-20 Tube size: 10 x 6.5 mm | Color: Deep green (G1) | Length: 20 m roll
TU1065G1-100 Tube size: 10 x 6.5 mm | Color: Deep green (G1) | Length: 100 m roll
TU1065G2-20 Tube size: 10 x 6.5 mm | Color: Clear green (G2) | Length: 20 m roll
TU1065G2-100 Tube size: 10 x 6.5 mm | Color: Clear green (G2) | Length: 100 m roll
TU1065G3-20 Tube size: 10 x 6.5 mm | Color: Neon green (G3) | Length: 20 m roll
TU1065G3-100 Tube size: 10 x 6.5 mm | Color: Neon green (G3) | Length: 100 m roll
TU1065G4-20 Tube size: 10 x 6.5 mm | Color: Dark green (G4) | Length: 20 m roll
TU1065G4-100 Tube size: 10 x 6.5 mm | Color: Dark green (G4) | Length: 100 m roll
TU1065GR1-20 Tube size: 10 x 6.5 mm | Color: Gray (GR1) | Length: 20 m roll
TU1065GR1-100 Tube size: 10 x 6.5 mm | Color: Gray (GR1) | Length: 100 m roll
TU1065GR2-20 Tube size: 10 x 6.5 mm | Color: Light gray (GR2) | Length: 20 m roll
TU1065GR2-100 Tube size: 10 x 6.5 mm | Color: Light gray (GR2) | Length: 100 m roll
TU1065P1-20 Tube size: 10 x 6.5 mm | Color: Neon pink (P1) | Length: 20 m roll
TU1065P1-100 Tube size: 10 x 6.5 mm | Color: Neon pink (P1) | Length: 100 m roll
TU1065PU1-20 Tube size: 10 x 6.5 mm | Color: Dark purple (PU1) | Length: 20 m roll
TU1065PU1-100 Tube size: 10 x 6.5 mm | Color: Dark purple (PU1) | Length: 100 m roll
TU1065PU2-20 Tube size: 10 x 6.5 mm | Color: Clear purple (PU2) | Length: 20 m roll
TU1065PU2-100 Tube size: 10 x 6.5 mm | Color: Clear purple (PU2) | Length: 100 m roll
TU1065R1-20 Tube size: 10 x 6.5 mm | Color: Dark red (R1) | Length: 20 m roll
TU1065R1-100 Tube size: 10 x 6.5 mm | Color: Dark red (R1) | Length: 100 m roll
TU1065R2-20 Tube size: 10 x 6.5 mm | Color: Clear red (R2) | Length: 20 m roll
TU1065R2-100 Tube size: 10 x 6.5 mm | Color: Clear red (R2) | Length: 100 m roll
TU1065S1-20 Tube size: 10 x 6.5 mm | Color: Silver (S1) | Length: 20 m roll
TU1065S1-100 Tube size: 10 x 6.5 mm | Color: Silver (S1) | Length: 100 m roll
TU1065Y1-20 Tube size: 10 x 6.5 mm | Color: Dark yellow (Y1) | Length: 20 m roll
TU1065Y1-100 Tube size: 10 x 6.5 mm | Color: Dark yellow (Y1) | Length: 100 m roll
TU1065Y2-20 Tube size: 10 x 6.5 mm | Color: Clear yellow (Y2) | Length: 20 m roll
TU1065Y2-100 Tube size: 10 x 6.5 mm | Color: Clear yellow (Y2) | Length: 100 m roll
TU1065Y3-20 Tube size: 10 x 6.5 mm | Color: Neon yellow (Y3) | Length: 20 m roll
TU1065Y3-100 Tube size: 10 x 6.5 mm | Color: Neon yellow (Y3) | Length: 100 m roll
TU1065YR1-20 Tube size: 10 x 6.5 mm | Color: Clear orange (YR1) | Length: 20 m roll
TU1065YR1-100 Tube size: 10 x 6.5 mm | Color: Clear orange (YR1) | Length: 100 m roll
TU1065YR2-20 Tube size: 10 x 6.5 mm | Color: Neon orange (YR2) | Length: 20 m roll
TU1065YR2-100 Tube size: 10 x 6.5 mm | Color: Neon orange (YR2) | Length: 100 m roll
TU1208BU1-20 Tube size: 12 x 8 mm | Color: Dark blue (BU1) | Length: 20 m roll
TU1208BU1-100 Tube size: 12 x 8 mm | Color: Dark blue (BU1) | Length: 100 m roll
TU1208BU2-20 Tube size: 12 x 8 mm | Color: Clear blue (BU2) | Length: 20 m roll
TU1208BU2-100 Tube size: 12 x 8 mm | Color: Clear blue (BU2) | Length: 100 m roll
TU1208BU3-20 Tube size: 12 x 8 mm | Color: Light blue (BU3) | Length: 20 m roll
TU1208BU3-100 Tube size: 12 x 8 mm | Color: Light blue (BU3) | Length: 100 m roll
TU1208BR1-20 Tube size: 12 x 8 mm | Color: Brown (BR1) | Length: 20 m roll
TU1208BR1-100 Tube size: 12 x 8 mm | Color: Brown (BR1) | Length: 100 m roll
TU1208G1-20 Tube size: 12 x 8 mm | Color: Deep green (G1) | Length: 20 m roll
TU1208G1-100 Tube size: 12 x 8 mm | Color: Deep green (G1) | Length: 100 m roll
TU1208G2-20 Tube size: 12 x 8 mm | Color: Clear green (G2) | Length: 20 m roll
TU1208G2-100 Tube size: 12 x 8 mm | Color: Clear green (G2) | Length: 100 m roll
TU1208G3-20 Tube size: 12 x 8 mm | Color: Neon green (G3) | Length: 20 m roll
TU1208G3-100 Tube size: 12 x 8 mm | Color: Neon green (G3) | Length: 100 m roll
TU1208G4-20 Tube size: 12 x 8 mm | Color: Dark green (G4) | Length: 20 m roll
TU1208G4-100 Tube size: 12 x 8 mm | Color: Dark green (G4) | Length: 100 m roll
TU1208GR1-20 Tube size: 12 x 8 mm | Color: Gray (GR1) | Length: 20 m roll
TU1208GR1-100 Tube size: 12 x 8 mm | Color: Gray (GR1) | Length: 100 m roll
TU1208GR2-20 Tube size: 12 x 8 mm | Color: Light gray (GR2) | Length: 20 m roll
TU1208GR2-100 Tube size: 12 x 8 mm | Color: Light gray (GR2) | Length: 100 m roll
TU1208P1-20 Tube size: 12 x 8 mm | Color: Neon pink (P1) | Length: 20 m roll
TU1208P1-100 Tube size: 12 x 8 mm | Color: Neon pink (P1) | Length: 100 m roll
TU1208PU1-20 Tube size: 12 x 8 mm | Color: Dark purple (PU1) | Length: 20 m roll
TU1208PU1-100 Tube size: 12 x 8 mm | Color: Dark purple (PU1) | Length: 100 m roll
TU1208PU2-20 Tube size: 12 x 8 mm | Color: Clear purple (PU2) | Length: 20 m roll
TU1208PU2-100 Tube size: 12 x 8 mm | Color: Clear purple (PU2) | Length: 100 m roll
TU1208R1-20 Tube size: 12 x 8 mm | Color: Dark red (R1) | Length: 20 m roll
TU1208R1-100 Tube size: 12 x 8 mm | Color: Dark red (R1) | Length: 100 m roll
TU1208R2-20 Tube size: 12 x 8 mm | Color: Clear red (R2) | Length: 20 m roll
TU1208R2-100 Tube size: 12 x 8 mm | Color: Clear red (R2) | Length: 100 m roll
TU1208S1-20 Tube size: 12 x 8 mm | Color: Silver (S1) | Length: 20 m roll
TU1208S1-100 Tube size: 12 x 8 mm | Color: Silver (S1) | Length: 100 m roll
TU1208Y1-20 Tube size: 12 x 8 mm | Color: Dark yellow (Y1) | Length: 20 m roll
TU1208Y1-100 Tube size: 12 x 8 mm | Color: Dark yellow (Y1) | Length: 100 m roll
TU1208Y2-20 Tube size: 12 x 8 mm | Color: Clear yellow (Y2) | Length: 20 m roll
TU1208Y2-100 Tube size: 12 x 8 mm | Color: Clear yellow (Y2) | Length: 100 m roll
TU1208Y3-20 Tube size: 12 x 8 mm | Color: Neon yellow (Y3) | Length: 20 m roll
TU1208Y3-100 Tube size: 12 x 8 mm | Color: Neon yellow (Y3) | Length: 100 m roll
TU1208YR1-20 Tube size: 12 x 8 mm | Color: Clear orange (YR1) | Length: 20 m roll
TU1208YR1-100 Tube size: 12 x 8 mm | Color: Clear orange (YR1) | Length: 100 m roll
TU1208YR2-20 Tube size: 12 x 8 mm | Color: Neon orange (YR2) | Length: 20 m roll
TU1208YR2-100 Tube size: 12 x 8 mm | Color: Neon orange (YR2) | Length: 100 m roll
TIUB01BU1-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark blue (BU1) | Length: 20 m roll
TIUB01BU1-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark blue (BU1) | Length: 100 m roll
TIUB01BU2-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear blue (BU2) | Length: 20 m roll
TIUB01BU2-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear blue (BU2) | Length: 100 m roll
TIUB01BU3-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Light blue (BU3) | Length: 20 m roll
TIUB01BU3-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Light blue (BU3) | Length: 100 m roll
TIUB01BR1-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Brown (BR1) | Length: 20 m roll
TIUB01BR1-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Brown (BR1) | Length: 100 m roll
TIUB01G1-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Deep green (G1) | Length: 20 m roll
TIUB01G1-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Deep green (G1) | Length: 100 m roll
TIUB01G2-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear green (G2) | Length: 20 m roll
TIUB01G2-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear green (G2) | Length: 100 m roll
TIUB01G3-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Neon green (G3) | Length: 20 m roll
TIUB01G3-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Neon green (G3) | Length: 100 m roll
TIUB01G4-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark green (G4) | Length: 20 m roll
TIUB01G4-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark green (G4) | Length: 100 m roll
TIUB01GR1-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Gray (GR1) | Length: 20 m roll
TIUB01GR1-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Gray (GR1) | Length: 100 m roll
TIUB01GR2-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Light gray (GR2) | Length: 20 m roll
TIUB01GR2-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Light gray (GR2) | Length: 100 m roll
TIUB01P1-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Neon pink (P1) | Length: 20 m roll
TIUB01P1-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Neon pink (P1) | Length: 100 m roll
TIUB01PU1-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark purple (PU1) | Length: 20 m roll
TIUB01PU1-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark purple (PU1) | Length: 100 m roll
TIUB01PU2-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear purple (PU2) | Length: 20 m roll
TIUB01PU2-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear purple (PU2) | Length: 100 m roll
TIUB01R1-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark red (R1) | Length: 20 m roll
TIUB01R1-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark red (R1) | Length: 100 m roll
TIUB01R2-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear red (R2) | Length: 20 m roll
TIUB01R2-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear red (R2) | Length: 100 m roll
TIUB01S1-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Silver (S1) | Length: 20 m roll
TIUB01S1-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Silver (S1) | Length: 100 m roll
TIUB01Y1-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark yellow (Y1) | Length: 20 m roll
TIUB01Y1-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark yellow (Y1) | Length: 100 m roll
TIUB01Y2-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear yellow (Y2) | Length: 20 m roll
TIUB01Y2-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear yellow (Y2) | Length: 100 m roll
TIUB01Y3-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Neon yellow (Y3) | Length: 20 m roll
TIUB01Y3-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Neon yellow (Y3) | Length: 100 m roll
TIUB01YR1-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear orange (YR1) | Length: 20 m roll
TIUB01YR1-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear orange (YR1) | Length: 100 m roll
TIUB01YR2-20 Tube size: 1/8 in (3.18 x 2 mm) | Color: Neon orange (YR2) | Length: 20 m roll
TIUB01YR2-100 Tube size: 1/8 in (3.18 x 2 mm) | Color: Neon orange (YR2) | Length: 100 m roll
TubingSMC
252 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC TU/TIUB Polyurethane Tubing (21 Additional Colors)

Brand SMC·Tubing

Available part numbers (252)

TU0425BU1-20, TU0425BU1-100, TU0425BU2-20, TU0425BU2-100, TU0425BU3-20, TU0425BU3-100, TU0425BR1-20, TU0425BR1-100, TU0425G1-20, TU0425G1-100 + 242 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TU0425BU1-20Tube size: 4 x 2.5 mm | Color: Dark blue (BU1) | Length: 20 m roll
TU0425BU1-100Tube size: 4 x 2.5 mm | Color: Dark blue (BU1) | Length: 100 m roll
TU0425BU2-20Tube size: 4 x 2.5 mm | Color: Clear blue (BU2) | Length: 20 m roll
TU0425BU2-100Tube size: 4 x 2.5 mm | Color: Clear blue (BU2) | Length: 100 m roll
TU0425BU3-20Tube size: 4 x 2.5 mm | Color: Light blue (BU3) | Length: 20 m roll
TU0425BU3-100Tube size: 4 x 2.5 mm | Color: Light blue (BU3) | Length: 100 m roll
TU0425BR1-20Tube size: 4 x 2.5 mm | Color: Brown (BR1) | Length: 20 m roll
TU0425BR1-100Tube size: 4 x 2.5 mm | Color: Brown (BR1) | Length: 100 m roll
TU0425G1-20Tube size: 4 x 2.5 mm | Color: Deep green (G1) | Length: 20 m roll
TU0425G1-100Tube size: 4 x 2.5 mm | Color: Deep green (G1) | Length: 100 m roll
TU0425G2-20Tube size: 4 x 2.5 mm | Color: Clear green (G2) | Length: 20 m roll
TU0425G2-100Tube size: 4 x 2.5 mm | Color: Clear green (G2) | Length: 100 m roll
TU0425G3-20Tube size: 4 x 2.5 mm | Color: Neon green (G3) | Length: 20 m roll
TU0425G3-100Tube size: 4 x 2.5 mm | Color: Neon green (G3) | Length: 100 m roll
TU0425G4-20Tube size: 4 x 2.5 mm | Color: Dark green (G4) | Length: 20 m roll
TU0425G4-100Tube size: 4 x 2.5 mm | Color: Dark green (G4) | Length: 100 m roll
TU0425GR1-20Tube size: 4 x 2.5 mm | Color: Gray (GR1) | Length: 20 m roll
TU0425GR1-100Tube size: 4 x 2.5 mm | Color: Gray (GR1) | Length: 100 m roll
TU0425GR2-20Tube size: 4 x 2.5 mm | Color: Light gray (GR2) | Length: 20 m roll
TU0425GR2-100Tube size: 4 x 2.5 mm | Color: Light gray (GR2) | Length: 100 m roll
TU0425P1-20Tube size: 4 x 2.5 mm | Color: Neon pink (P1) | Length: 20 m roll
TU0425P1-100Tube size: 4 x 2.5 mm | Color: Neon pink (P1) | Length: 100 m roll
TU0425PU1-20Tube size: 4 x 2.5 mm | Color: Dark purple (PU1) | Length: 20 m roll
TU0425PU1-100Tube size: 4 x 2.5 mm | Color: Dark purple (PU1) | Length: 100 m roll
TU0425PU2-20Tube size: 4 x 2.5 mm | Color: Clear purple (PU2) | Length: 20 m roll
TU0425PU2-100Tube size: 4 x 2.5 mm | Color: Clear purple (PU2) | Length: 100 m roll
TU0425R1-20Tube size: 4 x 2.5 mm | Color: Dark red (R1) | Length: 20 m roll
TU0425R1-100Tube size: 4 x 2.5 mm | Color: Dark red (R1) | Length: 100 m roll
TU0425R2-20Tube size: 4 x 2.5 mm | Color: Clear red (R2) | Length: 20 m roll
TU0425R2-100Tube size: 4 x 2.5 mm | Color: Clear red (R2) | Length: 100 m roll
TU0425S1-20Tube size: 4 x 2.5 mm | Color: Silver (S1) | Length: 20 m roll
TU0425S1-100Tube size: 4 x 2.5 mm | Color: Silver (S1) | Length: 100 m roll
TU0425Y1-20Tube size: 4 x 2.5 mm | Color: Dark yellow (Y1) | Length: 20 m roll
TU0425Y1-100Tube size: 4 x 2.5 mm | Color: Dark yellow (Y1) | Length: 100 m roll
TU0425Y2-20Tube size: 4 x 2.5 mm | Color: Clear yellow (Y2) | Length: 20 m roll
TU0425Y2-100Tube size: 4 x 2.5 mm | Color: Clear yellow (Y2) | Length: 100 m roll
TU0425Y3-20Tube size: 4 x 2.5 mm | Color: Neon yellow (Y3) | Length: 20 m roll
TU0425Y3-100Tube size: 4 x 2.5 mm | Color: Neon yellow (Y3) | Length: 100 m roll
TU0425YR1-20Tube size: 4 x 2.5 mm | Color: Clear orange (YR1) | Length: 20 m roll
TU0425YR1-100Tube size: 4 x 2.5 mm | Color: Clear orange (YR1) | Length: 100 m roll
TU0425YR2-20Tube size: 4 x 2.5 mm | Color: Neon orange (YR2) | Length: 20 m roll
TU0425YR2-100Tube size: 4 x 2.5 mm | Color: Neon orange (YR2) | Length: 100 m roll
TU0604BU1-20Tube size: 6 x 4 mm | Color: Dark blue (BU1) | Length: 20 m roll
TU0604BU1-100Tube size: 6 x 4 mm | Color: Dark blue (BU1) | Length: 100 m roll
TU0604BU2-20Tube size: 6 x 4 mm | Color: Clear blue (BU2) | Length: 20 m roll
TU0604BU2-100Tube size: 6 x 4 mm | Color: Clear blue (BU2) | Length: 100 m roll
TU0604BU3-20Tube size: 6 x 4 mm | Color: Light blue (BU3) | Length: 20 m roll
TU0604BU3-100Tube size: 6 x 4 mm | Color: Light blue (BU3) | Length: 100 m roll
TU0604BR1-20Tube size: 6 x 4 mm | Color: Brown (BR1) | Length: 20 m roll
TU0604BR1-100Tube size: 6 x 4 mm | Color: Brown (BR1) | Length: 100 m roll
TU0604G1-20Tube size: 6 x 4 mm | Color: Deep green (G1) | Length: 20 m roll
TU0604G1-100Tube size: 6 x 4 mm | Color: Deep green (G1) | Length: 100 m roll
TU0604G2-20Tube size: 6 x 4 mm | Color: Clear green (G2) | Length: 20 m roll
TU0604G2-100Tube size: 6 x 4 mm | Color: Clear green (G2) | Length: 100 m roll
TU0604G3-20Tube size: 6 x 4 mm | Color: Neon green (G3) | Length: 20 m roll
TU0604G3-100Tube size: 6 x 4 mm | Color: Neon green (G3) | Length: 100 m roll
TU0604G4-20Tube size: 6 x 4 mm | Color: Dark green (G4) | Length: 20 m roll
TU0604G4-100Tube size: 6 x 4 mm | Color: Dark green (G4) | Length: 100 m roll
TU0604GR1-20Tube size: 6 x 4 mm | Color: Gray (GR1) | Length: 20 m roll
TU0604GR1-100Tube size: 6 x 4 mm | Color: Gray (GR1) | Length: 100 m roll
TU0604GR2-20Tube size: 6 x 4 mm | Color: Light gray (GR2) | Length: 20 m roll
TU0604GR2-100Tube size: 6 x 4 mm | Color: Light gray (GR2) | Length: 100 m roll
TU0604P1-20Tube size: 6 x 4 mm | Color: Neon pink (P1) | Length: 20 m roll
TU0604P1-100Tube size: 6 x 4 mm | Color: Neon pink (P1) | Length: 100 m roll
TU0604PU1-20Tube size: 6 x 4 mm | Color: Dark purple (PU1) | Length: 20 m roll
TU0604PU1-100Tube size: 6 x 4 mm | Color: Dark purple (PU1) | Length: 100 m roll
TU0604PU2-20Tube size: 6 x 4 mm | Color: Clear purple (PU2) | Length: 20 m roll
TU0604PU2-100Tube size: 6 x 4 mm | Color: Clear purple (PU2) | Length: 100 m roll
TU0604R1-20Tube size: 6 x 4 mm | Color: Dark red (R1) | Length: 20 m roll
TU0604R1-100Tube size: 6 x 4 mm | Color: Dark red (R1) | Length: 100 m roll
TU0604R2-20Tube size: 6 x 4 mm | Color: Clear red (R2) | Length: 20 m roll
TU0604R2-100Tube size: 6 x 4 mm | Color: Clear red (R2) | Length: 100 m roll
TU0604S1-20Tube size: 6 x 4 mm | Color: Silver (S1) | Length: 20 m roll
TU0604S1-100Tube size: 6 x 4 mm | Color: Silver (S1) | Length: 100 m roll
TU0604Y1-20Tube size: 6 x 4 mm | Color: Dark yellow (Y1) | Length: 20 m roll
TU0604Y1-100Tube size: 6 x 4 mm | Color: Dark yellow (Y1) | Length: 100 m roll
TU0604Y2-20Tube size: 6 x 4 mm | Color: Clear yellow (Y2) | Length: 20 m roll
TU0604Y2-100Tube size: 6 x 4 mm | Color: Clear yellow (Y2) | Length: 100 m roll
TU0604Y3-20Tube size: 6 x 4 mm | Color: Neon yellow (Y3) | Length: 20 m roll
TU0604Y3-100Tube size: 6 x 4 mm | Color: Neon yellow (Y3) | Length: 100 m roll
TU0604YR1-20Tube size: 6 x 4 mm | Color: Clear orange (YR1) | Length: 20 m roll
TU0604YR1-100Tube size: 6 x 4 mm | Color: Clear orange (YR1) | Length: 100 m roll
TU0604YR2-20Tube size: 6 x 4 mm | Color: Neon orange (YR2) | Length: 20 m roll
TU0604YR2-100Tube size: 6 x 4 mm | Color: Neon orange (YR2) | Length: 100 m roll
TU0805BU1-20Tube size: 8 x 5 mm | Color: Dark blue (BU1) | Length: 20 m roll
TU0805BU1-100Tube size: 8 x 5 mm | Color: Dark blue (BU1) | Length: 100 m roll
TU0805BU2-20Tube size: 8 x 5 mm | Color: Clear blue (BU2) | Length: 20 m roll
TU0805BU2-100Tube size: 8 x 5 mm | Color: Clear blue (BU2) | Length: 100 m roll
TU0805BU3-20Tube size: 8 x 5 mm | Color: Light blue (BU3) | Length: 20 m roll
TU0805BU3-100Tube size: 8 x 5 mm | Color: Light blue (BU3) | Length: 100 m roll
TU0805BR1-20Tube size: 8 x 5 mm | Color: Brown (BR1) | Length: 20 m roll
TU0805BR1-100Tube size: 8 x 5 mm | Color: Brown (BR1) | Length: 100 m roll
TU0805G1-20Tube size: 8 x 5 mm | Color: Deep green (G1) | Length: 20 m roll
TU0805G1-100Tube size: 8 x 5 mm | Color: Deep green (G1) | Length: 100 m roll
TU0805G2-20Tube size: 8 x 5 mm | Color: Clear green (G2) | Length: 20 m roll
TU0805G2-100Tube size: 8 x 5 mm | Color: Clear green (G2) | Length: 100 m roll
TU0805G3-20Tube size: 8 x 5 mm | Color: Neon green (G3) | Length: 20 m roll
TU0805G3-100Tube size: 8 x 5 mm | Color: Neon green (G3) | Length: 100 m roll
TU0805G4-20Tube size: 8 x 5 mm | Color: Dark green (G4) | Length: 20 m roll
TU0805G4-100Tube size: 8 x 5 mm | Color: Dark green (G4) | Length: 100 m roll
TU0805GR1-20Tube size: 8 x 5 mm | Color: Gray (GR1) | Length: 20 m roll
TU0805GR1-100Tube size: 8 x 5 mm | Color: Gray (GR1) | Length: 100 m roll
TU0805GR2-20Tube size: 8 x 5 mm | Color: Light gray (GR2) | Length: 20 m roll
TU0805GR2-100Tube size: 8 x 5 mm | Color: Light gray (GR2) | Length: 100 m roll
TU0805P1-20Tube size: 8 x 5 mm | Color: Neon pink (P1) | Length: 20 m roll
TU0805P1-100Tube size: 8 x 5 mm | Color: Neon pink (P1) | Length: 100 m roll
TU0805PU1-20Tube size: 8 x 5 mm | Color: Dark purple (PU1) | Length: 20 m roll
TU0805PU1-100Tube size: 8 x 5 mm | Color: Dark purple (PU1) | Length: 100 m roll
TU0805PU2-20Tube size: 8 x 5 mm | Color: Clear purple (PU2) | Length: 20 m roll
TU0805PU2-100Tube size: 8 x 5 mm | Color: Clear purple (PU2) | Length: 100 m roll
TU0805R1-20Tube size: 8 x 5 mm | Color: Dark red (R1) | Length: 20 m roll
TU0805R1-100Tube size: 8 x 5 mm | Color: Dark red (R1) | Length: 100 m roll
TU0805R2-20Tube size: 8 x 5 mm | Color: Clear red (R2) | Length: 20 m roll
TU0805R2-100Tube size: 8 x 5 mm | Color: Clear red (R2) | Length: 100 m roll
TU0805S1-20Tube size: 8 x 5 mm | Color: Silver (S1) | Length: 20 m roll
TU0805S1-100Tube size: 8 x 5 mm | Color: Silver (S1) | Length: 100 m roll
TU0805Y1-20Tube size: 8 x 5 mm | Color: Dark yellow (Y1) | Length: 20 m roll
TU0805Y1-100Tube size: 8 x 5 mm | Color: Dark yellow (Y1) | Length: 100 m roll
TU0805Y2-20Tube size: 8 x 5 mm | Color: Clear yellow (Y2) | Length: 20 m roll
TU0805Y2-100Tube size: 8 x 5 mm | Color: Clear yellow (Y2) | Length: 100 m roll
TU0805Y3-20Tube size: 8 x 5 mm | Color: Neon yellow (Y3) | Length: 20 m roll
TU0805Y3-100Tube size: 8 x 5 mm | Color: Neon yellow (Y3) | Length: 100 m roll
TU0805YR1-20Tube size: 8 x 5 mm | Color: Clear orange (YR1) | Length: 20 m roll
TU0805YR1-100Tube size: 8 x 5 mm | Color: Clear orange (YR1) | Length: 100 m roll
TU0805YR2-20Tube size: 8 x 5 mm | Color: Neon orange (YR2) | Length: 20 m roll
TU0805YR2-100Tube size: 8 x 5 mm | Color: Neon orange (YR2) | Length: 100 m roll
TU1065BU1-20Tube size: 10 x 6.5 mm | Color: Dark blue (BU1) | Length: 20 m roll
TU1065BU1-100Tube size: 10 x 6.5 mm | Color: Dark blue (BU1) | Length: 100 m roll
TU1065BU2-20Tube size: 10 x 6.5 mm | Color: Clear blue (BU2) | Length: 20 m roll
TU1065BU2-100Tube size: 10 x 6.5 mm | Color: Clear blue (BU2) | Length: 100 m roll
TU1065BU3-20Tube size: 10 x 6.5 mm | Color: Light blue (BU3) | Length: 20 m roll
TU1065BU3-100Tube size: 10 x 6.5 mm | Color: Light blue (BU3) | Length: 100 m roll
TU1065BR1-20Tube size: 10 x 6.5 mm | Color: Brown (BR1) | Length: 20 m roll
TU1065BR1-100Tube size: 10 x 6.5 mm | Color: Brown (BR1) | Length: 100 m roll
TU1065G1-20Tube size: 10 x 6.5 mm | Color: Deep green (G1) | Length: 20 m roll
TU1065G1-100Tube size: 10 x 6.5 mm | Color: Deep green (G1) | Length: 100 m roll
TU1065G2-20Tube size: 10 x 6.5 mm | Color: Clear green (G2) | Length: 20 m roll
TU1065G2-100Tube size: 10 x 6.5 mm | Color: Clear green (G2) | Length: 100 m roll
TU1065G3-20Tube size: 10 x 6.5 mm | Color: Neon green (G3) | Length: 20 m roll
TU1065G3-100Tube size: 10 x 6.5 mm | Color: Neon green (G3) | Length: 100 m roll
TU1065G4-20Tube size: 10 x 6.5 mm | Color: Dark green (G4) | Length: 20 m roll
TU1065G4-100Tube size: 10 x 6.5 mm | Color: Dark green (G4) | Length: 100 m roll
TU1065GR1-20Tube size: 10 x 6.5 mm | Color: Gray (GR1) | Length: 20 m roll
TU1065GR1-100Tube size: 10 x 6.5 mm | Color: Gray (GR1) | Length: 100 m roll
TU1065GR2-20Tube size: 10 x 6.5 mm | Color: Light gray (GR2) | Length: 20 m roll
TU1065GR2-100Tube size: 10 x 6.5 mm | Color: Light gray (GR2) | Length: 100 m roll
TU1065P1-20Tube size: 10 x 6.5 mm | Color: Neon pink (P1) | Length: 20 m roll
TU1065P1-100Tube size: 10 x 6.5 mm | Color: Neon pink (P1) | Length: 100 m roll
TU1065PU1-20Tube size: 10 x 6.5 mm | Color: Dark purple (PU1) | Length: 20 m roll
TU1065PU1-100Tube size: 10 x 6.5 mm | Color: Dark purple (PU1) | Length: 100 m roll
TU1065PU2-20Tube size: 10 x 6.5 mm | Color: Clear purple (PU2) | Length: 20 m roll
TU1065PU2-100Tube size: 10 x 6.5 mm | Color: Clear purple (PU2) | Length: 100 m roll
TU1065R1-20Tube size: 10 x 6.5 mm | Color: Dark red (R1) | Length: 20 m roll
TU1065R1-100Tube size: 10 x 6.5 mm | Color: Dark red (R1) | Length: 100 m roll
TU1065R2-20Tube size: 10 x 6.5 mm | Color: Clear red (R2) | Length: 20 m roll
TU1065R2-100Tube size: 10 x 6.5 mm | Color: Clear red (R2) | Length: 100 m roll
TU1065S1-20Tube size: 10 x 6.5 mm | Color: Silver (S1) | Length: 20 m roll
TU1065S1-100Tube size: 10 x 6.5 mm | Color: Silver (S1) | Length: 100 m roll
TU1065Y1-20Tube size: 10 x 6.5 mm | Color: Dark yellow (Y1) | Length: 20 m roll
TU1065Y1-100Tube size: 10 x 6.5 mm | Color: Dark yellow (Y1) | Length: 100 m roll
TU1065Y2-20Tube size: 10 x 6.5 mm | Color: Clear yellow (Y2) | Length: 20 m roll
TU1065Y2-100Tube size: 10 x 6.5 mm | Color: Clear yellow (Y2) | Length: 100 m roll
TU1065Y3-20Tube size: 10 x 6.5 mm | Color: Neon yellow (Y3) | Length: 20 m roll
TU1065Y3-100Tube size: 10 x 6.5 mm | Color: Neon yellow (Y3) | Length: 100 m roll
TU1065YR1-20Tube size: 10 x 6.5 mm | Color: Clear orange (YR1) | Length: 20 m roll
TU1065YR1-100Tube size: 10 x 6.5 mm | Color: Clear orange (YR1) | Length: 100 m roll
TU1065YR2-20Tube size: 10 x 6.5 mm | Color: Neon orange (YR2) | Length: 20 m roll
TU1065YR2-100Tube size: 10 x 6.5 mm | Color: Neon orange (YR2) | Length: 100 m roll
TU1208BU1-20Tube size: 12 x 8 mm | Color: Dark blue (BU1) | Length: 20 m roll
TU1208BU1-100Tube size: 12 x 8 mm | Color: Dark blue (BU1) | Length: 100 m roll
TU1208BU2-20Tube size: 12 x 8 mm | Color: Clear blue (BU2) | Length: 20 m roll
TU1208BU2-100Tube size: 12 x 8 mm | Color: Clear blue (BU2) | Length: 100 m roll
TU1208BU3-20Tube size: 12 x 8 mm | Color: Light blue (BU3) | Length: 20 m roll
TU1208BU3-100Tube size: 12 x 8 mm | Color: Light blue (BU3) | Length: 100 m roll
TU1208BR1-20Tube size: 12 x 8 mm | Color: Brown (BR1) | Length: 20 m roll
TU1208BR1-100Tube size: 12 x 8 mm | Color: Brown (BR1) | Length: 100 m roll
TU1208G1-20Tube size: 12 x 8 mm | Color: Deep green (G1) | Length: 20 m roll
TU1208G1-100Tube size: 12 x 8 mm | Color: Deep green (G1) | Length: 100 m roll
TU1208G2-20Tube size: 12 x 8 mm | Color: Clear green (G2) | Length: 20 m roll
TU1208G2-100Tube size: 12 x 8 mm | Color: Clear green (G2) | Length: 100 m roll
TU1208G3-20Tube size: 12 x 8 mm | Color: Neon green (G3) | Length: 20 m roll
TU1208G3-100Tube size: 12 x 8 mm | Color: Neon green (G3) | Length: 100 m roll
TU1208G4-20Tube size: 12 x 8 mm | Color: Dark green (G4) | Length: 20 m roll
TU1208G4-100Tube size: 12 x 8 mm | Color: Dark green (G4) | Length: 100 m roll
TU1208GR1-20Tube size: 12 x 8 mm | Color: Gray (GR1) | Length: 20 m roll
TU1208GR1-100Tube size: 12 x 8 mm | Color: Gray (GR1) | Length: 100 m roll
TU1208GR2-20Tube size: 12 x 8 mm | Color: Light gray (GR2) | Length: 20 m roll
TU1208GR2-100Tube size: 12 x 8 mm | Color: Light gray (GR2) | Length: 100 m roll
TU1208P1-20Tube size: 12 x 8 mm | Color: Neon pink (P1) | Length: 20 m roll
TU1208P1-100Tube size: 12 x 8 mm | Color: Neon pink (P1) | Length: 100 m roll
TU1208PU1-20Tube size: 12 x 8 mm | Color: Dark purple (PU1) | Length: 20 m roll
TU1208PU1-100Tube size: 12 x 8 mm | Color: Dark purple (PU1) | Length: 100 m roll
TU1208PU2-20Tube size: 12 x 8 mm | Color: Clear purple (PU2) | Length: 20 m roll
TU1208PU2-100Tube size: 12 x 8 mm | Color: Clear purple (PU2) | Length: 100 m roll
TU1208R1-20Tube size: 12 x 8 mm | Color: Dark red (R1) | Length: 20 m roll
TU1208R1-100Tube size: 12 x 8 mm | Color: Dark red (R1) | Length: 100 m roll
TU1208R2-20Tube size: 12 x 8 mm | Color: Clear red (R2) | Length: 20 m roll
TU1208R2-100Tube size: 12 x 8 mm | Color: Clear red (R2) | Length: 100 m roll
TU1208S1-20Tube size: 12 x 8 mm | Color: Silver (S1) | Length: 20 m roll
TU1208S1-100Tube size: 12 x 8 mm | Color: Silver (S1) | Length: 100 m roll
TU1208Y1-20Tube size: 12 x 8 mm | Color: Dark yellow (Y1) | Length: 20 m roll
TU1208Y1-100Tube size: 12 x 8 mm | Color: Dark yellow (Y1) | Length: 100 m roll
TU1208Y2-20Tube size: 12 x 8 mm | Color: Clear yellow (Y2) | Length: 20 m roll
TU1208Y2-100Tube size: 12 x 8 mm | Color: Clear yellow (Y2) | Length: 100 m roll
TU1208Y3-20Tube size: 12 x 8 mm | Color: Neon yellow (Y3) | Length: 20 m roll
TU1208Y3-100Tube size: 12 x 8 mm | Color: Neon yellow (Y3) | Length: 100 m roll
TU1208YR1-20Tube size: 12 x 8 mm | Color: Clear orange (YR1) | Length: 20 m roll
TU1208YR1-100Tube size: 12 x 8 mm | Color: Clear orange (YR1) | Length: 100 m roll
TU1208YR2-20Tube size: 12 x 8 mm | Color: Neon orange (YR2) | Length: 20 m roll
TU1208YR2-100Tube size: 12 x 8 mm | Color: Neon orange (YR2) | Length: 100 m roll
TIUB01BU1-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark blue (BU1) | Length: 20 m roll
TIUB01BU1-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark blue (BU1) | Length: 100 m roll
TIUB01BU2-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear blue (BU2) | Length: 20 m roll
TIUB01BU2-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear blue (BU2) | Length: 100 m roll
TIUB01BU3-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Light blue (BU3) | Length: 20 m roll
TIUB01BU3-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Light blue (BU3) | Length: 100 m roll
TIUB01BR1-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Brown (BR1) | Length: 20 m roll
TIUB01BR1-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Brown (BR1) | Length: 100 m roll
TIUB01G1-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Deep green (G1) | Length: 20 m roll
TIUB01G1-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Deep green (G1) | Length: 100 m roll
TIUB01G2-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear green (G2) | Length: 20 m roll
TIUB01G2-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear green (G2) | Length: 100 m roll
TIUB01G3-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Neon green (G3) | Length: 20 m roll
TIUB01G3-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Neon green (G3) | Length: 100 m roll
TIUB01G4-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark green (G4) | Length: 20 m roll
TIUB01G4-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark green (G4) | Length: 100 m roll
TIUB01GR1-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Gray (GR1) | Length: 20 m roll
TIUB01GR1-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Gray (GR1) | Length: 100 m roll
TIUB01GR2-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Light gray (GR2) | Length: 20 m roll
TIUB01GR2-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Light gray (GR2) | Length: 100 m roll
TIUB01P1-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Neon pink (P1) | Length: 20 m roll
TIUB01P1-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Neon pink (P1) | Length: 100 m roll
TIUB01PU1-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark purple (PU1) | Length: 20 m roll
TIUB01PU1-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark purple (PU1) | Length: 100 m roll
TIUB01PU2-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear purple (PU2) | Length: 20 m roll
TIUB01PU2-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear purple (PU2) | Length: 100 m roll
TIUB01R1-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark red (R1) | Length: 20 m roll
TIUB01R1-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark red (R1) | Length: 100 m roll
TIUB01R2-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear red (R2) | Length: 20 m roll
TIUB01R2-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear red (R2) | Length: 100 m roll
TIUB01S1-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Silver (S1) | Length: 20 m roll
TIUB01S1-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Silver (S1) | Length: 100 m roll
TIUB01Y1-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark yellow (Y1) | Length: 20 m roll
TIUB01Y1-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Dark yellow (Y1) | Length: 100 m roll
TIUB01Y2-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear yellow (Y2) | Length: 20 m roll
TIUB01Y2-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear yellow (Y2) | Length: 100 m roll
TIUB01Y3-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Neon yellow (Y3) | Length: 20 m roll
TIUB01Y3-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Neon yellow (Y3) | Length: 100 m roll
TIUB01YR1-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear orange (YR1) | Length: 20 m roll
TIUB01YR1-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Clear orange (YR1) | Length: 100 m roll
TIUB01YR2-20Tube size: 1/8 in (3.18 x 2 mm) | Color: Neon orange (YR2) | Length: 20 m roll
TIUB01YR2-100Tube size: 1/8 in (3.18 x 2 mm) | Color: Neon orange (YR2) | Length: 100 m roll

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
