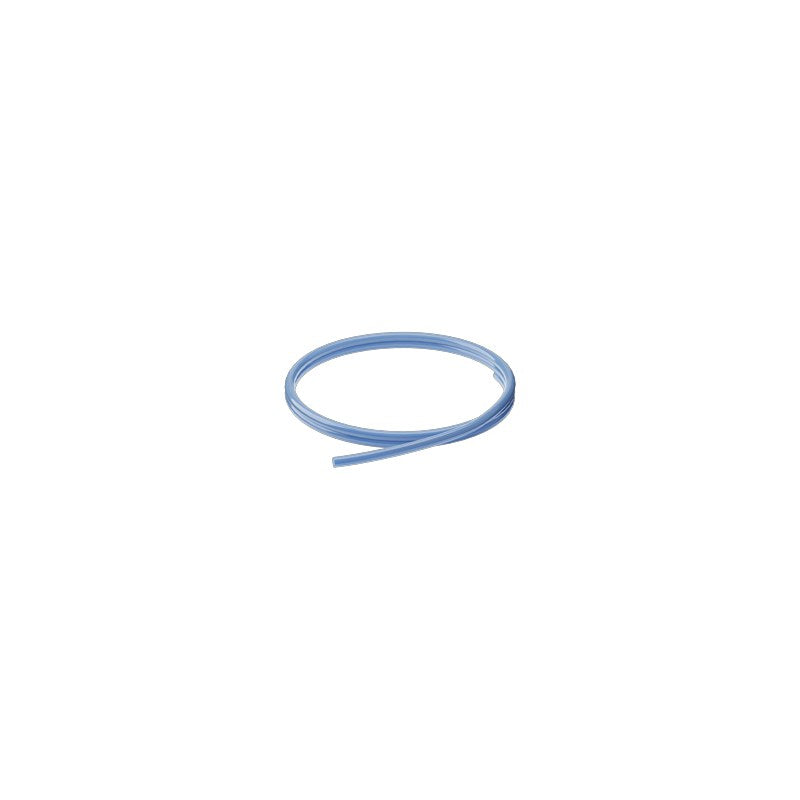

SMC TUE Fluoropolymer Double-Layer Polyurethane Tubing

SMC TUE Fluoropolymer Double-Layer Polyurethane Tubing

SMC TUE series double-layer tubing with a fluoropolymer outer layer over a polyurethane inner tube, combining environmental resistance with flexibility.

Key features

  • Fluoropolymer outer layer resists chemicals, coolant and spatter; flame resistant (UL-94 V-0 equivalent)
  • Polyurethane inner layer keeps the tube flexible
  • Larger bore: 44% more flow area than TU0805 (TUE0806 vs TU0805)
  • Four outer colors: black, white, blue, translucent; sizes 4 to 12 mm OD on 20 m rolls
  • Fittings: KQB2 brass and KQG2 SUS316 one-touch, KF and KFG2 insert

Specifications

Material Inner polyurethane, outer fluoropolymer
Length 20 m roll
Fluid Air, water, inert gas
Max. operating pressure 0.8 MPa (4/6 mm) or 0.6 MPa (others) at 20C
Max. operating vacuum -101.3 kPa
Operating temperature Air/inert gas -20 to 80C, water 0 to 70C
Applications Printing, medical, semiconductor, food, metal working
Standards RoHS, UL-94 V-0 equivalent
Source SMC Korea catalog (SMCKR_TUE.pdf), p. CAT.KS50-46A, p. 1-4
TUE0425B-20 Tube size: 4 x 2.5 mm | Color: Black (B) | Min. bending radius: 14 mm
TUE0425W-20 Tube size: 4 x 2.5 mm | Color: White (W) | Min. bending radius: 14 mm
TUE0425BU-20 Tube size: 4 x 2.5 mm | Color: Blue (translucent) (BU) | Min. bending radius: 14 mm
TUE0425N-20 Tube size: 4 x 2.5 mm | Color: Translucent (natural) (N) | Min. bending radius: 14 mm
TUE0604B-20 Tube size: 6 x 4 mm | Color: Black (B) | Min. bending radius: 24 mm
TUE0604W-20 Tube size: 6 x 4 mm | Color: White (W) | Min. bending radius: 24 mm
TUE0604BU-20 Tube size: 6 x 4 mm | Color: Blue (translucent) (BU) | Min. bending radius: 24 mm
TUE0604N-20 Tube size: 6 x 4 mm | Color: Translucent (natural) (N) | Min. bending radius: 24 mm
TUE0806B-20 Tube size: 8 x 6 mm | Color: Black (B) | Min. bending radius: 53 mm
TUE0806W-20 Tube size: 8 x 6 mm | Color: White (W) | Min. bending radius: 53 mm
TUE0806BU-20 Tube size: 8 x 6 mm | Color: Blue (translucent) (BU) | Min. bending radius: 53 mm
TUE0806N-20 Tube size: 8 x 6 mm | Color: Translucent (natural) (N) | Min. bending radius: 53 mm
TUE1075B-20 Tube size: 10 x 7.5 mm | Color: Black (B) | Min. bending radius: 55 mm
TUE1075W-20 Tube size: 10 x 7.5 mm | Color: White (W) | Min. bending radius: 55 mm
TUE1075BU-20 Tube size: 10 x 7.5 mm | Color: Blue (translucent) (BU) | Min. bending radius: 55 mm
TUE1075N-20 Tube size: 10 x 7.5 mm | Color: Translucent (natural) (N) | Min. bending radius: 55 mm
TUE1209B-20 Tube size: 12 x 9 mm | Color: Black (B) | Min. bending radius: 61 mm
TUE1209W-20 Tube size: 12 x 9 mm | Color: White (W) | Min. bending radius: 61 mm
TUE1209BU-20 Tube size: 12 x 9 mm | Color: Blue (translucent) (BU) | Min. bending radius: 61 mm
TUE1209N-20 Tube size: 12 x 9 mm | Color: Translucent (natural) (N) | Min. bending radius: 61 mm
TubingSMC
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC TUE Fluoropolymer Double-Layer Polyurethane Tubing

Brand SMC·Tubing

Available part numbers (20)

TUE0425B-20, TUE0425W-20, TUE0425BU-20, TUE0425N-20, TUE0604B-20, TUE0604W-20, TUE0604BU-20, TUE0604N-20, TUE0806B-20, TUE0806W-20 + 10 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TUE0425B-20Tube size: 4 x 2.5 mm | Color: Black (B) | Min. bending radius: 14 mm
TUE0425W-20Tube size: 4 x 2.5 mm | Color: White (W) | Min. bending radius: 14 mm
TUE0425BU-20Tube size: 4 x 2.5 mm | Color: Blue (translucent) (BU) | Min. bending radius: 14 mm
TUE0425N-20Tube size: 4 x 2.5 mm | Color: Translucent (natural) (N) | Min. bending radius: 14 mm
TUE0604B-20Tube size: 6 x 4 mm | Color: Black (B) | Min. bending radius: 24 mm
TUE0604W-20Tube size: 6 x 4 mm | Color: White (W) | Min. bending radius: 24 mm
TUE0604BU-20Tube size: 6 x 4 mm | Color: Blue (translucent) (BU) | Min. bending radius: 24 mm
TUE0604N-20Tube size: 6 x 4 mm | Color: Translucent (natural) (N) | Min. bending radius: 24 mm
TUE0806B-20Tube size: 8 x 6 mm | Color: Black (B) | Min. bending radius: 53 mm
TUE0806W-20Tube size: 8 x 6 mm | Color: White (W) | Min. bending radius: 53 mm
TUE0806BU-20Tube size: 8 x 6 mm | Color: Blue (translucent) (BU) | Min. bending radius: 53 mm
TUE0806N-20Tube size: 8 x 6 mm | Color: Translucent (natural) (N) | Min. bending radius: 53 mm
TUE1075B-20Tube size: 10 x 7.5 mm | Color: Black (B) | Min. bending radius: 55 mm
TUE1075W-20Tube size: 10 x 7.5 mm | Color: White (W) | Min. bending radius: 55 mm
TUE1075BU-20Tube size: 10 x 7.5 mm | Color: Blue (translucent) (BU) | Min. bending radius: 55 mm
TUE1075N-20Tube size: 10 x 7.5 mm | Color: Translucent (natural) (N) | Min. bending radius: 55 mm
TUE1209B-20Tube size: 12 x 9 mm | Color: Black (B) | Min. bending radius: 61 mm
TUE1209W-20Tube size: 12 x 9 mm | Color: White (W) | Min. bending radius: 61 mm
TUE1209BU-20Tube size: 12 x 9 mm | Color: Blue (translucent) (BU) | Min. bending radius: 61 mm
TUE1209N-20Tube size: 12 x 9 mm | Color: Translucent (natural) (N) | Min. bending radius: 61 mm
