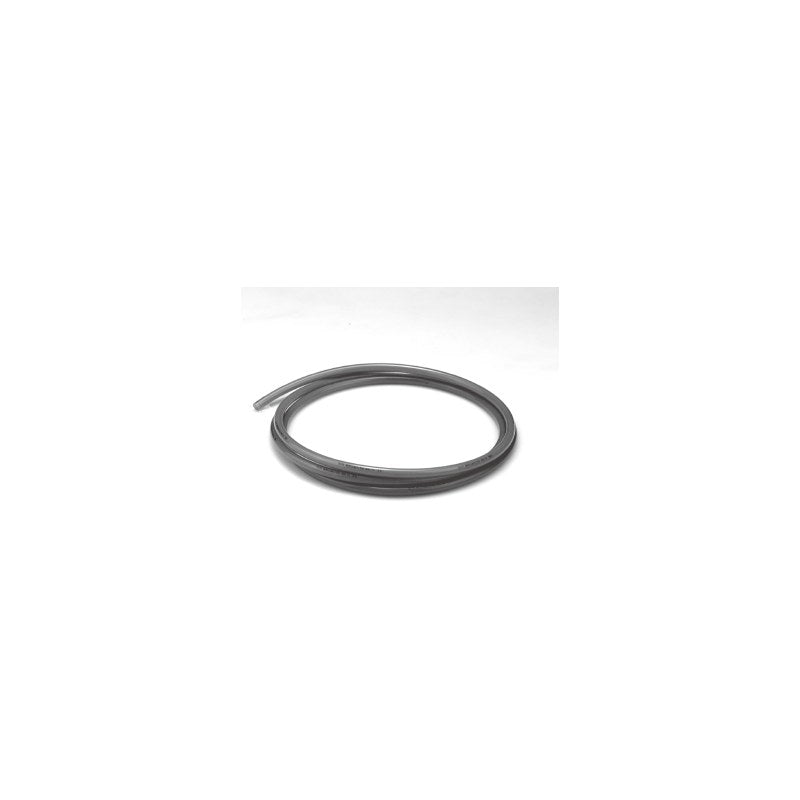

SMC TUH Hard Polyurethane Tubing (Standard and High-Pressure)

SMC TUH Hard Polyurethane Tubing (Standard and High-Pressure)

SMC TUH series hard polyurethane tubing, in a standard type (thinner wall) and a high-pressure type, for general pneumatic piping.

Key features

  • Standard type: 0.8 MPa at 20C, used with one-touch fittings
  • High-pressure type: 1.0 MPa at 20C, used with one-touch, insert and miniature fittings
  • Sizes 4 to 12 mm OD; colors black, milky white, blue and translucent
  • 20 m and 100 m rolls for every size and color
  • Ester-based polyurethane: not for water (hydrolysis)

Specifications

Material Polyurethane (hard, ester based)
Fluid Air (water not allowed)
Max. pressure, standard type 0.8 MPa (20C), 0.65 (40C), 0.5 (60C)
Max. pressure, high-pressure type 1.0 MPa (20C), 0.85 (40C), 0.7 (60C)
Operating temperature -20 to 60C
Min. bending radius Standard 10 to 36 mm, high-pressure 10 to 35 mm
Standards RoHS
Source SMC Korea catalog (SMCKR_TUH.pdf), p. 472-473
TUH0428B-20 Type: Standard type | Tube size: 4 x 2.8 mm | Color: Black (B) | Length: 20 m roll
TUH0428B-100 Type: Standard type | Tube size: 4 x 2.8 mm | Color: Black (B) | Length: 100 m roll
TUH0428W-20 Type: Standard type | Tube size: 4 x 2.8 mm | Color: Milky white (W) | Length: 20 m roll
TUH0428W-100 Type: Standard type | Tube size: 4 x 2.8 mm | Color: Milky white (W) | Length: 100 m roll
TUH0428BU-20 Type: Standard type | Tube size: 4 x 2.8 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUH0428BU-100 Type: Standard type | Tube size: 4 x 2.8 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TUH0428N-20 Type: Standard type | Tube size: 4 x 2.8 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUH0428N-100 Type: Standard type | Tube size: 4 x 2.8 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUH0644B-20 Type: Standard type | Tube size: 6 x 4.4 mm | Color: Black (B) | Length: 20 m roll
TUH0644B-100 Type: Standard type | Tube size: 6 x 4.4 mm | Color: Black (B) | Length: 100 m roll
TUH0644W-20 Type: Standard type | Tube size: 6 x 4.4 mm | Color: Milky white (W) | Length: 20 m roll
TUH0644W-100 Type: Standard type | Tube size: 6 x 4.4 mm | Color: Milky white (W) | Length: 100 m roll
TUH0644BU-20 Type: Standard type | Tube size: 6 x 4.4 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUH0644BU-100 Type: Standard type | Tube size: 6 x 4.4 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TUH0644N-20 Type: Standard type | Tube size: 6 x 4.4 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUH0644N-100 Type: Standard type | Tube size: 6 x 4.4 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUH0858B-20 Type: Standard type | Tube size: 8 x 5.8 mm | Color: Black (B) | Length: 20 m roll
TUH0858B-100 Type: Standard type | Tube size: 8 x 5.8 mm | Color: Black (B) | Length: 100 m roll
TUH0858W-20 Type: Standard type | Tube size: 8 x 5.8 mm | Color: Milky white (W) | Length: 20 m roll
TUH0858W-100 Type: Standard type | Tube size: 8 x 5.8 mm | Color: Milky white (W) | Length: 100 m roll
TUH0858BU-20 Type: Standard type | Tube size: 8 x 5.8 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUH0858BU-100 Type: Standard type | Tube size: 8 x 5.8 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TUH0858N-20 Type: Standard type | Tube size: 8 x 5.8 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUH0858N-100 Type: Standard type | Tube size: 8 x 5.8 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUH1073B-20 Type: Standard type | Tube size: 10 x 7.3 mm | Color: Black (B) | Length: 20 m roll
TUH1073B-100 Type: Standard type | Tube size: 10 x 7.3 mm | Color: Black (B) | Length: 100 m roll
TUH1073W-20 Type: Standard type | Tube size: 10 x 7.3 mm | Color: Milky white (W) | Length: 20 m roll
TUH1073W-100 Type: Standard type | Tube size: 10 x 7.3 mm | Color: Milky white (W) | Length: 100 m roll
TUH1073BU-20 Type: Standard type | Tube size: 10 x 7.3 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUH1073BU-100 Type: Standard type | Tube size: 10 x 7.3 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TUH1073N-20 Type: Standard type | Tube size: 10 x 7.3 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUH1073N-100 Type: Standard type | Tube size: 10 x 7.3 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUH1288B-20 Type: Standard type | Tube size: 12 x 8.8 mm | Color: Black (B) | Length: 20 m roll
TUH1288B-100 Type: Standard type | Tube size: 12 x 8.8 mm | Color: Black (B) | Length: 100 m roll
TUH1288W-20 Type: Standard type | Tube size: 12 x 8.8 mm | Color: Milky white (W) | Length: 20 m roll
TUH1288W-100 Type: Standard type | Tube size: 12 x 8.8 mm | Color: Milky white (W) | Length: 100 m roll
TUH1288BU-20 Type: Standard type | Tube size: 12 x 8.8 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUH1288BU-100 Type: Standard type | Tube size: 12 x 8.8 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TUH1288N-20 Type: Standard type | Tube size: 12 x 8.8 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUH1288N-100 Type: Standard type | Tube size: 12 x 8.8 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUH0425B-20 Type: High-pressure type | Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 20 m roll
TUH0425B-100 Type: High-pressure type | Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 100 m roll
TUH0425W-20 Type: High-pressure type | Tube size: 4 x 2.5 mm | Color: Milky white (W) | Length: 20 m roll
TUH0425W-100 Type: High-pressure type | Tube size: 4 x 2.5 mm | Color: Milky white (W) | Length: 100 m roll
TUH0425BU-20 Type: High-pressure type | Tube size: 4 x 2.5 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUH0425BU-100 Type: High-pressure type | Tube size: 4 x 2.5 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TUH0425N-20 Type: High-pressure type | Tube size: 4 x 2.5 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUH0425N-100 Type: High-pressure type | Tube size: 4 x 2.5 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUH0604B-20 Type: High-pressure type | Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll
TUH0604B-100 Type: High-pressure type | Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m roll
TUH0604W-20 Type: High-pressure type | Tube size: 6 x 4 mm | Color: Milky white (W) | Length: 20 m roll
TUH0604W-100 Type: High-pressure type | Tube size: 6 x 4 mm | Color: Milky white (W) | Length: 100 m roll
TUH0604BU-20 Type: High-pressure type | Tube size: 6 x 4 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUH0604BU-100 Type: High-pressure type | Tube size: 6 x 4 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TUH0604N-20 Type: High-pressure type | Tube size: 6 x 4 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUH0604N-100 Type: High-pressure type | Tube size: 6 x 4 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUH0805B-20 Type: High-pressure type | Tube size: 8 x 5 mm | Color: Black (B) | Length: 20 m roll
TUH0805B-100 Type: High-pressure type | Tube size: 8 x 5 mm | Color: Black (B) | Length: 100 m roll
TUH0805W-20 Type: High-pressure type | Tube size: 8 x 5 mm | Color: Milky white (W) | Length: 20 m roll
TUH0805W-100 Type: High-pressure type | Tube size: 8 x 5 mm | Color: Milky white (W) | Length: 100 m roll
TUH0805BU-20 Type: High-pressure type | Tube size: 8 x 5 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUH0805BU-100 Type: High-pressure type | Tube size: 8 x 5 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TUH0805N-20 Type: High-pressure type | Tube size: 8 x 5 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUH0805N-100 Type: High-pressure type | Tube size: 8 x 5 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUH1065B-20 Type: High-pressure type | Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 20 m roll
TUH1065B-100 Type: High-pressure type | Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 100 m roll
TUH1065W-20 Type: High-pressure type | Tube size: 10 x 6.5 mm | Color: Milky white (W) | Length: 20 m roll
TUH1065W-100 Type: High-pressure type | Tube size: 10 x 6.5 mm | Color: Milky white (W) | Length: 100 m roll
TUH1065BU-20 Type: High-pressure type | Tube size: 10 x 6.5 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUH1065BU-100 Type: High-pressure type | Tube size: 10 x 6.5 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TUH1065N-20 Type: High-pressure type | Tube size: 10 x 6.5 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUH1065N-100 Type: High-pressure type | Tube size: 10 x 6.5 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUH1208B-20 Type: High-pressure type | Tube size: 12 x 8 mm | Color: Black (B) | Length: 20 m roll
TUH1208B-100 Type: High-pressure type | Tube size: 12 x 8 mm | Color: Black (B) | Length: 100 m roll
TUH1208W-20 Type: High-pressure type | Tube size: 12 x 8 mm | Color: Milky white (W) | Length: 20 m roll
TUH1208W-100 Type: High-pressure type | Tube size: 12 x 8 mm | Color: Milky white (W) | Length: 100 m roll
TUH1208BU-20 Type: High-pressure type | Tube size: 12 x 8 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUH1208BU-100 Type: High-pressure type | Tube size: 12 x 8 mm | Color: Blue (translucent) (BU) | Length: 100 m roll
TUH1208N-20 Type: High-pressure type | Tube size: 12 x 8 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUH1208N-100 Type: High-pressure type | Tube size: 12 x 8 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TubingSMC
80 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC TUH Hard Polyurethane Tubing (Standard and High-Pressure)

Brand SMC·Tubing

Available part numbers (80)

TUH0428B-20, TUH0428B-100, TUH0428W-20, TUH0428W-100, TUH0428BU-20, TUH0428BU-100, TUH0428N-20, TUH0428N-100, TUH0644B-20, TUH0644B-100 + 70 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
