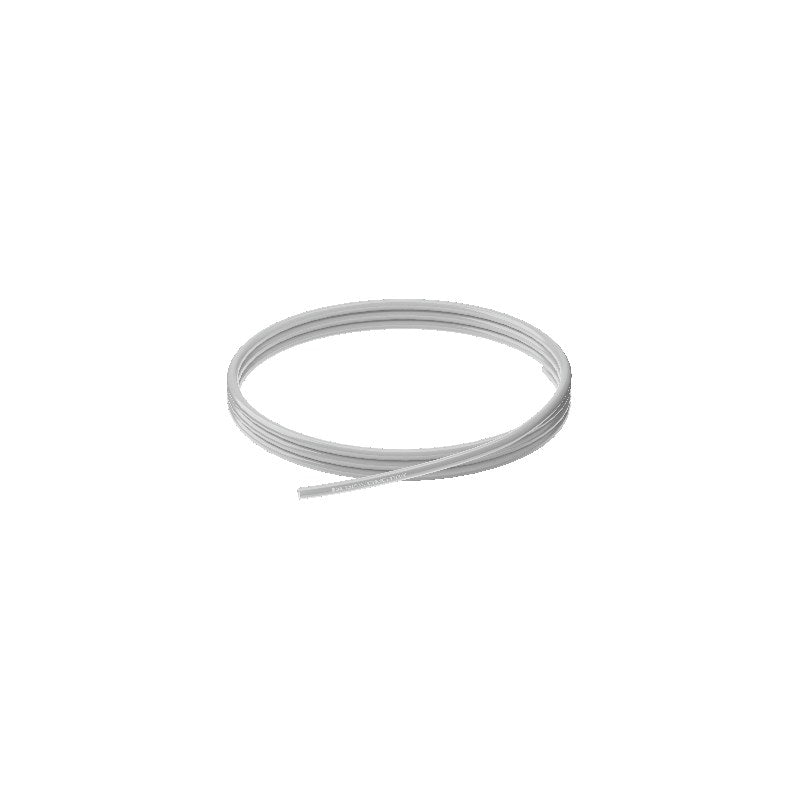

SMC TUL Fluoropolymer-Lined Double-Layer Polyurethane Tubing

SMC TUL Fluoropolymer-Lined Double-Layer Polyurethane Tubing

SMC TUL series flexible double-layer tubing with a fluoropolymer inner layer and polyurethane outer layer, for air, water, turbine oil and inert gas.

Key features

  • Fluoropolymer inner layer in contact with the fluid, flexible polyurethane outer layer
  • Larger bore: 44% more flow area than TU0805 (TUL0806 vs TU0805)
  • Four colors: black, white, blue, translucent; black and translucent also on 100 m rolls
  • Sizes 4 to 12 mm OD
  • Used with SUS316 insert fittings KFG2 series

Specifications

Material Inner fluoropolymer, outer polyurethane
Fluid Air, water, turbine oil (ISO VG32), inert gas
Max. operating pressure 0.8 MPa (4/6 mm) or 0.6 MPa (8-12 mm) at 20C
Operating temperature Air/inert gas -20 to 80C; water/oil 0 to 70C
Min. bending radius 18 mm (TUL0425) to 65 mm (TUL1209)
Applications Printing, metal working, food, medical, semiconductor
Standards RoHS
Source SMC Korea catalog (SMCKR_TUL.pdf), p. CAT.KS50-42A, p. 1-2
TUL0425B-20 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 20 m roll
TUL0425B-100 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 100 m roll
TUL0425N-20 Tube size: 4 x 2.5 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUL0425N-100 Tube size: 4 x 2.5 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUL0425W-20 Tube size: 4 x 2.5 mm | Color: White (W) | Length: 20 m roll
TUL0425BU-20 Tube size: 4 x 2.5 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUL0604B-20 Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll
TUL0604B-100 Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m roll
TUL0604N-20 Tube size: 6 x 4 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUL0604N-100 Tube size: 6 x 4 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUL0604W-20 Tube size: 6 x 4 mm | Color: White (W) | Length: 20 m roll
TUL0604BU-20 Tube size: 6 x 4 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUL0806B-20 Tube size: 8 x 6 mm | Color: Black (B) | Length: 20 m roll
TUL0806B-100 Tube size: 8 x 6 mm | Color: Black (B) | Length: 100 m roll
TUL0806N-20 Tube size: 8 x 6 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUL0806N-100 Tube size: 8 x 6 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUL0806W-20 Tube size: 8 x 6 mm | Color: White (W) | Length: 20 m roll
TUL0806BU-20 Tube size: 8 x 6 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUL1075B-20 Tube size: 10 x 7.5 mm | Color: Black (B) | Length: 20 m roll
TUL1075B-100 Tube size: 10 x 7.5 mm | Color: Black (B) | Length: 100 m roll
TUL1075N-20 Tube size: 10 x 7.5 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUL1075N-100 Tube size: 10 x 7.5 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUL1075W-20 Tube size: 10 x 7.5 mm | Color: White (W) | Length: 20 m roll
TUL1075BU-20 Tube size: 10 x 7.5 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUL1209B-20 Tube size: 12 x 9 mm | Color: Black (B) | Length: 20 m roll
TUL1209B-100 Tube size: 12 x 9 mm | Color: Black (B) | Length: 100 m roll
TUL1209N-20 Tube size: 12 x 9 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUL1209N-100 Tube size: 12 x 9 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUL1209W-20 Tube size: 12 x 9 mm | Color: White (W) | Length: 20 m roll
TUL1209BU-20 Tube size: 12 x 9 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TubingSMC
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC TUL Fluoropolymer-Lined Double-Layer Polyurethane Tubing

Brand SMC·Tubing

Available part numbers (30)

TUL0425B-20, TUL0425B-100, TUL0425N-20, TUL0425N-100, TUL0425W-20, TUL0425BU-20, TUL0604B-20, TUL0604B-100, TUL0604N-20, TUL0604N-100 + 20 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TUL0425B-20Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 20 m roll
TUL0425B-100Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 100 m roll
TUL0425N-20Tube size: 4 x 2.5 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUL0425N-100Tube size: 4 x 2.5 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUL0425W-20Tube size: 4 x 2.5 mm | Color: White (W) | Length: 20 m roll
TUL0425BU-20Tube size: 4 x 2.5 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUL0604B-20Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll
TUL0604B-100Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m roll
TUL0604N-20Tube size: 6 x 4 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUL0604N-100Tube size: 6 x 4 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUL0604W-20Tube size: 6 x 4 mm | Color: White (W) | Length: 20 m roll
TUL0604BU-20Tube size: 6 x 4 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUL0806B-20Tube size: 8 x 6 mm | Color: Black (B) | Length: 20 m roll
TUL0806B-100Tube size: 8 x 6 mm | Color: Black (B) | Length: 100 m roll
TUL0806N-20Tube size: 8 x 6 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUL0806N-100Tube size: 8 x 6 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUL0806W-20Tube size: 8 x 6 mm | Color: White (W) | Length: 20 m roll
TUL0806BU-20Tube size: 8 x 6 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUL1075B-20Tube size: 10 x 7.5 mm | Color: Black (B) | Length: 20 m roll
TUL1075B-100Tube size: 10 x 7.5 mm | Color: Black (B) | Length: 100 m roll
TUL1075N-20Tube size: 10 x 7.5 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUL1075N-100Tube size: 10 x 7.5 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUL1075W-20Tube size: 10 x 7.5 mm | Color: White (W) | Length: 20 m roll
TUL1075BU-20Tube size: 10 x 7.5 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
TUL1209B-20Tube size: 12 x 9 mm | Color: Black (B) | Length: 20 m roll
TUL1209B-100Tube size: 12 x 9 mm | Color: Black (B) | Length: 100 m roll
TUL1209N-20Tube size: 12 x 9 mm | Color: Translucent (natural) (N) | Length: 20 m roll
TUL1209N-100Tube size: 12 x 9 mm | Color: Translucent (natural) (N) | Length: 100 m roll
TUL1209W-20Tube size: 12 x 9 mm | Color: White (W) | Length: 20 m roll
TUL1209BU-20Tube size: 12 x 9 mm | Color: Blue (translucent) (BU) | Length: 20 m roll
