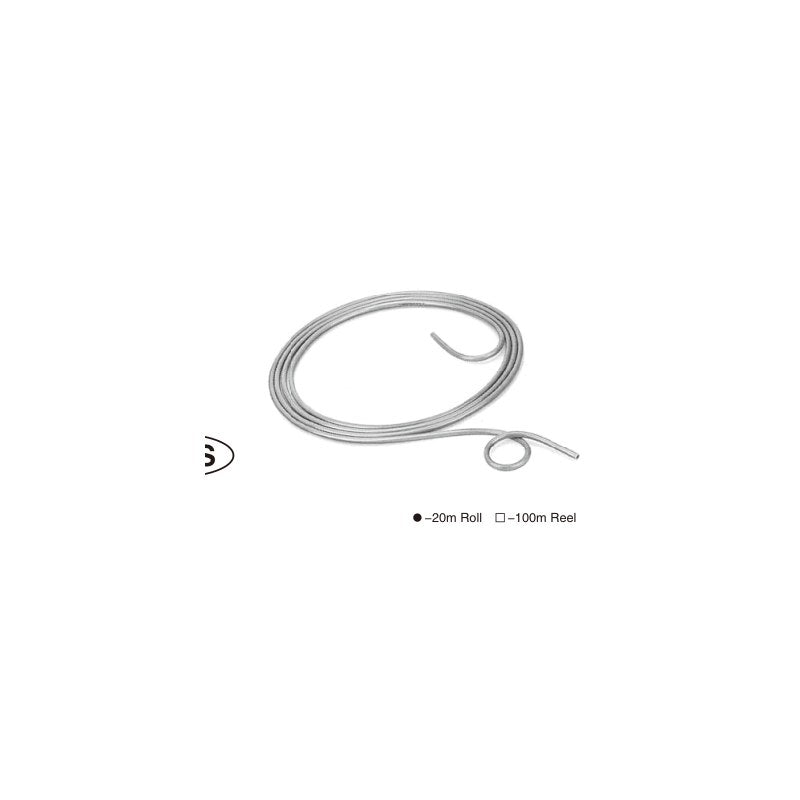

SMC TUS Soft Polyurethane Tubing

SMC TUS Soft Polyurethane Tubing

SMC TUS series extra-soft polyurethane tubing for piping in tight spaces, available in eight colors.

Key features

  • Very soft polyurethane for small bending radii (8 mm for 4 mm OD)
  • Sizes 4 to 12 mm OD; eight colors on 20 m rolls, black and blue also on 100 m reels
  • Use TJ inner sleeves with one-touch fittings for safety circuits and critical points
  • Tube pull-out strength with one-touch fitting: 15 to 110 N without sleeve, 80 to 480 N with sleeve
  • Flat multi-core version (TUS-X169 to X172) also available

Specifications

Material Polyurethane
Fluid Air
Max. operating pressure 0.6 MPa at 20C and 40C, 0.4 MPa at 60C
Max. operating vacuum -101.3 kPa
Operating temperature -20 to 60C (no freezing)
Min. bending radius 8 mm (TUS0425) to 29 mm (TUS1208)
Applicable fittings One-touch (with TJ sleeve), insert, miniature fittings
Standards RoHS
Source SMC Korea catalog (SMCKR_TUS_p688.pdf), p. 688
TUS0425B-20 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 20 m roll
TUS0425B-100 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 100 m reel
TUS0425BU-20 Tube size: 4 x 2.5 mm | Color: Blue (BU) | Length: 20 m roll
TUS0425BU-100 Tube size: 4 x 2.5 mm | Color: Blue (BU) | Length: 100 m reel
TUS0425W-20 Tube size: 4 x 2.5 mm | Color: White (W) | Length: 20 m roll
TUS0425R-20 Tube size: 4 x 2.5 mm | Color: Red (R) | Length: 20 m roll
TUS0425Y-20 Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 20 m roll
TUS0425G-20 Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 20 m roll
TUS0425N-20 Tube size: 4 x 2.5 mm | Color: Clear (natural) (N) | Length: 20 m roll
TUS0425YB-20 Tube size: 4 x 2.5 mm | Color: Yellow-brown (YB) | Length: 20 m roll
TUS0604B-20 Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll
TUS0604B-100 Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m reel
TUS0604BU-20 Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 20 m roll
TUS0604BU-100 Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 100 m reel
TUS0604W-20 Tube size: 6 x 4 mm | Color: White (W) | Length: 20 m roll
TUS0604R-20 Tube size: 6 x 4 mm | Color: Red (R) | Length: 20 m roll
TUS0604Y-20 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 20 m roll
TUS0604G-20 Tube size: 6 x 4 mm | Color: Green (G) | Length: 20 m roll
TUS0604N-20 Tube size: 6 x 4 mm | Color: Clear (natural) (N) | Length: 20 m roll
TUS0604YB-20 Tube size: 6 x 4 mm | Color: Yellow-brown (YB) | Length: 20 m roll
TUS0805B-20 Tube size: 8 x 5 mm | Color: Black (B) | Length: 20 m roll
TUS0805B-100 Tube size: 8 x 5 mm | Color: Black (B) | Length: 100 m reel
TUS0805BU-20 Tube size: 8 x 5 mm | Color: Blue (BU) | Length: 20 m roll
TUS0805BU-100 Tube size: 8 x 5 mm | Color: Blue (BU) | Length: 100 m reel
TUS0805W-20 Tube size: 8 x 5 mm | Color: White (W) | Length: 20 m roll
TUS0805R-20 Tube size: 8 x 5 mm | Color: Red (R) | Length: 20 m roll
TUS0805Y-20 Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 20 m roll
TUS0805G-20 Tube size: 8 x 5 mm | Color: Green (G) | Length: 20 m roll
TUS0805N-20 Tube size: 8 x 5 mm | Color: Clear (natural) (N) | Length: 20 m roll
TUS0805YB-20 Tube size: 8 x 5 mm | Color: Yellow-brown (YB) | Length: 20 m roll
TUS1065B-20 Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 20 m roll
TUS1065B-100 Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 100 m reel
TUS1065BU-20 Tube size: 10 x 6.5 mm | Color: Blue (BU) | Length: 20 m roll
TUS1065BU-100 Tube size: 10 x 6.5 mm | Color: Blue (BU) | Length: 100 m reel
TUS1065W-20 Tube size: 10 x 6.5 mm | Color: White (W) | Length: 20 m roll
TUS1065R-20 Tube size: 10 x 6.5 mm | Color: Red (R) | Length: 20 m roll
TUS1065Y-20 Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 20 m roll
TUS1065G-20 Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 20 m roll
TUS1065N-20 Tube size: 10 x 6.5 mm | Color: Clear (natural) (N) | Length: 20 m roll
TUS1065YB-20 Tube size: 10 x 6.5 mm | Color: Yellow-brown (YB) | Length: 20 m roll
TUS1208B-20 Tube size: 12 x 8 mm | Color: Black (B) | Length: 20 m roll
TUS1208B-100 Tube size: 12 x 8 mm | Color: Black (B) | Length: 100 m reel
TUS1208BU-20 Tube size: 12 x 8 mm | Color: Blue (BU) | Length: 20 m roll
TUS1208BU-100 Tube size: 12 x 8 mm | Color: Blue (BU) | Length: 100 m reel
TUS1208W-20 Tube size: 12 x 8 mm | Color: White (W) | Length: 20 m roll
TUS1208R-20 Tube size: 12 x 8 mm | Color: Red (R) | Length: 20 m roll
TUS1208Y-20 Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 20 m roll
TUS1208G-20 Tube size: 12 x 8 mm | Color: Green (G) | Length: 20 m roll
TUS1208N-20 Tube size: 12 x 8 mm | Color: Clear (natural) (N) | Length: 20 m roll
TUS1208YB-20 Tube size: 12 x 8 mm | Color: Yellow-brown (YB) | Length: 20 m roll
TubingSMC
50 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC TUS Soft Polyurethane Tubing

Brand SMC·Tubing

Available part numbers (50)

TUS0425B-20, TUS0425B-100, TUS0425BU-20, TUS0425BU-100, TUS0425W-20, TUS0425R-20, TUS0425Y-20, TUS0425G-20, TUS0425N-20, TUS0425YB-20 + 40 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
