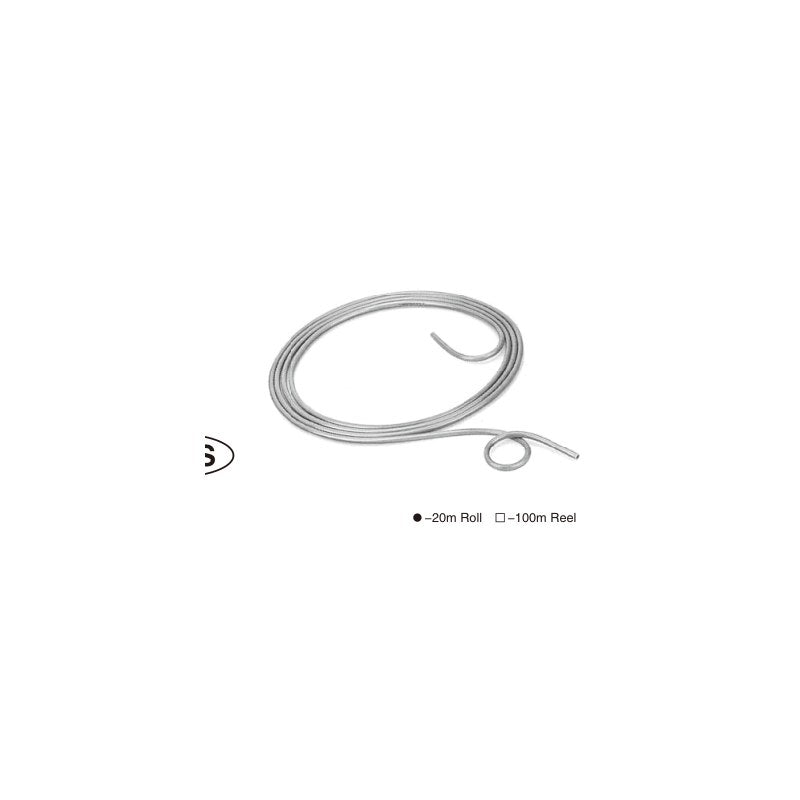

SMC TUZ/TIUZB Wear-Resistant Polyurethane Tubing

SMC TUZ/TIUZB Wear-Resistant Polyurethane Tubing

SMC TUZ series (metric) and TIUZB series (inch) wear-resistant tubing with about one third the wear of standard TU polyurethane, for moving piping in cable carriers.

Key features

  • Special polyurethane: max. wear 0.16 mm after 10 million cycles vs 0.46 mm for TU (SMC test)
  • Metric 2 to 16 mm OD (8 sizes) and inch 1/4 to 1/2 in (3 sizes)
  • Six colors (opaque): black, milky white, red, blue, yellow, green
  • Air and water; one-touch KQ2, insert KF, SUS316 insert KFG and miniature M/MS fittings
  • Flat multi-core versions: TUZ-X169 to X204 (multi-color) and TFU-X73 (same color)

Specifications

Material Special polyurethane
Fluid Air, water
Max. operating pressure 0.8 MPa at 20C, 0.6 at 40C, 0.4 at 60C
Max. operating vacuum -101.3 kPa
Operating temperature -20 to 60C (water 0 to 40C, no freezing)
Min. bending radius 4 mm (TUZ0212) to 45 mm (TUZ1610)
Standards RoHS
Source SMC Korea catalog (SMCKR_TUZ.pdf), p. 693-695
TUZ0212B-100 Tube size: 2 x 1.2 mm | Color: Black (B) | Length: 100 m roll
TUZ3220B-20 Tube size: 3.2 x 2 mm | Color: Black (B) | Length: 20 m roll
TUZ3220B-100 Tube size: 3.2 x 2 mm | Color: Black (B) | Length: 100 m roll
TUZ3220W-20 Tube size: 3.2 x 2 mm | Color: Milky white (W) | Length: 20 m roll
TUZ3220W-100 Tube size: 3.2 x 2 mm | Color: Milky white (W) | Length: 100 m roll
TUZ3220BU-20 Tube size: 3.2 x 2 mm | Color: Blue (BU) | Length: 20 m roll
TUZ3220BU-100 Tube size: 3.2 x 2 mm | Color: Blue (BU) | Length: 100 m roll
TUZ0425B-20 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 20 m roll
TUZ0425B-100 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 100 m roll
TUZ0425W-20 Tube size: 4 x 2.5 mm | Color: Milky white (W) | Length: 20 m roll
TUZ0425W-100 Tube size: 4 x 2.5 mm | Color: Milky white (W) | Length: 100 m roll
TUZ0425R-20 Tube size: 4 x 2.5 mm | Color: Red (R) | Length: 20 m roll
TUZ0425R-100 Tube size: 4 x 2.5 mm | Color: Red (R) | Length: 100 m roll
TUZ0425BU-20 Tube size: 4 x 2.5 mm | Color: Blue (BU) | Length: 20 m roll
TUZ0425BU-100 Tube size: 4 x 2.5 mm | Color: Blue (BU) | Length: 100 m roll
TUZ0425Y-20 Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 20 m roll
TUZ0425Y-100 Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 100 m roll
TUZ0425G-20 Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 20 m roll
TUZ0425G-100 Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 100 m roll
TUZ0604B-20 Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll
TUZ0604B-100 Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m roll
TUZ0604W-20 Tube size: 6 x 4 mm | Color: Milky white (W) | Length: 20 m roll
TUZ0604W-100 Tube size: 6 x 4 mm | Color: Milky white (W) | Length: 100 m roll
TUZ0604R-20 Tube size: 6 x 4 mm | Color: Red (R) | Length: 20 m roll
TUZ0604R-100 Tube size: 6 x 4 mm | Color: Red (R) | Length: 100 m roll
TUZ0604BU-20 Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 20 m roll
TUZ0604BU-100 Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 100 m roll
TUZ0604Y-20 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 20 m roll
TUZ0604Y-100 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 100 m roll
TUZ0604G-20 Tube size: 6 x 4 mm | Color: Green (G) | Length: 20 m roll
TUZ0604G-100 Tube size: 6 x 4 mm | Color: Green (G) | Length: 100 m roll
TUZ0805B-20 Tube size: 8 x 5 mm | Color: Black (B) | Length: 20 m roll
TUZ0805B-100 Tube size: 8 x 5 mm | Color: Black (B) | Length: 100 m roll
TUZ0805W-20 Tube size: 8 x 5 mm | Color: Milky white (W) | Length: 20 m roll
TUZ0805W-100 Tube size: 8 x 5 mm | Color: Milky white (W) | Length: 100 m roll
TUZ0805R-20 Tube size: 8 x 5 mm | Color: Red (R) | Length: 20 m roll
TUZ0805R-100 Tube size: 8 x 5 mm | Color: Red (R) | Length: 100 m roll
TUZ0805BU-20 Tube size: 8 x 5 mm | Color: Blue (BU) | Length: 20 m roll
TUZ0805BU-100 Tube size: 8 x 5 mm | Color: Blue (BU) | Length: 100 m roll
TUZ0805Y-20 Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 20 m roll
TUZ0805Y-100 Tube size: 8 x 5 mm | Color: Yellow (Y) | Length: 100 m roll
TUZ0805G-20 Tube size: 8 x 5 mm | Color: Green (G) | Length: 20 m roll
TUZ0805G-100 Tube size: 8 x 5 mm | Color: Green (G) | Length: 100 m roll
TUZ1065B-20 Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 20 m roll
TUZ1065B-100 Tube size: 10 x 6.5 mm | Color: Black (B) | Length: 100 m roll
TUZ1065W-20 Tube size: 10 x 6.5 mm | Color: Milky white (W) | Length: 20 m roll
TUZ1065W-100 Tube size: 10 x 6.5 mm | Color: Milky white (W) | Length: 100 m roll
TUZ1065R-20 Tube size: 10 x 6.5 mm | Color: Red (R) | Length: 20 m roll
TUZ1065R-100 Tube size: 10 x 6.5 mm | Color: Red (R) | Length: 100 m roll
TUZ1065BU-20 Tube size: 10 x 6.5 mm | Color: Blue (BU) | Length: 20 m roll
TUZ1065BU-100 Tube size: 10 x 6.5 mm | Color: Blue (BU) | Length: 100 m roll
TUZ1065Y-20 Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 20 m roll
TUZ1065Y-100 Tube size: 10 x 6.5 mm | Color: Yellow (Y) | Length: 100 m roll
TUZ1065G-20 Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 20 m roll
TUZ1065G-100 Tube size: 10 x 6.5 mm | Color: Green (G) | Length: 100 m roll
TUZ1208B-20 Tube size: 12 x 8 mm | Color: Black (B) | Length: 20 m roll
TUZ1208B-100 Tube size: 12 x 8 mm | Color: Black (B) | Length: 100 m roll
TUZ1208W-20 Tube size: 12 x 8 mm | Color: Milky white (W) | Length: 20 m roll
TUZ1208W-100 Tube size: 12 x 8 mm | Color: Milky white (W) | Length: 100 m roll
TUZ1208R-20 Tube size: 12 x 8 mm | Color: Red (R) | Length: 20 m roll
TUZ1208R-100 Tube size: 12 x 8 mm | Color: Red (R) | Length: 100 m roll
TUZ1208BU-20 Tube size: 12 x 8 mm | Color: Blue (BU) | Length: 20 m roll
TUZ1208BU-100 Tube size: 12 x 8 mm | Color: Blue (BU) | Length: 100 m roll
TUZ1208Y-20 Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 20 m roll
TUZ1208Y-100 Tube size: 12 x 8 mm | Color: Yellow (Y) | Length: 100 m roll
TUZ1208G-20 Tube size: 12 x 8 mm | Color: Green (G) | Length: 20 m roll
TUZ1208G-100 Tube size: 12 x 8 mm | Color: Green (G) | Length: 100 m roll
TUZ1610B-100 Tube size: 16 x 10 mm | Color: Black (B) | Length: 100 m roll
TIUZB07B-20 Tube size: 1/4 in (6.35 x 4.23 mm) | Color: Black (B) | Length: 20 m roll
TIUZB07W-20 Tube size: 1/4 in (6.35 x 4.23 mm) | Color: Milky white (W) | Length: 20 m roll
TIUZB07R-20 Tube size: 1/4 in (6.35 x 4.23 mm) | Color: Red (R) | Length: 20 m roll
TIUZB07BU-20 Tube size: 1/4 in (6.35 x 4.23 mm) | Color: Blue (BU) | Length: 20 m roll
TIUZB07Y-20 Tube size: 1/4 in (6.35 x 4.23 mm) | Color: Yellow (Y) | Length: 20 m roll
TIUZB07G-20 Tube size: 1/4 in (6.35 x 4.23 mm) | Color: Green (G) | Length: 20 m roll
TIUZB11B-20 Tube size: 3/8 in (9.53 x 6.35 mm) | Color: Black (B) | Length: 20 m roll
TIUZB11W-20 Tube size: 3/8 in (9.53 x 6.35 mm) | Color: Milky white (W) | Length: 20 m roll
TIUZB11R-20 Tube size: 3/8 in (9.53 x 6.35 mm) | Color: Red (R) | Length: 20 m roll
TIUZB11BU-20 Tube size: 3/8 in (9.53 x 6.35 mm) | Color: Blue (BU) | Length: 20 m roll
TIUZB11Y-20 Tube size: 3/8 in (9.53 x 6.35 mm) | Color: Yellow (Y) | Length: 20 m roll
TIUZB11G-20 Tube size: 3/8 in (9.53 x 6.35 mm) | Color: Green (G) | Length: 20 m roll
TIUZB13B-20 Tube size: 1/2 in (12.7 x 8.46 mm) | Color: Black (B) | Length: 20 m roll
TIUZB13W-20 Tube size: 1/2 in (12.7 x 8.46 mm) | Color: Milky white (W) | Length: 20 m roll
TIUZB13R-20 Tube size: 1/2 in (12.7 x 8.46 mm) | Color: Red (R) | Length: 20 m roll
TIUZB13BU-20 Tube size: 1/2 in (12.7 x 8.46 mm) | Color: Blue (BU) | Length: 20 m roll
TIUZB13Y-20 Tube size: 1/2 in (12.7 x 8.46 mm) | Color: Yellow (Y) | Length: 20 m roll
TIUZB13G-20 Tube size: 1/2 in (12.7 x 8.46 mm) | Color: Green (G) | Length: 20 m roll
TubingSMC
86 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC TUZ/TIUZB Wear-Resistant Polyurethane Tubing

Brand SMC·Tubing

Available part numbers (86)

TUZ0212B-100, TUZ3220B-20, TUZ3220B-100, TUZ3220W-20, TUZ3220W-100, TUZ3220BU-20, TUZ3220BU-100, TUZ0425B-20, TUZ0425B-100, TUZ0425W-20 + 76 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
